Important Information – Quick Reference | |
We
strongly urge that you read the information provided in pages referred
hereunder which will help in road safety and prevent
inconvenience
|
1
|
Warranty
Coverage.............................................................................................
|
Refer WSIG* (P.g. 15)
|
2
|
Roadside Assistance
....................................................................................
|
Refer WSIG* (P.g. 11)
|
3
|
Schedule Service
(Free/Paid).................................................................
|
Refer WSIG* (P.g. 24)
|
4
|
Maintenance Schedule
Chart.................................................................................
|
Refer WSIG* (P.g. 26)
|
5
|
Lubricants And
Capacities.............................................................................
|
Refer WSIG* (P.g. 30)
|
6
|
Location Of Vehicle Identification Number
(VIN).................................................
|
Refer (P.g. 1-7)
|
7
|
Location Of Fuse Box And Fuse
Details............................................................
|
Refer (P.g. 10-10)
|
8
|
Changing A Flat
Tyre................................................................
|
Refer (P.g. 10-21)
|
9
|
Understanding The Warning
Lamps..........................................................
|
Refer (P.g. 3-38)
|
10
|
Use Of Seat Belts And Child
Restraint......................................
|
Refer (P.g. 2-11)
|
11
|
Understanding The Airbag
Function.........................................................
|
Refer (P.g. 2-30)
|
12
|
If Your Vehicle Is
Submerged.....................................................
|
Refer (P.g. 8-8)
|
13
|
Driving Through
Water..................................................................................
|
Refer (P.g. 8-8)
|
14
|
Opening And Closing the
Bonnet.........................................
|
Refer (P.g. 5-22)
|
15
|
Location Of Battery And Its
Maintenance.....................................
|
Refer (P.g. 11-8, 11-9 & 11-16)
|
*Warranty and Service Information Guide
# - In view of our policy of continuously improving our products, we reserve the right to alter specifications, designs or
features without prior notice and without liability. We recommend you to refer the Variant Matrix in the Brand official website
or contact the nearest Authorised Mahindra Dealer for the list of features applicable to your vehicle.
The vehicle's software and security measures are subject to ongoing development. Similar to computers and mobile device operating
systems, the software and security features of the car might also receive irregular updates.
|
If you see this symbol, it indicates “no,”
“ do not,” “do not do this,” or “never”.
|
|
1. | First-aid kit is placed in the glove box of the vehicle. Ensure it is not taken out of the vehicle at any point of time. |
2. | Please note that throughout this manual, reference is made that “an accident” could occur. An accident could cause you or a bystander to sustain personal injury, or result in property damage. |
3. | Inspect the seat belt system periodically, checking for cuts, frays or wear in the seat belt webbing, or loose buckles, retractors, anchors or other loose parts. Damaged parts must be replaced immediately. |
4. | The lifespan of Mahindra products depends on many factors. Improper use, abuse or harsh use in general may compromise the integrity of the vehicle and significantly reduce its lifespan. The vehicle is also subject to wear over a period of time. Please have your vehicle regularly inspected by a Mahindra Authorised Dealer or a qualified Technician . If the inspection reveals any damage or excessive wear, immediately replace, or have the component serviced. |
5. | The vehicle identification plates are the only legal identification reference; hence it is necessary to keep them in good condition. Never modify data on the plates or remove them. It is illegal to remove or alter the numbers in the VIN plate. |
6. | Do not attempt sharp turns, abrupt maneuvers, or other unsafe driving actions that can cause loss of vehicle control. When the vehicle is fully loaded, drive at a slow speed, especially when turning. Note that the center of gravity of the vehicle changes when the vehicle is fully loaded, and also if luggage is mounted on the roof carrier. |
• | Take breaks at regular intervals |
• | Lack of sleep or fatigue will impact your ability to drive safely |
• | Exercise your eyes by shifting the focus of your eyes to different parts of the road |
• | Use stimulating beverages such as coffee or tea |
• | Relax and stay calm |
• | The company shall not be liable / responsible for any damages / injuries, including consequential damages / injuries, resulting due to fitment of unauthorised aftermarket accessories and / or tapping / cutting wires in the wiring harness When adding accessories, equipment, passengers and luggage to your vehicle, do not exceed the total weight capacity of the vehicle or of the front and rear axle. Consult Mahindra Authorised Dealer for specific weight information |
• | Bull bars and nudge guards are not recommended |
• | Accessories causing any change in vehicle specifications like wheel rims, bull bars, etc., may affect the performance of safety systems |
• | Mobile communication systems such as two-way radios, telephones and theft alarms that are equipped with radio transmitters and installed in your vehicle should comply with the local regulations and should be installed only by your Mahindra Authorised Dealer and can potentially affect the vehicle performance. |
• | Always remove the ignition key when you park the vehicle |
• | In case of PKE, please lock and take the key fob with you |
• | Close all the windows completely and lock all the doors |
• | Do not leave any valuables in your vehicle. If you must leave something in your vehicle, hide them and securely lock all the doors |
1. | Do not sleep in a parked car with closed windows. In particular, if you stay or sleep in the car with the engine running and the air conditioner or heater turned on, you can suffocate to death |
2. | Sleeping in a closed space with the engine running puts you at high risk of suffocation from the exhausts |
3. | While sleeping, you may accidentally touch the gear shift lever or accelerator and thereby cause an accident |
4. | While sleeping in the car with the engine running, you may accidentally step on the accelerator, thereby overheating the engine and exhaust pipe and causing a fire |
• | If the safety mode is activated, pull over and stop the vehicle to a safe location immediately and contact your Mahindra dealer. Then drive slowly or have the vehicle towed to a Mahindra Authorised Dealer according to the dealer’s instruction and have your vehicle checked by a Technician |
• | If you continue to drive in this state, normal driving is not maintained due to the fixed engine rpm and engine can stop. But even more importantly, continued driving with this state may damage the drive system |
• | The vehicle you bought is equipped with a large number of precision parts that have passed through countless experiments and tests. |
• | These parts are deeply and systematically interwoven. Therefore, if any part is modified or altered without authorization, may under perform or cause critical damage to the vehicle and human life |
|
The chassis number is punched on the right
side chassis side member below the front fender. It is also stamped on to
the bottom
of the B-Pillar on the driver side
|

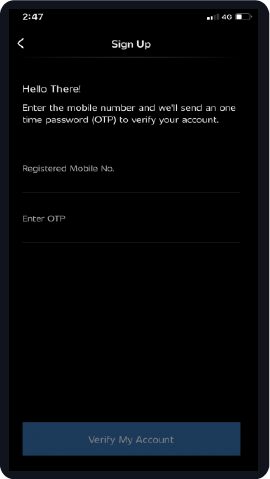

• | Customer must have valid mobile number, communication address & email ID for KYC registration purpose. |
• | Preferred mobile number provided during the KYC process will used to login the AdrenoX Connect mobile app. |
• | After successful KYC registration, customer must download the “AdrenoX Connect” mobile application from Google Play store or iOS app store. |
1. | You can select sign up option from login page which redirects to sign up page. |
2. | Enter registered Mobile number given for KYC process form for connected services and click on Generate OTP. |
3. | OTP with a validity will be sent to the same mobile number. |
4. | If OTP is not received, you can request the OTP again by clicking on "Resend OTP". |
5. | After entering valid OTP, click on “Verify My account”. |
6. | On successful verification you will be notified with a message " Account Verified". |
7. | You will be directed to "Terms and Condition" with "I Agree" option on successful authentication. |
• | Tap on the Forgot Password? option available in login page. |
• | In forgot password page, enter the registered mobile number for connected services and click on Generate OTP. |
• | Enter the OTP and click on Next button. |
• | Enter New Password and Confirm Password and tap on Save button. |
• | Tap on the top Left corner menu icon from home screen. |
• | Click on My Account and select Change Password. |
• | Page will allow to set a new password by entering the existing password. |
• | Fill old password, New password and confirm password fields and tap on save button. |
FEATURE
|
DESCRIPTION
|
---|---|
Alerts
|
|
Over Speed Alert
|
Alerts when your car exceeds the set speed limit. This speed limit value can be set under alert configuration in mobile application.
|
High Engine Temperature Alert
|
Alerts when Engine temperature
beyond the predefined limit.
|

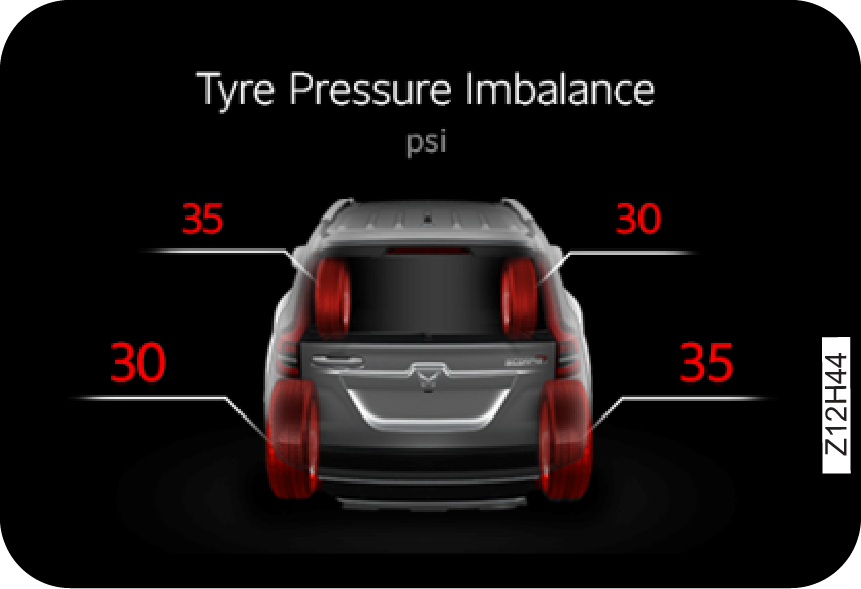

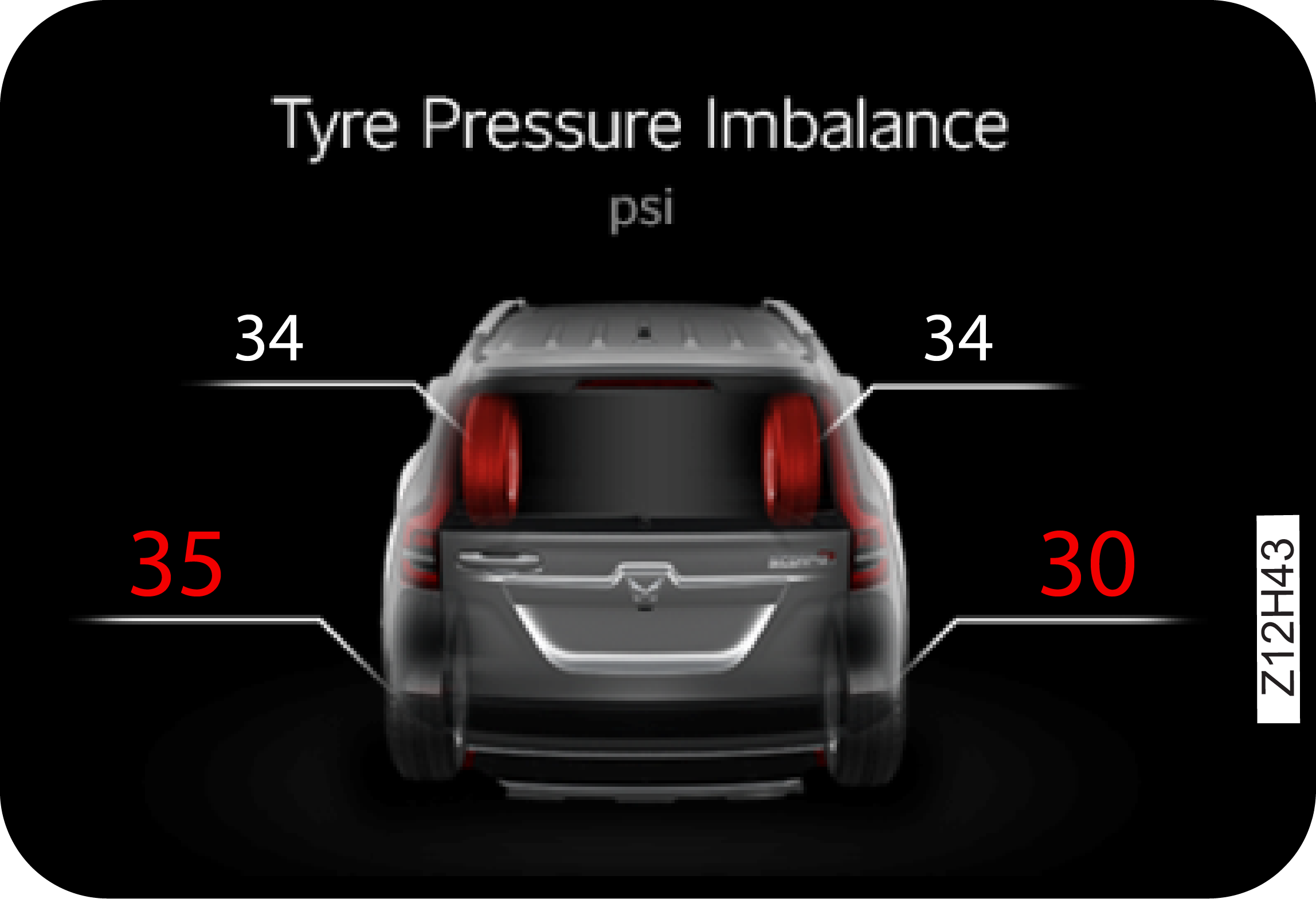

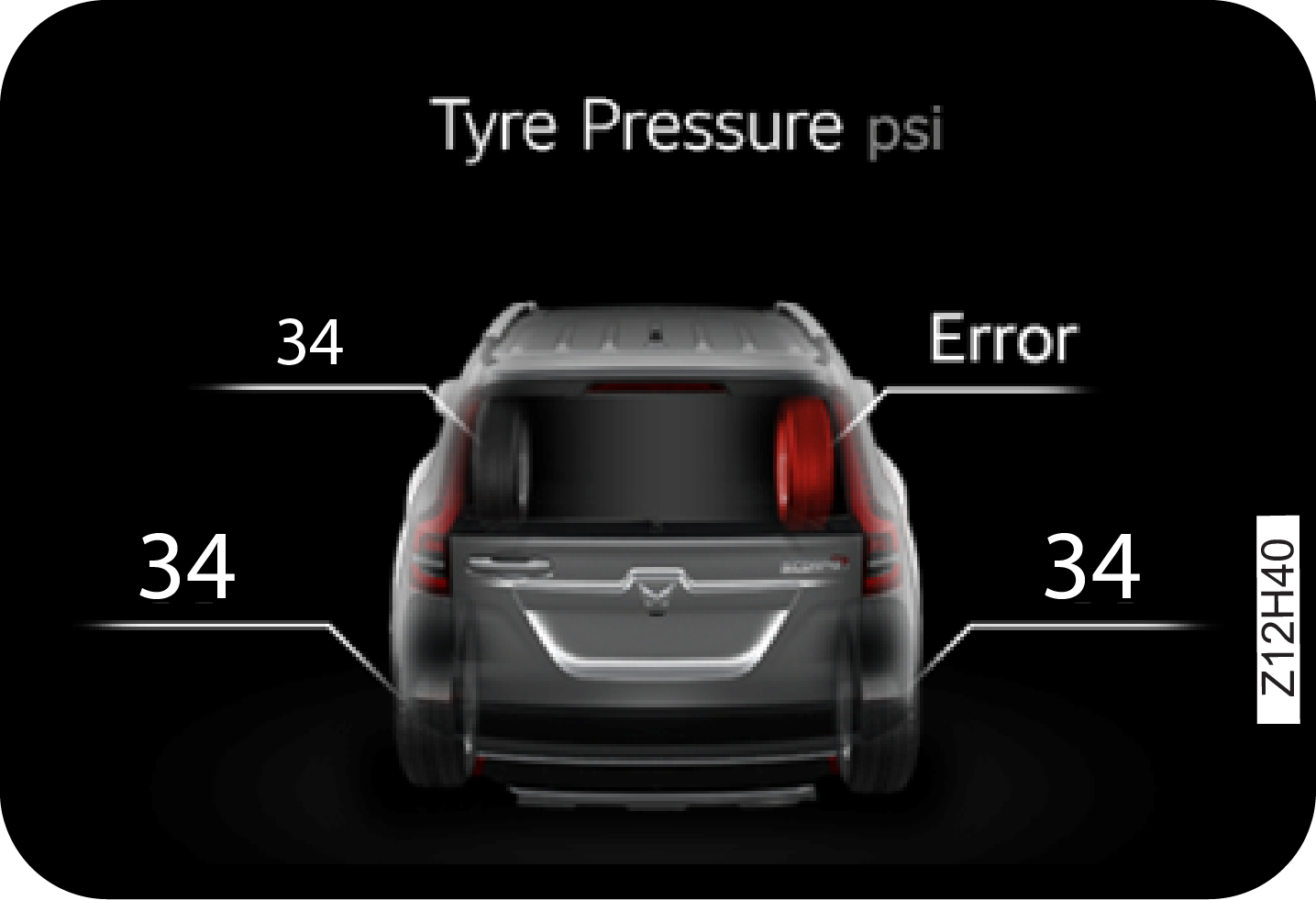

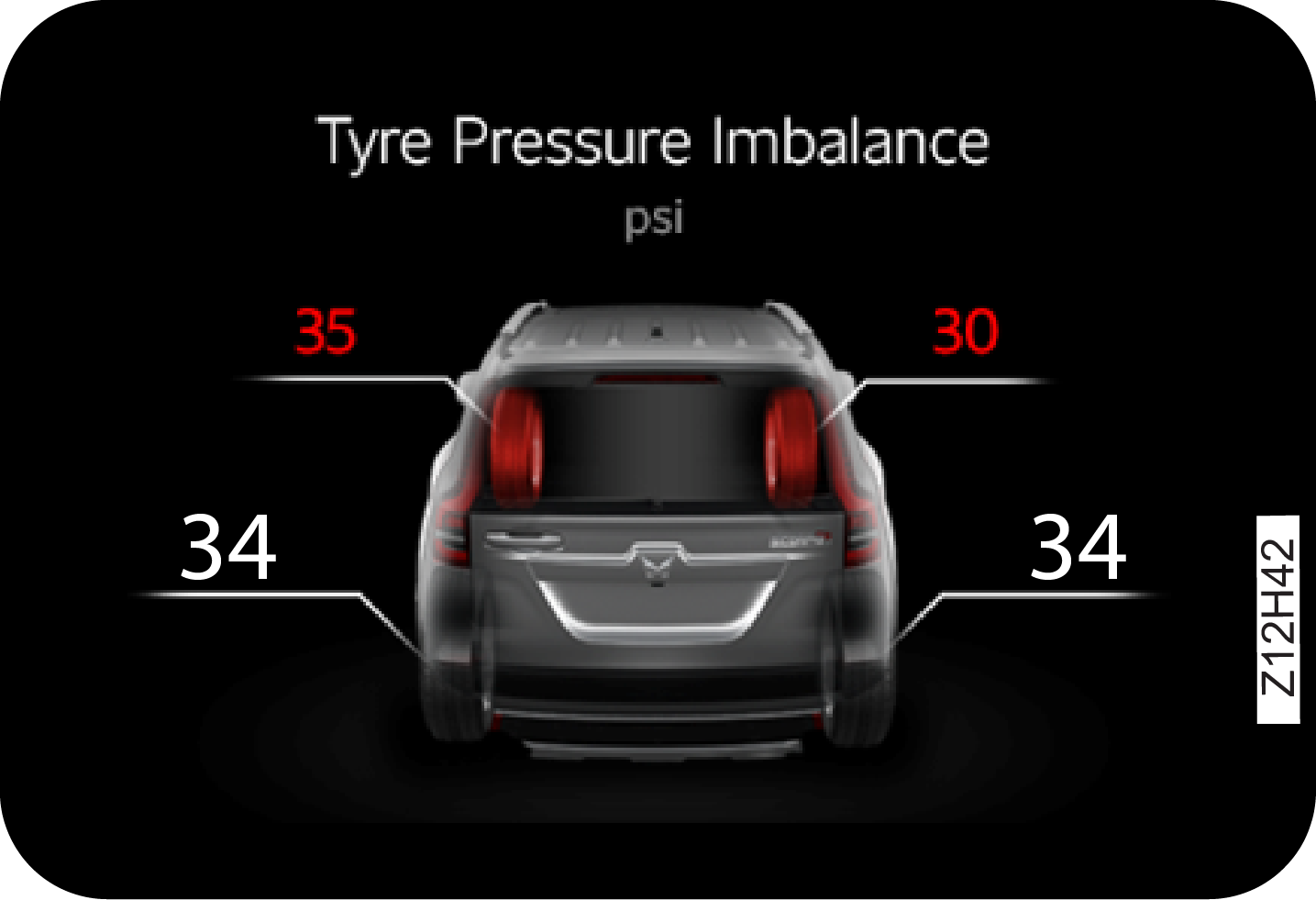

Tyre Pressure Alert
|
Alerts on excessive/very low and high tyre pressure and assist with nearby petrol station.
|
Lamp Status Alert
|
Alerts when vehicle park lamp
left in ON condition
while locking the vehicle.
Notifies when the vehicle park
lamp is left in ON condition and helps to turn OFF remotely via
mobile application.
|
Vehicle Start/Stop Alert
|
Notifies when normal vehicle
start /stop event is detected.
|
Door Open Alert
|
Notifies when any of the doors
open while vehicle is moving and also when you trigger for door
lock and the door remains open
unintentionally.
|
Geo-Fence Alert
|
Alerts when your vehicle moves
out of a set boundary area.
Helps you to create virtual
boundary for any region and will be notified whenever your
vehicle moves in or out of that boundary.
|
Unauthorised vehicle entry
Alert
|
Alerts the user when any
unauthorized entry in the vehicle is detected.
|
Low Fuel Alert
|
Identifies low fuel level and
notifies in your mobile application. Helps in assisting you to
nearby fuel station.
|
Route Deviation Alert
|
Alerts the user when the
vehicle deviates from the pre-defined path.
|
Time Fencing Alert
|
Notifies you when any movement
of vehicle is detected during set time period.
|
Seat Belt Alert
|
Notifies you whenever the
driver/ co-driver is not wearing the seat belt during vehicle
movement in mobile application.
|

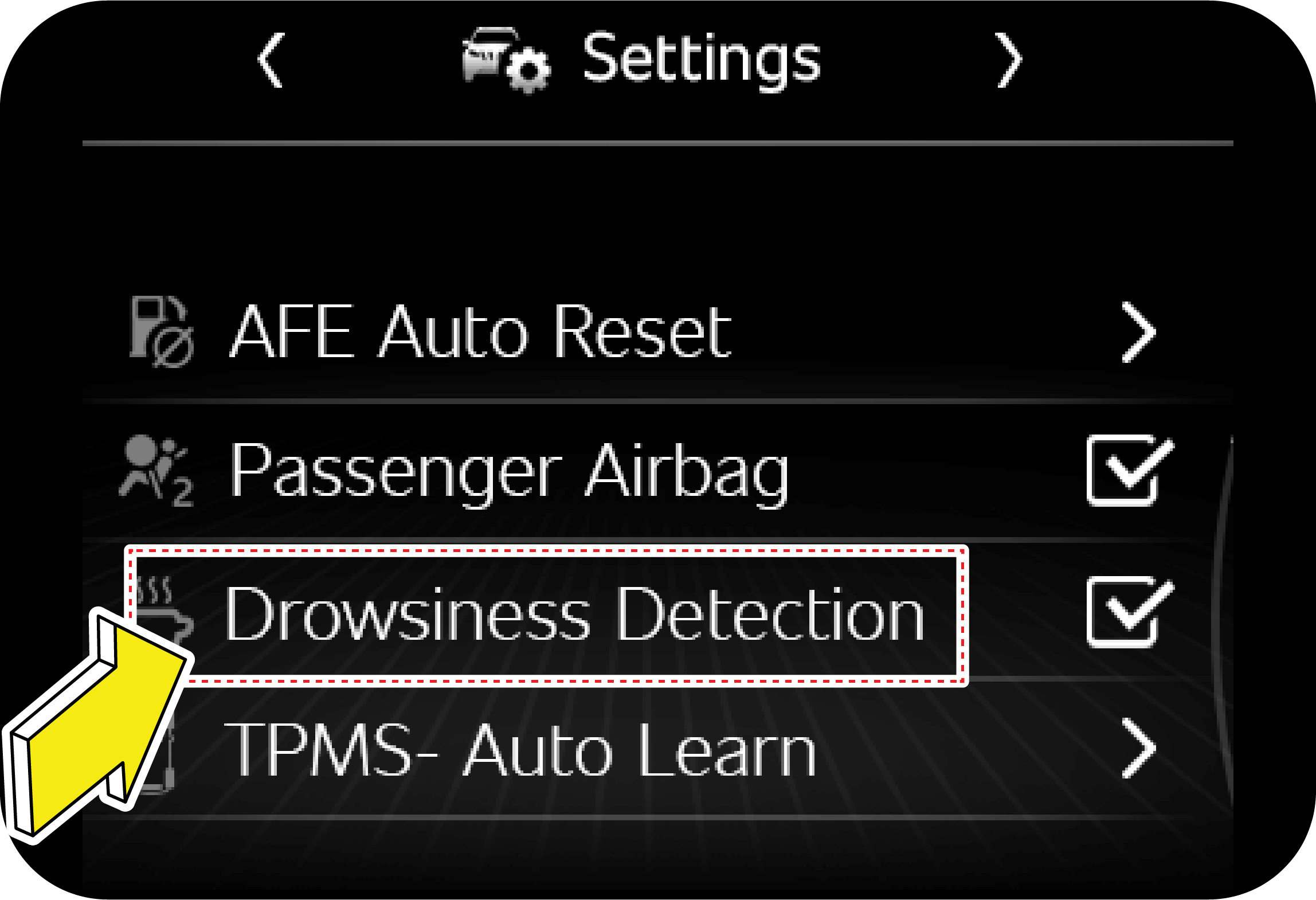

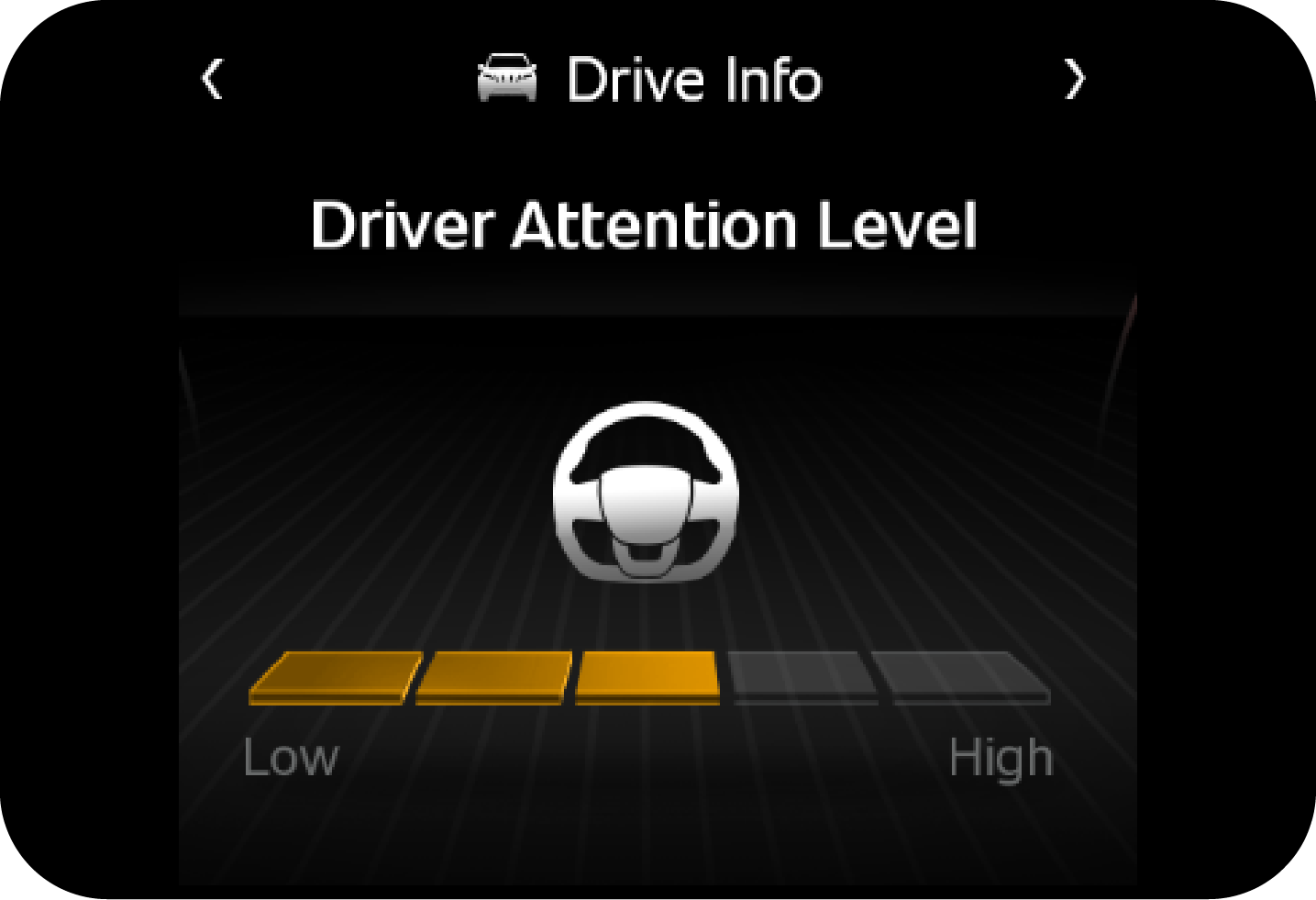

Driver Drowsiness Alert
|
Alerts the user when the driver
is detected to be drowsy while driving.
|
Insurance expiry Alert
|
Suggests in advance to renew
the Insurance as expiry date of Insurance approaches.
Notifies you in advance when
the insurance is about to expire.
|
PUC expiry Alert
|
Notifies you in advance when
the PUC is about to expire.
|
Engine Idle Alert
|
Alerts when engine idling is
detected for a set period of time. Time can be configured in
mobile application.
|
Location Based Service
|
|
Live tracking
|
GPS based vehicle tracking
system for tracking vehicle’s location anywhere and at any
point of time.
Helps to provide the real time
vehicle location when vehicle is in movement.
Helps in sharing the vehicle
location for a set time to your family and friends.
|
Save Route / Save Place
|
Provision to save a route
/place.
|
Find my car
|
Helps to identify the vehicle’s
location and directs you to locate your vehicle.
|
Share my car location
|
Share your car's location with
friends and family.
|
Push to car
|
Allows the user to push
routes/location from the mobile app to the vehicle.
|
Sync location on SUV
|
Provides updates of any
upcoming event by syncing with the calendar.
|
Ecosense
|
Provides the details about the
driving behavior for each trip.
|
Trip History
|
Provides detailed information
about the trips.
|
Weekly Report
|
Provides details about various
vehicle parameters for a defined time period.
|
Trip Replay
|
Provides glimpse of the trip in
a form of a short video.
|
Pit Stops
|
Provides information and
navigational access to nearby restaurant, ATM, Mahindra
Dealership and so on.
|
Read Vehicle Status
|
|
Check door status
|
Allows the user to view the
current status of the vehicle door.
|
Check tyre pressure
|
Allows the user to view the
current status of tyre pressure.
|
Check lamp status
|
Allows the user to view the current status of vehicle lamps.
|
Check ODO
|
Allows the customer to check
the odometer of the vehicle.
|
My SUV info
|
Essential information about the
vehicle like VIN, Variant and so on.
|
Check AC Status
|
Allows the user to view the
current status of the AC.
|
Check Distance to empty
|
Helps to check distance to
empty range i.e. the distance can be covered with the available
fuel.
|
Seat Belt Status
|
Helps the user to check the
Driver/Co-Driver seat belt is buckled or not.
|
Safety
|
|
E-Call
|
In case of accident, Emergency
call will be triggered from vehicle, SMS will be sent to With
You Hamesha & Emergency contacts
along with the current vehicle location.
|

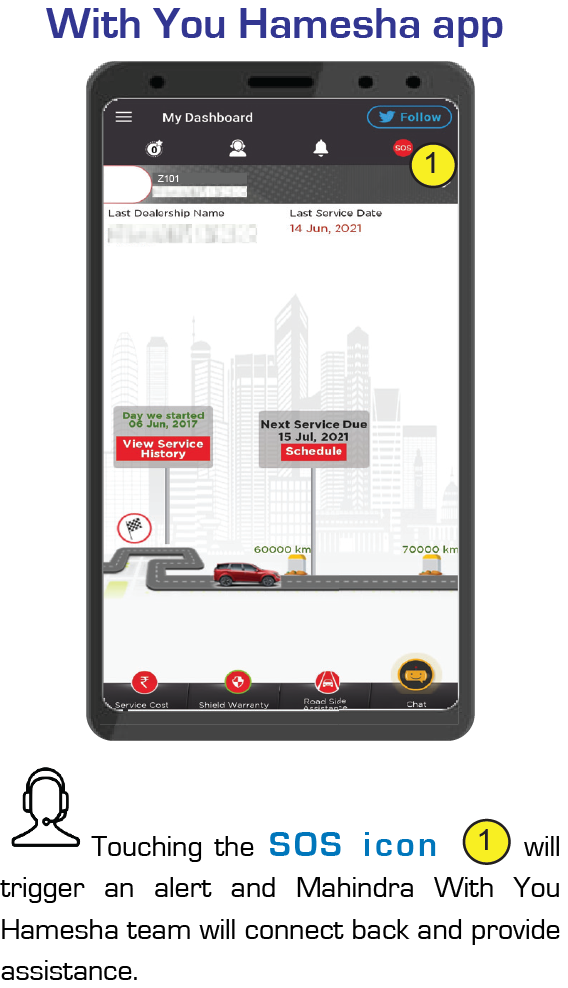

SOS Button
|
In case of SOS is initiated,
SOS call will be triggered from vehicle, SMS will be sent to
With You Hamesha & Emergency contacts
along with the current vehicle location.
|

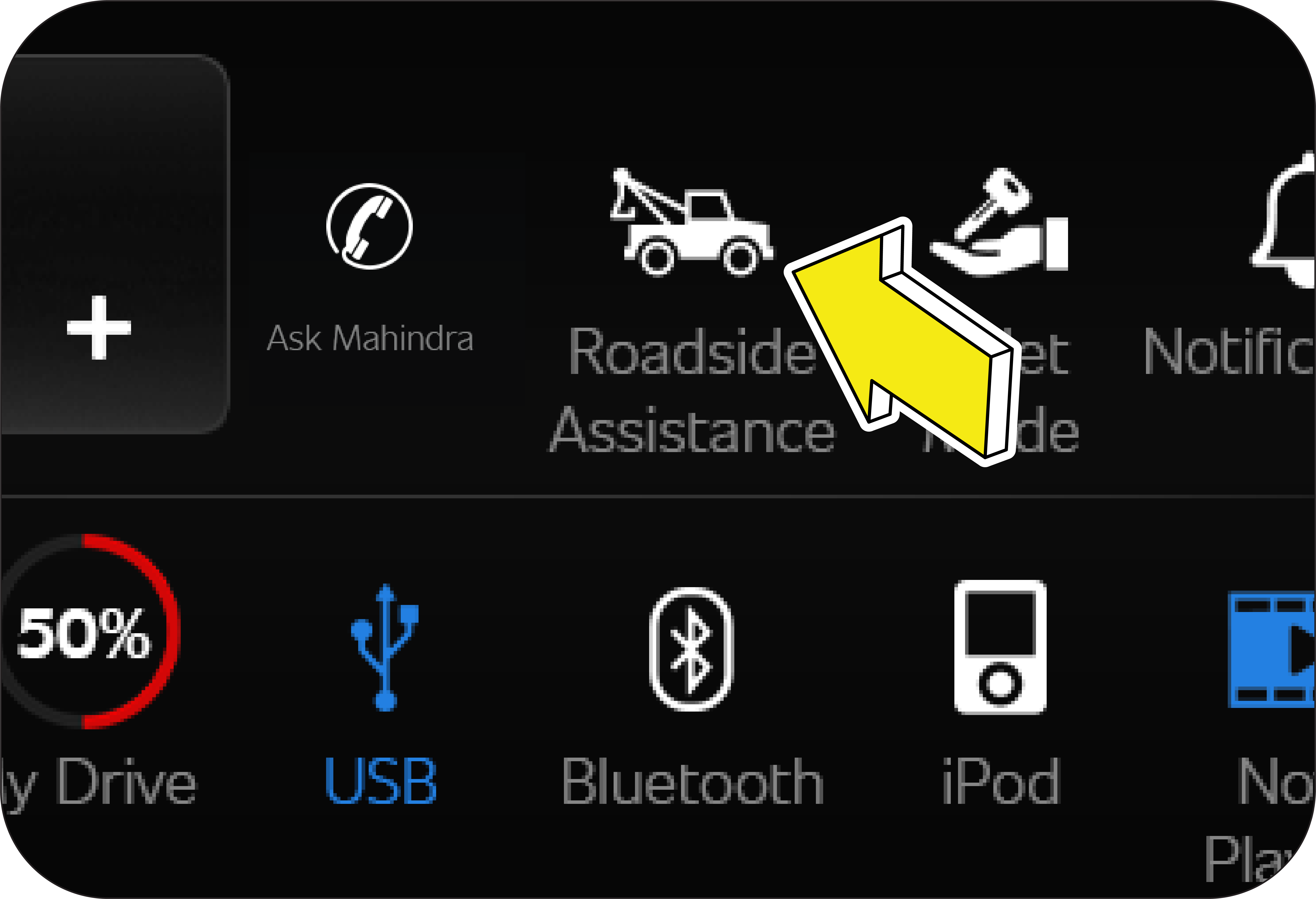

Road Side Assistance
|
Allows the user to reach out
for help with Mahindra Roadside Assistance team in case of
vehicle breakdown.
|

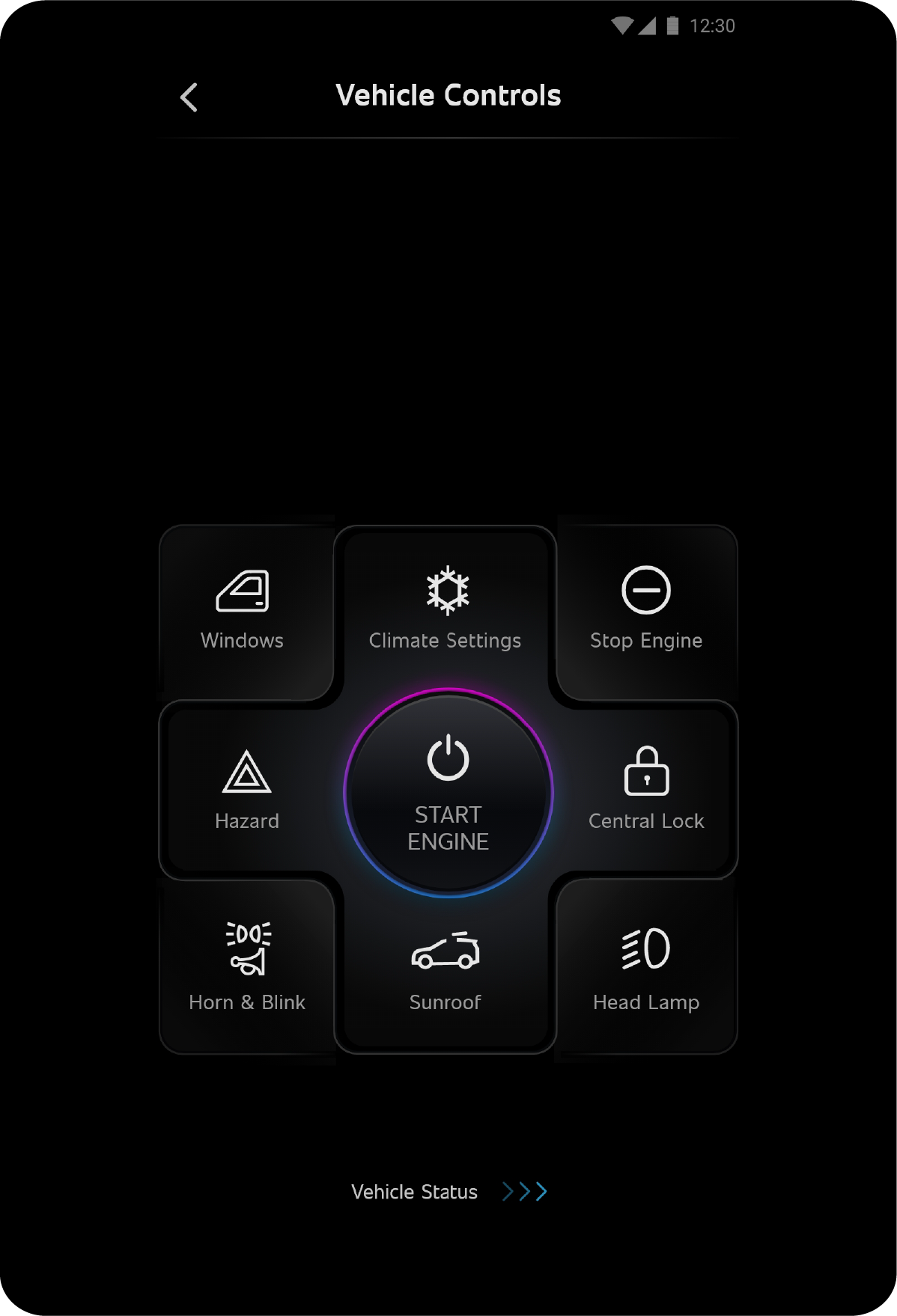

Remote Function
|
|

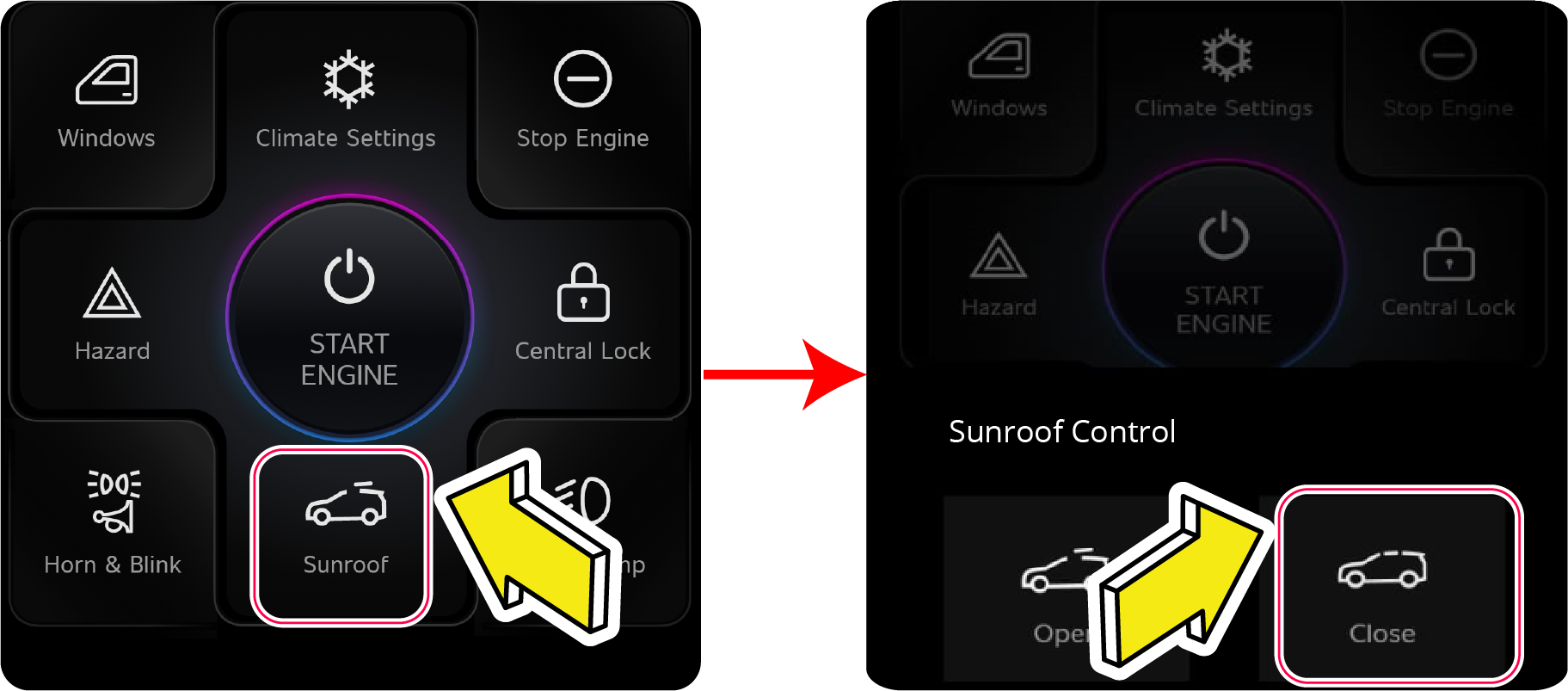

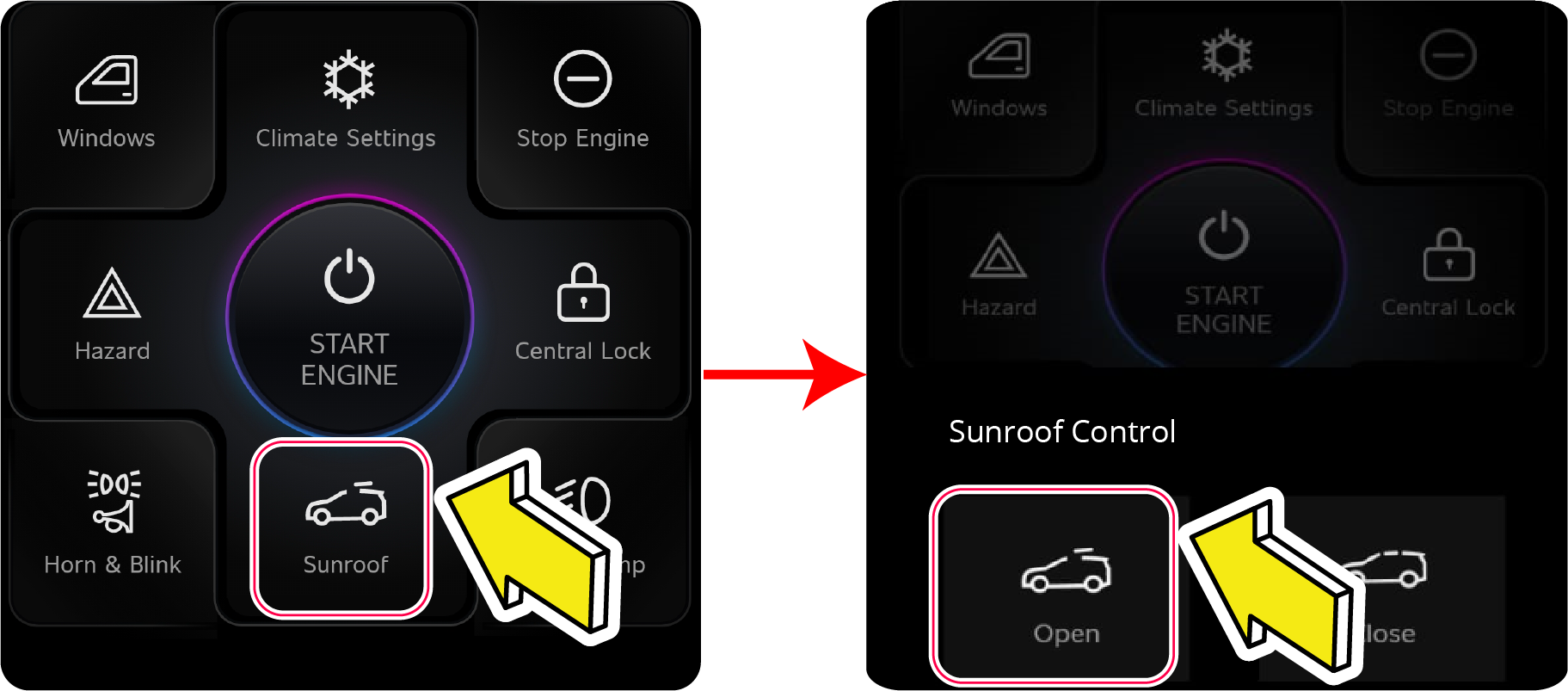

Remote Sunroof control
|
Allows the user to remotely
control Sunroof using mobile app.
|

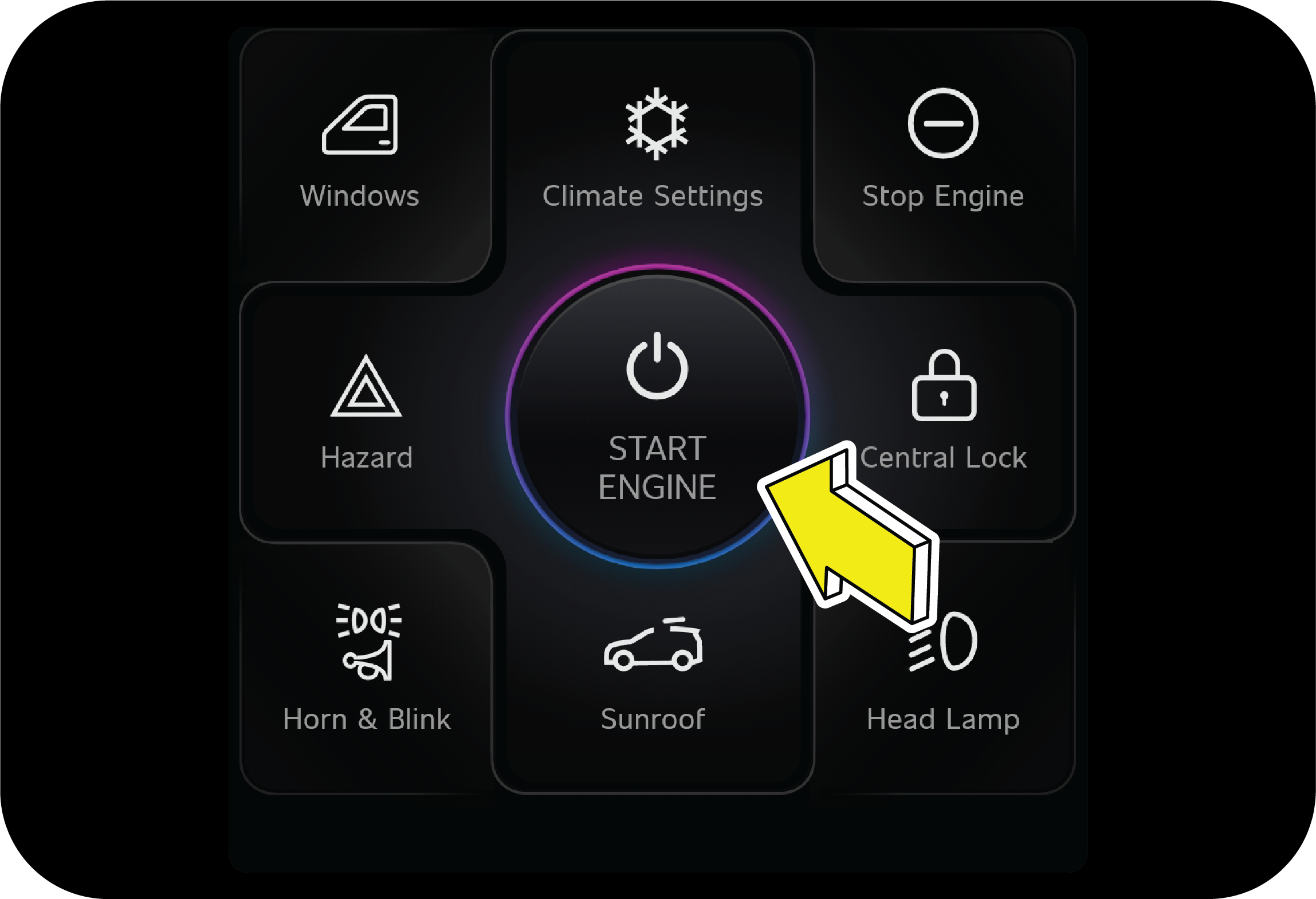

Remote Start/ Stop
|
Allows the user to remotely
start or stop the vehicle using mobile app.
|

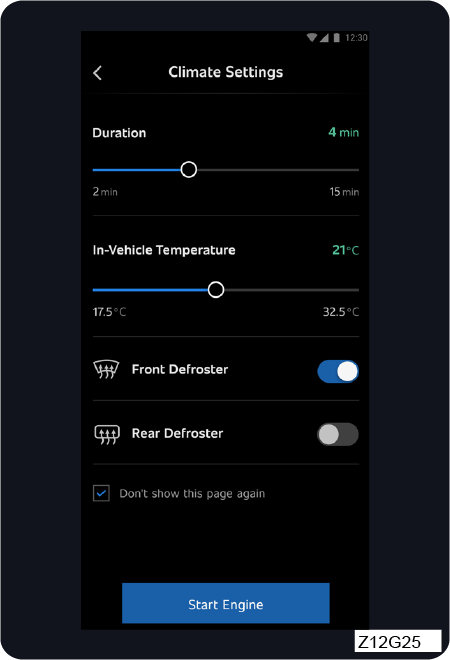

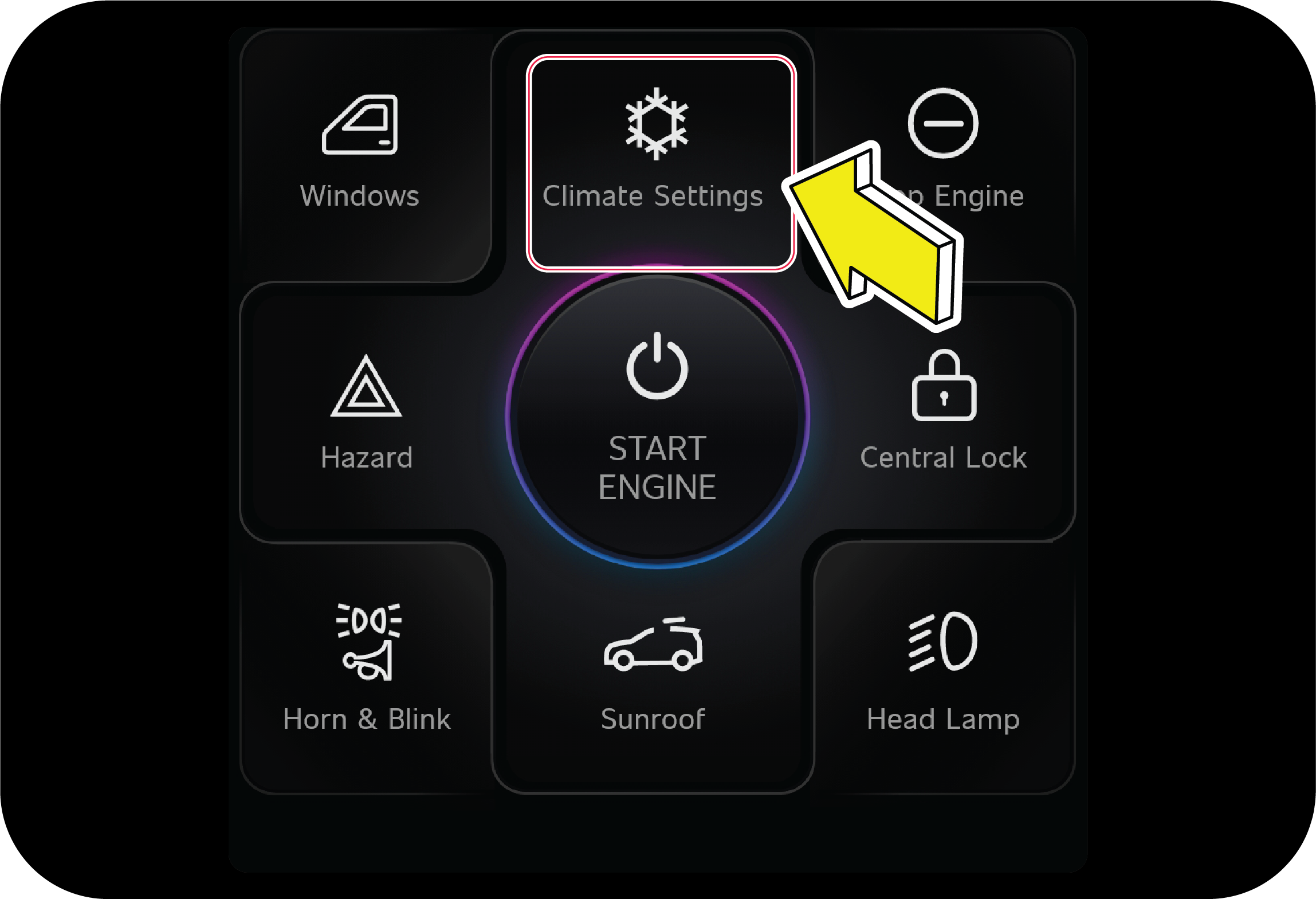

Remote Climate control
|
Allows the user to remotely
configure the in- vehicle temperature during remote start using
mobile app.
|

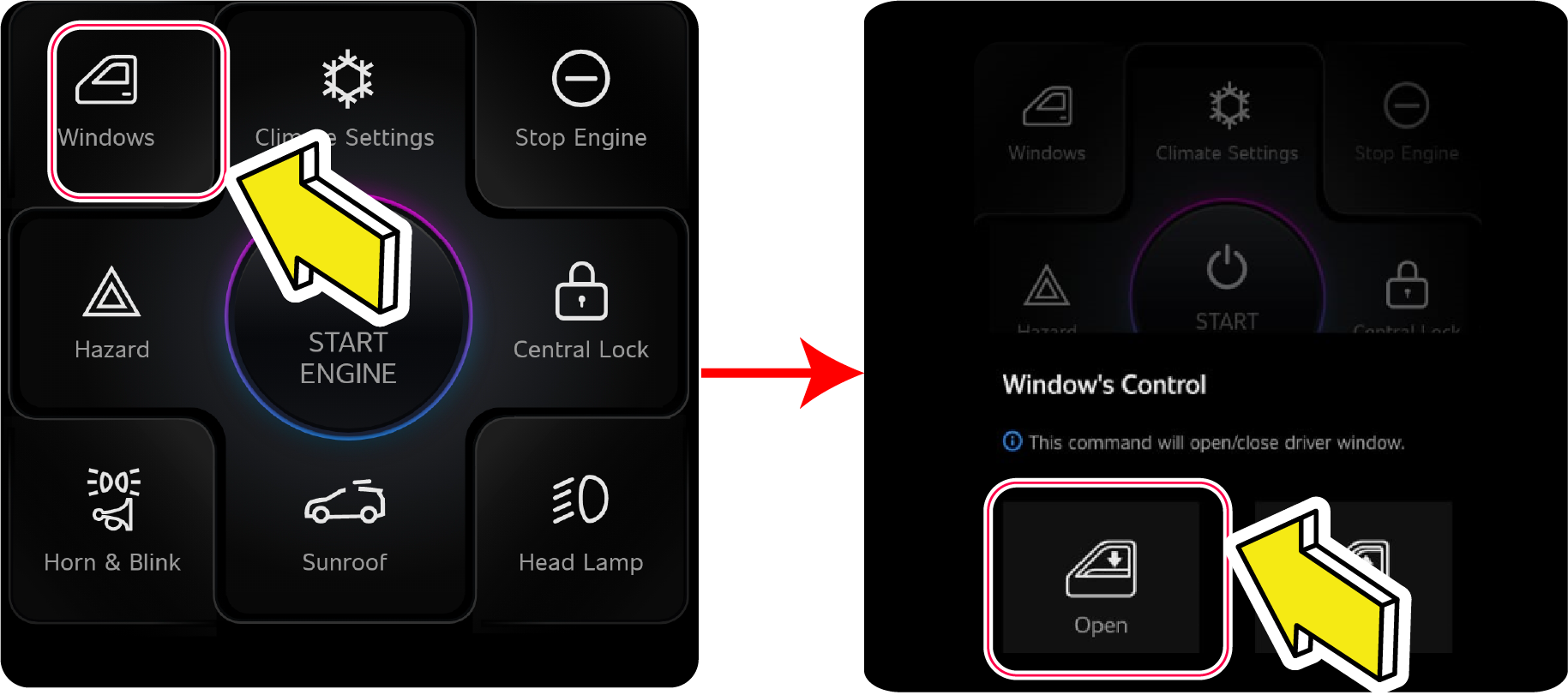

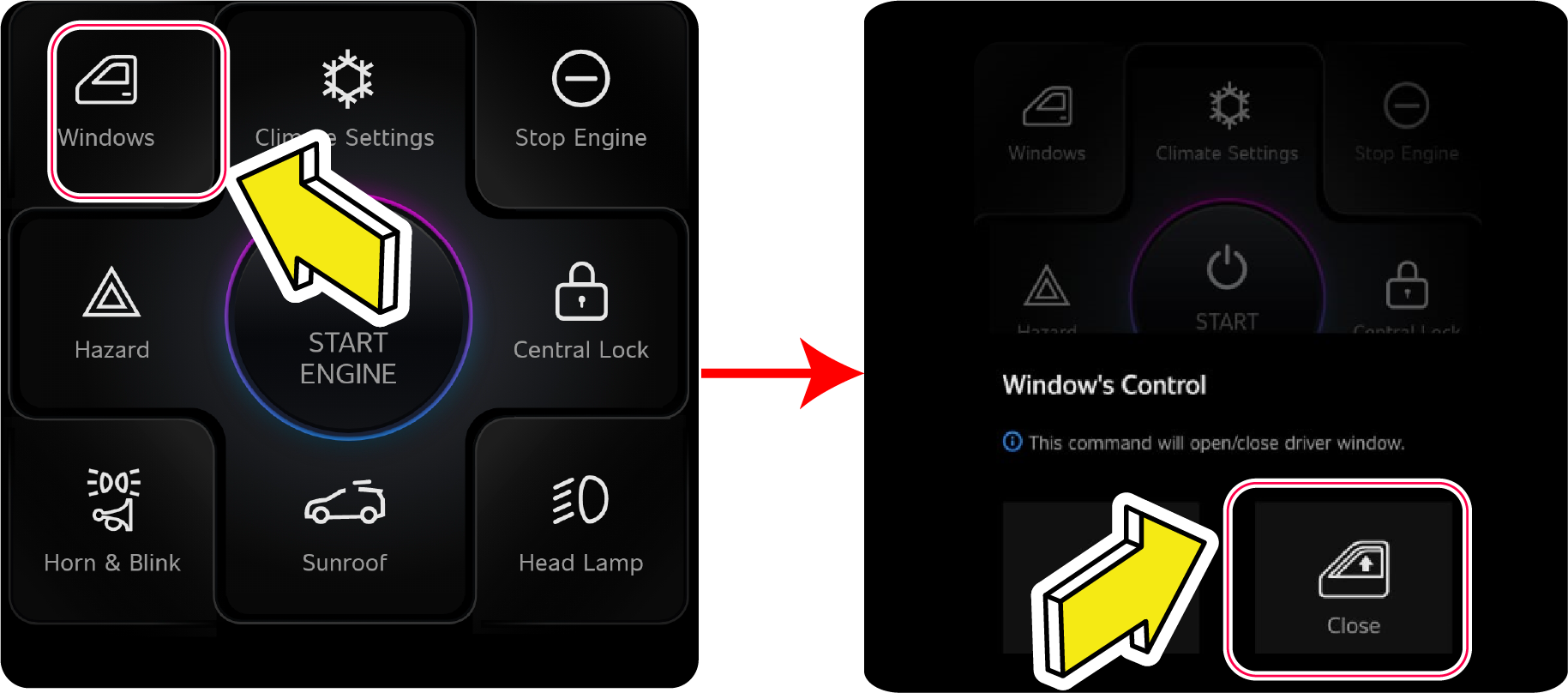

Remote Window Up/Down
|
Allows the user to remotely control the Driver & Co-driver window (with anti-pinch) using mobile app.
|
Remote Door Lock/Unlock
|
Provide access to the vehicle
by remotely locking and unlocking the doors when vehicle is
stationary.
|
Remote Lamp On/Off
|
Allows the user to remotely
turn on or off the lamps using mobile app.
|
Locate my SUV
|
Allows the user to remotely
locate the vehicle by turning on the horn and lights.
|
In-Car Applications
|
|
Horoscope
|
Allows the user to view daily
fortune as per his/her zodiac sign.
|
Just dial
|
Allows the user to search for
various services using the Just Dial app in the infotainment
screen.
|
Zomato
|
Allows the user to search for
various restaurants and cuisines using Zomato app in the
infotainment screen.
|
India Today
|
Allows the user to browse news using India Today app in the infotainment screen.
|
Weather Update
|
Allows the user to view weather
information using the Accuweather app in the infotainment
screen.
|
Travel Explorer
|
Allows the user to search for
amusement places and more using the Travel Advisor app in the
infotainment screen.
|
What 3 Words
|
Allows the user to navigate to
any what 3 words address. (See what3words.com for more details).
|
Others
|
|
ETA
|
Allows the user to know the
Estimated Time of Arrival of your vehicle at your current
mobile location.
|

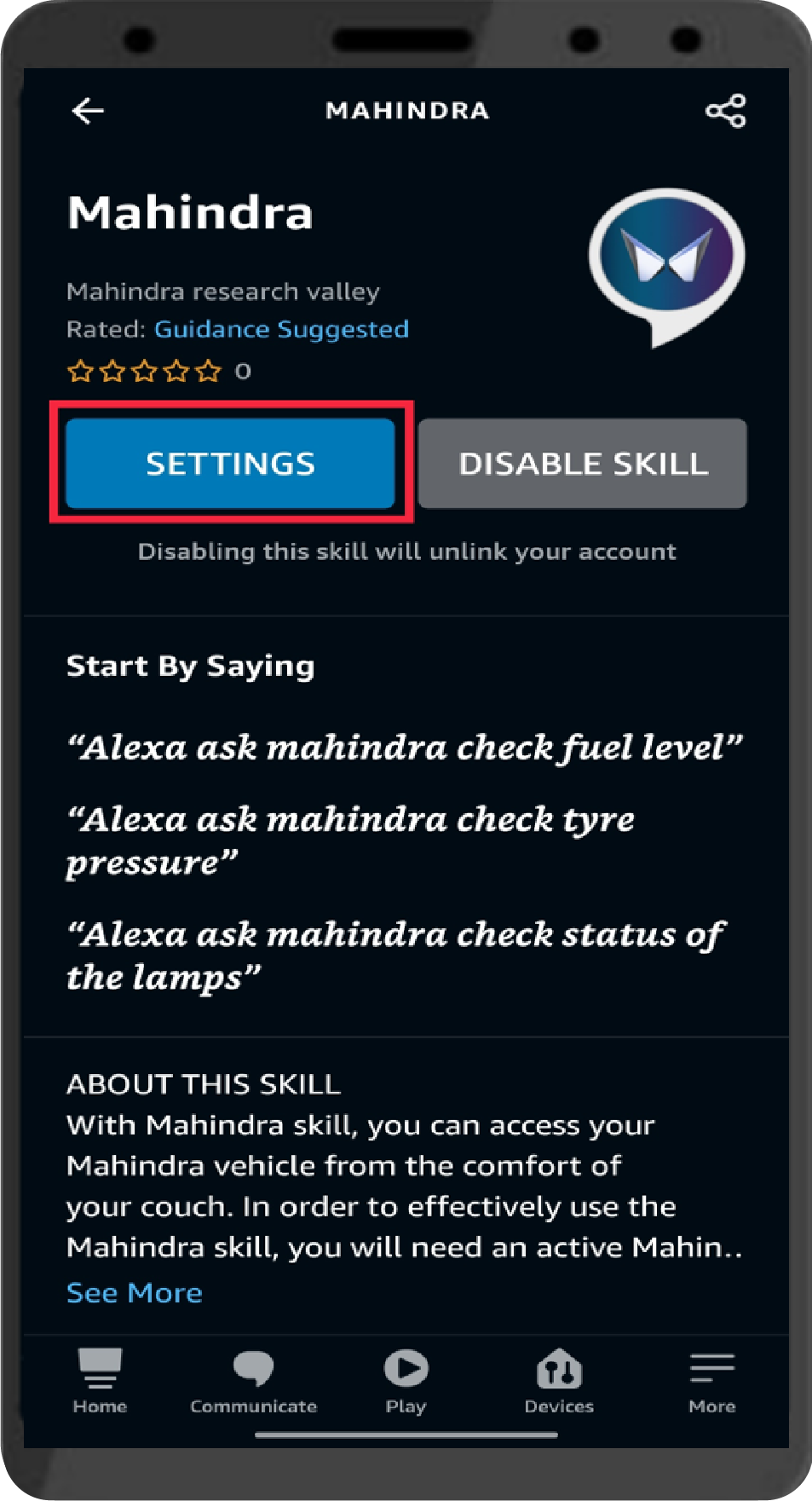

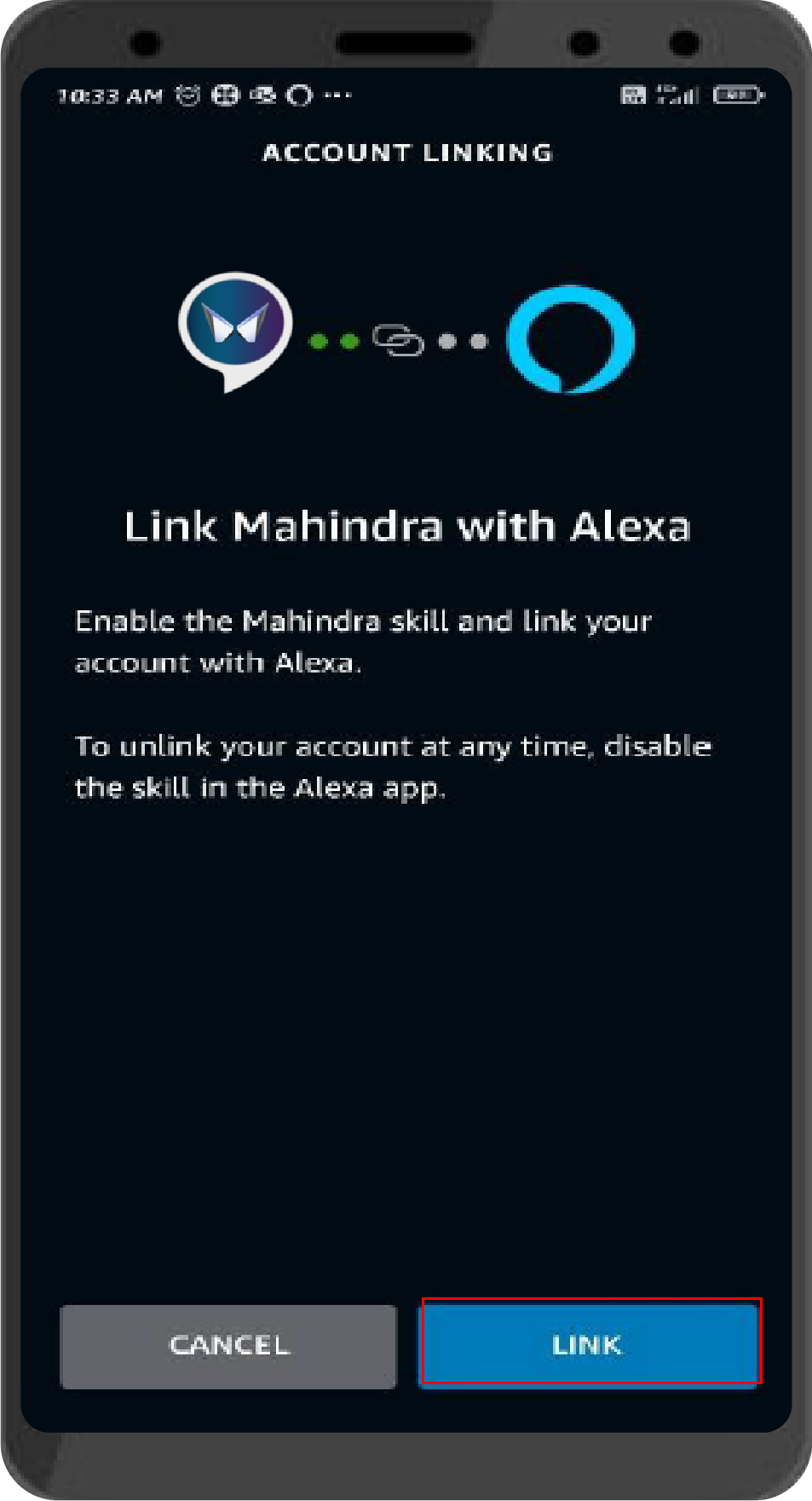

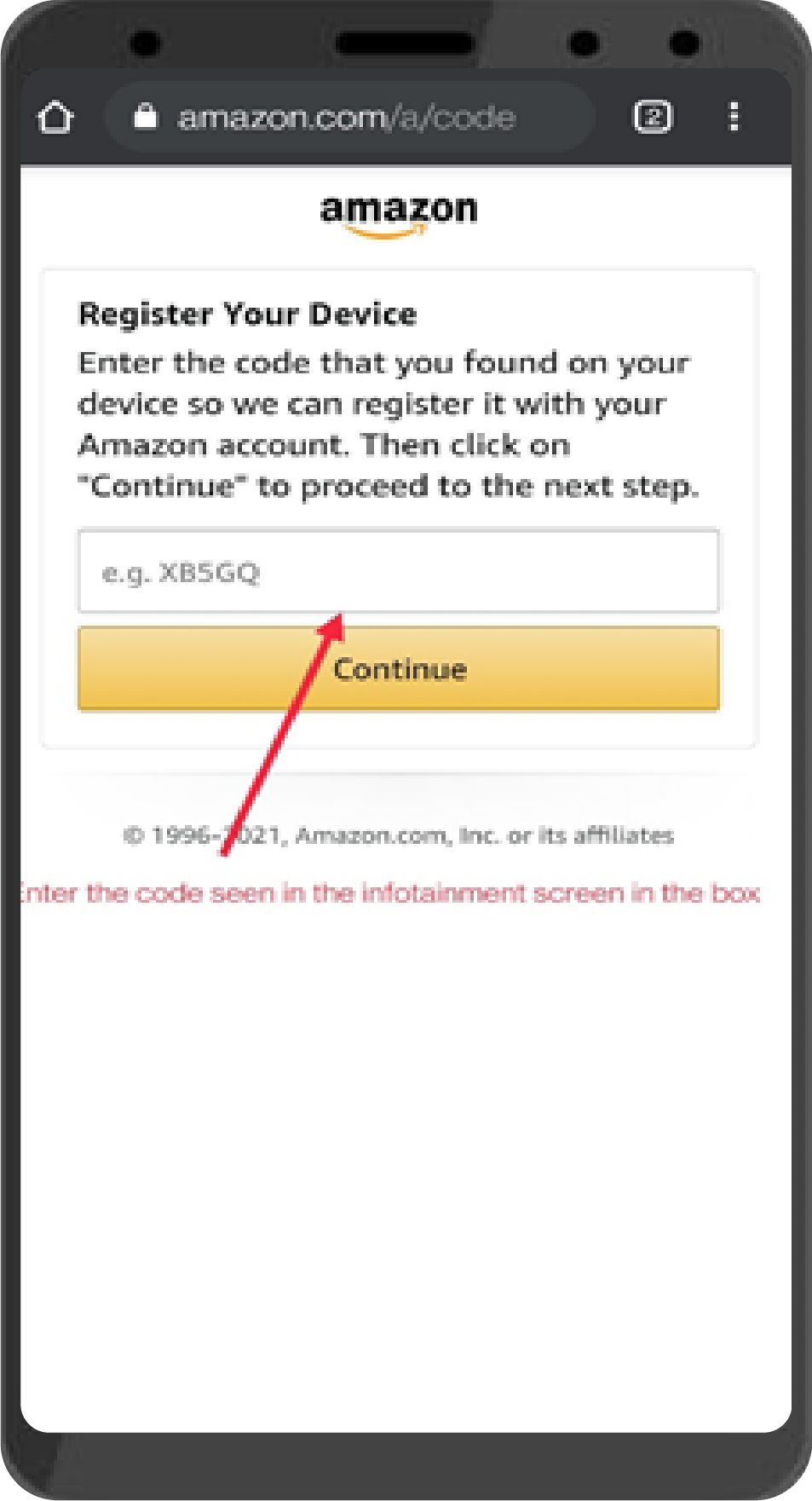

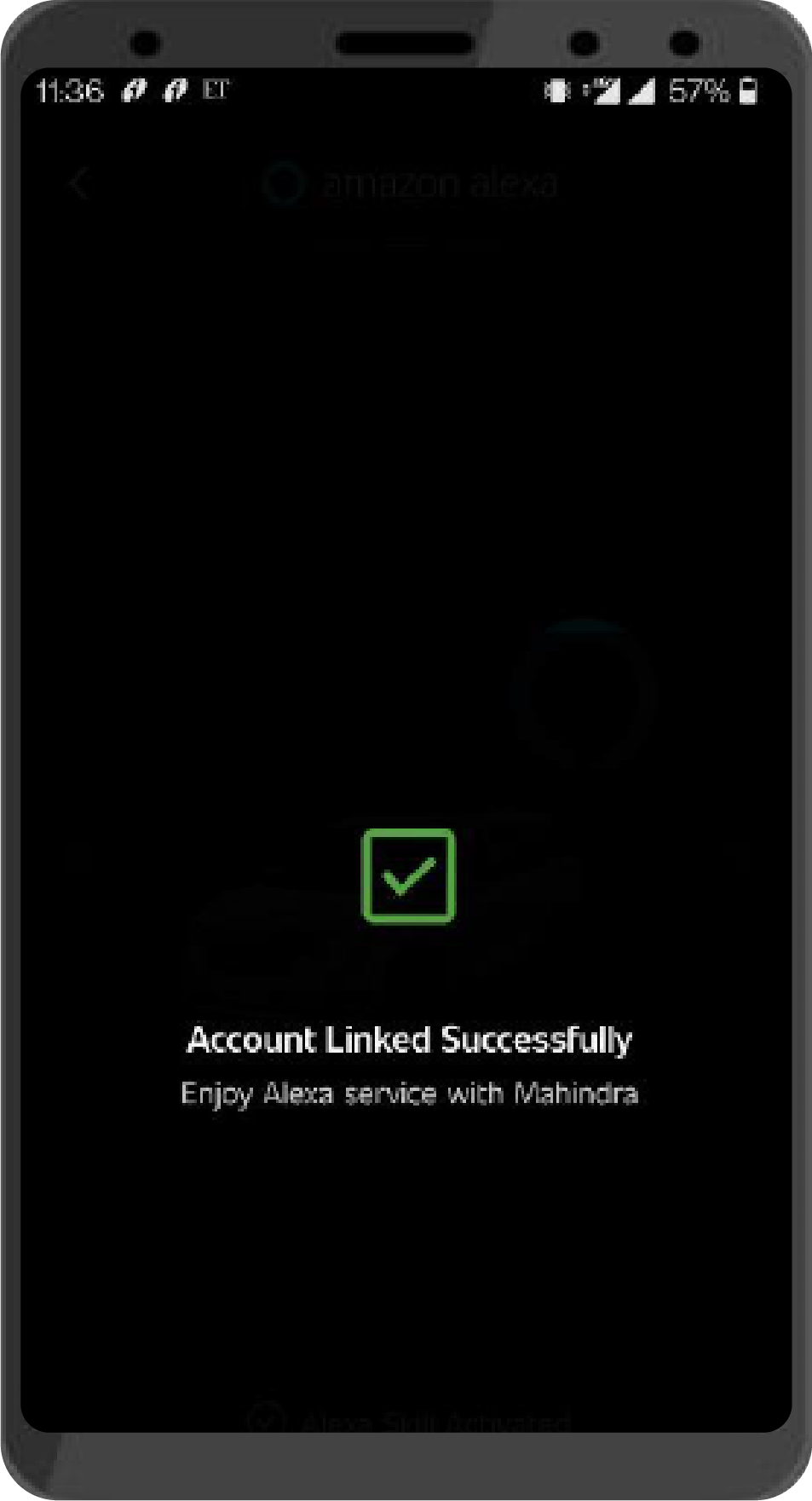

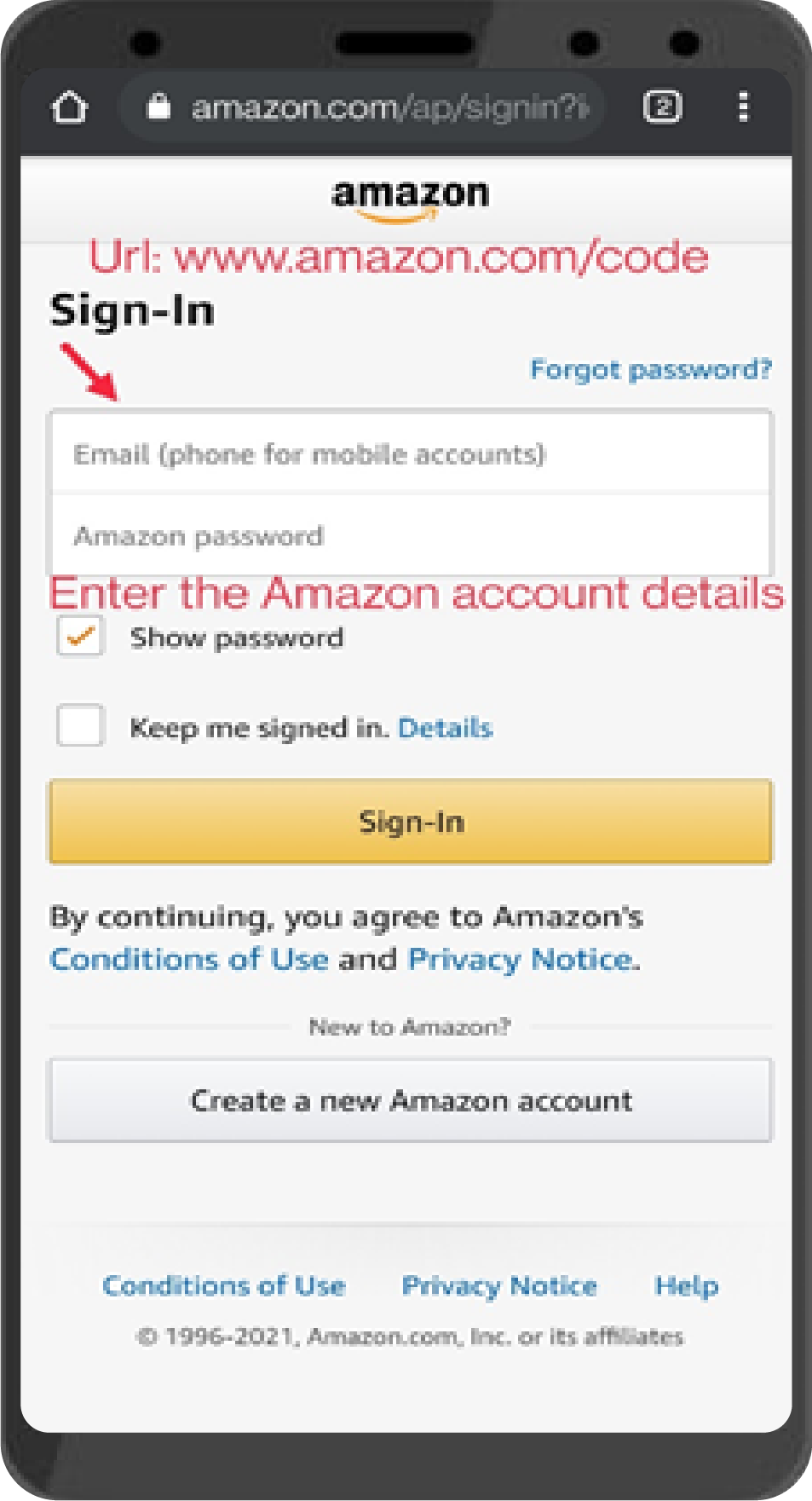

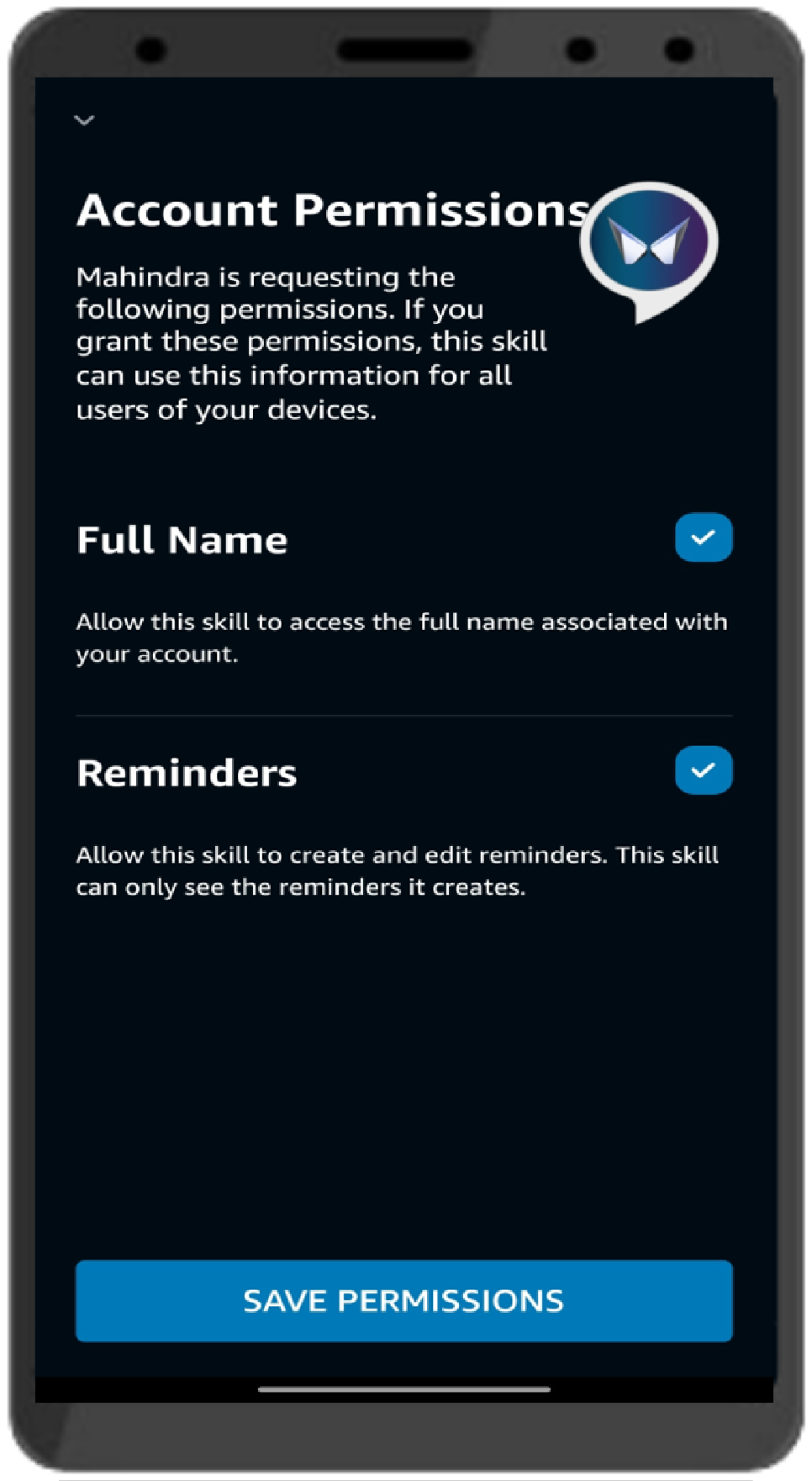

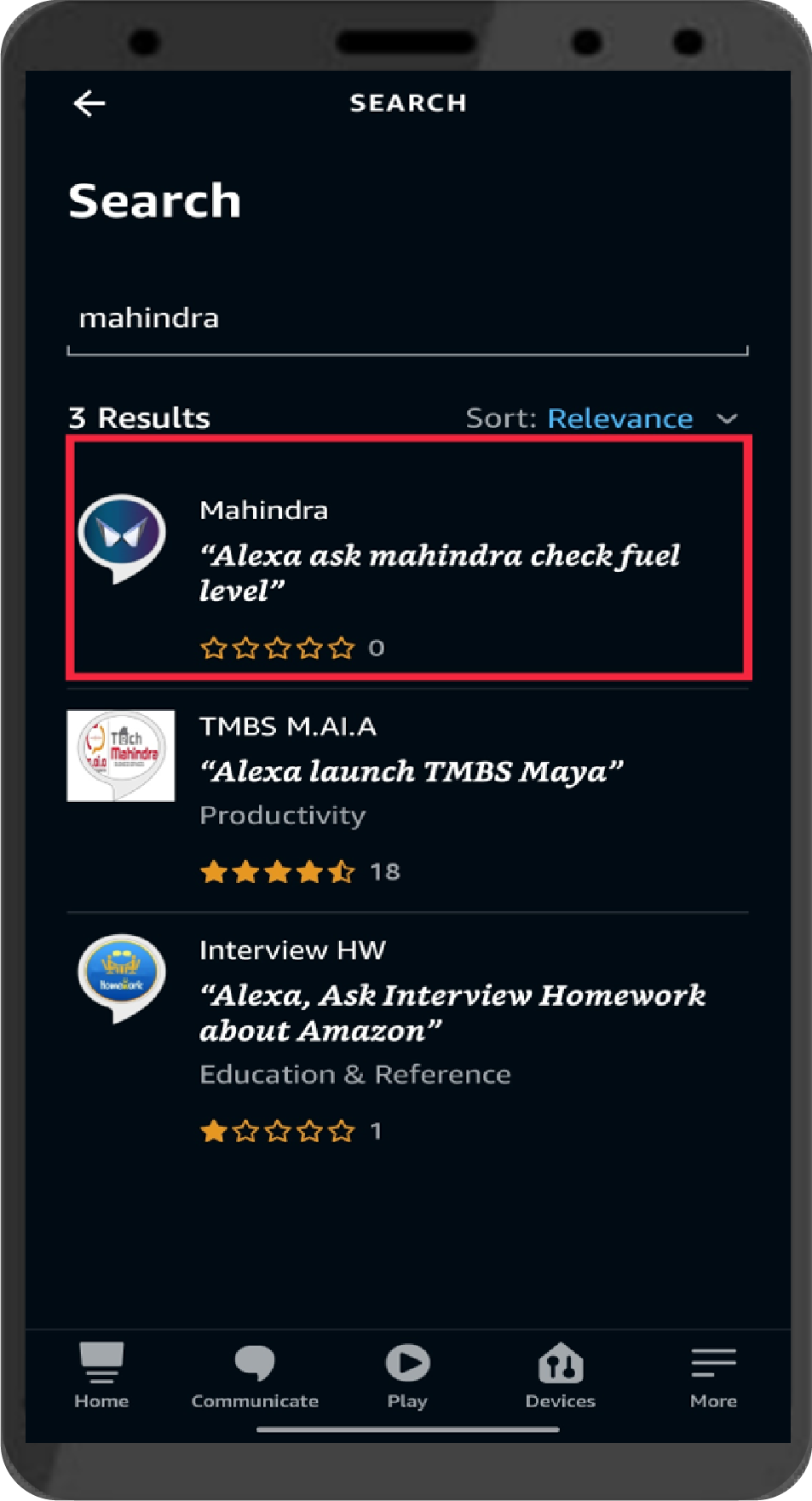

In-Home Alexa
|
Allows the user to check the
vehicle status and perform remote function using Alexa Home
devices (voice commands).
|

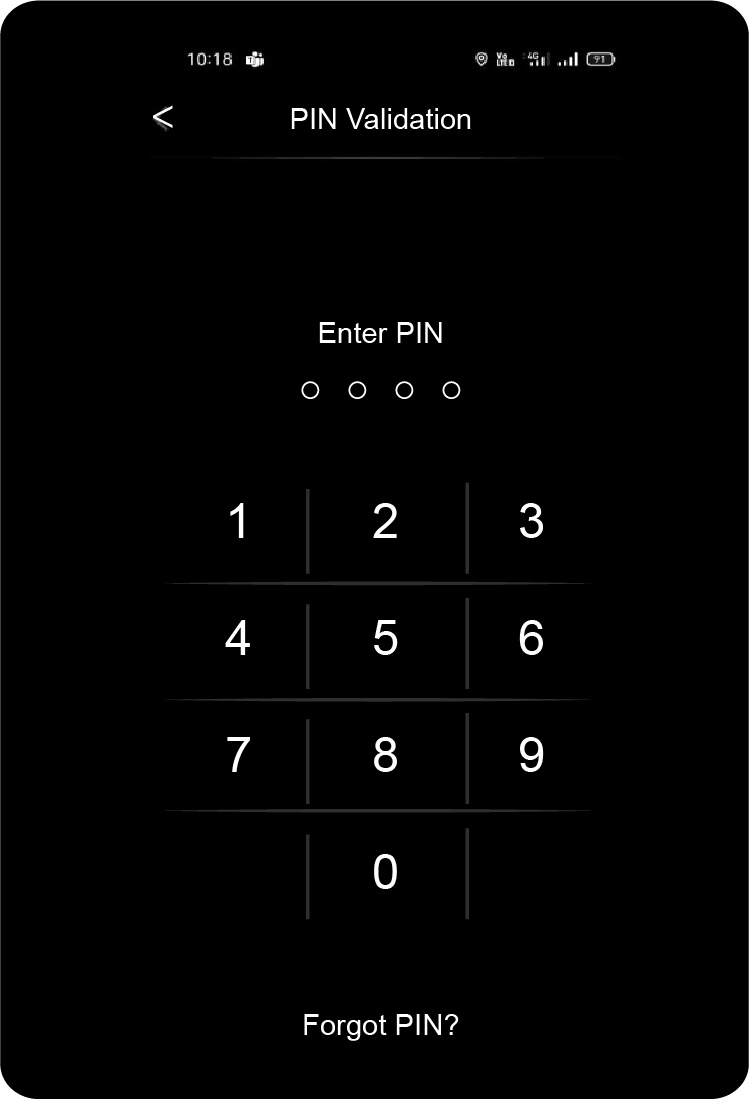

Valet Mode
|
Allows the user to set the
vehicle in a predefined state when giving the vehicle for valet
parking. The default PIN to access
the Valet mode will be 1234.
1. Infotainment will be inaccessible, 2. Speed limit to 80 kmph & 3. Geofence alert for 5km. |
Contact us
|
Any Query / Enquiry about the
product, Get info on Mahindra. Send an Inquiry on any car
model. Dealers will get back to the
customer on details.
|
Smart Home Control
|
Allows the user to control the
smart appliances via Geofence of vehicle location.
|
Log Book - Fuel(Fuel Diary)
|
Maintains a systematic log of
the all the fuel filling events and provides a clear
representation of the fuel filled and the amount spent.
|
mGreetings
|
Greetings to the user on
special occasions.
|
Do-Not Disturb
|
Avoids distraction while driving by not pushing any AdrenoX Connect app notification when mobile is detected inside the vehicle.
|
Journey Planner
|
Allows the user to plan a
journey by providing desired location on a specific Date & Time.
|
Request app Access
|
Allows the user to share the
vehicle access to two more users.
|
My Documents
|
Storage and retrieval of
documents such as Driving license, Insurance, PUC, RC.
|
Profile Manager
|
Allows the user to configure
the vehicle settings to maximum of two profiles. Vehicle
settings such as climate settings, Audio settings, Audio
source, Key fob etc.
|
To-do list
|
Allows the user to create time
based/location- based events that remind the user at the
specified time.
|
Smart Wearables
|
Allows the user to perform all
the read and remote functions through the smart watch
(applicable for both Android and iOS).
|
Pick up Reminder
|
Allows the user to create an
event that reminds the user at the specified time.
|
Service Booking
|
Allows the user to schedule a
service by directing to the With You Hamesha app.
|
Personalised Safety Alert
|
Alerts the user via a
personalised beloved ones voice prompt when the vehicle crosses
the speed limit.
|
what3words via Alexa Voice
|
Allows the user to
navigate/find current location of what3words address via voice.
Eg: "Alexa, Ask what3words to navigate to decking butter
sheets”.
Note:

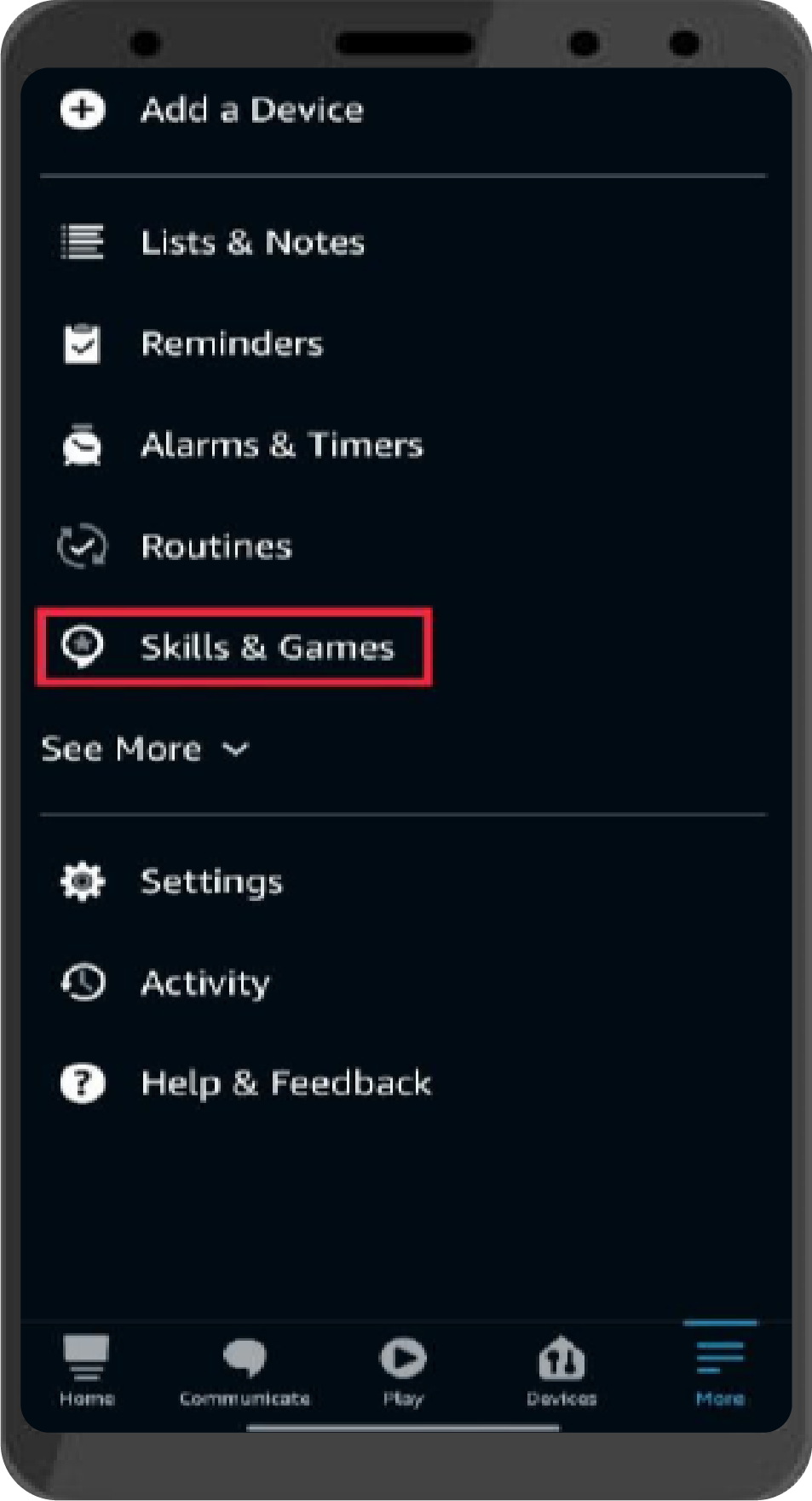

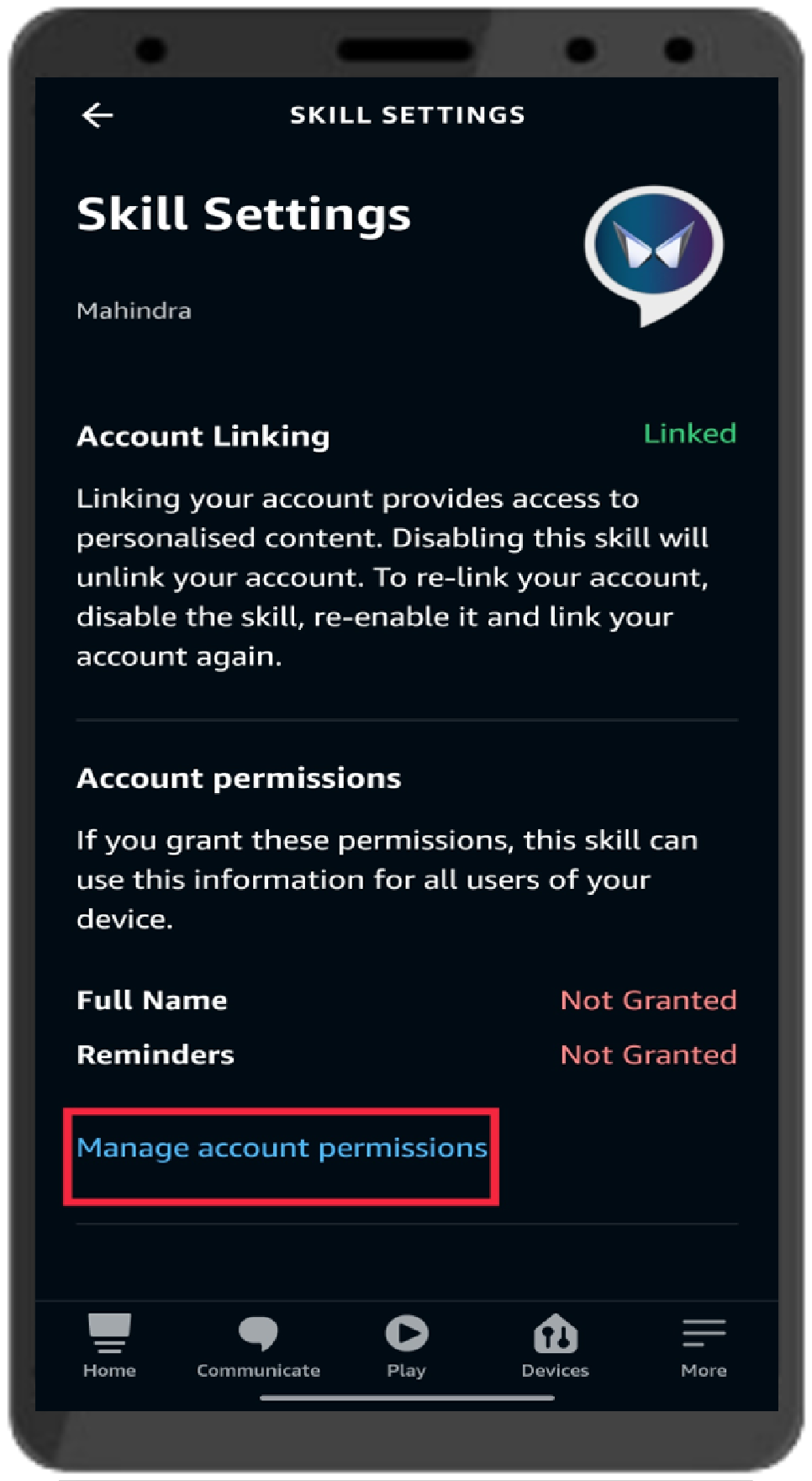

Use Alexa Companion mobile app to enable location service
permission if requested.
Routing via Native navigation.
Only English inputs.
|

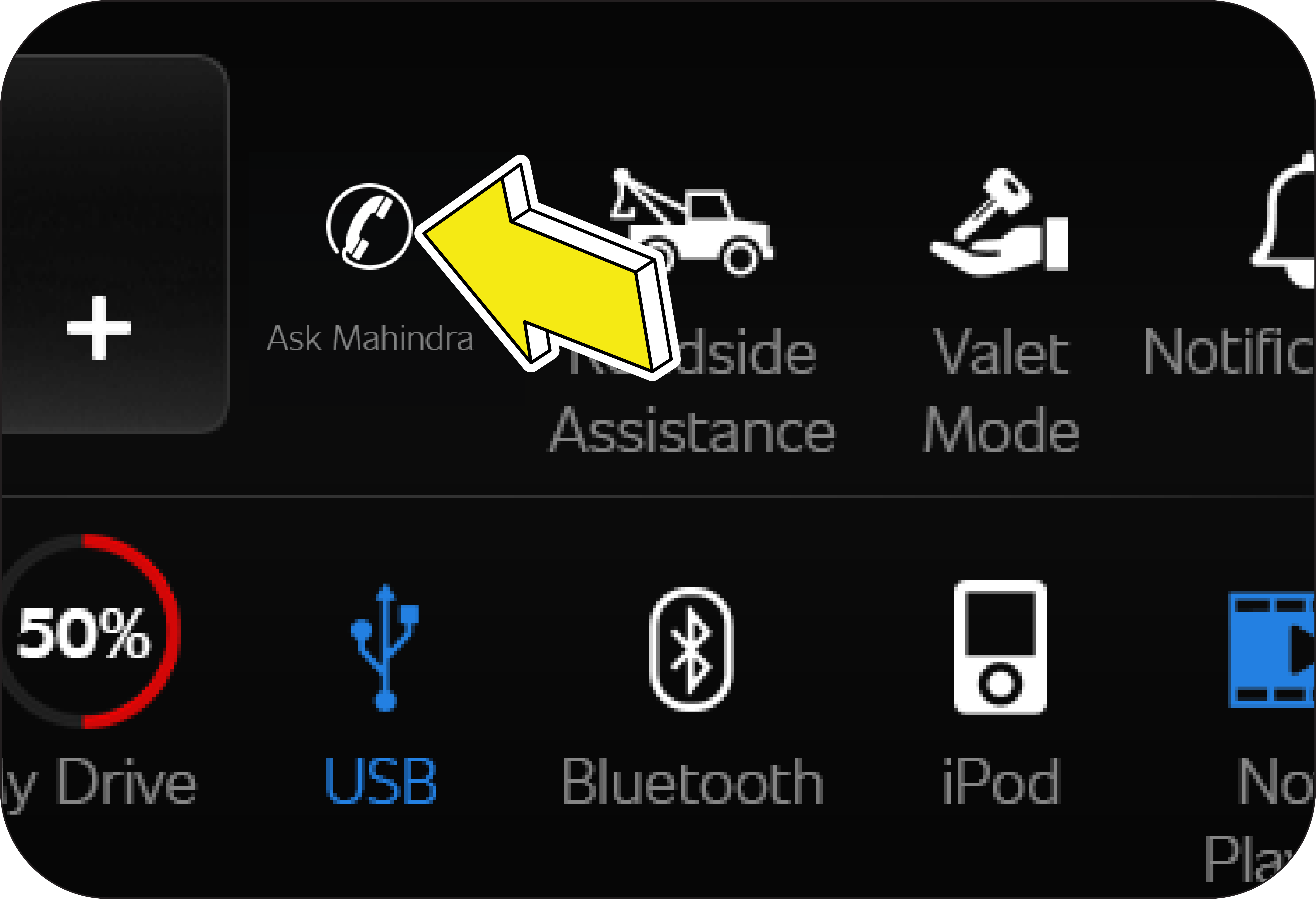

Ask Mahindra
|
This feature helps the customer to connect with Mahindra executive for any queries / support related to vehicle.
|
Follow the tips below for a comfortable and safe journey: |
• | Sit in an upright position with the base of your spine pressed against the seat back. |
• | The driver and front passenger seat head restraint has 5 positions. Adjust it as close as possible to the above specified position, with the top of the head restraint even with the top of your head. |
• | Maintain sufficient distance between yourself and the steering wheel. Maintain at least a Ten inch (10") distance from the centre of the steering wheel to your chest. |
• | Fasten your seat belt correctly and adjust both the shoulder and lap strap. |
• | The top curve of the steering wheel should align with your chin for ideal road visibility. |
• | Adjust your seat and seat back angle such that your wrists rest on the steering wheel. |
• | Ensure your legs are in bent position while fully depressing the clutch pedal. |
|
Move the seat forward or backward by lifting the
adjustment lever located under the seat front and release once the desired
position is reached.
|
|
To adjust the seat back, lift the lever located
on the outboard side of the seat, lean back, and release the lever at the
desired position.
To return the seat back, lift the lever, lean
forward and release the lever.
|
|
The driver seat height can be raised or lowered
with the help of height adjust handle.
|
|
The driver seat back features lumbar adjustment.
The lumbar contour of the lumbar support can be adjusted by means of the
adjusting wheel on the outer side of the seat cushion.
|
|
The power seat switches are provided on the driver seat side valance cover. The Power seat provides 6-way electrical adjustments for the driver seat.
|
• | Adjust the driver's seat only when the vehicle is stationary, otherwise there is a risk of accident. The seat should be adjusted so that the brake/ clutch pedal can be pressed fully. |
• | Be cautious when adjusting the seat, you may suffer injuries without paying proper attention while adjusting seat. |
• | Driver side electric seat can be adjusted in ignition off also, children should never be left unattended in the vehicle, as there is a risk of injury! |
• | Power seats will be operated even when the ignition switch is turned to the “OFF” position. However, to prevent battery discharge, we suggest that you adjust your seats when the engine is running. |
• | Do not forcibly operate any power adjustment switch if the seat comes in contact with any other object and cannot be adjusted anymore. |
• | If the power seats are not operational, the seats should be checked and fixed before driving. |
• | Do not put any luggage/water bottles below driver seat as they can obstruct power seat movement or damage seat mechanism/motor. |
• | Do not remove vehicle battery while seat is in motion. |
• | Do not operate both the switches at a time which may cause malfunctioning. |
|
• | The ventilated seat uses the interior air for ventilation. Make sure that it is used together with the air conditioner. |
• | The ventilated seat is not a cooling/heating seat which blows out cold air from it. |
• | Don’t put your hand in the bottom of the cushion when the ventilated seat is in operation. Otherwise, the running ventilation fan may cause you to be frightened or injured. |
• | If there is any problem with the seat ventilation system, Contact Mahindra Authorised service center for further assistance. |
• | Do not place any sharp or heavy object on the seat as this could damage the ventilation system by cracking the seat upholstery. |
• | If any liquid spills, clean it up right away. Wait until the seat is dry before using the air ventilation feature. The performance of the seat ventilation system may be impacted by liquid contact. |
• | Do not use the ventilated seat in the following situations: | |
– | The seat is not occupied. | |
– | There are objects on the seat, such as a child seat, newspapers, Plastic bags. |
• | Never use a solvent to clean the seats, including petrol, paint thinner, benzene, alcohol or alcohol-based products. |
• | If small vent holes on the surface of the seat cushions and seatbacks are clogged with dust and dirt, the air flow from the ventilated seat may weaken. In this case, clean the seat surface by the vacuum cleaner. |

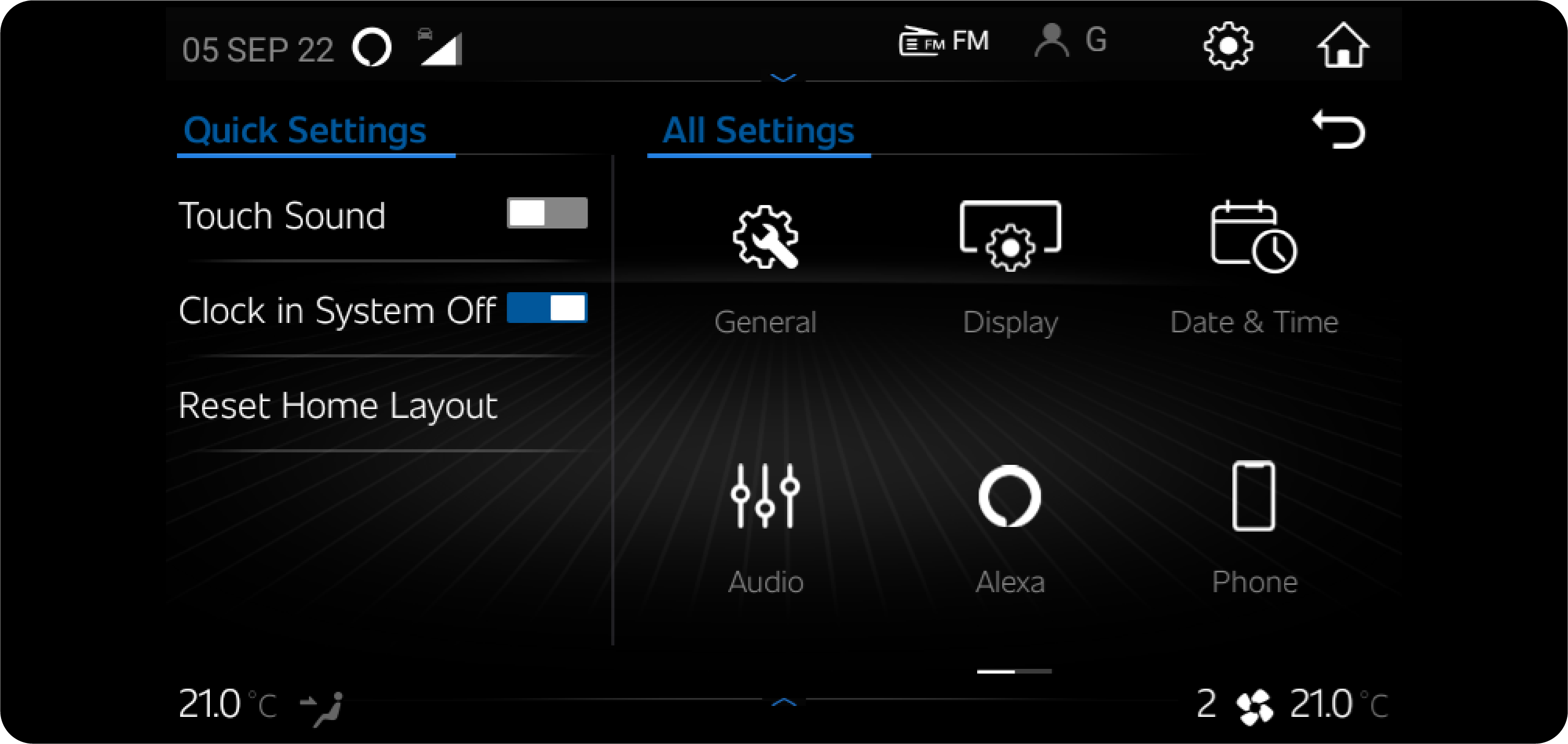

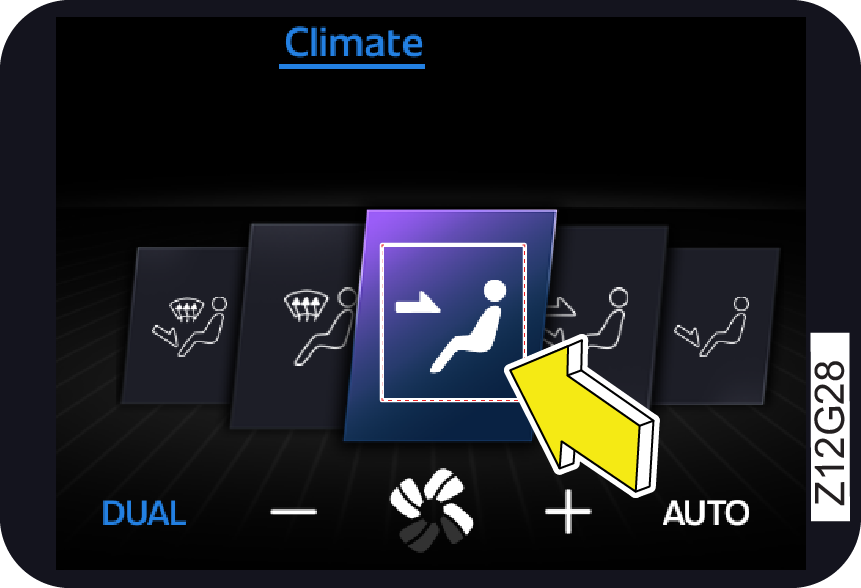

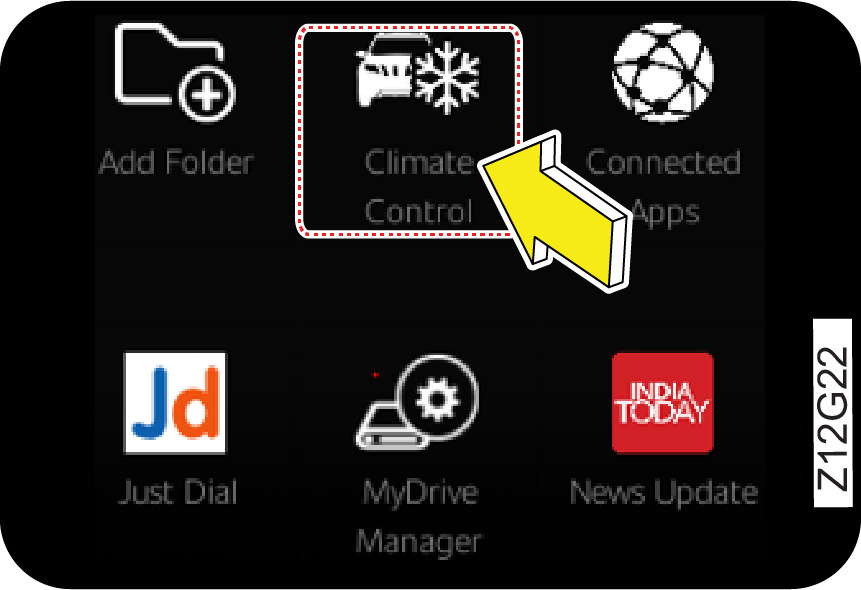

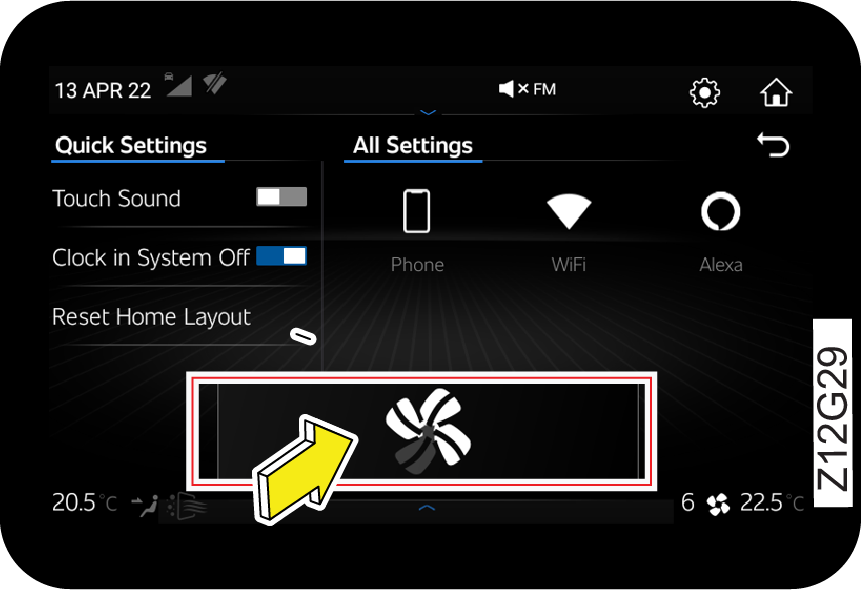

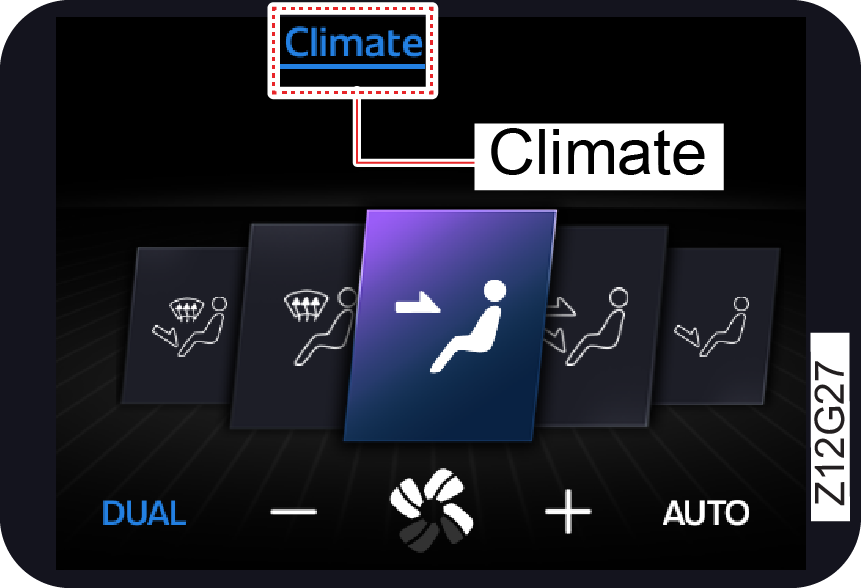

• | Go to setting page in infotainment Screen then select climate control. |
• | Enable the Driver and Co-driver seat ventilation feature based on the requirement. |
![]() |
|
Second row seat is of 60:40 split configuration
and also has a foldable armrest.
|
|
To change the second row seat back angle, lean forward
slightly while raising the recline lever on the side of the seat cushion,
lean back to the desired position and release the recline lever.
|
|
|
60/40 Seat
|
|
|
|
Captain Seat
|
|
|
|
• | To tumble the Second Row 40P/Captain seat while sitting on the Third Row seat, pull the lever behind the 40P/Captain backrest. |
• | In order to use the 2nd Row Seat to load cargo, first tumble the seat as explained above. Then, push the seat downward of the vehicle (>45 kg) until the two latches underneath the seat lock onto the floor. |
• | To tumble the seat from the back folded (cargo) condition, first make the seat back upright. Then operate the one-touch fold and tumble lever. |
|
|
|
![]() To avoid
Personal injury keep legs away from the seat anchor when relatching the seat back
to the fold position.
|
Second Row Seat
Folding (For Luggage)
|
|
|
|
The 2nd Row 60P and captain seat back can be folded to
load cargo on top of it. Operate the lever on the side of the seat.
This lever actuates the backrest fold mechanism. Release the lever once the backrest
has folded completely.
To bring the seat back to upright position and push the
seat back until it locks into the desired reclining position.
|
Second Row Armrest
(If equipped)
|
|
|
|
• | To open the armrest, simply pull on the tab given at the top of the armrest (as shown). |
• | When armrest is not required, push back the armrest into the 60P backrest. |
|
![]() While folding the seat back ensure arm rest is in
unfold condition.
|
|
The third row front facing seat can be fold and tumble
to accommodate extra luggage based on customer needs.
|
||||||
|
|
||||||
|
|
There is a strap on the right side seat cushion pocket
which need to be hooked on to the second row head rest rod to avoid
seat falling back from the tumble condition.
|
|
|
|
|
Always align top of the head restraint with the top of
your head or as close to it as possible. To raise the head restraint,
pull the restraint up.
|
• | All occupants, including the driver, should always wear their seat belt no matter how short the trip in order to minimize the risk of severe injury in the event of a crash. In an accident, an un-belted passenger becomes a projectile, and can cause serious injury to himself or another passenger. |
• | In a rollover crash, an un-belted person is significantly more likely prone to Injury than a person wearing a seat belt. |
• | In order to be properly buckled, you must always sit up straight and keep your feet on the floor in front of you. The lap part must be worn low and tight across your hips, just touching the top of your thighs. While fastening the seat belt, the shoulder strap of the seat belt must pass over your chest and top of your shoulder. It must never touch your neck, face, the side of your shoulder, arm, or pass under your arm. The belt must always be flat against your body and not twisted in any way. Nothing, such as an arm rest, a pocketbook, or any external objects should be between you and the seat belt. Improperly worn of a seat belt will reduce the protection in an accident. |
• | Seat
belts should be adjusted as tightly as possible, consistent with comfort to
properly secure the wearer in the seat.
|
• | The seat belts provided for your vehicle are designed for adults must be properly used and maintained. |
• | For usage of adult seat belt to secure children, refer to section of manual for child seat positions and use a child restraint systems. |
• | Passengers should not move out of or change seats while the vehicle is in motion. Passenger who does not wear the seat belts will be under a high risk of thrown against the vehicle inside hard parts, against other occupants or out of the vehicle during emergency stop or collision. |
• | Do not use any accessories on seat belts or modify in any way the seat belt system. Devices claiming to improve occupant comfort or reposition the seat belt can reduce the protection provided by the seat belt and increase the chance of serious injury in a crash. |
• | An accident or emergency stop, can damage your seat belt system, even if the accident is “minor”. Please have your Mahindra Authorised Dealer inspect the seat belt system after an accident. |
• | Please be aware that any unsecured item in your vehicle, such as your pet, unsecured child restraint system, a laptop or mobile phones, can become a projectile in the event of an accident or sudden stop, causing injuries to occupants in the vehicle. |
• | Seat belt systems are prone to abuse. They are not indestructible. They must be handled with care to avoid damage |
• | Keep the belts clean and dry. Belt retraction may become difficult if the belts and webbings are soiled. If they need cleaning, use a mild soap solution or lukewarm water. Never use bleach, dye, or abrasive cleaners. These chemicals will severely weaken the belts. |
• | Retractors in 3-point type seat belts retract the seat belts when not in use. The inertia lock and coil spring allow the belts to remain comfortable on users during normal driving. During accidents or abrupt stops, inertia locks restrict the sudden forward movement of the wearer. |
|
The lap
belt should be worn snugly and as low as possible over the hips. The
shoulder belt should be worn across your shoulder,
but never across the stomach area.
|
• | Reduce the possibility of being out from your vehicle during an accident. |
• | Reduce the possibility of injuries to upper body, lower body and legs during an accident. |
• | Hold the driver in a position which allows better control of the vehicle. |
|
To protect you and your passengers in the event of an
accident, it is highly recommended that the seat belts should be used
by all occupants inside of your vehicle.
|
Seat
Location
|
Seat Belt
Type
|
Description
|
---|---|---|
Driver Seat
|
3-Point
|
Seat belt
with Emergency Locking Retractor Pretensioner & load limiter (RPLL),
& Anchor Pretensioner
|
Co-Driver Seat
|
3-Point
|
Seat belt
with Emergency Locking Retractor Pretensioner & load limiter (RPLL) &
Anchor Pretensioner
|
2nd Row LH (40P)
|
3-Point
|
Seat belt
with Emergency Locking Retractor (ELR)
|
2nd Row CTR
|
2-Point
|
Lap belt
|
2nd Row RH (60P)
|
3-Point
|
Seat belt
with Emergency Locking Retractor (ELR)
|
3rd Row LH
|
3-Point
|
Seat belt
with Emergency Locking Retractor (ELR)
|
3rd Row RH
|
3-Point
|
Seat belt
with Emergency Locking Retractor (ELR)
|
In the event of a crash being detected, the belt
pretensioner locks the seat belt by drawing back the seat belts on the driver’s
and passenger’s torso and pelvis to prevent the driver and passenger being thrown
forward. The seat belt pretensioner combined
with the seat belt and airbag further increases safety.
|
|
|
This vehicle is provided with a anchor pretensioner for
driver seat (in the sill board area) and is used to help to protect
occupant in the sever crash events.
|
Its activation through Airbag ECU is signalled by
pulling down of the metallic cable and removes slack in in seat belt.
|
Operation of
pretensioner
|
|
|
When a severe frontal impact occurs, seat belt
pretensioners pull back the seat belts immediately to restrain the occupants
to their seats.
|
Operation of load
limiter
|
|
|
After frontal collision, the load limiter releases the
seat belt to prevent the occupant from being injured due to belt force.
|

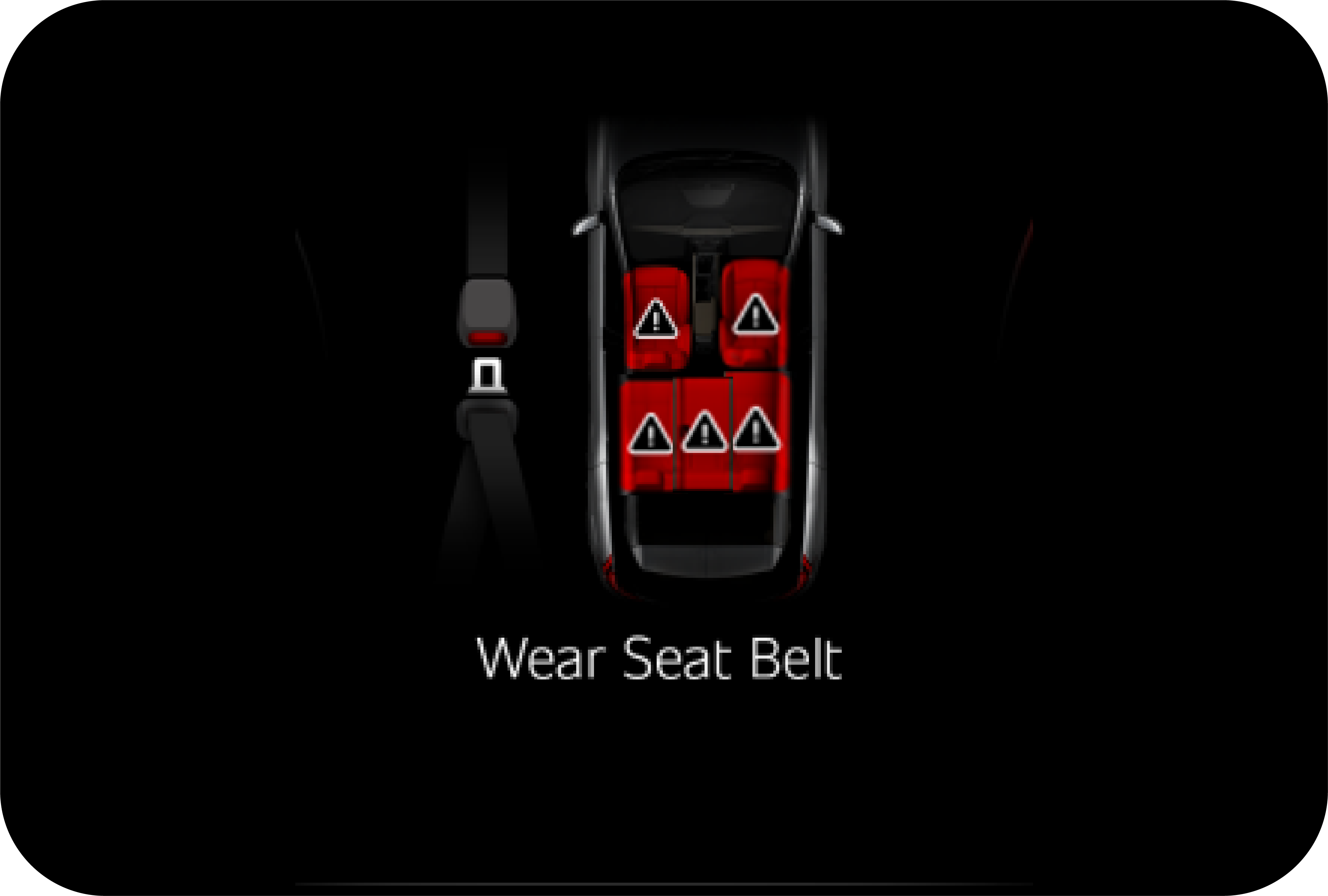

• | Before driving, all occupants should fasten their seat belts. If not, the occupants can seriously be injured in a collision or sudden manoeuvring of the vehicle. |
• | Sometimes you may have to apply strong force to pull the webbing out of the retract. |
• | Each seat belt should be used by only one occupant at a time. |
• | Seat belts and airbag’s can significantly minimise possible injury to occupants. But they cannot perfectly protect occupants from fatal collisions or injury. |
• | Modifications and improper maintenance for the safety systems could cause serious injury. The safety systems including seat belts should be checked and repaired by only a Mahindra Dealer or Mahindra Authorised Service centre. |
• | An infant or small child should always be restrained in an infant or child restraint. |
|
|
|
Adjust the
seat as needed, sit up straight and well back in the seat. To fasten your seat
belt, pull the webbing out of the
retractor and insert the metal tab into the buckle.
|
|
|
To release the belt, press the buckle release button
and allow the belt to retract. If the belt does not retract smoothly,
pull it out and check for kinks or twists. Then make sure it remains untwisted as it
retracts.
|
|
After unlatching the seatbelt, the occupant needs to
make sure the tongue is repositioned to it’s designed condition.
|
It must be ensured that the webbing doesn’t get
entrapped between the seat and the trim.
|
|
|
|
|
It must be ensured that the tongue is not diagonally
placed.
|
|
![]() |
|
|
• | This is a universal i-Size Child Restraint System. It is approved to regulation No. 129, series of amendments for general use in vehicle seat positions, marked with the i-Size logo. |
• | The seat is also suitable for fixing into vehicle seat positions, approved as i–Size positions (as detailed in the vehicle handbook), listed in the separate list. 2nd row outboard Seating positions in the vehicle are suitable to accept this child restraint. |
• | If in doubt, consult either the child restraint manufacturer or the retailer. |
1. | Can the child sit all the way back against the back of the vehicle seat? |
2. | Do the child’s knees bend comfortably over the front of the vehicle seat while the child is still sitting all the way back? |
3. | Does the shoulder belt cross the child’s shoulder between the neck and arm? |
4. | Is the lap part of the belt as low as possible, touching the child’s thighs and not the stomach? |
5. | Can the child stay seated like this for the whole trip? |
• | The child must be transported rearward facing until 15 months. |
• | Child restraint system protection is increased in the event of a side collision. |
• | The use of the ISOFIX system is promoted to avoid faulty installation of the child restraint system. |
• | Efficiency in the choice of the child restraint system, which isn't made according to weight anymore but according to the child's height, is increased: |
• | Compatibility between the vehicle seats and the child restraint systems is better: |
• | The i-Size child restraint systems can be considered as "Super ISOFIX"; this means that they can be perfectly fitted in type-approved i-Size seats but can also be fitted in ISOFIX (ECE R44) type-approved seats. |
• | Never transport them unless they are properly restrained. |
• | Use restrained system which meet safety standard. |
• | Follow directions provided by the manufacturer. |
Type of child
seat
|
i-Size child seats
|
Front seat (with
deactivated airbag, only rear-facing child seats)
|
X
|
Front seat (with
activated airbag, only front-facing child seats)
|
X
|
2nd row outboard
seats
|
i - U
|
2nd row centre
seat
|
X
|
3rd row outboard
seats
|
X
|
i-U: Suitable
for i-Size "universal" child seat, front-facing, and
rear-facing.
X: Not suitable for universally approved
child seats.
|
• | It is not allowed to mount the child seat in a front passenger seat with an activated airbag. |
• | Kid i-Size can only be installed rear facing with the i–Size anchorage in a car equipped with i–Size anchorage points. |
• | Kid i-Size is approved for children with a stature height from 61 to 105 cm, rear facing with a max. weight up to 18 kg. |
• | The harness straps must always be locked when the child is in the seat. |
• | The harness straps must be tightened without slack and not twisted. |
• | The seat cover contains magnets in the areas with the orange indications. Magnets can influence electronic equipment such as pacemakers (If equipped). |
• | The floor support must always be used. Make sure that the floor support is fully pushed down. |
• | When installed with i–Size: Make sure the indicators are green before you drive. |
• | We recommend that this seat is used only for children who can sit upright, so not younger than 6 months. |
• | For children under 1 year and/or under 10 kg weight, we recommend that the most reclined sitting position and the body hugger and baby cushion (extra available accessory) are used. |
• | Remove the baby cushion (extra available accessory) when the child is older than 1 year. |
• | Remove the body hugger when the child is older than 2 years. |
• | When the child weighs over 18 kg or the shoulder height grows above the highest position of the shoulder straps, the child restraints shall be changed to which is suitable for children with a weight above 18 kg. |
• | After an accident, the seat must be replaced. Although it may look undamaged, if you were to have another accident, the seat may not be able to protect your child as well as it should. |
• | Prevent the seat from becoming trapped or weighed down by luggage, seats and/or slamming doors. |
• | Before every use, make sure the harness is not damaged or twisted. |
• | Make sure you can fit no more than one finger between the harness and your baby (1 cm). |
|
|
• | Insert the child restraint attachments into the i–Size lower latch anchors (rods) until it clicks. Refer Child seat installation manual. |
• | Do not use the seat belt for installing the i–Size child restraint. |
• | When using the “ i–Size” lower latch system (rod), all unused vehicle rear seat belt metal latch plates or tabs must be latched securely in their seat belt buckles and the seat belt webbing must be retracted behind the child restraint to prevent the child from reaching and taking hold of un-retracted seat belts. Unlatched metal latch plates or tabs may allow the child to reach the un-retracted seat belts which may result in strangulation and a serious injury or death to the child in the child restraint. |
• | Child restraint anchorages are designed to withstand only those loads imposed by correctly-fitted child restraints. Under no circumstances are they to be used for adult seat belts, harnesses or for attaching other items or equipment to the vehicle. |
How to use the Top
Tether/Rear Anchor
|
|
60/40 Seat
|
Captain Seat
|
|
|
1. | Remove the headrest from the rear row seat. |
2. | Place the child restraint on the rear row seat. |
3. | Connect the tether connector in child restraint to the top tether rod/ rear anchor. Securely tighten the child restraint by adjusting the webbing of the child restraint system (CRS) tether connector. Follow the clear instructions provide in the CRS manual. |
• | The top-tether/ rear anchor is the supplemental device to secure the child restraint system after engaging it by the i–Size rod/lower latches. Therefore, do not secure the child restraint system only with the seat back anchors. The increased load may cause the hooks or anchors to break, causing serious injury or death. |
• | If a child restraint is not properly secured to the vehicle and a child is not properly restrained in the child restraint, the child could be seriously injured or killed in a collision. Always follow the instructions provided by the manufacturer for installation. |
• | Make sure the latches of the child restraint system are Firmly latched to the i–Size rod/lower latches. In this case, you can hear the “click” sound/ latch indications provided on seat. |
• | Incorrectly installed child restraint system may cause an unexpected personal injury. |
• | Child restraint anchorages are designed to withstand only those loads imposed by correctly fitted child restraints. |
• | The tether strap may not work properly if attached somewhere other than the correct top tether rod/rear anchor provided on seat back. |
• | Don’t put the top tether strap over the head restraint of rear row seat which is not the correct methods and may cause risk. |
• | Rock the child restraint to check if it is securely installed. Refer to instructions provided by the manufacturer of the child restraint. |
• | Do not install the child restraint of such size if it hinders the operations of front seat which may cause problem to front occupants. |
Table of Information on i-Size Child Restraint Systems Installation Suitability for Various Seating Positions
|
|||
|
|
|
|
Mass group |
Restraint Device Figure |
Seating position |
|||||
---|---|---|---|---|---|---|---|
First Row |
Second Row |
Third Row |
|||||
LEFT |
LEFT |
CENTER |
RIGHT |
LEFT |
RIGHT |
||
Group 0 Up to 10 kg |
Rear Facing Child Seat |
X |
i-U |
X |
i-U |
X |
X |
Group 0+
Up to 13 kg |
Rear Facing Child Seat |
X |
i-U |
X |
i-U |
X |
X |
Group I 9 to 18 kg |
Forward Facing Child Seat |
X |
i-U |
X |
i-U |
X |
X |
Group II 15 to 25 kg |
Booster Seat |
X |
i-U |
X |
i-U |
X |
X |
Group III
22 to 36 kg |
Booster Seat |
X |
i-U |
X |
i-U |
X |
X |
i-U: Suitable for i-Size "universal" child seat, front-facing, and rear-facing.
X: Not suitable for universally approved child seats.
|
Table of Information
on i-Size Child Restraint Systems Installation Suitability for Various i-Size
Positions
|
|||
|
|
|
|
Table of Vehicle
Handbook Information on i-Size Child Restraint Systems Installation Suitability for
Various i-Size Positions
|
Mass
group
|
Size
Class
|
Fixture
|
Vehicle
i-Size Positions
|
---|---|---|---|
Rear out
board
|
|||
Carry cot (Newborn Baby)
|
F
|
ISO/L1
|
X
|
G
|
ISO/L2
|
X
|
|
Group 0: up to 10 kg (~9 months)
|
E
|
ISO/R1
|
IL/IU
|
Group 0+: up to 13 kg (~0 – 2 years)
|
E
|
ISO/R1
|
IL/IU
|
D
|
ISO/R2
|
IL
|
|
C
|
ISO/R3
|
X
|
|
Group I 09 to 18 kg (~9 months – 4 years)
|
D
|
ISO/R2
|
IL
|
C
|
ISO/R3
|
X
|
|
B
|
ISO/F2
|
IUF
|
|
B1
|
ISO/F2X
|
IUF
|
|
A
|
ISO/F3
|
IUF
|
• | Use only the approved Child Restraint System (CRS) for better safety of your child. |
• | Mahindra is not responsible for the personal injury and property damage due to the defect of child restraint system. |
• | Use the proper type of child restraint system suitable for the weight and size for your baby. |
• | Use the child restraint system at recommended seating location only and follow the instructions. |
• | Child restraint has 5 categories based on the weight as below: |
1
|
GROUP 0 : 0 ~ 10 KG
|
4
|
GROUP II : 15 ~ 25 KG
|
2
|
GROUP 0+ : 0 ~ 13 KG
|
5
|
GROUP III : 22 ~ 36 KG
|
3
|
GROUP I : 9 ~ 18 KG
|
• | Group 0 & 0+ : Rear-facing child restraint fitted on the rear seat (use of i–Size with Base & Support Leg is recommended). |
• | Group I: Forward-facing child restraint fitted on the rear seat (use of i–Size & Top Tether is recommended). |
• | Group II & III: Booster seat fitted on the rear seat with seat belt fastened. Always follow the installation procedure and use instructions provided by the manufacturer of the booster seat. |
• | The anchor provided on rear seat base back is the supplemental device to secure the child restraint system after engaging it by the lower latches. Therefore, do not secure the child restraint system only with the seat back anchors. The increased load may cause the hooks or anchors to break, causing serious injury or death. |
• | If a child restraint is not properly secured to the vehicle and a child is not properly restrained in the child restraint, the child could be seriously injured or killed in a collision. Always follow the instructions provided by the manufacturer for installation. |
• | Make sure the latches of the child restraint system are latched to the lower latches. In this case, you can hear the “click” sound and color indications. |
• | The child restraint seat strap may not work properly if attached somewhere other than the correct seat back anchor provided on the rear seat base back side behind the seat carpet. Follow the instructions provided on the seat back for the details of anchor location. |
• | Make sure that the child restraint system is firmly secured by rocking it in different directions. |
• | Incorrectly installed child restraint system may cause an unexpected personal injury. |
Mass group |
Restraint Device Figure |
Seating position |
||||||
---|---|---|---|---|---|---|---|---|
Passenger Seat |
Second Row |
Third Row |
||||||
Activated front Passenger Airbag |
Deactivated front Passenger Airbag |
LEFT |
CENTER |
RIGHT |
LEFT |
RIGHT |
||
Group 0 Up to 10 kg |
Rear Facing Child Seat |
X |
U |
U |
X |
U |
X |
X |
Group 0+
Up to 13 kg |
Rear Facing Child Seat |
X |
U |
U |
X |
U |
X |
X |
Group I 9 to 18 kg |
Forward Facing Child Seat |
U |
X |
U |
X |
U |
X |
X |
Group II 15 to 25 kg |
Booster Seat |
U |
X |
U |
X |
U |
X |
X |
Group III
22 to 36 kg |
Booster Seat |
U |
X |
U |
X |
U |
X |
X |
![]() |

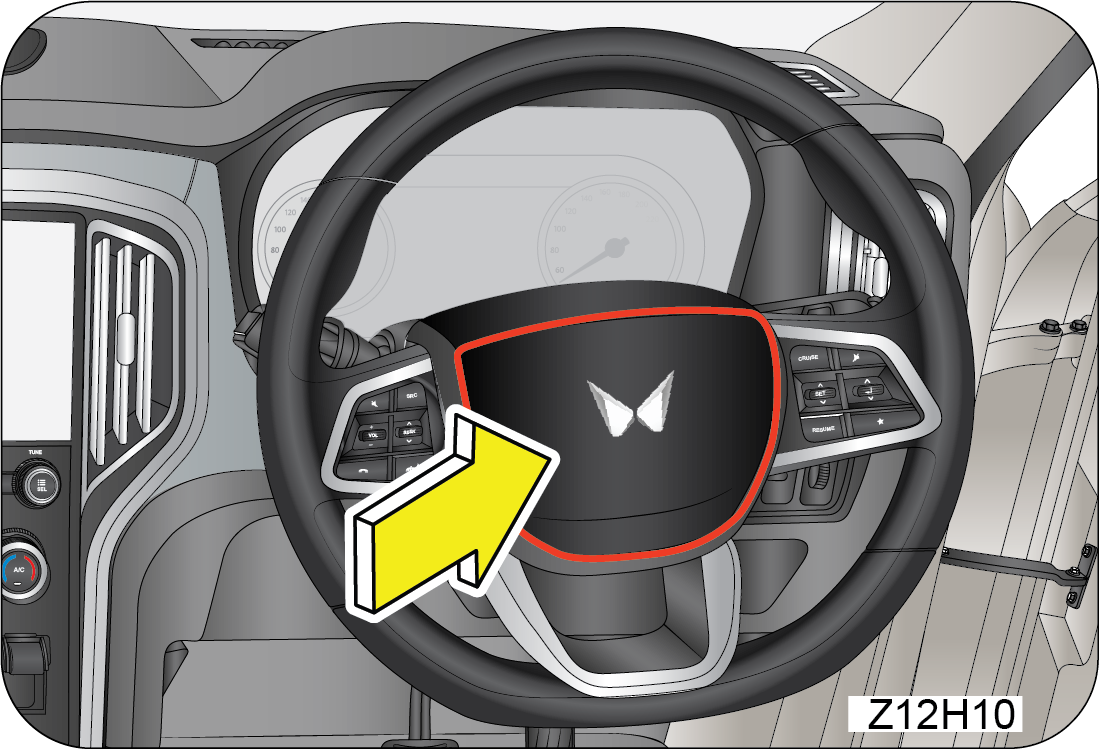

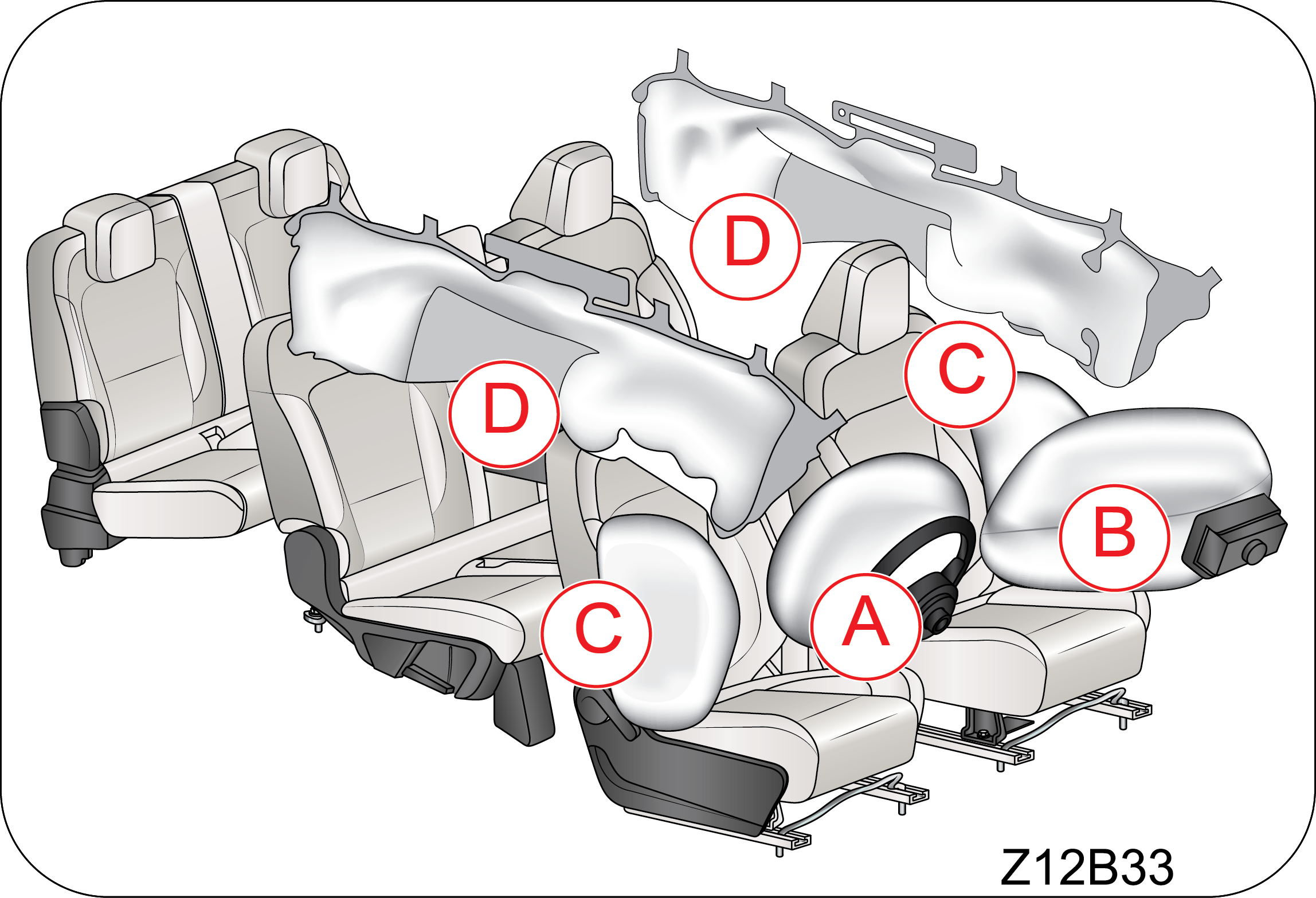

A:Driver Airbag
B: Front
Passenger Airbag
C:Two side
(seat) impact airbags (if equipped)
D: Two curtain
airbags (if equipped)
|
![]() |
|
|
|
|
Your vehicle is equipped with side impact airbag in
both the front seats. The purpose of the airbag is to provide the vehicle's
driver and/or the front passenger with additional protection during side impacts or
collisions.
|
|
|
• | In the case of a side collision, the curtain airbag may be deployed together with the relevant side airbag on the side the collision occurs. |
• | The side impact airbag is supplementary to the seat belt systems and is not a substitute for them. Therefore, your seat belts must be worn at all times while the vehicle is in motion. The airbags deploy only in certain side impact conditions severe enough to cause significant injury to the vehicle occupants. |
• | For best protection from the side impact airbag system and to avoid being injured by the deploying side impact airbag, all seat occupants should sit in an upright position with the seat belt properly fastened. The driver's hands should be placed on the steering wheel at the 9:00 and 3:00 positions. The passengers arms and hands should be placed on their laps. |
• | Do not use any accessory seat covers. Use of seat covers could reduce or prevent the effectiveness of the system. |
• | Do not install any accessories on the side or near the side impact airbag. |
• | Do not place any objects over the airbag or between the air bag and yourself. |
• | Do not place any objects (an umbrella, bag, etc.) between the door and the seat. Such objects may become dangerous projectiles and cause injury if the supplementary side impact airbag inflates. |
|
|
• | In the case of a side collision, the side airbag may be deployed together with the relevant curtain airbag on the side the collision occurs. |
• | In order for side and curtain airbag to provide the best protection, both front seat occupants and outboard rear occupants should sit in an upright position with the seat belts properly fastened. Importantly, children should sit in a proper child restraint system in the rear seat. |
• | When children are seated in the rear outboard seats, they must be seated in the proper child restraint system. Make sure to position the child restraint system as far away from the door side as possible, and secure the child restraint system in a locked position. |
• | Do not allow the passengers to lean their heads or bodies onto doors or place objects between the doors and passengers when they are seated on seats equipped with side and/or curtain airbag. |
|

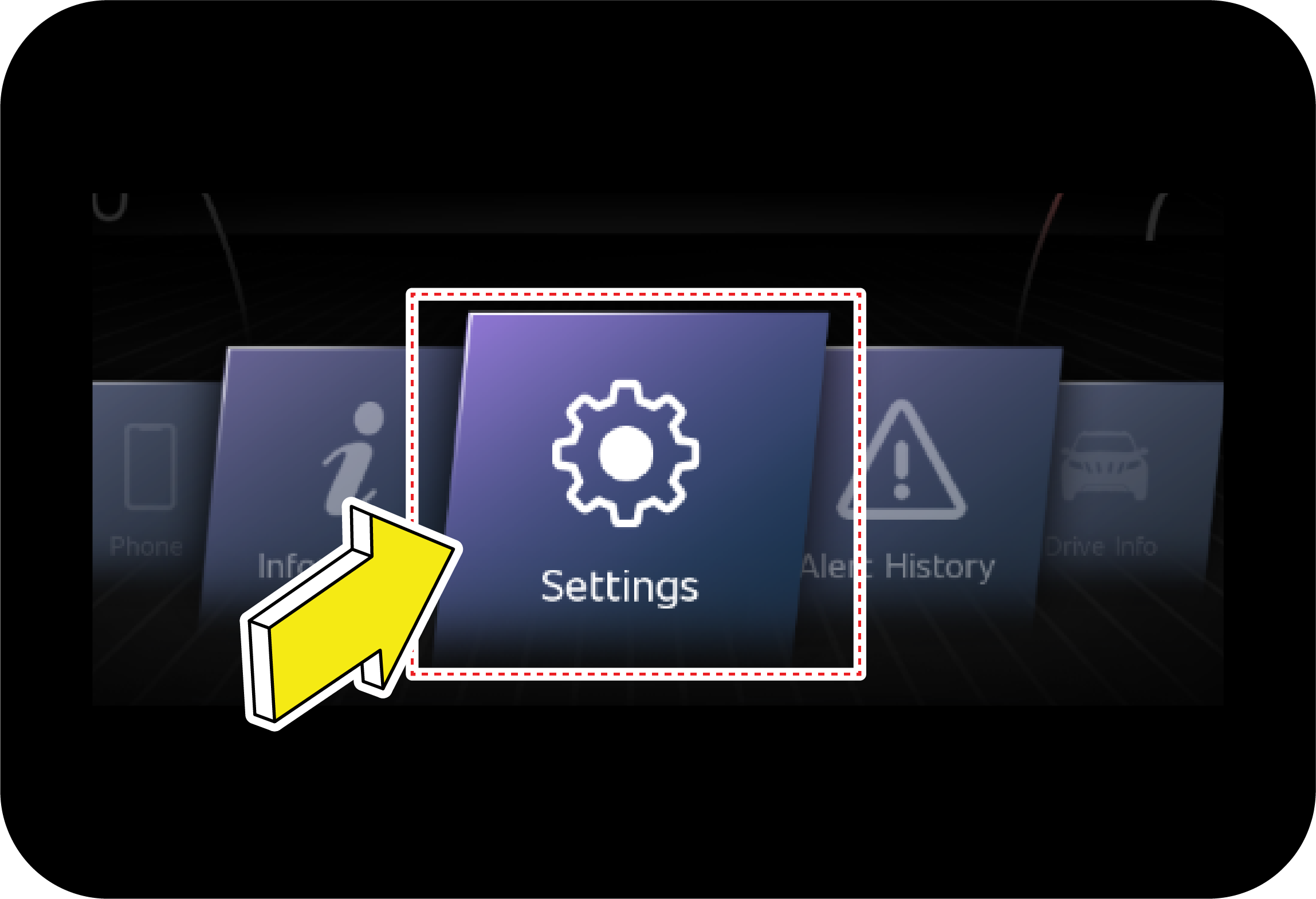

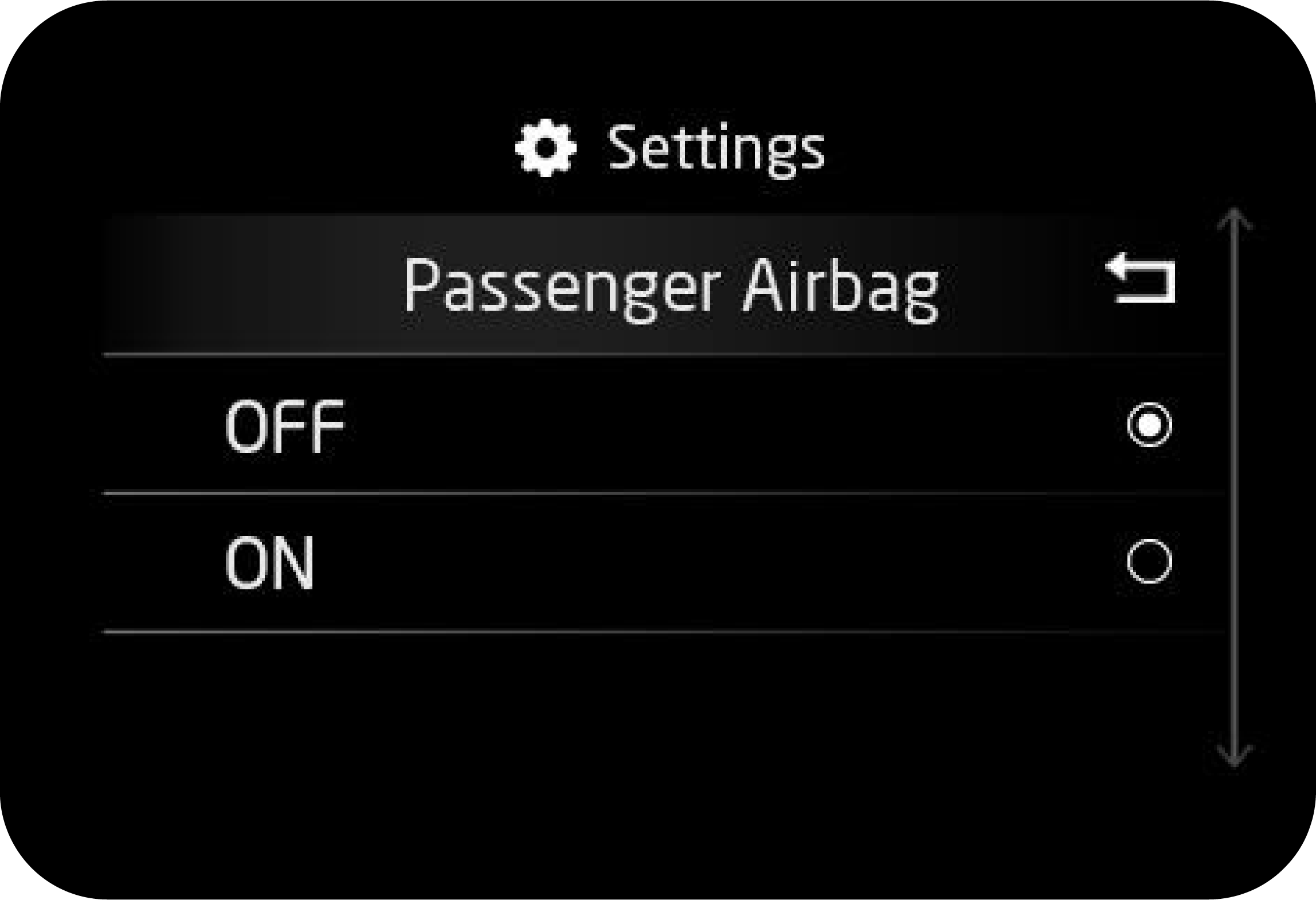

A: MENU
button
B: UP
C: OK
D: Down
|
|
|
|
• | The lamp does not glow when the ignition is switched ON or glows beyond six (6) seconds after switching the ignition ON. |
• | The lamp comes ON at any other time, even briefly. |
• | The lamp comes ON intermittently. |
• | Do not modify, remove, strike or open the seat belt pre-tensioner assemblies, airbag sensor or surrounding area or wiring. Failure to follow these instructions may prevent them from activating correctly, cause sudden operation of the system or disable the system, which could result in serious injury. |
• | Parts of the airbag module (steering wheel hub, airbag cover and inflator) may be hot for several minutes after deployment. The airbags inflate only once. |
• | Do not cover the steering wheel, instrument panel, seats with any object (e.g. dash panel covers, seat covers) which may prevent the airbags from inflating properly. |
• | The airbags inflate with considerable force. While the system is designed to reduce serious injuries, primarily to the head and chest, it may also cause other, less severe injuries to the face, chest, arms and hands. These are usually in the nature of minor burns or abrasions and swelling, but the force of a deploying airbag can also cause more serious injuries, especially if an occupant's hands, arms, chest or head is in close proximity to the airbag module at the time of deployment. Sit straight and well back into the seat. Move your seat as far back as practical to allow room for airbag inflation, while still allowing you to properly operate/drive the vehicle. |
![]() |
![]() |
![]() |
|

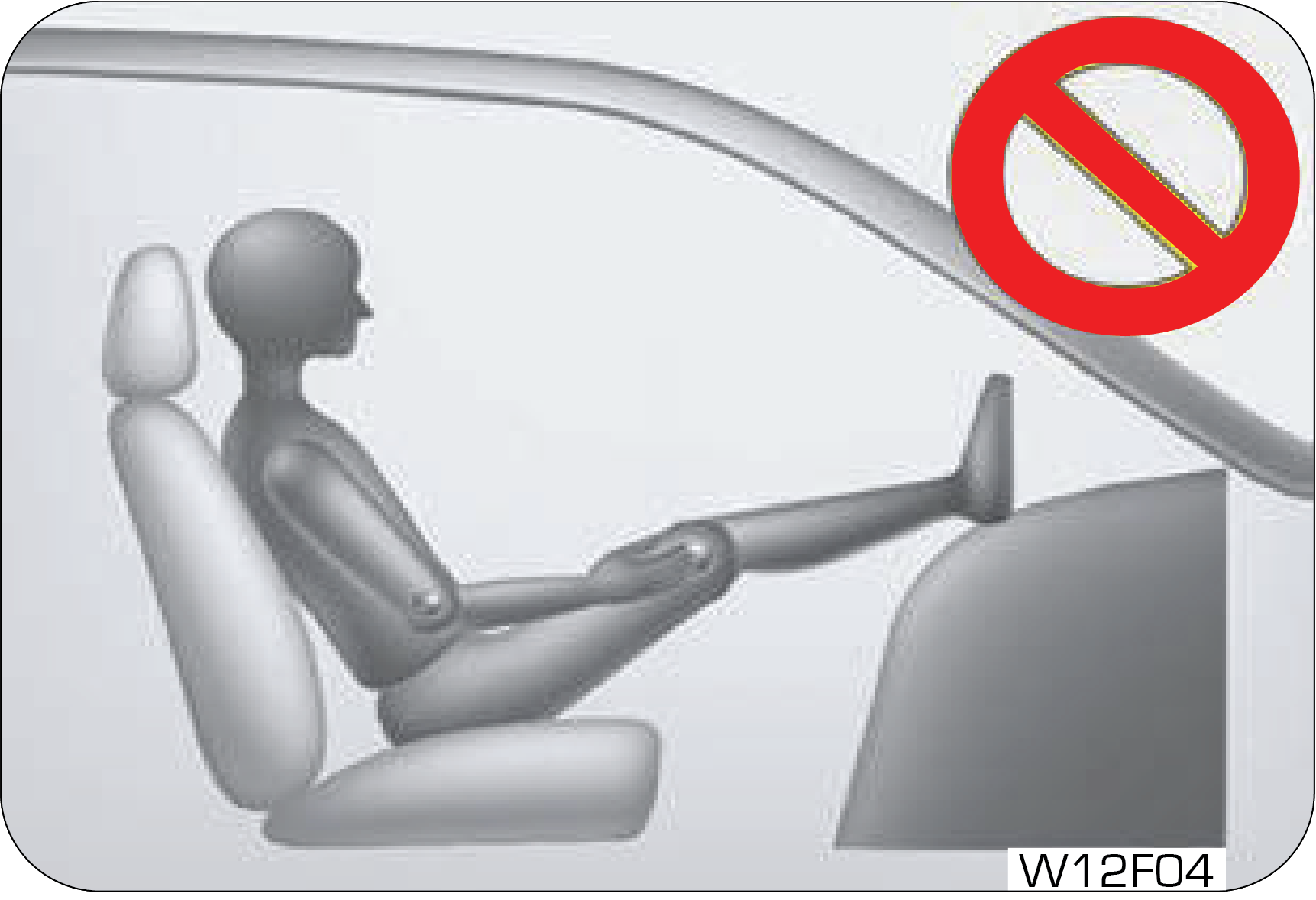

• | The front passenger must sit as far back as possible from the dashboard. |
• | Sitting improperly or out of position can cause occupants to be shifted too close to a deploying airbag, strike the interior structure or be thrown from the vehicle resulting in serious injury. |
• | Always sit upright with the seat back in an upright position, on the seat cushion centre with your seat belt on, legs comfortably extended and your feet on the floor. |
• | All vehicle occupants must be properly restrained using the seat belts. |
• | All infants and children must be placed in the rear seat of the vehicle in a child restraint seat and be properly restrained by seat belts. |
• | Front airbags can injure occupants who are improperly positioned in the front seats. |
• | Even with airbags, improperly belted and un-belted occupants can be severely injured when the airbag inflates. Always follow the precautions about seat belts, airbags and occupant safety contained in this manual. |
• | Do not modify the front seats. Modification of the front seats could interfere with the operation of the supplemental restraint system or side impact airbags. |
• | Do not place items under the front seats. Placing items under the front seats could interfere with the operation of the supplemental restraint system sensing components and wiring harnesses. |
|
|
|
|
Front airbag are designed to inflate in a frontal
collision depending on the intensity, speed or angles of impact of the front
collision.
|
Collision with Utility Poles or Trees : | |
|
Airbags may not inflate if the vehicle collides with
objects such as utility poles or trees, where the point of impact is
concentrated to one area and the full force of the impact is not delivered to the
sensors.
|
Frontal Impact :
|
|
|
Frontal impact beyond 30º range from head-on to the vehicle.
|
|
In an angled collision, the force of impact may direct
the occupants in a direction where the airbags would not be able to
provide any additional benefit, and thus the sensors may not deploy any airbags.
|
|
Airbags will not inflate in this “under-ride” situation
where deceleration forces that are detected by sensors are significantly
low.
|
|
Frontal airbags are not designed to inflate in rear
collisions, where occupants are moved backward away from the airbags by
the force of the impact. In this case, inflated airbags would not be able to provide
any additional benefit.
|
|

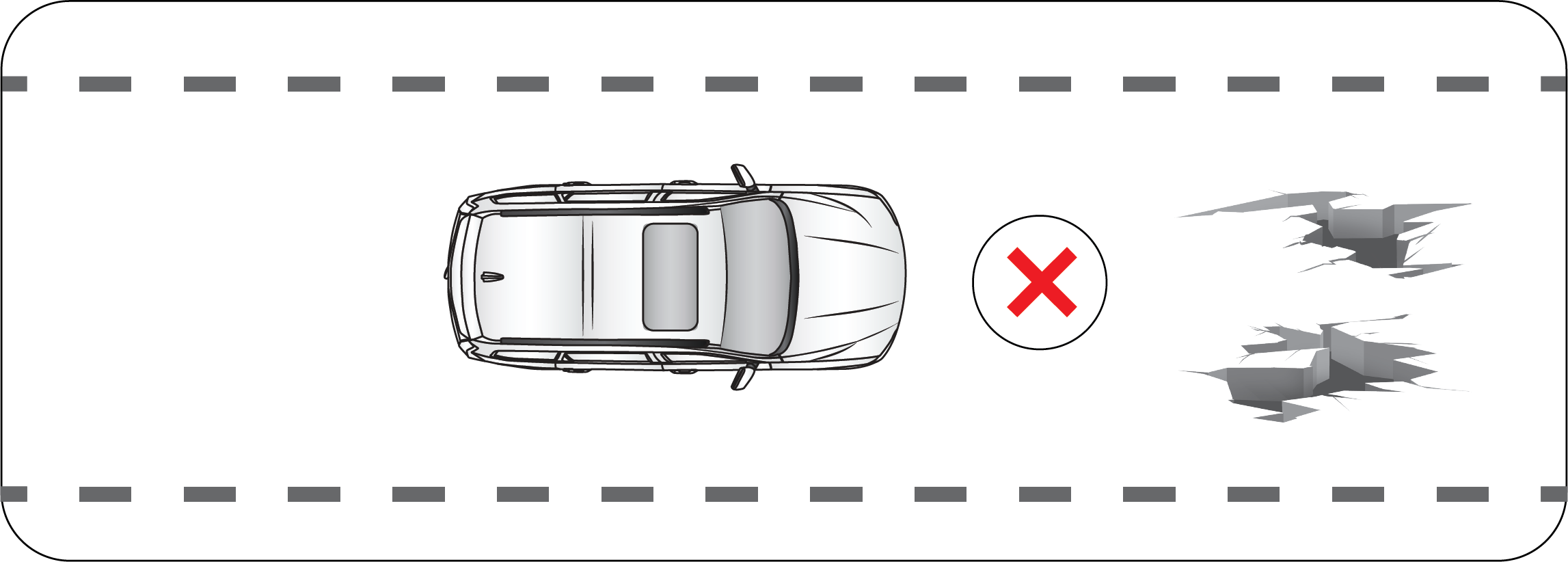

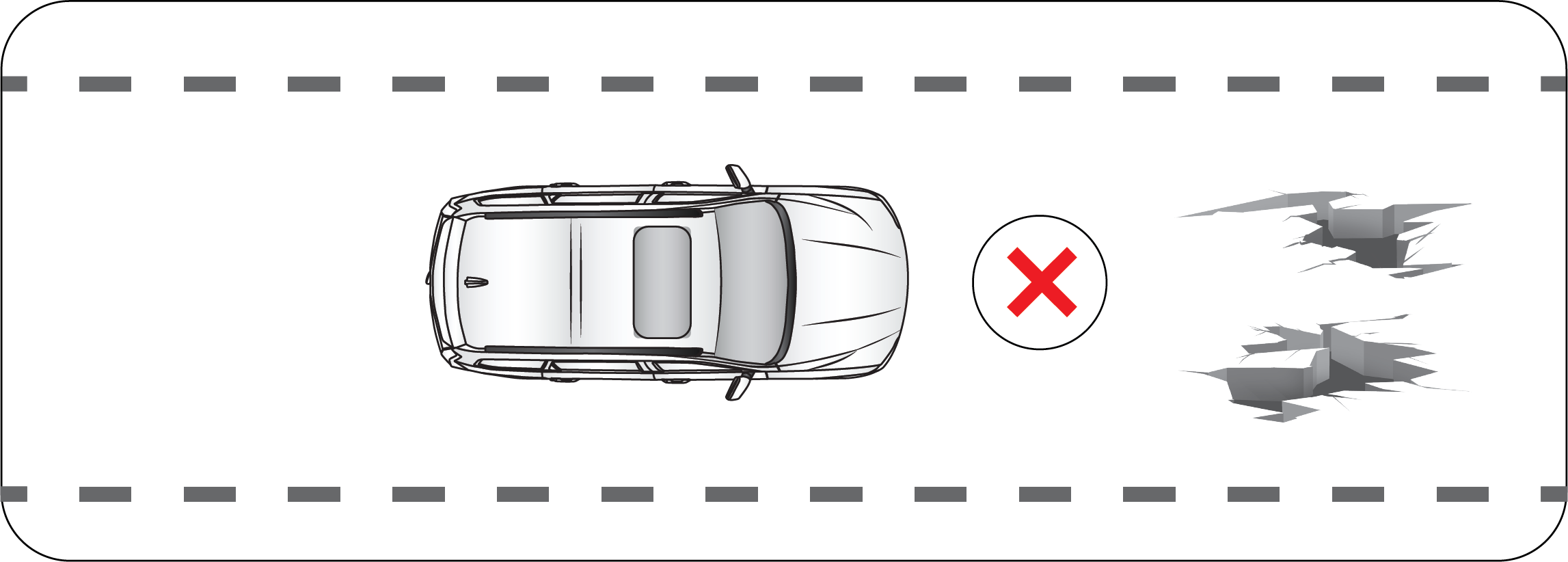

Driving into a big pothole, stepped surface or hitting
the far side of a hole/incline will not inflate the airbag.
|
|
Airbags will not inflate in rollover accidents where
airbag deployment would not provide protection to the occupants. However,
side impact and curtain airbags may inflate only when severe side impact causes
rollover.
|
High
|
Low
|
High | Low |
|
|
High | Low |
|
|
High | Low |
|
![]() |
High | Low |
|
![]() |
High | Low |
|
![]() |
High | Low |
---|---|
|
|
![]() |

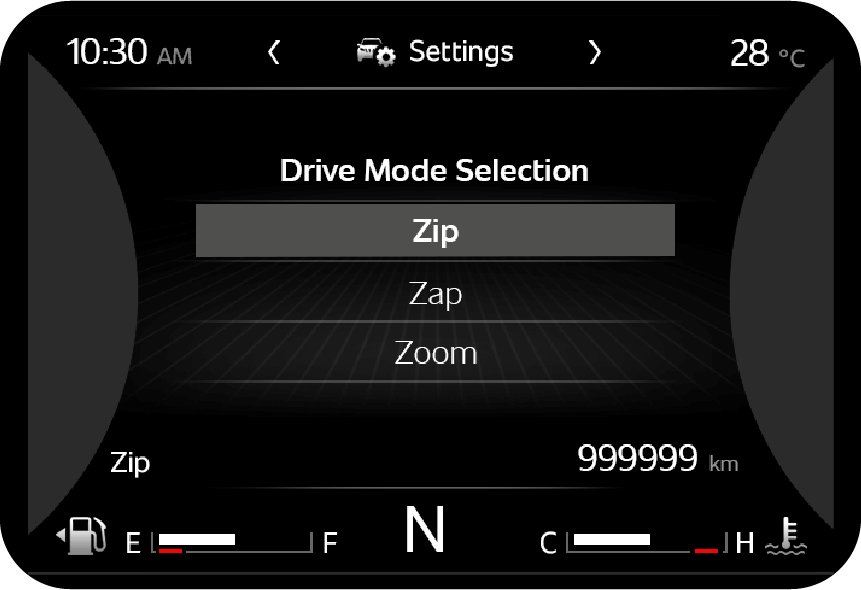

Drive modes shall change driving characteristics by changing elements
such as Engine power, Traction control, Climate control
and Steering weight settings.
|
High | Low |
![]() |
|
High | Low |
|
|
High | Low |
|
|
High | Low |
|
|
High | Low |
![]() |
|
|
Cluster will display the 5 level of driver attention level based on
drive Pattern.
5 Attention Bars - Indicates that the driver is Completely Awake.
|
|
4 Attention Bars - Indicates that the driver is Quite Awake.
|
![]() |
3 Attention Bars - Indicates that the driver is Neither Awake nor
Sleepy.
|
|
2 Attention Bars - Indicates that the driver is slightly sleepy and
can stay awake with effort.
|
|
1 Attention Bars - Indicates that the driver is extremely Sleepy and
can’t stay awake.
|

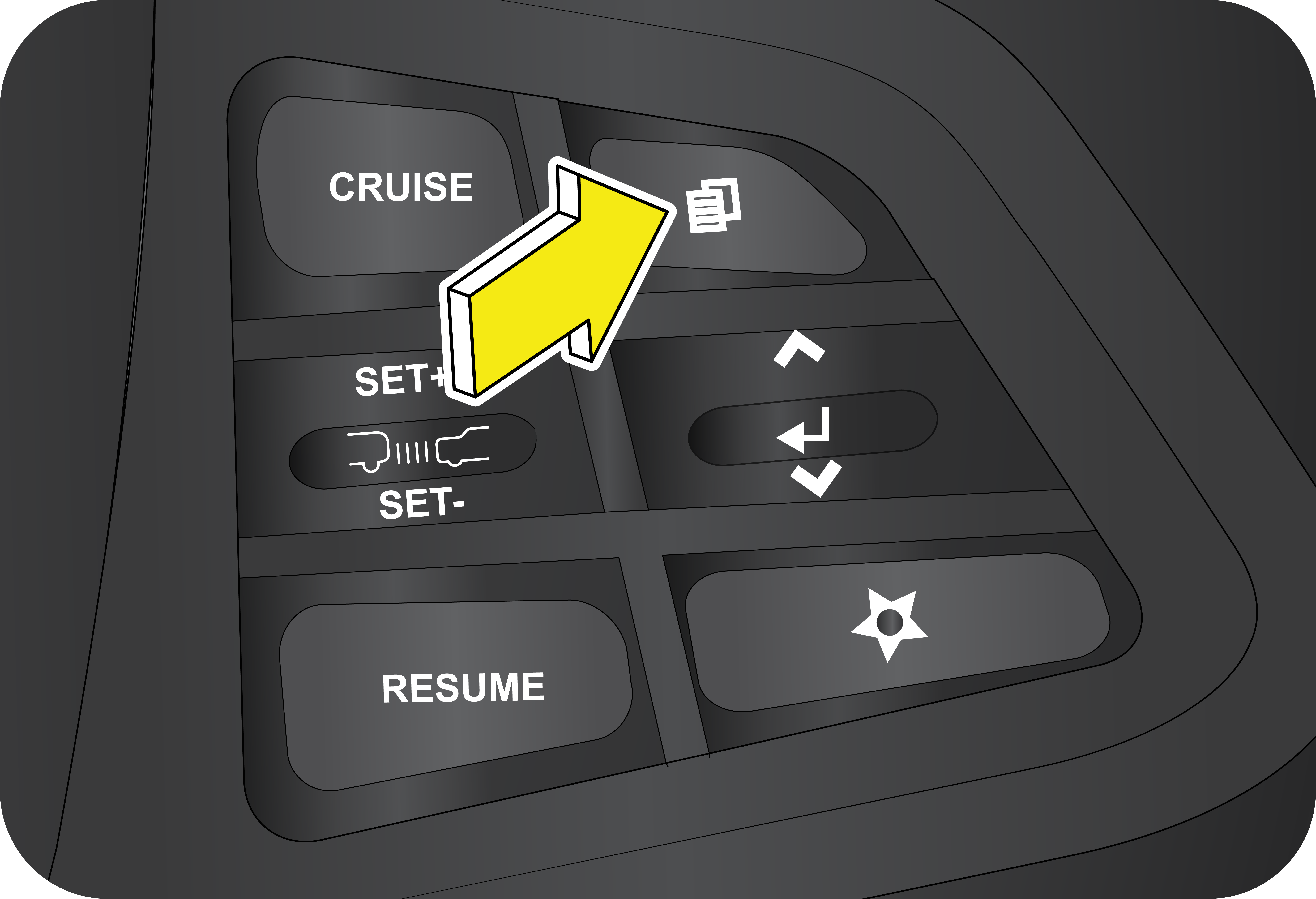

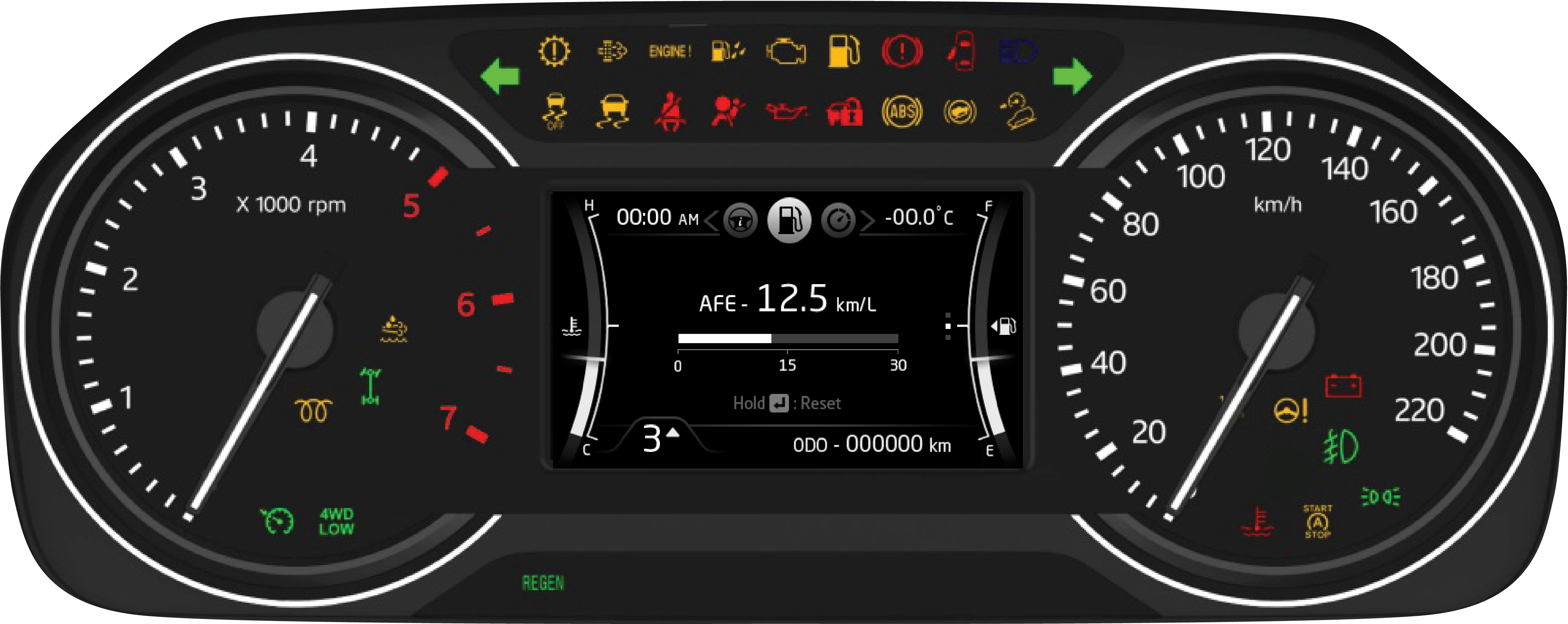

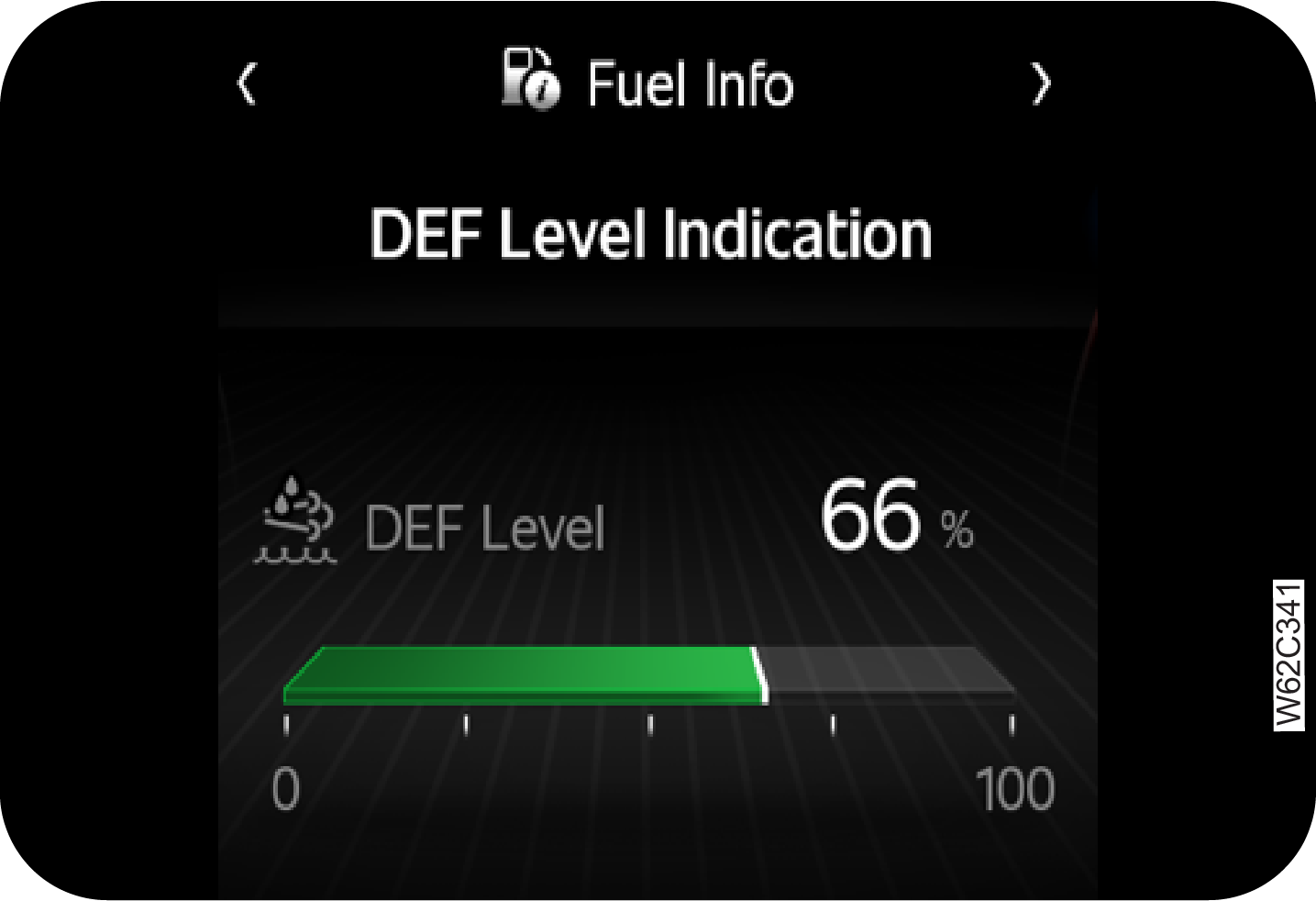

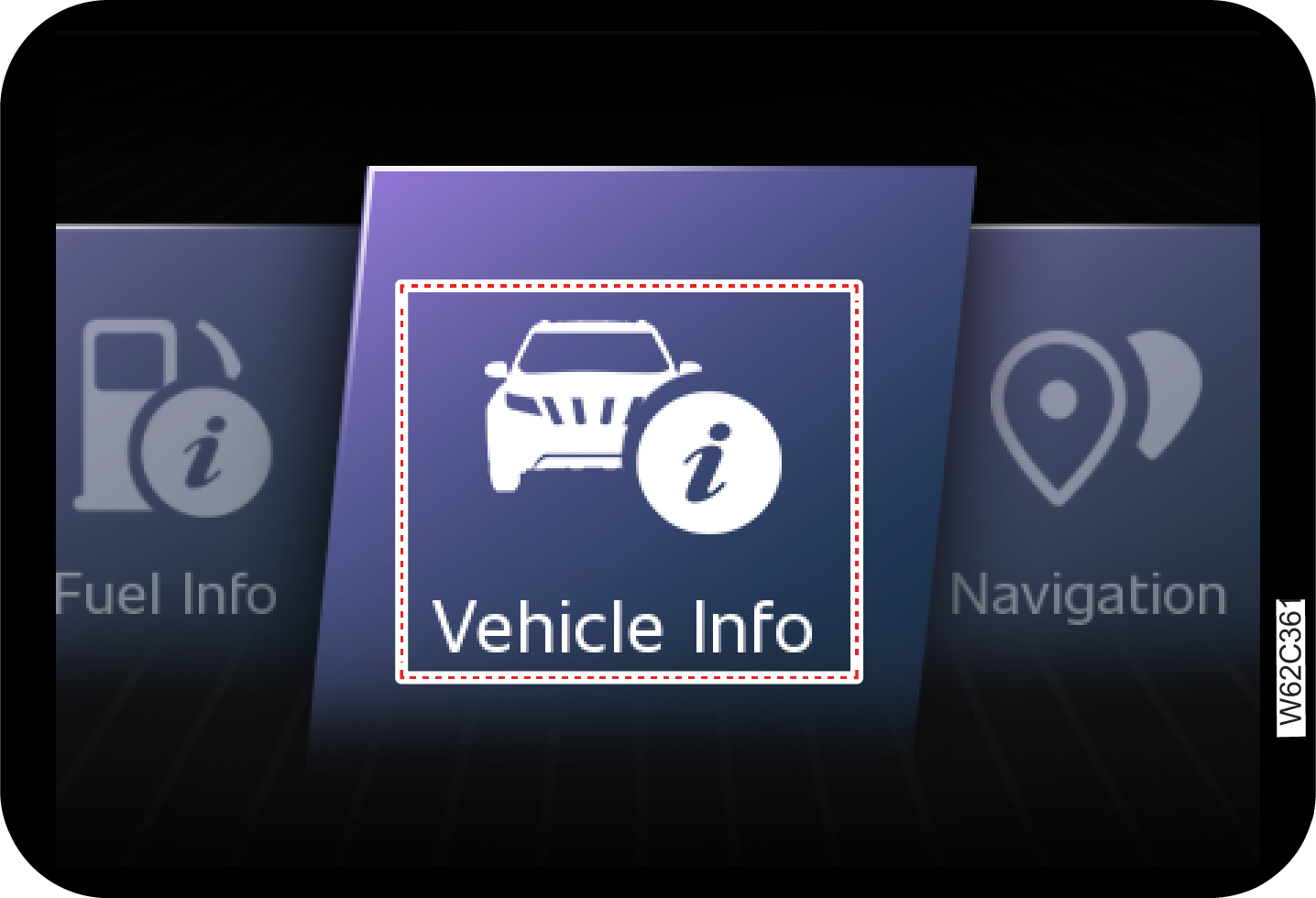

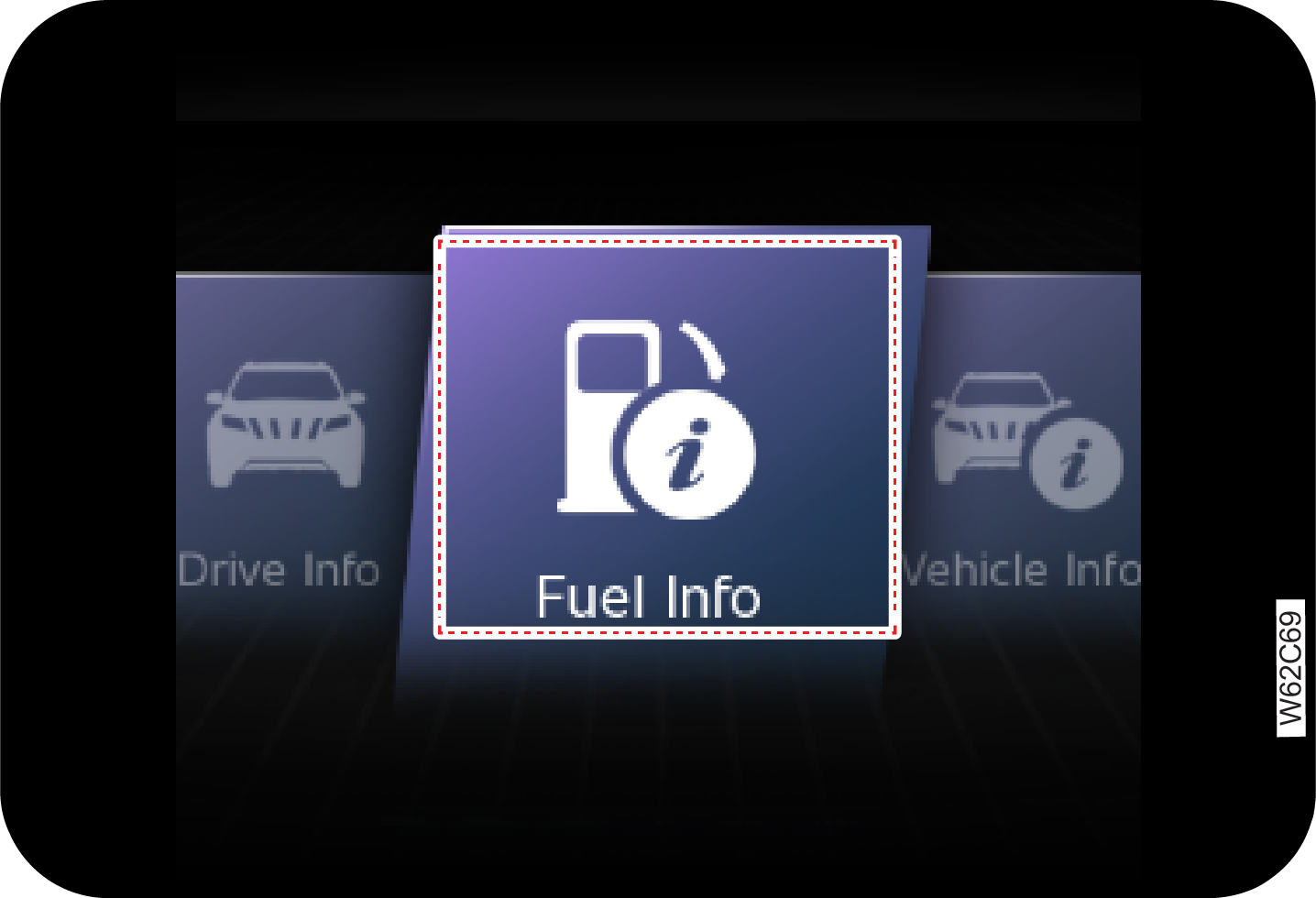

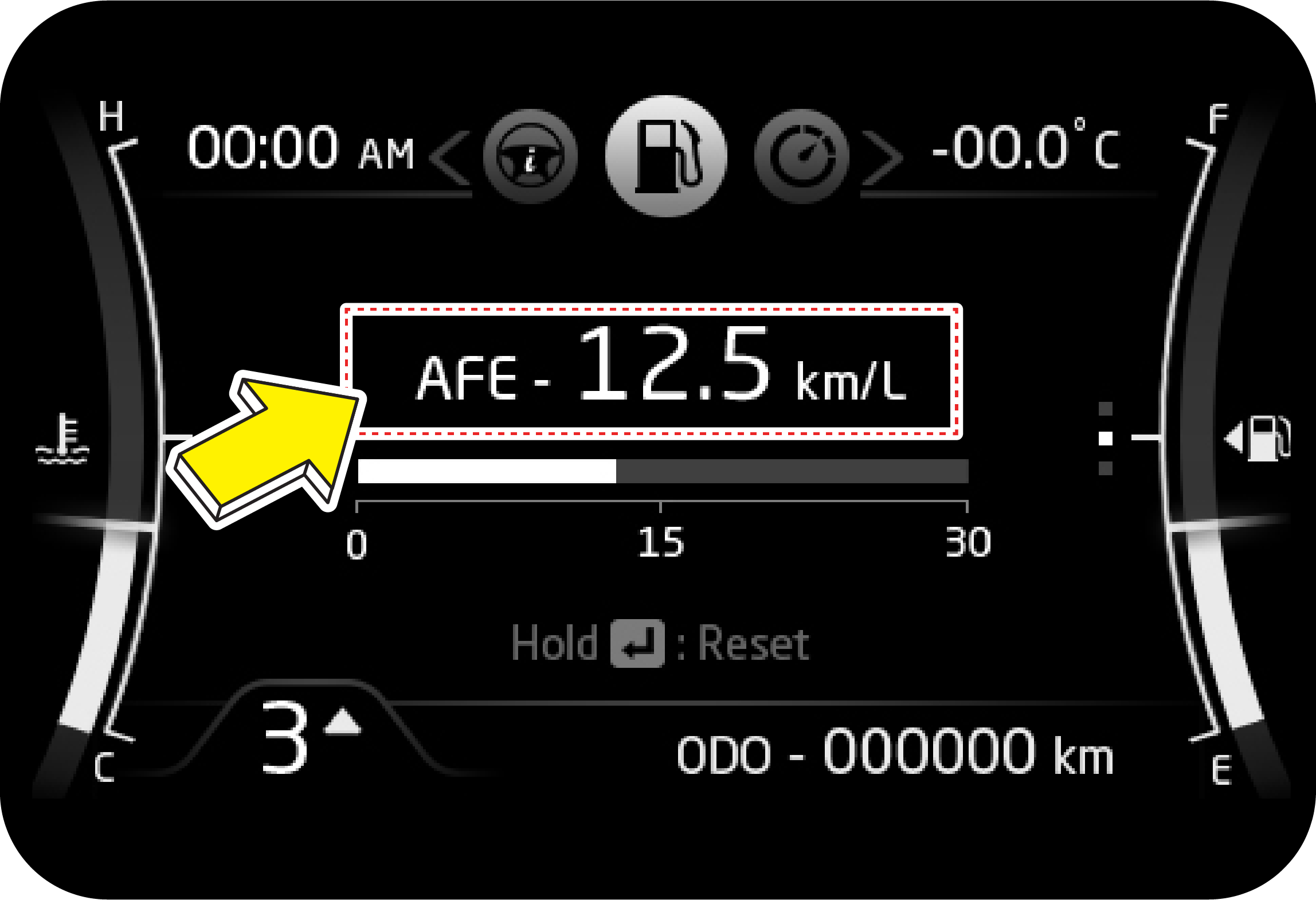

Fuel info can be accessed by pressing MENU button in Steering
wheel/driver side switch bank.
|
|
High
|
Low
|
![]() |
|
High
|
Low
|
|
|
High
|
Low
|
|
![]() |
High
|
Low
|
|
|
High
|
Low
|
![]() |
|
High
|
Low
|
![]() |
|
![]() |
![]() |
![]() |

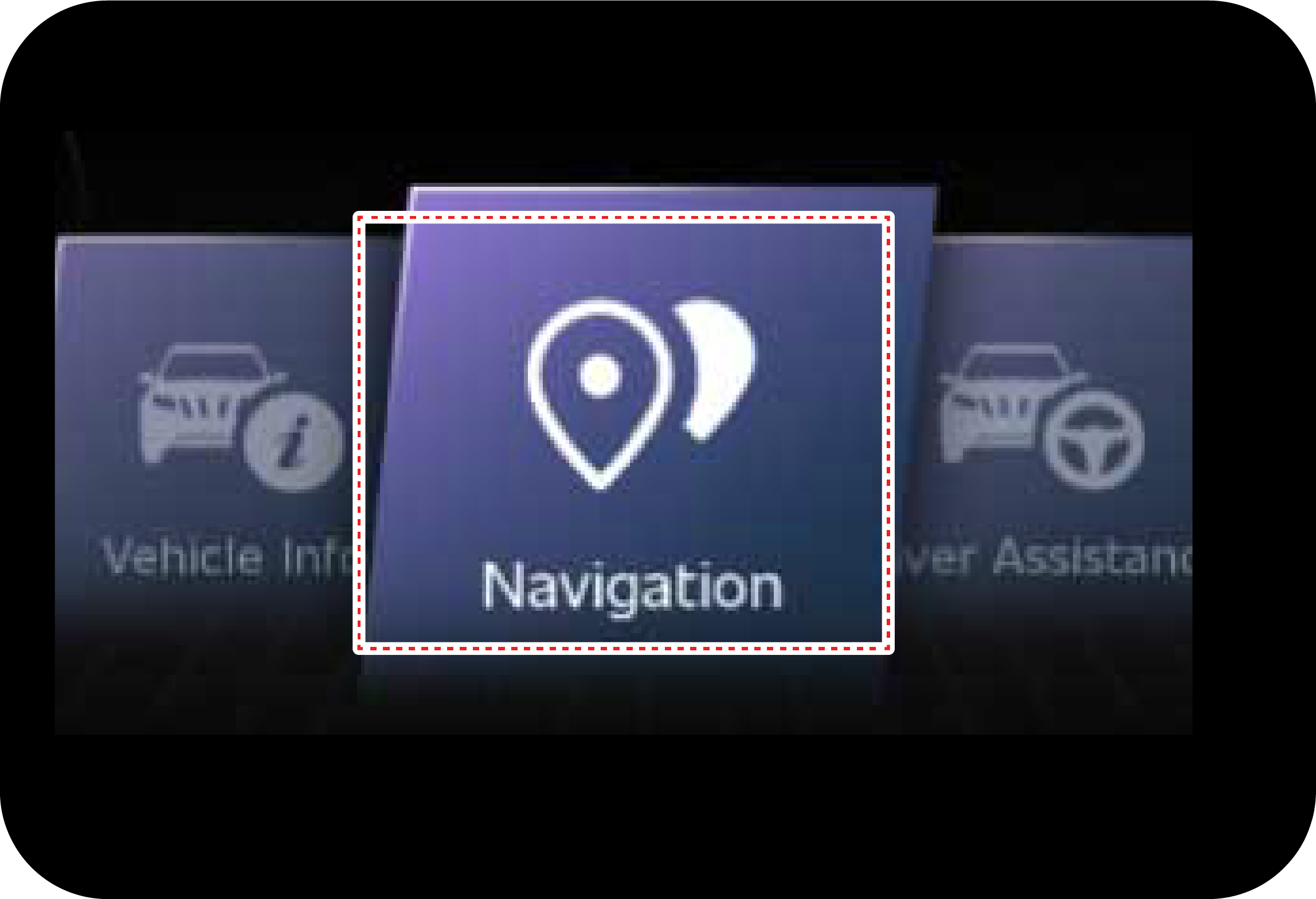

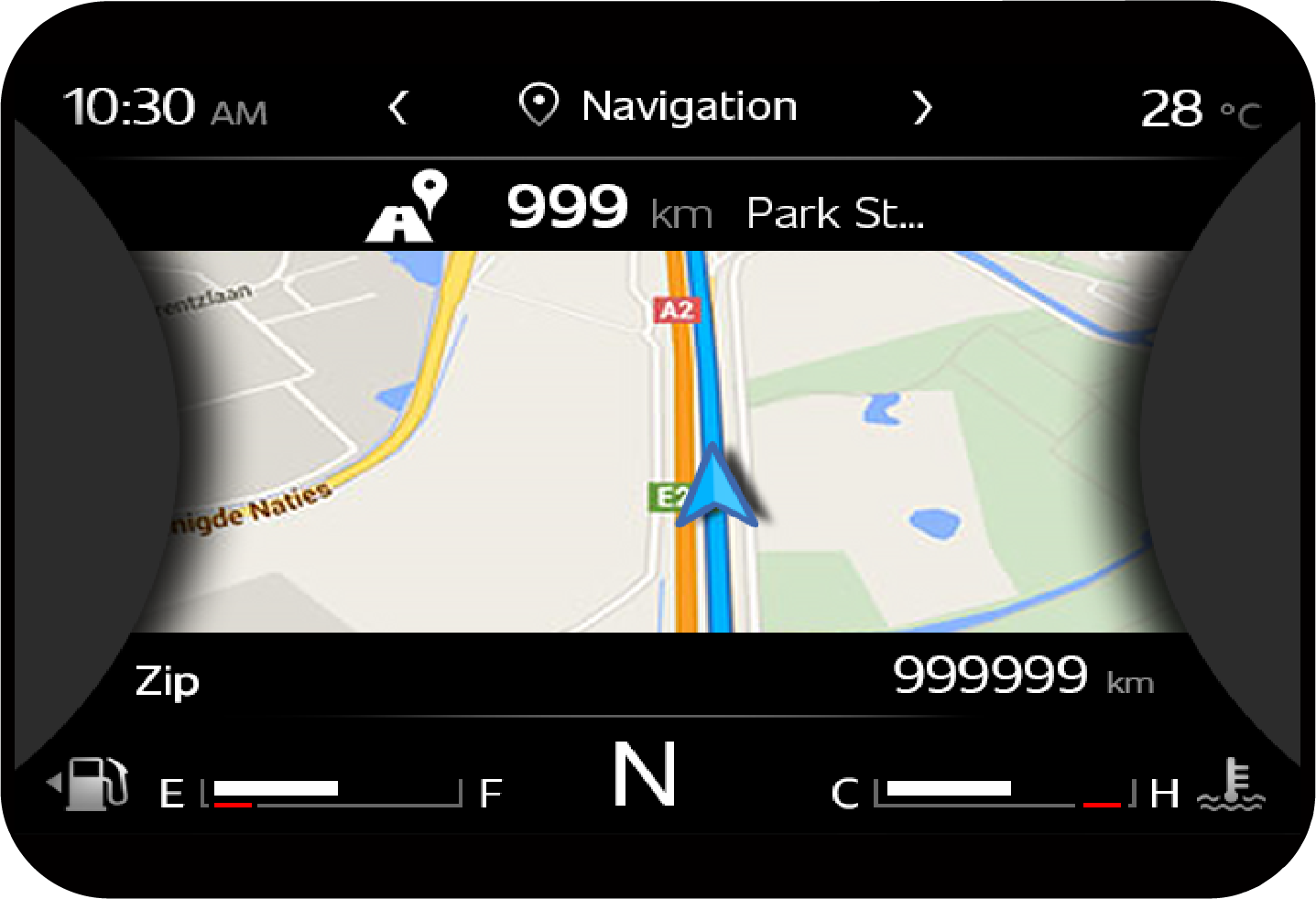

Navigation can be accessed by pressing MENU button in Steering
wheel/driver side switch bank.
|
Partial Screen Navigation
|
Turn by Turn Navigation
|
![]() |
|
![]() |

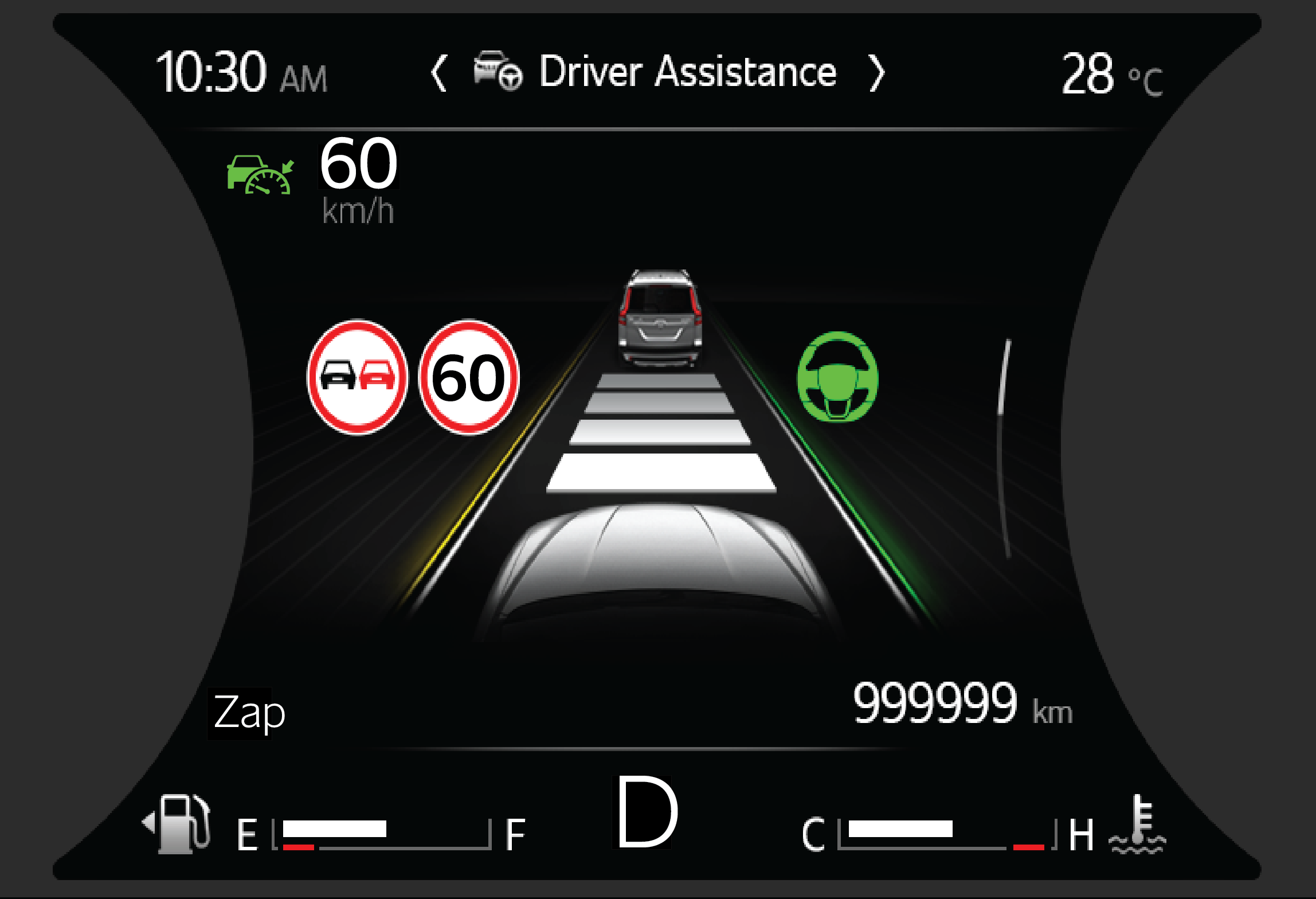

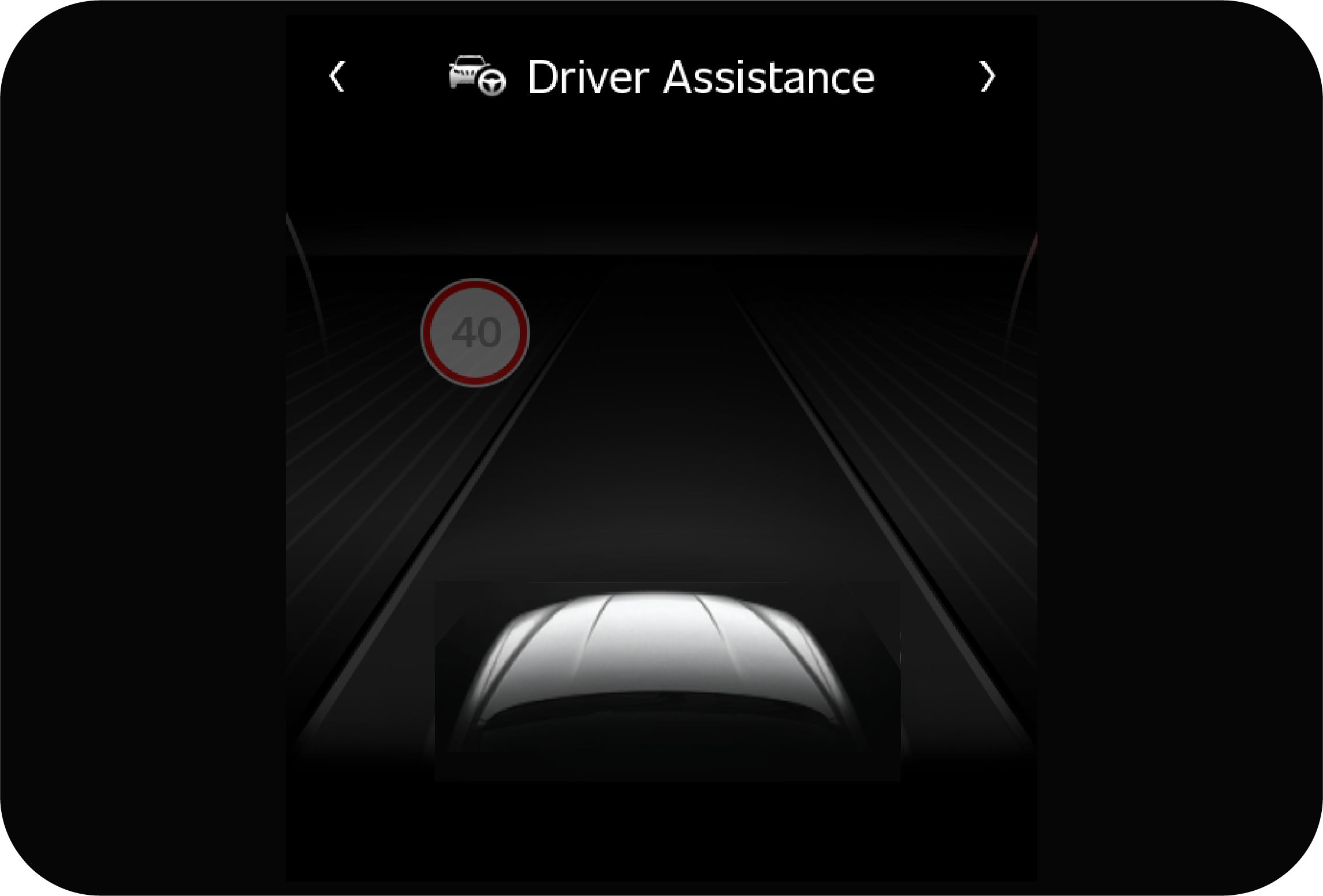

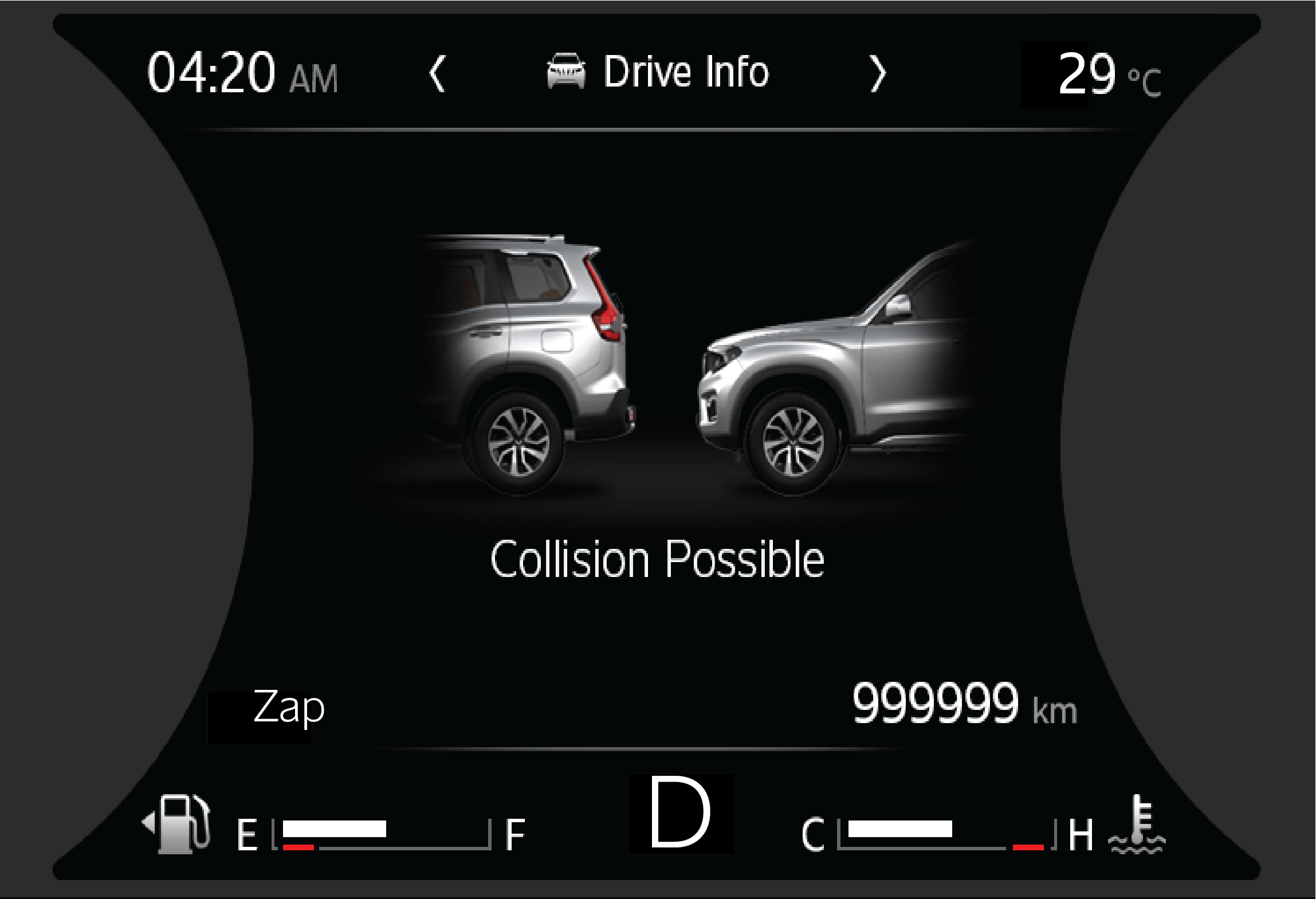

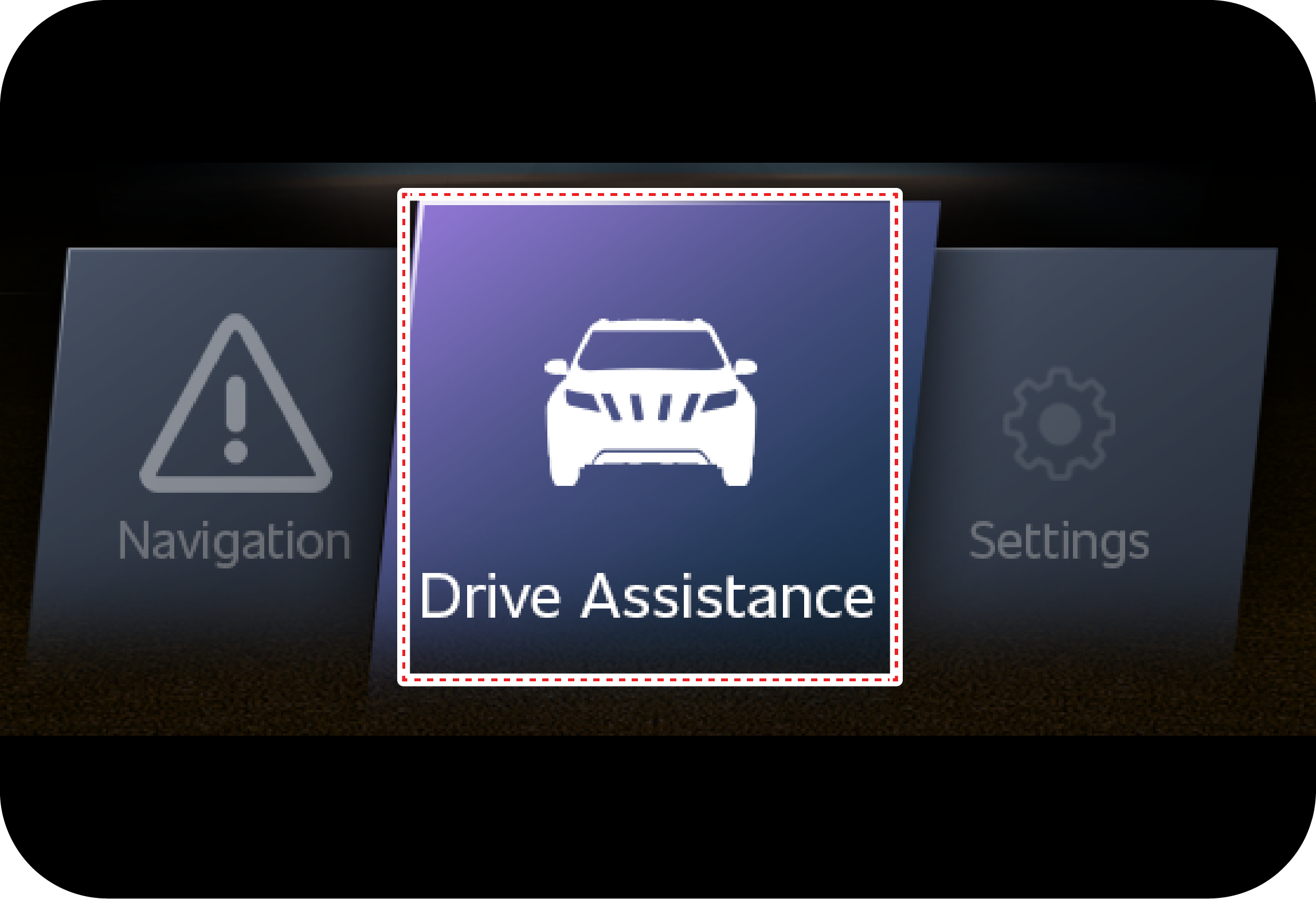

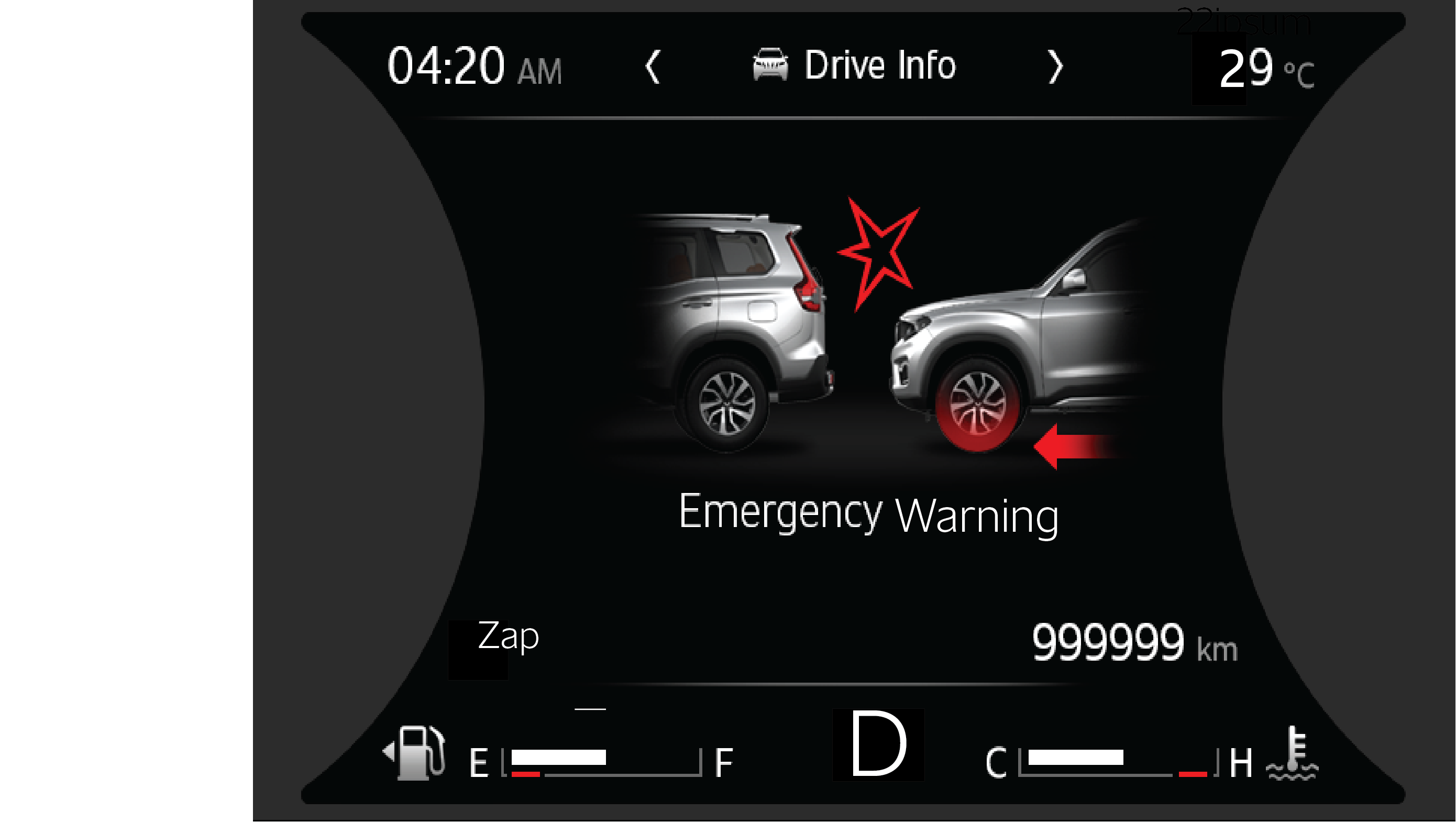

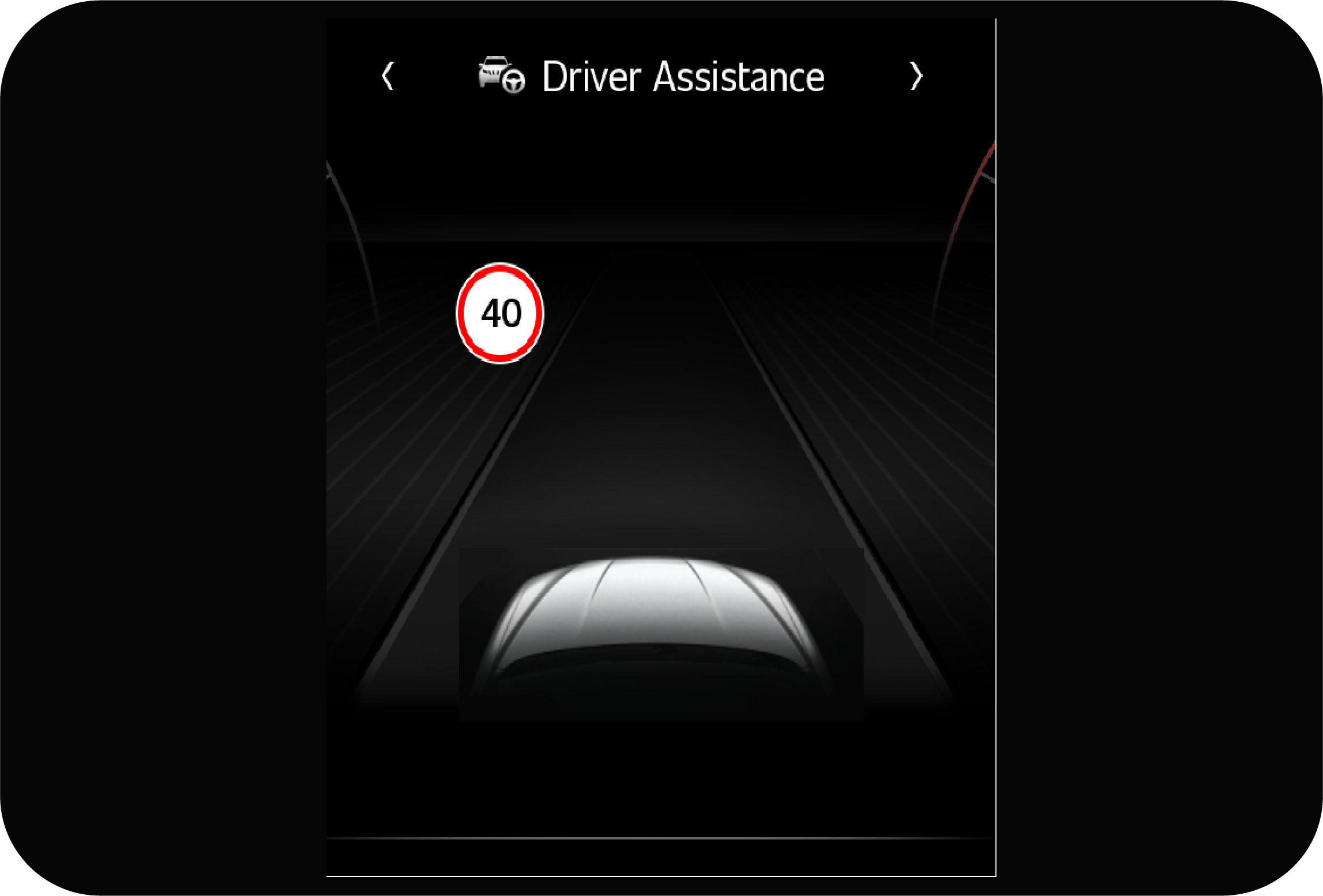

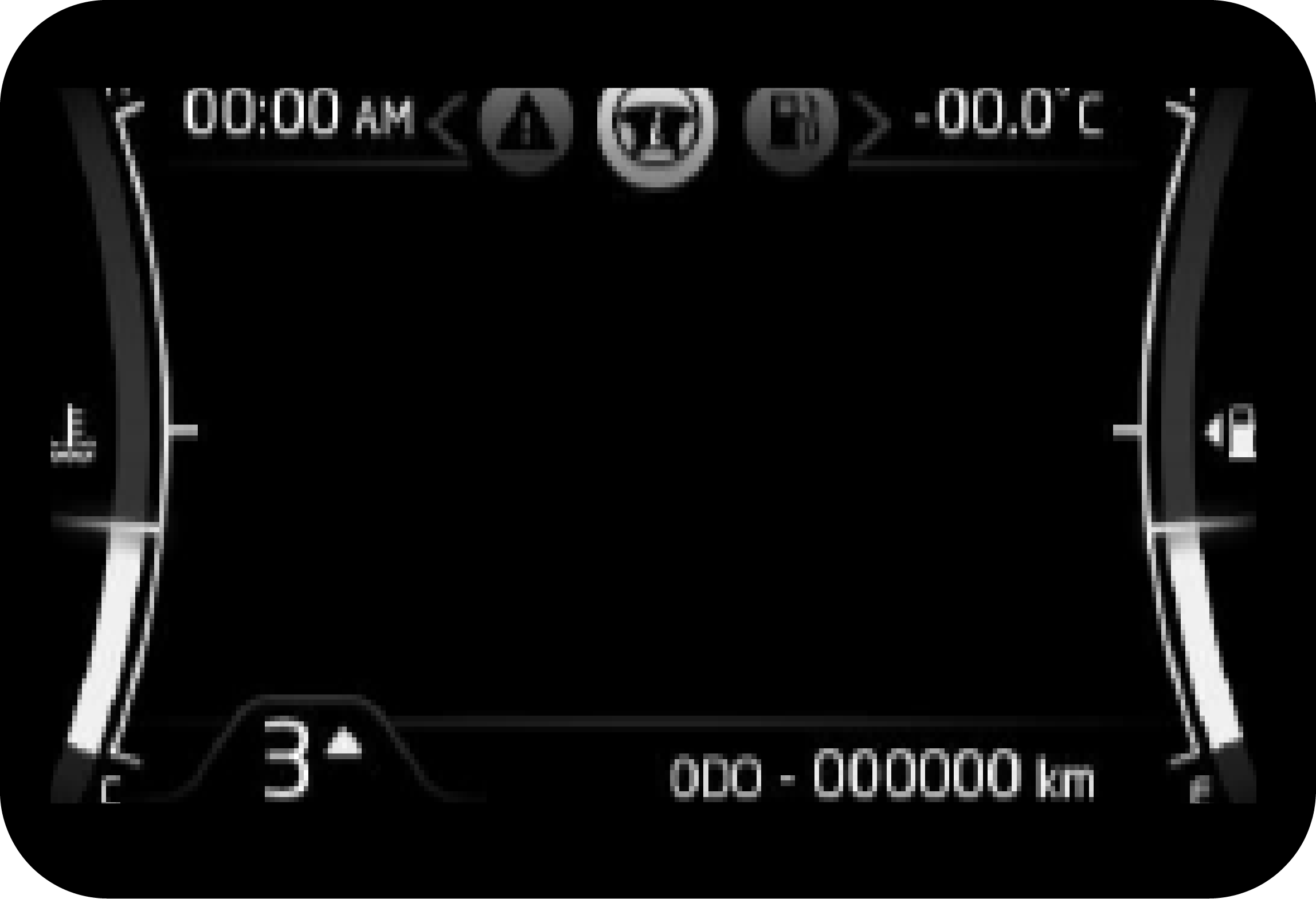

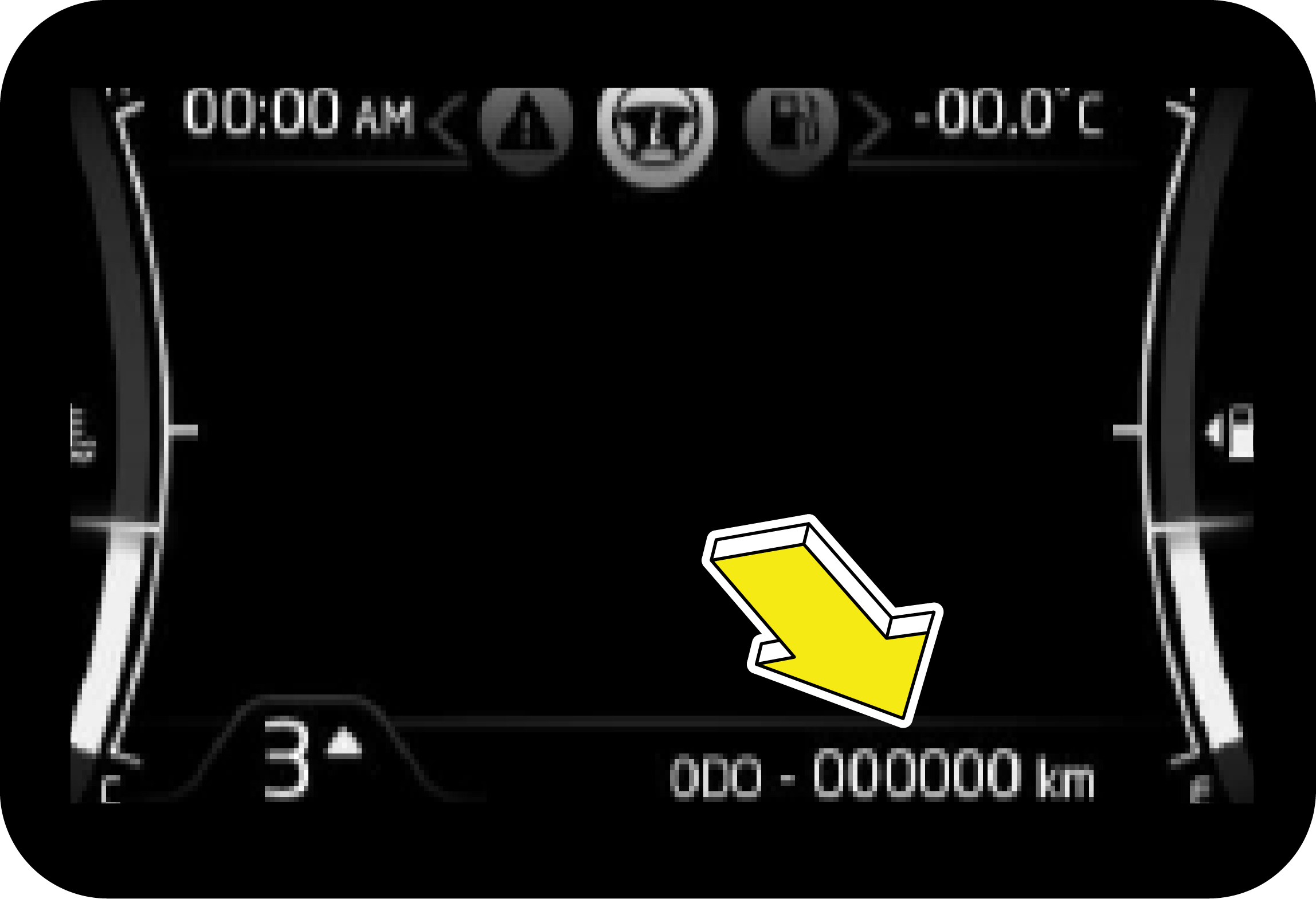

To have the enlarged view of the ADAS feature tell-tales in the cluster, select Driver Assistance in the Menu tiles.
|

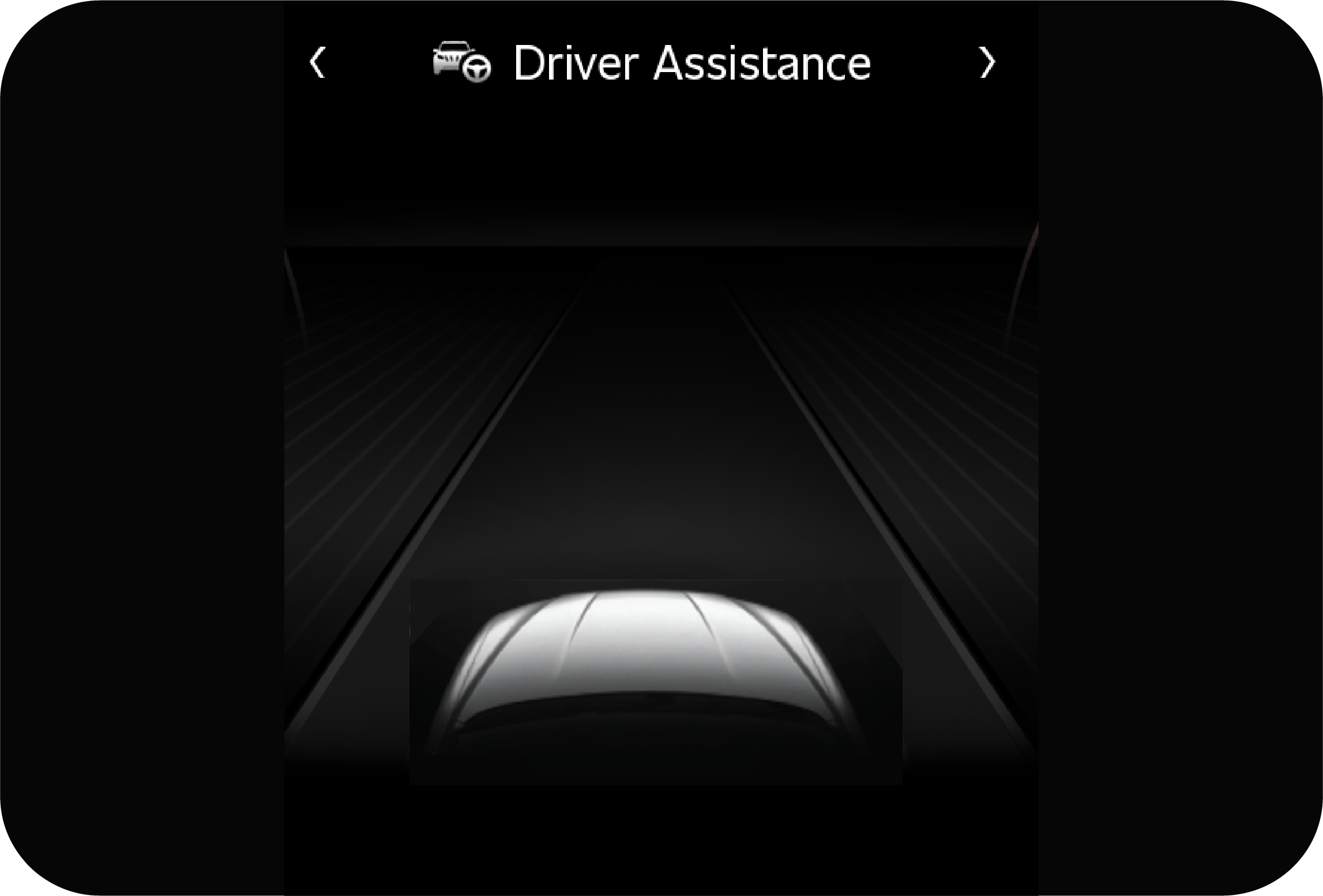

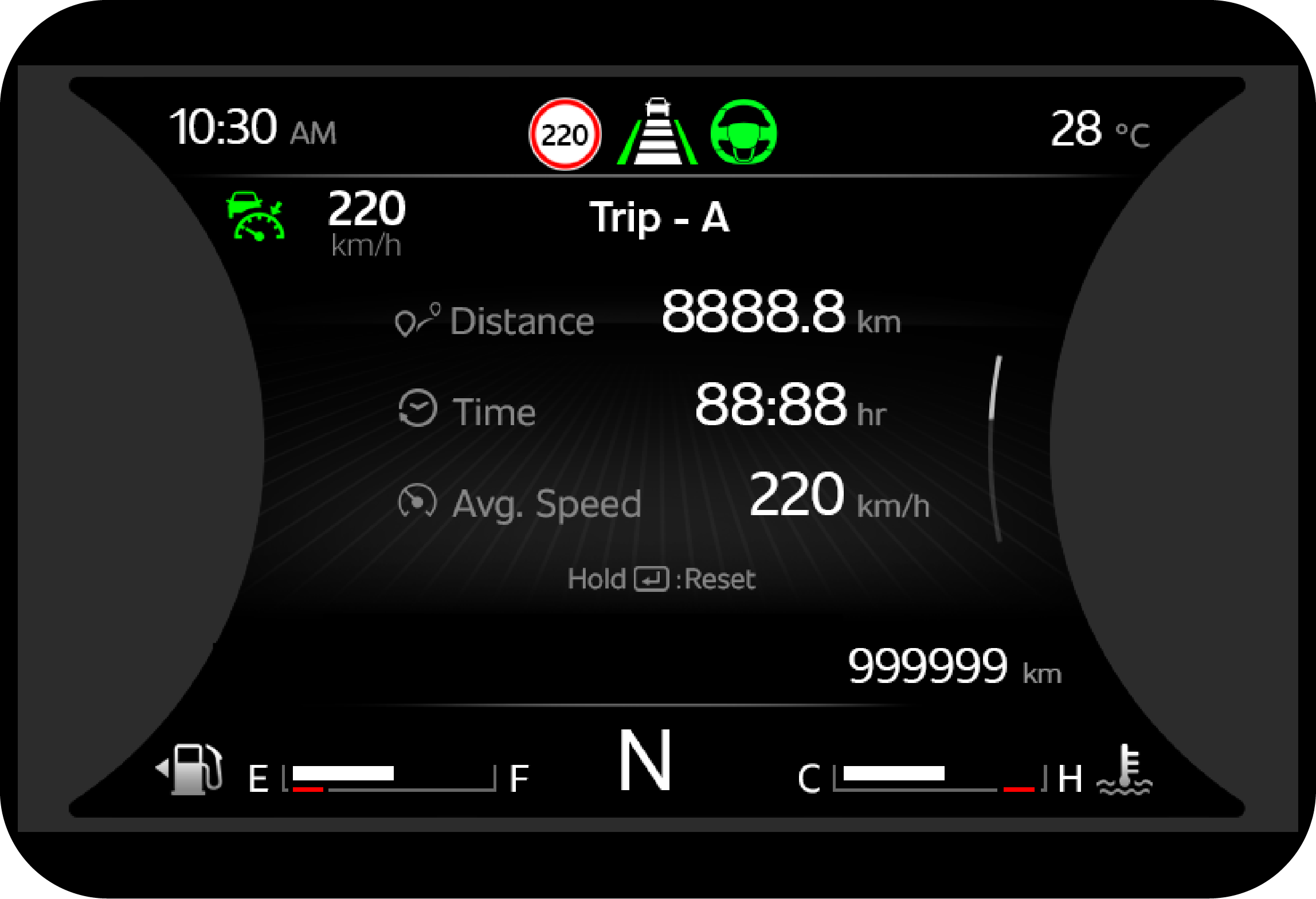

Driver Assistance Cluster View |
Normal Cluster View |
![]() |
![]() |
High |
Low |
|
![]() |

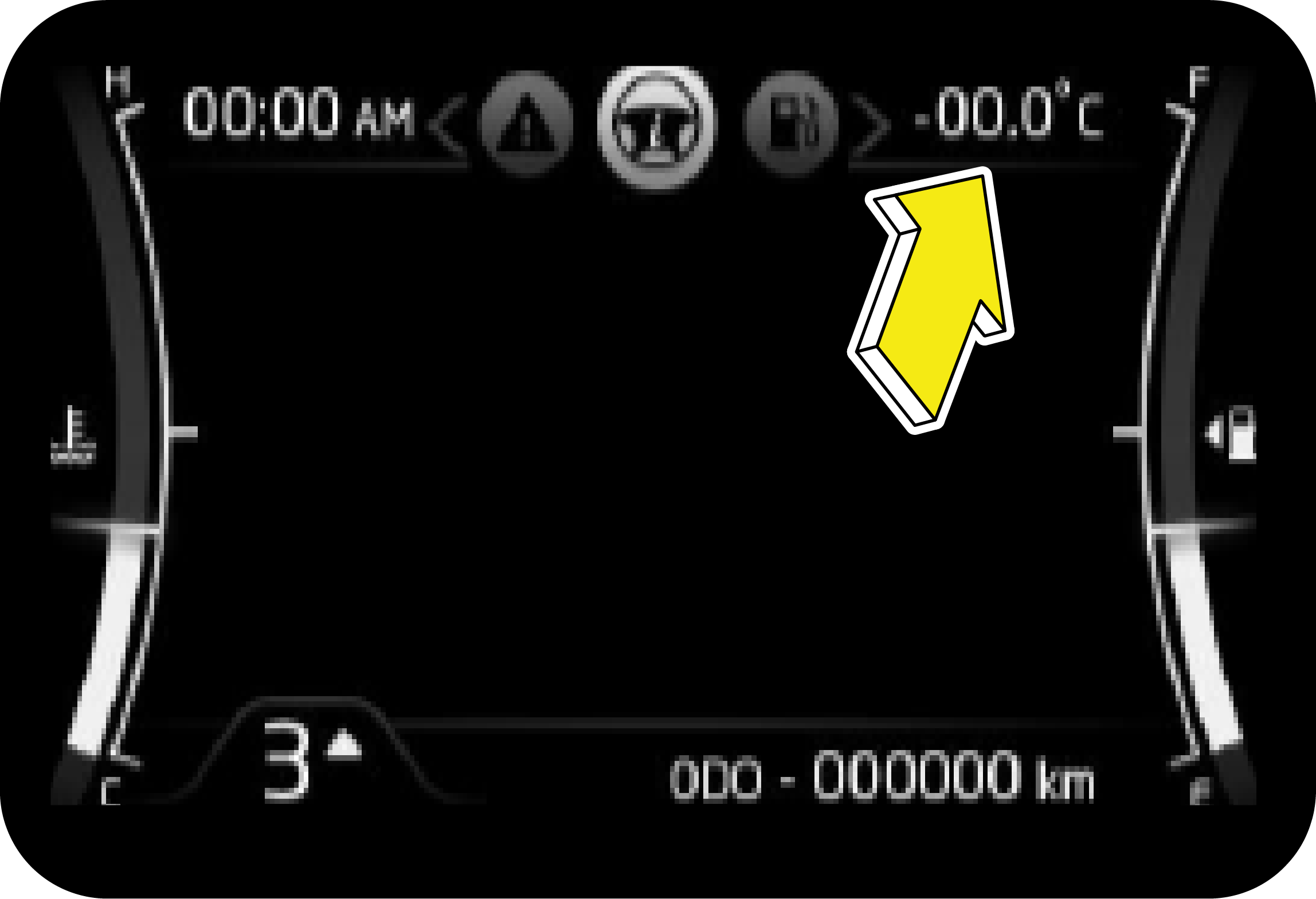

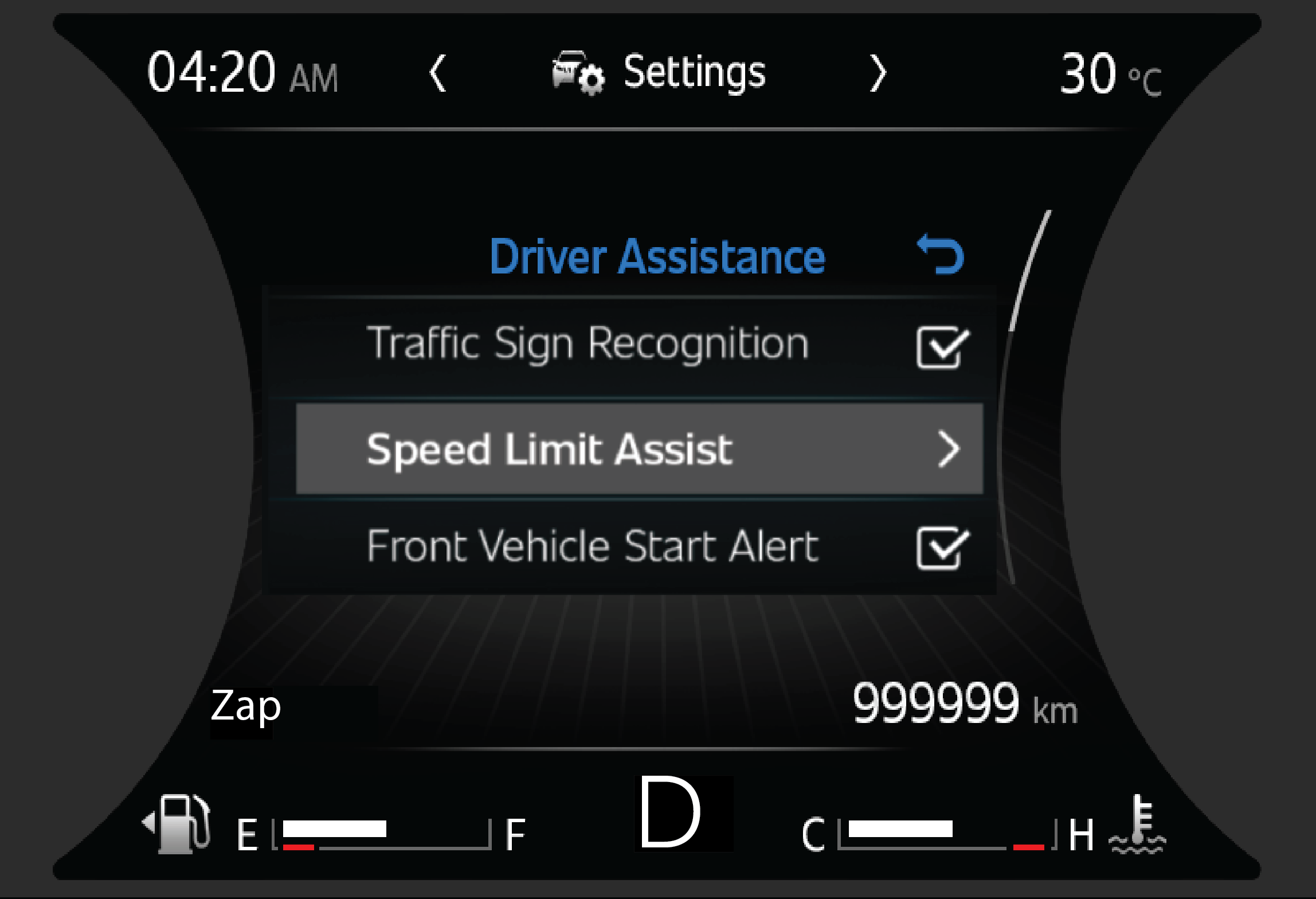

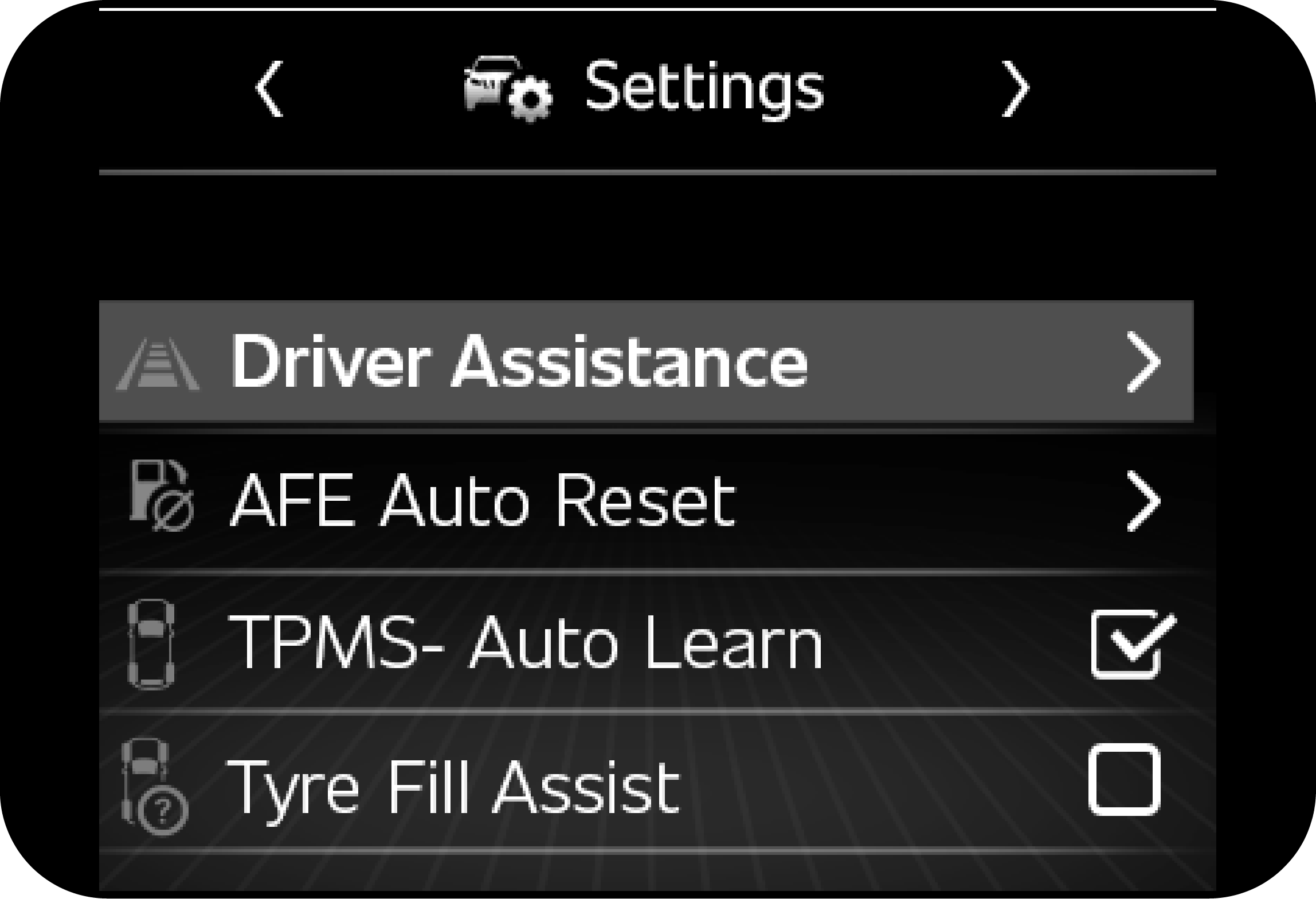

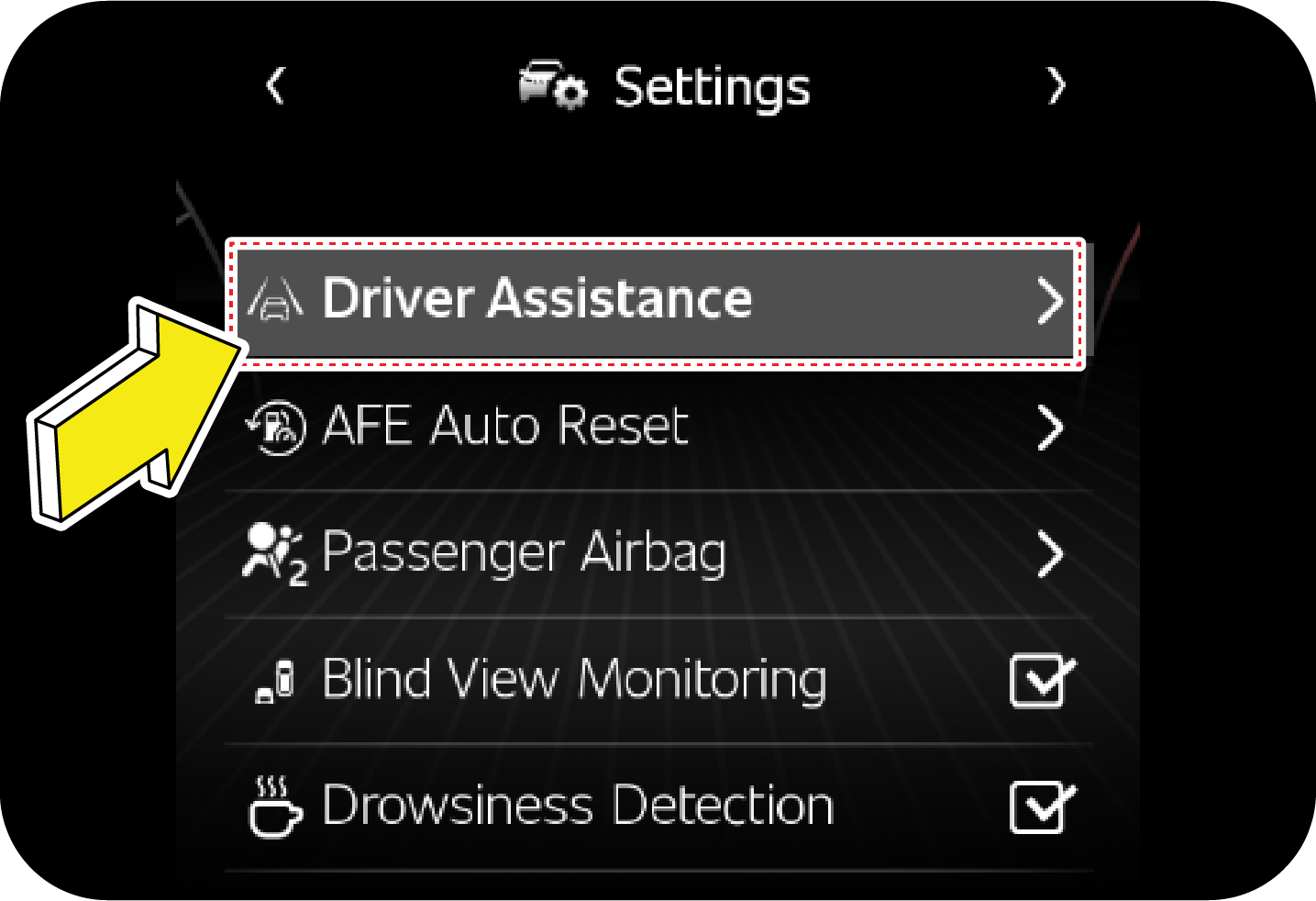

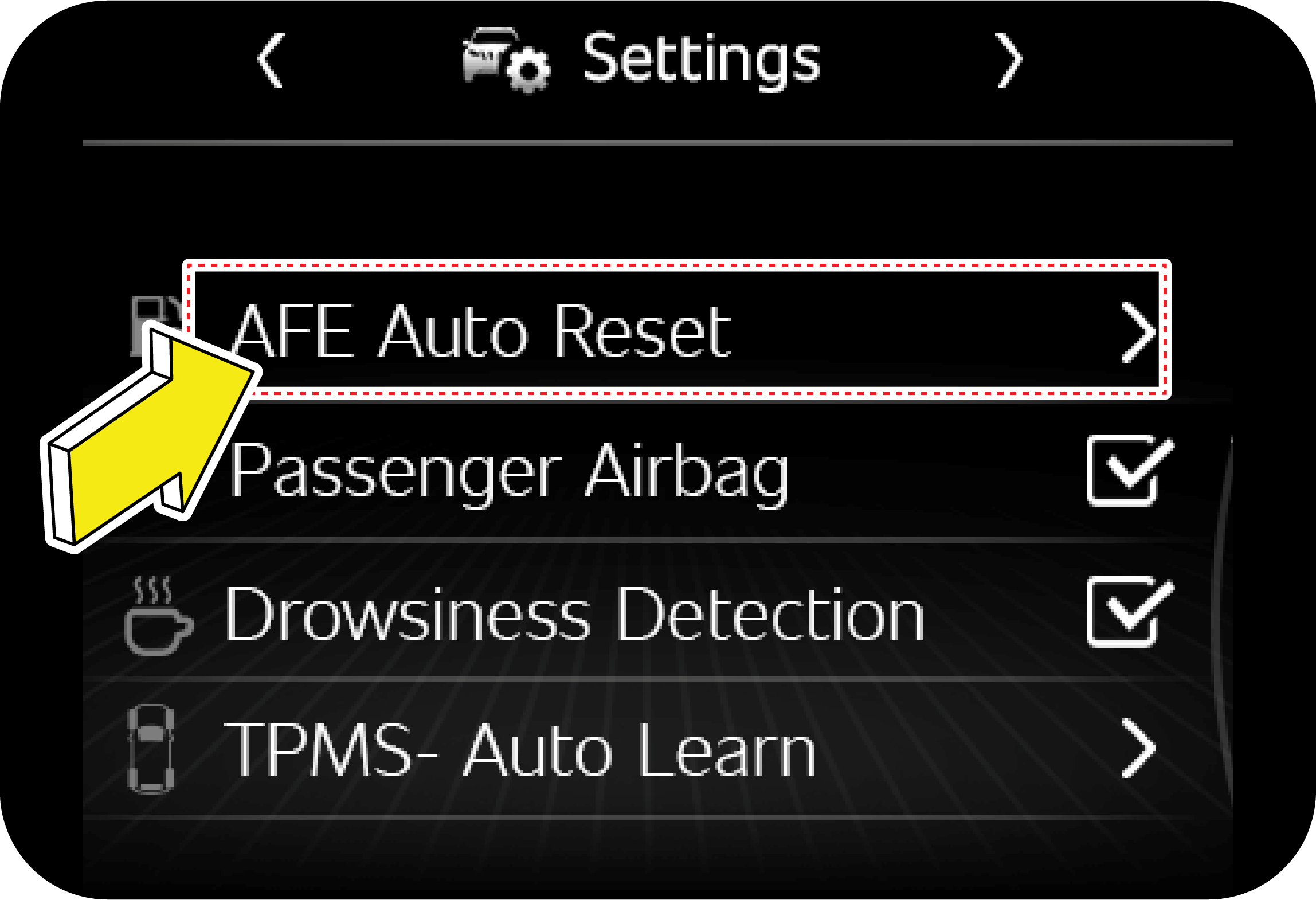

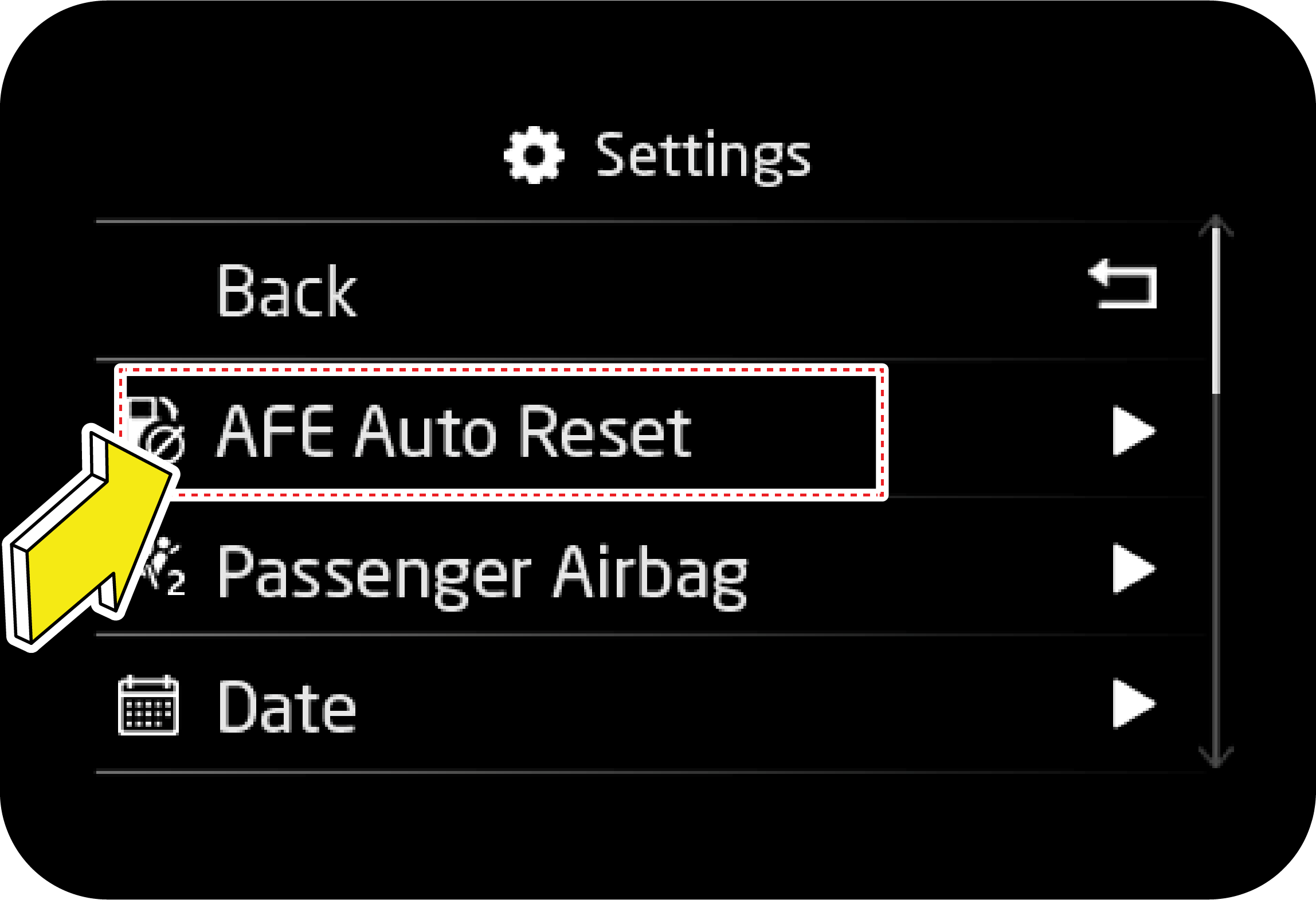

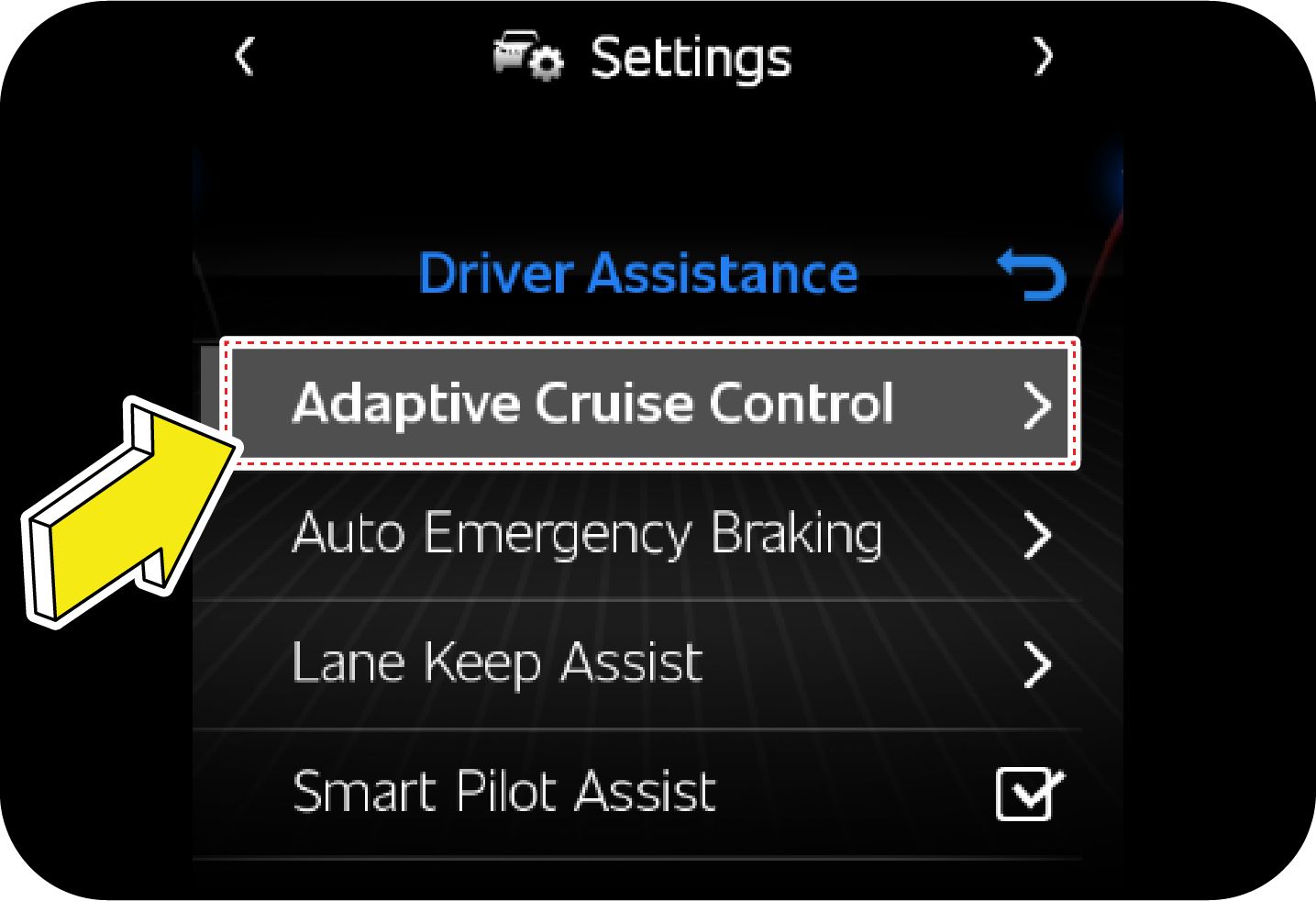

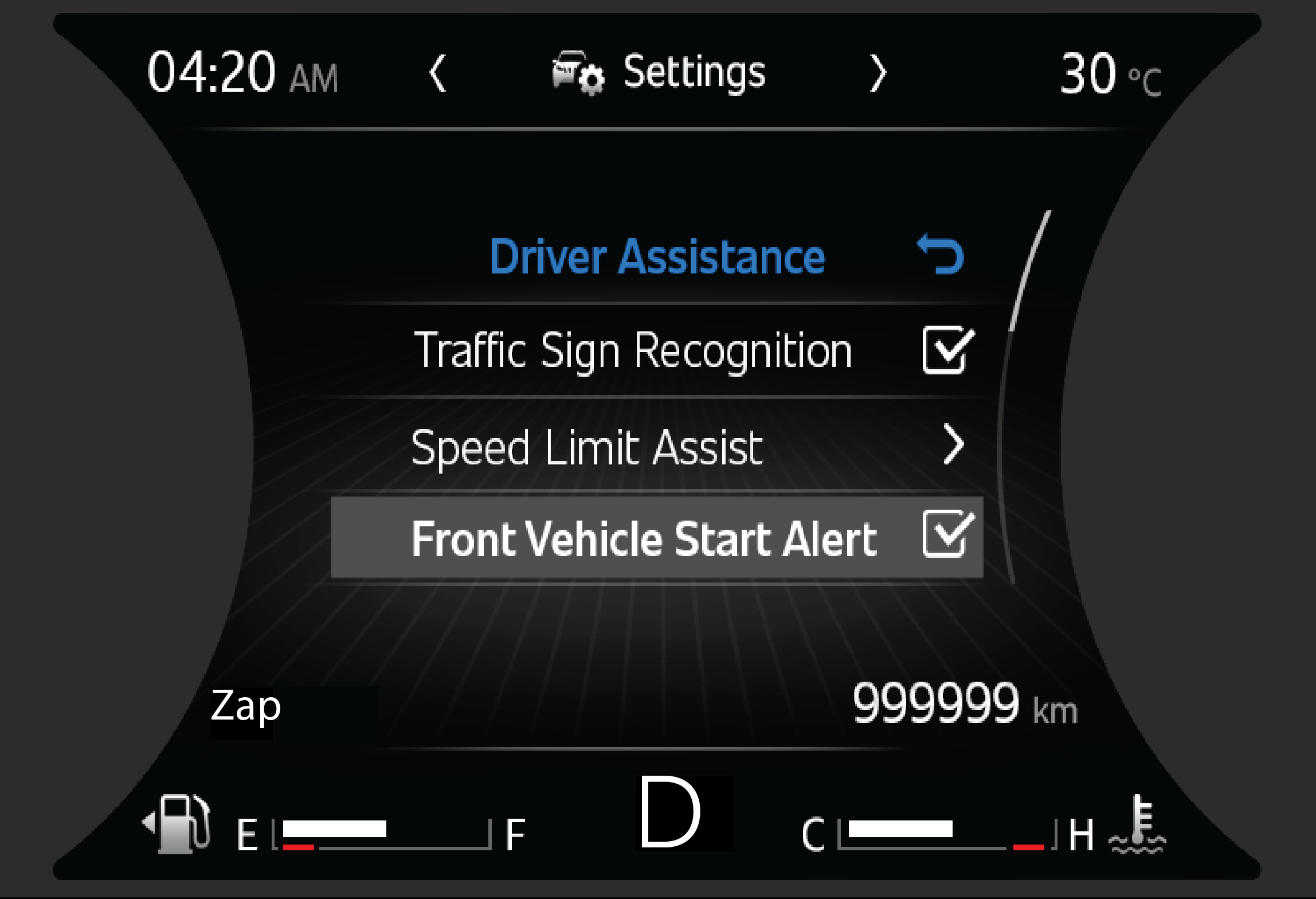

Following settings are available:
|
|

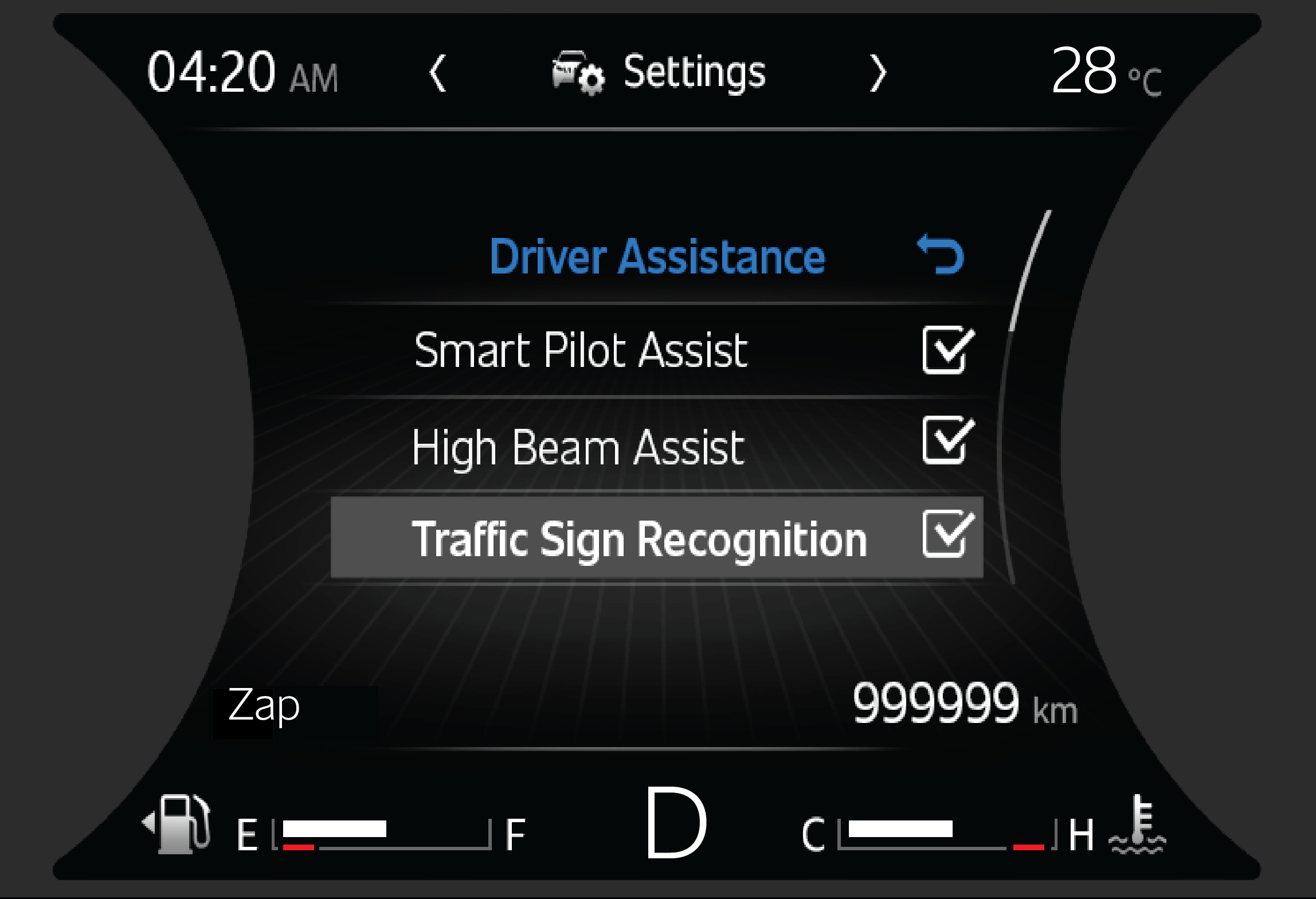

1. Driver Assistance

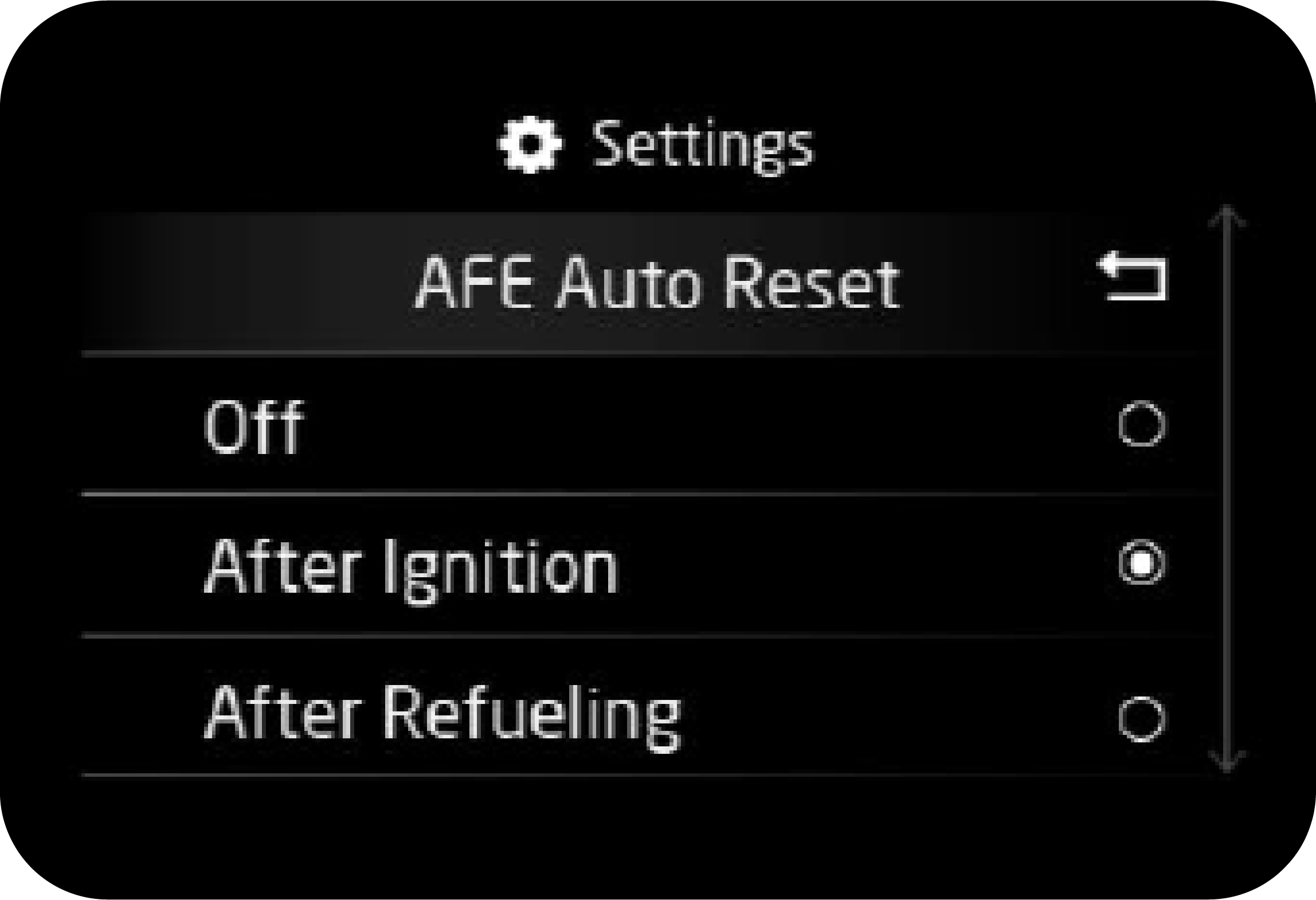

2. AFE Auto Reset

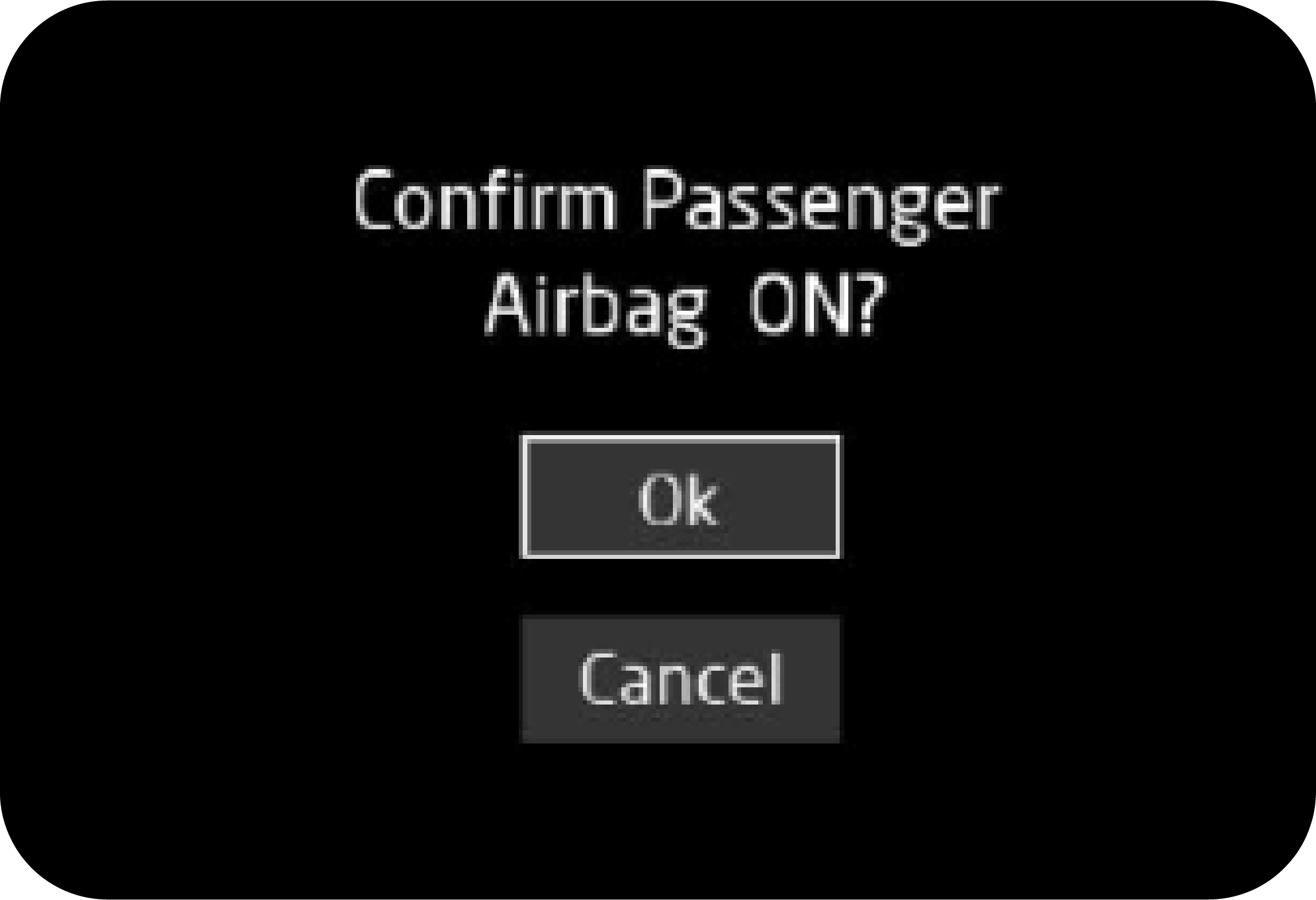

3. Passenger Airbag
4. Drowsiness Detection*
5. TPMS – Auto Learn *
6. Tyre Fill Assist *
|
7. Sound*

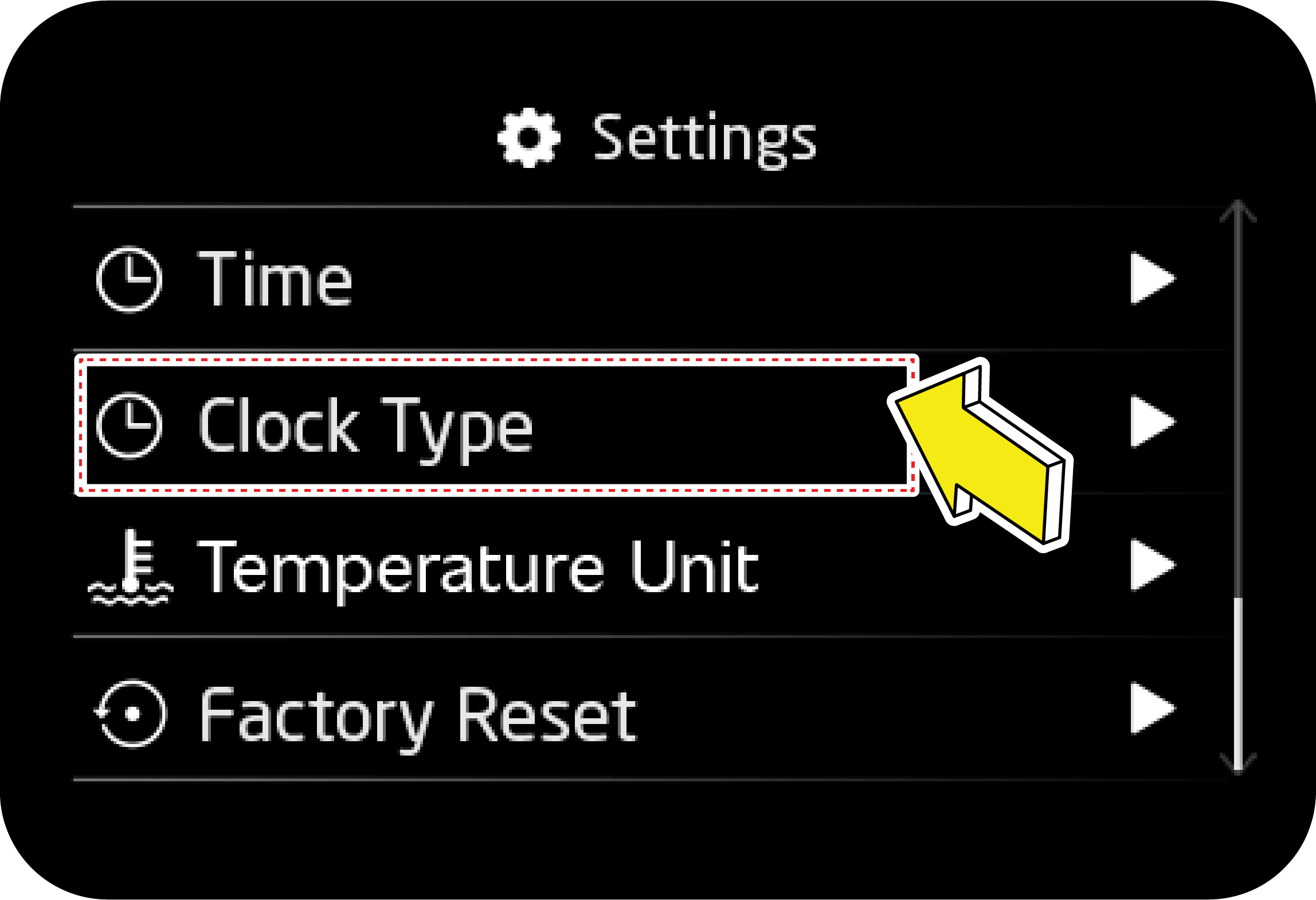

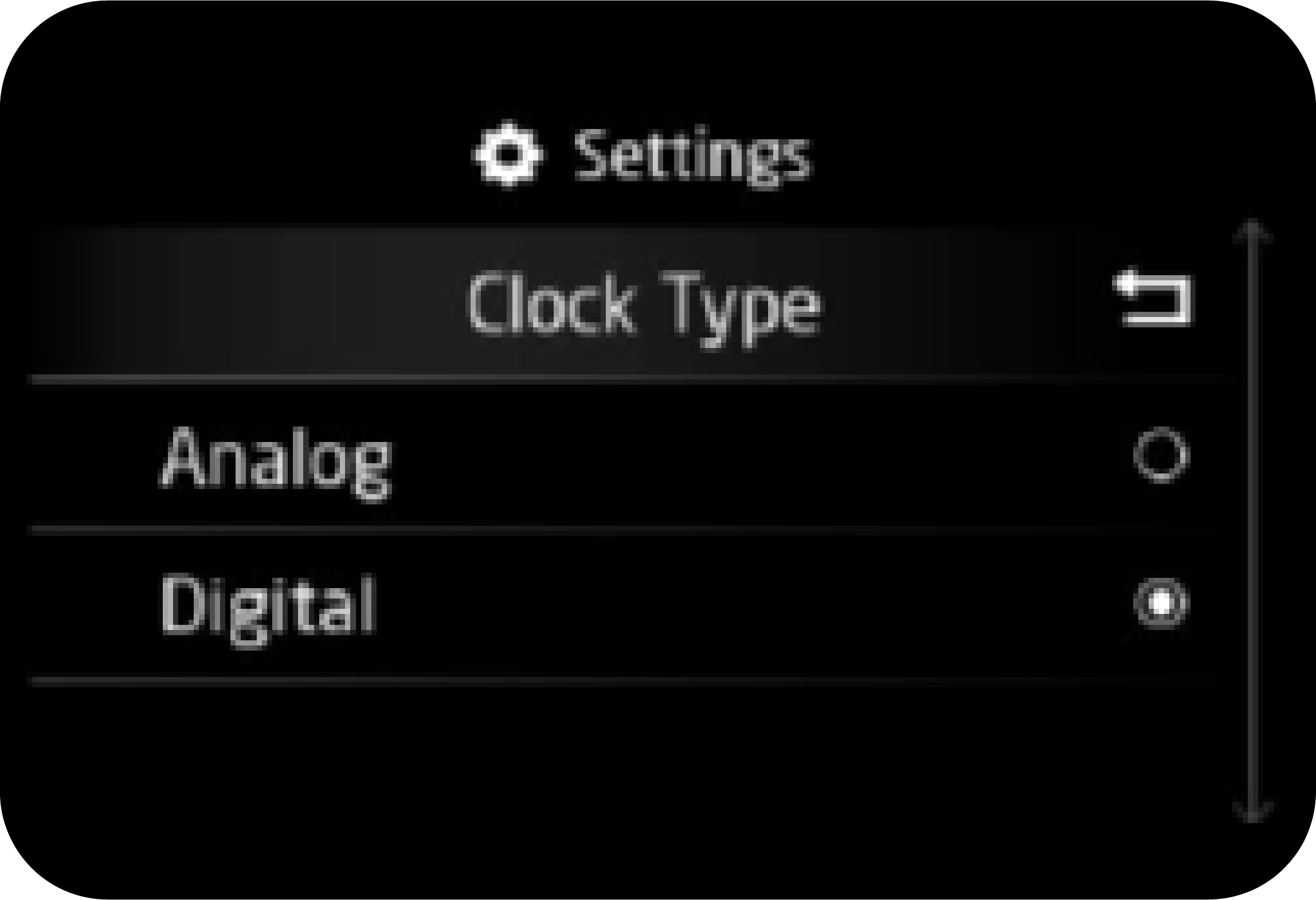

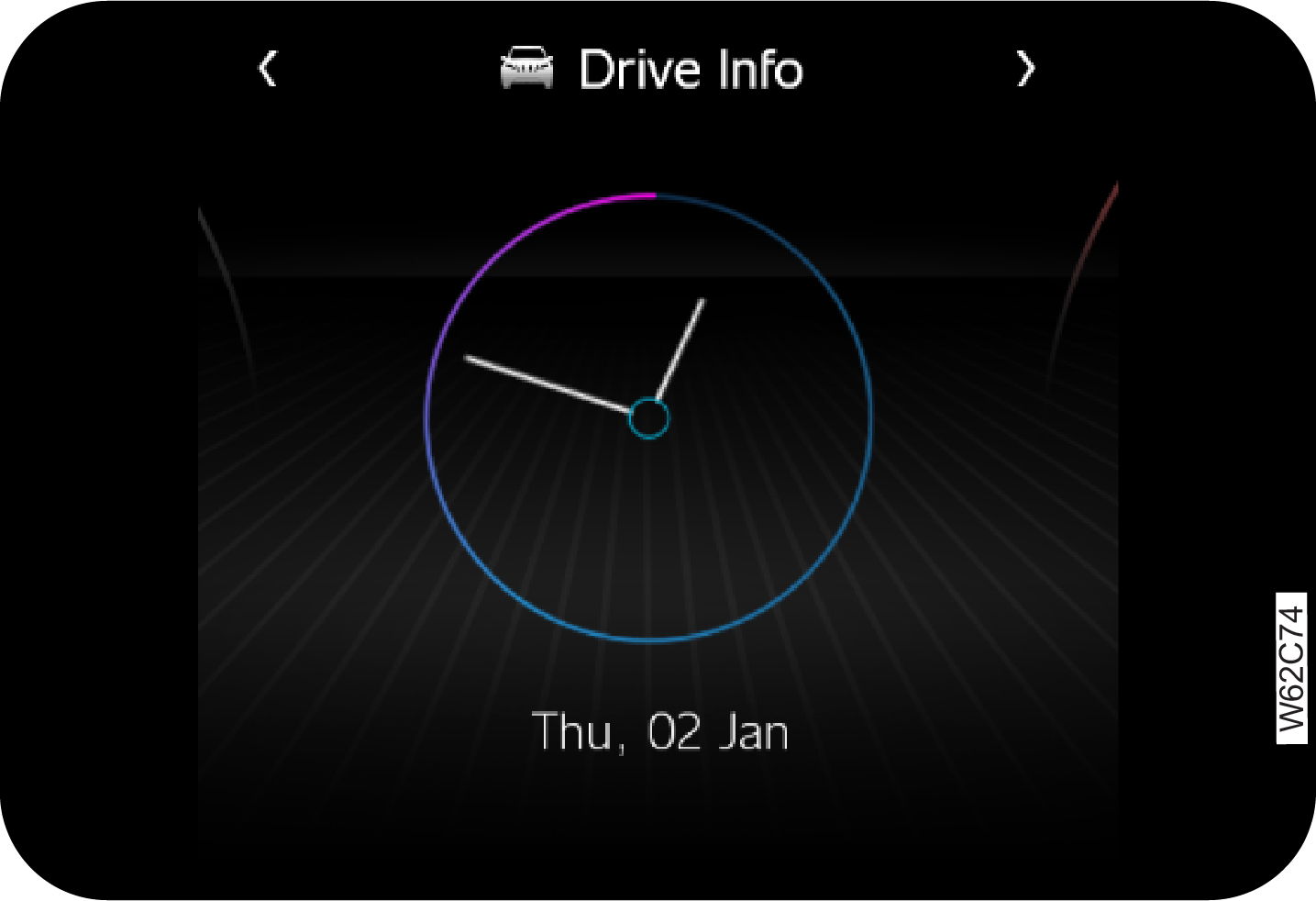

8. Clock Type
9. Date *
10. Time *

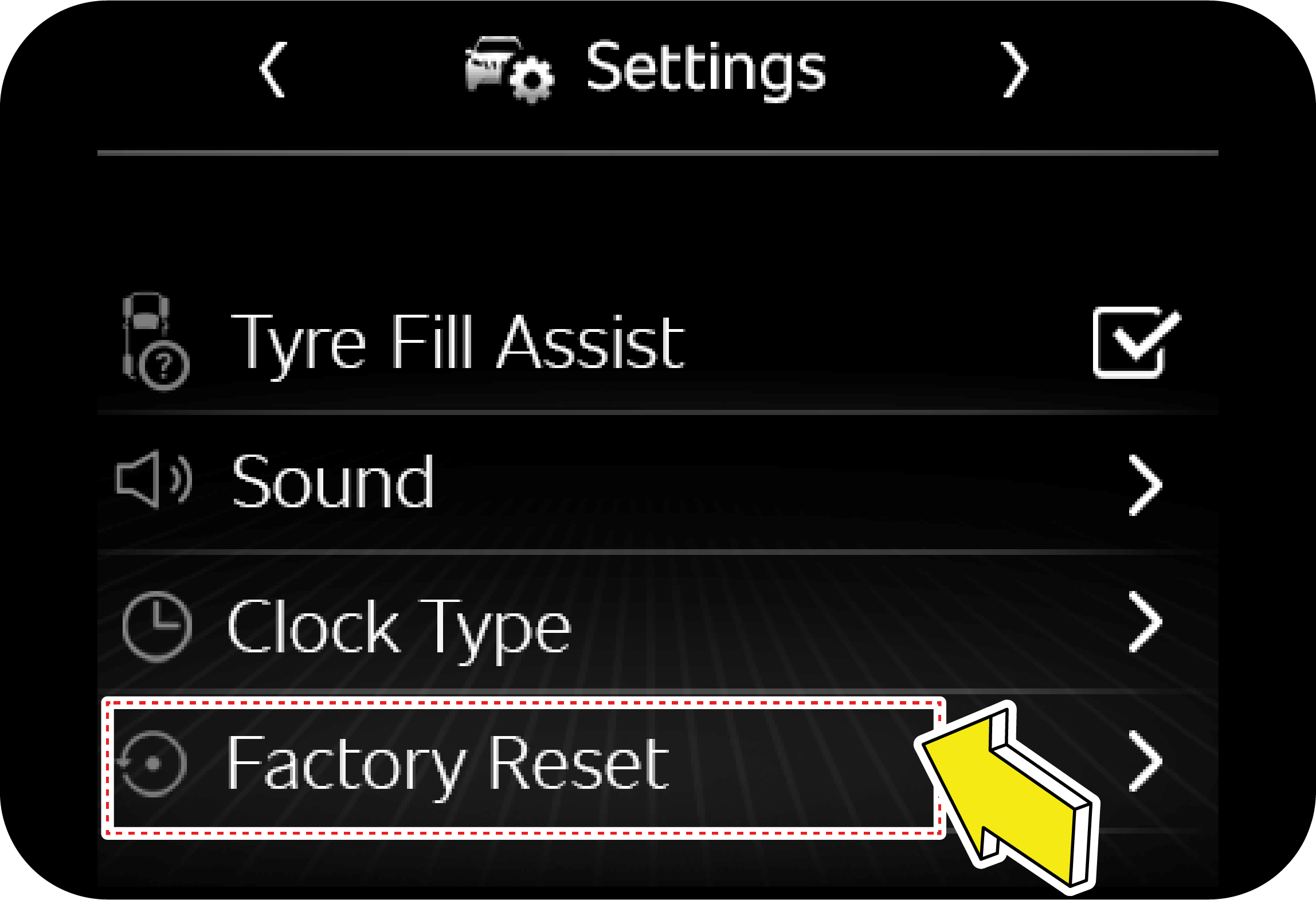

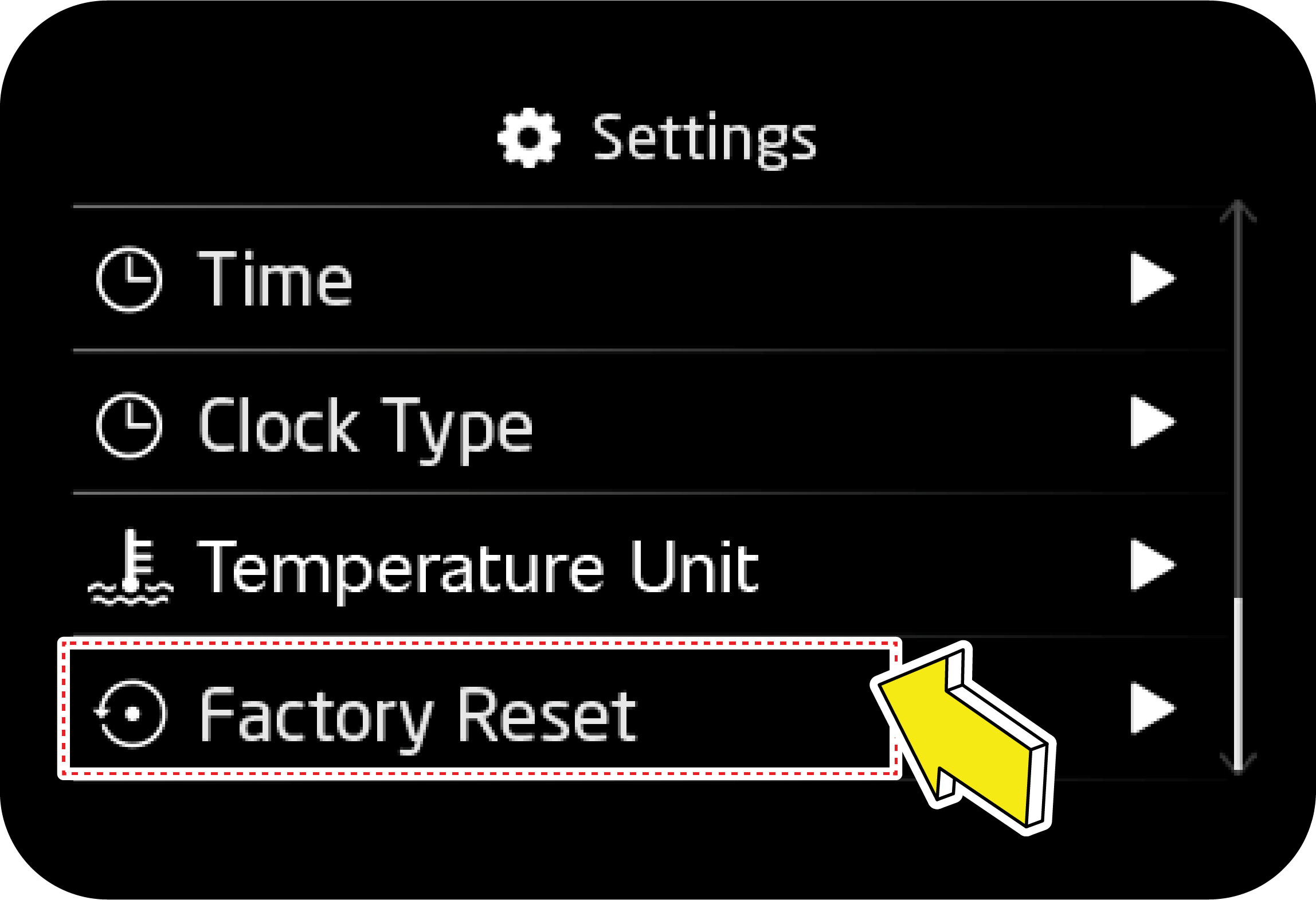

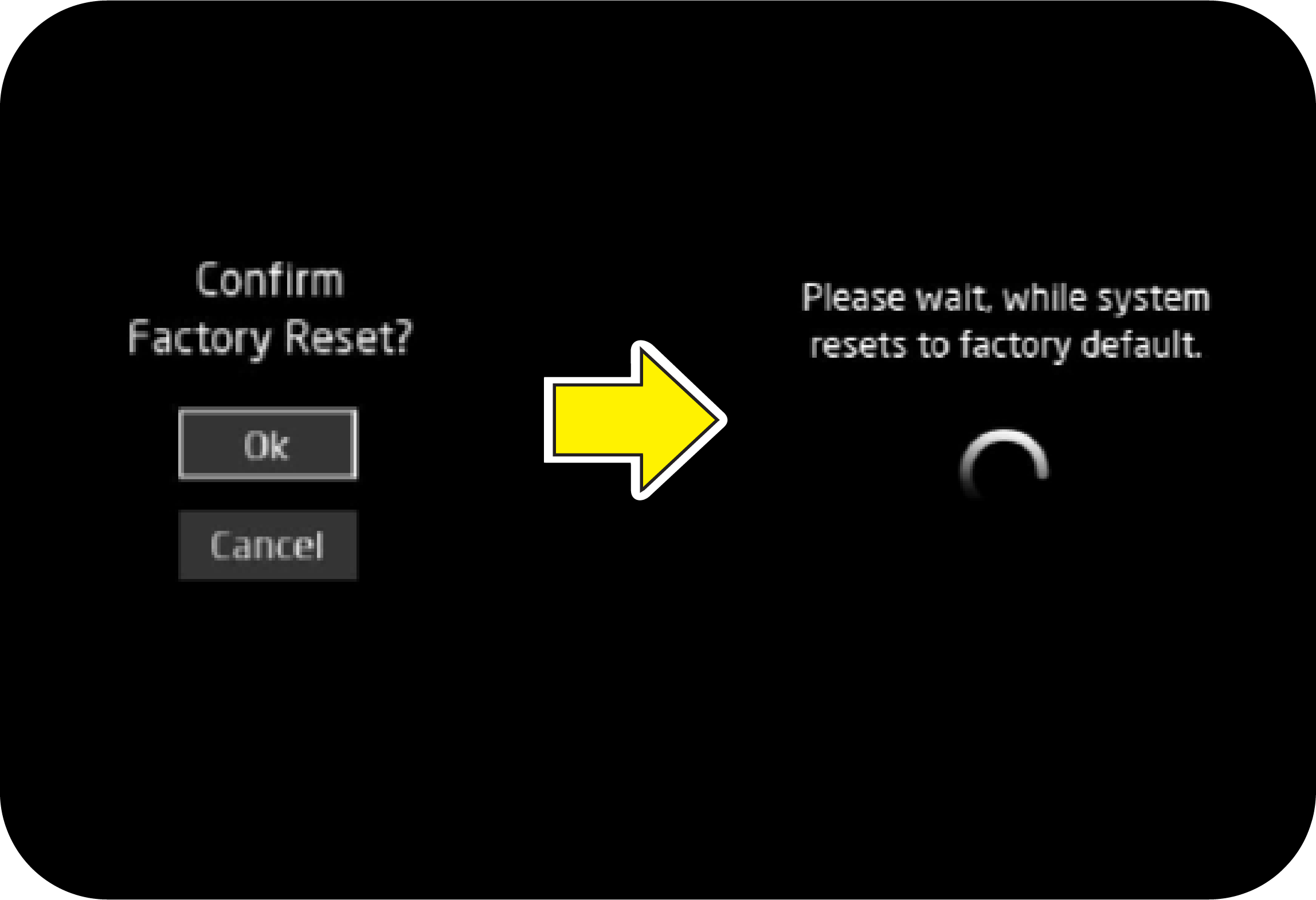

11. Factory Reset
*- if equipped
|
|

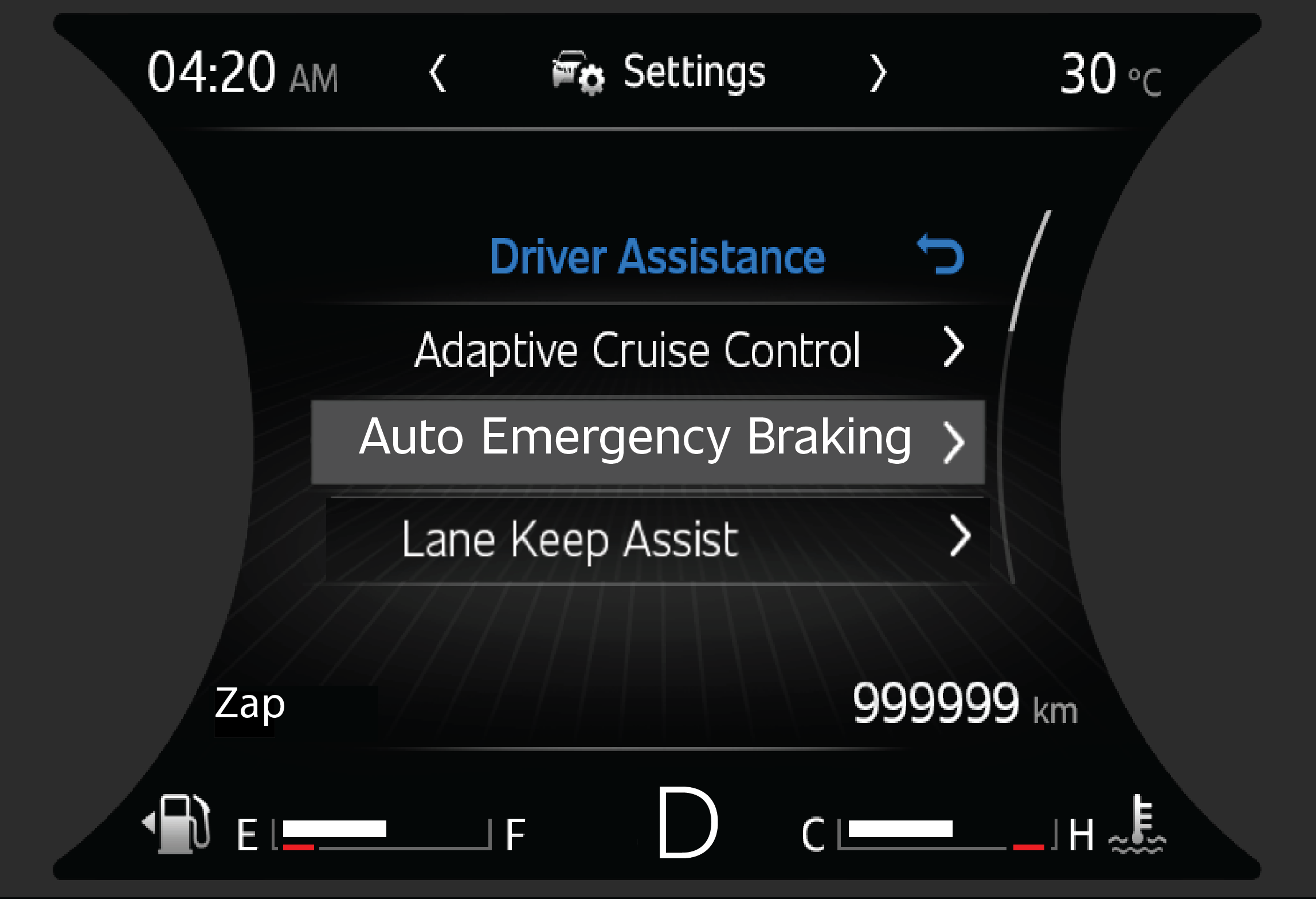

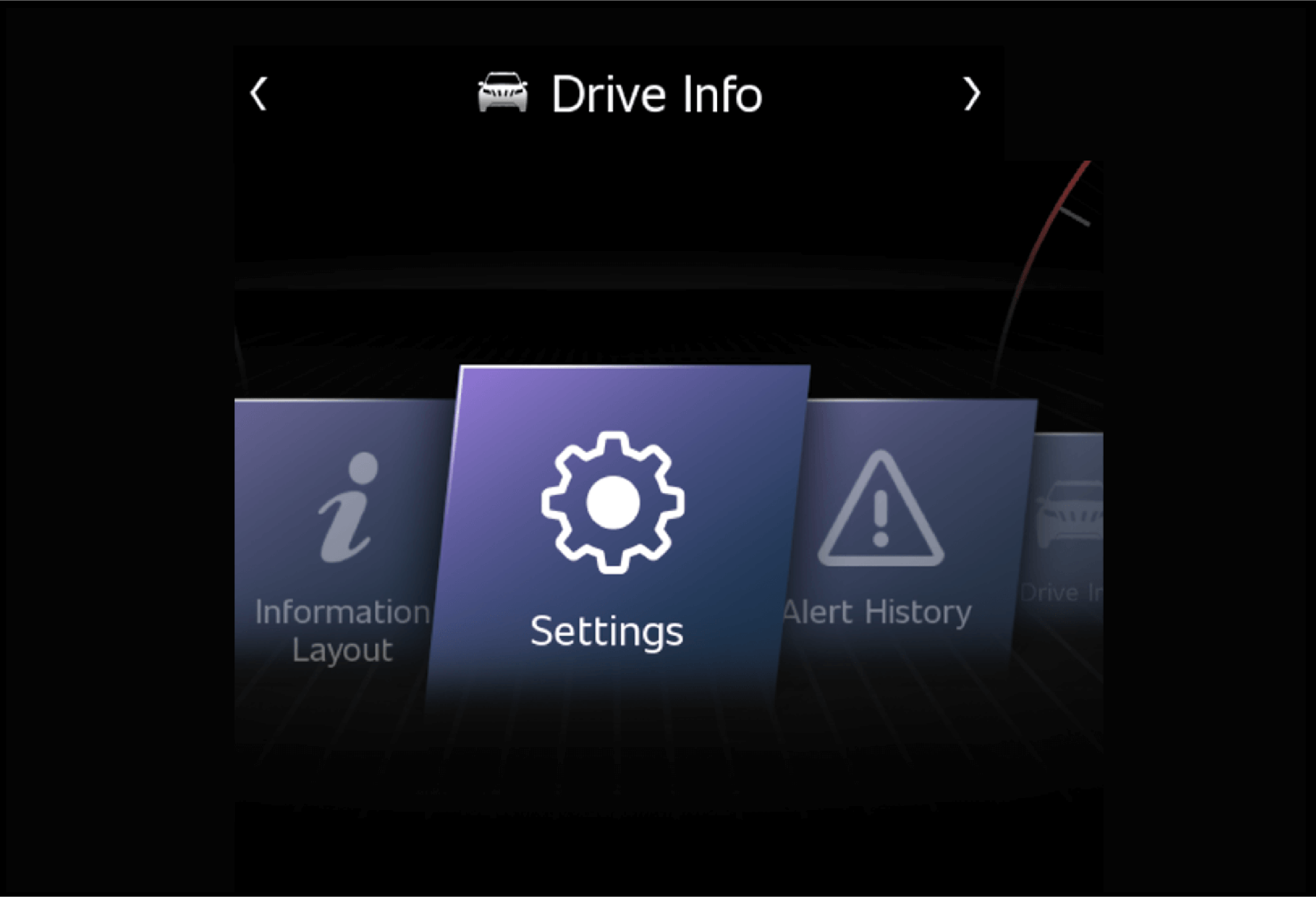

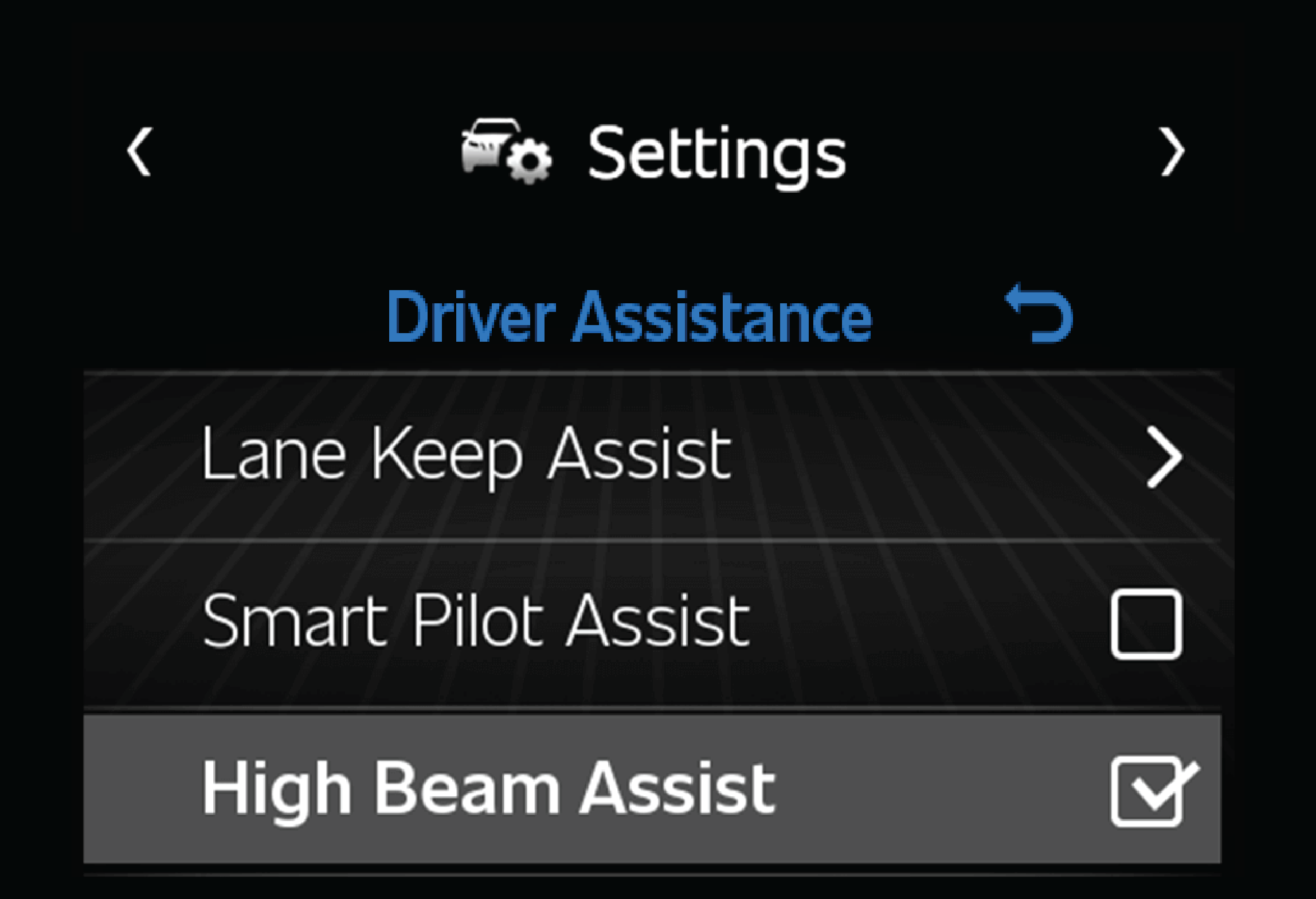

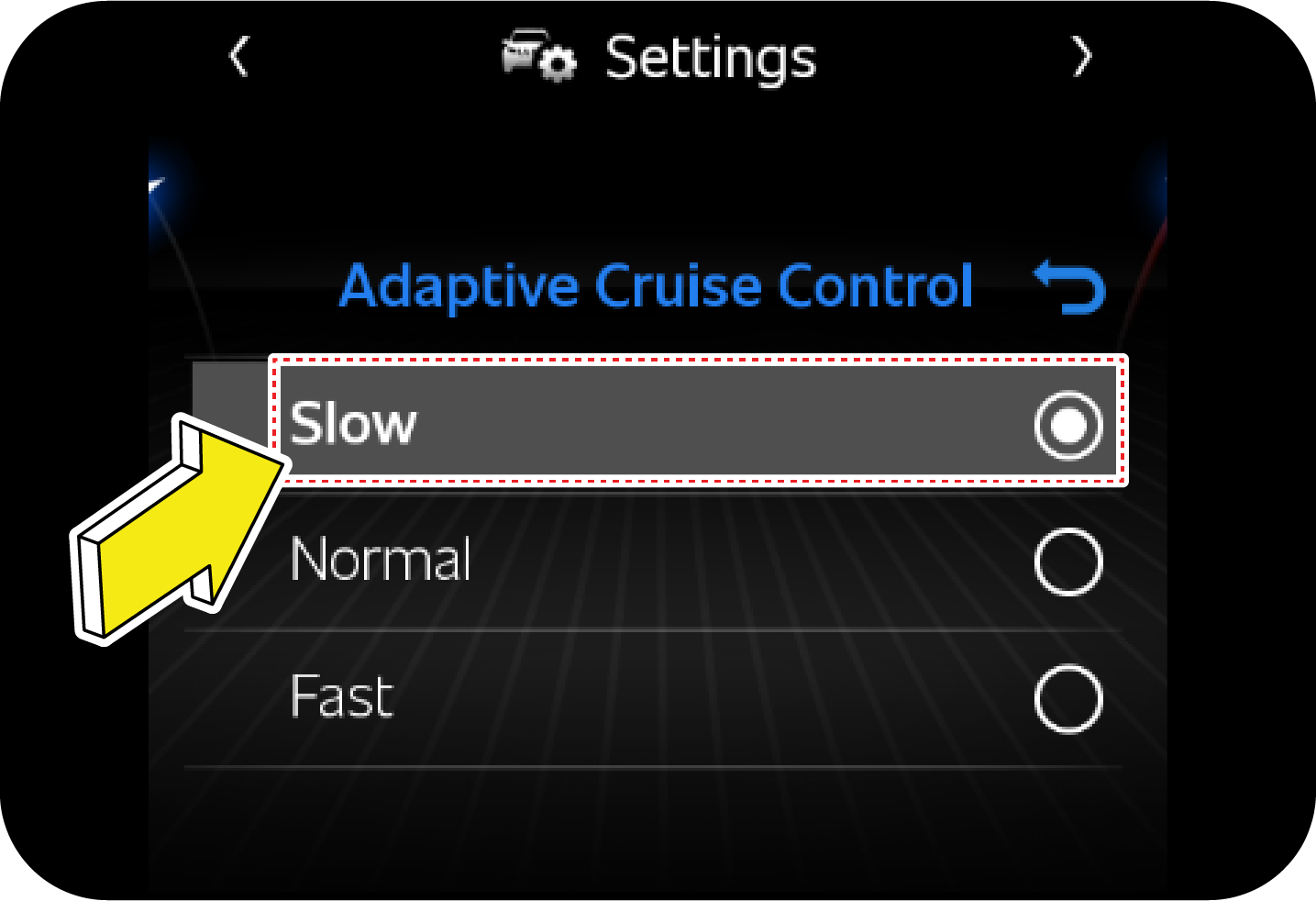

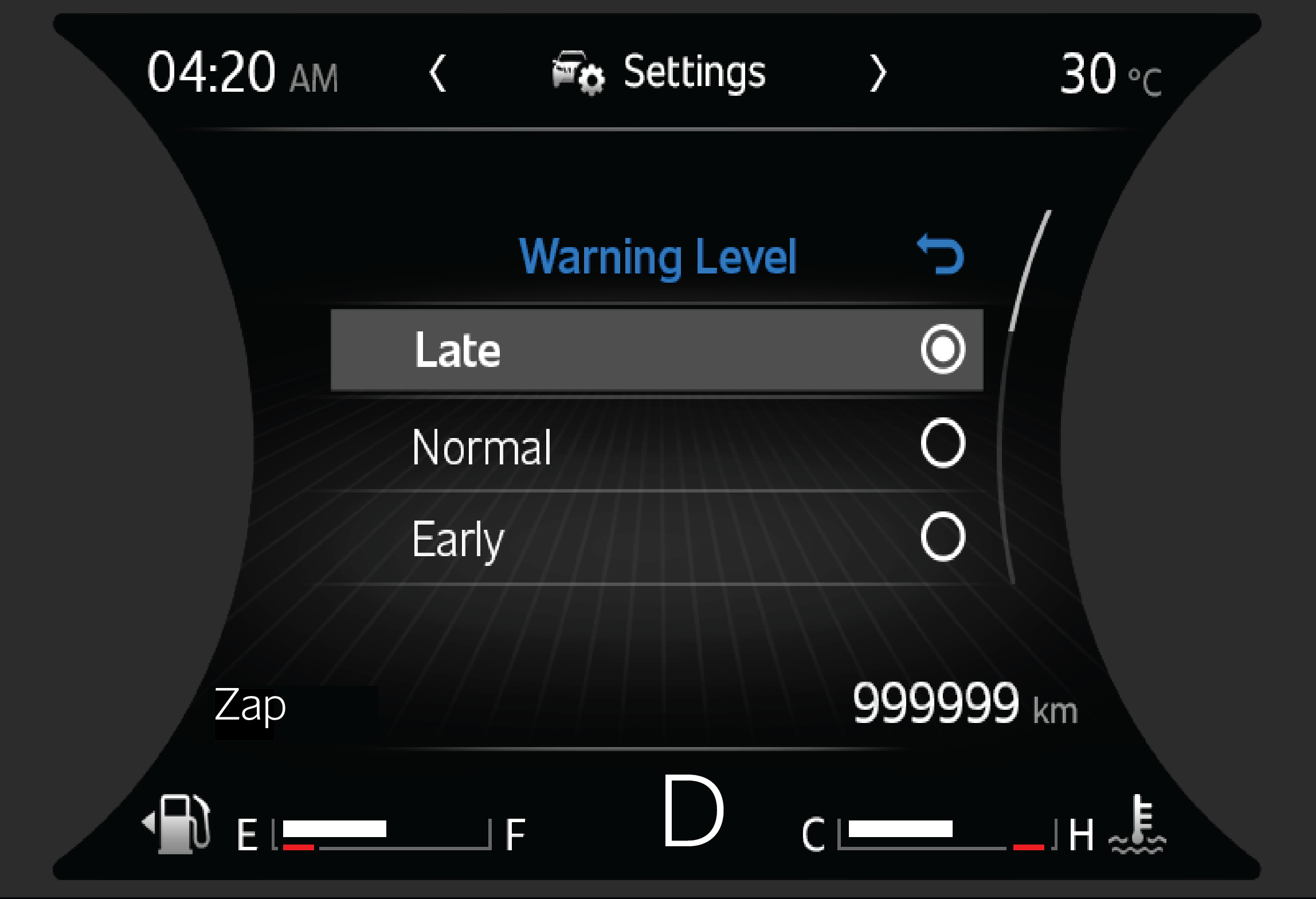

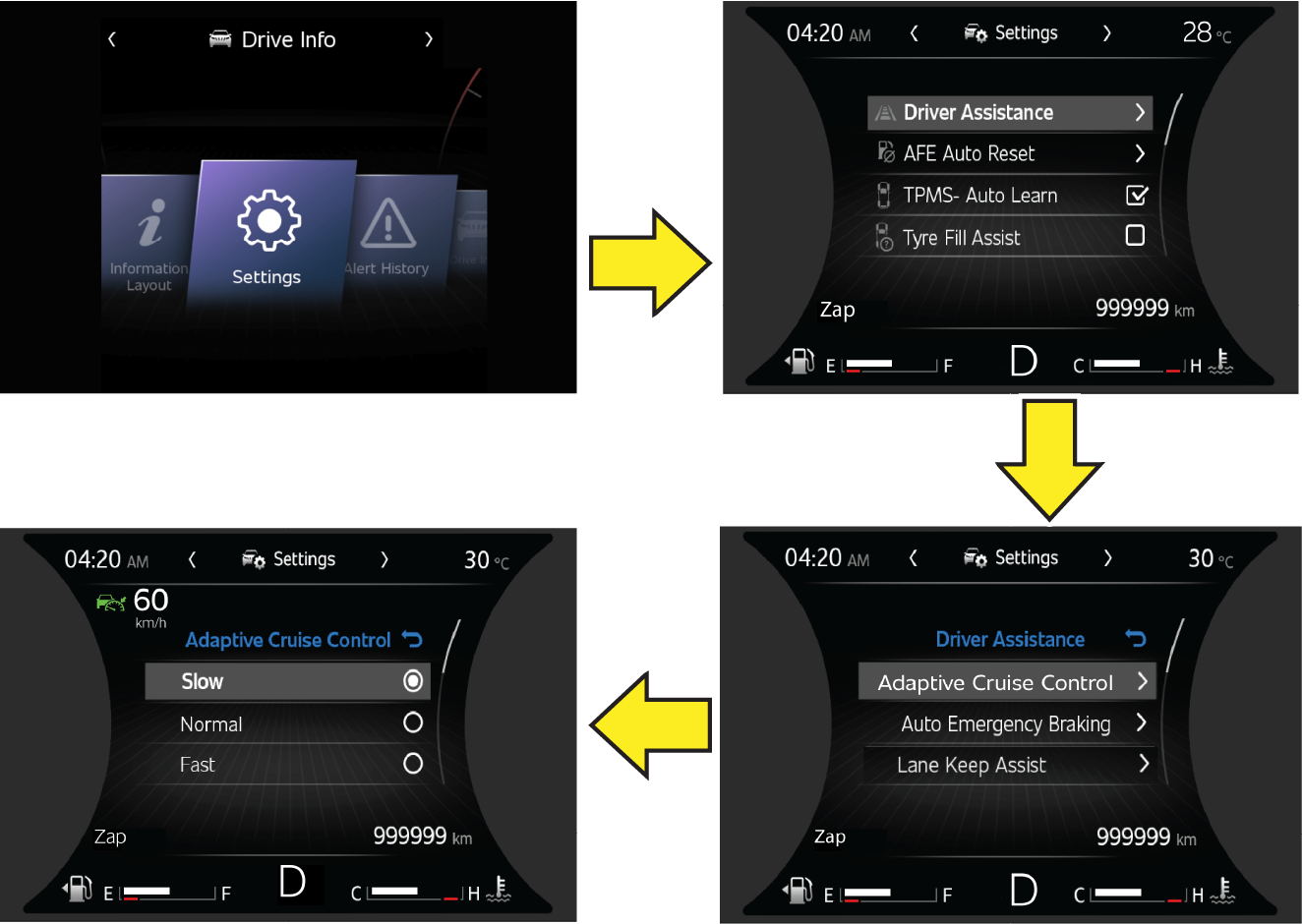

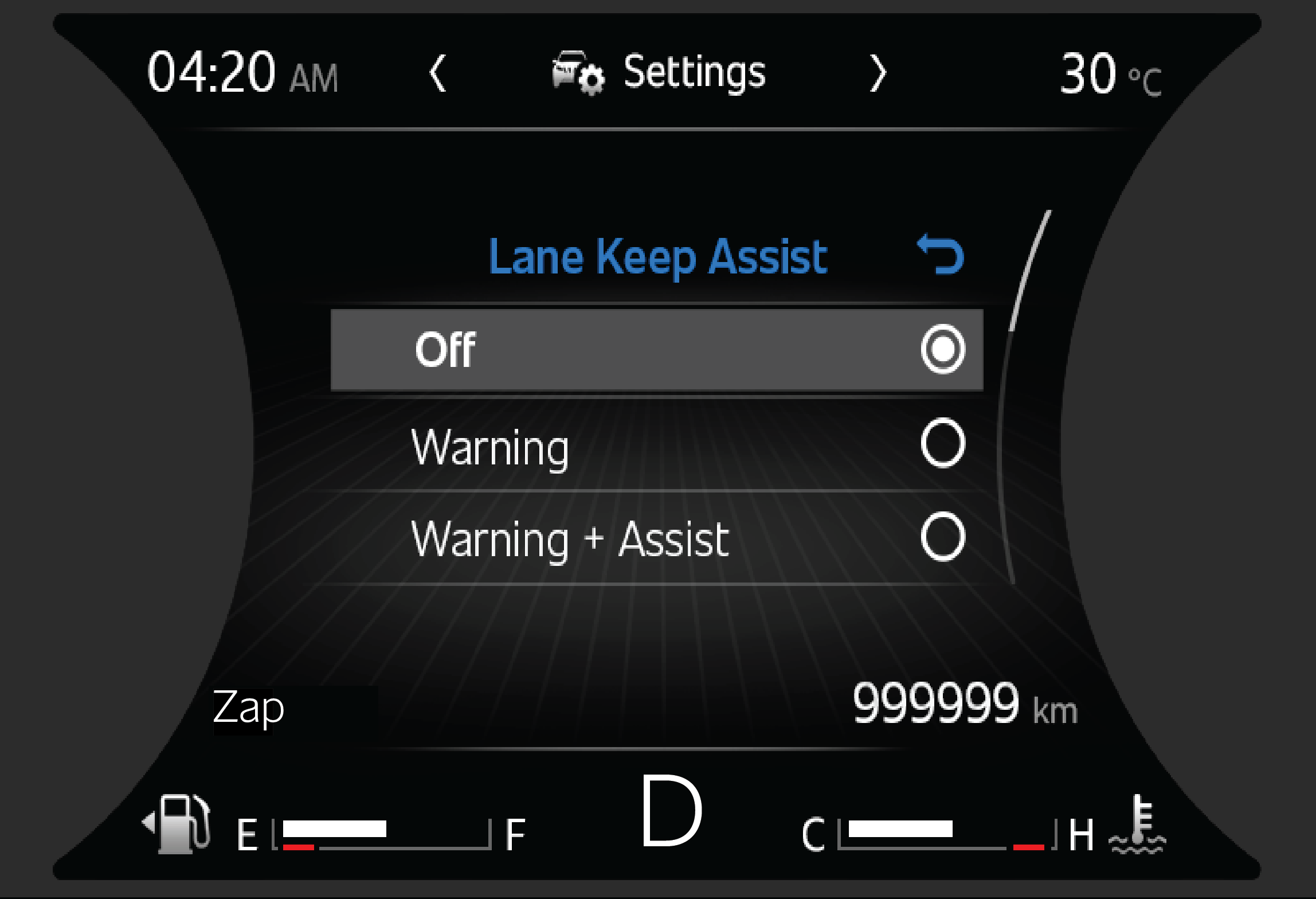

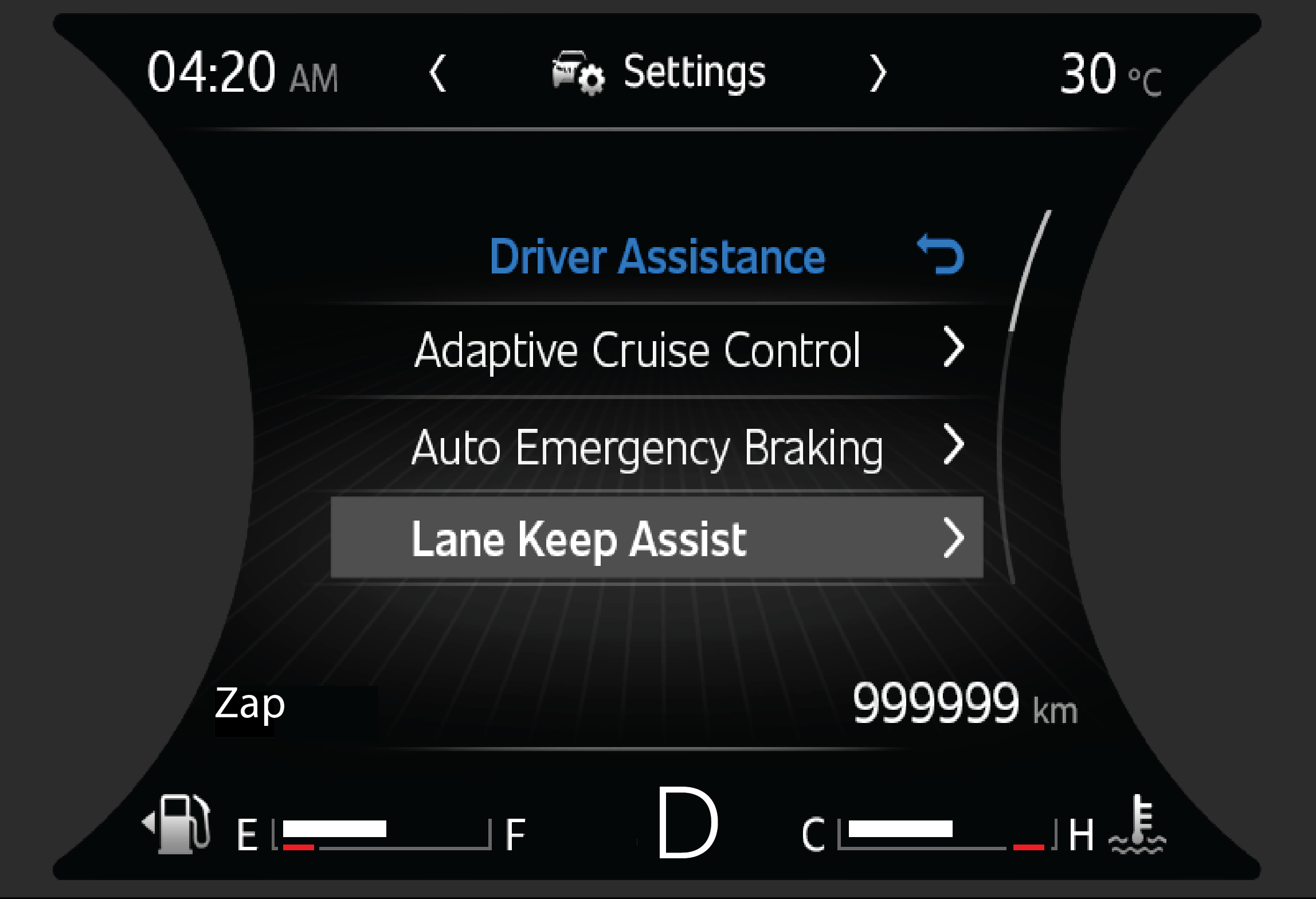

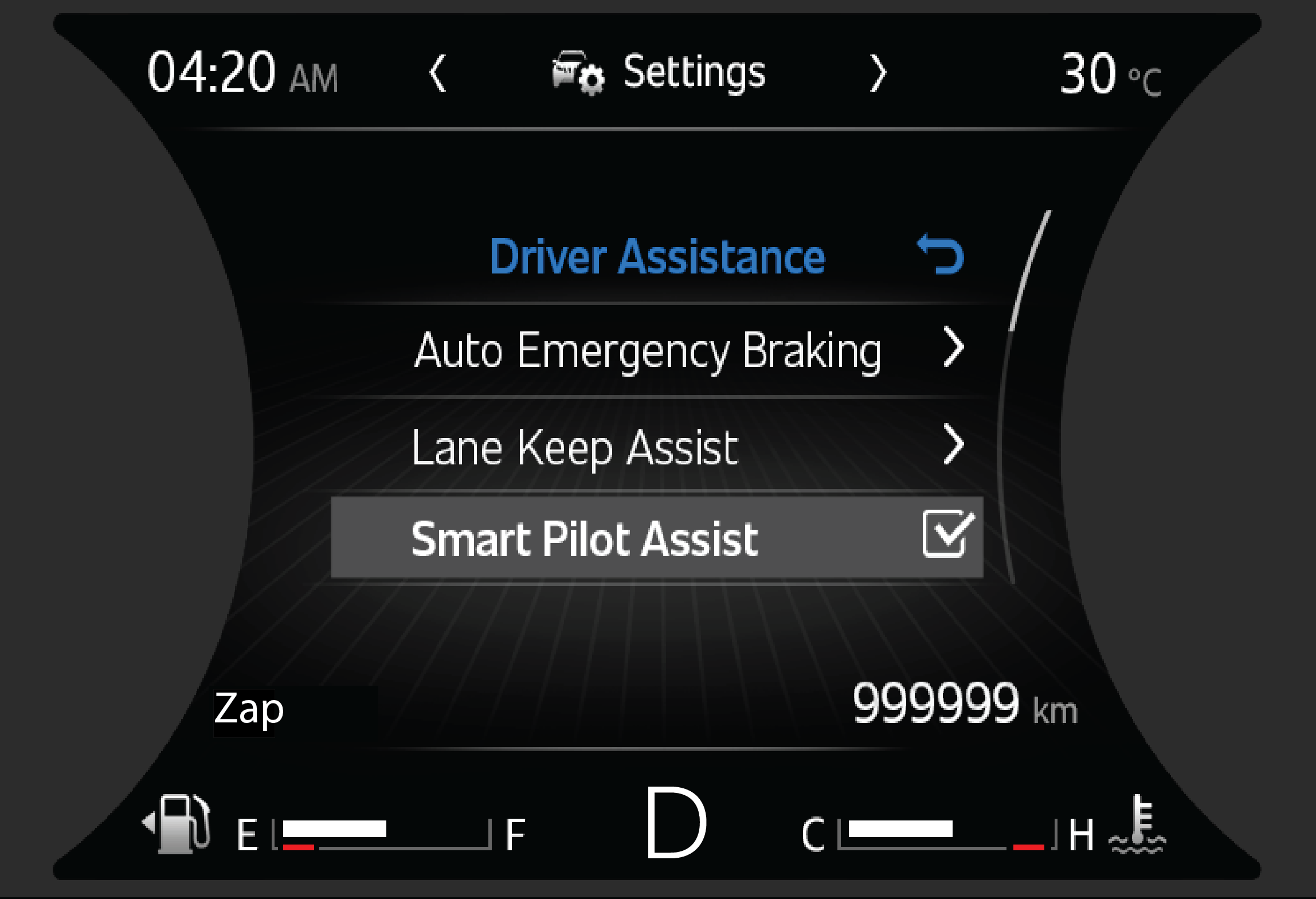

1. Navigate to Setting menu using MENU button.
|
![]() |

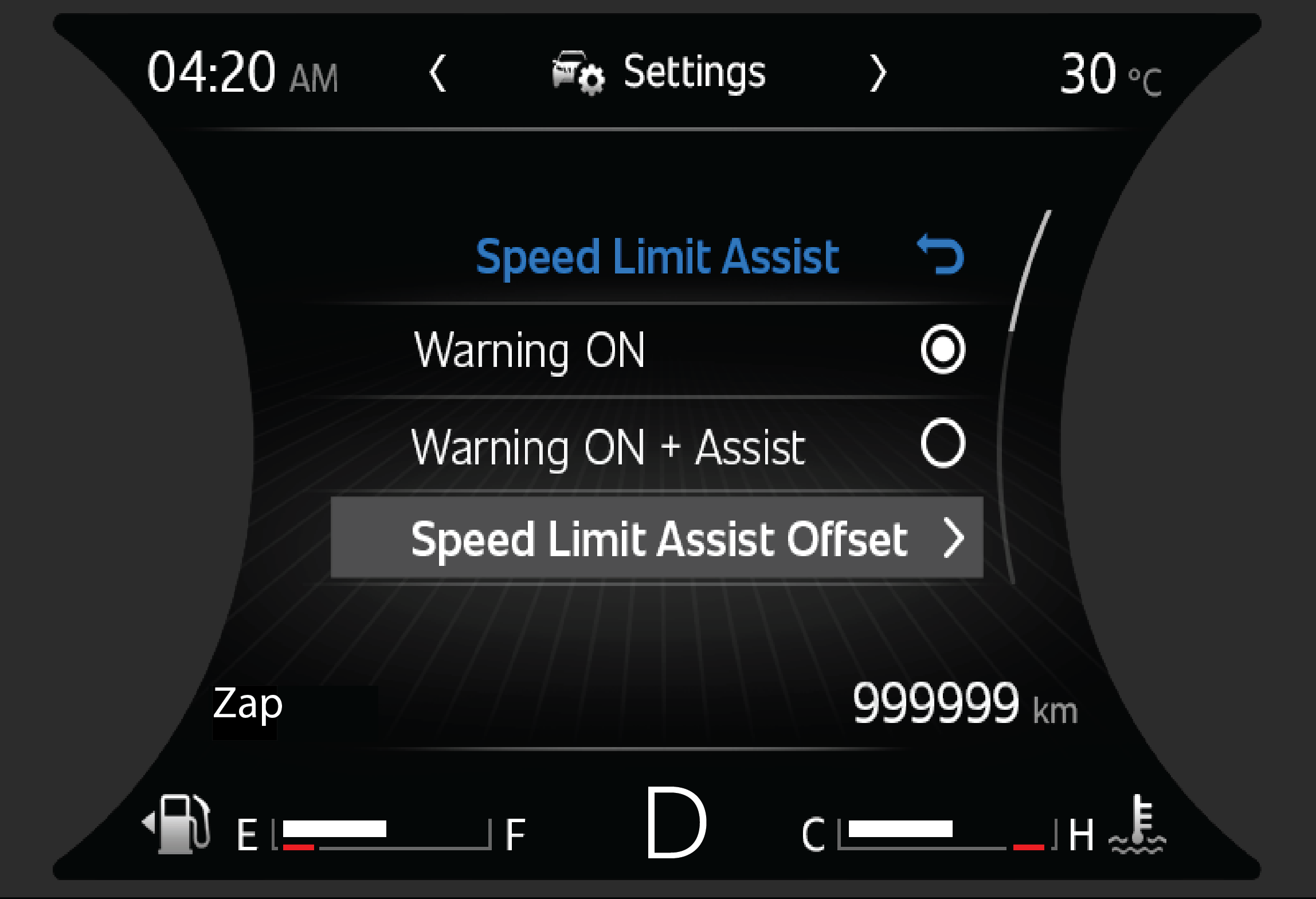

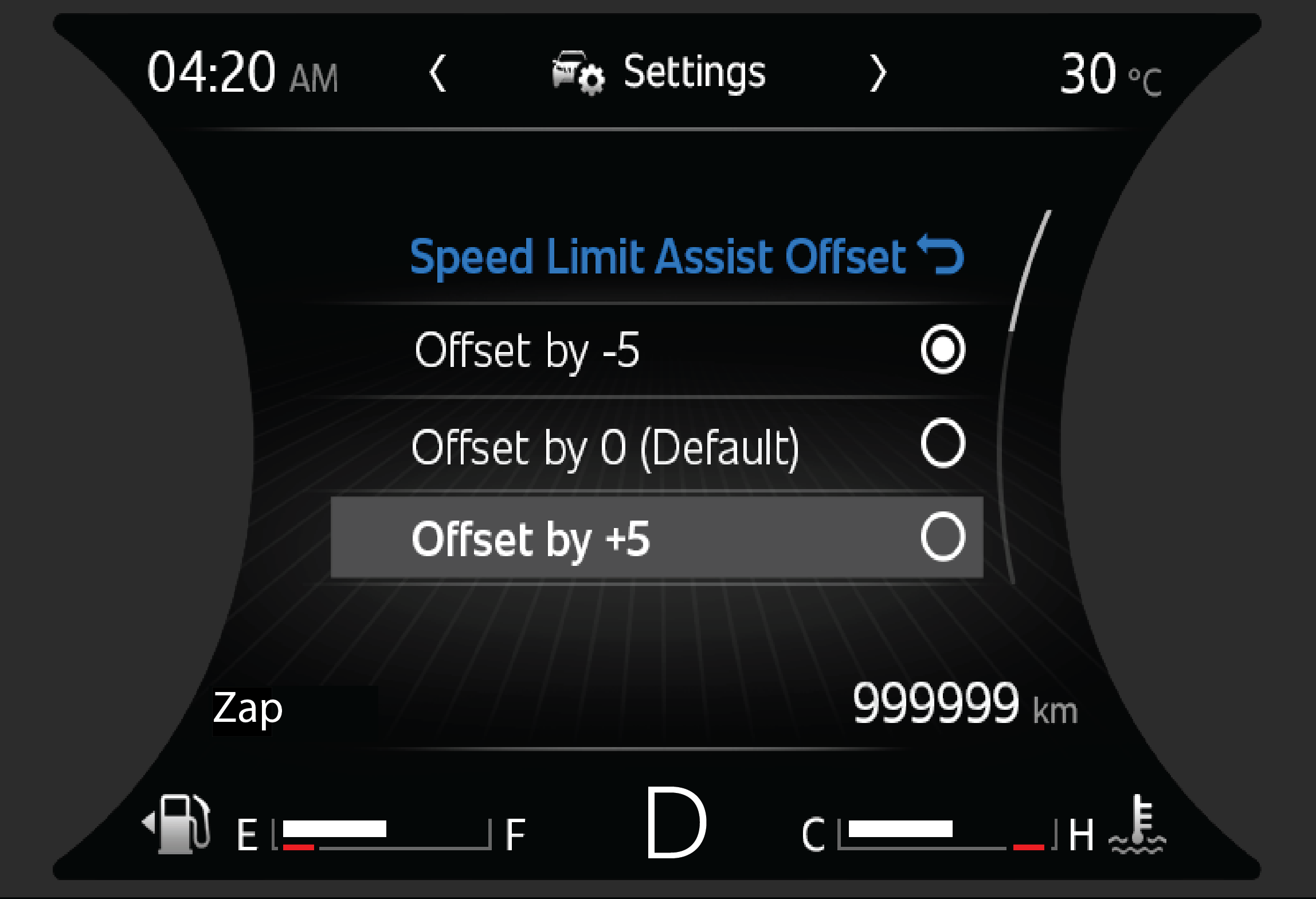

2. Press OK to enter setting. Press Up/Down button to navigate to Driver Assistance option.
|
![]() |
![]() |
High |
Low |
|
![]() |
High |
Low |
![]() |
![]() |
High |
Low |
|
![]() |
High |
Low |
|
![]() |
High |
Low |
|
![]() |
High |
Low |
|
![]() |
High |
Low |
|
![]() |
![]() |

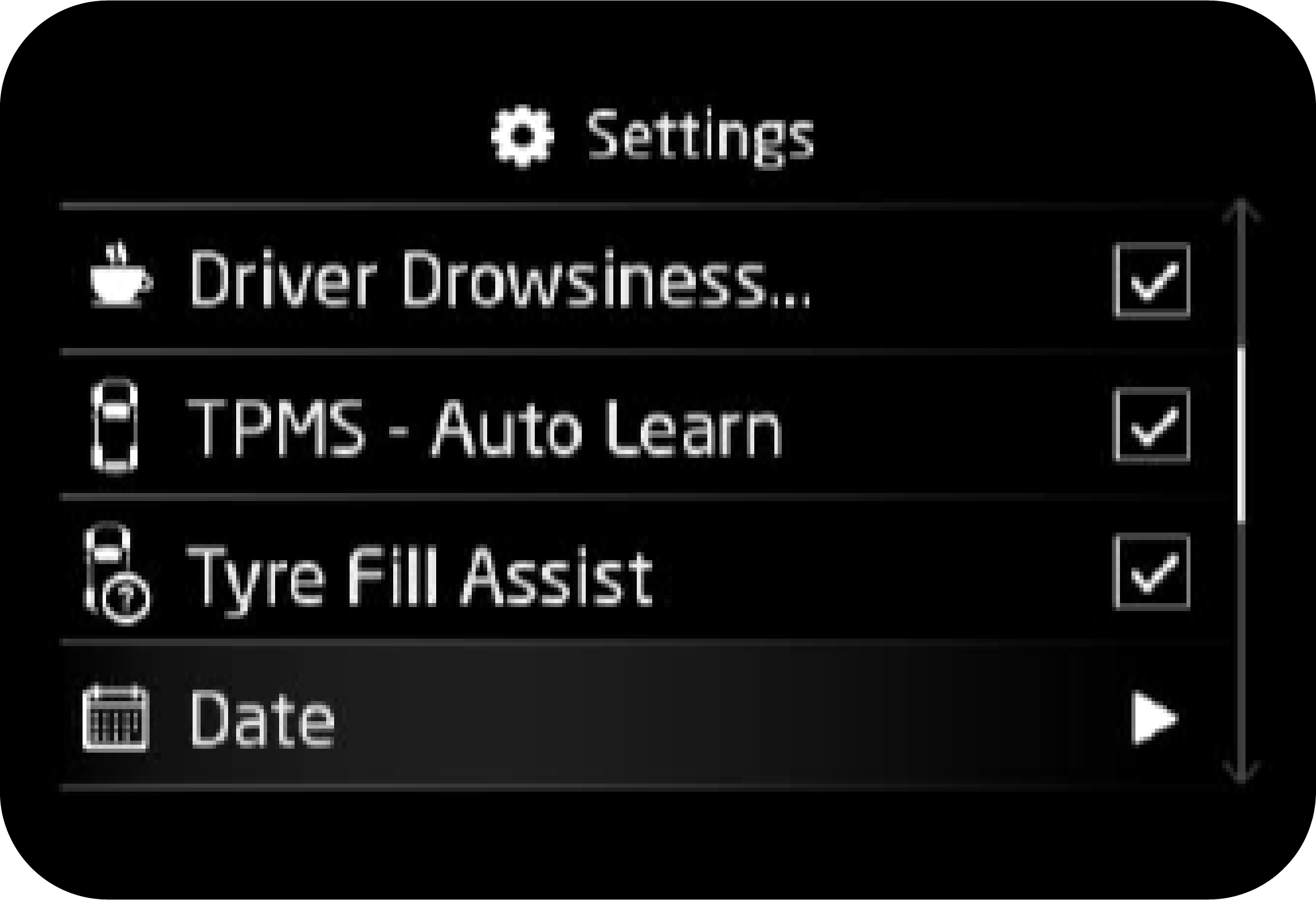

1. Navigate to Setting menu using MENU button.
|
![]() |
2. Press OK to enter setting. Press Up/Down button to navigate to Drowsiness Detection Option.
|
![]() |
3. Press OK to Enable / Disable the Drowsiness Detection Option.
|
|

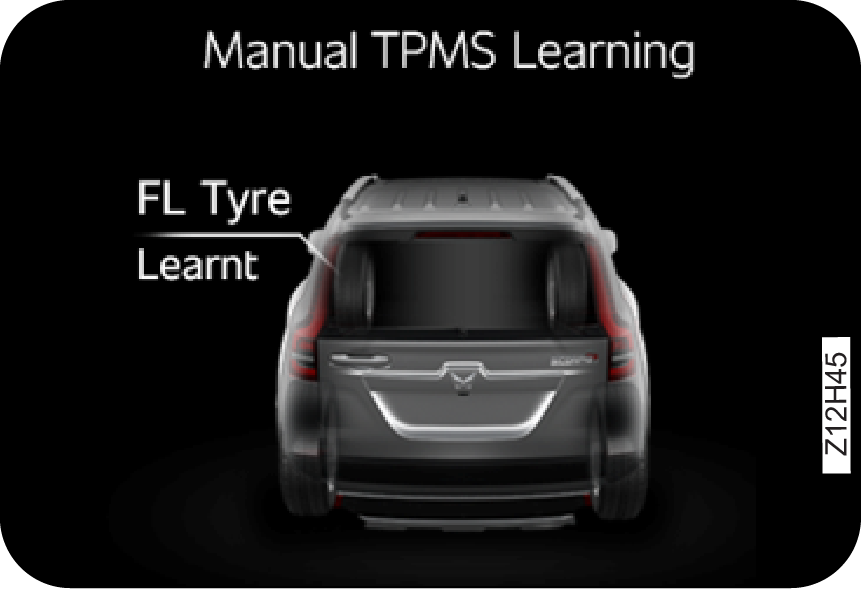

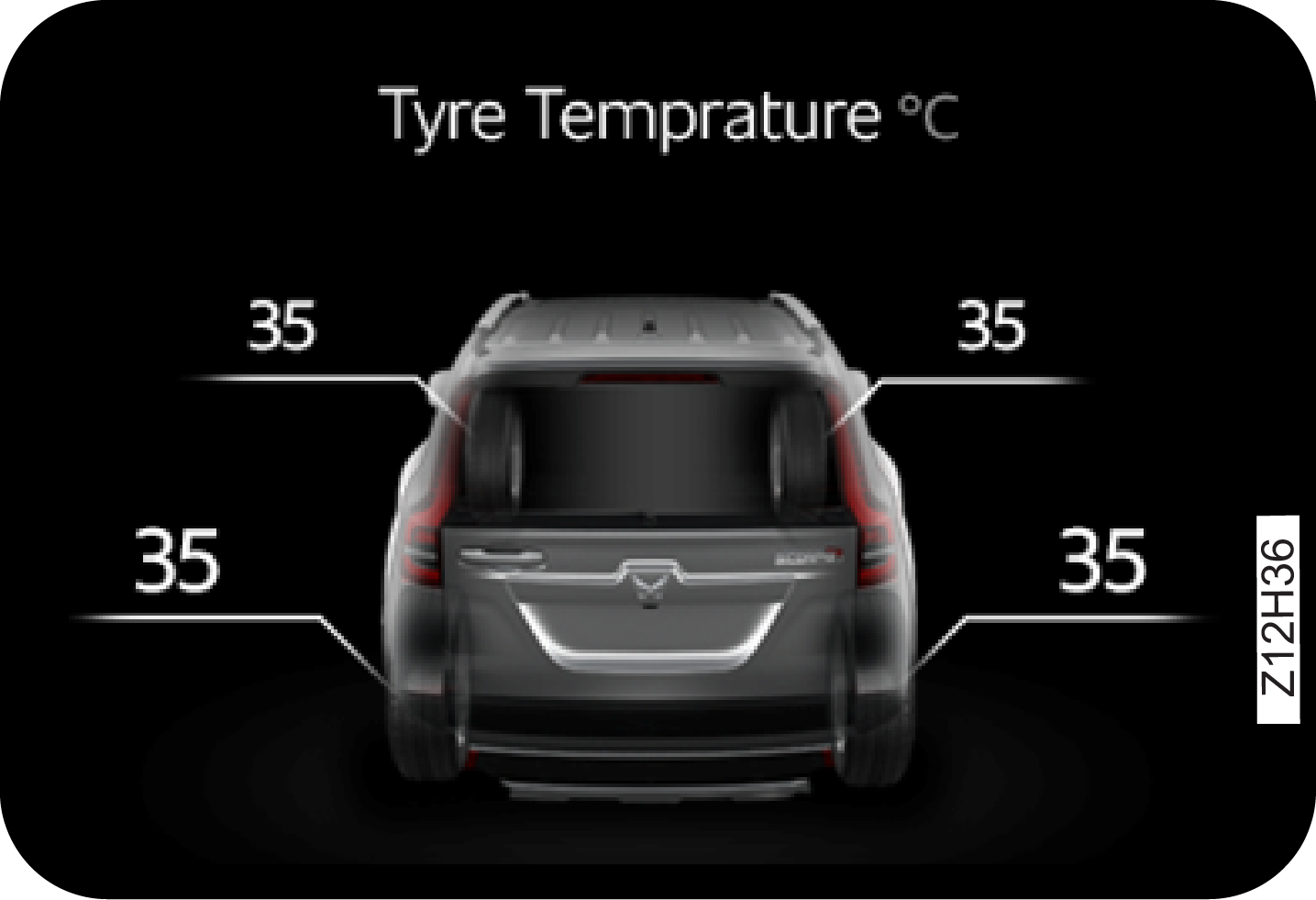

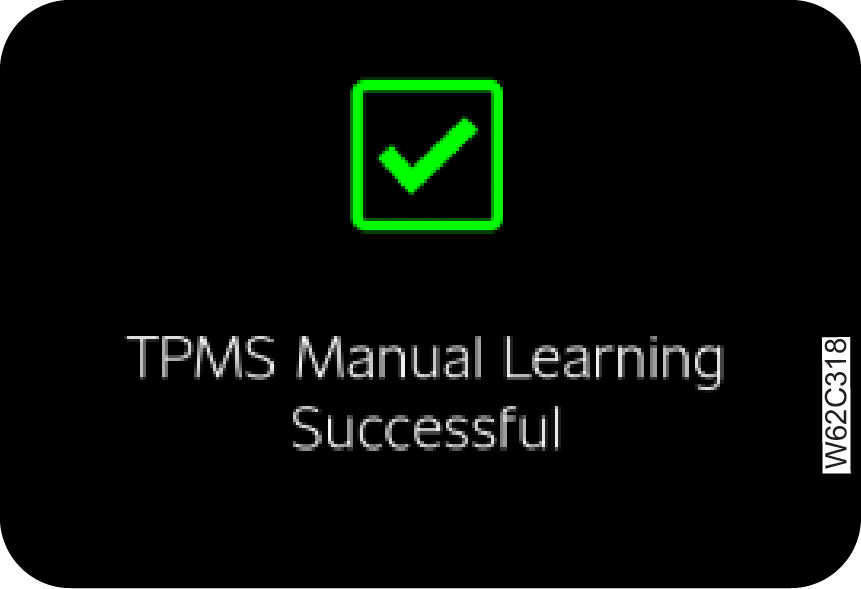

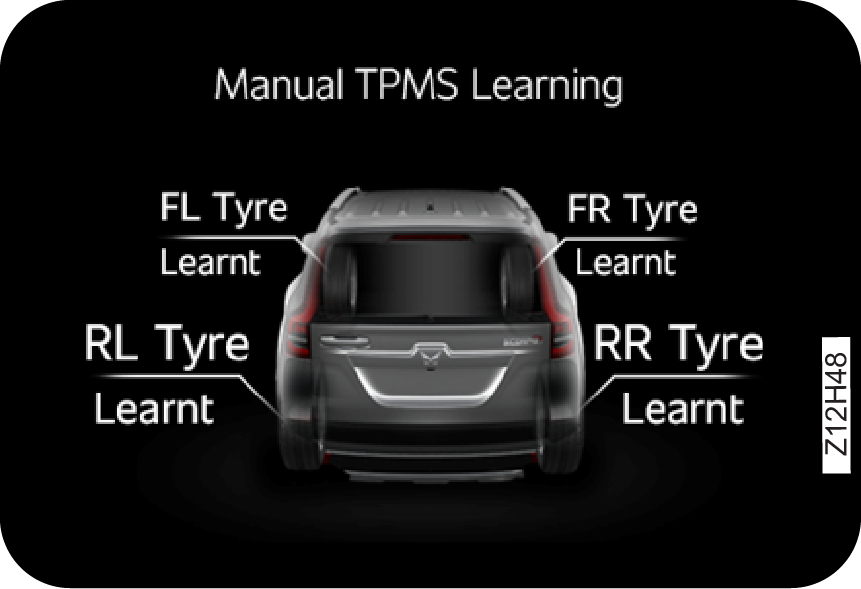

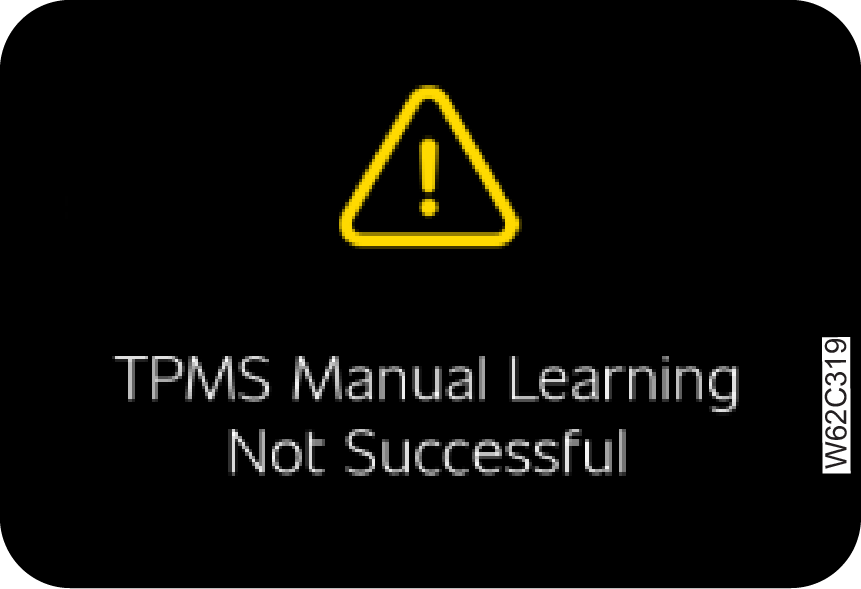

1. Navigate to Setting menu using MENU button.
|
|
2. Press OK to enter setting. Press Up/Down button to navigate to TPMS-Auto Learn Option.
|
|
3. Press OK to Enable / Disable the TPMS-Auto Learn Option.
|
|

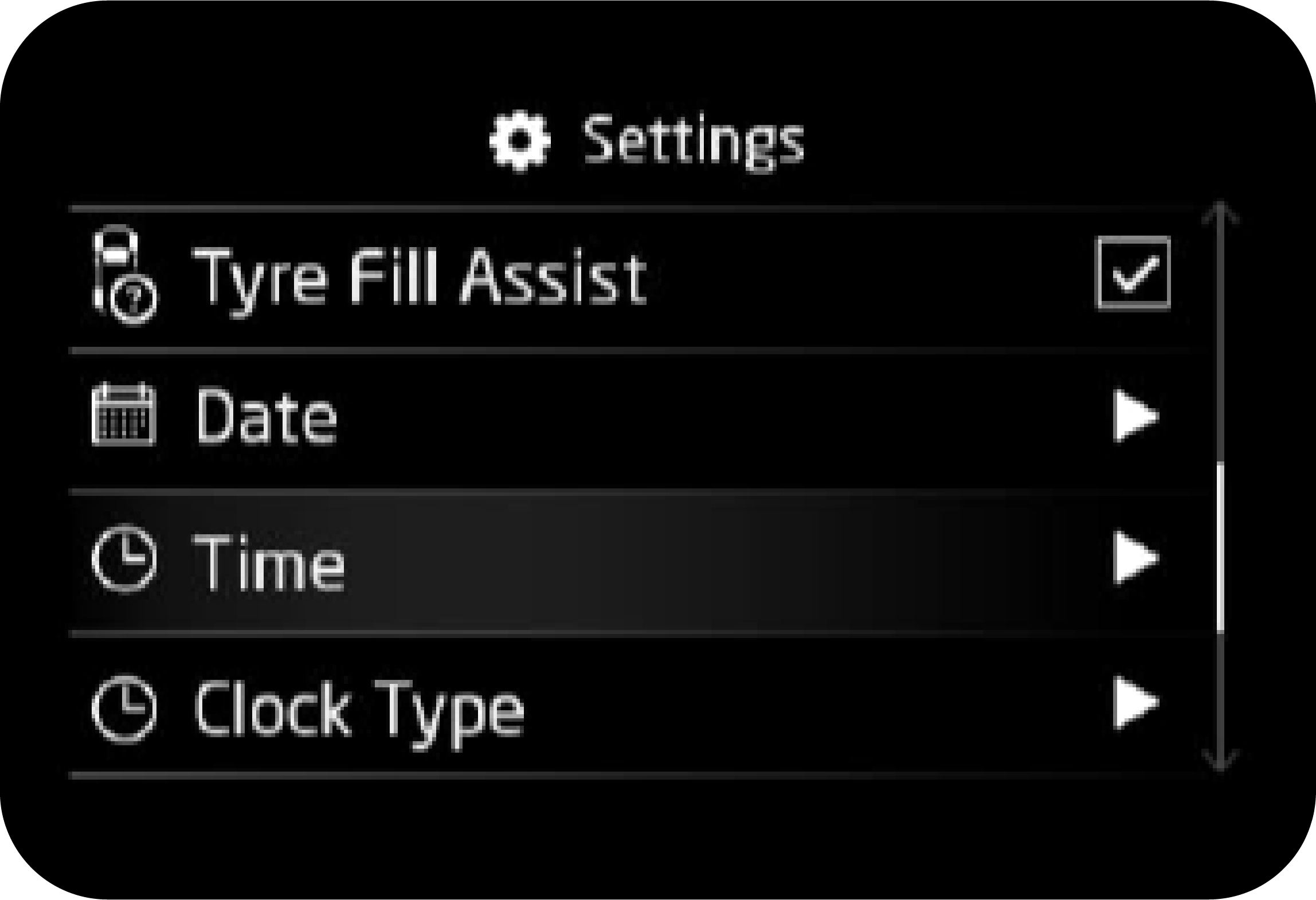

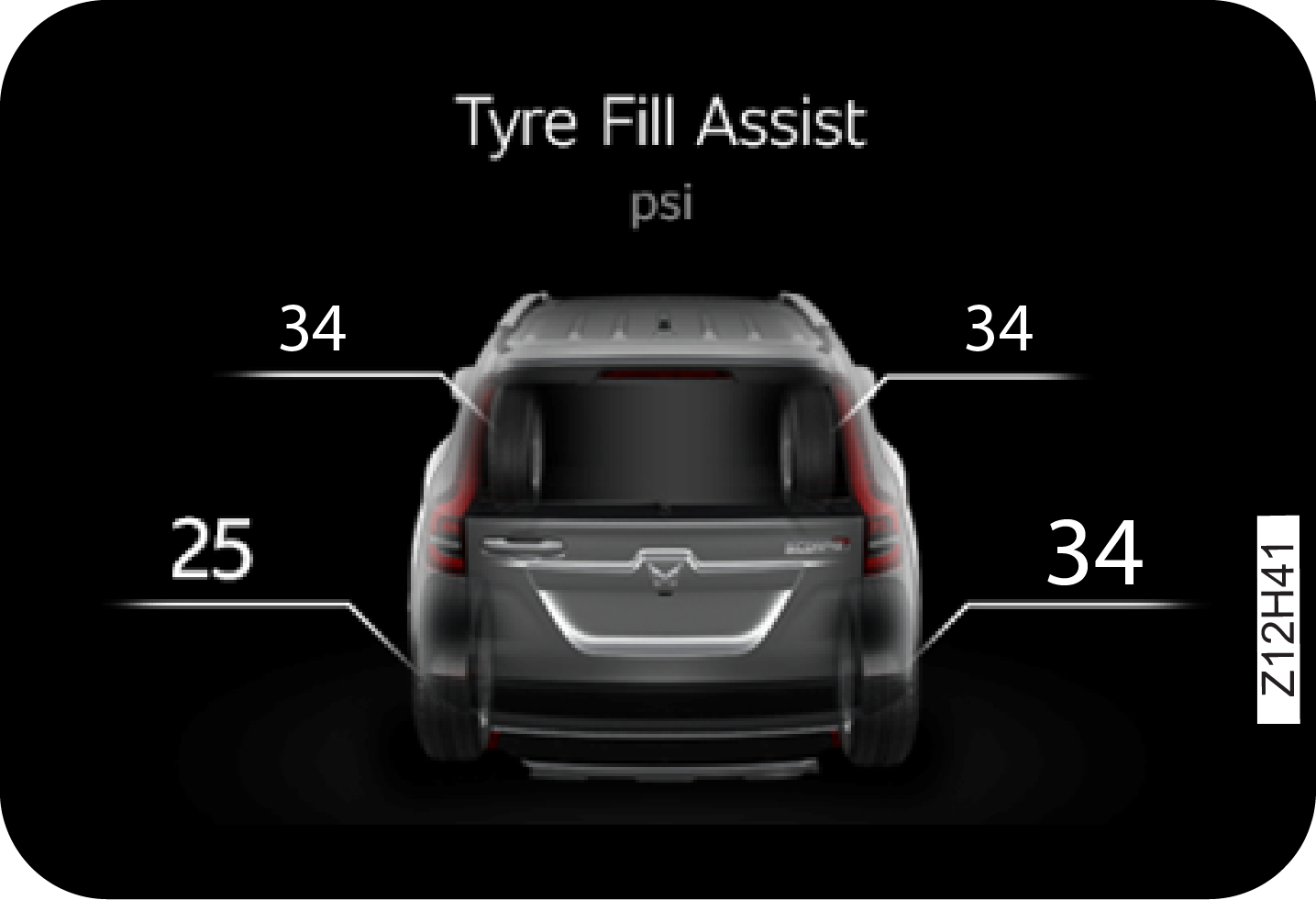

1. Navigate to Setting menu using MENU button.
|
|
2. Press OK to enter setting. Press Up/Down button to navigate to Tyre Fill Assist Option.
|
|
3. Press OK to Enable / Disable the Tyre Fill Assist Option.
|
|
1. Navigate to Setting menu using MENU button.
|
|
2. Press OK to enter setting. Press Up/Down button to navigate to Sound Option.
|
|
3. Press ok to enter Sound Option. Use Up/Down button to navigate to the option. Press OK to enter Sound Options.
|
|
4. Use Up/Down button to navigate to the option. Press OK to select.
|
|
5. Use Up/Down button to Select the volume Level. Press OK to enter Volume Option.
|
|
6. Up/Down button to select the volume levels. Press OK to select. Once selected it will return to previous page.
|
|
![]() |
|
![]() |
|
![]() |
![]() |
![]() |

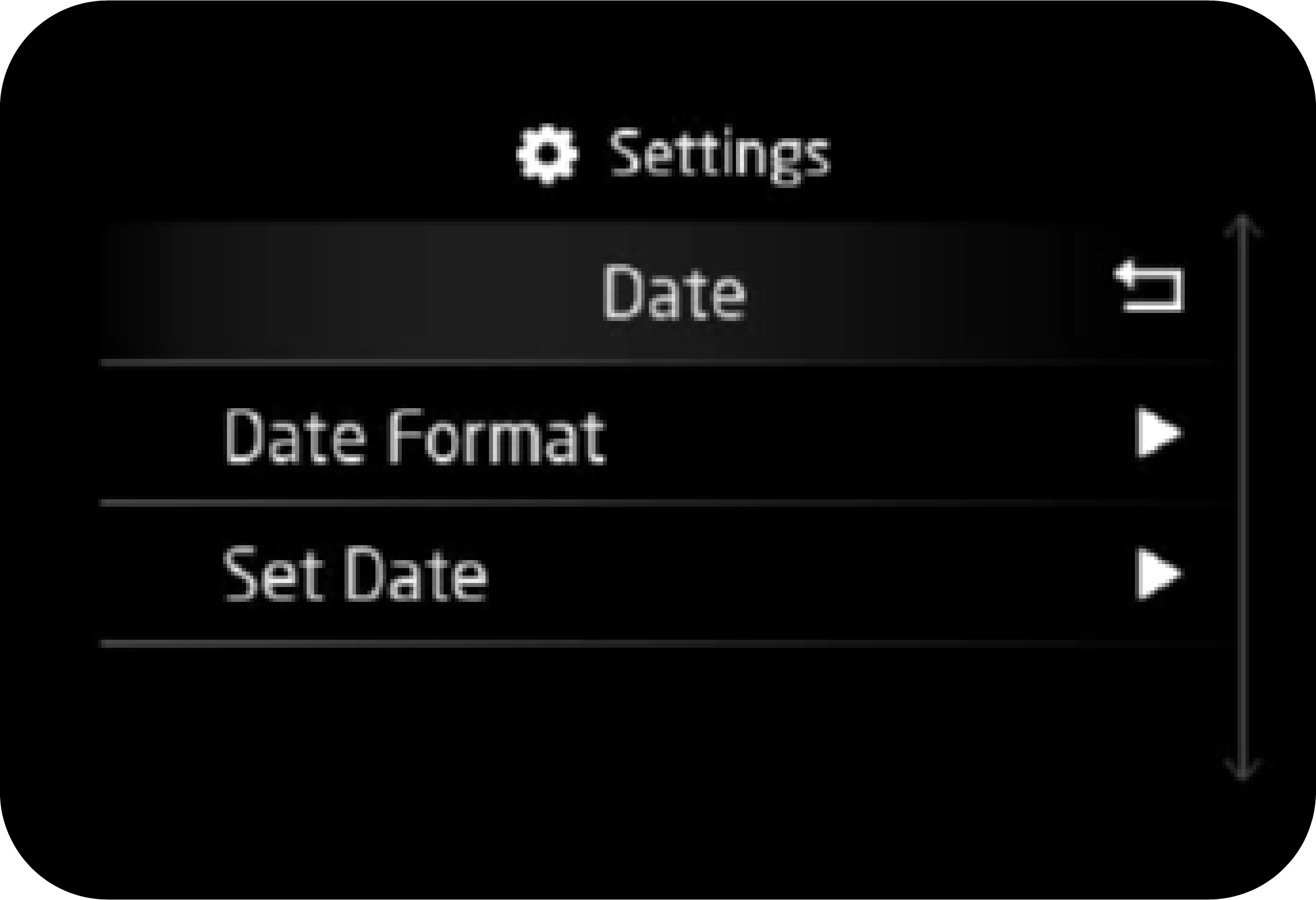

1. Navigate to Setting menu using MENU button.
|
2. Press OK to enter setting. Press Up/Down button to navigate to date Option.
|
![]() |
![]() |
3. Press ok to enter date option. Use Up/Down button to navigate to the option. Press OK to select.
|
4. Use Up/Down button to select date format and set date. Press OK to set.
|
![]() |
![]() |

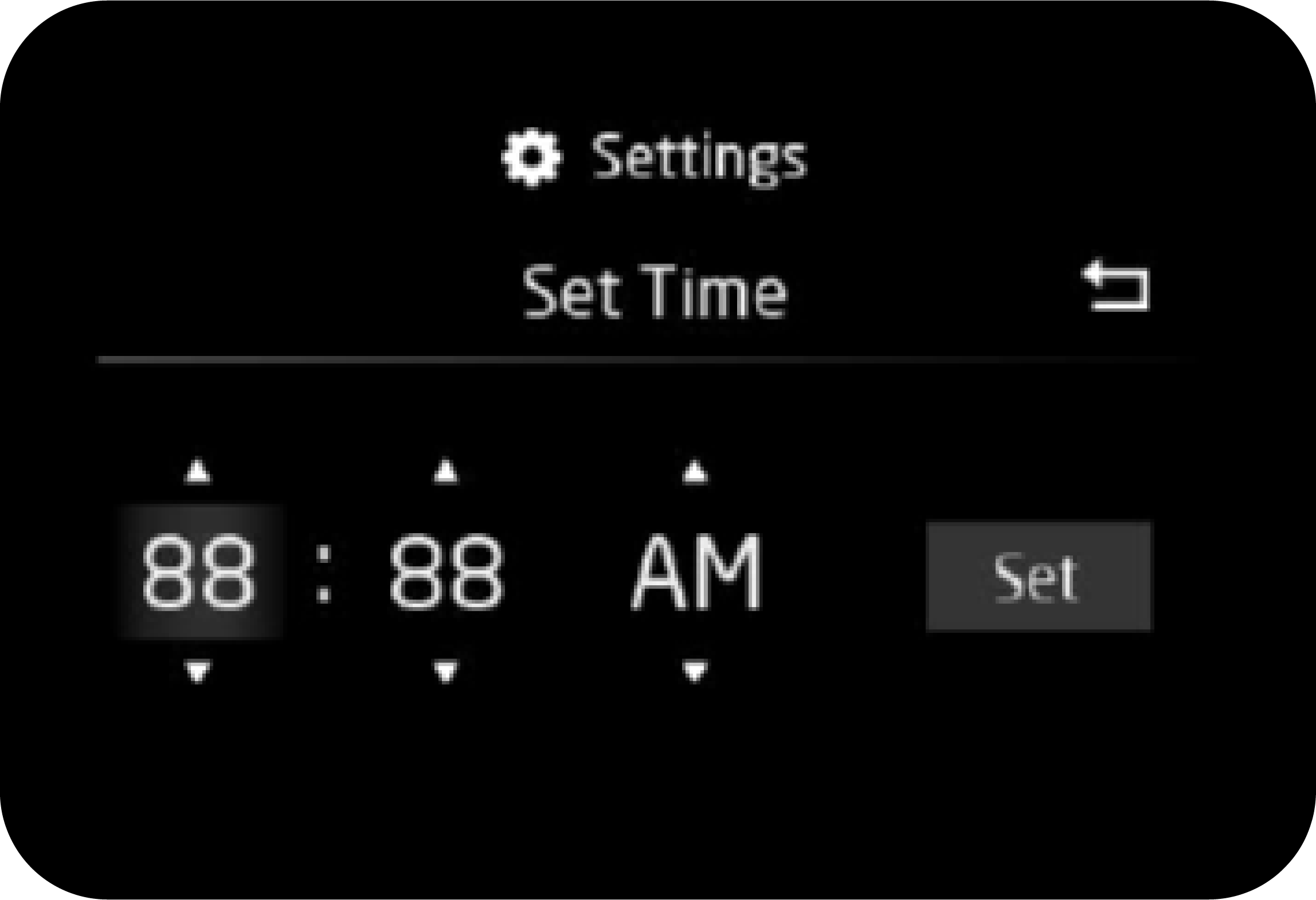

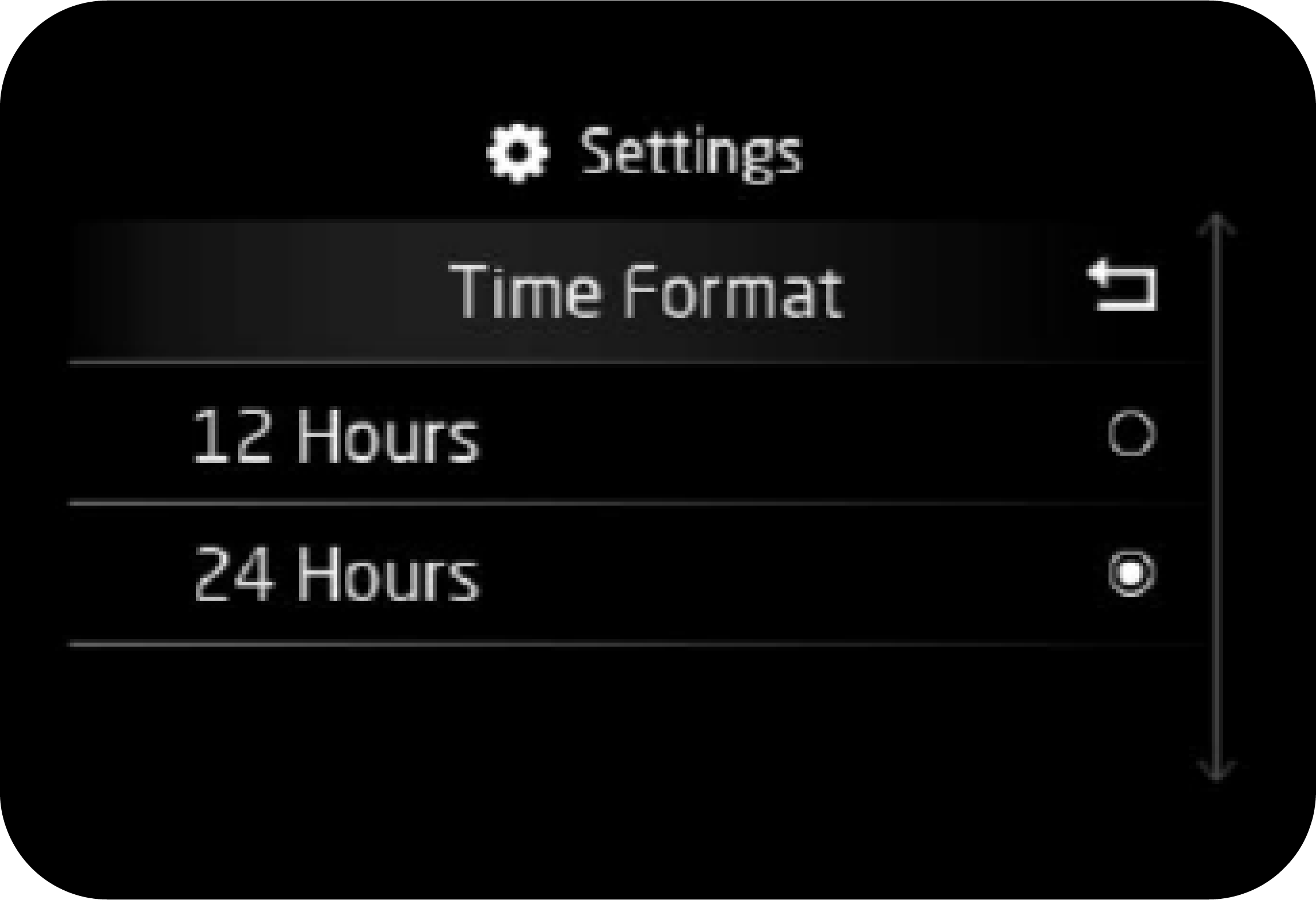

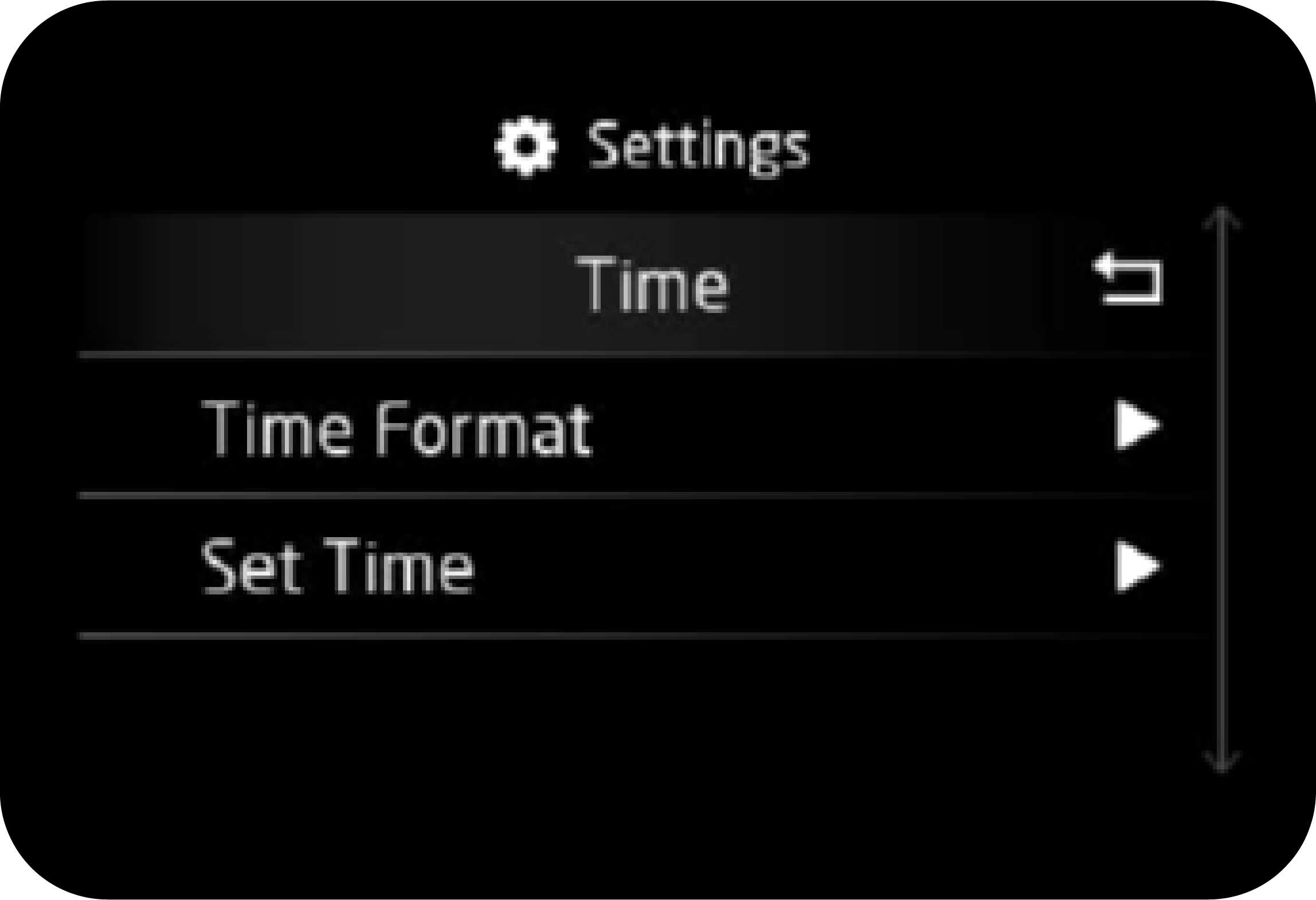

1. Navigate to Setting menu using MENU button.
|
2. Press OK to enter setting. Press Up/Down button to navigate to time option.
|
![]() |
![]() |
3. Press ok to enter time option. Use Up/Down button to navigate to the option. Press OK to select.
|
4. Use Up/Down button to select time format and set time. Press OK to set.
|
|
![]() |
![]() |
![]() |
|
![]() |

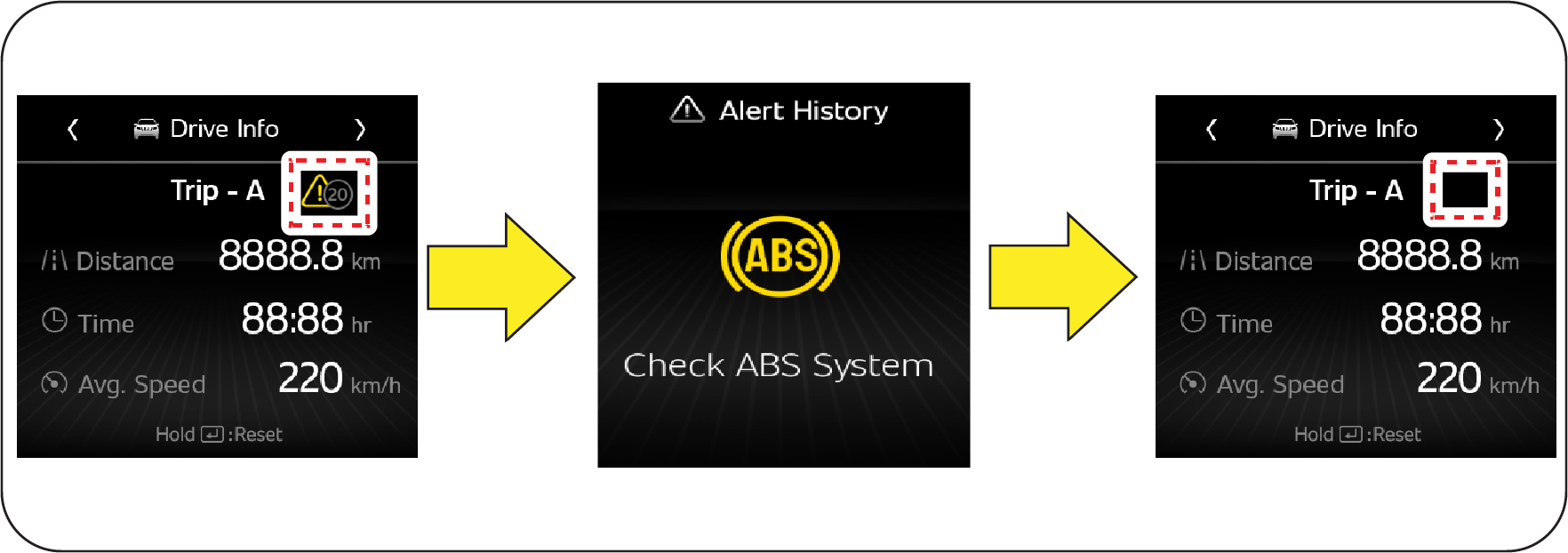

1. | To go to the main settings screen from any settings menu, use Up/Down buttons to go to the top of the menu screen and press the OK button. |
2. | In the settings screen, if no option is selected for a long time. The screen will go to the previous displayed screen. |
![]() |
![]() |
|
|
Display | Operating Conditions |
---|---|
![]() |

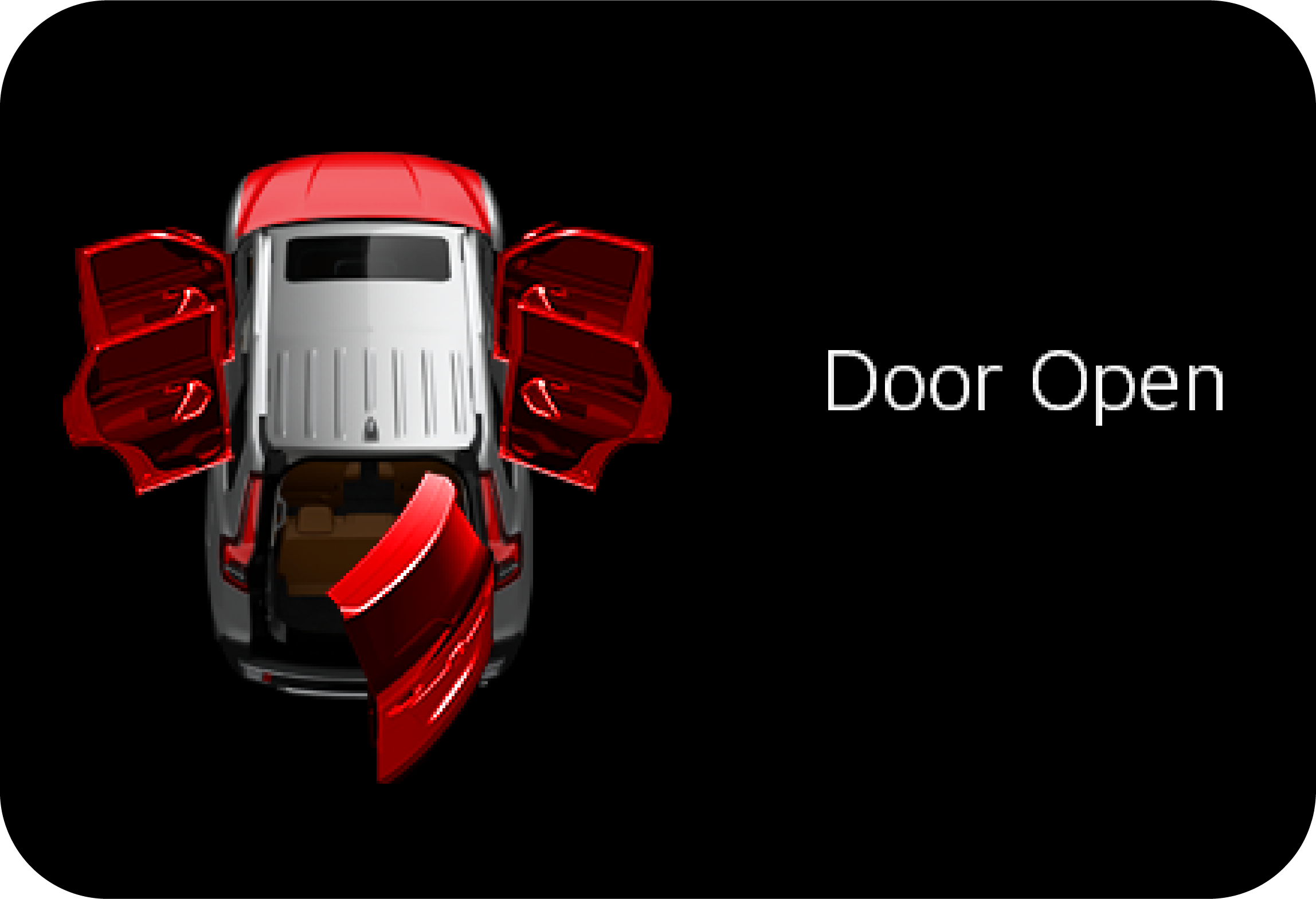

This alert is displayed when any doors are open and show the
door identified as open.
|
|
This alert is displayed when the check engine warning telltale
is ON and engine is running.
|
Display | Operating Conditions |
---|---|
|
This alert is displayed when engine temperature high telltale
is ON and engine is running.
|
|
This alert is displayed when an ABS related malfunction is
detected.
|
|
This alert is displayed when low brake fluid is detected and
engine is running.
|
|
This alert is displayed when the park lamp is ON and the
ignition is turned OFF.
|
|
This alert is displayed when low fuel warning telltale is ON
or blinking and engine is running.
|
|
This alert is displayed when the engine oil pressure warning
telltale is ON and engine is running.
|
|
This alert is displayed when either of driver or passenger (if
occupied) seat belt is unbuckled.
|
|
This alert is displayed when water is detected in fuel filter
and engine is running. It is applicable for the diesel variant
only.
|
|
This alert is displayed when passenger airbag is turned OFF.
|
|
This alert is displayed when brake EBD related malfunction is
detected.
|
|
This alert is displayed when the ESC malfunction is detected
and engine is running.
|
|
This alert is displayed when EPS related malfunction is
detected.
|
|
This alert is displayed when Sunroof is left open at ignition
off.
|
|
The alert is displayed when ignition is off, driver door is
open and the driver has forgotten their phone in the wireless
charging tray.
|
|
The alert is displayed when 4WD system related malfunctions is
detected.
|
![]() |

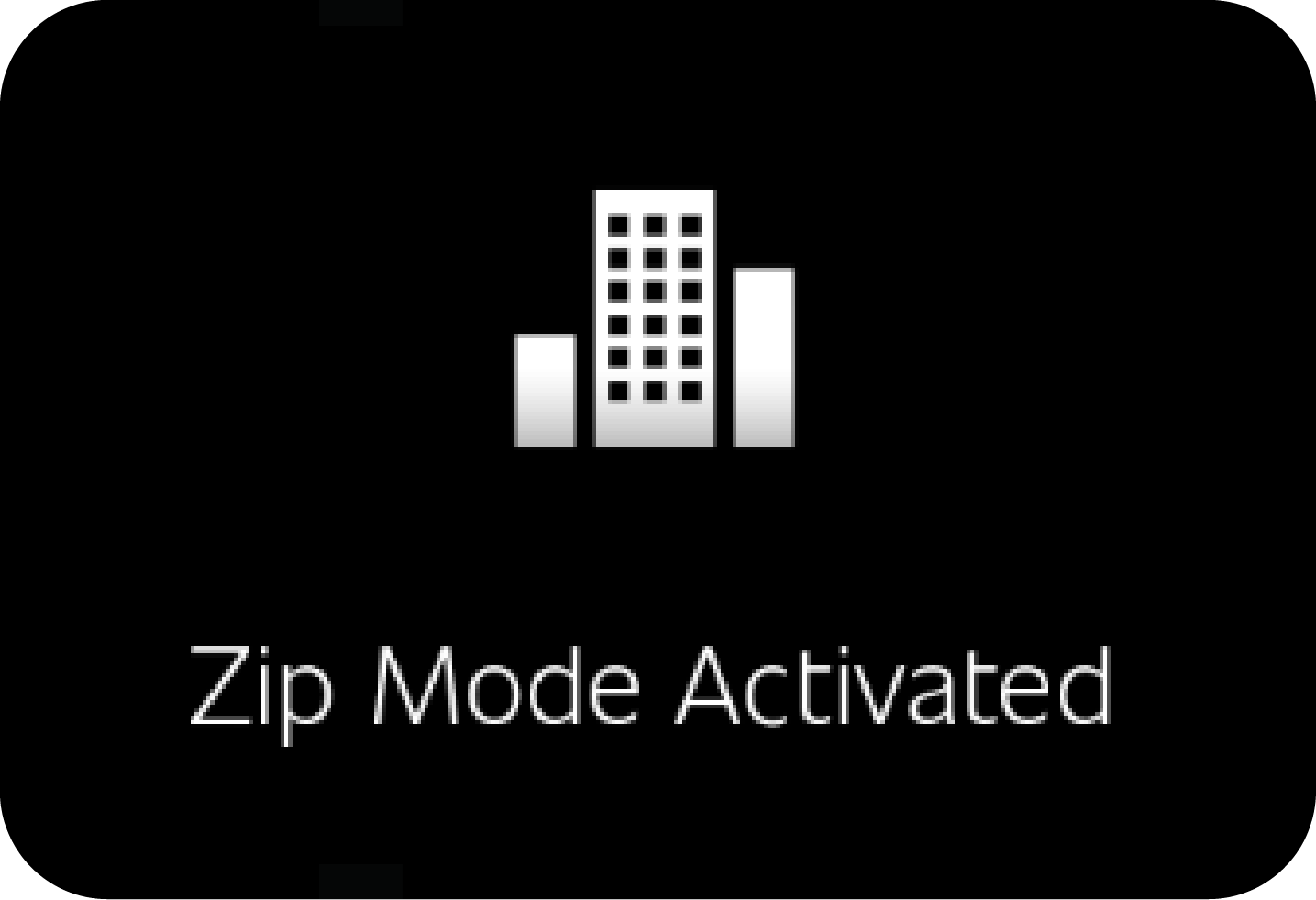

This alert is displayed when Zip drive mode is activated.
|
![]() |

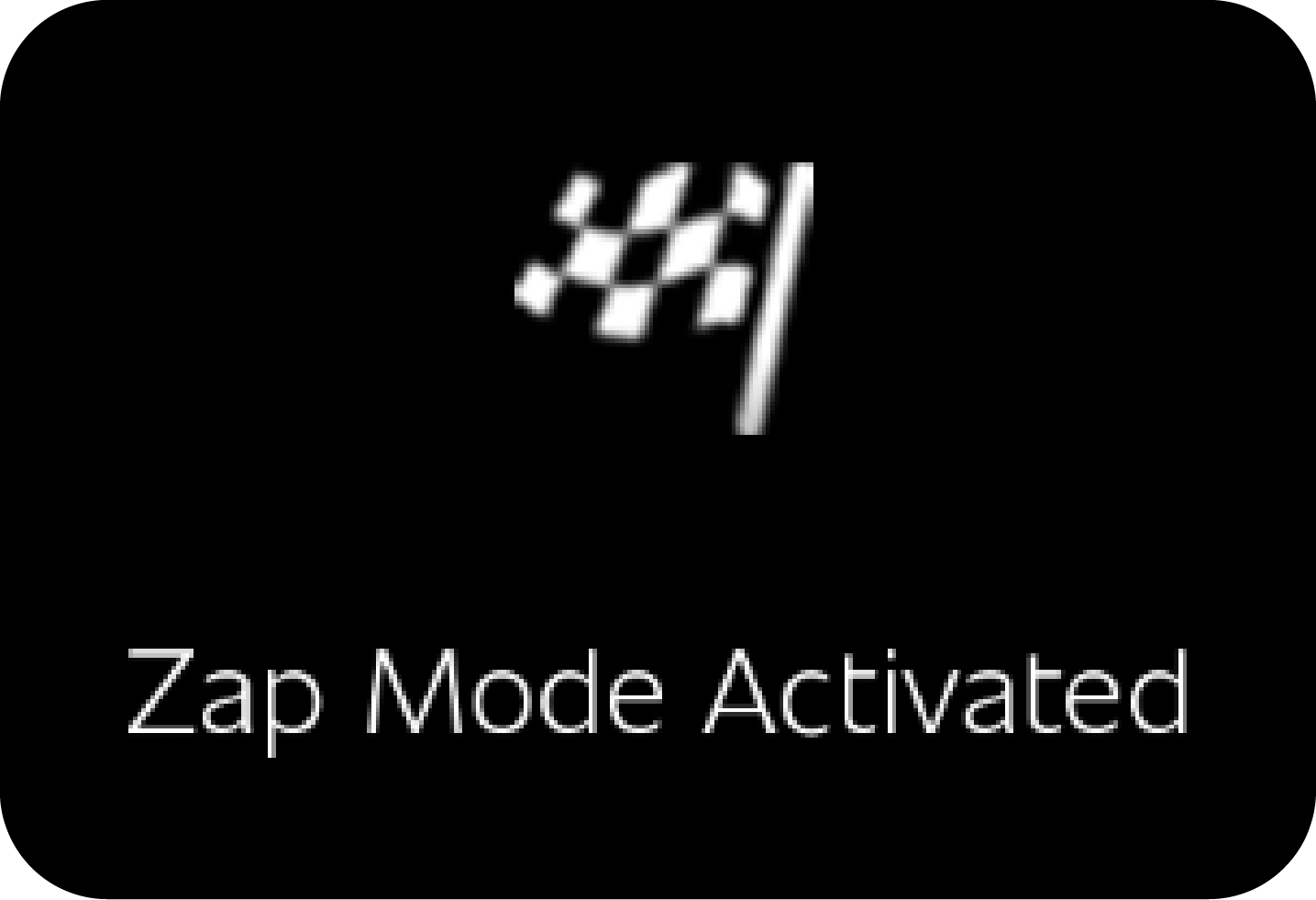

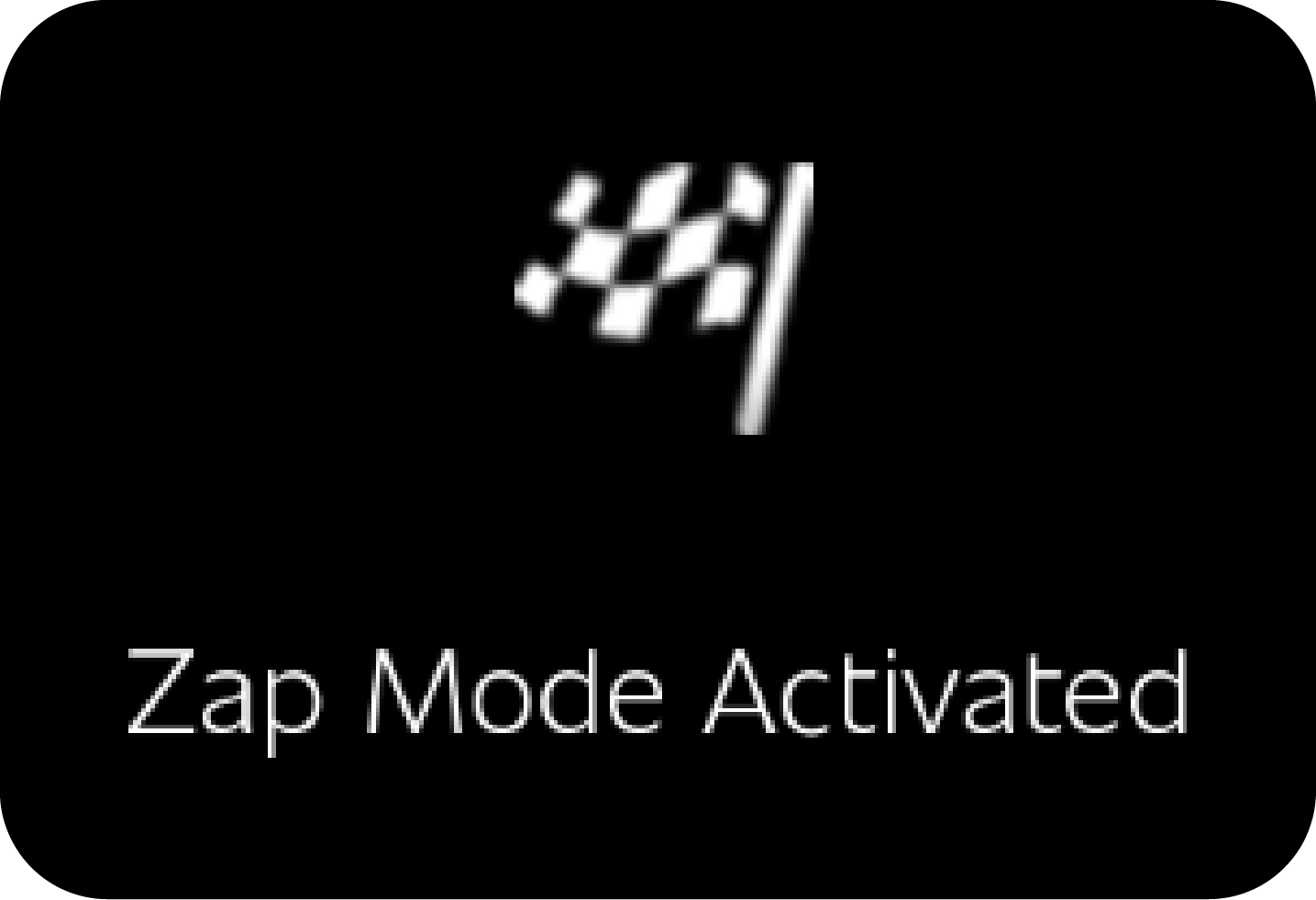

This alert is displayed when Zap drive mode is activated.
|
![]() |

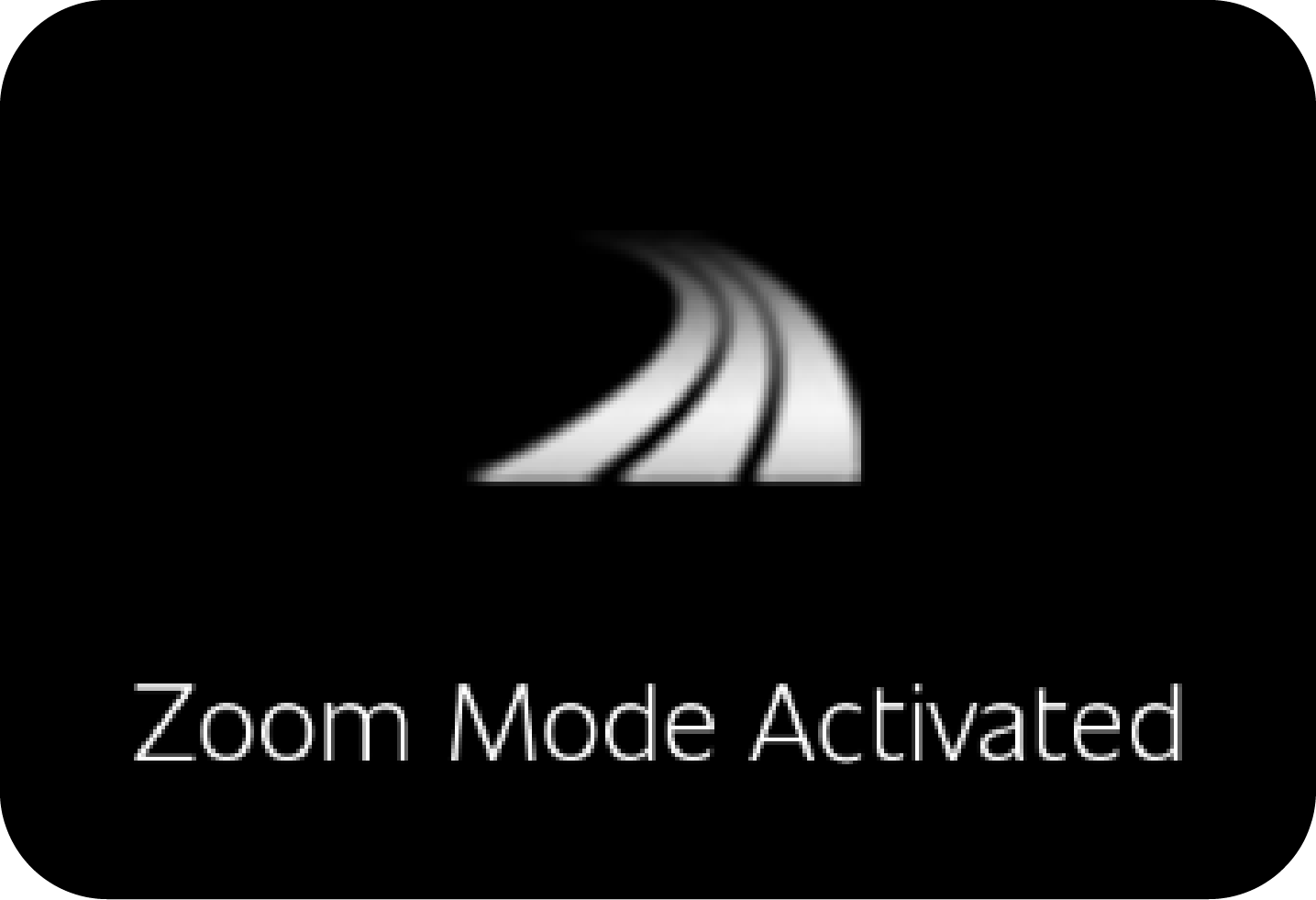

This alert is displayed when Zoom drive mode is activated.
|
|
Instrument cluster shall monitor some of the internal
parameters and if any malfunction is detected it will display the “Contact
Dealer” alert.
Contact a Mahindra Authorised Dealer immediately when “Contact
Dealer” alert is displayed in cluster.
|
|
The alert is displayed when the driver becomes very drowsy and
is not able to stay awake. The alert indicates the driver to
take an immediate break.
|
|
This alert is displayed when malfunction in Attention Assist
system is detected.
|
|
This alert is displayed when the Hill Descent Control function
is not available because of a malfunction in the system.
|
|
This alert is displayed when the Hill Hold Control function is
not available because of a malfunction in the system.
|
|
This alert is displayed when the vehicle is driven above 120
kmph.
|
|

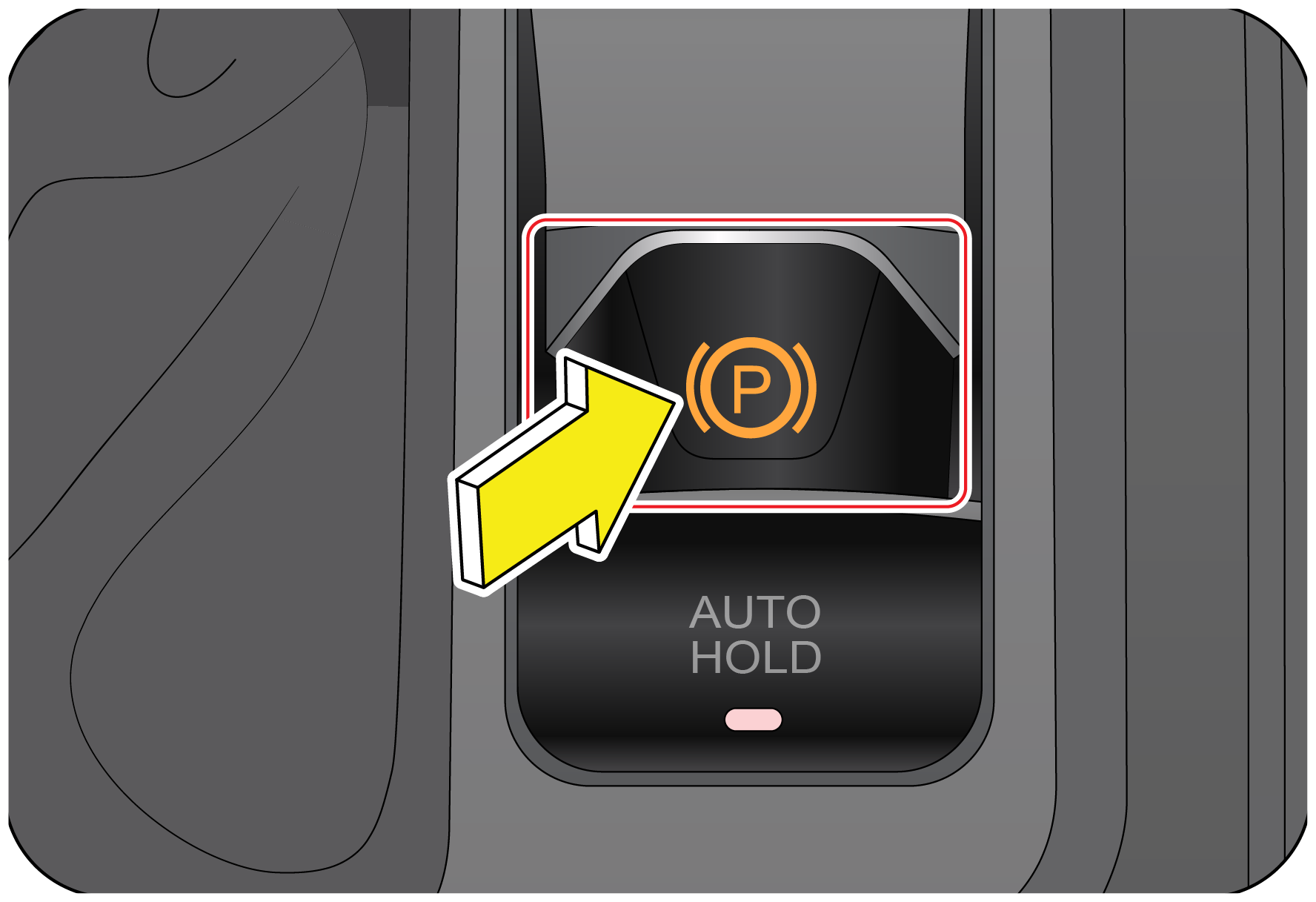

This alert is displayed when you try to move the vehicle and
the park brake is still engaged.
|
|
This alert is displayed 200 Kms before the scheduled service
limit.
|
![]() |

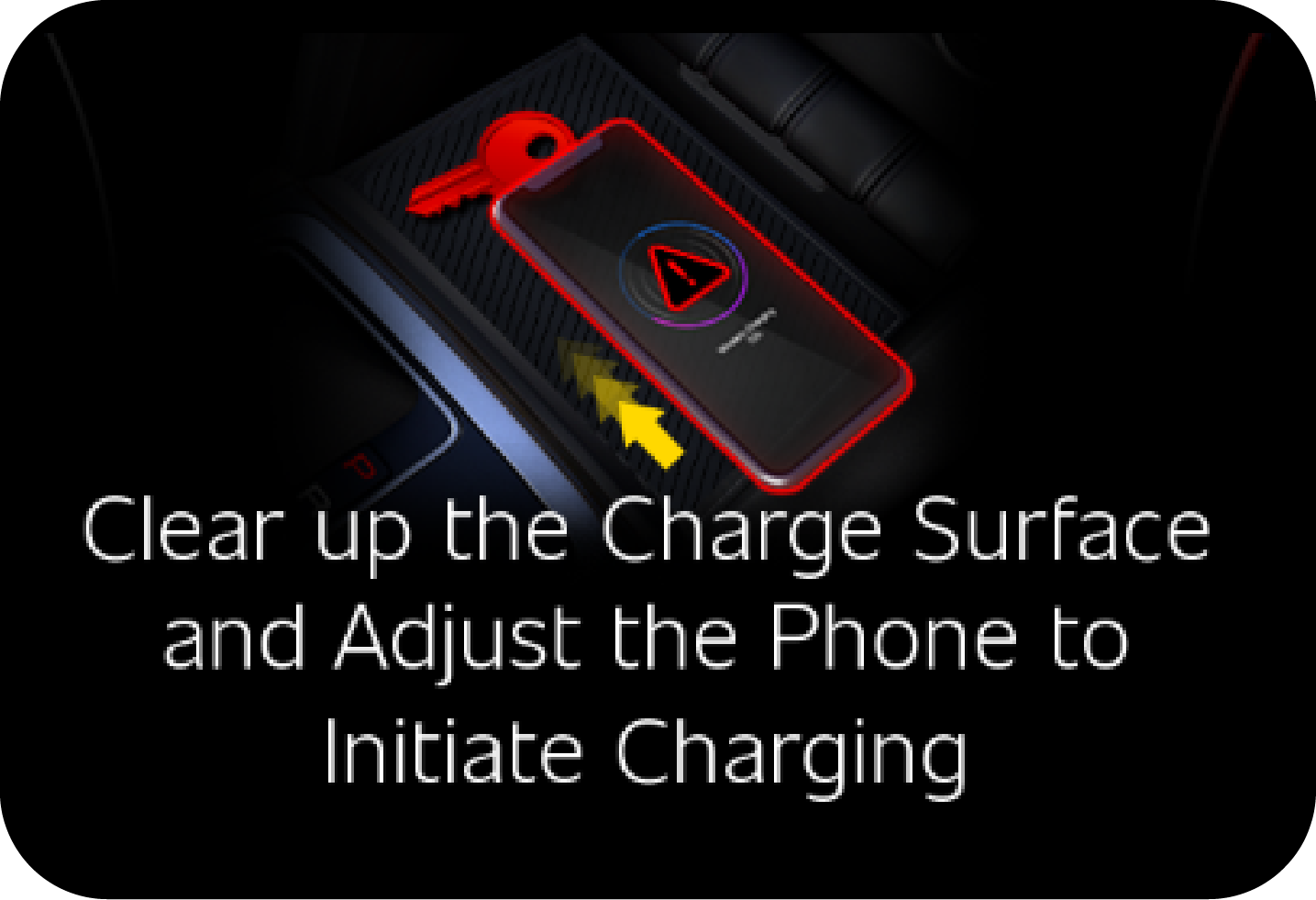

This alert is displayed when a coin or metallic object is
placed on the wireless charging tray & the phone is kept on the
object leading to poor charging of phone. This will also be displayed if the
phone is detected in a incorrect position on
the charging tray. Adjust the phone to allow it to charge optimally.
|
![]() |
This alert is displayed when a NFC enabled card is placed on
the wireless charging tray & a phone is placed on top of. Kindly
remove the card to protect the card.
|
![]() |

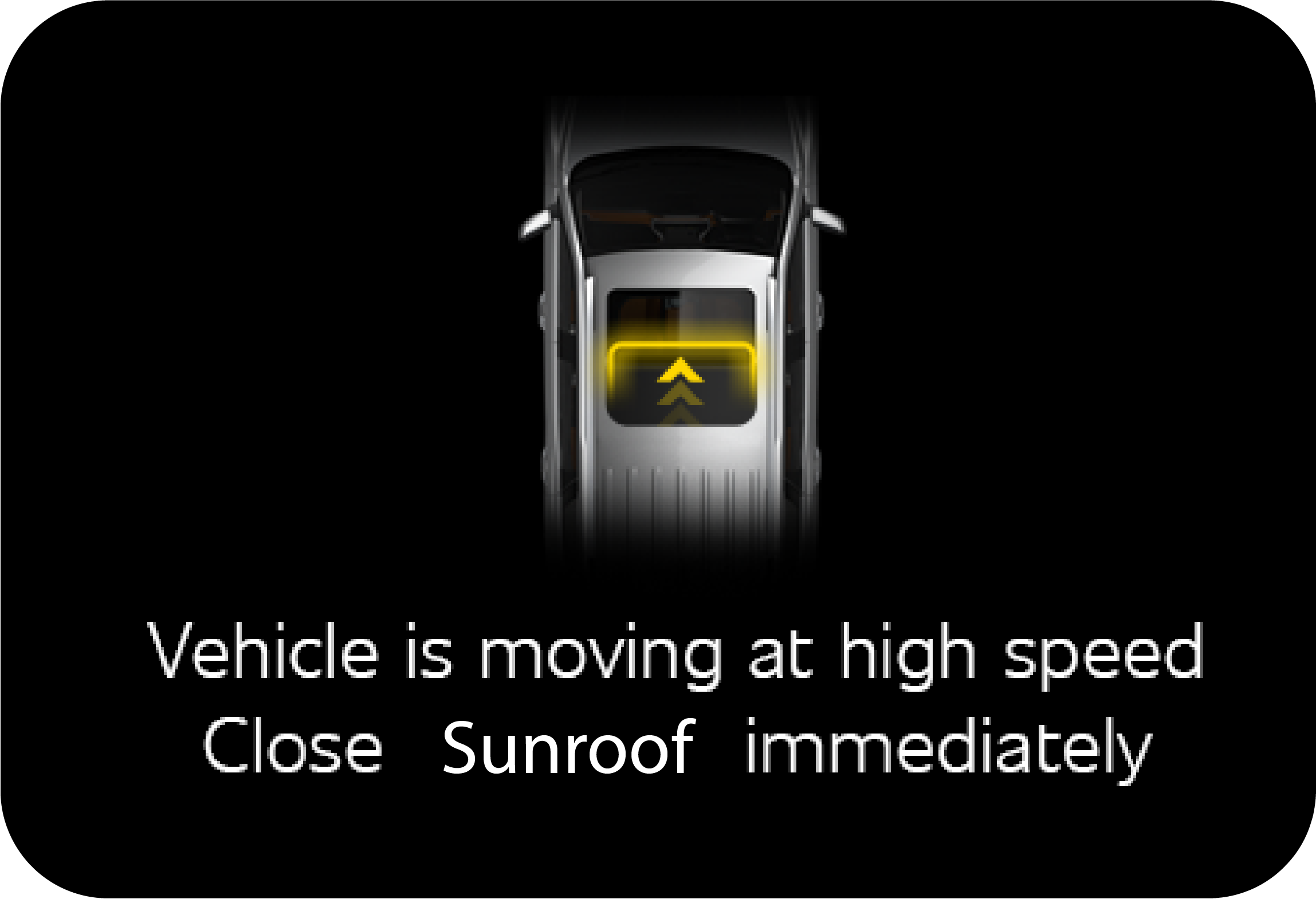

This alert is displayed when the Skyroof is open and vehicle
speed in high.
|
|
This alert is displayed when the Sunroof is not learnt.
|
![]() |
Rain Sensor/Non Rain Sensor
Variant: This alert will displayed when low wipe is ON for more than 10
seconds or high wipe is ON for more than 5 seconds in both
RLS & Non RLS variants.
|
Display
|
Operating Conditions
|
---|---|
|

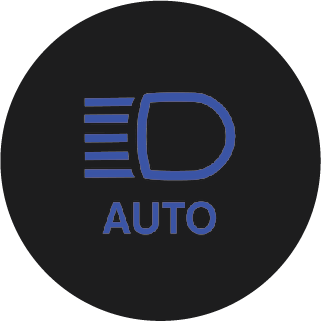

This message comes when auto light is turned OFF.
|
|
This message comes when auto light is turned ON.
|
|
This message comes when auto wiper is turned OFF.
|
|
This message comes when auto wiper is turned ON.
|
|

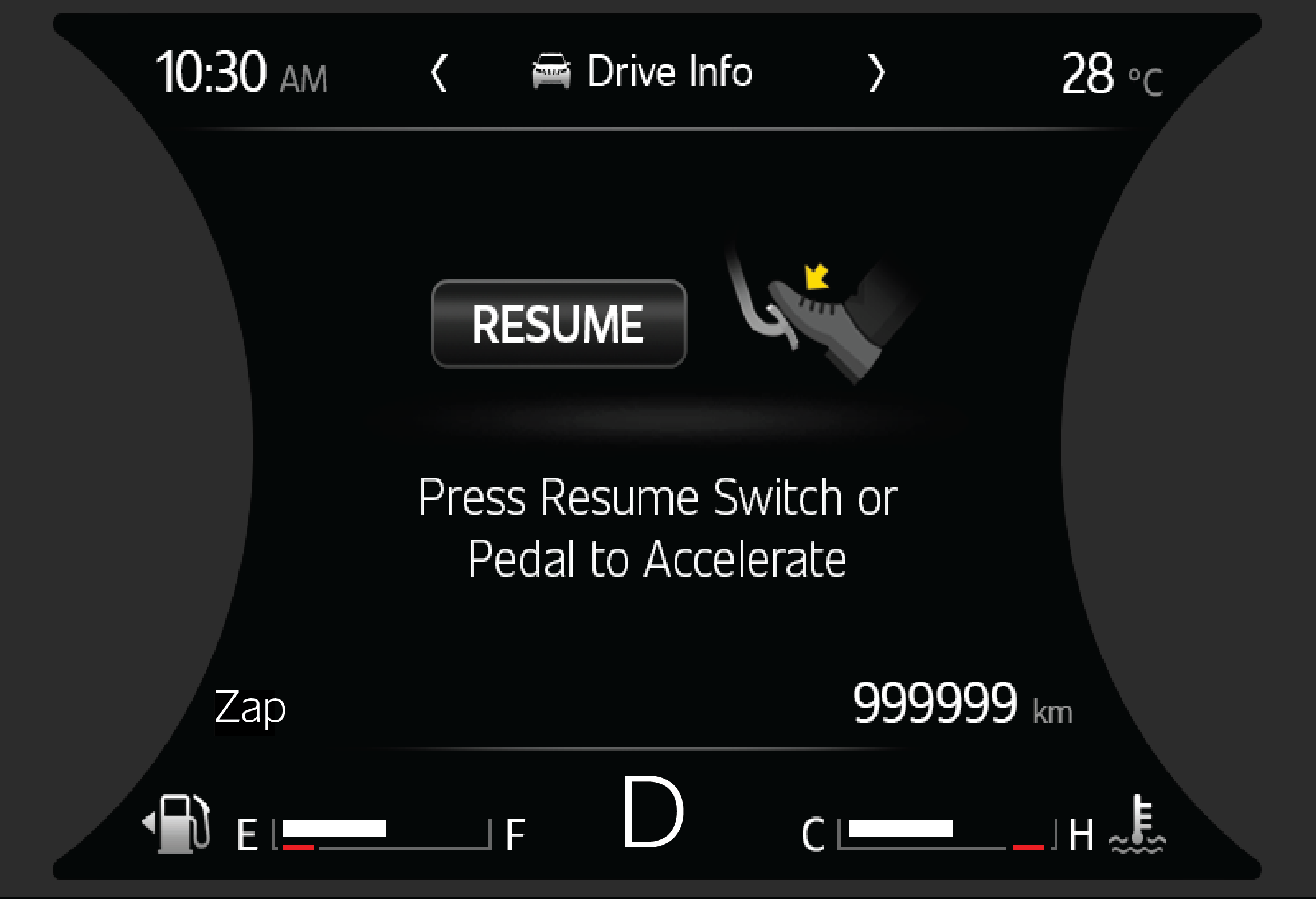

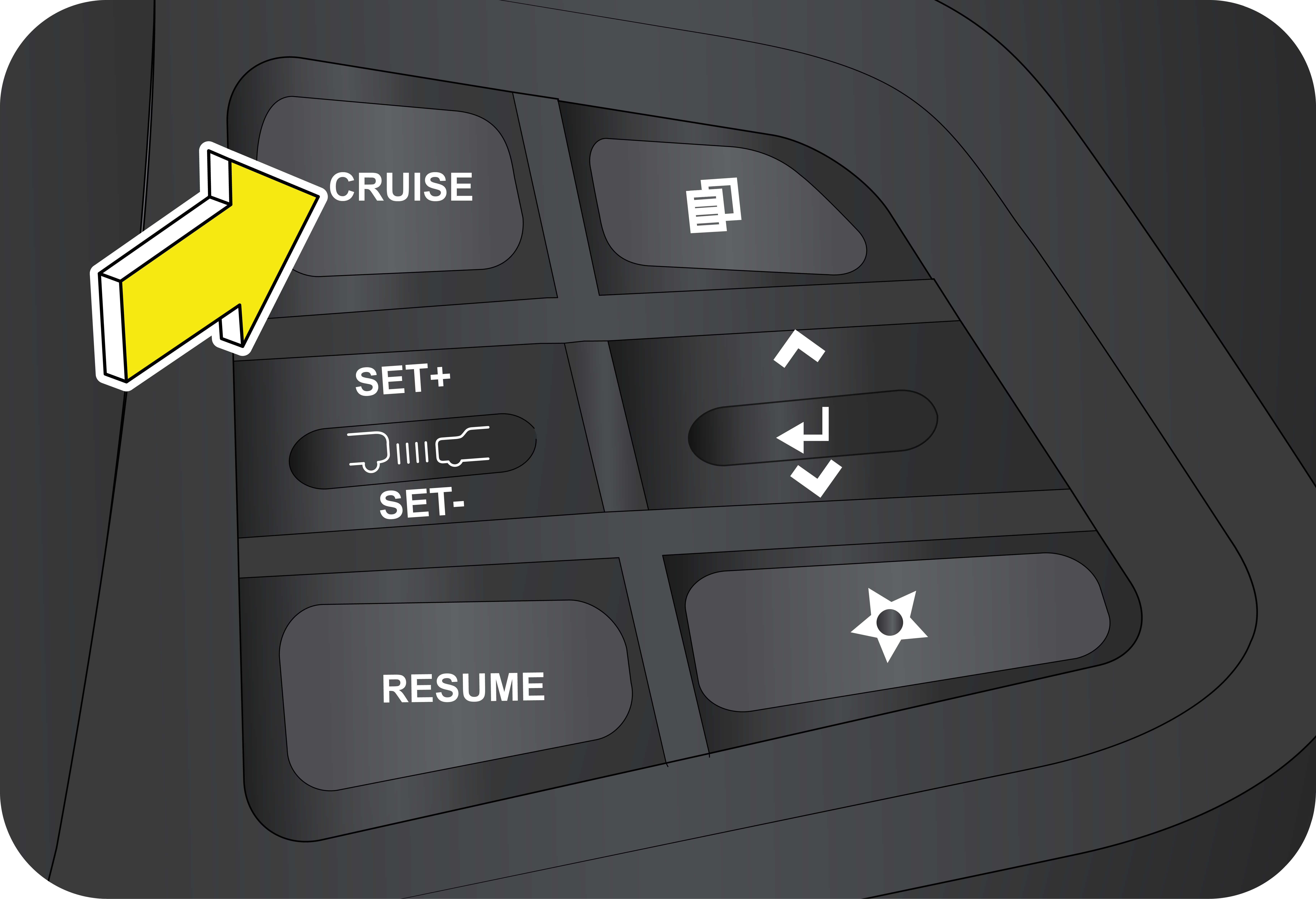

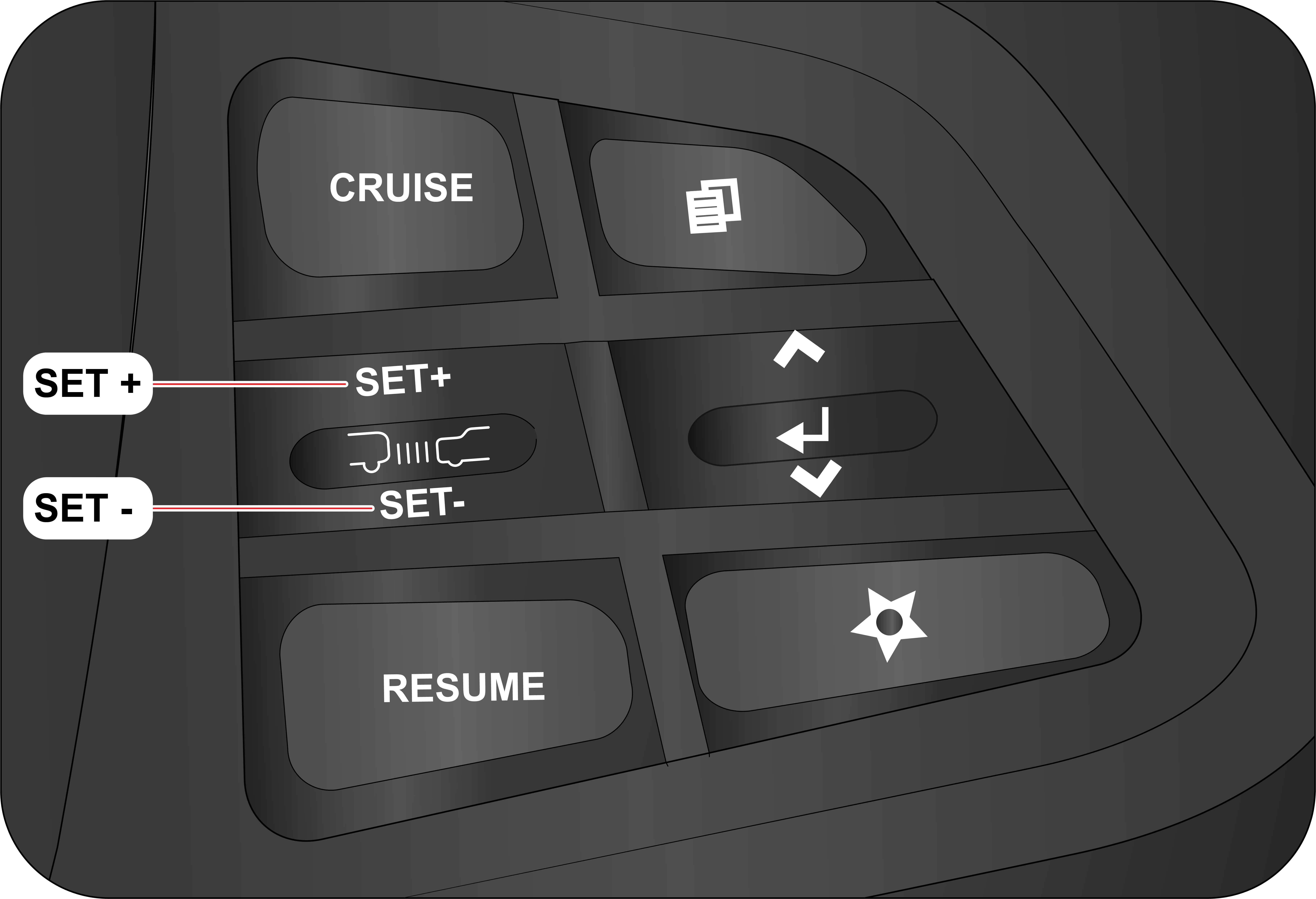

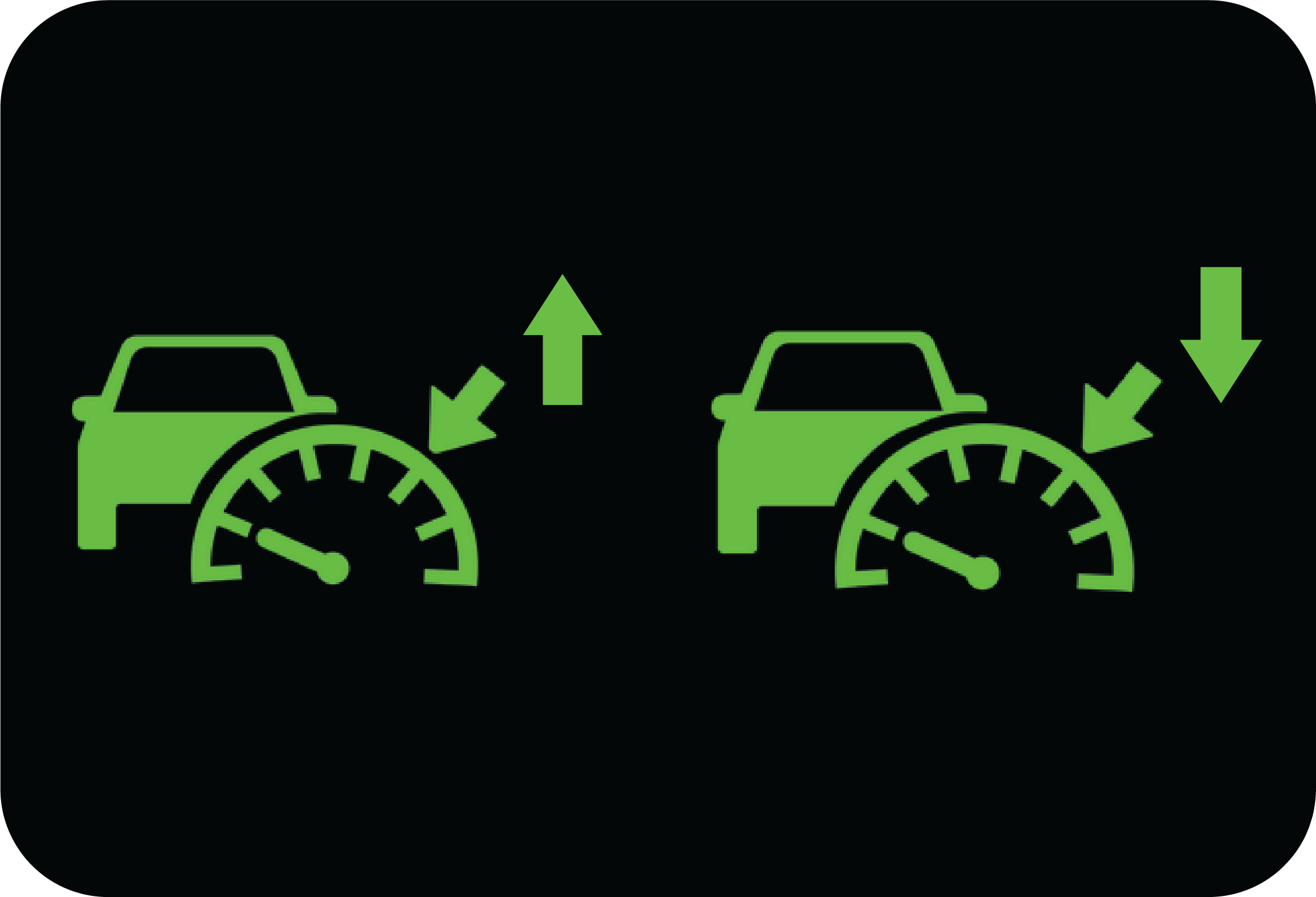

This message comes when cruise mode is turned ON.
|
|
This message comes when cruise mode is turned OFF.
|
|
This message comes when brake pedal is pressed when in cruise
mode or if trying to activate cruise control when vehicle speed
is below the cruise threshold.
|
|
This message comes on when HDC function is enabled by pressing
the HDC switch and the conditions for HDC are met . The brakes
will then maintain the vehicle speed while descending the Hill.
|
|
This message comes on when the Hill Descent Control is
disabled manually by pressing the HDC Switch.
|
|
This message comes on when the Hill Descent Control is enabled
manually by pressing the HDC Switch and is ready to control,
but the conditions for HDC are not met yet.
|
<Level 5>
|
|
![]() |
![]() |
<Level 3>
|
|
![]() |
![]() |
<Level 0>
|
|
![]() |
|
Favorite Feature
|
|
![]() |
|
Non–Favorite Feature
|
|
![]() |
|
Symbol |
Warning Lamp/Telltale |
Lamp Pre-check |
Lamp Status while Engine running |
Action/Remarks |
---|---|---|---|---|
![]() |

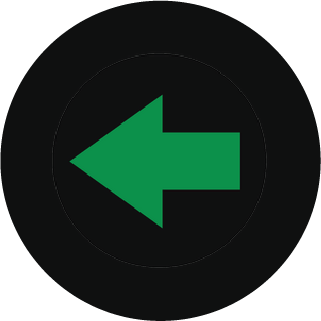

Left Turn Indicator |
No |
Slow or Fast Blinking |
Indicates left turn lamp is blinking Slow Blinking: Normal operation Fast Blinking: One / more left turn lamp bulb has fused. Have the bulb replaced. |
![]() |

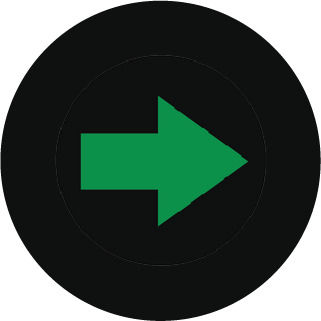

Right Turn Indicator |
No |
Slow or Fast Blinking |
Indicates right turn lamp is blinking Slow Blinking: Normal operation Fast Blinking: One /more right turn lamp bulb has fused. Have the bulb replaced. |
![]() |

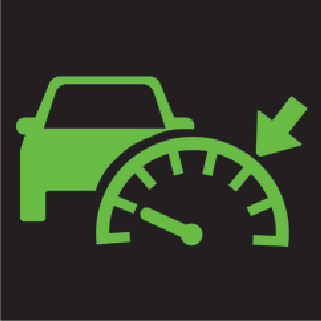

Cruise Control telltale* |
No |
Continuously ON |
Indicates vehicle is in Cruise mode. |
![]() |

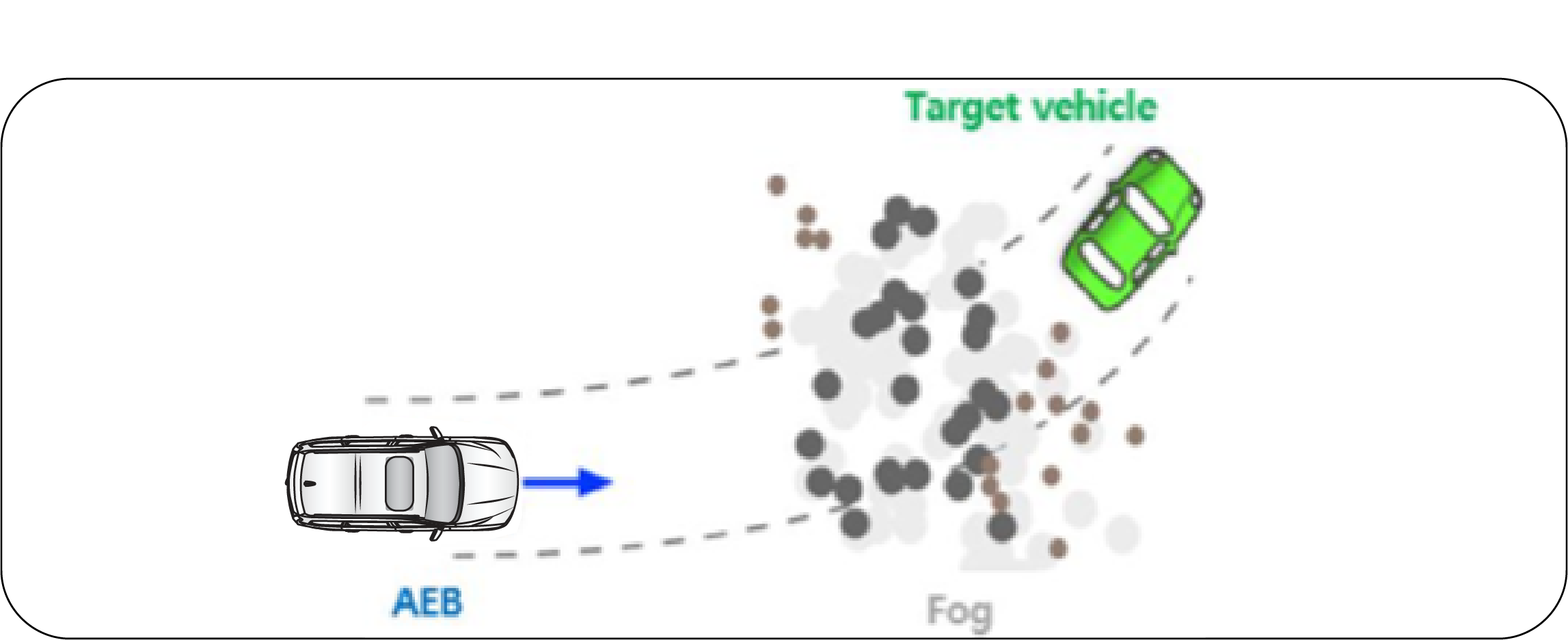

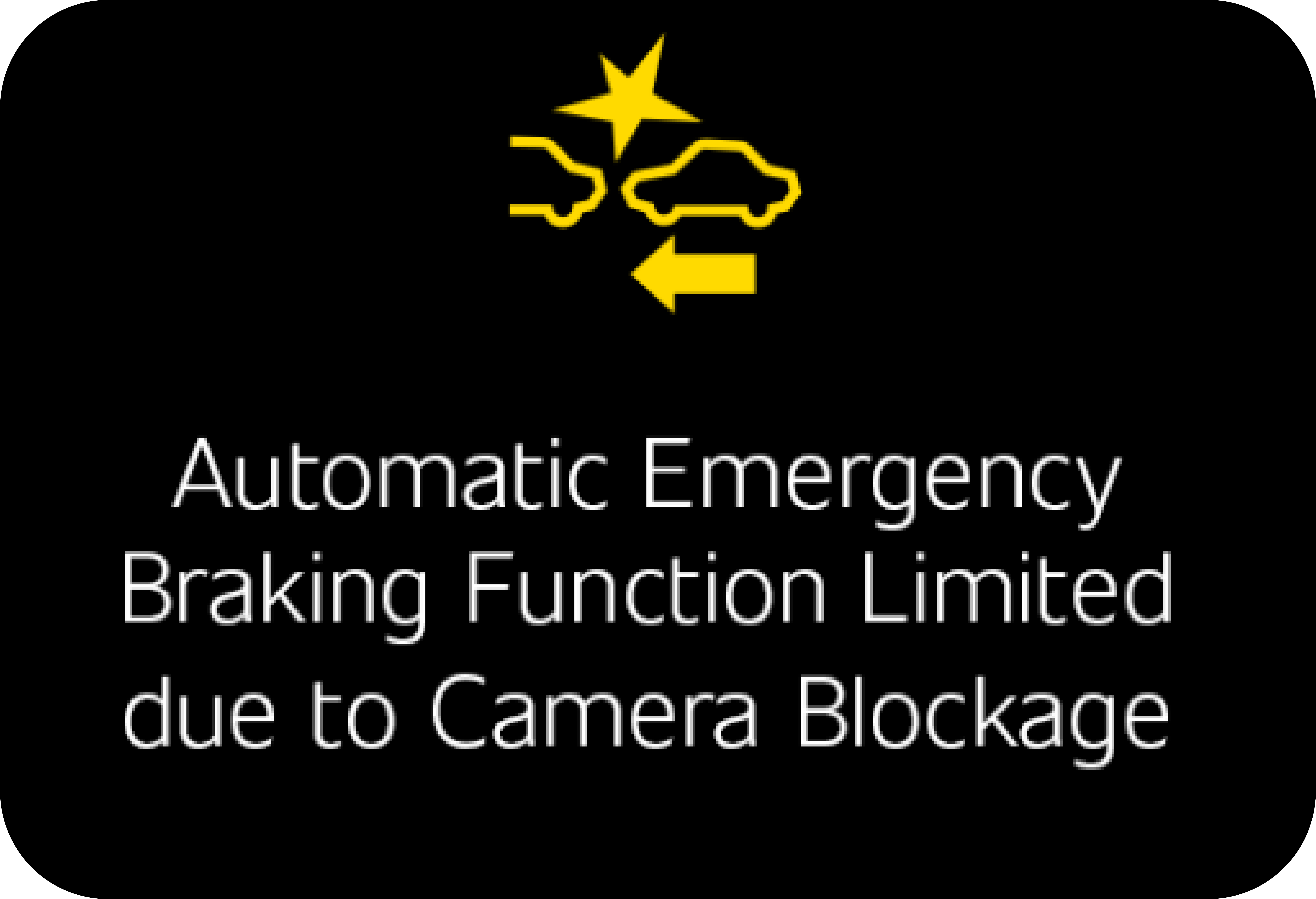

Automatic Emergency Braking System Malfunction* |
No |
Continuously ON |

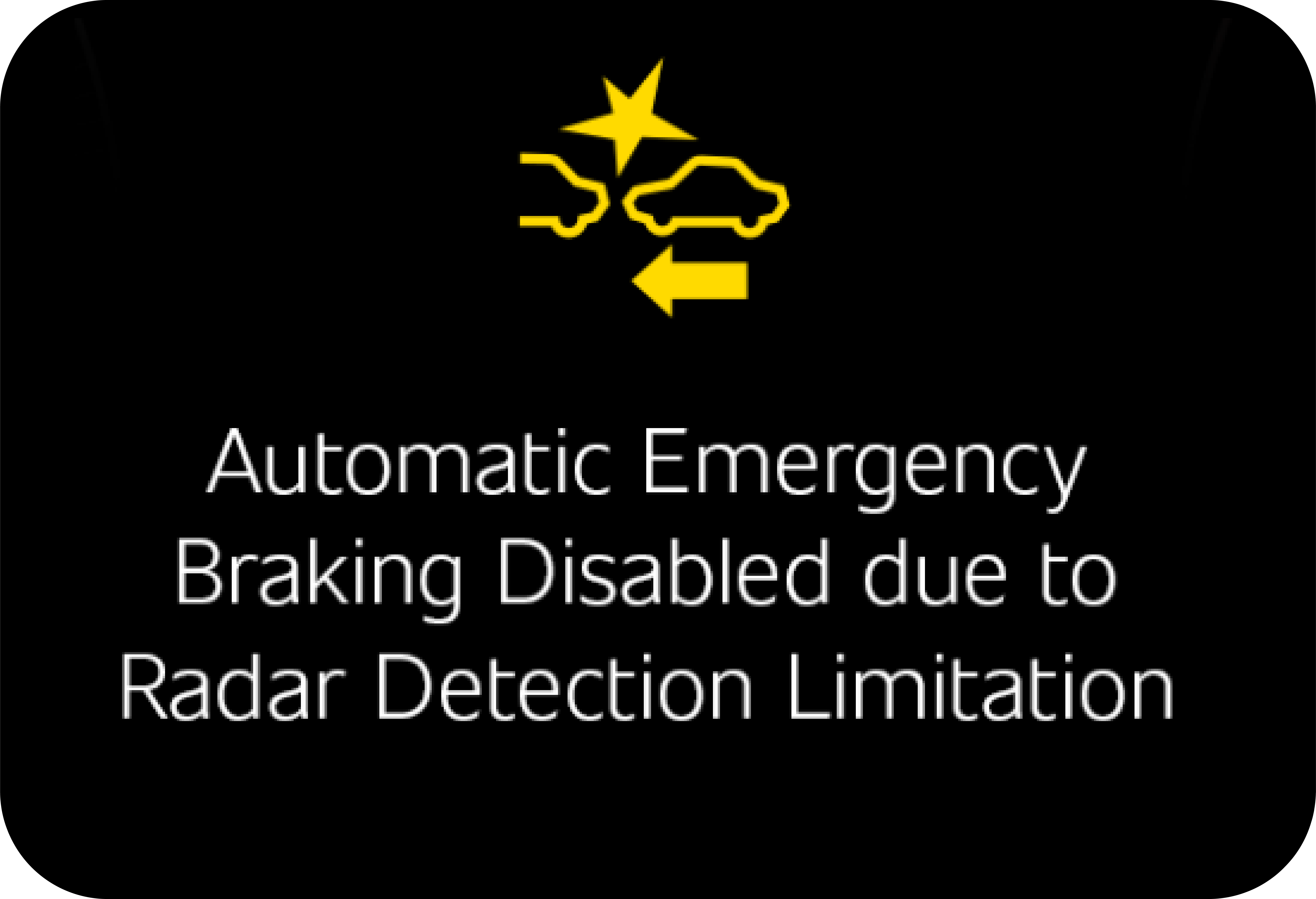

Indicates temporary or permanent fault in Automatic Emergency braking system. Contact a Mahindra Authorised Dealer immediately. |
![]() |

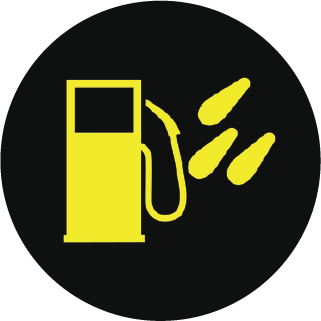

Water-in-Fuel Warning telltale* |
No |
Continuously ON |
Indicates water-in-fuel. Drain the water from filter or contact an Mahindra Authorised Dealer for assistance. |
![]() |

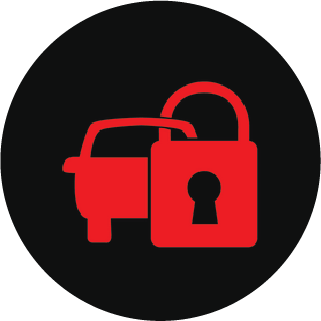

Immobiliser lamp |
No |
Continuously ON / Blinking |
SLOW BLINKING: Vehicle is armed with the remote FAST BLINKING/CONTINUOUSLY ON: Indicates a system malfunction Contact an Mahindra Authorised Dealer immediately. |
![]() |

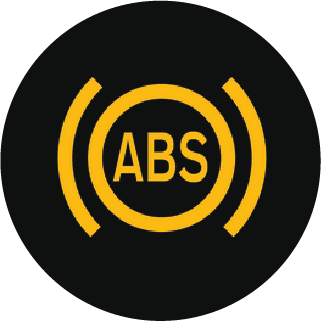

ABS Warning telltale |
Yes |
Continuously ON |
Indicates malfunction of the ABS system. Contact a Mahindra Authorised Dealer immediately. |
![]() |

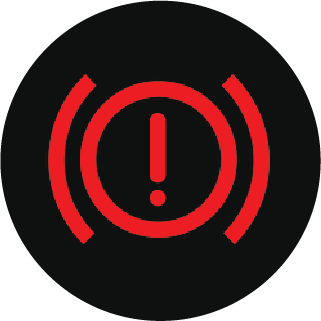

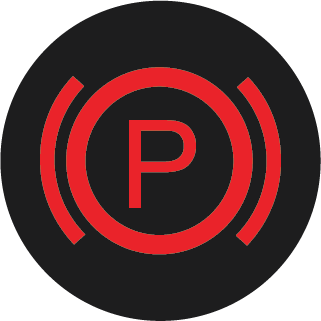

Park Brake / EBD / Low Brake Fluid Telltale / EPB* / Brake pad worn out* |
Yes |
Continuously ON |
Either one of the below conditions: 1. Park Brake might be engaged 2. Brake fluid level might be low 3. There is a malfunction in brake EBD. 4. Front Brake Pad wear worn out. Please contact Mahindra Dealer immediately. |
![]() |
Parking Lamp telltale |
No |
Continuously ON |
Indicates Park Lamp is ON. |
![]() |
Airbag Warning telltale |
Yes |
Continuously ON |
Indicates malfunction of the airbag system. Contact a Mahindra Authorised Dealer immediately. |
![]() |
HHC Malfunction* |
No |
Continuously ON |
Indicates malfunction of Hill Hold Control. Contact a Mahindra Authorised Dealer immediately. |
![]() |
Door Ajar Warning telltale |
No |
Continuously ON |
Indicates any doors, boot or hood are open. |
![]() |
Low Fuel Warning telltale |
No |
Continuously ON/Blinking |
Indicates fuel level has reached the reserve level. Refuel immediately. |
![]() |

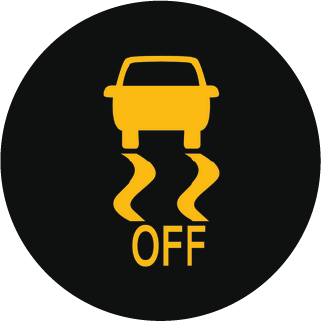

ESP OFF telltale* |
No |
Continuously ON |
Indicates ESP has been switched OFF. |
![]() |
ESP Malfunction Warning telltale* |
Yes |
Continuously ON or Blinking |
BLINKING: Indicates ESP has taken control of the vehicle stability CONTINUOUSLY ON: Indicates a malfunction in the ESP system. Contact a Mahindra Authorised Dealer immediately. |
![]() |

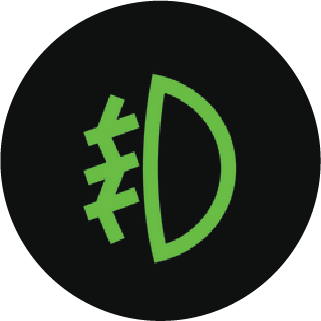

Front Fog Lamp telltale* |
No |
Continuously Lamp ON |
Indicates front fog lamp is ON. |
![]() |

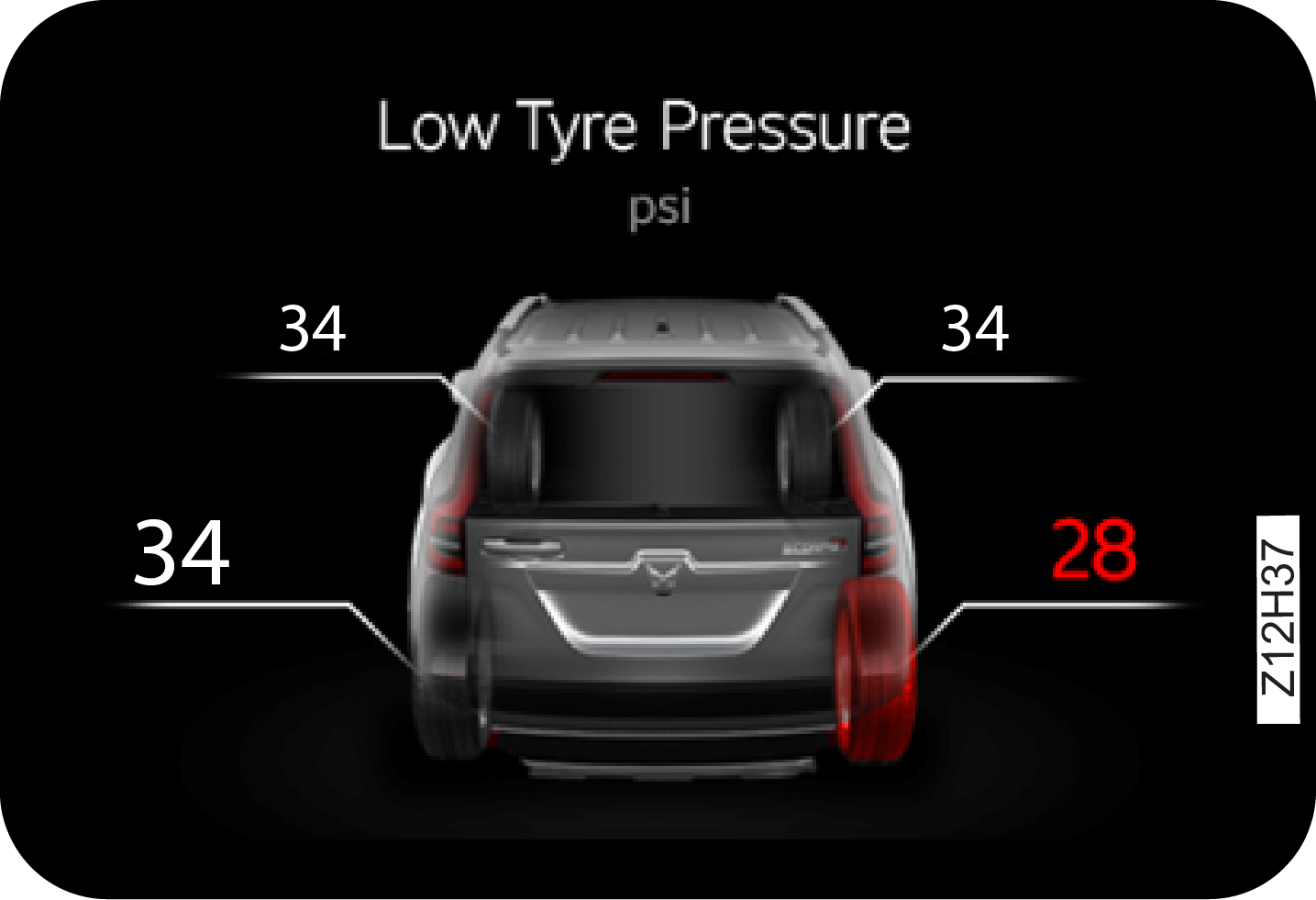

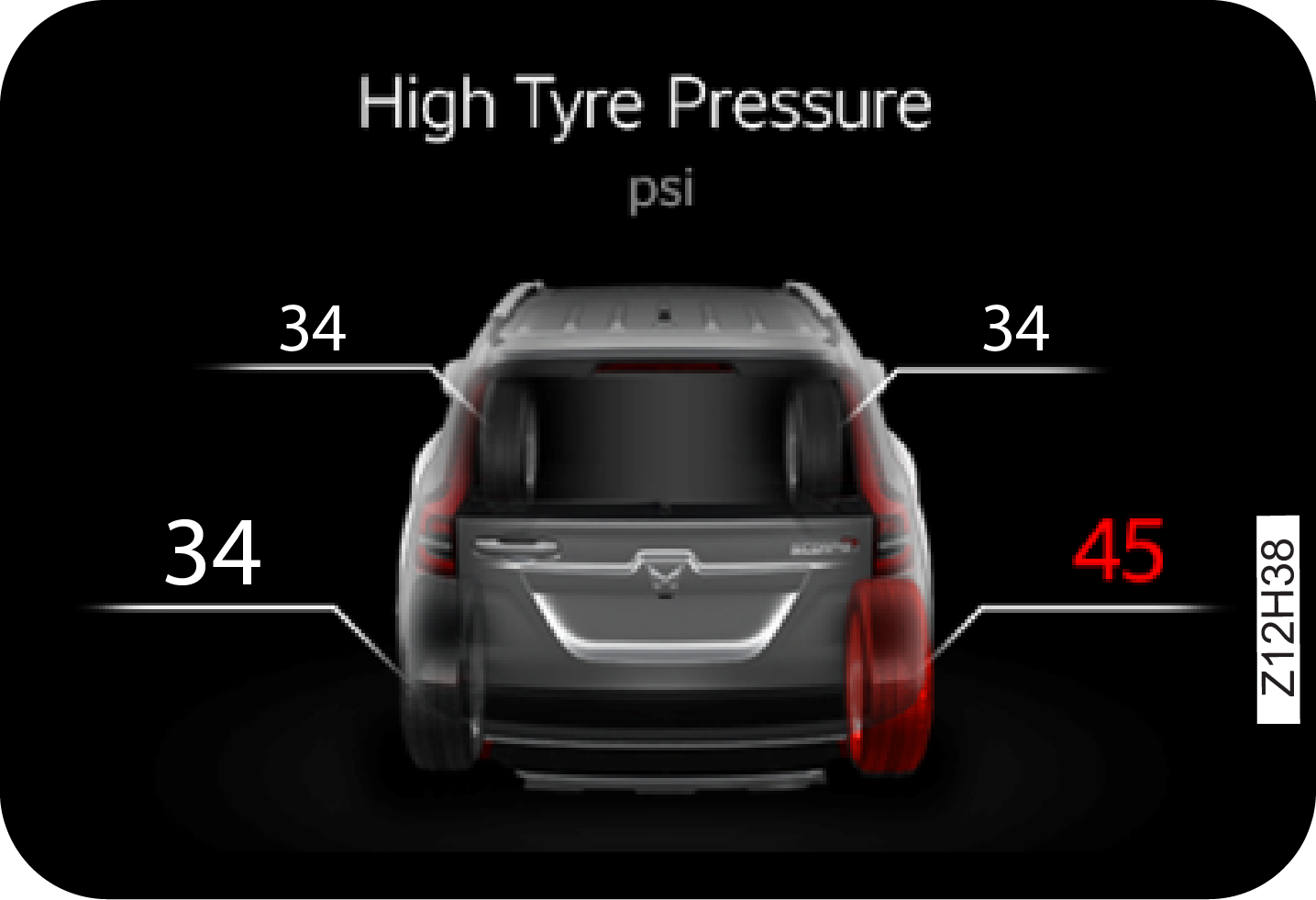

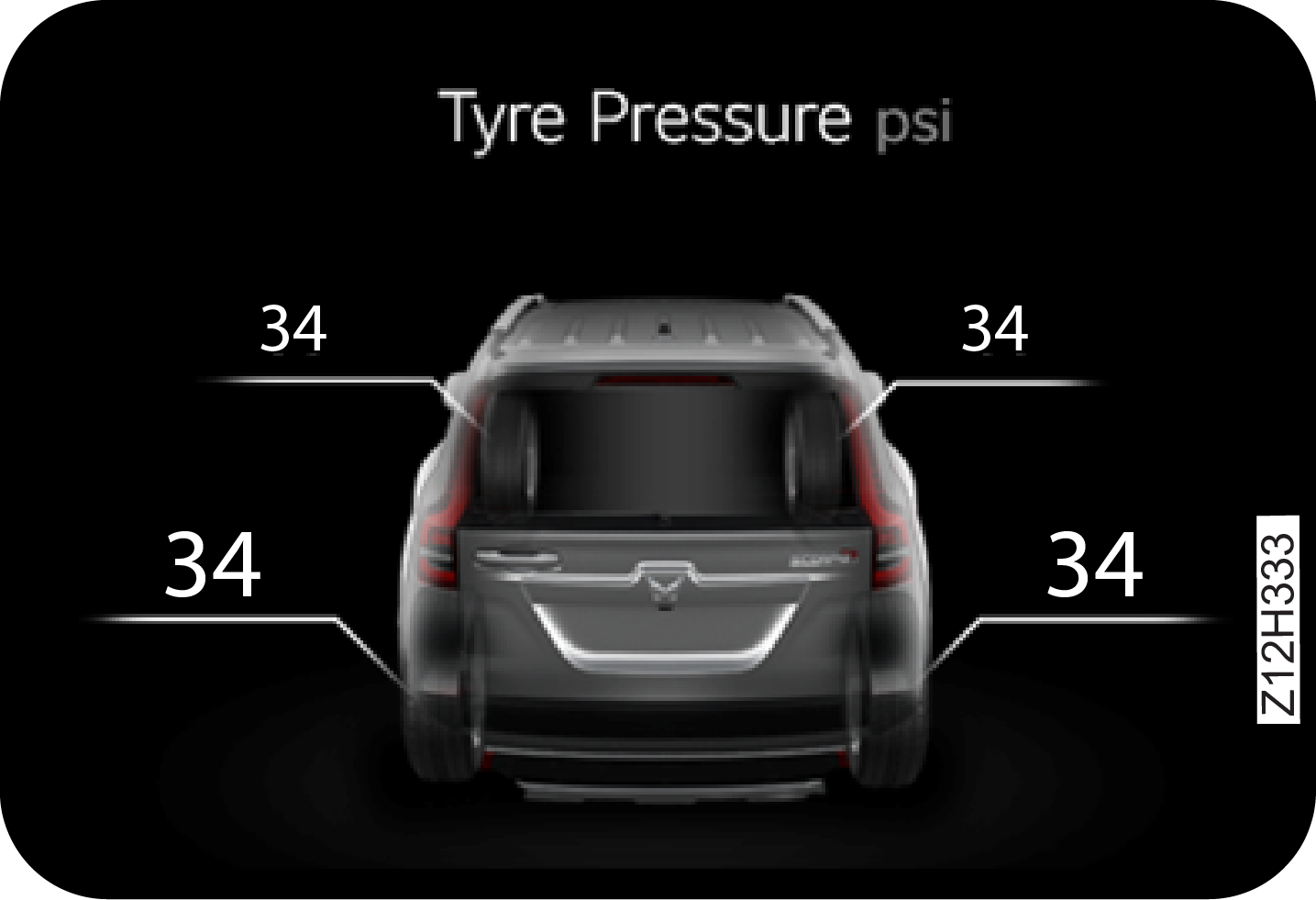

Tiretronics telltale* |
No |
Continuously ON or Blinking |
Indicates low/high tyre pressure or possible malfunction in Tiretronics. Refer to Tiretronics section in INSTRUMENT CLUSTER
FEATURES/WHEELS AND TYRES chapter for further details.
|
![]() |

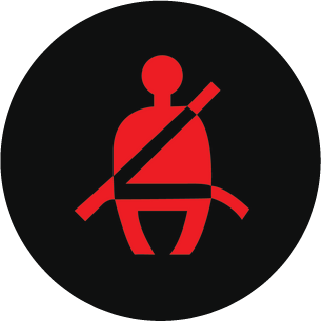

Seat Belt Warning telltale |
No |
Continuously ON |
If telltale is not turning OFF even after fastening the seat belt, contact an Mahindra Authorised Dealer for assistance. |
![]() |

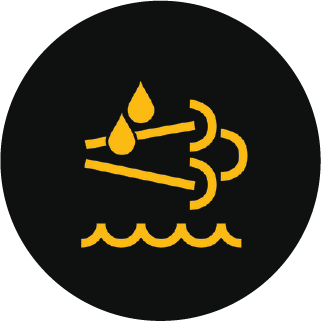

SCR/DEF malfunction telltale* |
No |
Continuously ON |
It indicates that either DEF Level is low or incorrect DEF has been filled or DEF Dosing is malfunctioning. Follow the instructions
mentioned in the ‘EMISSION CONTROL SYSTEM”.
|
![]() |
DPF telltale* |
No |
ON/Blink |
If the DPF indicator is ON in the engine running condition then DPF regeneration has not happened. Follow the instructions
mentioned in the “EMISSION CONTROL SYSTEM”
|
![]() |
Glow Plug telltale* |
No. |
Continuously ON |
Indicates glow plugs are active. |
![]() |
Head Lamp High Beam |
No |
Continuously ON |
Indicates Head lamp high beam is ON. |
![]() |
OBD telltale |
Yes |
Continuously ON or Blinking |
Telltale will be ON till engine starts. After engine starts, if is still ON there is a potential malfunction related to emission
system, contact an Mahindra Authorised Dealer immediately.
|
![]() |

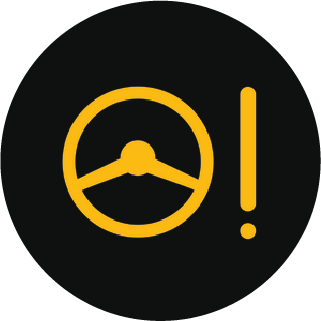

EPS Warning telltale* |
Yes |
Continuously ON |
Indicates malfunction on Electronic Power steering system. Contact a Mahindra Authorised Dealer immediately. |
![]() |

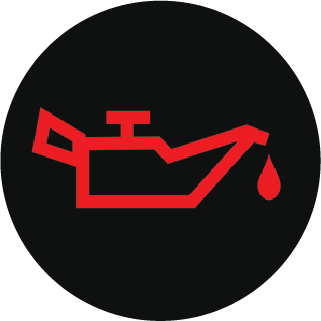

Low Engine Oil Pressure Warning telltale |
No |
Continuously ON |
Telltale will be ON in ignition ON But engine is OFF. In engine ON condition, it indicates engine oil pressure is low. Check
oil level and top-up or contact an Mahindra Authorised Dealer for assistance.
|
![]() |

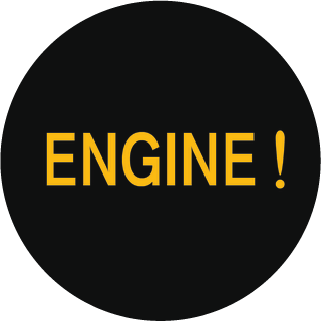

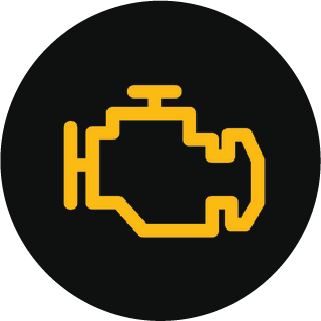

Check Engine telltale |
Yes |
Continuously ON or Blinking |
Indicates a potential malfunction in the EMS, contact an Mahindra Authorised Dealer immediately. |
![]() |

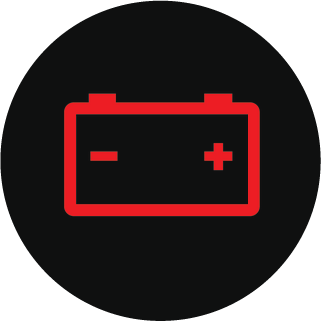

Battery Charging System Warning telltale |
No |
Continuously ON |
Indicates malfunction in charging system. Contact Mahindra Authorised Dealer for assistance. |
|
High Engine Coolant Temperature Warning telltale |
No |
Continuously ON or Blinking |
Engine temperature very high. Contact Mahindra Authorised Dealer immediately. |
|
REGEN telltale* |
NO |
ON/Blink |
ON: Regeneration is required Blink: Regeneration is in progress. |
|
AT Warning telltale* |
No |
Continuously ON or Blink |
Telltale is used to indicate an AT fault. Telltale Continuous ON means AT Fault. Contact Mahindra Authorised Dealer immediately
if the MIL Lamp doesn’t turn off after an ignition reset.
Blinking Telltale implies overheating of clutch due to abuse conditions. This is only to warn the customer and to prevent
clutch damage. Telltale will turn off once the clutch temperature has becomes normal.
|
|
HDC Malfunction telltale* |
No |
Continuously ON |
Indicates malfunction of Hill Hold Control. Contact a Mahindra Authorised Dealer immediately. |
|
Rear Fog lamp telltale* |
No |
Continuously ON |
Indicates Rear fog lamp is ON. |
|
Engine Start/Stop telltale* |
No |
Continuously ON or Blinking |
CONTINUOUSLY ON: Engine is in auto stop mode Blinking: Stop/Start is about to stop the engine FAST BLINKING: Stop/Start is
inhibited due to unhealthy battery conditions.
|
![]() |

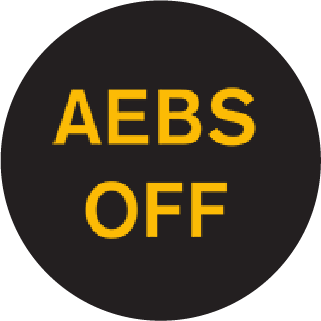

Automatic Emergency Braking System OFF telltale* |
No |
Continuously ON |
Indicates AEB system is turned off by user. |
![]() |
Lane Keep Assist* (White) |
No |
Continuously ON |
Indicates LKA system is in Standby state. |
![]() |
Lane Keep Assist* (Green)
|
No |
Continuously ON or Blinking |
Indicates LKA system is Active state.
Blinking: LKA system providing Warning to the user. |
![]() |

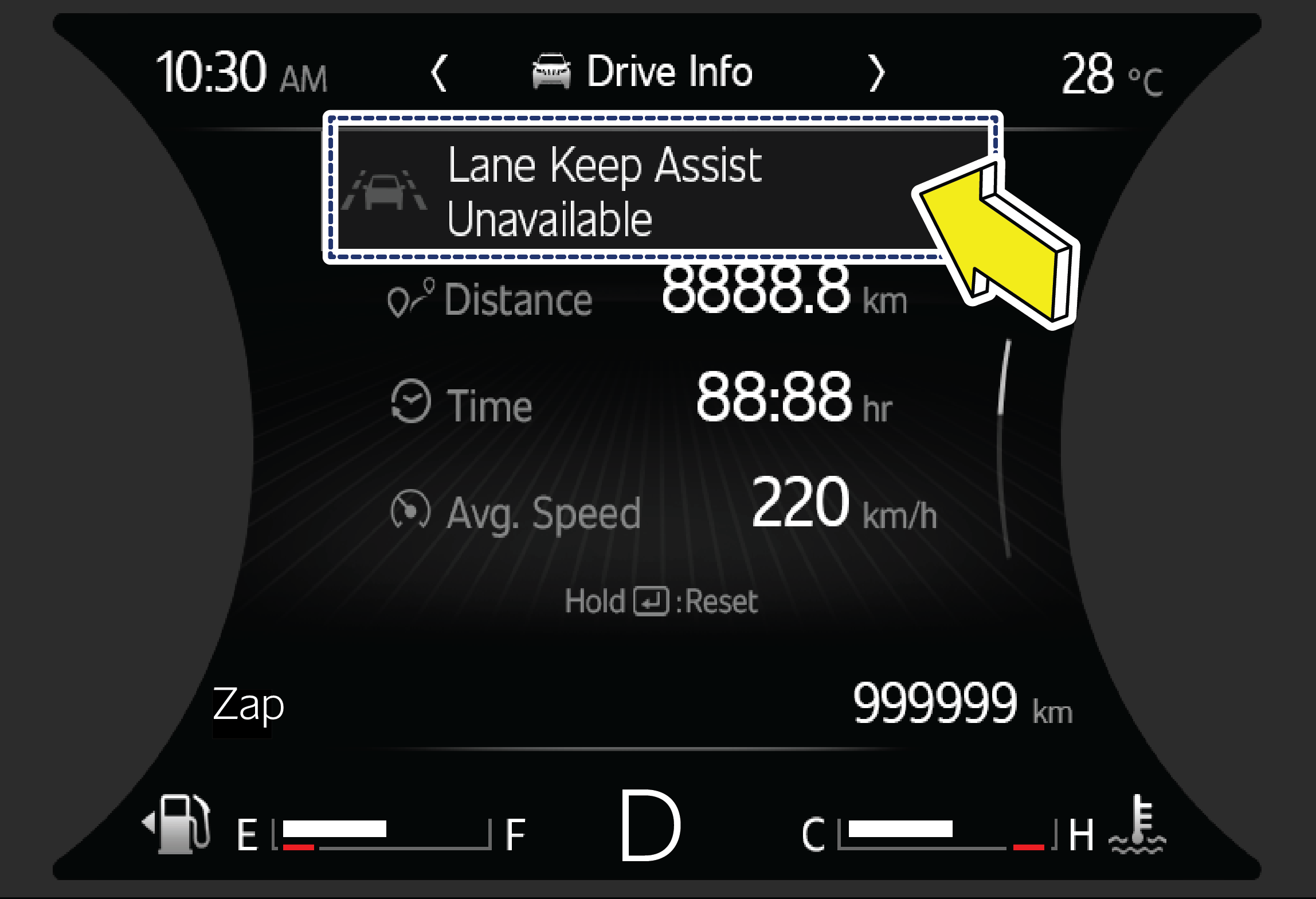

Lane Keep Assist* (Yellow)
|
No |
Continuously ON or Blinking |
LKAS System fail/Malfunction. This warning message is displayed if there is a problem with LKAS system.Contact a Mahindra
Authorised Dealer immediately Blinking: Camera not calibrated properly.
|
![]() |

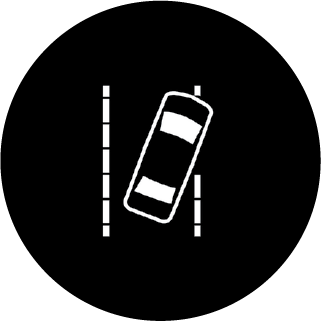

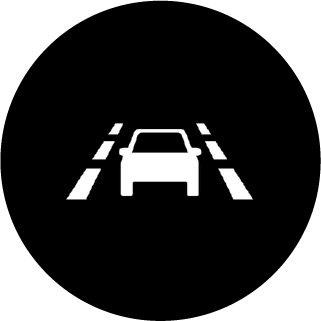

Lane Departure Warning* (White) |
No |
Continuously ON |
Indicates LDW system is in Standby state. |
![]() |
Lane Departure Warning* (Green)
|
No |
Continuously ON or Blinking |
Static telltale indicates LDW system is Active state.
Blinking telltale indicates LDW system Warning the user. |
![]() |

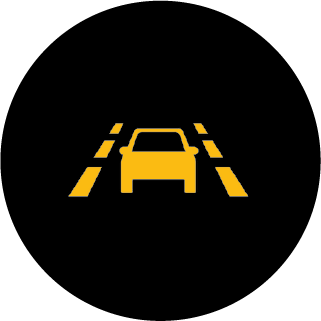

Lane Departure Warning* (Yellow)
|
No |
Continuously ON or Blinking |
LDW System Fail/Malfunction. This warning message is displayed if there is a problem with LDW system. Contact a Mahindra Authorised
Dealer immediately.
Blinking: Camera not calibrated properly. |
![]() |

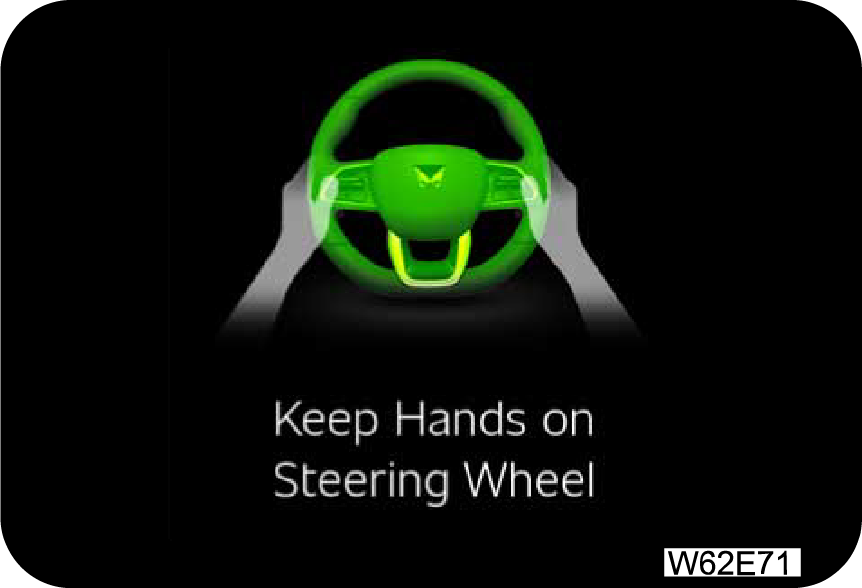

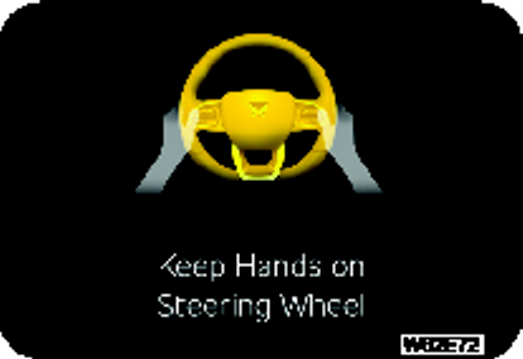

Smart Pilot Assist* (White) |
No |
Continuously ON |
Indicates Smart Pilot Assist is in Standby state. |
![]() |

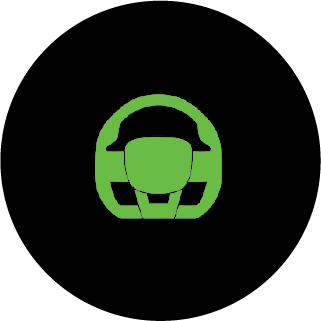

Smart Pilot Assist* (Green)
|
No |
Continuously ON or Blinking |
Indicates Smart Pilot Assist is Active state. |
![]() |

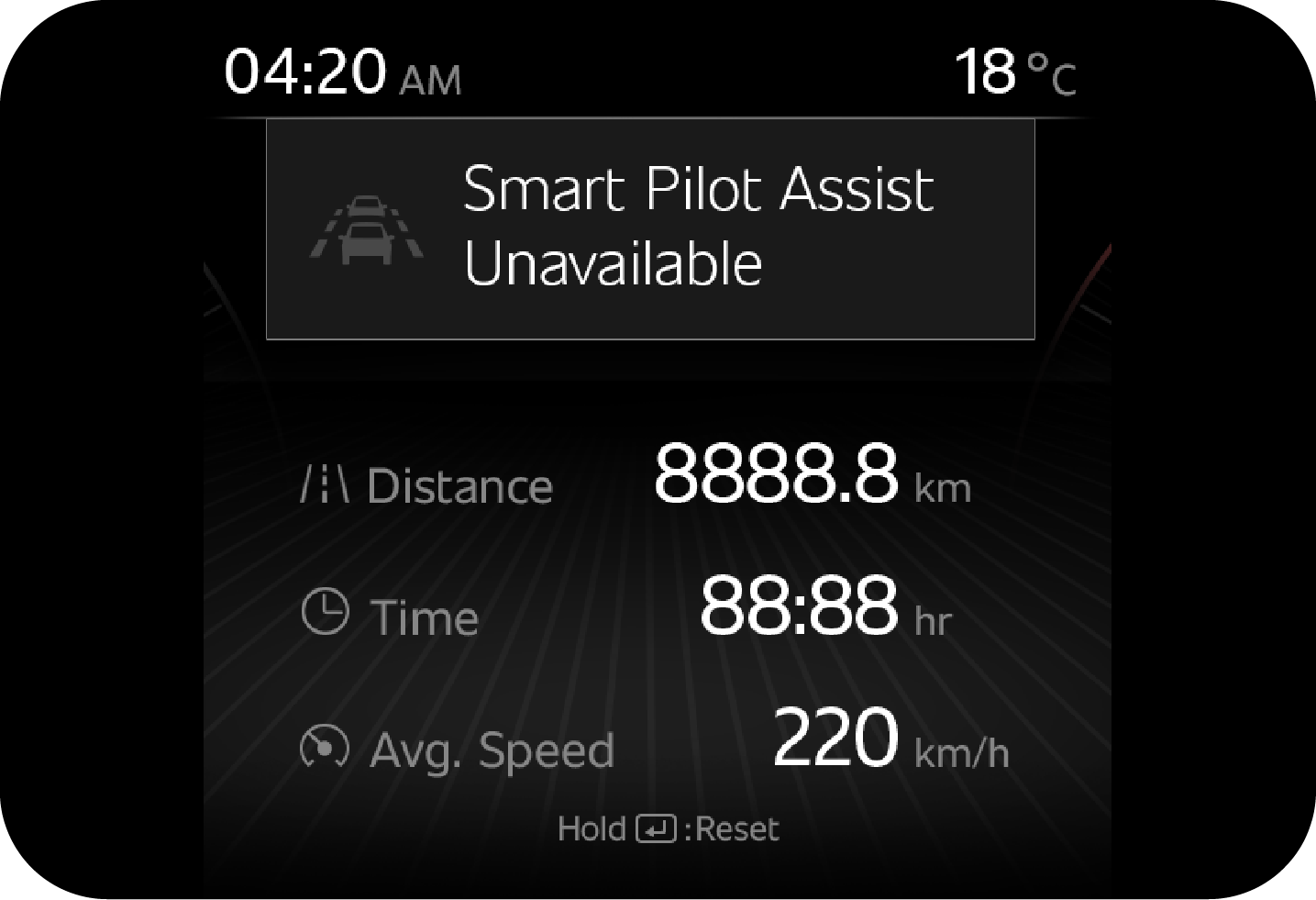

Smart Pilot Assist* (Yellow)
|
No |
Continuously ON |
Smart Pilot Assist system fail/Malfunction. This warning message is displayed if there is a problem with SPA system. Contact
a Mahindra Authorised Dealer immediately.
|
![]() |

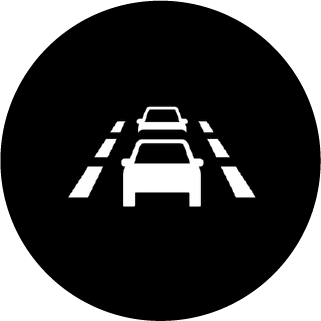

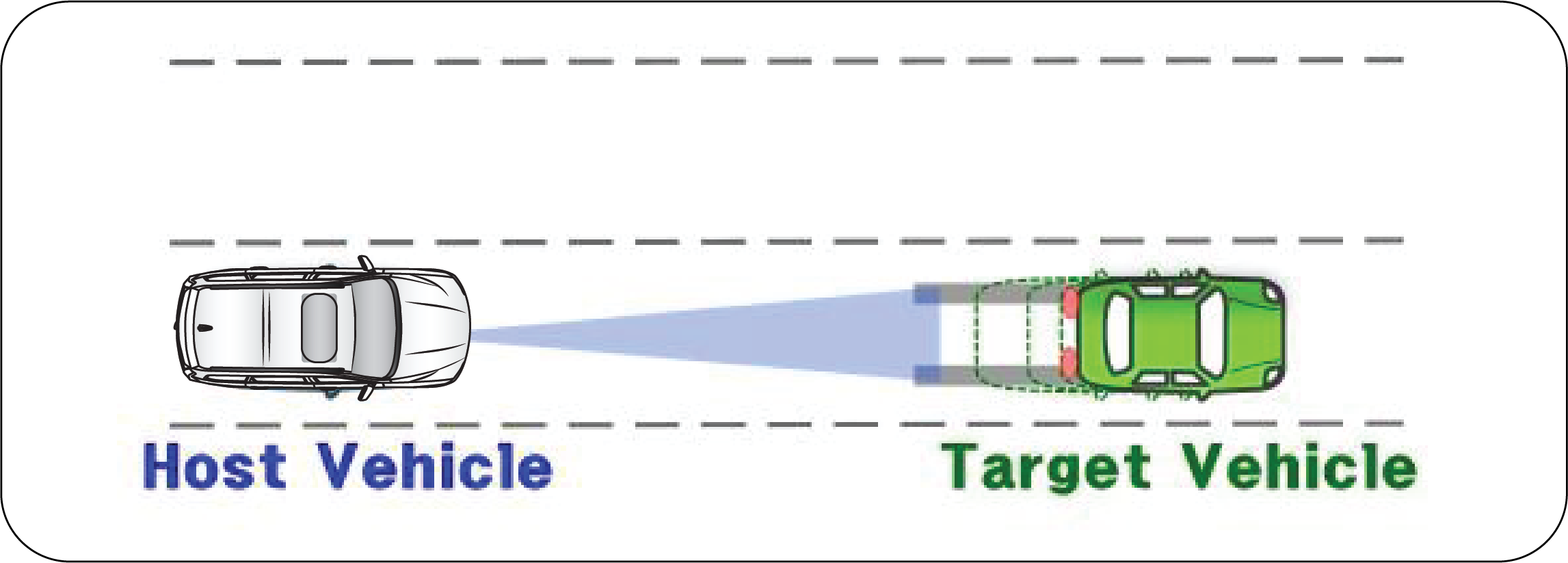

Adaptive Cruise Control* (White) |
No |
Continuously ON |
Indicates Adaptive cruise control system is in standby state. |
![]() |

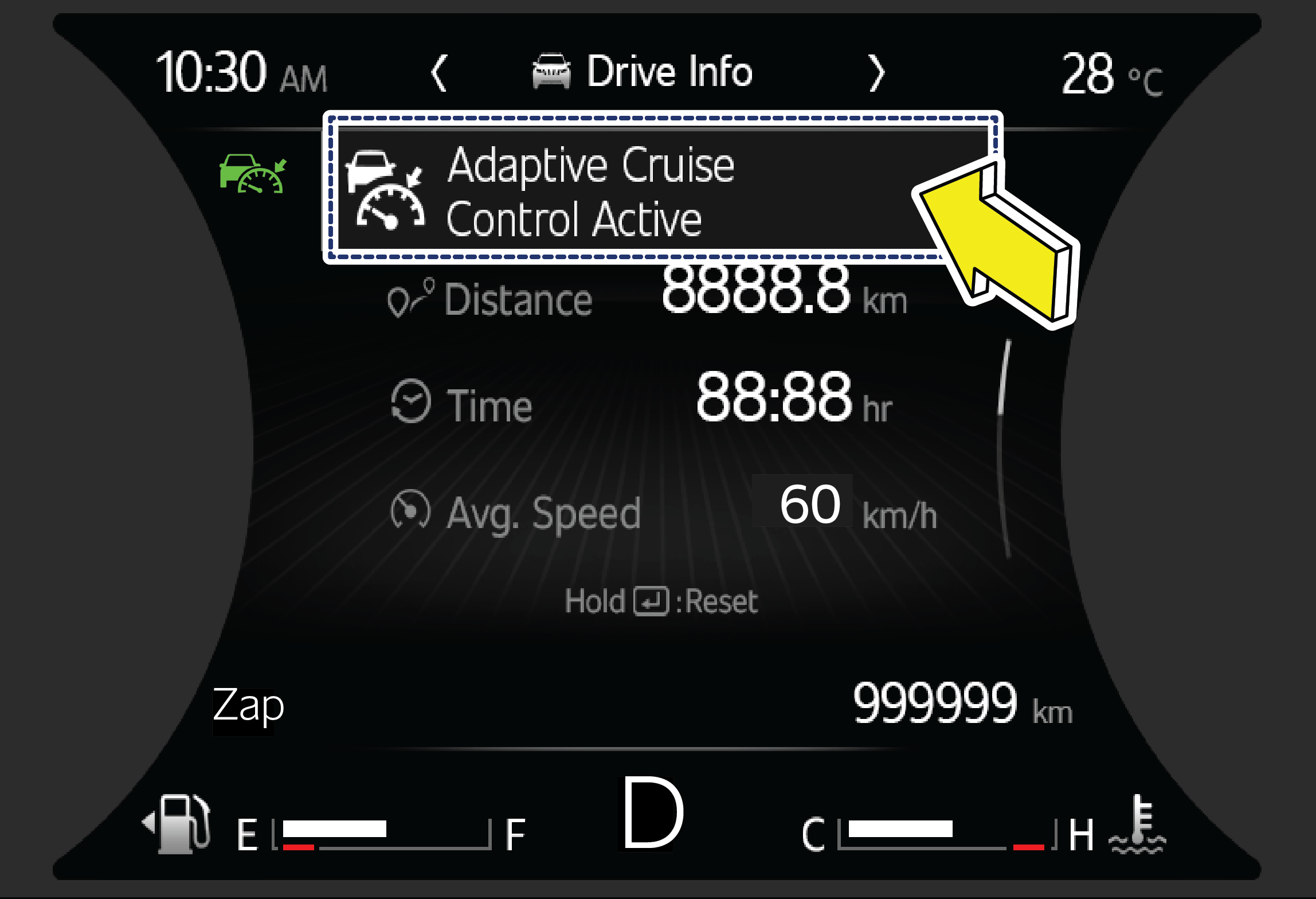

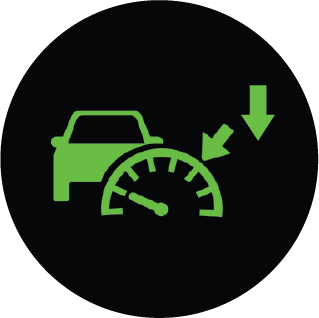

Adaptive Cruise Control* (Green)
|
No |
Continuously ON |
Indicates Adaptive cruise control system is Active state. |
![]() |

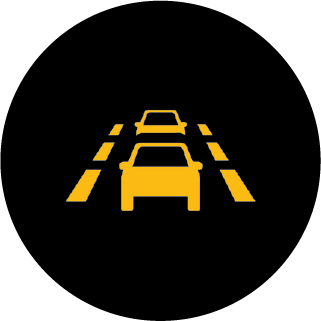

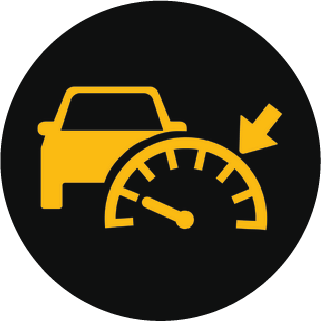

Adaptive Cruise Control* (Yellow)
|
No |
Continuously ON |
Indicates Adaptive cruise control system temporarily not available due to temporary abnormal condition. Check if radar is
blocked and clean.
|
![]() |
Adaptive Cruise Control* (Red)
|
No |
Continuously ON |
Indicates malfunction of Adaptive cruise control system. Contact a Mahindra Authorised Dealer immediately. |
|
Auto High Beam Boost* |
No |
Continuously ON |
Indicates Auto headlamp booster is Active state when the vehicle speed crosses 80kmph with high beam ON. |
![]() |

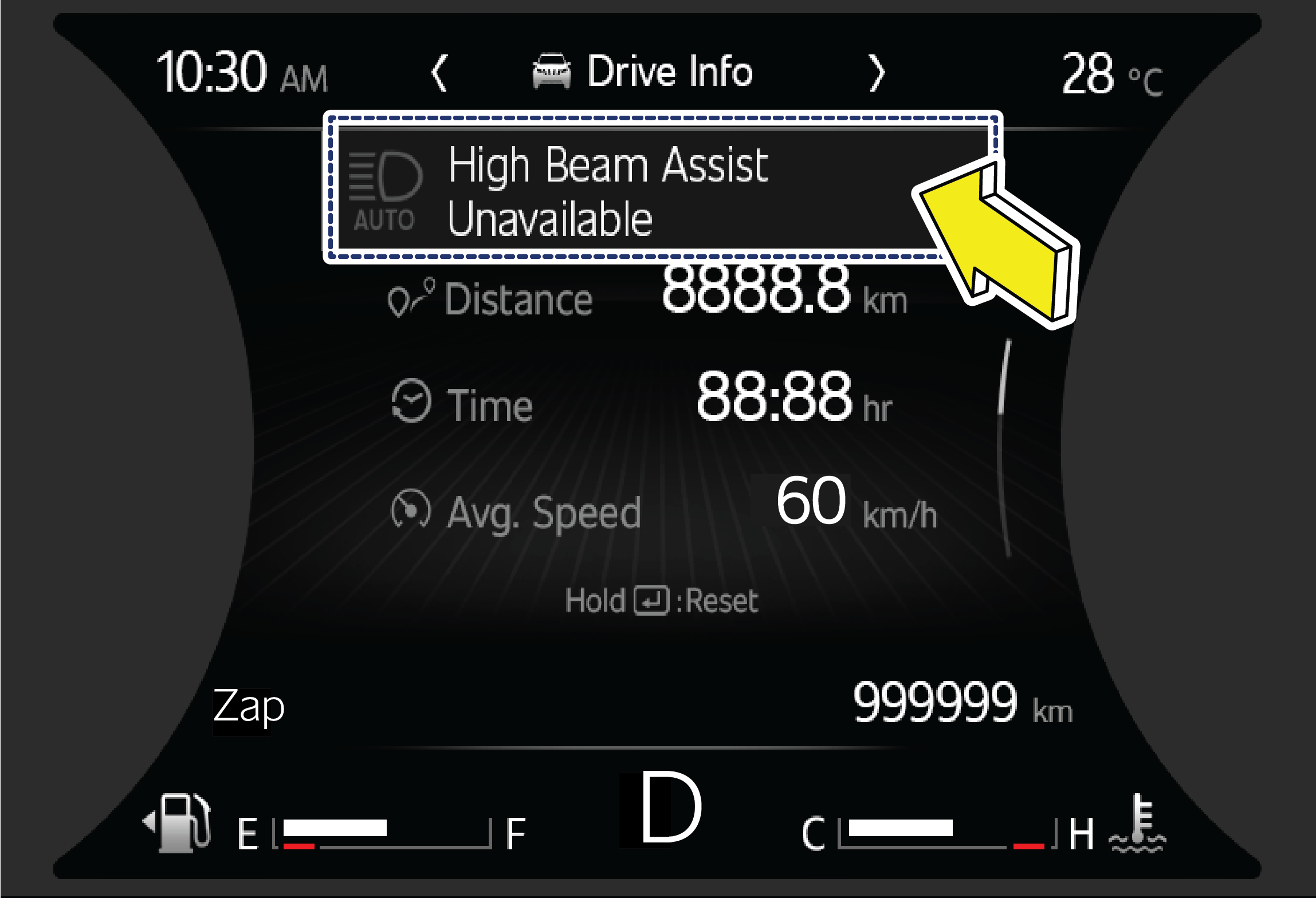

High Beam Assist* |
No |
Continuously ON |
Indicates high beam assist function is enabled/active. |
|
Auto Vehicle Hold* (White) |
No |
Continuously ON |
Indicates Auto Vehicle Hold in standby Mode. |
|
Auto Vehicle Hold* (Green)
|
No |
Continuously ON |
Indicates Auto Vehicle Hold is Active. |
|
Auto Vehicle Hold* (Yellow)
|
No |
Continuously ON |
Indicates malfunction of Auto Vehicle Hold. Contact a Mahindra Authorised Dealer immediately. |
|
AWD Malfunction* |
No |
Continuously ON |
Indicates malfunction of AWD. Contact a Mahindra Authorised Dealer immediately. |
![]() |

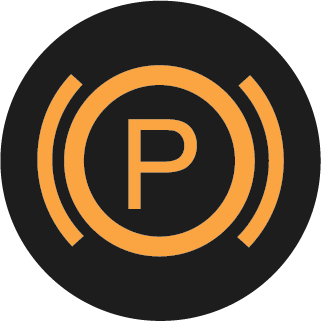

EPB Malfunction* |
Yes |
Continuously ON |
Indicates malfunction of Electric Parking Brake. Contact a Mahindra Authorised Dealer immediately. |
* – if equipped |
• | Check if the parking brake/ Electric parking brake is engaged. If yes, disengage it. |
• | Check if brake fluid level is low. If yes, top-up brake fluid to the required level. |
• | Check if front brake pad is worn out. If yes, replace the front brake pads. |
• | Lamp fails to go OFF after engine is started. |
• | Lamp does not illuminate at all. |
• | Illuminates while driving. |
• | The fuel management system. |
• | The emission control system. |
• | Systems which affect emissions. |
• | This warning lamp comes on when the ignition switch is turned on and it goes off when the engine is started. |
• | If the lamp stays ON or comes ON while driving, some of the Transmission control components including sensors and devices may be malfunctioning. |
• | If the Indicator lamp is blinking continuously, reduce the vehicle speed until the lamp stops blinking. Contact the Mahindra dealer as soon as possible. |
|
|
|

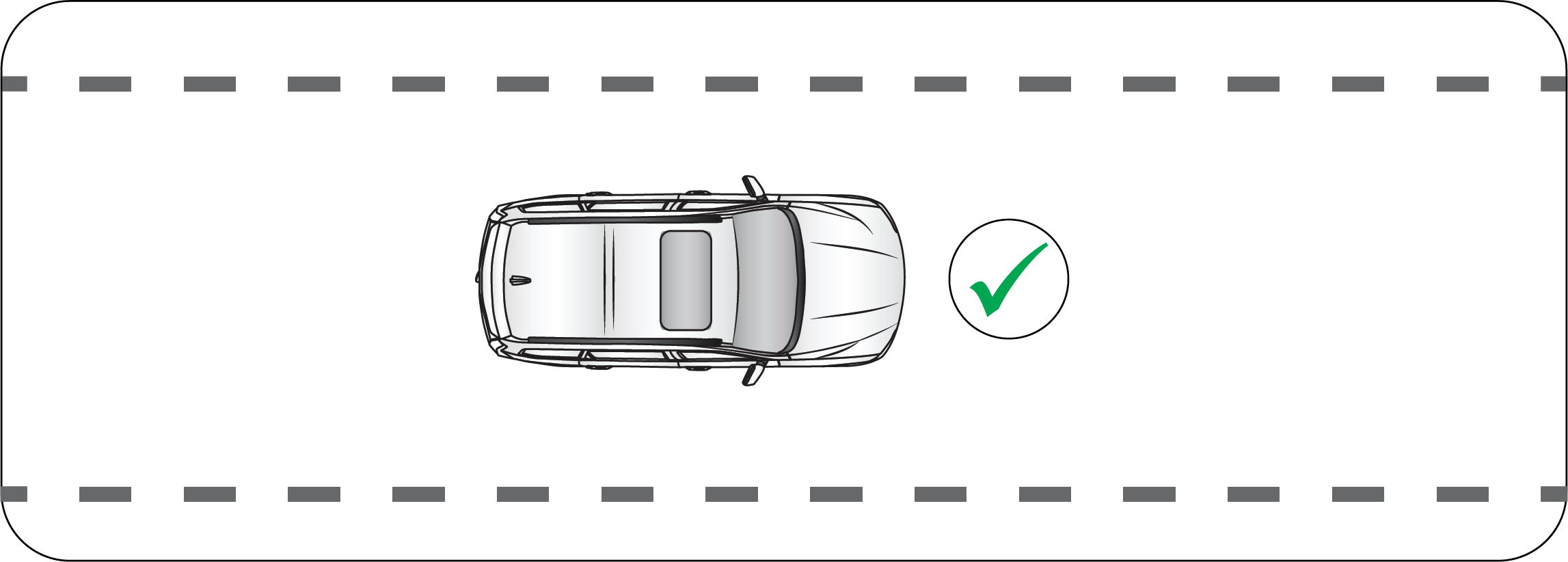

LDW system is in Standby mode
|
LDW system is Active state
|
LDW system is in Not Working/Fail state
|
• | Check if the system is affected by the weather (e.g. fog, heavy rain, etc.). |
• | Check if there is foreign matter on the Front camera lens. |
• | If the problem is not solved, we recommend you to contact an Mahindra Authorised Dealer for further assistance. |
|
|
|
LKA system is in Standby state
|
LKA system is Active state
|
LKA system is not working or is in disabled state
|

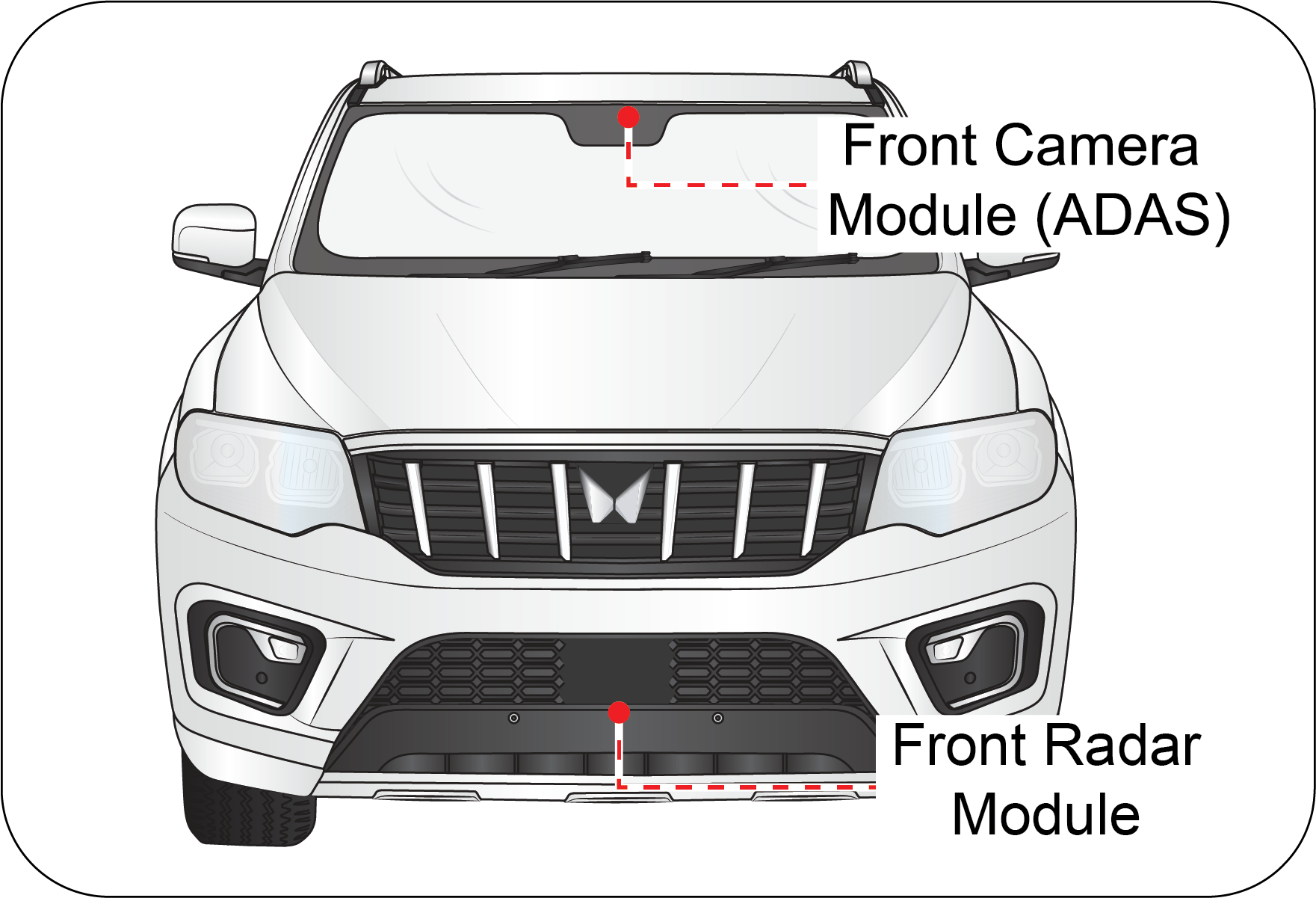

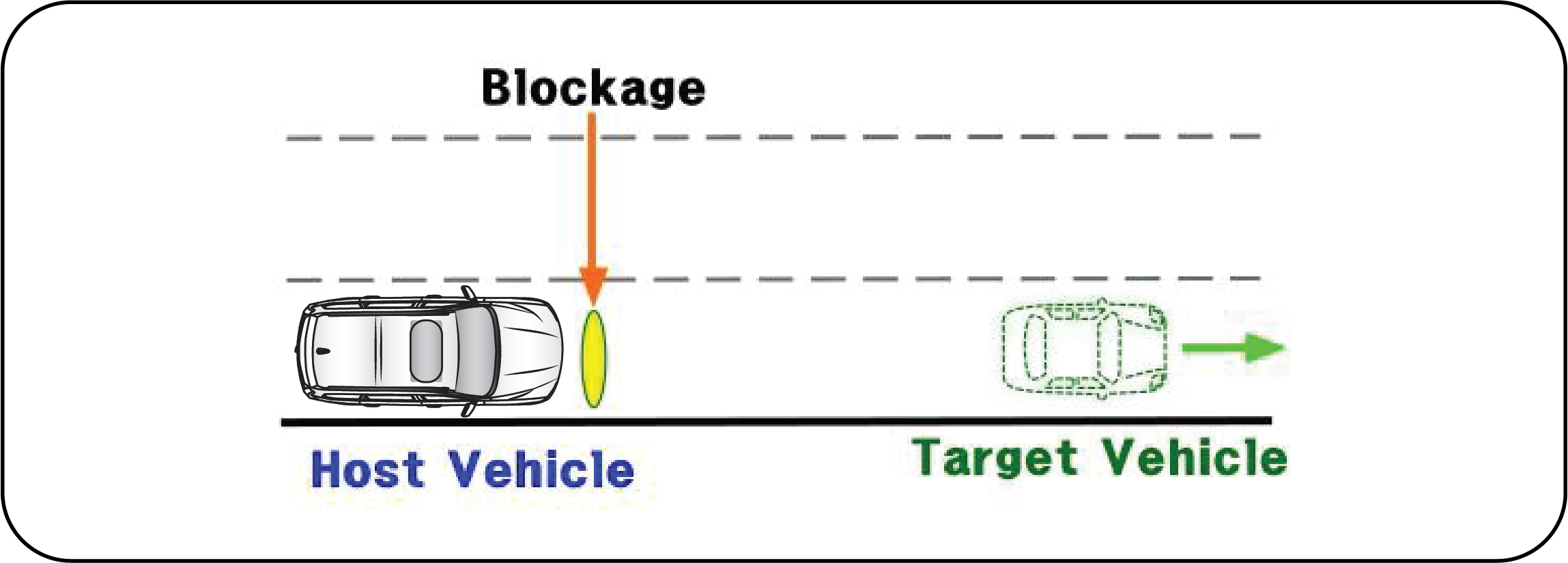

• | Check if the system is affected by the weather. (e.g. fog, heavy rain, etc.) |
• | Check if there is foreign matter on the Front camera lens. |
• | If the problem is not solved, we recommend you to contact an Mahindra Authorised Dealer for further assistance. |
• | Check the radar sensor and cover and clean them by using a soft cloth. |
• | Check if there is foreign matter on the Front camera lens. |
• | If the problem is not solved, we recommend you to contact an Mahindra Authorised Dealer for further assistance. |
• | Check if the system is affected by the weather (e.g. fog, heavy rain, etc.). |
• | Check if there is foreign matter on the Front camera lens. |
• | Check the radar sensor and cover and clean them by using a soft cloth. |
• | Check if there is foreign matter on the Front camera lens. |
![]() |

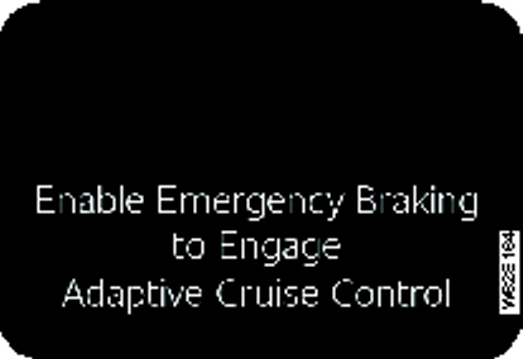

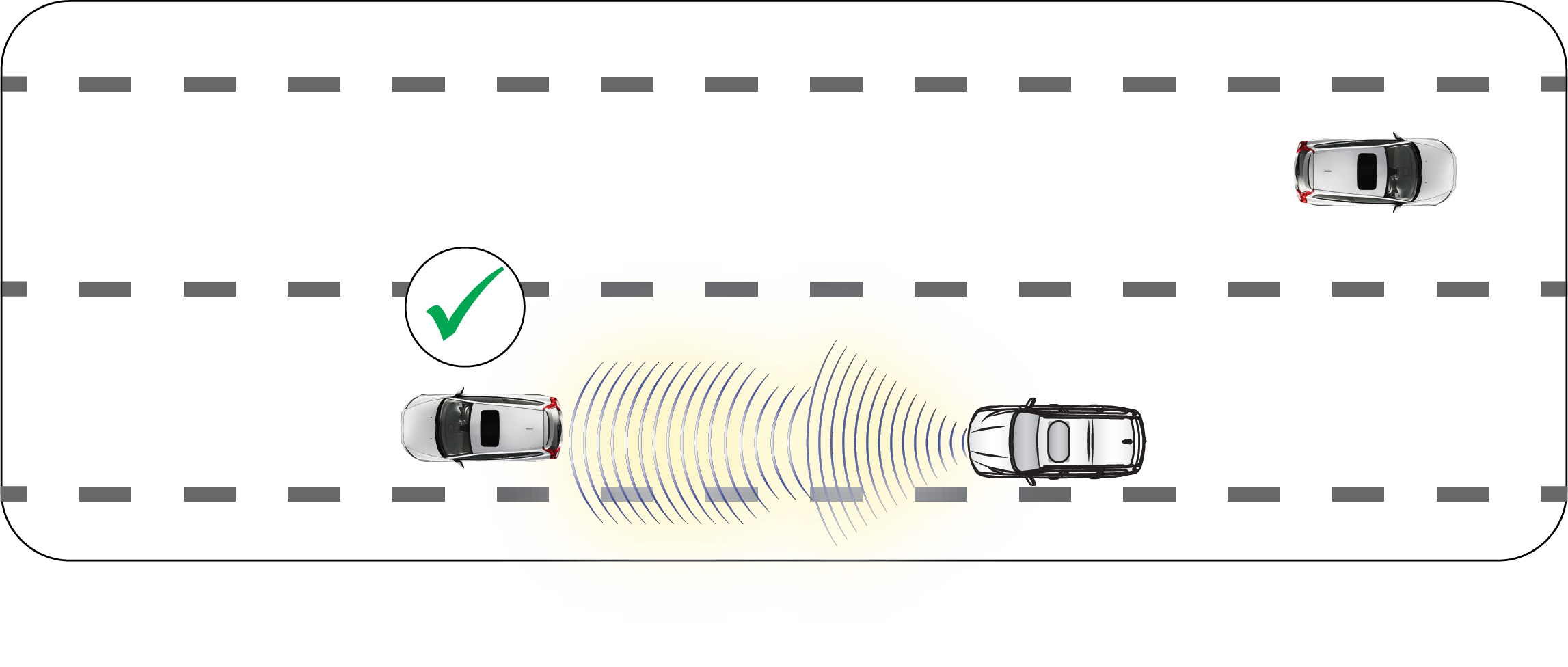

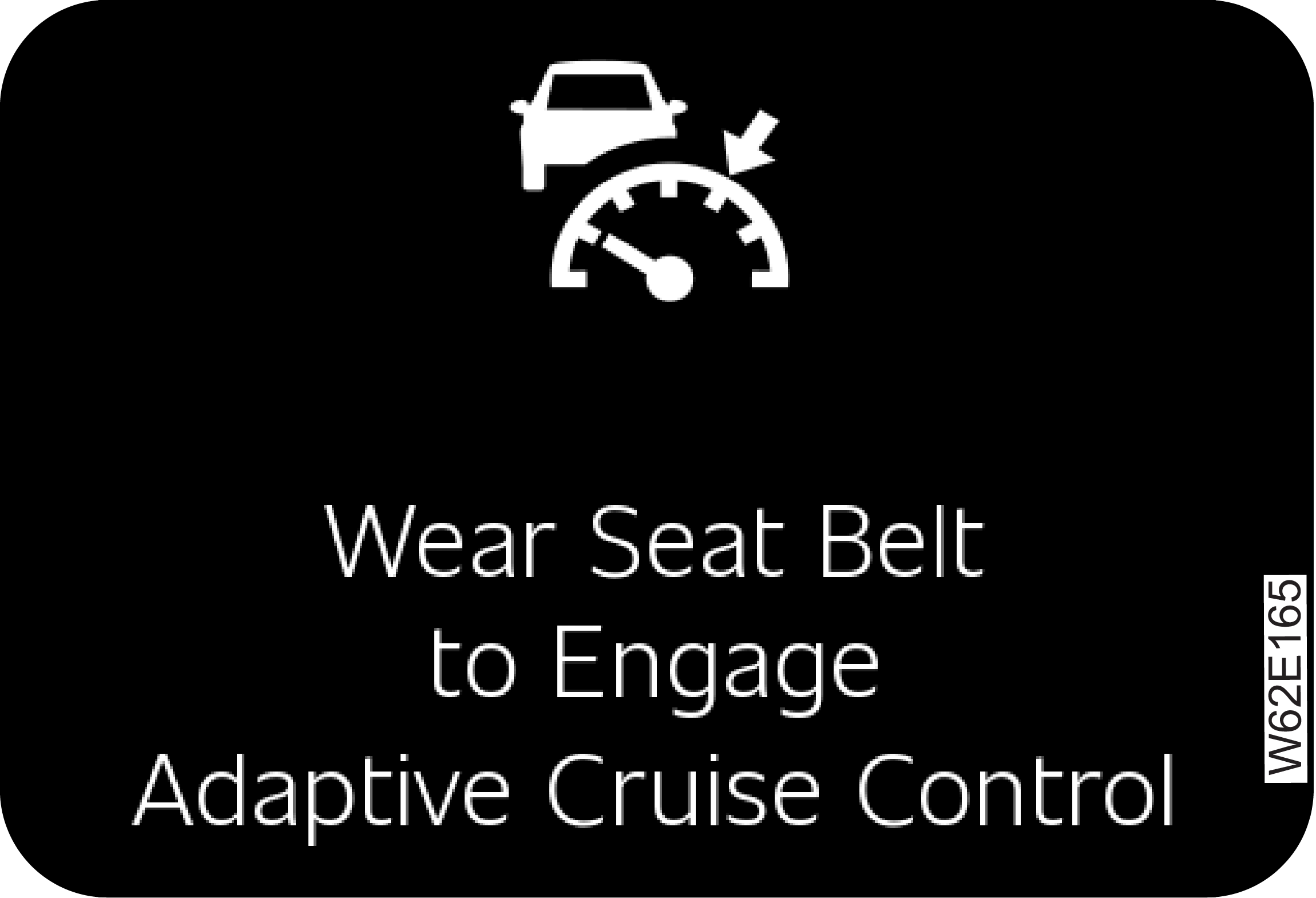

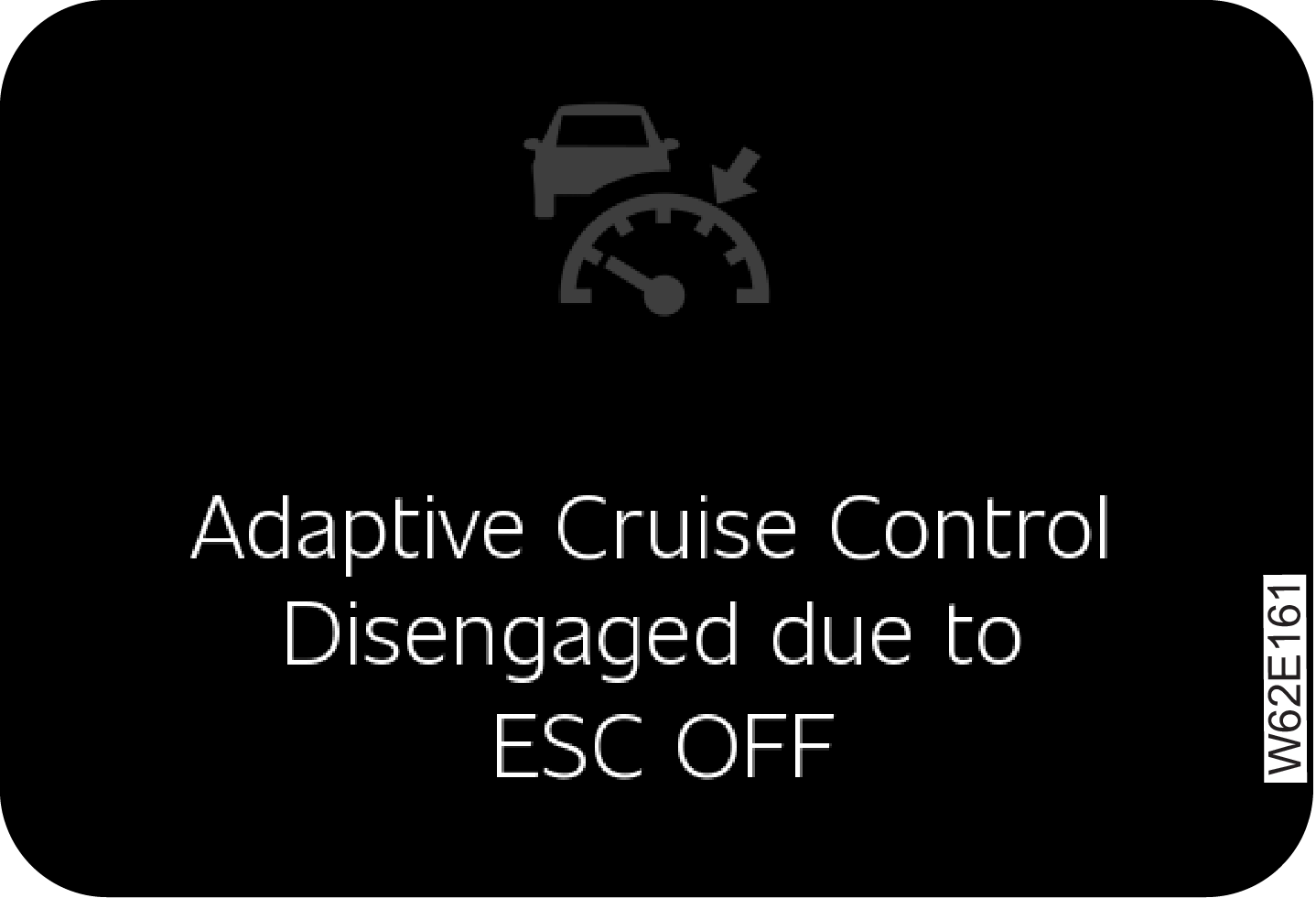

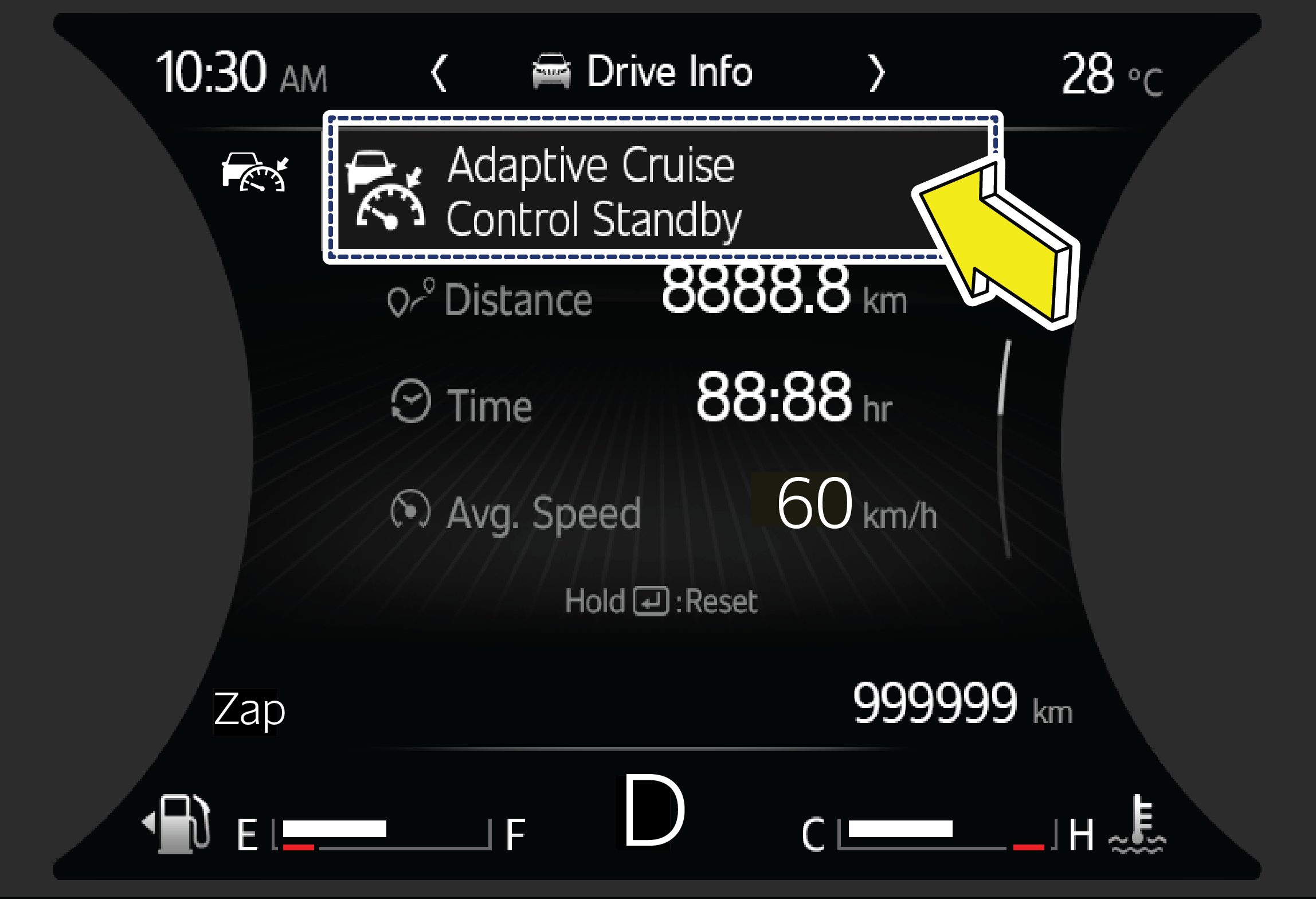

ACC system is in Standby state
|
![]() |
ACC system is Active state
|
![]() |

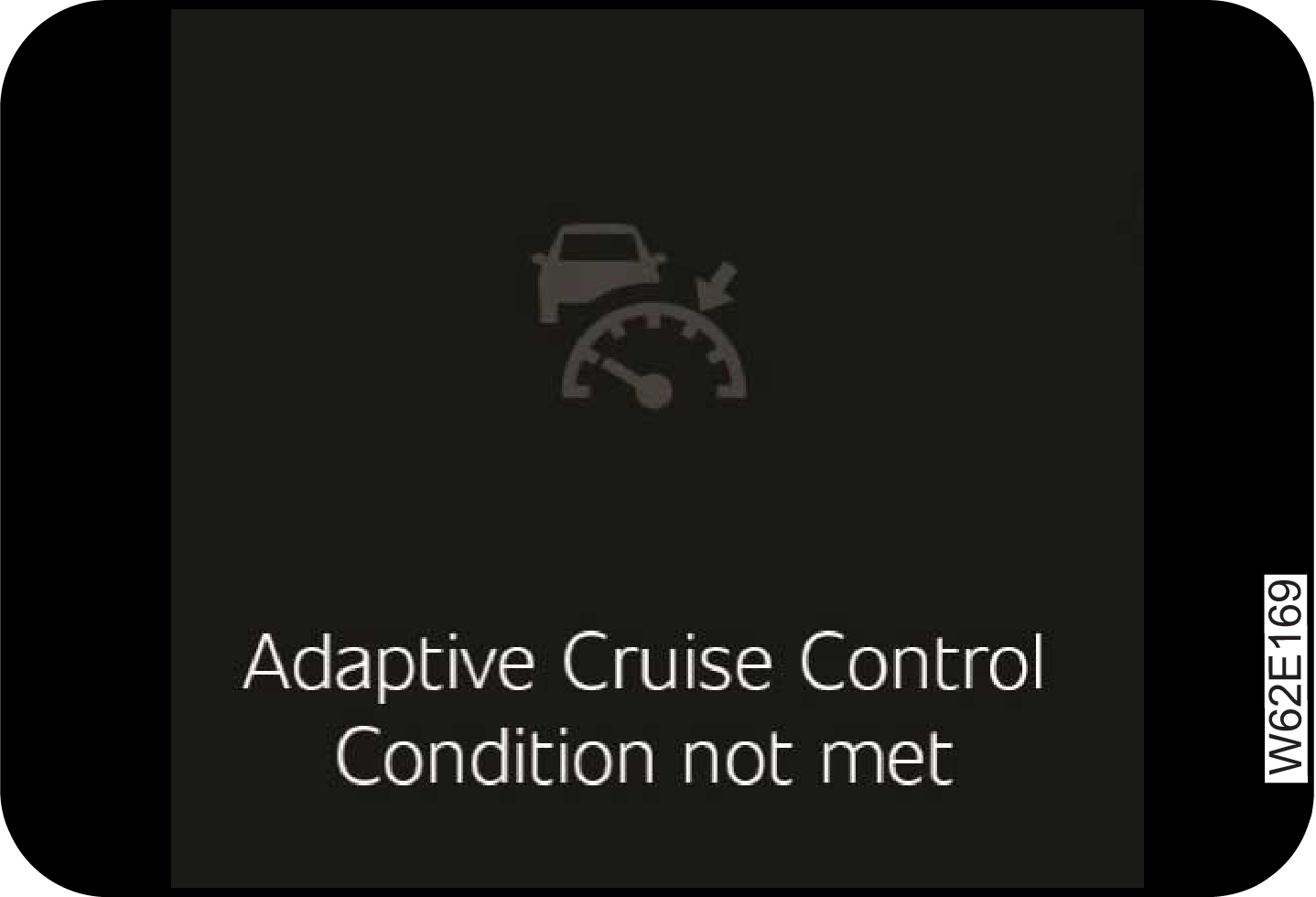

ACC system temporarily not available due to temporary abnormal condition
|
![]() |

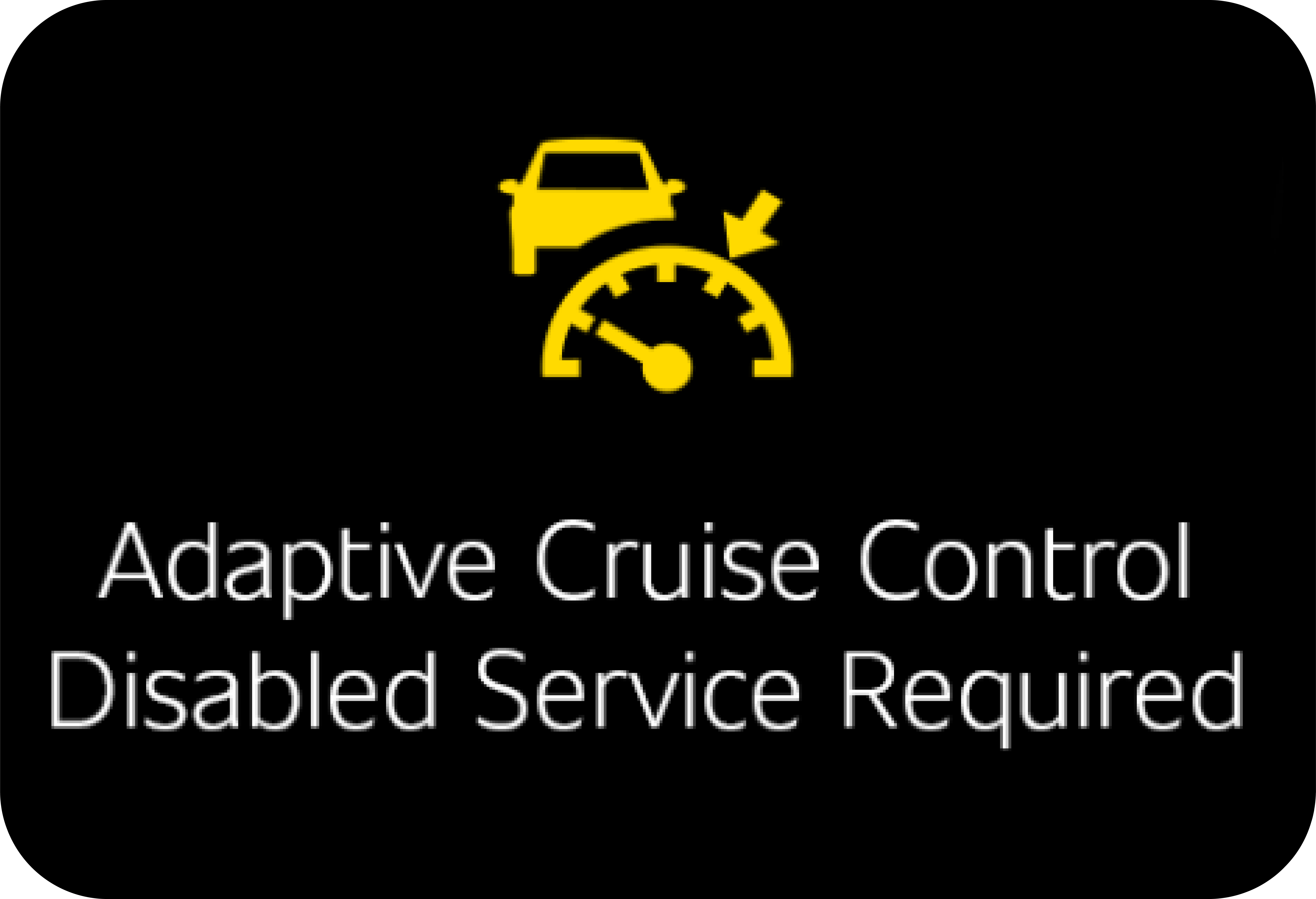

ACC Indicates permanent failure of Adaptive cruise control system. Contact a Mahindra Authorised Dealer immediately.
|
• | Check the radar sensor and cover and clean them by using a soft cloth. |
• | Check if there is foreign matter on the Front camera lens. |
|
|
|

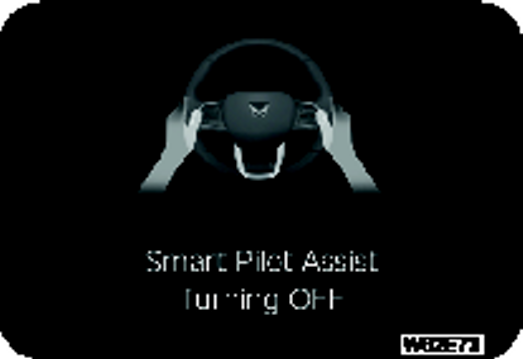

SPA system is in Standby state
|
SPA system is Active state
|
SPA system is in Not Working/Fail state
|
|
|
|
There is a malfunction in AVH
|
AVH is in Standby mode
|
AVH is Active mode
|

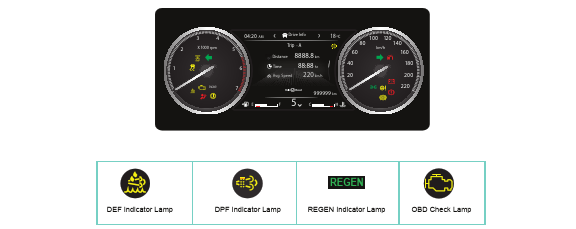

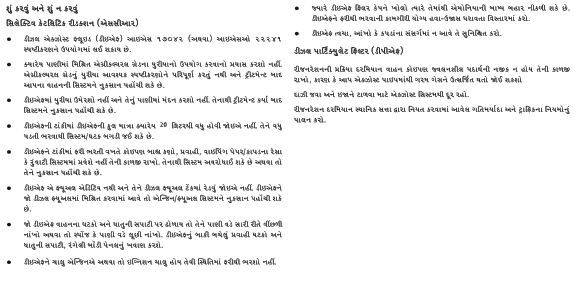

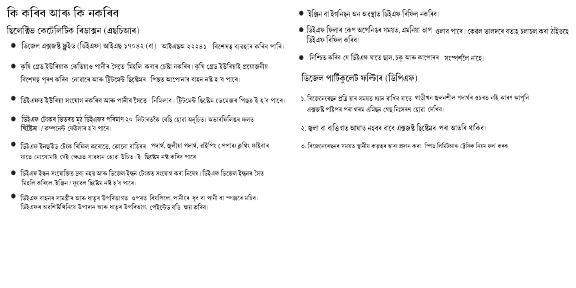

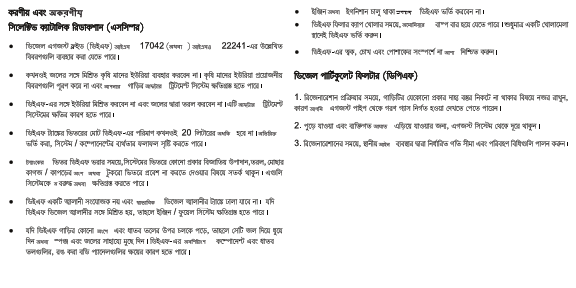

• | When the AUTO HOLD switch is operated, the AUTO HOLD system will be switched to READY mode and the "AUTO HOLD" indicator on the instrument cluster will be illuminated in white. |
• | Operating the AUTO HOLD switch again turns off the indicator and deactivates the AUTO HOLD system. |
1. | Crankcase emission control system |
2. | Evaporative emission control system |
3. | Exhaust emission control system |
1. | Diesel Oxidation Catalyst (DOC) |
2. | Selective Catalytic Reduction(SCR) |
3. | Diesel Particulate Filter (DPF) |
• | Use Genuine DEF MaxiCLEAN always. |
• | Incase of non-availability of the above mentioned MaxiCLEAN Diesel Exhaust Fluid (DEF) complying to IS 17042 (or) ISO 22241 specification can be used. |
• | Never attempt to use agricultural grade urea mixed with water. Agricultural grade urea does not meet the necessary specifications and the after treatment system of your vehicle may be damaged. |
• | Total DEF quantity inside the DEF Tank should never exceed 20 liters. Overfilling may result in system/component failure. |
• | DEF quality and purity can be ensured only if it is stored as per recommendations. Hence ensure to store DEF in a cool, dry place. |
• | Do not add urea to DEF and do not dilute with water. This may cause damage to the after treatment system. |
• | While refilling DEF be careful not to allow any foreign particles, liquids, wiping paper/clothing fibers or lint to get inside the system. These may clog or damage the system. |
• | While refilling DEF, use only the pipe supplied with the MaxiCLEAN. Do not use any funnel or container. Any contamination with Diesel or oils will cause malfunction of the after treatment system. |
• | If DEF accidently spill over vehicle components or metal surfaces, rinse with water or wipe off with sponge and water. DEF residues will corrode the components, metal surfaces and painted body panels. |
• | DEF is not a fuel additive and must not be added to the diesel fuel tank. If DEF is mixed with the diesel fuel, engine/fuel system could get damaged. |
• | In such a case, do not start the engine and immediately contact nearest Mahindra Authorised Dealer for assistance. |
• | Ensure that DEF does not come into contact with skin, eyes, or clothing |
• | Keep DEF out of the reach of children |
• | In case if any part of the body comes in contact with DEF, clean affected area immediately with plenty of water. |
• | If DEF comes in contact with eyes, flush with plenty of water immediately and seek medical help. |
• | If DEF is swallowed, rinse mouth immediately with plenty of water, drink plenty of water immediately and seek medical help. |
• | Refrain from storing DEF refill containers inside the vehicle. Ammonia vapors may escape from the container which have a pungent odor and are particularly irritating to the skin, mucous membranes and eyes. Inhaling ammonia vapors may cause irritation to the eyes, nose and throat, as well as cough. |
• | When opening the DEF filler cap, ammonia vapors may escape. Therefore ensure to refill DEF in a well- ventilated area only. |
• | If Diesel Exhaust Fluid is spilled on metal surfaces rinse and clean immediately with water. Failure to do so may leave permanent corrosive stains on the metal surfaces which cannot be removed. |
|
2. Press the key fob unlock button and Press the fuel
lid
gently once to open.
|

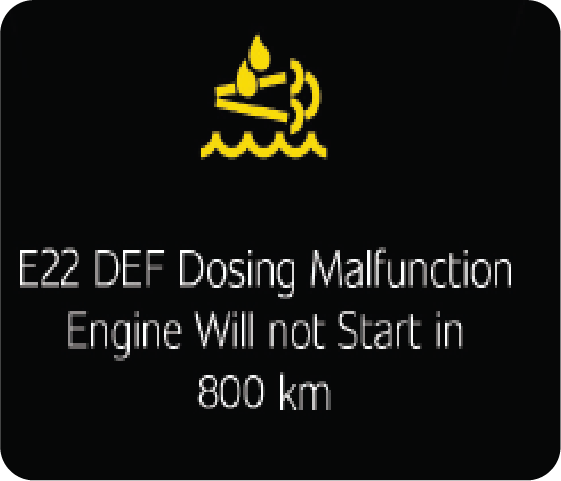

• | DEF level low |
• | Incorrect DEF detected |
• | DEF dosing malfunction |

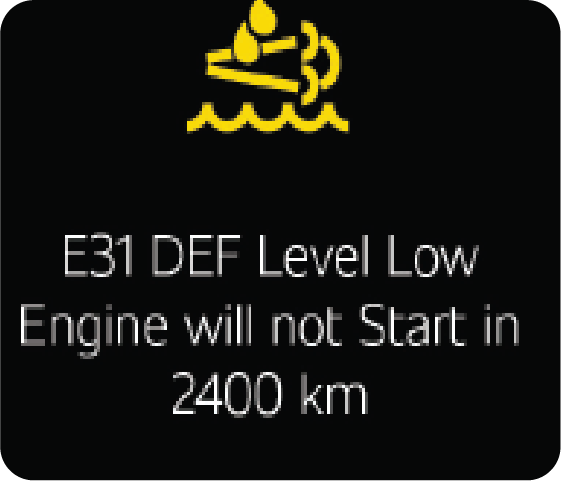

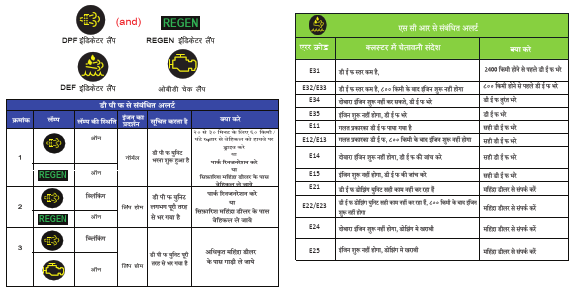

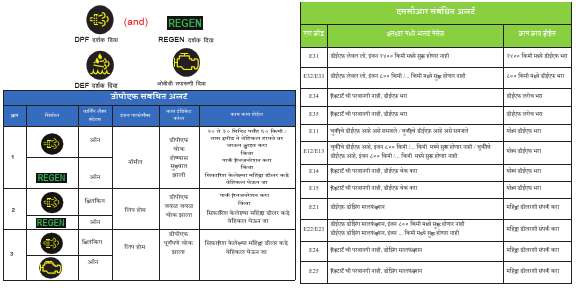

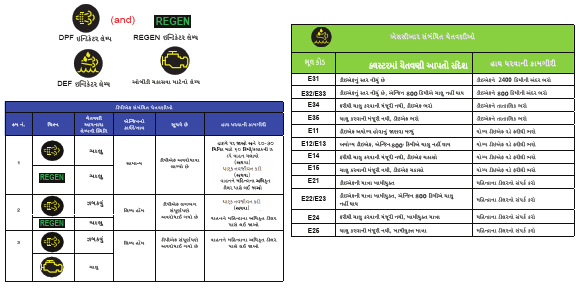

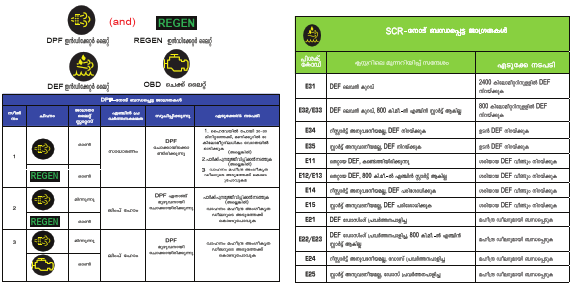

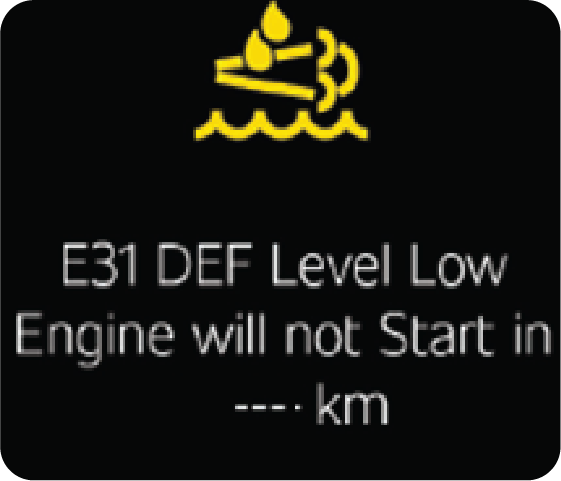

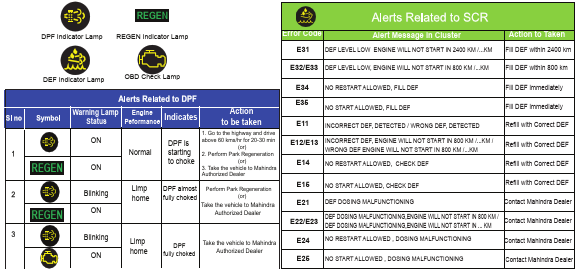

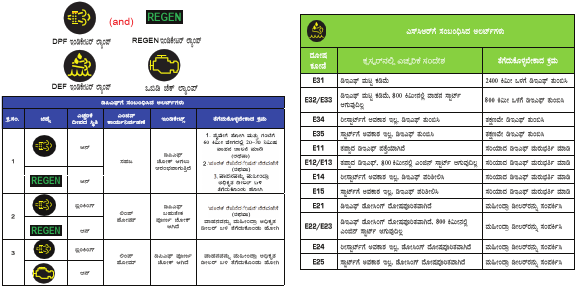

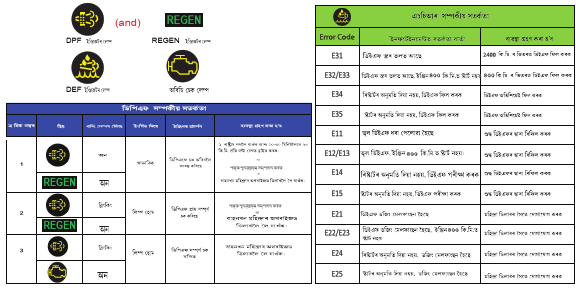

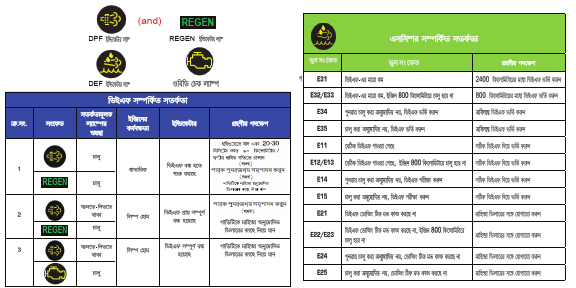

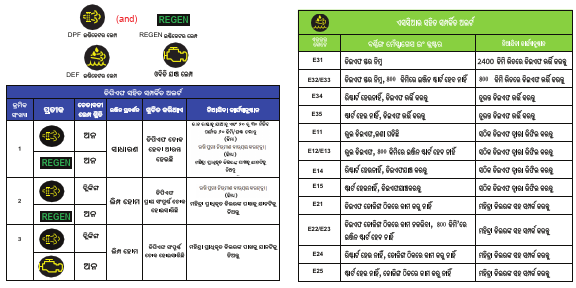

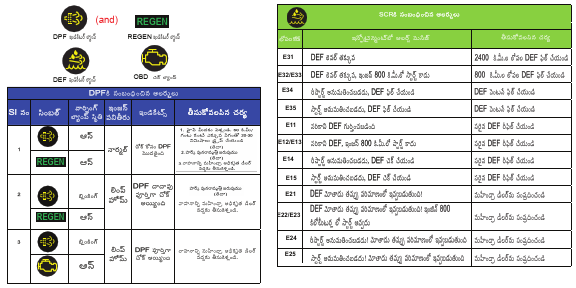

E31
|
E31
|

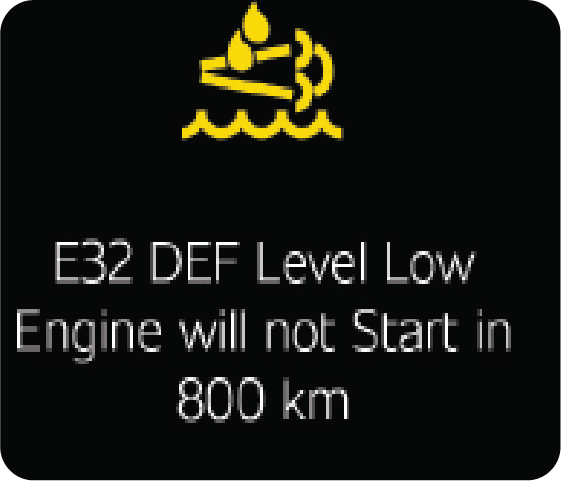

E32
|
![]() |
![]() |
![]() |
E33
|
E34
|
E35
|
|
![]() |
![]() |

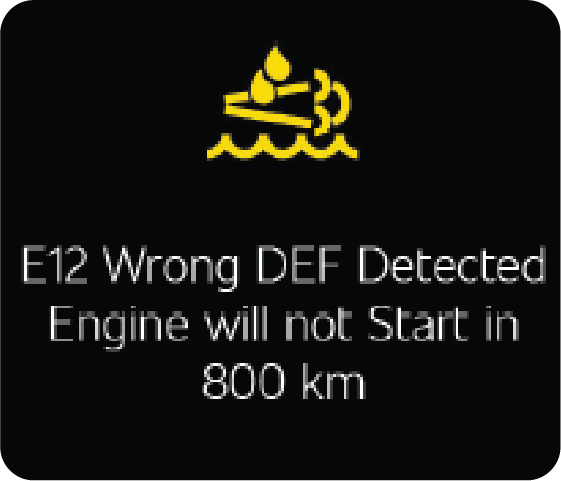

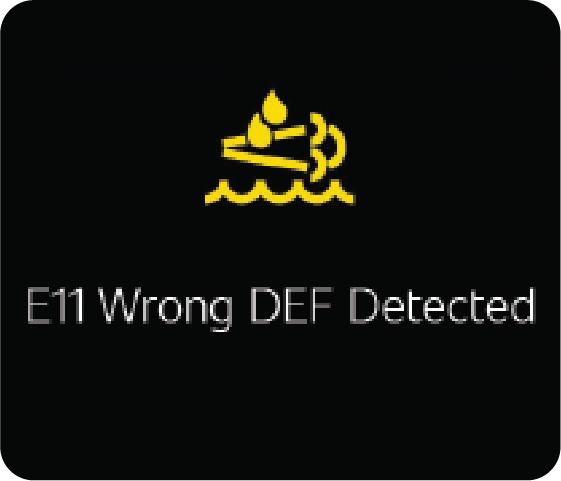

E11
|

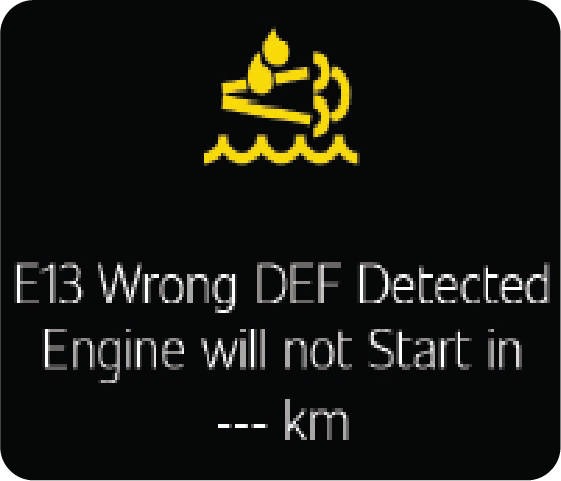

E12
|

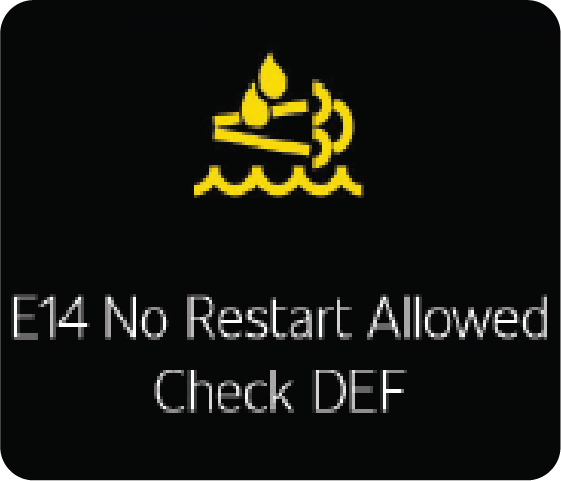

E13
|
![]() |
![]() |
![]() |
E14
|

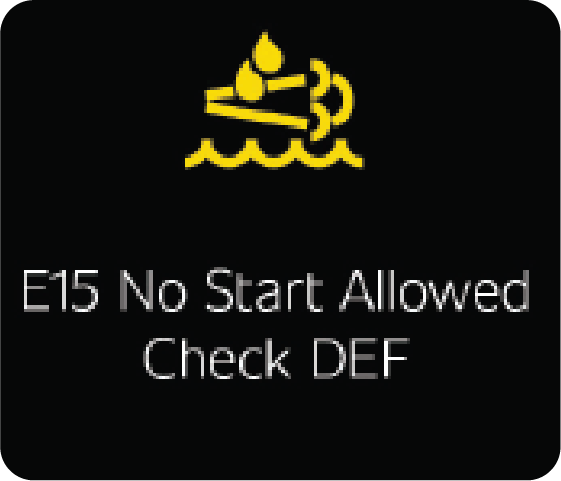

E15
|
|
![]() |
![]() |

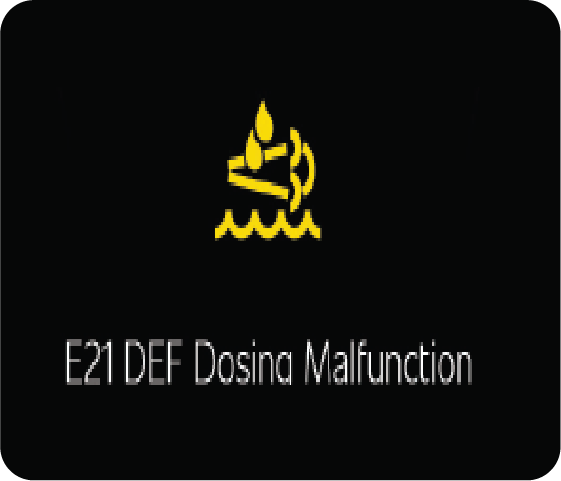

E21
|
E22
|

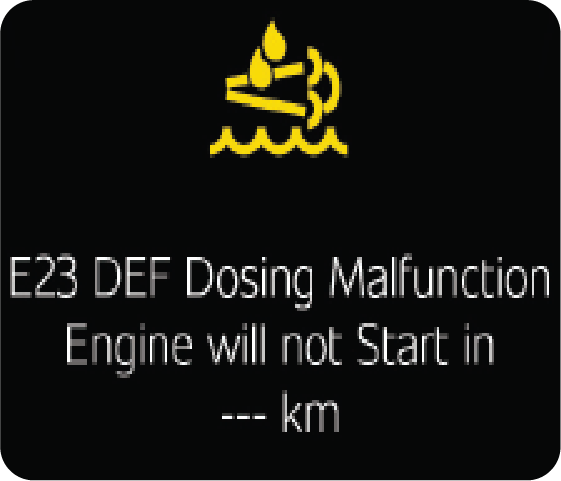

E23
|
---|---|---|
![]() |
![]() |
![]() |

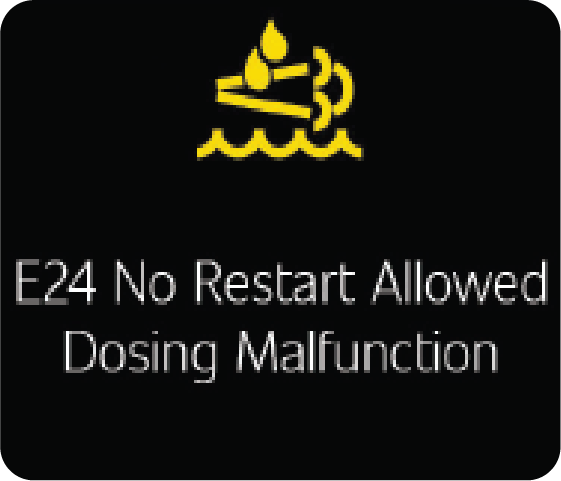

E24
|

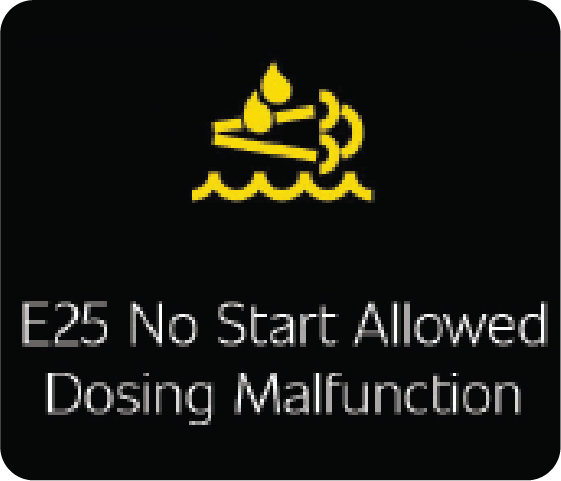

E25
|
|
![]() |
![]() |
|
|
• | Follow speed limits & traffic regulations as defined by local jurisdiction while driving. |
• | Park the vehicle safely in a well ventilated levelled open space and free of any flammable material. |
• | Shift the gear lever to Neutral with the engine running and apply the parking brake. |

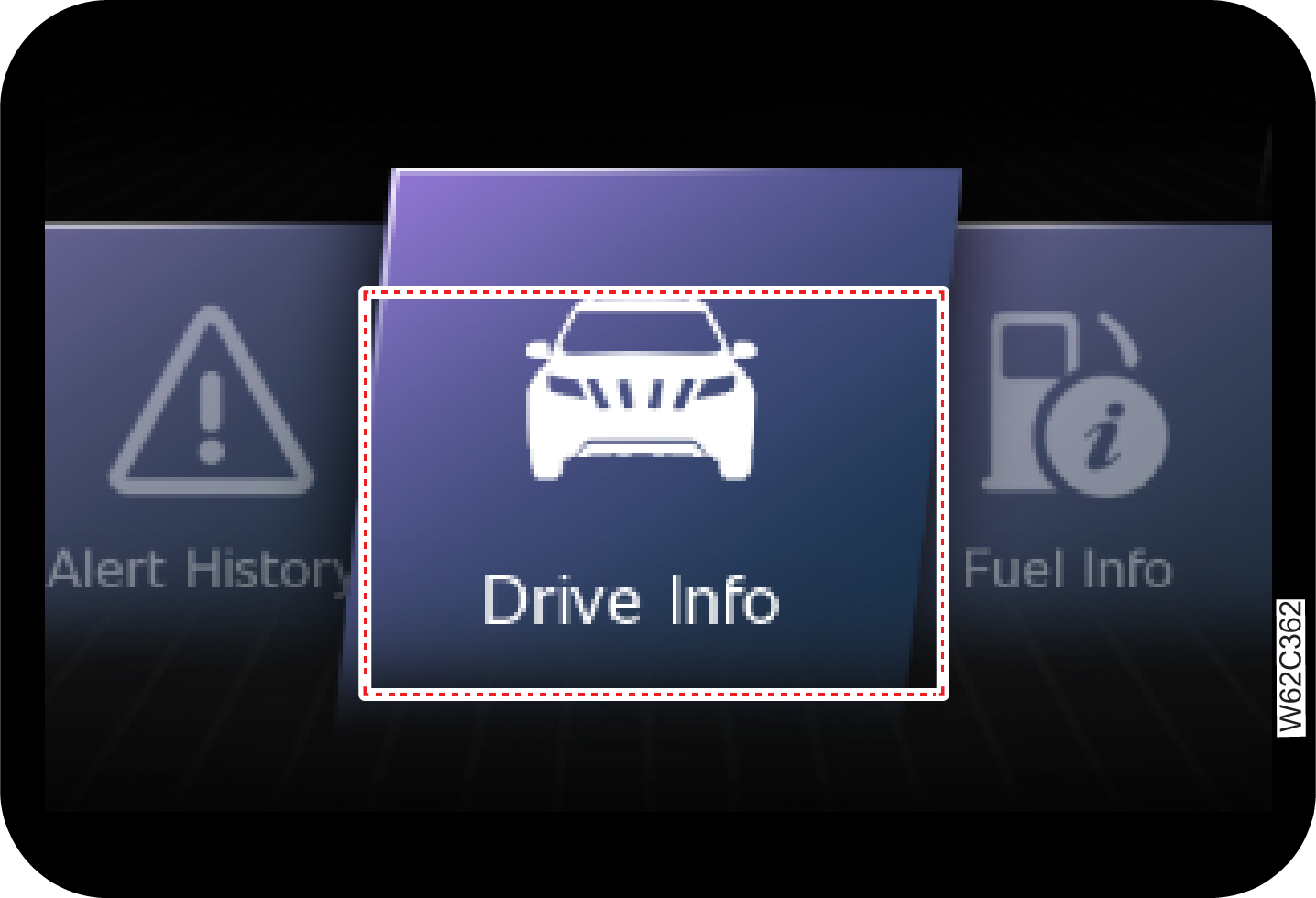

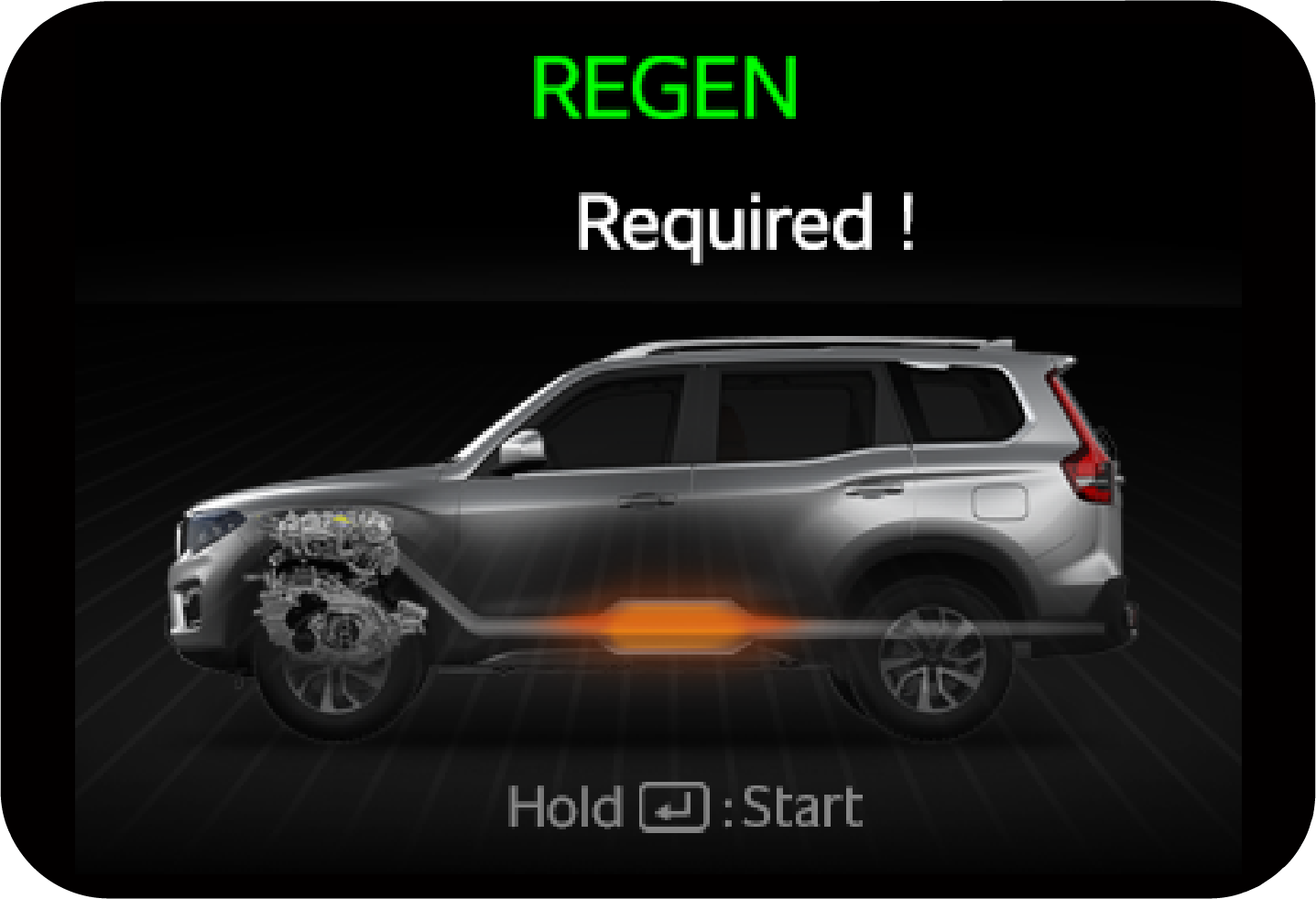

• | Access the Drive info menu in the instrument cluster
and
press the down button to go to the REGEN screen, REGEN screen will
appear only when the REGEN telltale is ON.
|
• | REGEN screen will go OFF if REGEN telltale turns OFF. |
• | When in the REGEN screen of the drive info menu, long Press OK button on the steering wheel or the driver side switch bank to start park regeneration. |
• | Once regeneration starts, “In Progress” text will
appear
below REGEN. The engine idle speed will increase indicating regeneration
has started.
|

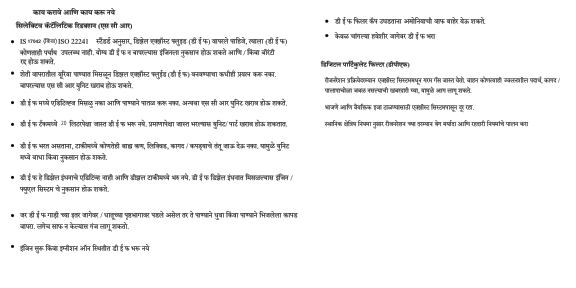

• | Park Regeneration can take up to 30 minutes to complete. Once completed the REGEN telltale in the instrument cluster will turn OFF. The engines idling speed also returns to normal. |
• | To abort the Park regeneration in case of any emergency, turn OFF the ignition or press any of the Accelerator, Brake or Clutch Pedals. |
• | If the Park Regeneration gets aborted by itself or does not start, contact an Authorised Mahindra Dealer for assistance. |
• | During the regeneration process, ensure not to park the vehicle close to any flammable materials as you may observe hot emission gases from exhaust pipe. |
• | To avoid burns & personal injury, keep yourself away from exhaust system. |
• | Diesel Exhaust Fluid (DEF) complying to IS 17042 (or) ISO 22241 specification can be used. |
• | Never attempt to use agricultural grade urea mixed with water. Agricultural grade urea does not meet the necessary specifications and the after-treatment system of your vehicle may be damaged. |
• | Do not add urea to DEF and do not dilute with water. This may cause damage to the treatment system. |
• | Total DEF quantity inside the DEF tank should never exceed 20 liters. Overfilling may result in system/component failure. |
• | While refilling DEF inside tank be careful not to allow any foreign particles, liquids, wiping paper/clothing fibers or lint to get inside the system. These may clog or damage the system. |
• | DEF is not a fuel additive and must not be added to the diesel fuel tank. If DEF is mixed with the diesel fuel, engine/fuel system could get damaged. |
• | If DEF is spilled over vehicle components and metal surfaces, rinse with water or wipe off with sponge and water. DEF residues will corrode the components and metal surfaces, painted body panels. |
• | Do not refill the DEF with Engine ON or ignition ON state |
• | When opening the DEF filler cap, ammonia vapors may escape. Refill DEF in a well - ventilated area only. |
• | Ensure that DEF does not come into contact with skin, eyes, or clothing. |
|
Key Tag: Your key has a unique tag number
which will be used incase of key lost. It is given on the tag attached to the
key.
It is
recommended that you record the key tag number and store in a safe place.
|
|
Pull the door handle firmly outwards to unlock and
swing the door to open.
|
|
Pull the door lever away from the door and push the
door outward to open.
|
|
A: Unlock
B: Lock
|
|
The key is bidirectional. You can insert it into the
keyhole either way. Turn the key anti-clockwise to lock or clockwise
to unlock the door.
|
|
Press the Tailgate release button for 2 seconds on
the
remote to unlock the tail door. The hazard lamp flash three times indicating
the same.
|
|
Then press the tail gate release switch on the tailgate handle within 45 second as shown in the illustration and pull tailgate to open.
|
|
To manually lock/unlock driver door and Tail doors
from
outside using the conventional key, turn the key anti-clockwise /clockwise
respectively in the driver door keyhole.
|
|
A: Unlock
B: Lock
|
(or)
|
|
|
Driver can simultaneously lock/unlock all the doors
by
pressing this switch as shown in the image.
|
• | Vehicle speed is below 7 kmph - On actuating master actuator lock manually, master actuator will get lock & unlock immediately for the first time. On actuating master actuator lock again, vehicle will get locked. |
• | Vehicle speed above 7 kmph - On actuating master actuator lock manually, vehicle will get locked for the first time itself. |
|
A: Unlock
B: Lock
|
• | Do not cover the key grip with any material that cuts off RF signal. |
• | Do not leave the key exposed to high temperatures for a long period, such as on the dashboard or bonnet under direct sunlight. |
• | Do not put the key in any liquid or wash it in an ultrasonic washer. |
|
A: LED
B: Lock
C: Tailgate Release / Search
D: Unlock
|
|
Press the LOCK button on the RKE key fob for locking
and arming the vehicle.
|
|
Press the UNLOCK button on the RKE key fob to unlock
and disarm the vehicle.
|
|
“Selective
Unlock”
Driver Door - “Selective
unlock”
should be enabled in Infotainment System for using this feature. Once
enabled, if RKE unlock button is
pressed, only Driver door will be unlocked. RKE unlock button has to be
pressed again to unlock other doors.
|
|
Press the Tailgate button on the key fob 2 times
within
2 seconds to locate the vehicle in a parking lot. Search alarm can
also bring attention to the vehicle and surrounding area, warning about an intruder
or
seek for help.
|
• | Pressing any button on the key fob again switches OFF the alarm |
• | Pressing the UNLOCK button switches OFF the alarm and disarms/unlocks all doors |
|
A: LED
B: Lock
C: Tailgate Release / Search
D: Unlock
|
• | While locking and unlocking the vehicle Passively, the distance between the Smart Key and the corresponding door handle must not be greater than 3ft (1m). |
• | Do not cover the key grip with any material that cuts off RF waves |
• | Do not leave the key exposed to high temperatures for a long period, such as on the dashboard or bonnet under direct sunlight |
• | Do not put the key in any liquid or wash it in an ultrasonic washer |
• | The PKE can malfunction if exposed to moisture or static electricity |
|
1. Carry the Key fob
2. Close all the doors
3. Press the button in the door handle.
|
• | Key should be in the proximity of less than 0.7 m from the outside door handle. |
• | Vehicle can be locked centrally by pressing the button in the door handle with the PKE key fob in the proximity (PKE key fob should be nearer to the triggered side). For E.g., locking/unlocking of the driver door is possible only if PKE is around the driver area. |
• | Even after
pressing the outside door handle button, if the doors do not lock, a chime is
heard
along with the hazard blinking
for 5 times, then one of the following situations are possible
reason:
|
• | On attempting to lock by pressing the button in door handle, an alert will displayed in cluster, if the steering is not locked. |
• | With the one PKE Key fob inside, on locking the vehicle using other key fob/2nd key fob, the key which is kept inside would get deactivated completely for the security of the vehicle. To make the key active again, the vehicle should be unlocked either using PKE or by pressing remote unlock using the other key fob with which previously the vehicle was locked. |
• | On performing PKE passive lock with key fob in your possession in ignition ON state, "Key Not in Vehicle" alert will be triggered in cluster along with chirp & hazard lamps flash for 5 times and vehicle will remain in unlock state. |
• | On performing key fob remote lock with all doors closed in ignition ON state, no alert will be triggered and vehicle will remain in unlock state. |
1. | Carry the PKE Key fob. |
2. | Press the button in the door handle. |
3. | All doors would unlock and Front DRL & Tail lamps flash twice. |
• | Key should be in the proximity of less than 0.7 m from the outside driver door handle. |
• | Vehicle can be unlocked centrally by pressing the door handle only when the key is in same side of the driver door handle is pressed. |
|
2. Press the button in the tail door handle and pull
the
tail door.
|
• | Key should be in the proximity of less than 0.7 m from the outside door handle. |
• | Tail door can be unlocked by pressing the button in the tail door only when the key is in range from the tail door. |
|
The chirps
can
be muted / unmuted. Press the LOCK & UNLOCK buttons together for 3 sec. to
toggle between MUTE/UNMUTE mode.
Hazard lamps will flash once to indicate unmute to mute condition.
|
|
The engine can be started or stopped by pressing the
Start Stop Switch (SSS), with the valid PKE Key Fob inside the vehicle.
|
|
Upon any fault identification by the system in the
start/stop switch (SSS), an alert would be provided in the instrument cluster
for few seconds. Please visit the nearest Mahindra Authorised Dealer immediately to
rectify the problem.
|
OFF
|
ACC
|
ON
|
|
|
|
• | If the electronic steering lock is not getting unlocked. |
• | A warning would be displayed in the cluster screen
for few seconds.
Still if you are not able to turn ON the IGN, please
contact the nearest Authorised Mahindra Service Centre.
|
• | When engine start/stop switch is ON or engine is
in
running condition with vehicle at standstill and if any door is opened
& closed, the system checks for the PKE Key fob.
|
|
Now place the key fob in the key fob tray with the
Clutch(MT)/Brake(AT) pedal pressed and then push the Start-Stop switch
twice to Start the engine.
|
|
If key fob battery is detected low by the PKE
system,
an alert would be triggered. Change the battery by following the procedure
as mentioned in the section for battery replacement.
|
• | If the vehicle is close to a radio station, airport, or an area where there is a possibility of large radio transmissions which can interfere with the normal operation of the PKE/RKE. |
• | The PKE Key Fob is near a mobile or a cellular phone or some electronic gadgets like Laptop/Tablets. The signal from the PKE/RKE could be blocked by normal operation of your cell phone or smart phone. Avoid placing the PKE/RKE and your electronic gadgets in the same trouser or jacket pocket or in the bag and maintain adequate distance between the two devices. |
• | Another vehicle PKE key fob is being operated close to your vehicle. |
• | PKE Key Fob kept inside the glove box or top bin in the instrument panel may not be detected sometimes. Keep the PKE Key Fob in the visible zone or in your pocket for getting it detected. |
• | Keep the PKE key fob away from the water or any liquid. If the keyless entry system is inoperative due to exposure to water or liquids, it will not be covered by your manufacturer’s vehicle warranty. |
Display | Operating Conditions |
---|---|
|
The
warning will be triggered when the vehicle Ignition is in ON
condition with the Brake pedal pressed & the user is pressing
SSS to start Vehicle & Gear position is not in park or
neutral.
(If equipped).
|
|
The warning will be triggered when vehicle
Ignition ON or Engine running condition, user is pressing SSS to turn OFF
Vehicle
& Gear position is not in park. (If equipped).
|
|
The warning will be triggered when Start
Stop
switch is Malfunction. Kindly contact the nearest Mahindra dealer.
|
|
The warning will be triggered when Key fob
is
not getting detected by the system. Users need to keep the key in the
armrest
Key fob Tray and then press the start/stop switch to turn ON the vehicle.
|
|
The warning will be triggered when vehicle
ignition in OFF condition. When user tries to lock the vehicle using driver
door
& co-driver PKE trigger switch, but key is inside the vehicle.
|
|
The warning will be triggered when vehicle
is
in cranked or in ignition ON condition, but key is not inside the vehicle.
|
|
The warning will be triggered when Key Fob
battery is Low.
|
Display
|
Operating Conditions
|
---|---|
|
A warning will be displayed in the
Instrument
cluster. If the steering wheel doesn’t unlock properly, press the
start/stop
switch while turning the steering wheel right/left to release the tension
on
the lock.
|
|
If the electronics Steering Wheel not
getting
locked even though all locking conditions are satisfy then this warning is
displayed.
|
|
A warning will be displayed in the
Instrument
cluster. If the steering wheel lock unit has system failure. in this case
please
contact Mahindra dealership to check system failure.
|
|
A warning will be displayed in the
Instrument
cluster. If the steering wheel does not pair with PKE ECU. in this case
please
contact Mahindra dealership to check system.
|
Battery Voltage
|
3 V
|
Battery Capacity
|
225 mAh
|
Battery Model No.
|
2032
|
If the
Remote
operation is inconsistent when any of the buttons are pressed, then it
indicates
that the Remote battery is
weak.
|
|
|
The rear side of the Remote is snap fitted. Flip open
the
key blade and use two fingers on the side of the fob and gently
pry open the battery cover.
|
|
The chirps can be muted / unmute. Press the LOCK
&
UNLOCK buttons together for 3 sec. to toggle between MUTE / UNMUTE mode.
|
|
Using RKE key fob, you can lock/arm or
unlock/disarm
the vehicle from distances approximately 9 m (30 ft) This is in open
area.
|
|
|
|
This message is displayed only when the PKE system
fails
to detect the key fob which is inside the vehicle when the user is
trying to Switch ON the ignition.
|
• | Prevents the vehicle being started by anyone not in possession of the correct vehicle key. |
• | The vehicle is automatically protected after the key is removed from the ignition/vehicle in PKE. At every ignition ON, if the vehicle does not recognize the correct key code, the engine check lamp will blink and security tell tale lamp will illuminate and the engine cannot be started. |
• | The vehicle will not be protected until the key has been taken out of the ignition/vehicle in PKE. |
|
1. Pull the lever below the driver side instrument
panel
to release the bonnet.
|
|
2. Lift the bonnet a little to access the safety latch
holding the bonnet striker. This safety latch is located below the
bonnet at the center.
|
|
3. Lift the safety latch and lift the bonnet.
4. bonnet is supported by a stay rod.
|
1. | Remove the stay rod supporting the bonnet by slightly lifting the bonnet. |
2. | Bring the bonnet near to its self-opening/closing position. |
3. | Now, push the bonnet to close and ensure the primary latch is engaged. |
4. | Before driving off, check bonnet is locked properly with primary latch fully engaged. |
• | Hazard lamps flash continuously to alert the user that the bonnet is open. |
• | Hazard cluster telltale also flashes. |
• | Close the bonnet. |
• | Press the hazard button TWICE. |
• | Change the turn signal stalk position. |
• | Drive the vehicle > 10 km/hr. |
|
|
1. Press the UNLOCK button on RKE/PKE.
|
2. Then press the fuel lid gently once to open.
|
Diesel
|
Petrol
|
|
|
![]() Diesel should be filled in diesel filler cap.
|
![]() Petrol should be filled in petrol filler cap.
|
![]() Diesel should not be filled in blue (DEF) filler
cap.
|
|
1. Press and Open the trim cover on Left side of
luggage
compartment.
|
|
2. Unhook and Pull the blue color knob as shown in the
illustration to unlock the fuel lid manually.
|
|
The driver door switch bank is located on the driver
door
armrest/handle and controls and the various functions:
|
A
|
ORVM Folding/Unfolding Switch
|
B
|
ORVM Adjustment Switch
|
C
|
Driver Door Window Switch
|
D
|
Rear RH Door Window Switch
|
E
|
Door Lock/Unlock Switch
|
F
|
Window Lock Switch
|
G
|
Rear LH Door Window Switch
|
H
|
Co–driver Door Window Switch
|
|
|
|
To disable the rear passenger power windows, press
the
window lock switch down.
To revert to normal operation, press the window lock
switch again.
|
|
The Door lock/unlock switch is located on the driver
door trim. Driver can simultaneously lock/unlock all the doors by pressing
this switch as shown in the image.
|
|
This Smart power window has three functions:
|
Fold
|
Adjustment
|
|
|
Push the
mirror back in the direction of the vehicle's rear.
|
Adjust
the
mirror manually by pressing the mirror as required.
|
Both the
ORVMs are hinged and can be manually folded or unfolded. This avoids
hindrances in narrow areas and parking slots.
Make sure that you fully engage the mirror in its support, while folding or
unfolding.
|
Electric
Adjustable ORVM
|
|
|
|
• | The doors locked with the remote from outside the vehicle. |
|
|
|
|
• | Mirror is already in folded condition and ORVM switch is neutral condition and IGN is turned ON. |
IRVM |
Front Sensor |
|
|
|
|
|
|
• | Under the following conditions, auto dimming function may not operate properly. |
• | When the rear vehicle’s head lamp is not beamed directly to the inside rearview mirror’s sensor. |
• | When the rear window has a dark tinted glass. |
• | When the gear selector lever is in the R position, auto dimming function will be cancelled to obtain the best rearview. |
• | For your safety, never adjust the mirror while the vehicle is in motion. |
• | The electrolyte may come out when the mirror is broken. Do not allow it to contact your skin or eyes. If you accidentally get it in your eyes, flush with water and see your doctor. |
• | For your safety, adjust the mirror before driving off the vehicle. |
|
You can manually adjust the rearview mirror by pushing or pulling its adjusting lever to avoid blindness at night due to other
vehicles behind you.
|
|
Fold down the third-row seats. (refer to “Folding
the
third-row seat” section in Seat chapter).
Now the bigger object can be placed with seat folded
condition.
|
|
|
|
|
|
This lamp is located inside the Glove box. It will
get
switched ON when Glove box is opened and switch OFF when it is closed.
|
|
In select variants, a cooler (air vents) is provided
in
the glove box. You can cool cans, small bottles, etc. by opening the
air vents. Turn the cooler clockwise to open the air vents, or anti-clockwise to
close
the air vents.
|
|
|
Type
1
|
Type
2
|
|
|
Second row cup
holder and armrest (if equipped)
|
|
|
|
• | To open the armrest, simply pull on the tab given at the top of the armrest (as shown). |
• | When armrest is not required, push back the armrest into the 60P backrest. |
|
Bottle and Umbrella holders are located on both the
front door lower trims. You can use them to store umbrella, maps, papers,
small books, bottles, etc.
|
|
The seat back pockets are located on the back of the
front seats for holding lightweight papers/books/magazines, etc.
|
|
The mobile pocket is available in the magazine
pocket.
|
|
![]() Hanging
excess/bulky weight/items may cause breakage of the hook and
inconvenience
to the passengers. Hang light weight articles
only.
|
|
The microphone is located on the roof above driver side
as
shown in the image.

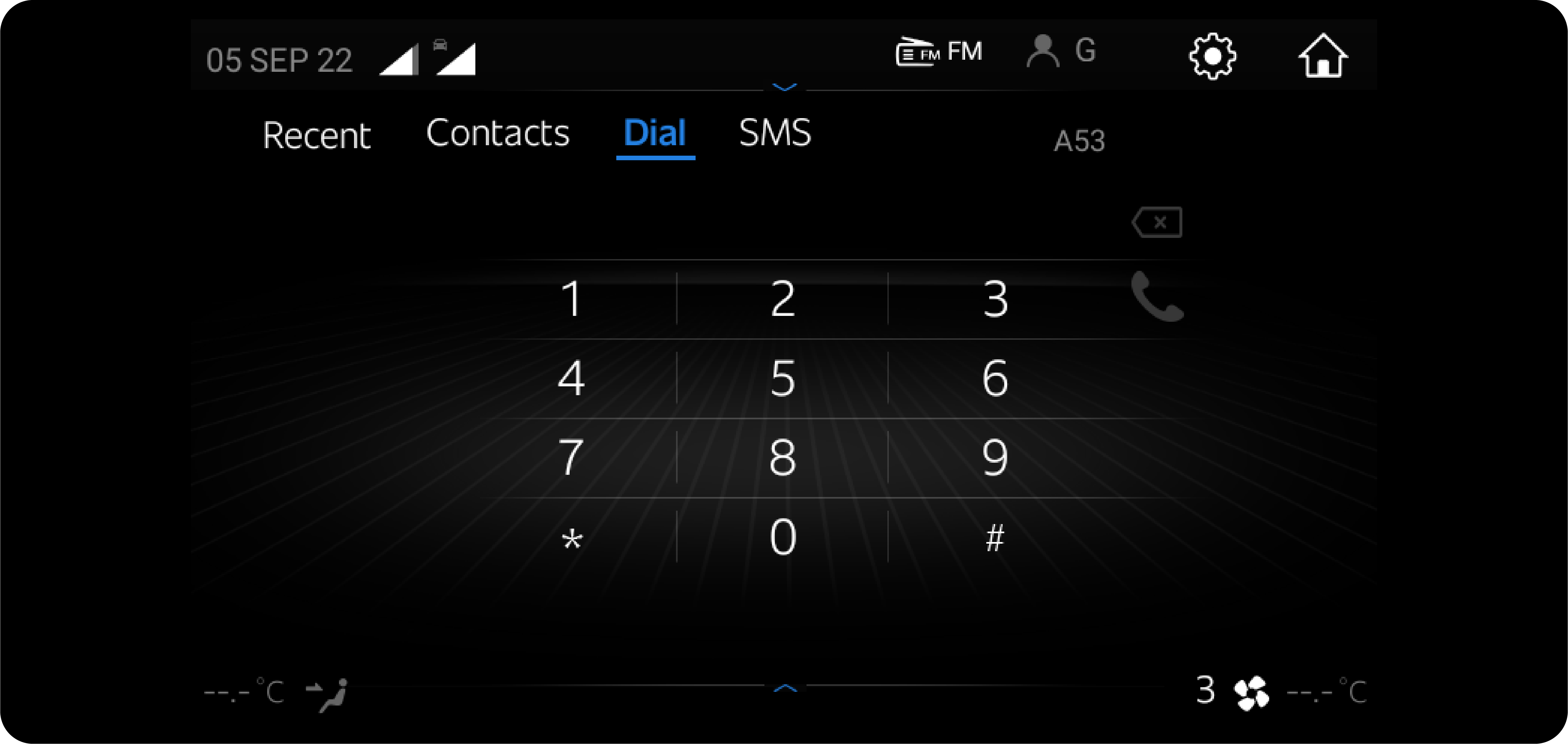

The microphone is used when talking on the phone. The
person you are speaking to can be heard from the front speakers.
|
Use the sun
visor to shield the direct sunlight through the front or side windows. It is
available on both driver and co–
driver side
|
|
|
To shield the sunlight through the windshield, pull it
downward.
|
|
To shield the sunlight through the side window, pull it
downward, unsnap it from the bracket and swing it to the side.
|
|
![]()
|
• | Adjusting the sun visor or using the mirror or ticket holder on the sun visor while driving may cause an accident by taking your attention away or blocking your view |
Vanity mirror is in the Sun visor.
|
|||||||
|
|
Sl.
No.
|
Switches
|
Sl.
No.
|
Switches
|
---|---|---|---|
A
|
SOS
|
E
|
ESC
|
B
|

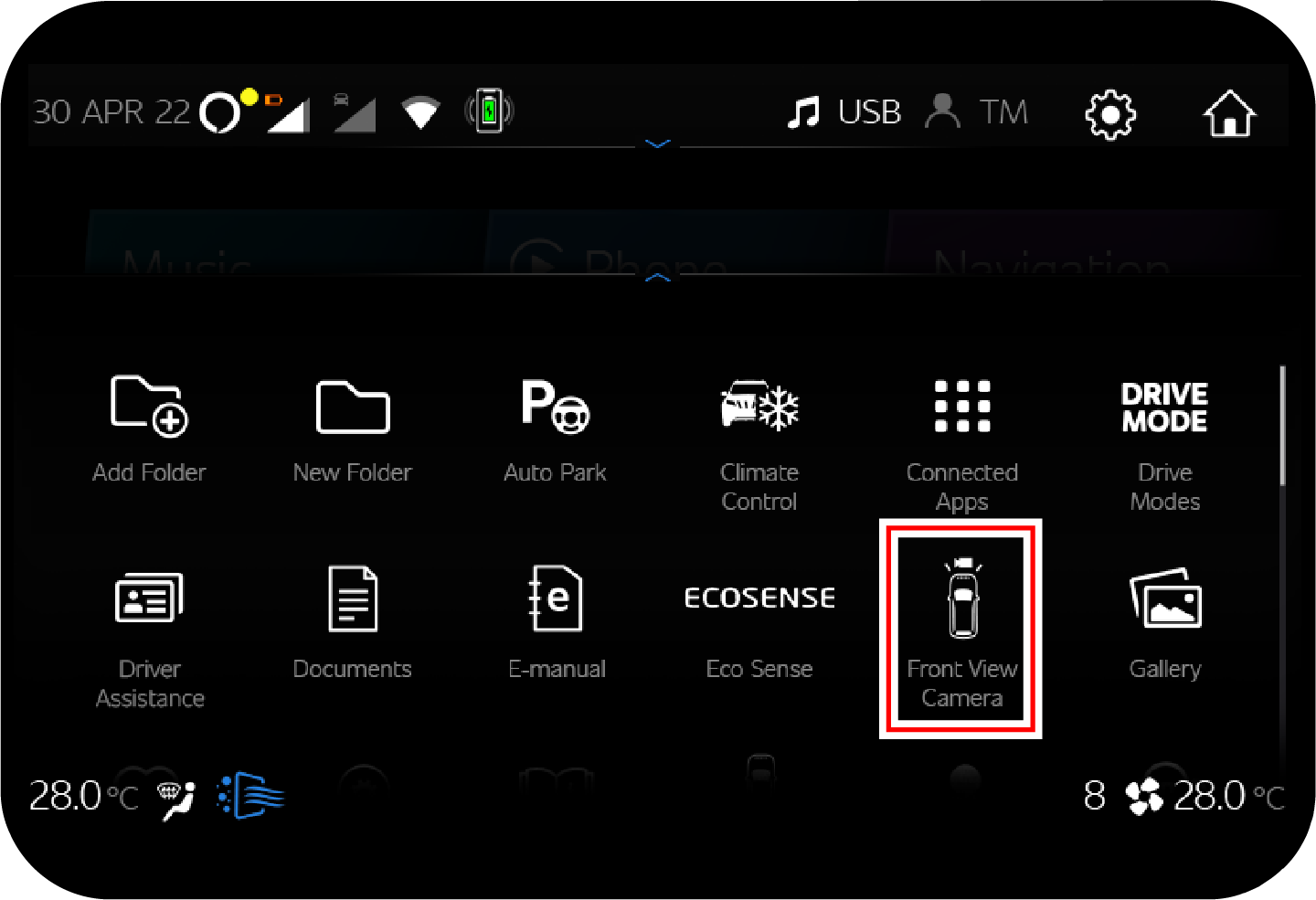

Front Camera Toggle
|
F
|
HDC
|
C
|
ESS
|
G
|
Drive Mode
|
D
|
Hazard ON/OFF
|
* - if equipped
|
Type
1
|
Type
2
|
|
|
A
|
UP Selection*
|
D
|
DOWN Selection*
|
B
|
Cluster Menu/Mode*
|
E
|
ESS *
|
C
|
SET*
|
F
|
FPAS Audible Warning ON/OFF*
|
*-if equipped
|
|
A: LH - USB Port
B: RH - Charging USB Port (if equipped)
|
|
The 12V Power outlet socket is provided on the LH side
quarter Panel Lower trim. Electrical equipment/appliances like mobile
charger, cigarette lighter etc., can be used in the outlet.
|
• | Close the power outlet cap when not in use. |
• | Do not allow children to use or play with the power outlet. |
• | When using electrical appliances, strictly follow the manufacturer's instruction manual. |
• | Never use the power outlet for electric heaters while sleeping. |
• | Never insert foreign objects into the power outlet. |
• | Never use malfunctioning electrical appliances. |
• | Never insert inappropriate or badly fitting plugs into the power outlet. |
• | Distract the driver while driving, or hamper safe driving. |
• | Result in a fire or burn injuries due to the appliance rolling, falling or overheating. |
• | Emit steam, while the windows of the passenger compartment are closed. |
• | Use the power outlets only when the engine is running. Remove the plug from the power outlet after using the electric device. Using the power outlets when the engine is OFF or leaving the electric device plugged in for many hours may cause the battery to drain. |
• | Do not use the power outlet to connect electric accessories or equipment that are not designed to operate on 12V. |
• | Some electronic devices can cause electronic interference when plugged into the power outlet. These devices may cause excessive audio noise and may interfere with other electronic systems or devices in your vehicle. |
|
A wireless mobile charging unit is located in front of
the
center console below the front USB ports.
|
|
A : Spot Lamp Switch (Passenger’s)
B : Auto Mode Switch
C : Spot Lamp Switch (Driver’s)
D: Spot Lamp(Driver’s)
E: Sunroof Switch
F: Spot Lamp (Passenger’s)
|
Centre Roof Lamp
(if equipped)
|
|
|
The centre row roof lamp is located on the roof
above
the second row seats. The lamp can be switched ON/OFF by the switch
on the lamp.
|
3rd Row Roof
Lamp
(if equipped)
|
|
|
The roof Lamps are located on the roof liner near
the 3
rd row grab handle.
|
• | Push the lighting control stalk clockwise to indicate a right turn. The instrument cluster arrow lamp pointing towards the right flashes along with the right side turn signal lamps (front, rear & ORVM) with chime indicating your intention of turning towards right. |
• | Push the lighting control stalk anti-clockwise to indicate a left turn. The instrument cluster arrow lamp pointing towards the left flashes along with the left side turn signal lamps (front, rear & ORVM) with chime indicating your intention of turning towards left. |
• | After you have completed your left turn, the stalk will automatically return to the neutral position switching OFF turn indicator lamp. |
• | Do not clean the sensor with detergent or wax |
• | On a foggy, snowy, rainy, or cloudy day, be sure to use manual mode. The turning on or off time of the lamps varies depending on the weather, season, or circumstances. |
• | Any aftermarket sunfilm or spray may cause the lighting system to malfunction. |
• | When the switch is turned to the “AUTO” position, room, tail, and head lights might blink for a very short time. It is a normal phenomenon recognising the automatic setting. |
• | There may be a difference between ambient light intensity sensed by the RLS sensor and the human eye. Hence it is possible that during low light conditions, the head lamp is activated early as the RLS sensor senses it as low intensity. This is a normal behavior. |
A
|
Low Beam
|
B
|
High Beam
|
To properly aim the head lamp beam, use the head
lamp
levelling switch.
|
|
|
This switch is located on the right side of the
steering column shroud in the instrument panel. This switch has four positions
marked as 0, 1, 2 & 3.
|
Switch
Position
|
Vehicle
Loading Condition
|
---|---|
0
|
Driver/Driver with Front Passenger
|
1
|
Driver + Front passenger + Second row
occupied
|
2
|
All seats occupied
|
3
|
All seats occupied with luggage OR Driver
with
luggage at extreme rear side
|
|
Respective side cornering lamp turns ON when a sharp
turn is taken.
They help in illuminating the road in the direction
of
turn.
|
• | Ignition ON |
• | Head lamp is ON |
• | Sharp turn taken |
• | Fog Lamp input off |
• | Ignition transition from ON to OFF. |
• | Park lamp is OFF. |
• | Ignition key is out. |
• | Driver door open within 3 mins from KEY OUT. |
• | Head lamp would turn ON only if the ambience light is found dark by the light sensor. |
• | The first RKE/PKE LOCK command will be used for locking all doors. |
• | Successive RKE/PKE LOCK commands will be used for toggling the current status of the head lamp low beam. |
• | Each time FMH is extended the head lamp low beam will be kept/turned on for the next 20 seconds. |
• | Park lamp transition from OFF to ON. |
• | Ignition off to any other state. |
• | FMH ON 20 seconds expires. |
• | FMH Max time is 3 minutes expires. |
• | Switch OFF the parking lamps. |
• | Remove the ignition key. |
• | FMH can be activated by pressing lock button in key fob twice. First press locks the vehicle & second press enables head lamp low beam for 20 seconds. |
• | Pressing unlock button in key fob disables FMH feature & unlocks the vehicle. |
• | Switch ON the parking lamps. |
• | Switch the ignition key to either ACC or ON in position. |
• | Press the RKE unlock/lock button once. |
• | Head lamp switches ON for 20 secs. and switched OFF automatically. |
• | Pressing the unlock button on the RKE two times. |
• | Switch ON the parking lamps. |
• | Switch the ignition key to either ACC or ON in position. |
• | Press the RKE lock button once. |
• | Head lamp switches ON for 20 secs. and switched OFF automatically. |
• | All doors including bonnet and tail door must be closed and locked. |
• | Vehicle Automatic transmission should be in P (Park). |
• | Ignition must be in OFF position. |
• | Sufficient Fuel and battery charge for the car to start. |
|
A: Flick- Wipe (MIST)
B: Off
C: Intermittent (INT)/AUTO
D: Low Speed (LO)
E: High Speed (HI)
F: Rotary Switch
|
• | Do not operate the wipers when the windshield is dry. It may lead to scratches on the glass. |
• | It is recommended not to use the wiper when the windshield glass is covered with debris, snow or leaves. Clean the glass before using the wiper to avoid damage to the wiper blades and glass. |
• | Do not operate the windshield washer for more than 10 secs. or when the reservoir is empty |
• | Even though the sunroof can be operated when the ignition key is in the ON position (the engine is not running), operating the sunroof repeatedly with the engine turned off will run down the battery. Operate the sunroof while the engine is running. |
• | When a desired sunroof operation is completed, release the switch. If you keep pressing the switch, it could cause a malfunction. Especially in winter, never operate the sunroof if moving areas are iced. Wait until the areas are deiced. |
• | When leaving the vehicle unattended, be sure to completely close the sunroof. Otherwise, there is a great risk of vehicle theft. Or, the interior of the vehicle will be wet when it rains or snows. |
• | When operating the sunroof, be aware of safety conditions before operation. Parts of the body can be trapped. |
• | Clean up the circumference of sunroof regularly. Otherwise, operating the sunroof may cause a noise due to foreign material and dirt. |
• | Opening the sunroof or driving with the sunroof open after a car wash or rain may lead to water entering. |
• | Close the sunroof while driving in the dusty environment. The dusts or particles entered can cause operating problems. |
• | If a roof rack system is installed on the vehicle roof or any cargo is secured to the roof rack, do not operate the sunroof. If you are required to operate the sunroof, carefully check that the roof rack system does not interfere with the sunroof and it is safe to open the sunroof. |
• | Make sure that no passenger sticks out head, hand or any part of his/her body out of the sunroof opening while driving. There is a risk of personal injury when the vehicle is stopped suddenly. |
• | Before operating the sunroof, make sure that no head, hand, finger, or any object is capable of being trapped. There is a risk of personal injury or even death. |
|
|
Sunroof Smart
Open
by Key Fob Unlock Button
|
|
|
|
• | Sunroof can be opened by long press unlock button. |
• | Sunroof movement can be stopped by pressing lock/unlock button during movement. |
Sunroof
Close
|
|
|
|
Sunroof Smart
Close
by Key fob Lock button
|
|
|
|
• | Sunroof can be close by long press lock button. |
• | Sunroof movement can be stop by pressing lock/unlock button during movement |
|
If Rain sensor
is
equipped: In auto wipe mode or wiper LOW or HIGH mode, when wiper is ON
for
predefined time, cluster will request user feedback for
closing the sunroof. Using Steering “selection button/ center button” user can
choose
to close the Sunroof.
|
|
|
|
User can open and close sunroof via Voice command
through Alexa during Ignition ON.
|
|
User can open and close sunroof via mobile phone
with
authorized application in Ignition OFF.
|
|
|
|
To prevent any body parts from being trapped by the
sliding sunroof, an Anti-Pinch Function automatically opens the sunroof
when an object is trapped.
|
• | This safety function is available for the auto sliding sunroof close. |
• | Sunroof safety function is supplemental and not always operable depending on circumstances (e.g. any electrical device in the vehicle, etc.), therefore, the driver should check safety at all times before operating the sunroof. |
• | Never leave children or disabled persons in the vehicle – particularly if they have access to the vehicle key. Unsupervised use of the remote control vehicle key makes it possible to lock the vehicle, start the engine, turn on the ignition and operate the sunroof. |
• | Never stand or sit on sunroof glasses or roof. This can cause severe damage and would be treated as abuse of the sunroof which not covered by warranty. |
• | Never keep the Luggages / weights on top of the roof/sunroof. |
• | Any wet area found on the headliner shall be reported an Authorised Mahindra Dealer Immediately. |
• | Never close the sunshade during the sunroof glass is in open condition. This can cause the sunshade damage and would be treated as abuse of the sunroof which not covered by warranty. |
• | Without pinch protection, the power Sunroof will close with enough force to cause serious personal injury. |
• | Always be careful when closing the power Sunroof. |
• | Pinch protection cannot prevent fingers or other parts of the body from being pressed against the edge of the roof; may result in injuries. |
• | If the power Sunroof malfunctions, pinch protection may not function properly. Visit a Mahindra Authorized Dealer or an authorized Mahindra Service Facility for assistance. |
• | The sunroof does not completely close or open by operating the switch once. |
• | The sunroof slides back to close. But the operation does not stop even after a complete close and tilts up the sunroof. |
• | The opening gap remarkably decreases for the sliding open or tilt up. |
• | The sunroof does not work |
• | Operation of the sunroof switch does not do anything or work properly. |
• | The operating process is not same as before due to discharged or disconnected battery. |
Initialization
and
Self Learning Procedure
|
||
|
|
|
1. | Turn ON the ignition |
2. | Sunroof to be in TILT position. Press the ‘sunroof close switch’ and hold it for 9 to 10 seconds. During this process, Sunroof makes clicking sound at Tilt position. |
3. | Close Sunroof by again pressing Open switch. |
4. | The Re-Initializing command is complete, Check if the Express open/close features are working. |
1. | Sliding sunroof shall be in CLOSE position. |
2. | Press ‘sunroof close switch’ and keep the switch pressed continuously. Do not release the switch and wait for following actions to perform. |
3. | Once Sliding sunroof reaches to TILT position, will start its cycle after 5 sec, delay. |
4. | Sunroof start to self - learning, run from Tilt - Close - Partial Open – close. |
5. | Overall approx. 16 to 18 seconds @13.5V required to complete self-learning. |
6. | The Self learning command is complete. |
• | To help prevent damage, remove ice and snow from the sunroof before opening or tilting it in winter season. |
• | Always close the Sunroof before leaving the vehicle or if it begins to rain. If the Sunroof is open or tilted, rain could enter the vehicle interior and cause extensive damage to the electrical system. This could result in further vehicle damage. |
• | Remove leaves and other objects from the Sunroof guiderails regularly either by hand or using a vacuum cleaner. |
• | If the power Sunroof malfunctions, pinch protection may not function properly. See a Mahindra Authorized Dealer or an authorized Mahindra Service Facility. |
• | During sliding sunroof (one touch/manual) open operation, the sunshade will also open in synchronization with sliding sunroof glass. |
• | During sliding sunroof (one touch/manual) close operation, the sunshade will not close in synchronization with sliding sunroof glass. |
|
|
||||||
|
|
|
|
• | After cleaning of all visible particles, blow air into drain hose channel area to clean hose for mud in this area. |
• | Now pour 1 litre of water in rain channel and check if water is draining or not. |
Sunroof &
Power
Window Smart Close
|
|
|
During ignition off with all doors closed, if the
key
fob lock button is pressed for more than 1 second, then doors will get
locked and Sunroof & power window will get closed automatically.
|
Sunroof &
Power
Window Smart Open
|
|
|
During ignition off, if the key fob unlock button is
pressed for more than 1 second, then doors will get unlocked and Sunroof
& Power window will be opened along with blower ON in fresh air mode (for
approximately 40 seconds).
|
• | Ignition is off and |
• | Doors in locked state and |
• | Key fob is not inside the vehicle. |
![]() |
![]() User set PIN
will be required to execute AdrenoX commands.
|
|
A
|
Temperature control Knob
|
B
|
Air distribution/Mode switches
|
C
|
Front defogger switch
|
D
|
Blower speed control knob
|
E
|
Rear Defogger switch
|
F
|
Recirculation mode switch
|
G
|
A/C switch
|
• | In certain operating conditions when the engine gets overheated, the engine management system may switch off the air conditioner intermittently. |
• | The air conditioner should be operated at least for ten minutes once every fortnight, even during winter months. This allows AC system components to get lubricated periodically and ensures optimum system. |
• | During extreme cold weather conditions, the air conditioner may not function until temperature of the air near the evaporator rises above a predefined threshold. |
• | When air conditioner is ON, moisture is extracted from the air. The resulting condensate is drained off from the vehicle. It is therefore normal, if you see a small pool of water under your vehicle |
• | Face Mode — When face mode switch is pressed, air is discharged from the Center vents and side vents. This mode is most suitable for directing air flow towards the face of the passengers. |
• | Face-Foot Mode — When Face-Foot mode switch is pressed, air is discharged from the Center vents, Foot vents and side vents. This mode is most suitable for directing air flow towards both the face and feet of passengers at the same time. |
• | Foot Mode — When foot mode switch is pressed, air is discharged from the two foot vents. This mode is most suitable for directing air flow towards the feet of passengers seated on front seats. |
• | Foot and Front Defogger Mode — When foot and front defogger mode switch is pressed air is discharged from the foot vents, side defogger vents and windshield defogger vents. This mode is most suitable for directing air flow towards the feet of passengers while de-misting/defogging. |
• | Front Defogger Mode — When Front Defogger mode switch is pressed air is discharged from the side defogger vents and windshield defogger vents. This mode is most suitable for directing air flow towards the front windshield to ensure de-misting / defogging. |
A
|
Co–Driver Temp control Knob
|
G
|
Driver temp control knob
|
B
|
Front defogger switch
|
H
|
A/C ON Switch
|
C
|
Rear Defogger switch
|
I
|
OFF switch
|
D
|
Blower speed control Switches
|
J
|
MAX A/C Switch
|
E
|
Auto Mode Switch
|
K
|
Mode Switch
|
F
|
Recirculation Mode Switch
|
L
|
Dual mode switch
|
![]() |
Below mentioned switches/knobs in DATC control panel
is
pressed/Rotated, respective icons and changes are displayed in the
infotainment screen.
|
• | If you press the DUAL mode switch, the indicator lamp lights up and DUAL mode indicator on the infotainment displays comes on. |
• | When the driver temperature control knob is rotated, the driver side temperature on the infotainment display is adjusted as desired and when co-driver temperature control knob is rotated, co-driver side temperature on the infotainment display is adjusted as desired. |
• | While the DUAL mode switch is operating, its indicator lamp turns ON and the lamp turns off when the DUAL mode switch is turned OFF. |
|
Face-Mode
|
|
Foot-Mode
|
|
Face/Foot-Mode
|
|
Foot/Defogger-Mode
|
1. | In cabin temperature is set to minimum. |
2. | Blower fan speed is set to Max. |
3. | Air intake mode is set to recirculation mode. |
4. | Air distribution mode is set to Face mode. |
1
|
Co–driver Temp Control Knob
|
2
|
Auto Indicator ON
|
3
|
Driver Temp Control Knob
|
1. | Press the AUTO switch. |
2. | AUTO indicator is displayed on the Infotainment Screen. |
3. | Set the desired cabin temperature with the temperature control knob. |
4. | The temperature of the passenger compartment is automatically maintained according to the set temperature. |
5. | If the driver and co-driver require different temperatures in their respective zones, the same can be done by pressing the dual mode Switch and subsequently, setting different temperatures using temperature control. |
1
|
Co–driver Temp Control Knob
|
4
|
Recirculation Mode Switch
|
2
|
Mode Switch
|
5
|
Driver Temp Control Knob
|
3
|
Blower Control Speed Switch
|
1. | Press AC ON switch |
2. | Set the desired temperature by rotating the temperature control knob. |
3. | Adjust the blower speed by pressing the blower speed control switches. |
4. | Select the air flow by pressing the air distribution/mode switch. |
5. | Select the air source mode by pressing recirculation mode switch. |
![]() |
|
• | Under Climate control screen select Climate icon. |
• | All HVAC setting can be changed by pressing respective symbols or buttons in climate screen. |
![]() |
![]() |
|
Remote cooling feature allows user to control Cabin
climate settings from outside the vehicle.
|
![]() |
Remote cooling starts by automatically once we press
"start engine" button in the AdrenoX Connect mobile App.
|
• | All Doors closed |
• | Gear is in PARK position |
• | Fuel level is greater than 10 liters |
• | Vehicle should be in Standstill |
![]() |
When vehicle is started remotely using AdrenoX
connect
mobile App, By default Cabin climate settings will be changed to 18
deg C in Auto mode.
In remote Engine start condition user will have
access
to control below Cabin climate setting under Climate settings.
|
1. | Duration time : User can select the time duration for which remote cooling will be active using AdrenoX connect mobile App, Duration can be selected from minimum of 2 mins to maximum of 15 mins. |
2. | Cabin Temperature settings: User can change temperature settings during Remote cooling. |
3. | Front defrost: User can Activate /De-activate front defrost during remote cooling by selecting front defrost option in mobile app. |
4. | Rear Defrost: User can Activate /De-activate Rear defrost during remote cooling by selecting Rear defrost option in AdrenoX connect mobile App. |
![]() |
Remote cooling can be De-activated by using Mobile
App.
if vehicle is already in Remote start condition by Pressing start
engine button, Remote cooling will be deactivated.
In Mobile App customer will get notification if
Remote
cooling is failed.
|
• | Make sure that all the windows are fully closed. |
• | Fully open the vents and adjust Louvres to direct air toward face. |
• | Turn ON AC. |
• | Press MAX AC Switch. |
• | Make sure that all the windows are fully closed. |
• | Set the blower to maximum speed. |
• | Fully open the vents and adjust Louvres to direct air toward face. |
• | Set the air distribution control to face mode. |
• | Set air intake control to recirculation mode. |
• | Turn the air conditioner ON. |
• | Set the temperature control knob to extreme left (coolest) position. |
1. | Make sure that all the windows are fully closed. |
2. | Set the blower to maximum speed. |
3. | Set the air distribution control to foot mode. |
4. | Set air intake control to recirculation mode. |
5. | Set the temperature control knob to extreme right (hot) position. |
6. | For de-humidified heating, switch the air conditioner ON. So on rainy conditions if the heater is ON then also keep the AC ON. |
• | For quickly defogging/de-misting outside of front windshield, it is advisable to operate the windshield wiper/washer for few times intermittently. |
• | If snow has deposited on windshield, use ice scraper to remove ice deposited before using wiper. |
• | In freezing weather, warm the front windshield with the defogger before using the windshield washer. Also use a washer fluid having anti-freezing properties. These will help prevent the washer fluid from freezing on your windshield. |
• | Dirty/contaminated windshield would make misting / fogging-up worse. Always keep the inside and outside of windshield clean. |
• | Reduced air flow because of clogged HVAC filter or any other obstructions in air flow path may lead to inadequate defogging/de-misting performance. If air flow seems to have considerably reduced, get the filter cleaned or replaced immediately. Air flow path should be kept free of obstructions. |
• | Reduced cooling performance from air conditioner may lead to inadequate defogging/de-misting. If cooling effect seems to have dropped considerably, get the air conditioning system checked by an Mahindra Authorised Dealer. |
1. | Adaptive Cruise Control (ACC) |
2. | Collision Mitigation System (AEBS/FCW)
|
3. | High Beam Assist (HBA) |
4. | Traffic Sign Recognition (TSR) |
5. | Lane Keep Assist System (LKA/LDW)
|
6. | Smart Pilot Assist (SPA) |
7. | front Vehicle Start Alert (FVSA) |
8. | Speed Limit Assist (SLA) |
![]() |
Camera Maintenance:To avoid incorrect, partial or disabled ADAS functionality due to Camera sensor failure, following points to be taken care
of.
|
• | The outer area of the windshield must be cleaned regularly and must be kept free of dirt, oil, ice, water drops etc. |
• | If there is condensation in the inner side of windshield in front of Camera, use the de-mister to clear it. |
• | If there is any other dirt in the inner side of windshield in front of Camera, contact Mahindra Service Centre for cleaning. |
• | Stickers, window tinting, electronic toll devices or similar objects should not be attached on the windshield in front of camera. |
• | If the Camera needs to be removed or replaced, contact Mahindra Service Centre only. |
• | If the windshield portion in front of camera has any cracks/scratches/stone chips, it should be taken to Mahindra Service Centre for complete windshield replacement. |
• | If the vehicle met with any accident or impact, particularly for the front side, contact Mahindra Service Centre to check for any damage / calibration errors in the Camera. |
• | In case any modification to be done for Camera, beauty cover, Inside Rear View Mirror or Ceiling, contact Mahindra Service Centre. |
• | Any external object/accessories should not be installed on the hood area as it may affect the Camera’s field of view. |
• | Ensure that no flag post is mounted on the bonnet that may block the camera field of view. |
• | The headlamp aiming should not be modified and in case of a headlamp replacement, headlamp aiming should be done by Authorised Mahindra Service Centre only. |
• | If the Windshield or Camera is replaced, the Camera must be recalibrated at Authorised Mahindra Service Centre only. |
• | The Radar surface and bumper area in front of radar must be cleaned regularly and must be kept free of dirt, oil, ice, water etc. |
• | Any external object should not be installed on the front grill or front bumper area as it may affect Radar’s performance. |
• | Ensure that the number plate is not blocking the radar sensor. |
• | Avoid any kind of customization to the front bumper and the Radar, such as attaching stickers, installing flags or any metallic objects, painting etc. |
• | If the vehicle has met with an accident or impact, particularly an impact from the front side, then contact the Authorised Mahindra Service Centre to check for any damage to the Radar unit. |
• | If the Radar needs to be removed or replaced, contact Mahindra Service Centre only. |
• | If any rework need to be done on front bumper or the Radar, the Radar must be recalibrated by the Authorised Mahindra Service Center only. |
• | ACC is an aid to assist the driver. It is not a collision avoidance system. |
• | Always drive carefully and attentively when using the ACC system. Read and understand the Owner’s Manual thoroughly before using the system. |
• | ACC is designed to be a supplementary driving aid. It is not, however, intended to replace the driver's attention and judgement. The driver is responsible for observing all traffic and safety rules, including maintenance of safe distance and speed and must intervene if Adaptive Cruise Control does not maintain a suitable speed or suitable distance to the vehicle ahead. |
• | It is the driver’s responsibility to stay alert and to be in control of the vehicle at all times. |
• | Improper use of ACC can lead to a crash. |
• | ACC has limited braking capability and may not stop the vehicle in time to avoid a collision, if the front preceding vehicle decelerates quickly or a new vehicle cuts-in front always be prepared to apply brake. |
• | Failure to follow the alerts and instructions for proper use of system could result in serious injury. |
• | Always observe posted speed limits and do not set the speed over them. |
• | Use ACC in appropriate roads with proper lane marking and sign boards. |
• | Do not use ACC in busy areas where multiple road users cross the vehicles intended path. |
• | When two wheeler cuts out, ACC may not be able to identify the vehicle in front of two-wheeler. |
• | ACC may not be able to stop behind stopped vehicles. |
• | ACC may not be always able to follow two wheeler. |
![]() |
The ACC switches on the steering wheel consists of five switches which are used for ACC Operation.
|
• | Instrument Cluster Display |
Image |
Display |
Image |
Display |
---|---|---|---|
![]() |
ACC Indicator
|
![]() |
Time Gap
|
![]() |

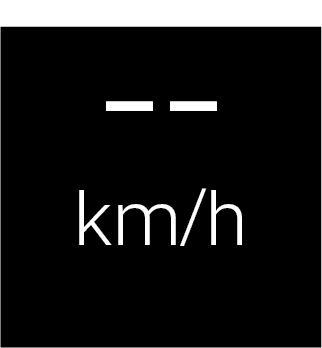

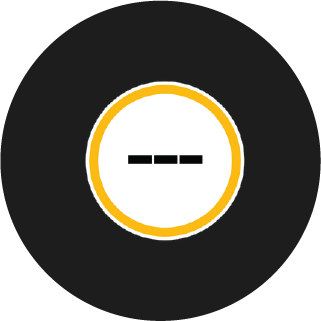

Set Speed
|
![]() |
Front preceding vehicle Indicator
|
• | How to turn ACC ON/OFF |
![]() |
Press CRUISE switch to activate ACC feature. This turns ACC to Standby Mode.
|
![]() |
|
![]() |
|
• | The vehicle will not maintain previous set speed or previous time gap to the vehicle ahead. |
• | Press the ON/OFF switch again to deactivate ACC feature. |
• | If ACC indicator illuminates in red, there could be a problem with ACC system. Visit nearby Mahindra Service Centre. |
![]() |
Drive the vehicle to the desired speed (minimum 10 kmph) and press Set+/Set- switch
|
![]() |
|
• | ACC will maintain the vehicle speed as set by the driver. Once speed is set, ACC telltale will be displayed in green. After that no accelerator pedal input from driver need to be given. |
• | Set speed will be displayed as set by driver. |
• | Time Gap bars will be displayed. |
• | ACC operation when Front Preceding Vehicle detected ahead |
• | ACC operation when Front Preceding Vehicle moved out from its lane |
• | If Set+/Set- switch is pressed when there is no front preceding vehicle and vehicle’s speed is below 30 kmph then ACC Set Speed will be initialized to 30 kmph. |
• | When there is a front preceding vehicle, user can set desired speed by pressing SET+/- switch even below 10 kmph as there is no minimum desired speed requirement. |
• | When front preceding vehicle and your vehicle are in stopped condition, apply brake and press SET+/SET-. Note that ACC will remain in standstill until the front preceding vehicle moves. |
Condition |
Alert |
---|---|

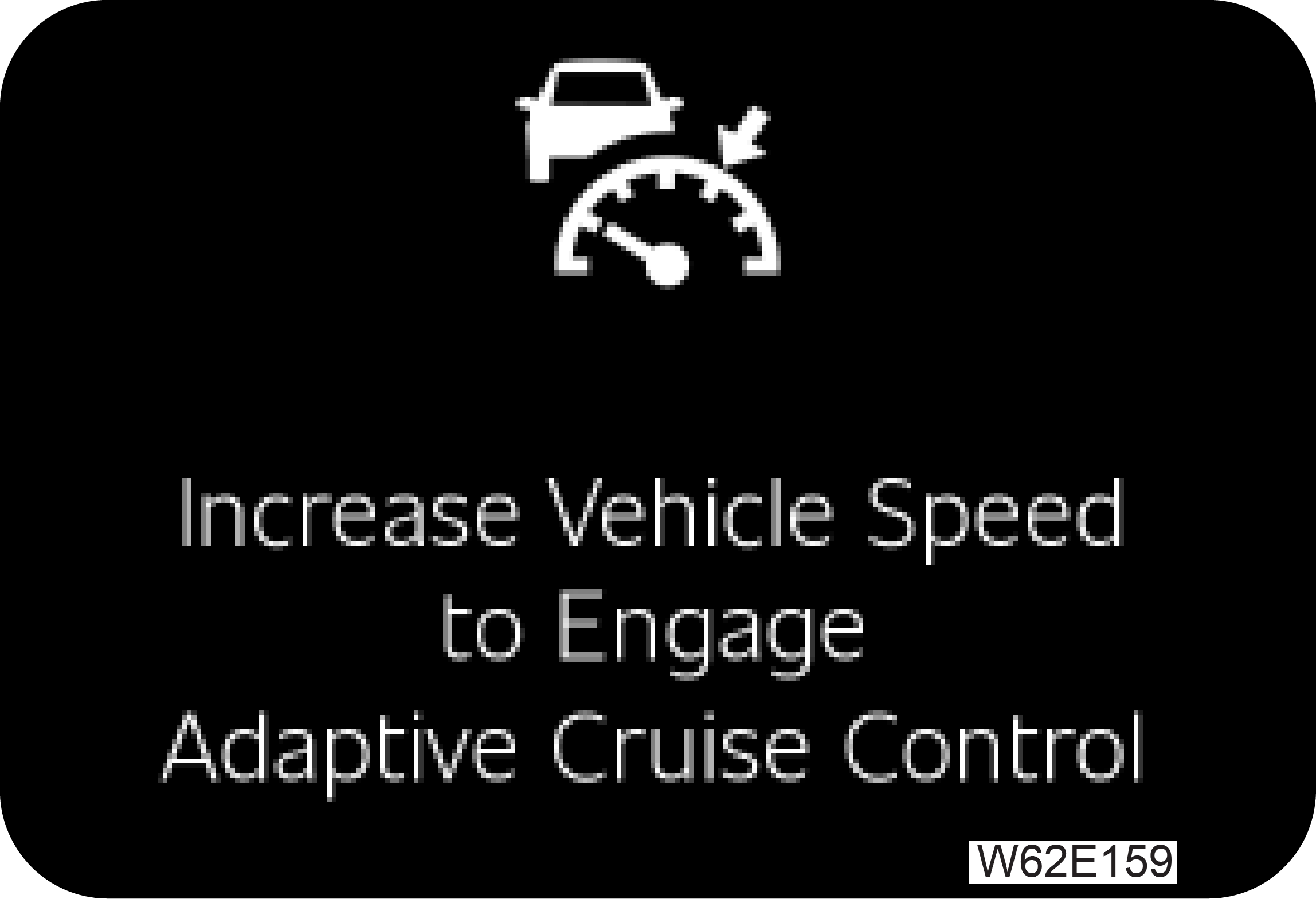

When traveling below 10 kmph and a vehicle ahead is not Detected.
|
![]() |
When front preceding vehicle is very close or far away from host vehicle.
When the shift lever is not in D (Drive) Position.
When the brakes are operated by the driver.
|
![]() |
When Electronic Stability Control system is unavailable/OFF.
|
![]() |

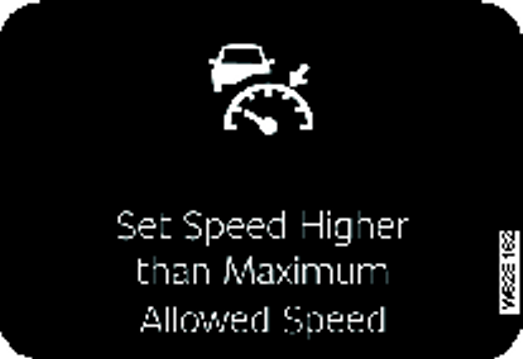

When driving above maximum ACC operational speed limit.
|
![]() |

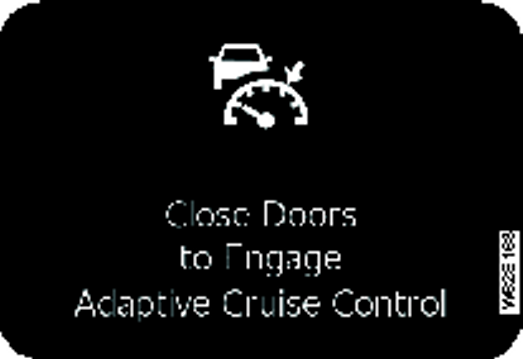

When driver door is open.
|
![]() |
When Collision Mitigation System is unavailable.
|
![]() |
When driver seat belt is not buckled.
|
![]() |
ACC interacts with other systems, such as braking, steering, EMS (Engine Management System), ACC Switch etc. If any of these
systems is not functioning properly, ACC cannot be activated.
|
• | Press and quickly release the SET+ switch to increase the set speed by 1 kmph |
• | Press and hold the SET+ switch to increase the set speed by 10 kmph. The set speed will be increased to the next nearest multiple of 10. Continuous hold / stuck of SET +/- button for 60 sec will turn OFF ACC. |
• | Release the switch when the desired set speed reached. |
• | Press and quickly release the SET- switch to decrease the set speed by 1 kmph. |
• | Press and hold the SET- switch to decrease the set speed.by 10 kmph. The set speed will be decreased to the next nearest multiple of 10. |
• | Release the switch when the desired set speed reached. |
• | ACC will resume back to the last set speed provided the conditions to engage ACC are satisfied. |
• | The set time gap value of the current ignition/driving cycle will be used for the next ignition/driving cycle. |
• | When the system is used for the first time after starting the engine, the time gap value is set to the maximum value (Level 4). |
![]() |

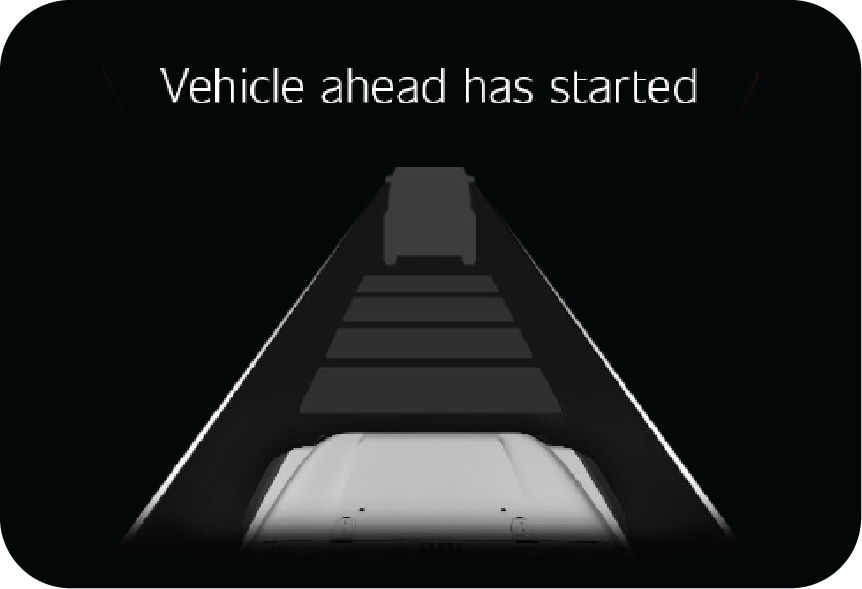

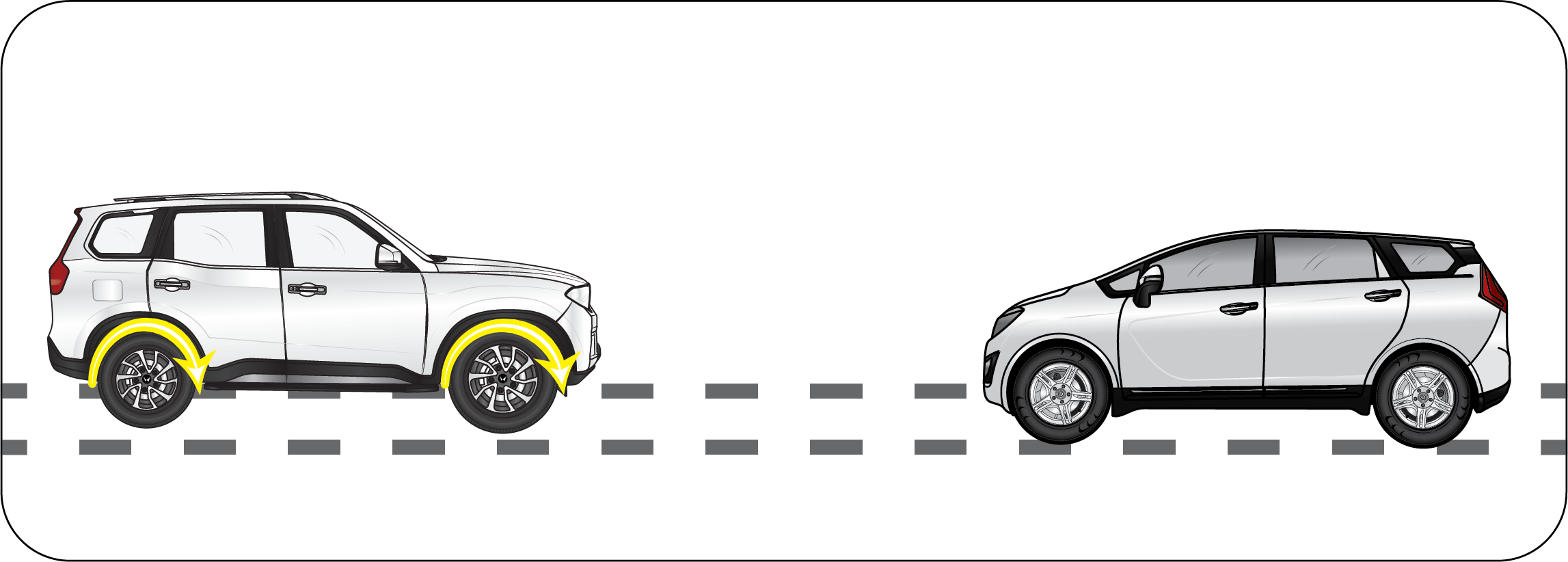

If it takes more than 3 seconds for the front preceding vehicle to begin moving again, ACC will be set to Standby and the
stop-hold function will activate. A pop-up alert message “Press Resume Switch or Pedal to Accelerate” will be displayed for
driver to resume.
|
1. | Press RESUME button |
2. | Slightly tap the accelerator pedal |
![]() |

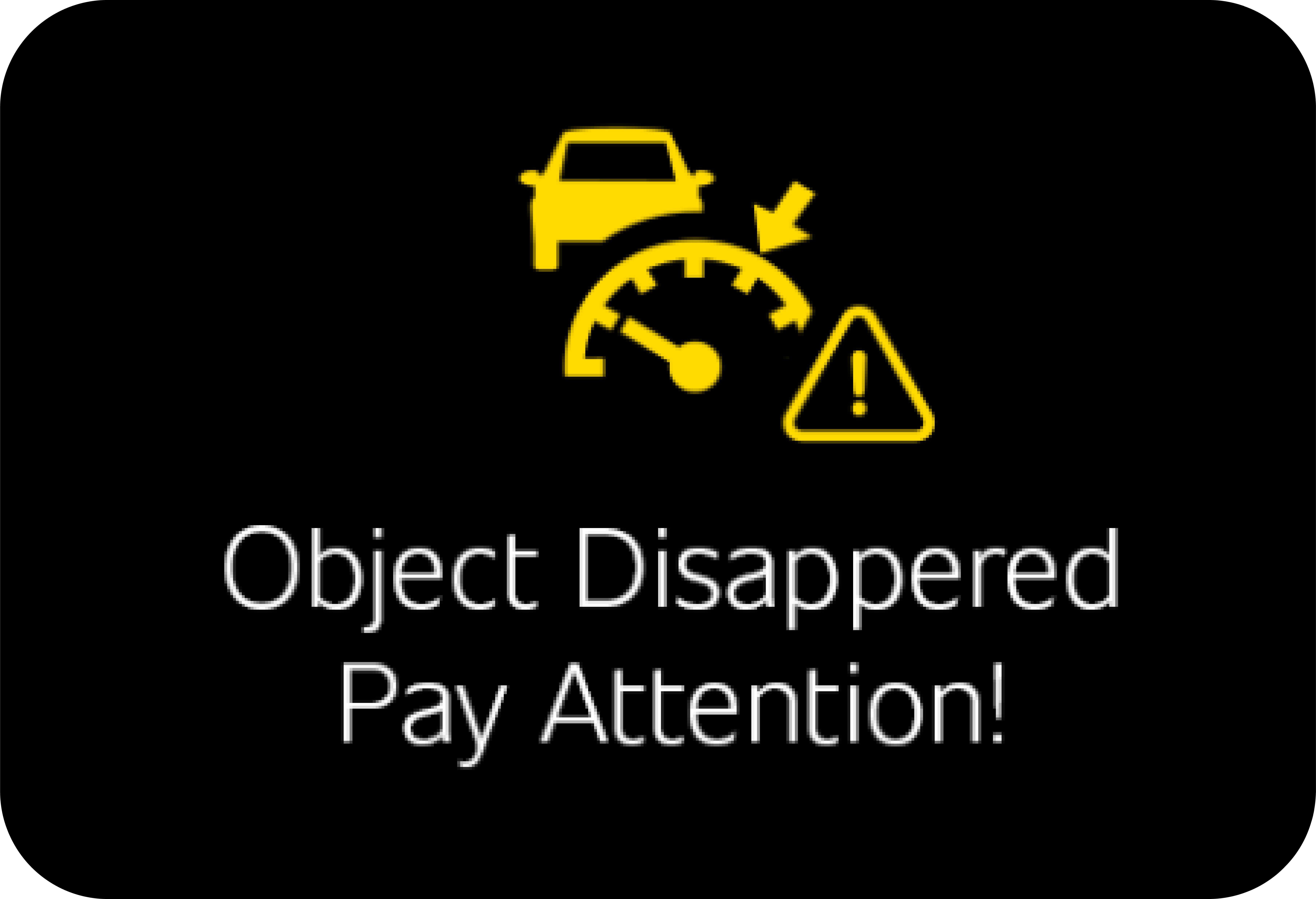

![]() When following the front preceding vehicle, if the front preceding vehicle disappears due to a cut-out maneuver, a pop-up
message will be displayed as “Object Disappeared Pay Attention!”
|
• | ACC is overridden hence Set Speed and Distance is not followed |
![]() |
|
• | Set speed display will blink. |
• | Time Gap display will blink. |
• | The front preceding vehicle indicator will turn off when the area ahead of the vehicle is open. |
• | When the shift lever is not in D (Drive) position. |
• | When the parking brake is applied. |
• | When Brake pedal is pressed. |
• | When ESP is turned off. |
• | When the radar signal is temporarily interrupted. |
• | When radar sensor area of the front bumper is covered with dirt or is obstructed. |
• | When accelerator pedal is depressed for more than 60 seconds continuously. |
• | When Automatic Emergency Braking System intervenes. |
• | When the ESP is in operation. |
• | When the driver’s door is open. |
• | When vehicle speed exceeds maximum ACC operating speed. |
• | When the driver’s seat belt is unbuckled |
• | When host vehicle is stopped behind a preceding vehicle for more than 3 seconds and the preceding vehicle moves and disappears, and driver tries to resume ACC. |
• | The engine speed (rpm) is too high/low. |
• | When ACC is engaged, and your vehicle stopped, and after 3 seconds the front preceding vehicle moves and disappears and when the driver tries to resume ACC without the front preceding vehicle. |
• | When any 4WD drive mode or 4XPLOR (terrain) mode is engaged (if equipped). |
![]() |

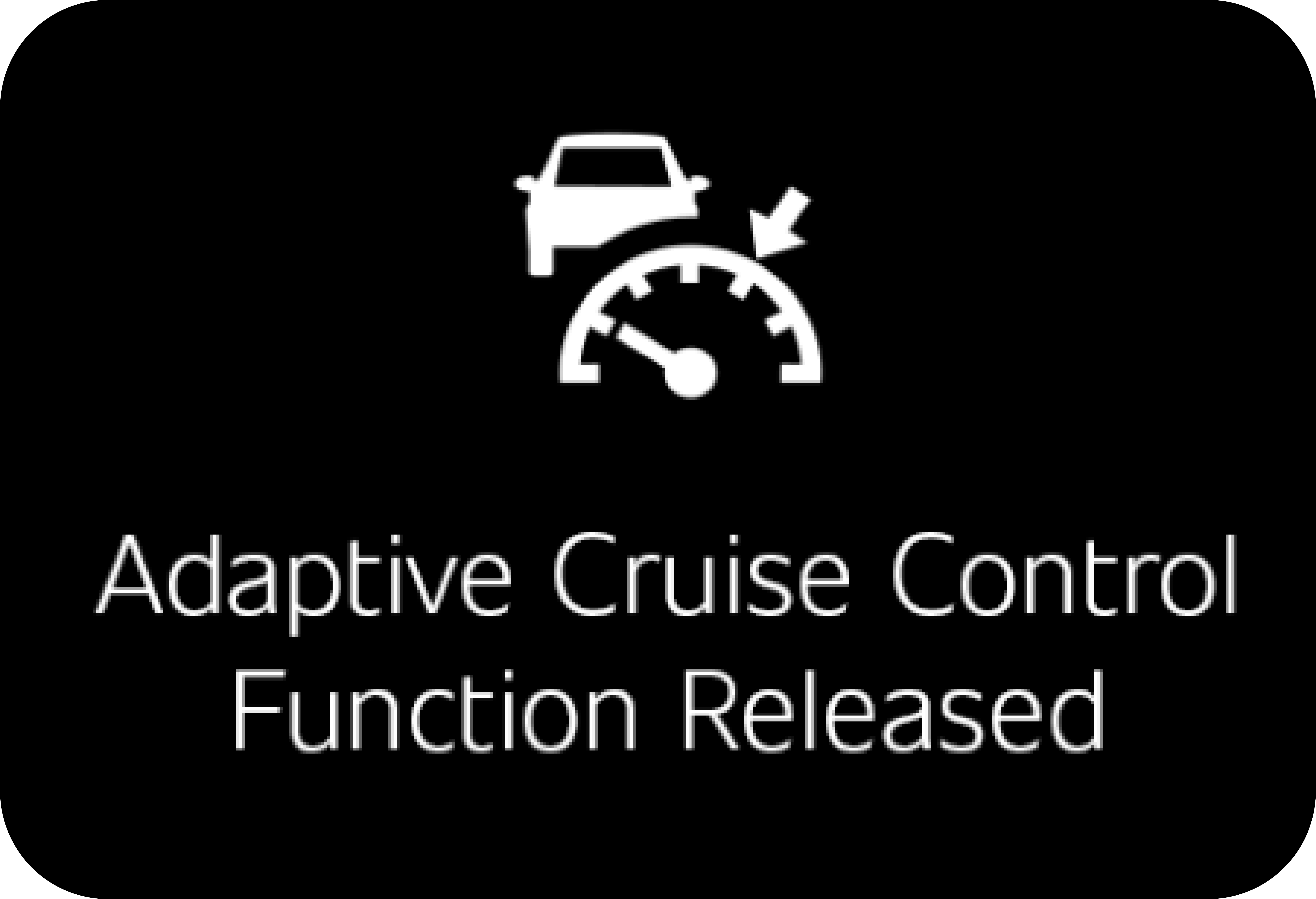

In above scenarios, the driver may be alerted by an audio alert and a message in the instrument cluster that ACC function
is released/disengaged.
|
![]() |

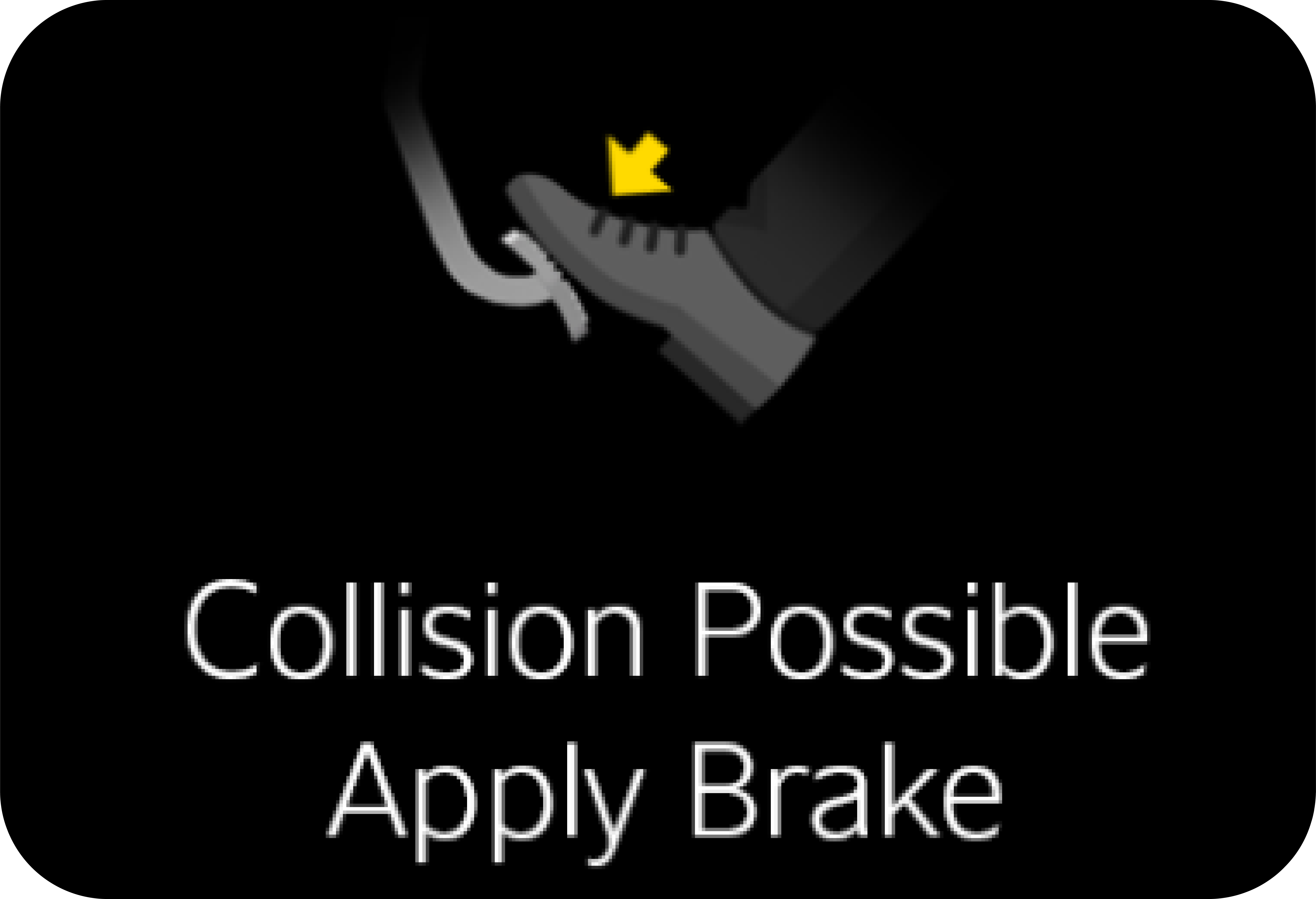

![]() In some situations where ACC braking is not enough to follow the front preceding vehicle, an audio alert along with pop-up
message will be given in the instrument cluster "Collision Possible Apply Brake". The driver has to apply brake to keep a safe distance.
|
Causes |
Action |
---|---|
The bumper in front of the radar is dirty or covered with snow/ice.
|
Clean/Clear the bumper in front of the radar.
|
Heavy rain or snow is interfering with the radar signals.
|
No action possible. Heavy precipitation may affect the function of the radar.
Do not use ACC during heavy rain or snow.
|
Clogged water or snow from the surface of the road may interface with the radar signals.
|
No action possible. A very wet or snow-covered road surface may affect the function of the radar.
Do not use ACC during these situations.
|
The bumper area in front of the radar is clean but the message remains in the display.
|
Wait a short time. It may take several minutes for the radar to detect that it is no longer obstructed.
|

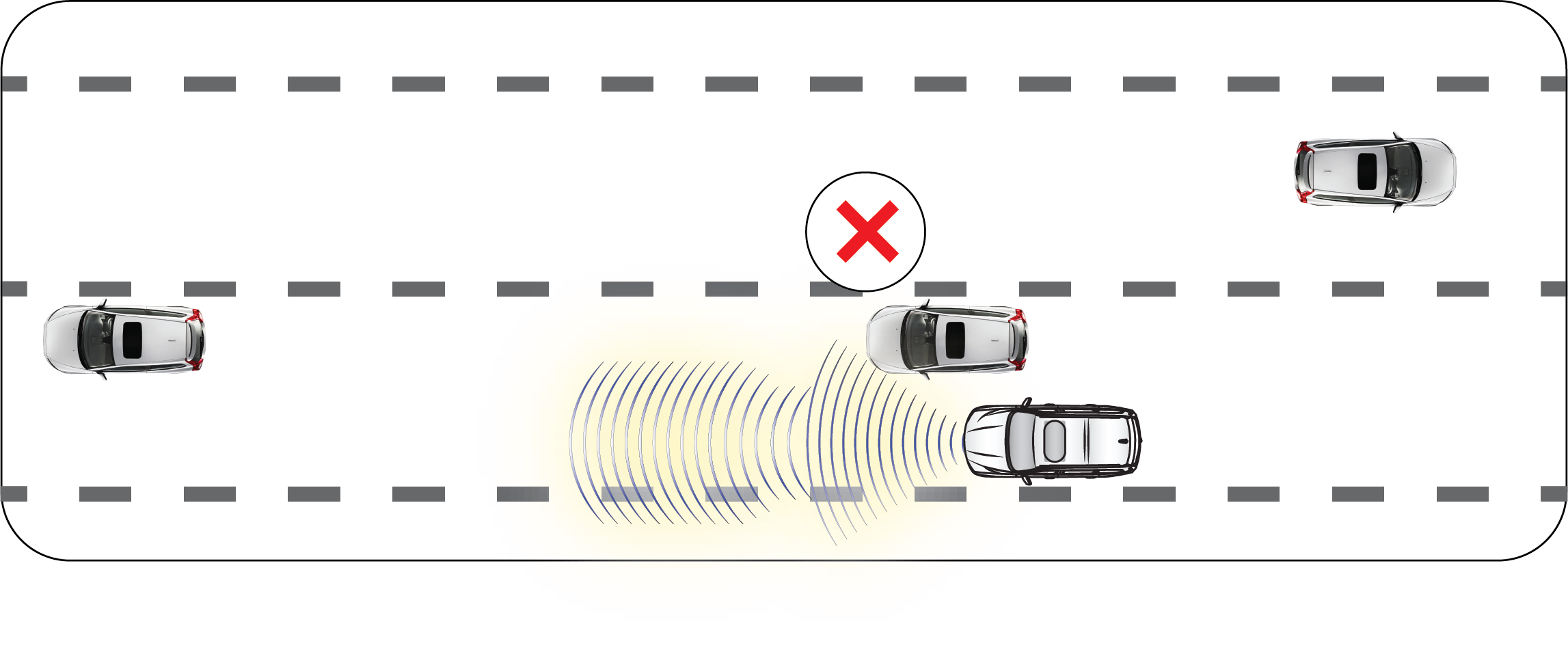

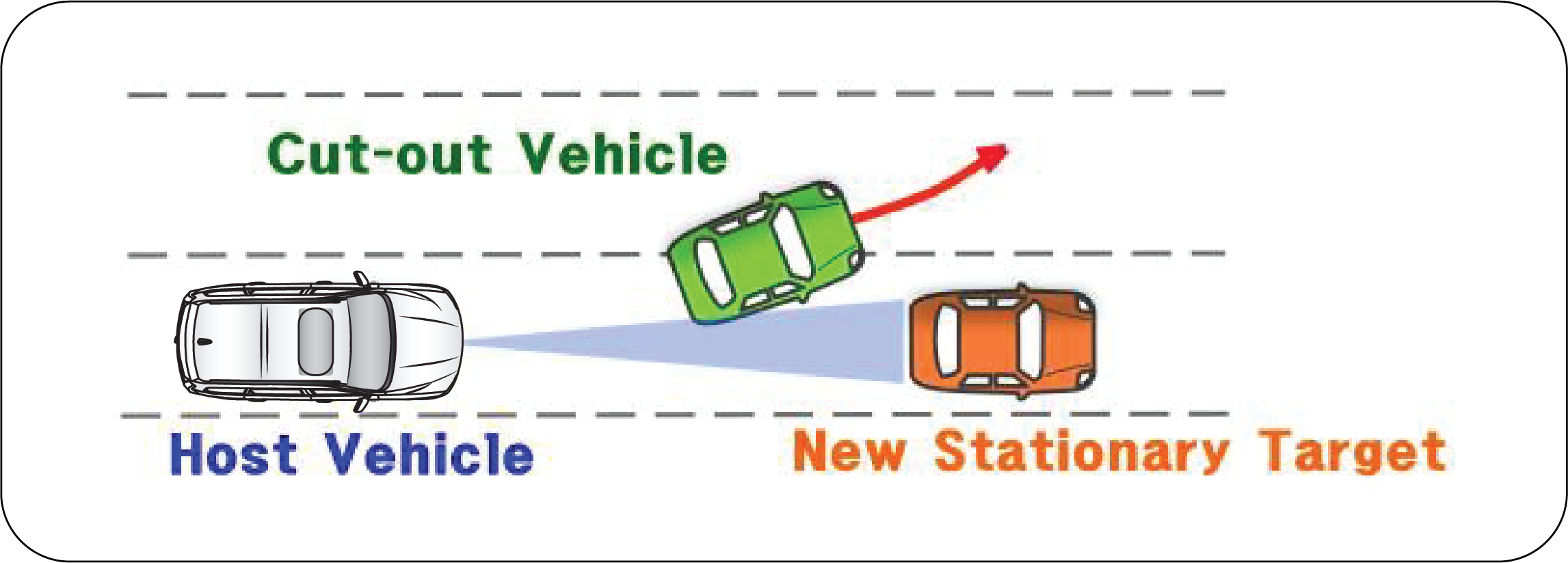

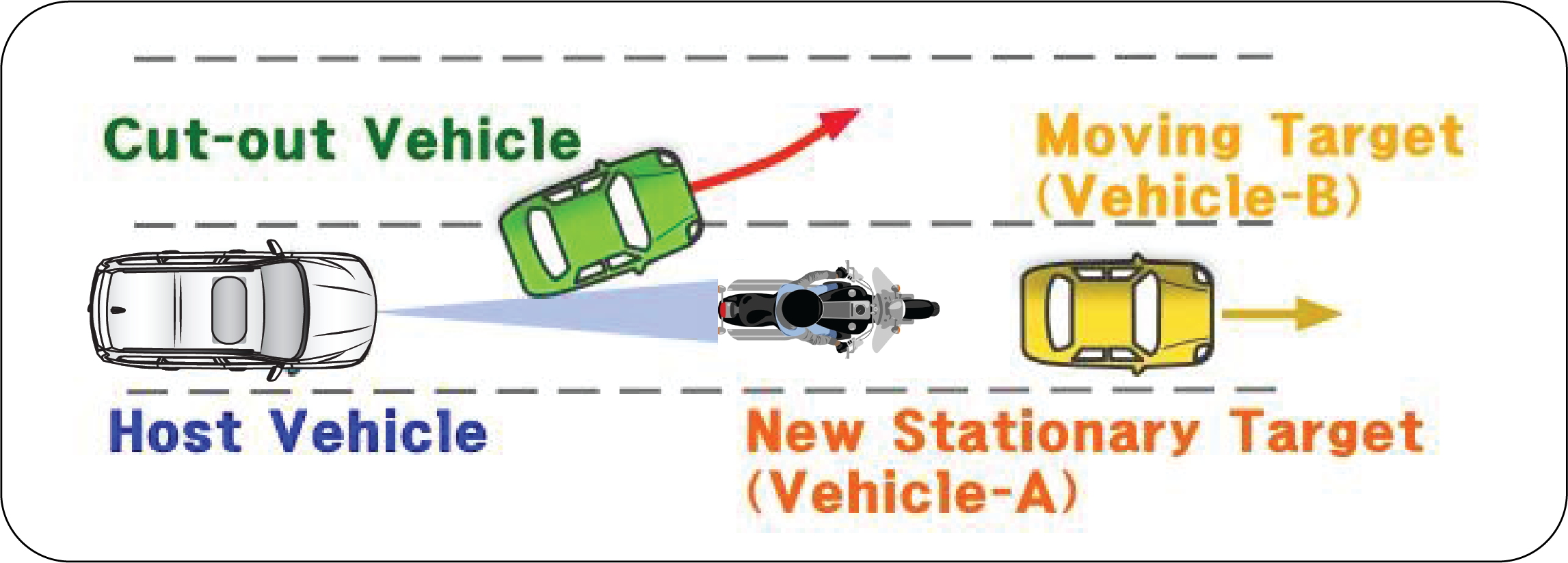

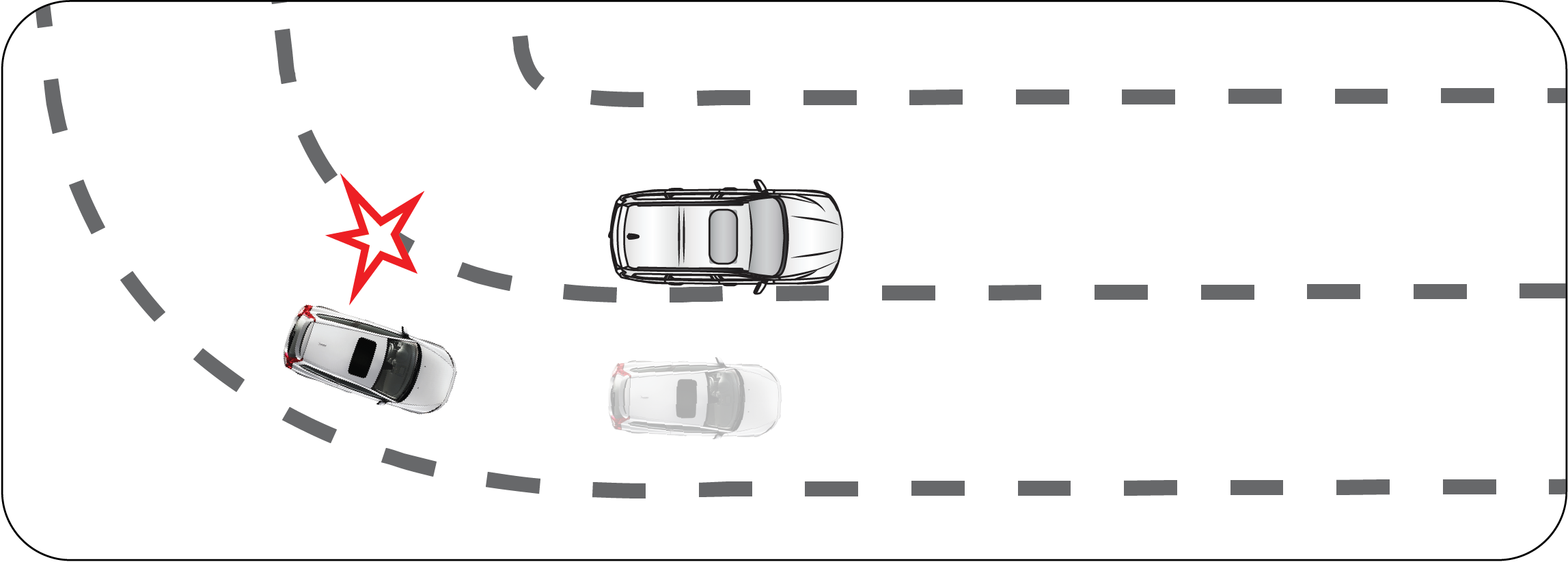

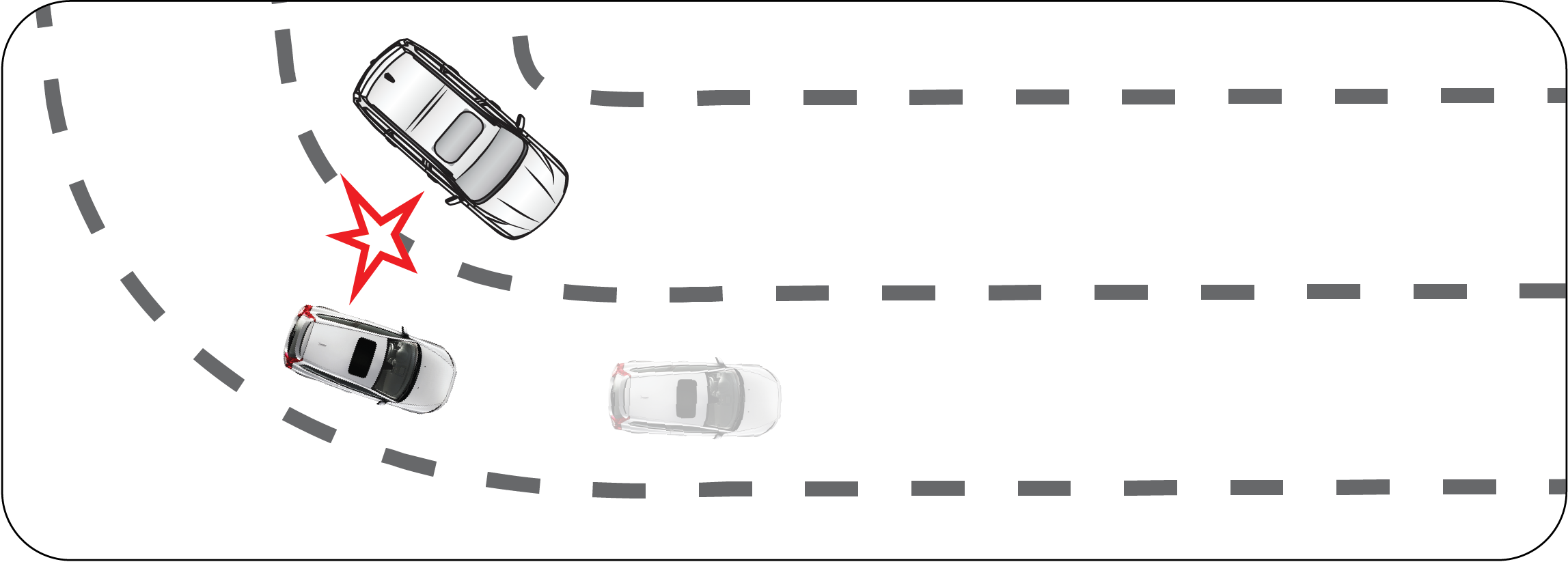

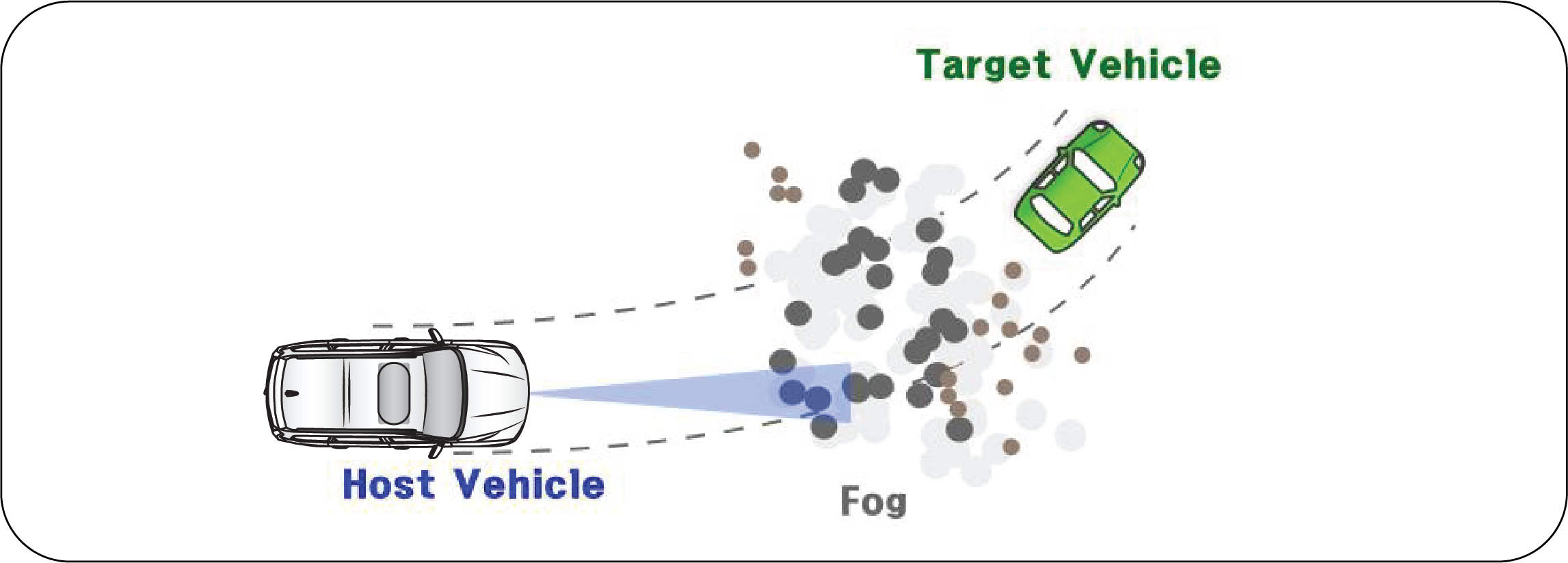

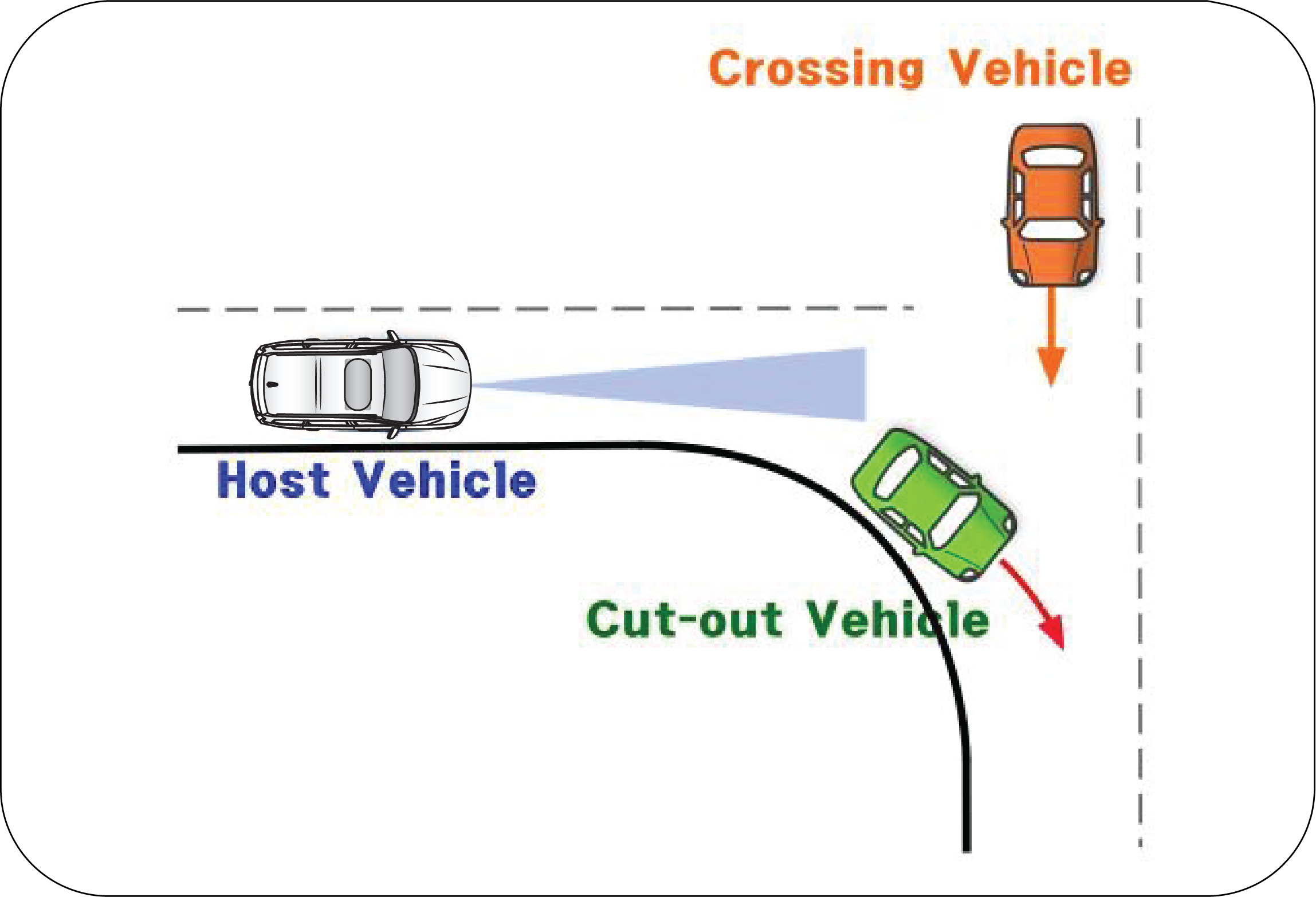

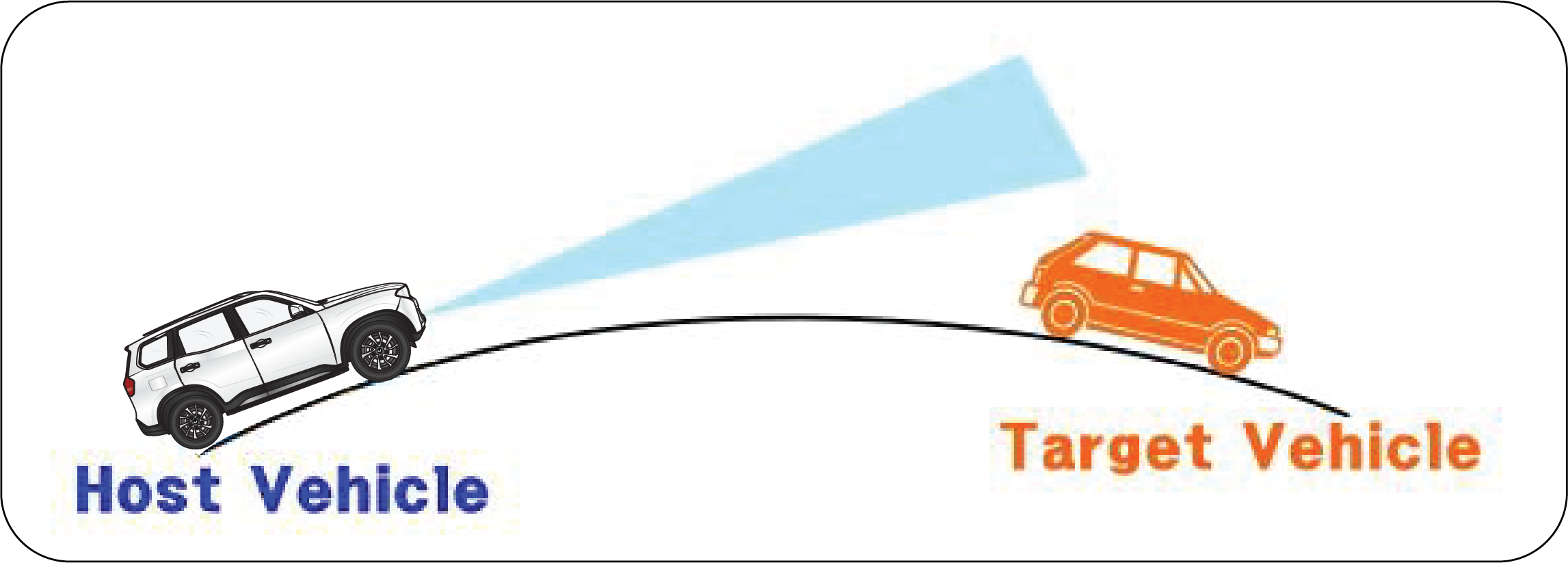

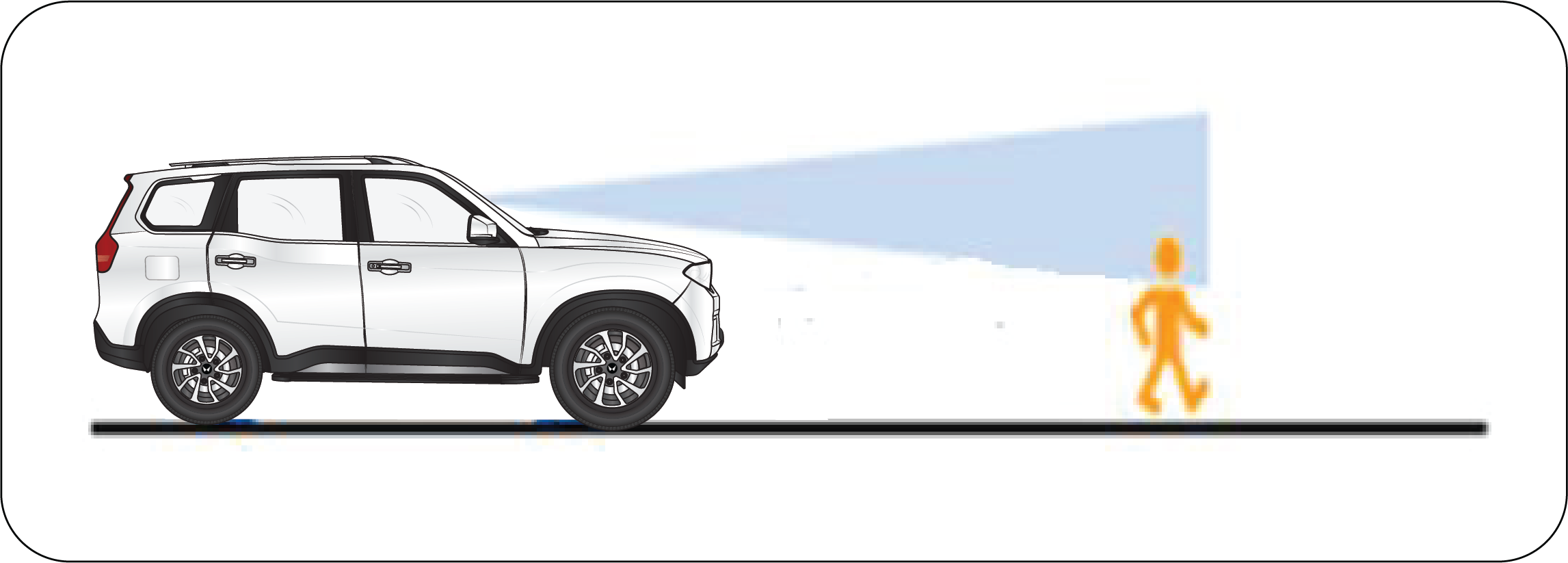

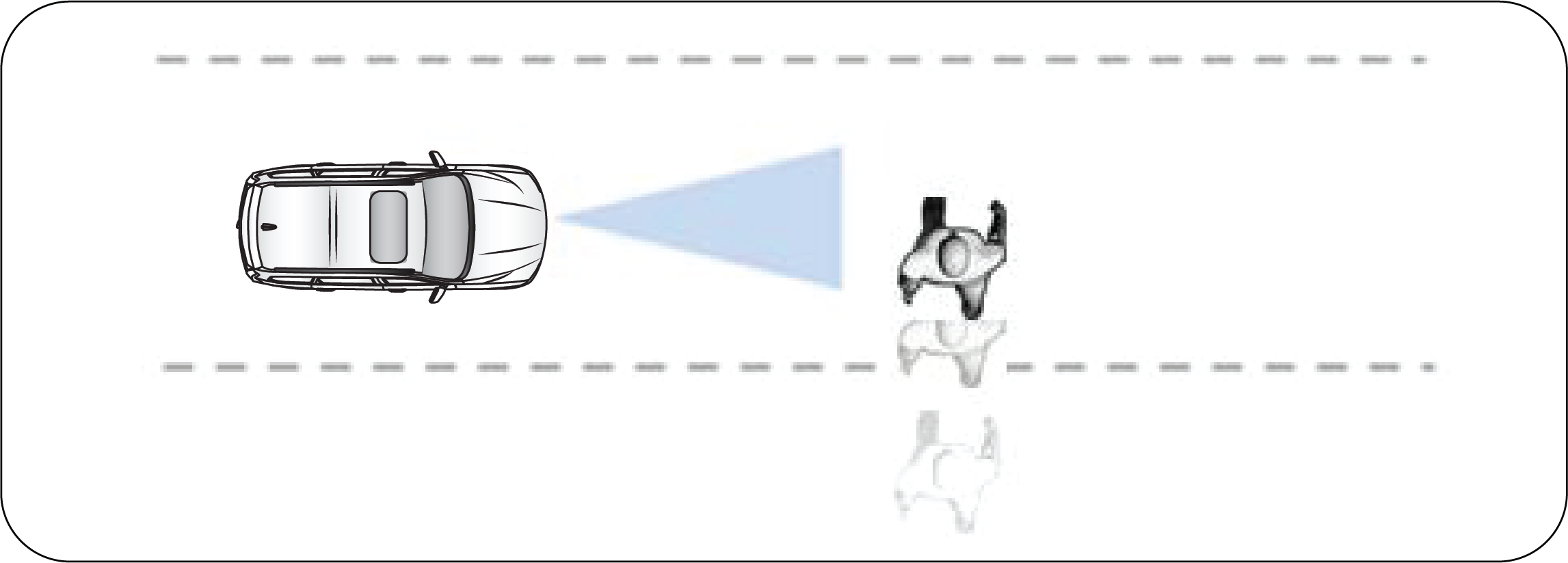

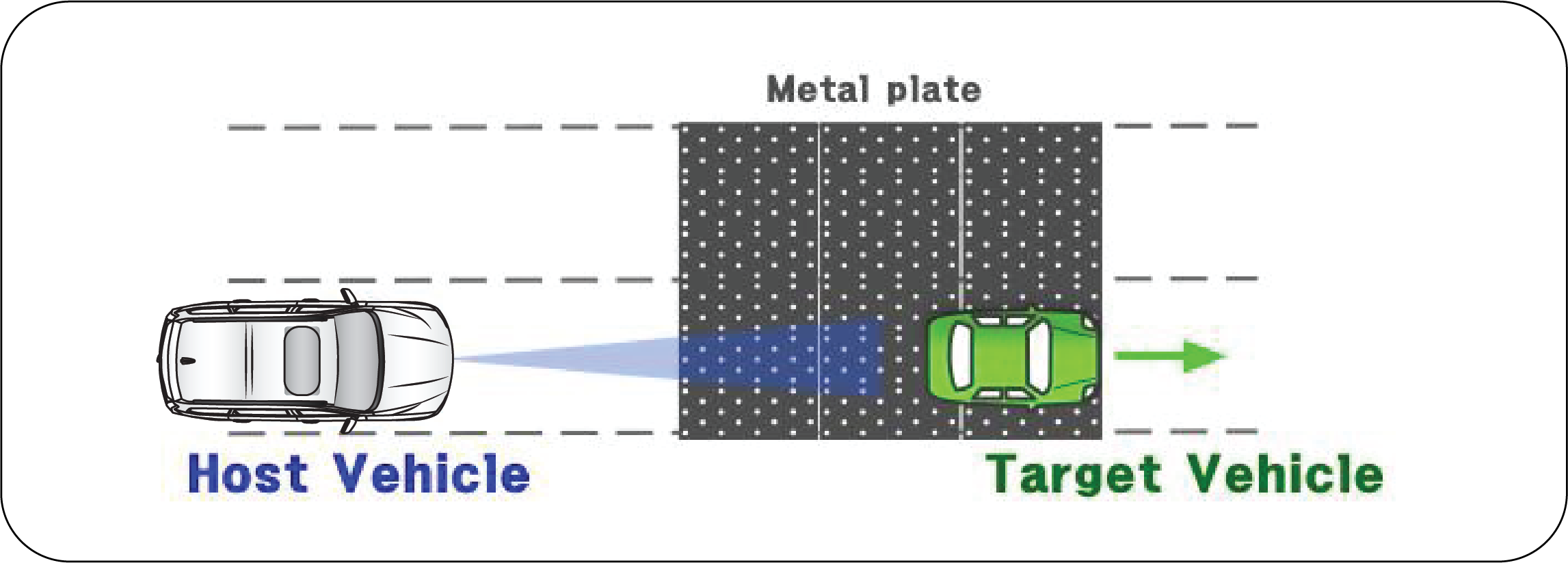

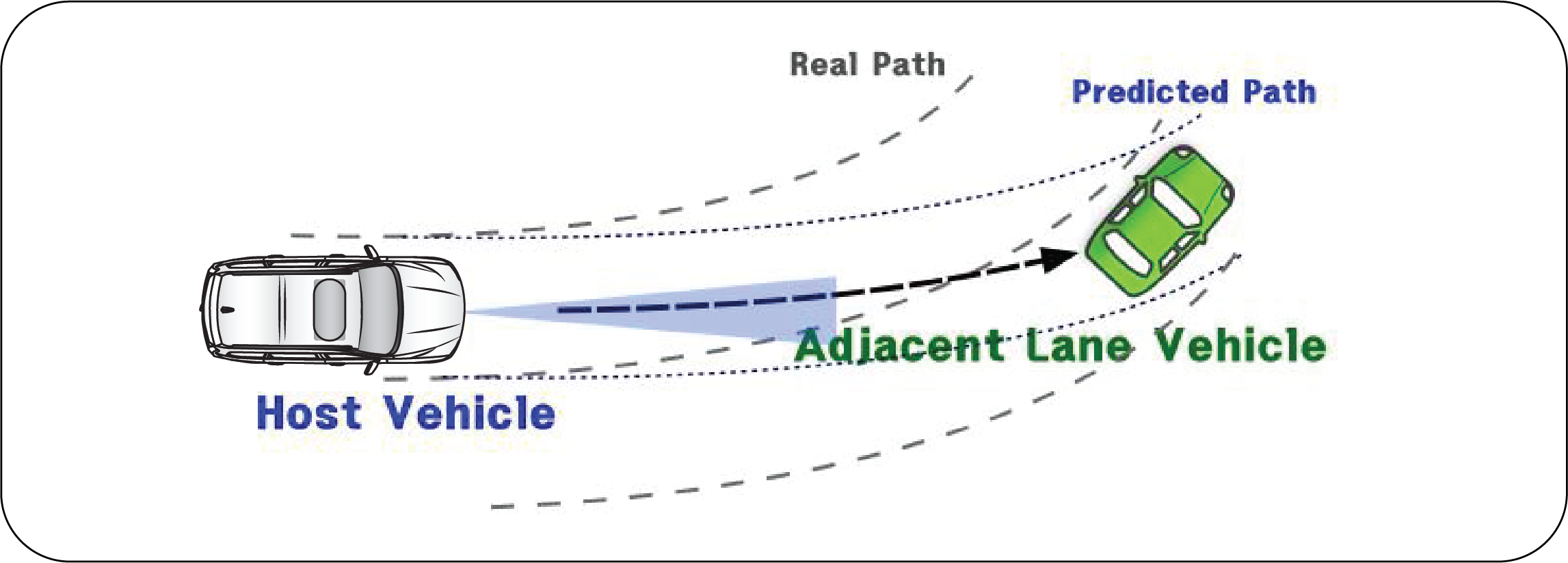

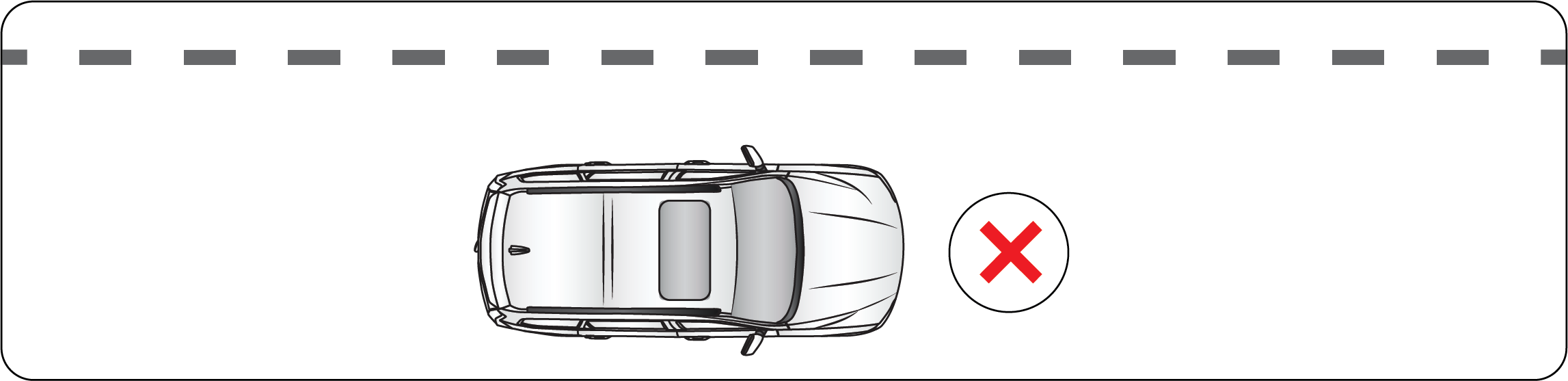

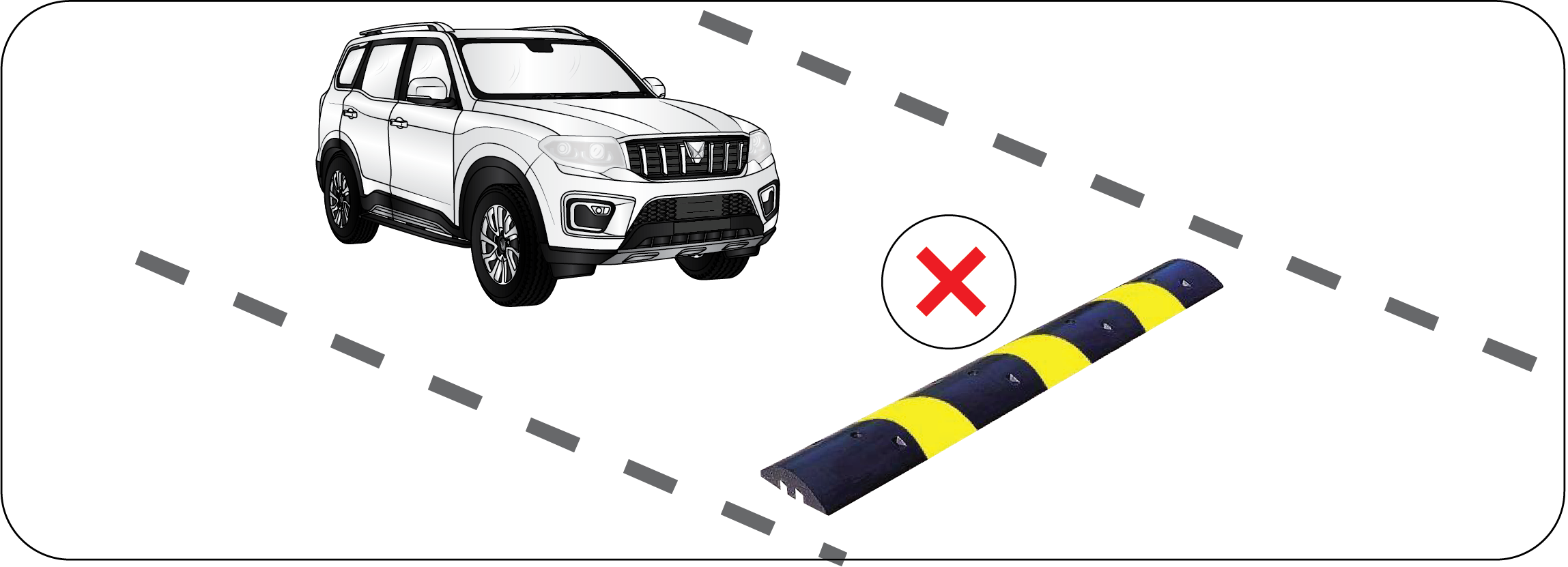

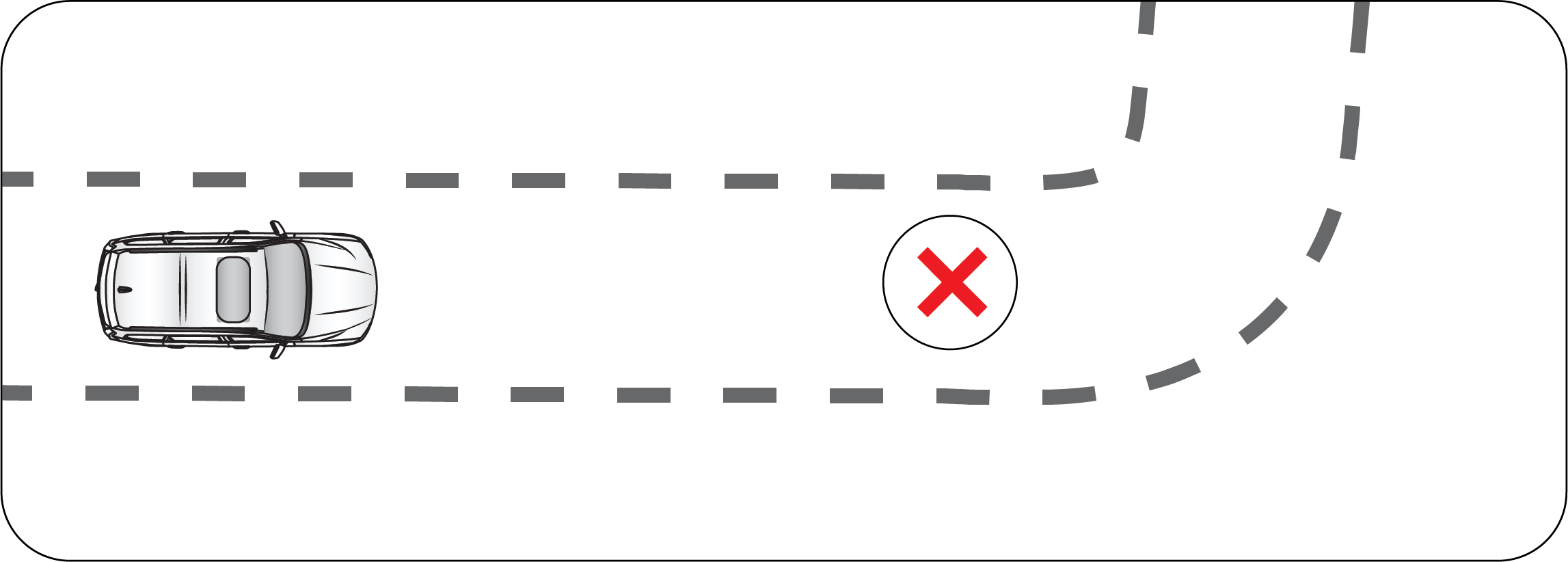

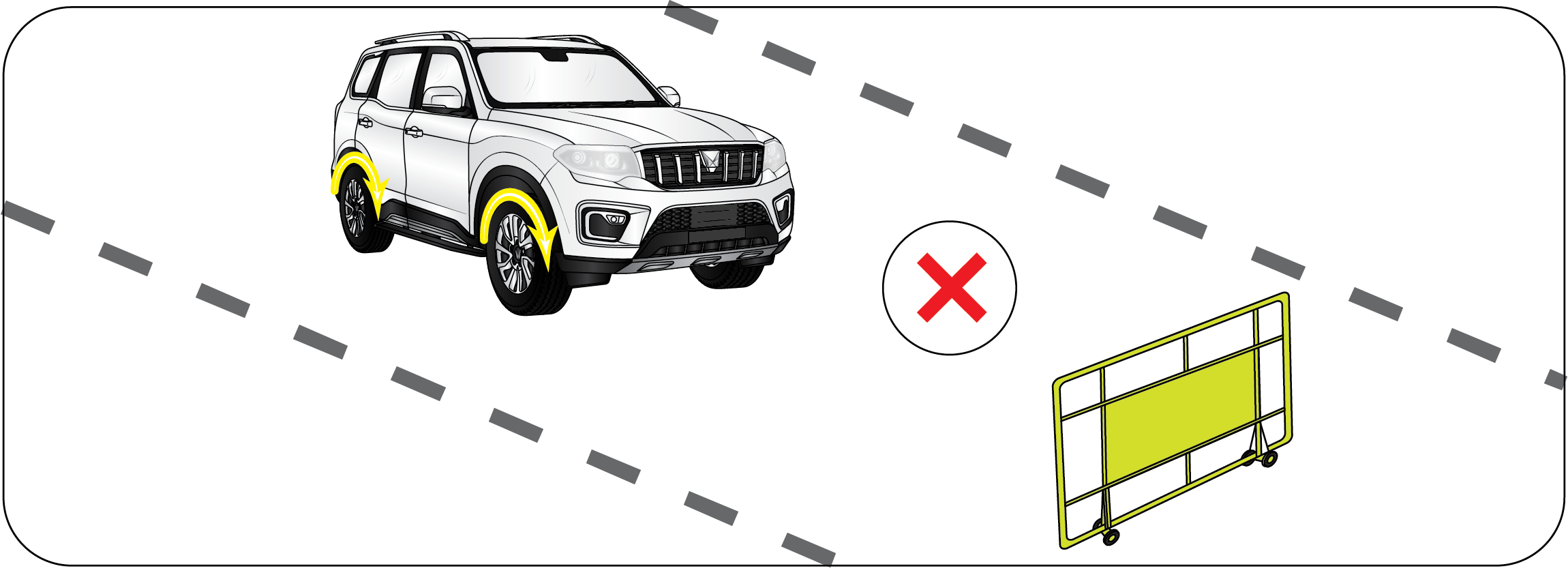

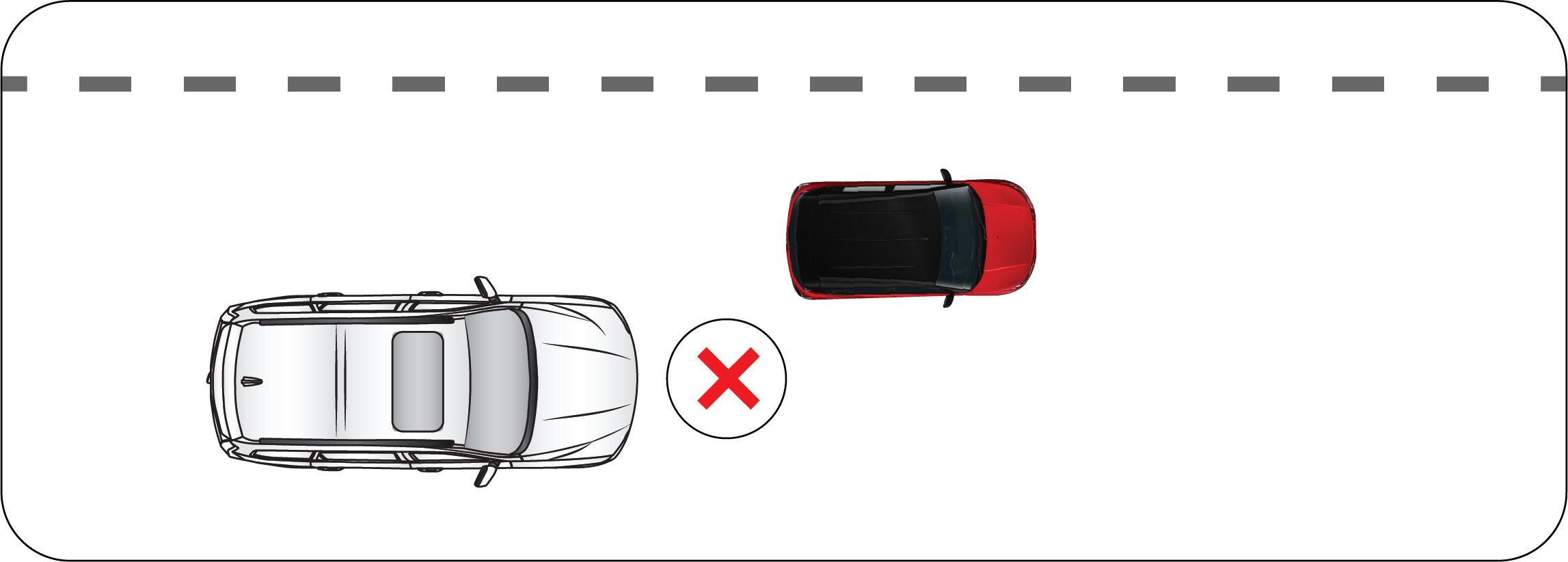

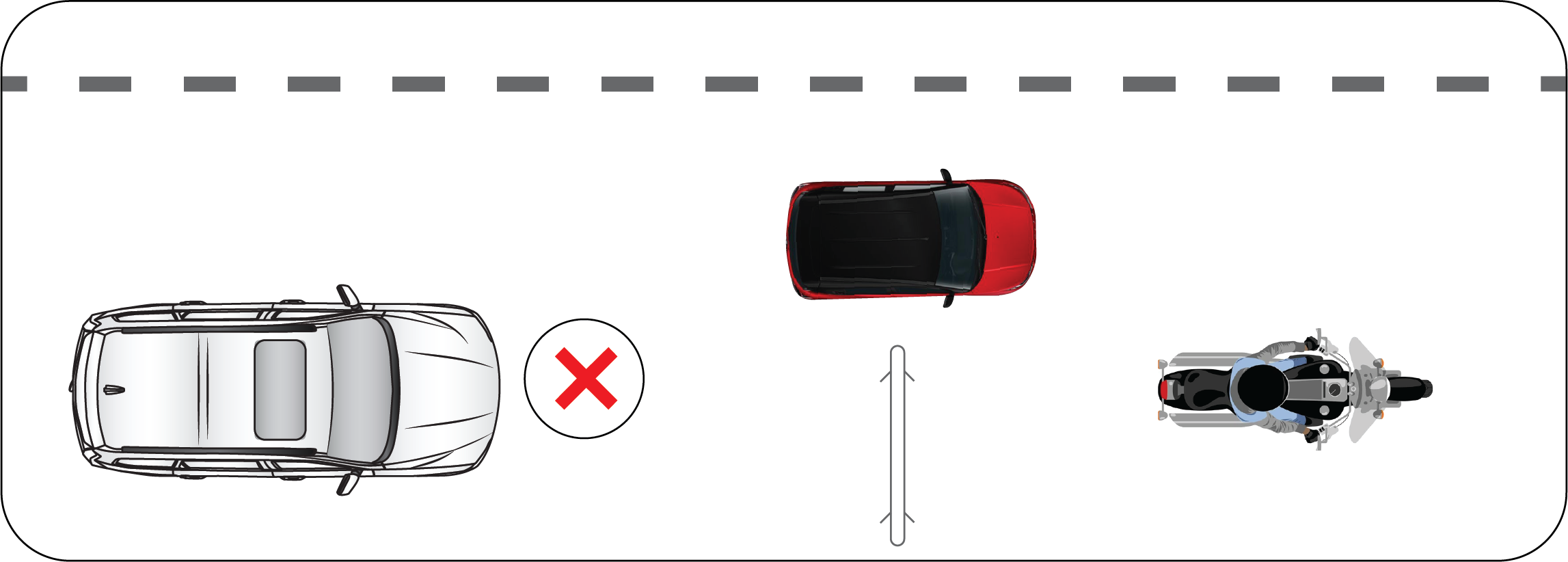

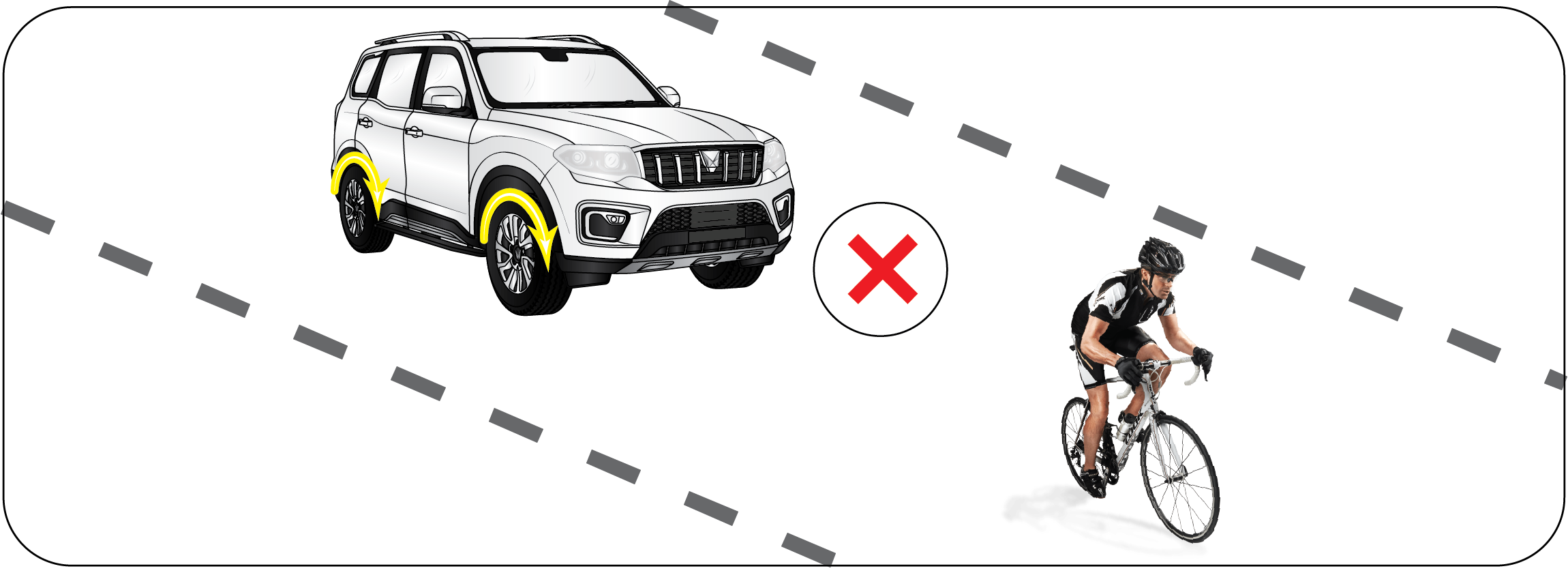

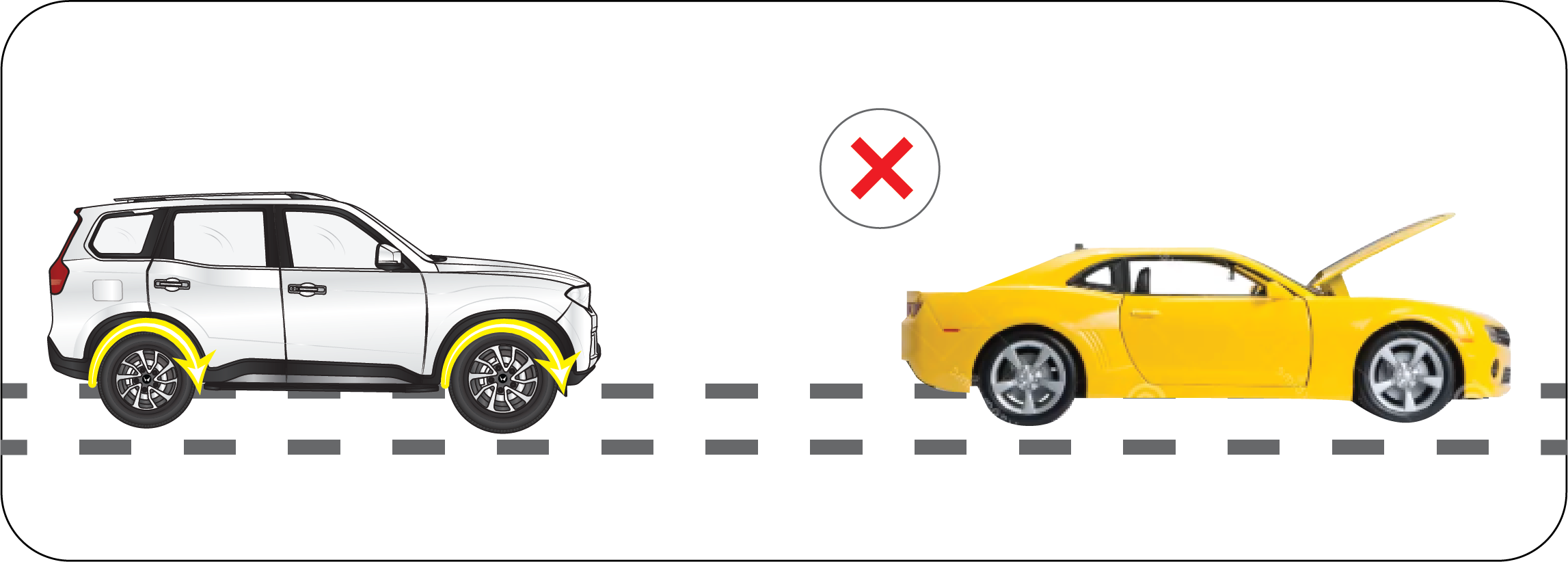

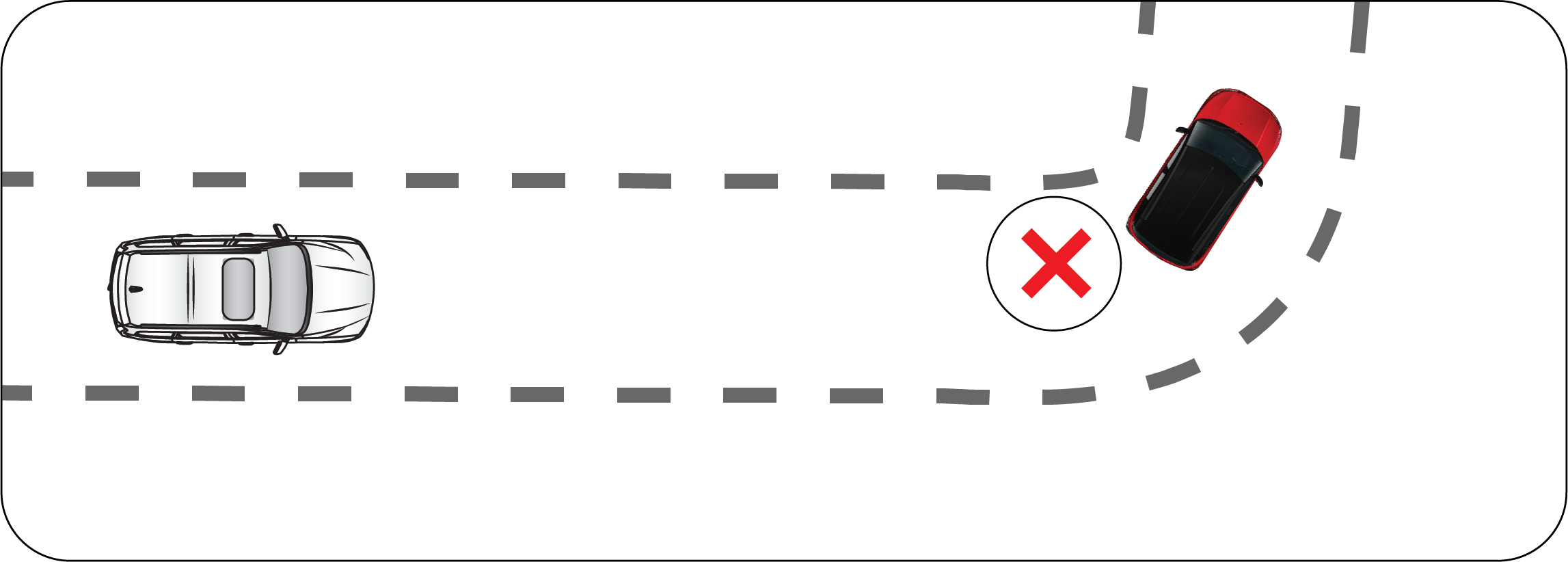

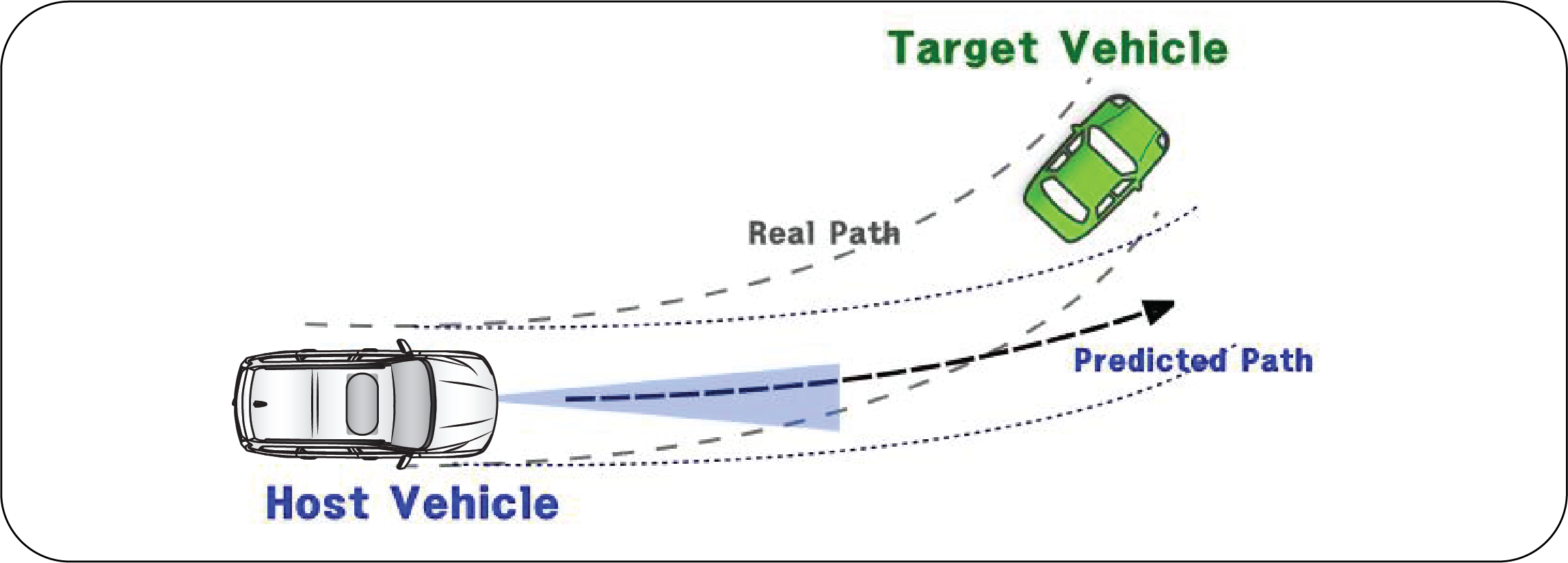

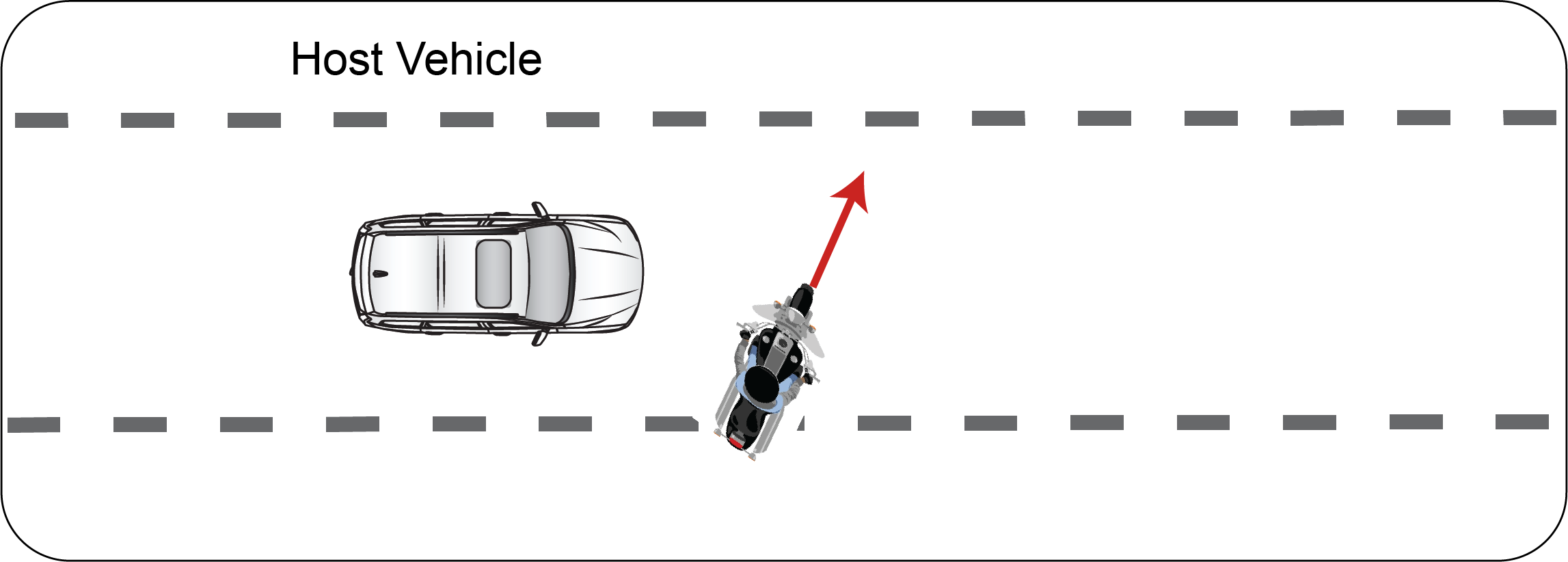

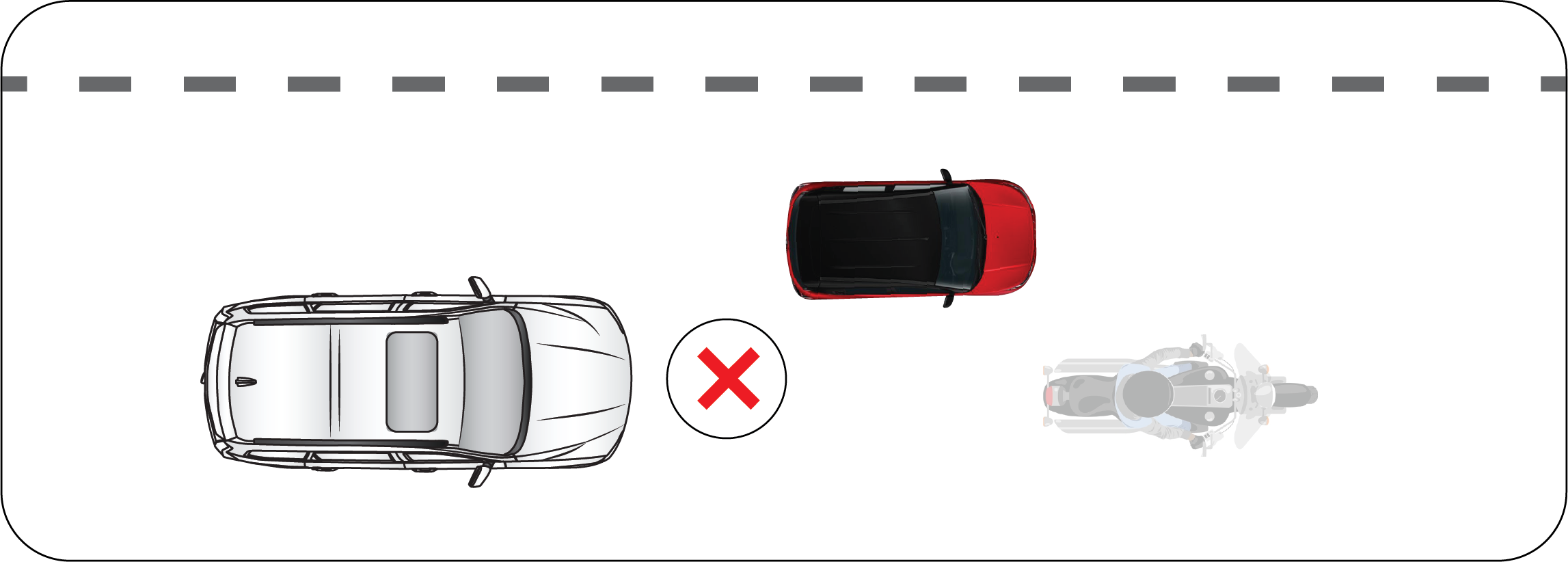

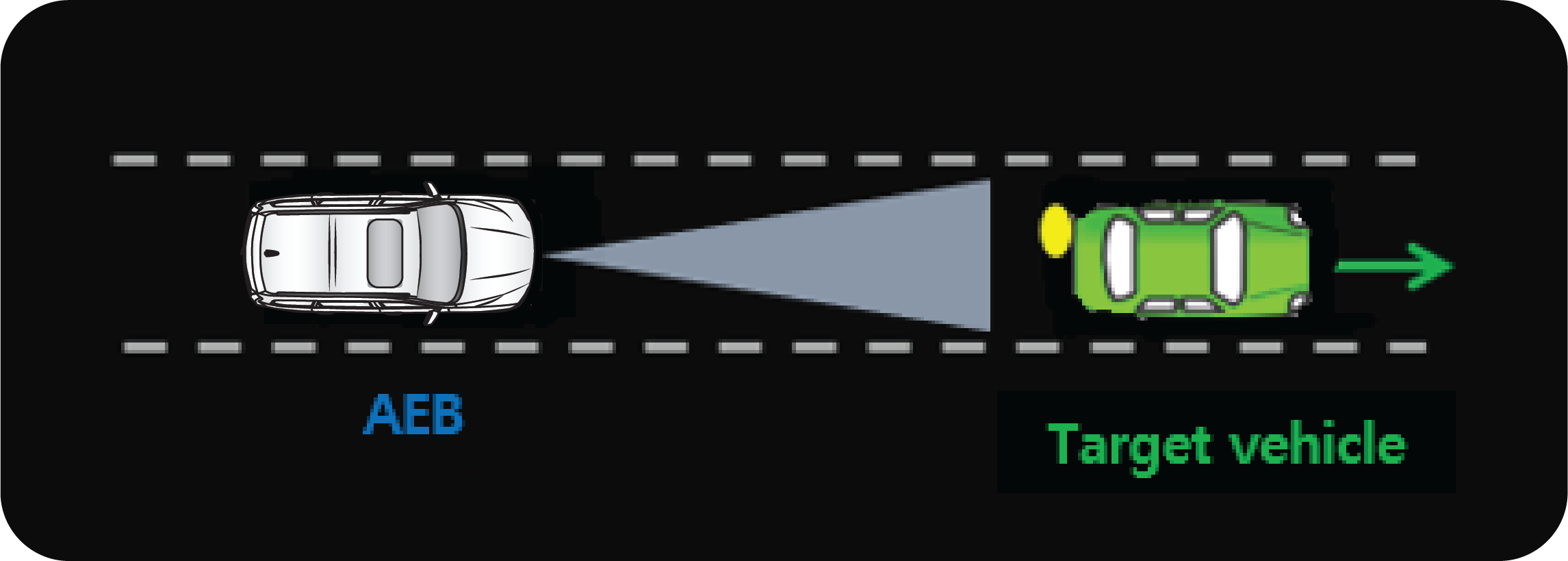

• | Adaptive Cruise Control cannot cover all driving situations and traffic, weather and road conditions. |
• | Adaptive Cruise Control is not a collision avoidance system. The driver is always responsible for applying the brakes if the system does not detect front preceding vehicle. |
• | ACC may not assist in close cut-in scenarios. |
• | Adaptive Cruise Control does not react to people or animals. It also does not react to slow moving, parked or approaching vehicles, or stationary objects. |
• | In case of a hit to the bumper or full/partial blockage of the RADAR, turn off ACC and get the vehicle serviced as soon as possible. |
• | ACC will be disabled when trailer is connected. |
• | ACC does not slow down for crossing vehicles. |
• | On roads where the traffic is heavy or there are sharp curves. |
• | On slippery road surfaces. |
• | During bad weather (rain, fog, snow, etc.) and poor visibility. |
• | When rain, snow or dirt adheres to the bumper around the radar sensor. |
• | On steep downhill roads (the vehicle may go beyond the set speed and in trying to maintain set speed, may result in overheating the brakes). |
• | On repeated uphill and downhill roads. |
• | When traffic conditions make it difficult to keep a proper distance between vehicles because of frequent acceleration or deceleration. |
• | Interference by other radar sources installed in nearby protected areas, such as military installations, airports, etc. |
• | Do not use Adaptive Cruise Control in demanding driving conditions, in slippery conditions, when there is a great deal of water or slush on the road, during heavy rain or snow, in poor visibility, on winding roads or on highway on or off ramps. |
• | Close cut-in situation |
• | Situation of stopped vehicles |
• | Curve entry / exit situation |
• | Curves with larger curvature |
• | Poor visibility: In case of poor visibility, Driver must take the control of vehicle. |
• | When a preceding vehicle enters an intersection |
• | When the road gradient changes |
• | Sensor cover blockage |
• | Long cargo loading vehicle |
• | Inability to recognize pedestrians |
• | Excessive braking of the preceding vehicle |
• | Detection performance deterioration due to road side structures |
• | False deceleration or no deceleration |
• | ACC does not slowdown for pot-holes and Speed breakers |
• | ACC may not slow down for road curves |
• | ACC may not slow down for barriers/blockades |
• | ACC does not slow down for crossing or merging vehicles at angles more than 30 degree |
• | ACC does not slowdown for oncoming/reversing front vehicles |
• | ACC does not slowdown for animals |
• | ACC may not reliably follow bicycle |
• | ACC cannot react to stationary target |
• | If a very slow-moving target cuts in between the host vehicle and the stationary target, the ACC system may not pick up the slow-moving target, as ACC is unable to distinguish between the slow-moving target and the stationary target. |
• | If the preceding vehicle takes a sharp turn and goes out of the field of view, then the host vehicle may start to accelerate quickly. |
• | ACC might not pick-up target at sharp curve. |
• | ACC might not pick-up target with an offset or stationary vehicle. |
• | When the vehicle is following a two wheeler and two wheeler overtakes stationary target ahead. Vehicle may not slow down due to stationary target detection limitation. |
• | ACC may not follow a motorized two-wheeler if the two-wheeler’s speed is less than 10 km/h. |
• | Do not use ACC with an offset to the target vehicle. |
• | Do not use ACC to follow motorbikes where there is no space for Vehicle to navigate. |
• | System can detect vehicles, cyclists and pedestrians but not in all situations. System's capacity to assess certain traffic situations is a supplemental aid to the driver and does not function in all driving/traffic situations or weather/road conditions. It can never replace the driver’s attention to traffic conditions or his/her responsibility for operating the vehicle in a safe manner. Refer system limitation section for more information about system limitation. Read the manual carefully in detail before using the system. |
• | Failure to follow the warnings and instructions for proper use of the system could result in serious injury or death. |
• | The Collision Mitigation System is a supplemental aid to the driver. It is not a replacement for the driver. It is driver's responsibility to monitor traffic conditions and drive the vehicle safely. It cannot prevent accidents due to carelessness or dangerous driving techniques. |
• | System does not function in all driving, traffic, weather and road conditions. |
• | System does not detect all kind of vehicles,bicyclists and pedestrians. |
• | The system is designed to intervene as late as possible, i.e., in an emergency, to help avoid unnecessary activation. |
• | Vehicles, pedestrians or cyclists at an offset may not be detected by collision mitigation system. |
• | The Collision Mitigation System works by predicting possible collisions with objects in front of the vehicle considering the object's movements in certain directions. Sometimes the object's movement direction may not match the prediction, and the system may react early by providing a warning or performing braking, even though the object may not be in the host vehicle's path. |
• | Only the rear end of preceding vehicles is identified by the system, and the system will provide warnings or braking as needed. The system may not react or provide warnings or braking for a crossing or oncoming vehicle. The system may not react to a stationary vehicle if the vehicle is stationed in a crossing or oncoming position. |
• | AEB or FCW gets ready to be activated when turned ON from Instrument Cluster settings and when the following prerequisites are satisfied. |
• | The braking system is ready. |
• | Vehicle speed is within system’s operating limit. |
• | No other system failures or degradation of functions related to Collision mitigation systems like Braking system, Engine management system, Steering system etc. |
![]() |

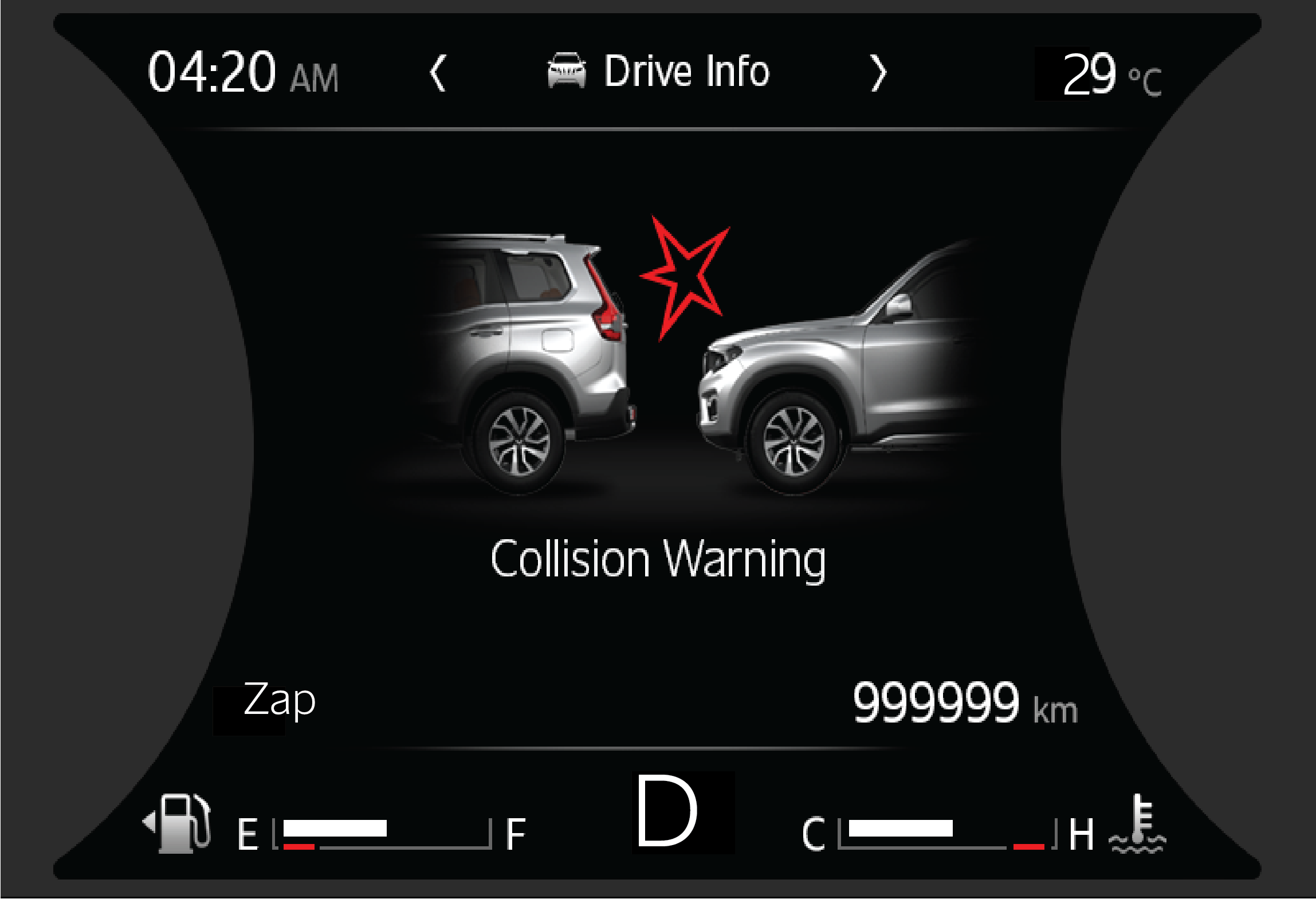

![]() The icon displayed as visual alert will show the object in the front as car even though the system may react for cars, pedestrians,
two wheelers and cyclists.
|
![]() |
|
![]() |
|
![]() |
When system has applied the brakes, a pop-up message will be displayed as "Automatic Emergency Braking Completed".
|
• | When steering is applied to avoid a collision. |
• | When the accelerator pedal is depressed. |
• | When there is no longer a vehicle detected ahead. |
• | When driver presses and releases brake pedal. |
• | When the vehicle is in 4WD drive or 4XPLOR (terrain) modes. |
1. | Press the button until "Settings" is displayed in the instrument cluster. Use the button to select "Driver Assistance", then press the OK button. |
2. | Select “Auto Emergency Braking” and press the OK button.
|
![]() |
|
![]() |
Warning Level settings
The driver can configure the Level 1 warning activation time through the instrument cluster settings under Driver Assistance.
|
• | No automatic system can be guaranteed to function 100% correctly in all situations. |
• | Never test Collision Mitigation System by driving toward a person or object. This could result in serious/fatal injuries. |
• | To maximize the effectiveness of the Collision Mitigation System, it is recommended to always use the Warning Level setting as "Normal". |
![]() |
The following table lists possible causes for this message being displayed and suitable actions:
|
Cause |
Action |
---|---|
The area of the windshield in front of the camera sensor is dirty or covered by ice or snow
|
Clean the windshield or remove the ice/snow
|
Thick fog or heavy rain /snow blocks reduce the camera sensor’s range of visibility
|
No action. The driver should be extra alert in condition of this type.
|
There is dirt between the inside of the windshield and the camera sensor.
|
Visit the nearest Mahindra Authorized service center for cleaning the windshield.
|
• | If the warning lamp continues to illuminate after performing the above actions and restarting the engine, have the system checked. It is recommended to visit a Mahindra dealer for this service. |
![]() |
The following table lists possible causes for this message being displayed and suitable actions:
|
Cause |
Action |
The bumper in front of the radar is dirty or covered with snow/ice
|
Clean/clear the bumper in front of the radar.
|
Heavy rain or snow is interfering with the radar signals.
|
No action possible. Heavy precipitation may affect the function of the radar.
|
Swirling water or snow from the surface of the road may interface with the radar signals.
|
No action possible. A very wet or snow-covered road surface may affect the function of the radar.
|
The bumper in front of the radar is clean but the message remains in the display.
|
Wait a short time. It may take several minutes for the radar to detect that it is no longer obstructed.
|
![]() |

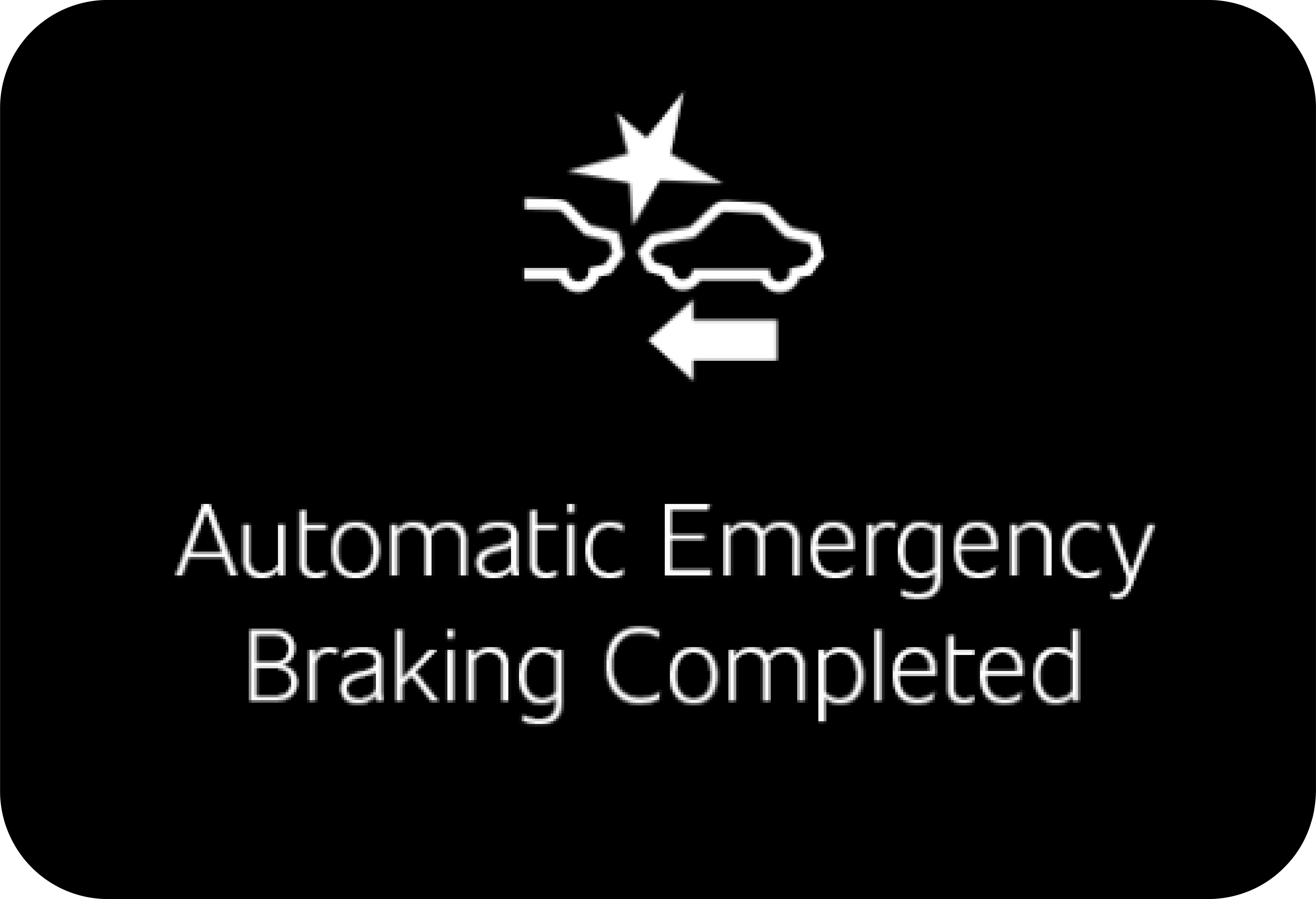

A pop-up message will appear in the instrument cluster stating "Automatic Emergency Braking Disabled: Service Required". Contact a Mahindra Authorized Dealer immediately.
|
1. | Collision mitigation system cannot detect all vehicles, cyclists or pedestrians under all conditions. |
2. | System can not detect the following objects:
|
3. | If the pedestrians has limited contrast to their immediate background, warning or braking may be delayed or not come at all. |
4. | System may not react for fast moving pedestrians. |
5. | System cannot detect all cyclists in all situations, such as:
|
6. | System may not function in junction turning scenario under below conditions:
|
7. | System may not function if speed difference between the two vehicles is too small or too high. |
8. | System may not function properly or detect a target ahead in the following conditions:
|
9. | In case of a hit in bumper / full or partial blockage to RADAR, disable AEB and get the vehicle serviced as early as possible. |
10. | Collision Mitigation System gets disabled when trailer is connected. |
• | False decelerations or no decelerations If radar misaligned vertically or horizontally, Collision mitigation system may produce frequent false warning or deceleration
or no warning/ no deceleration for front preceding vehicle. Visit nearest service center for radar alignment.
|

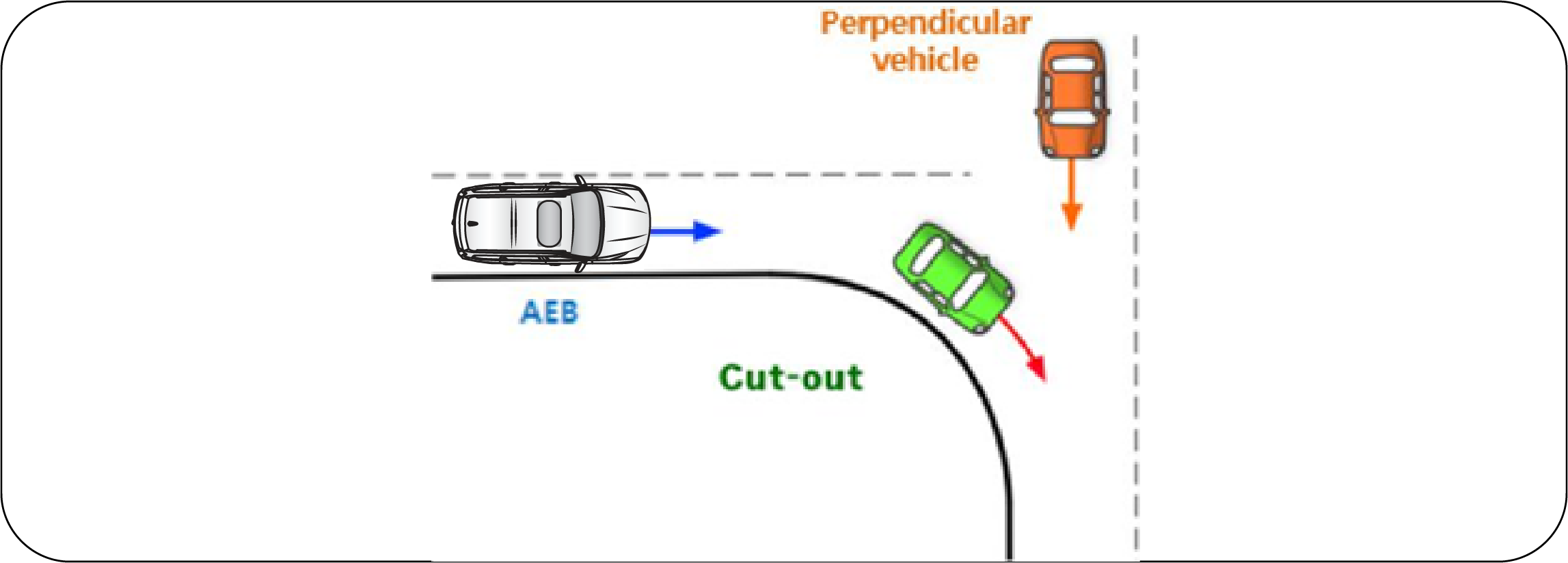

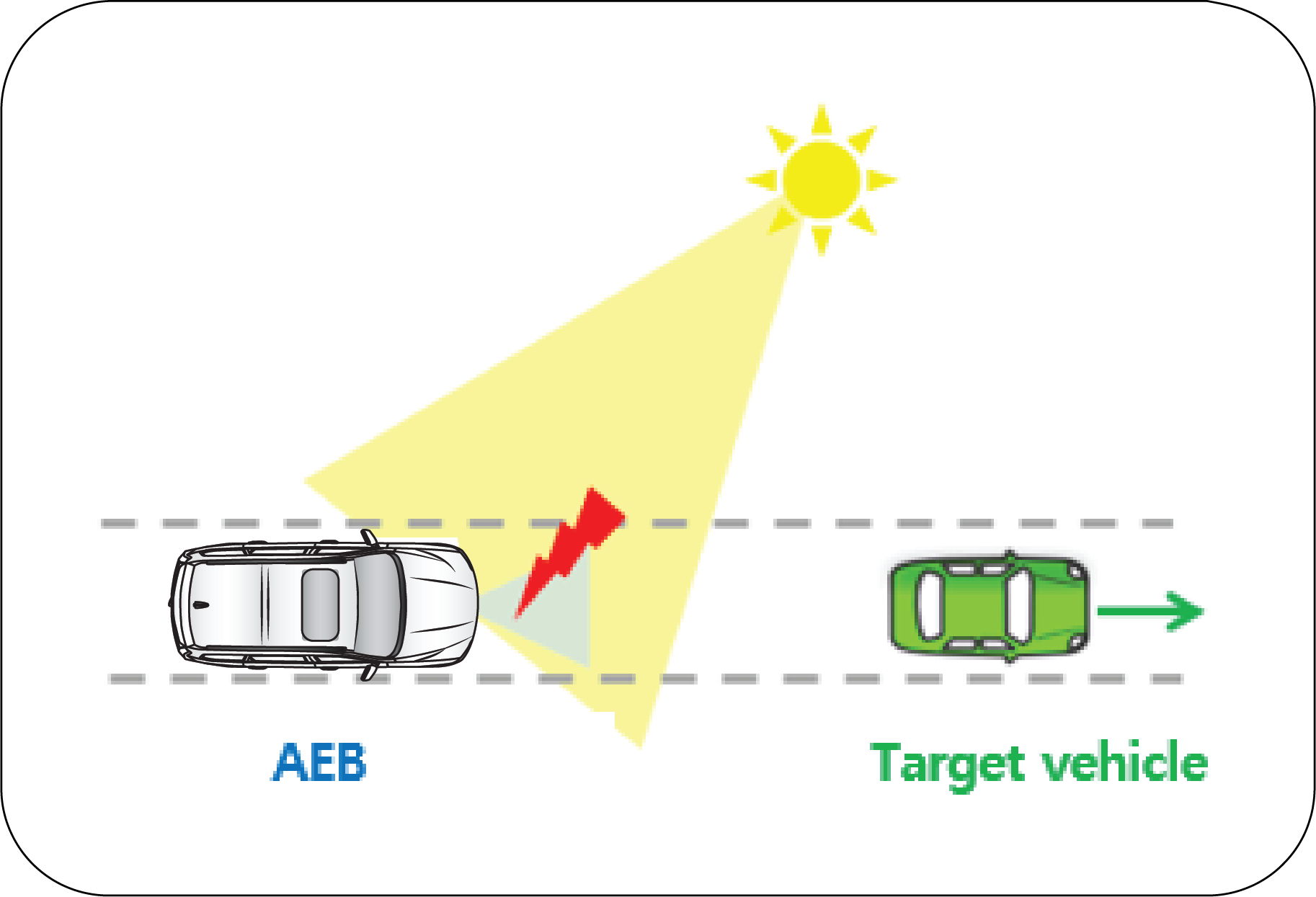

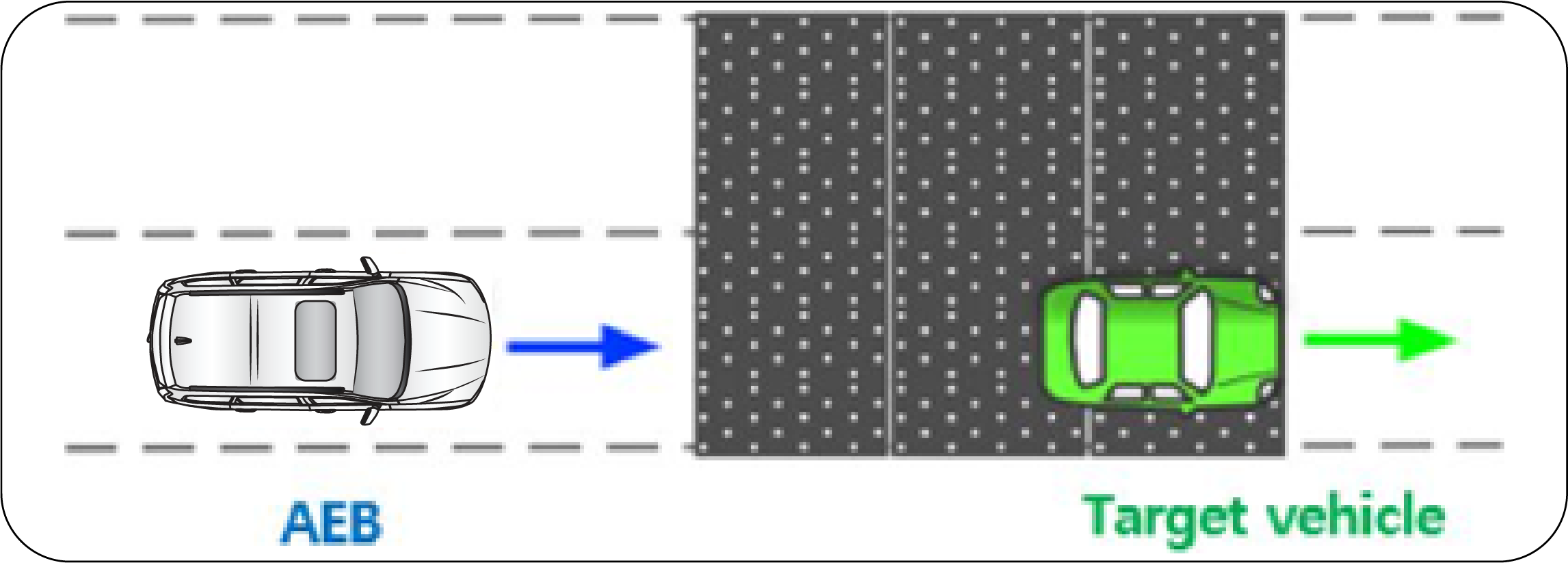

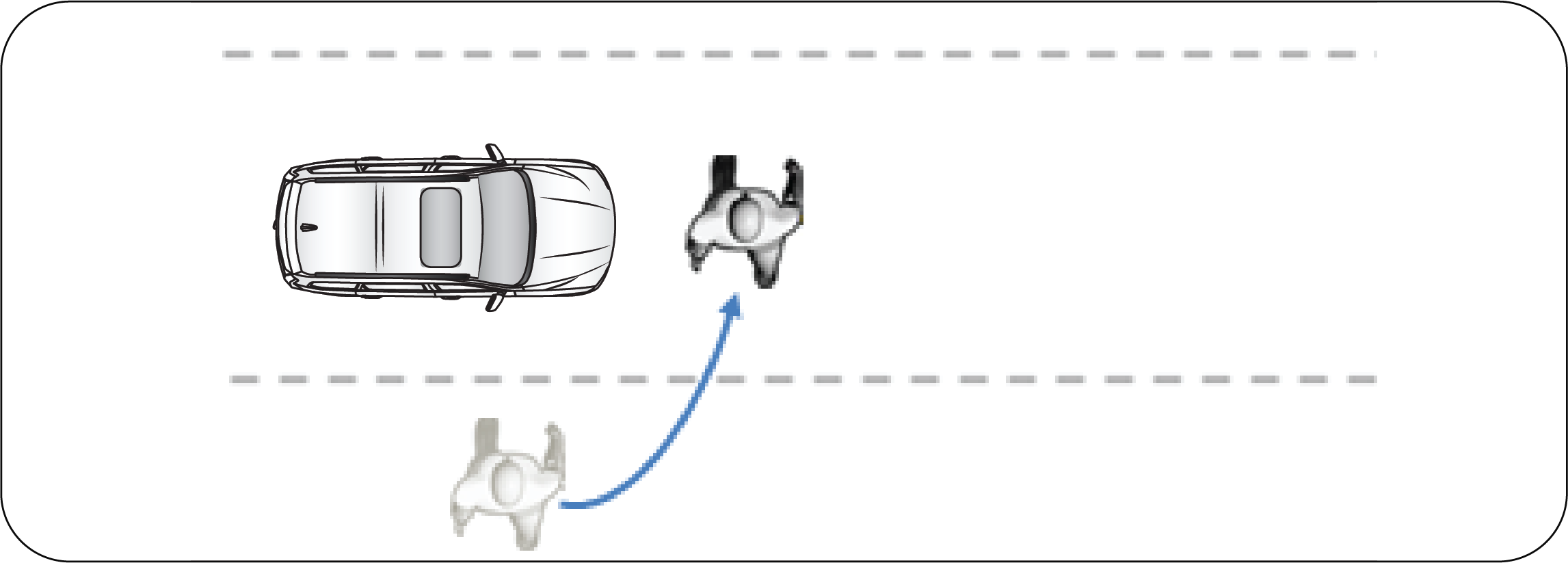

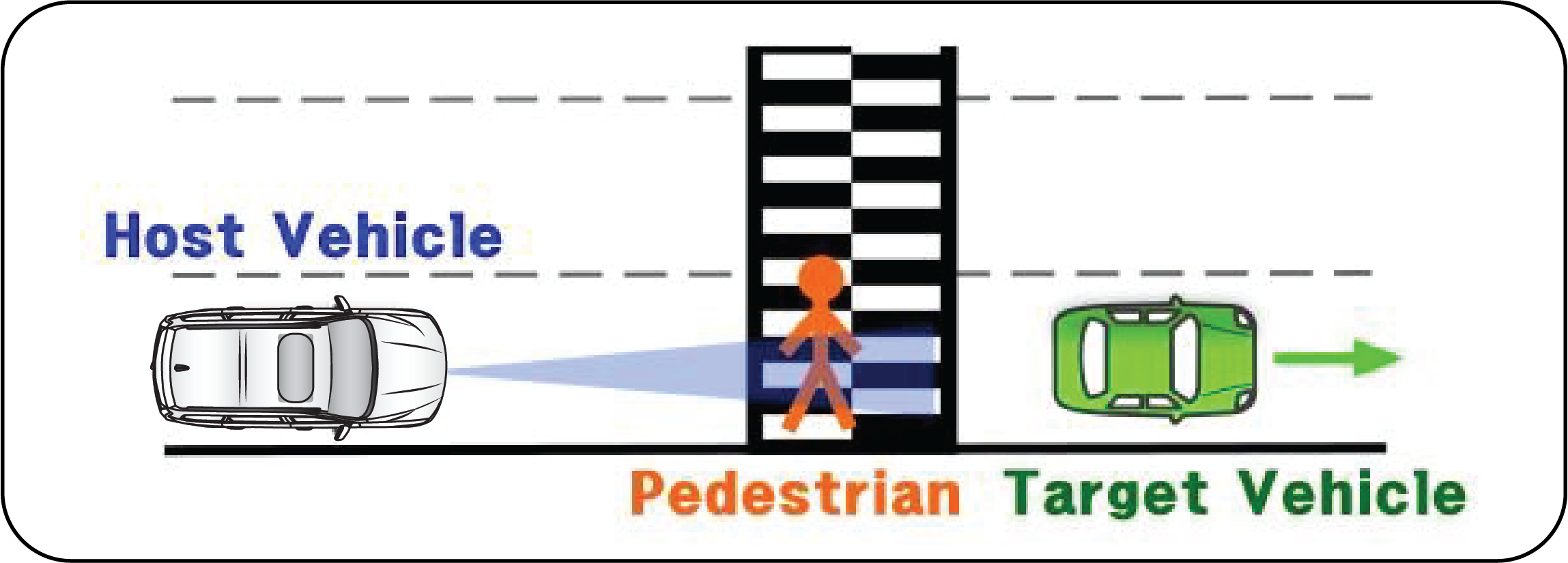

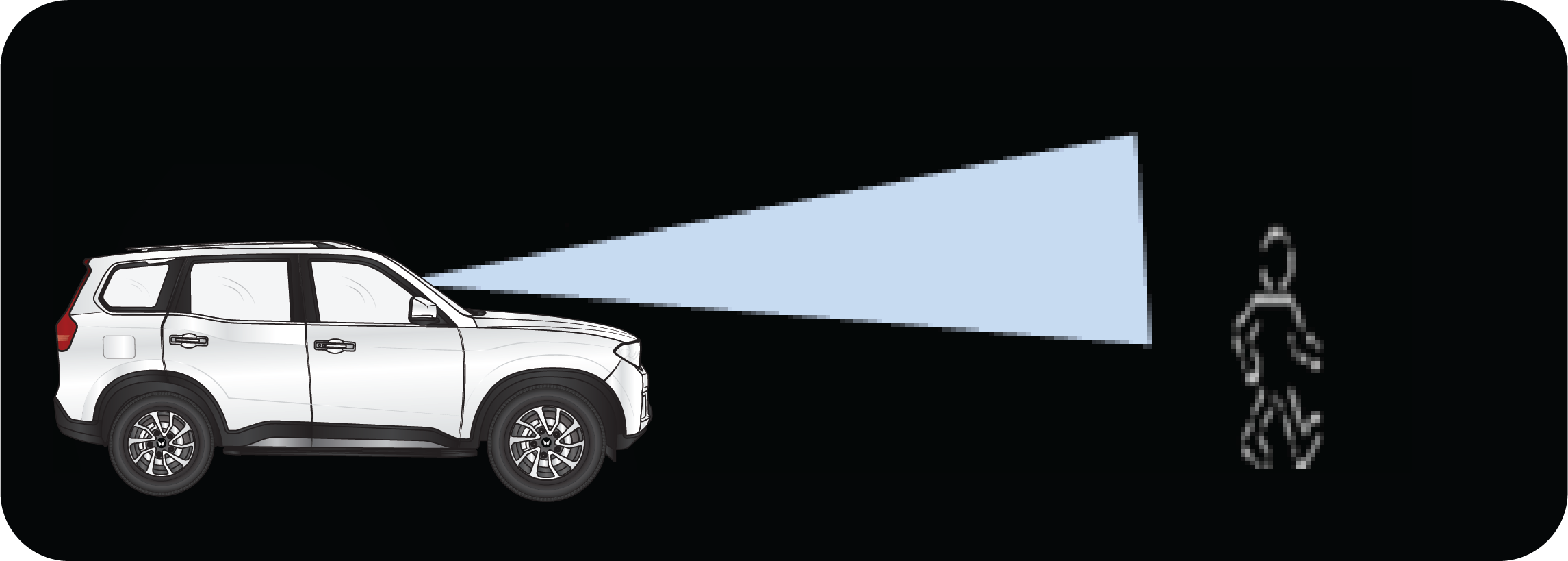

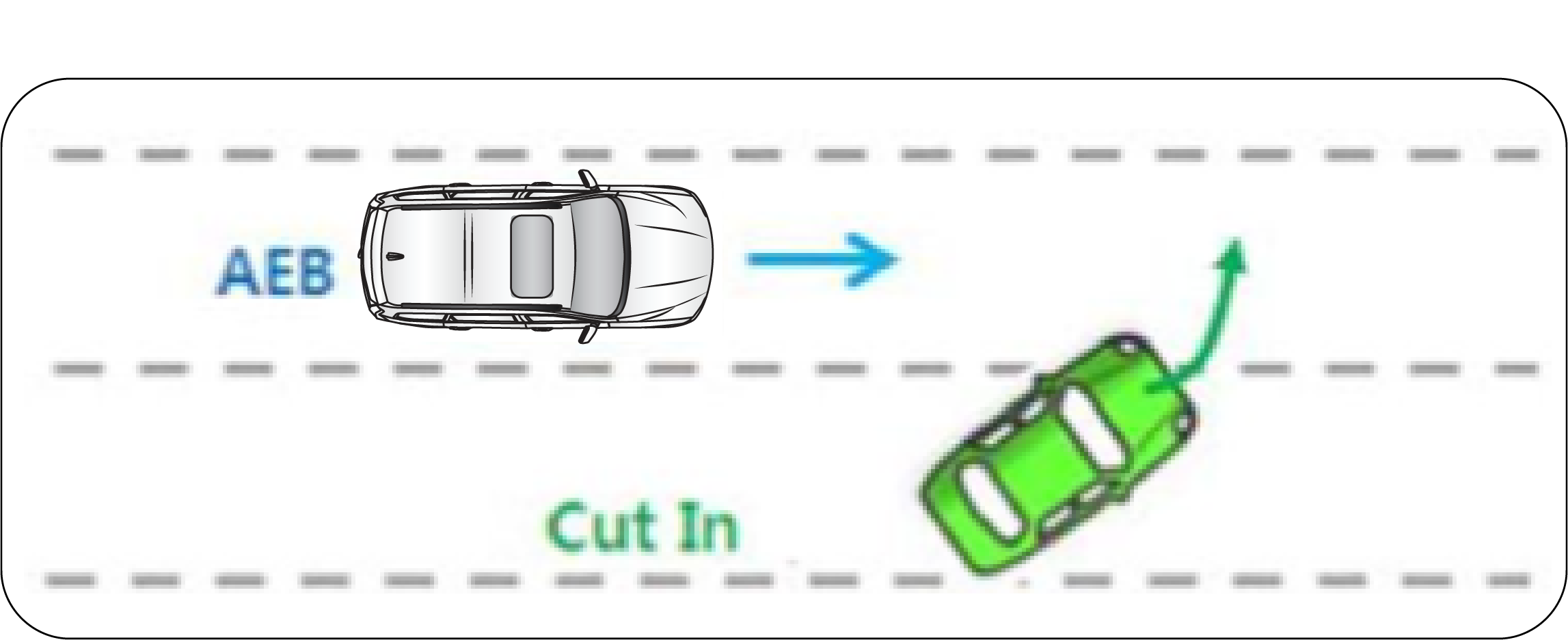

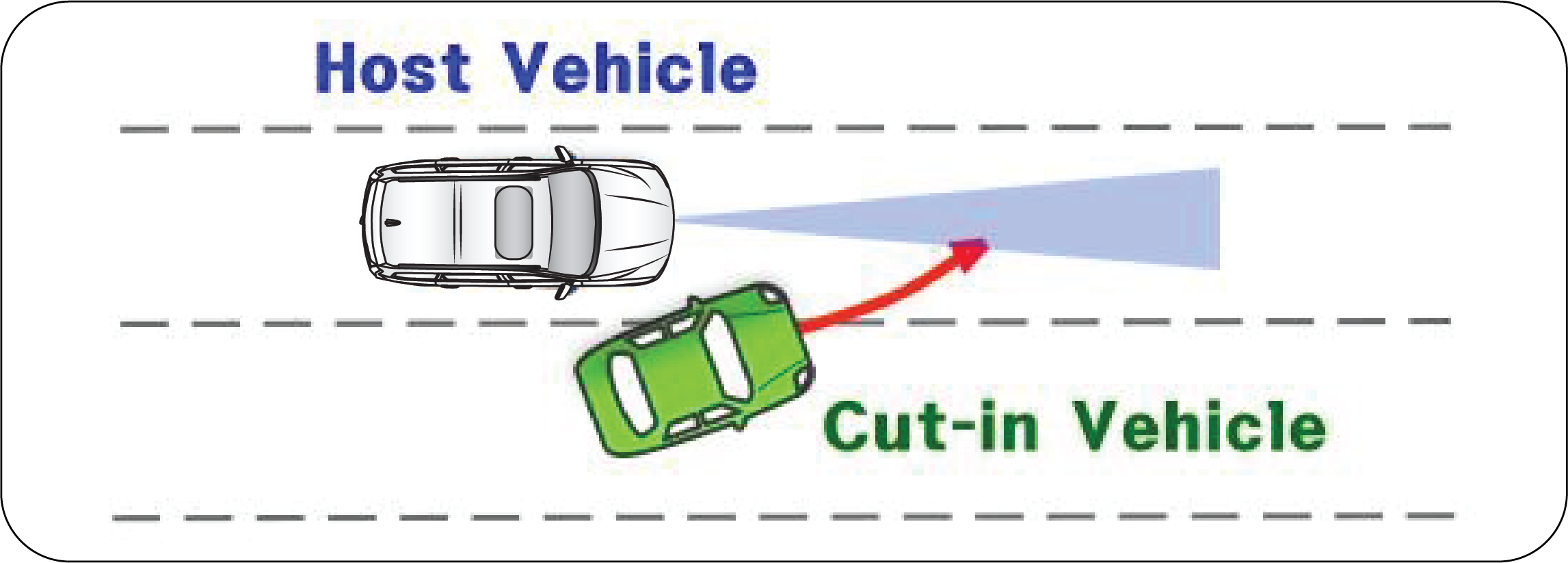

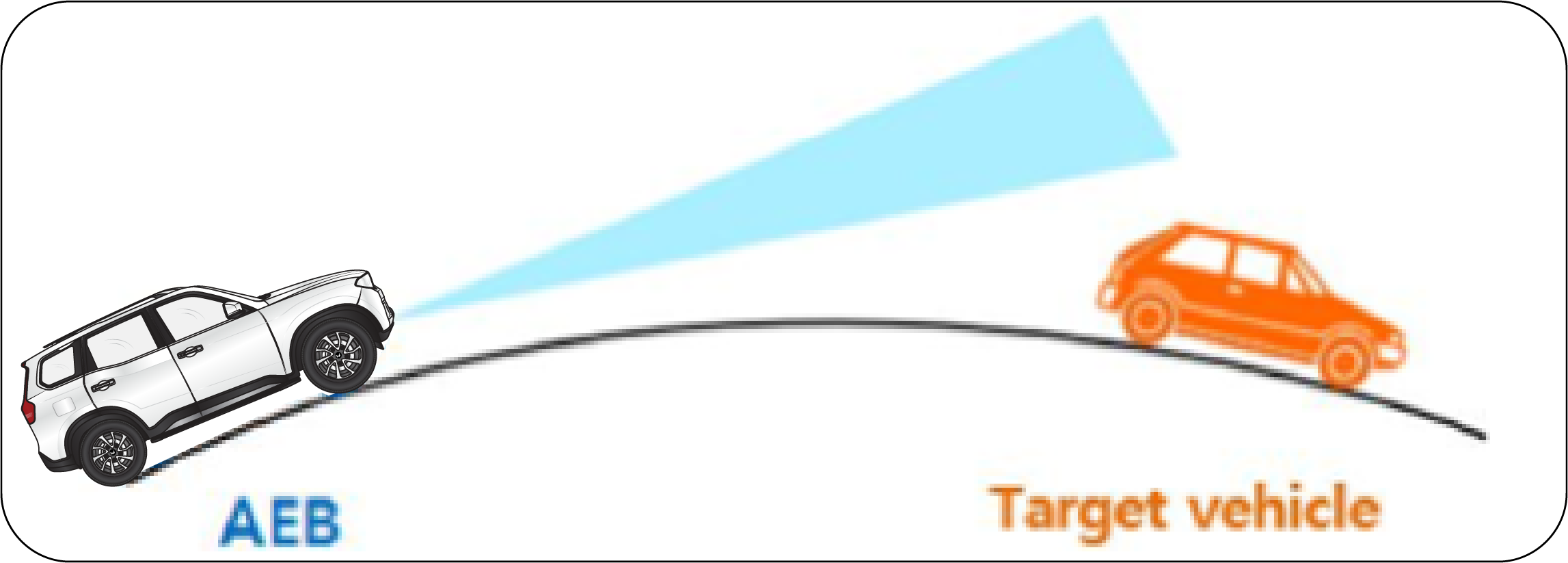

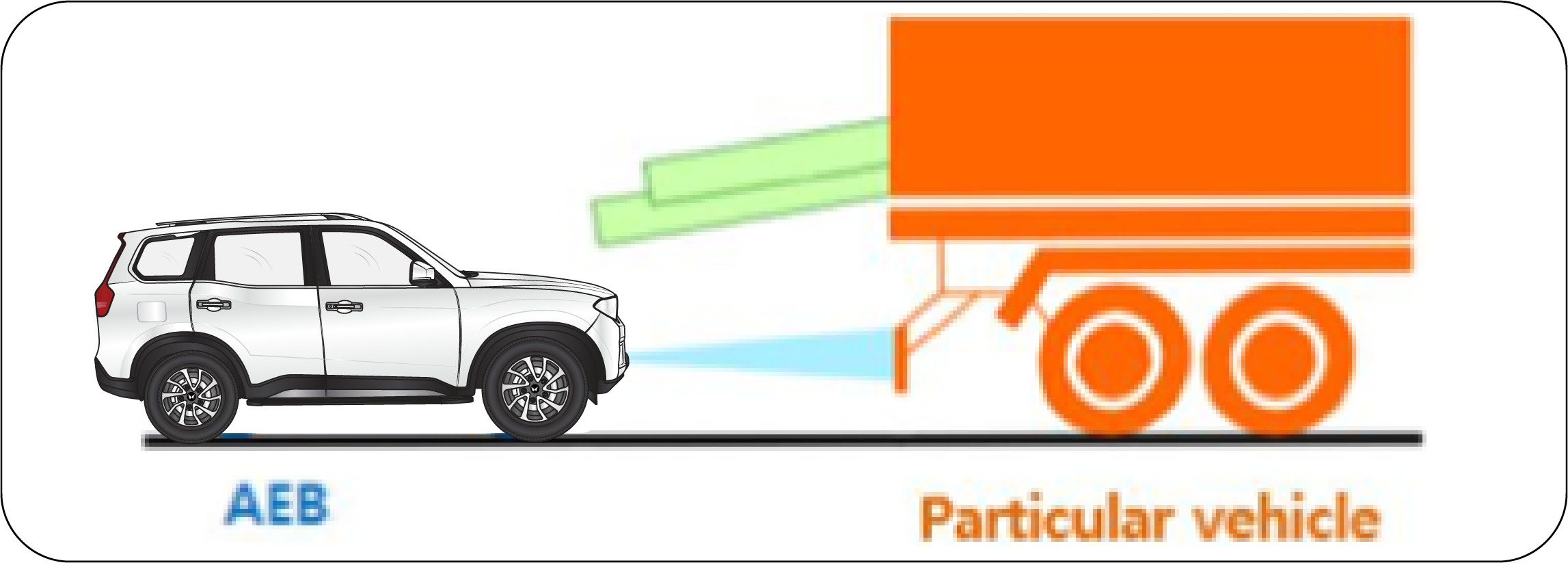

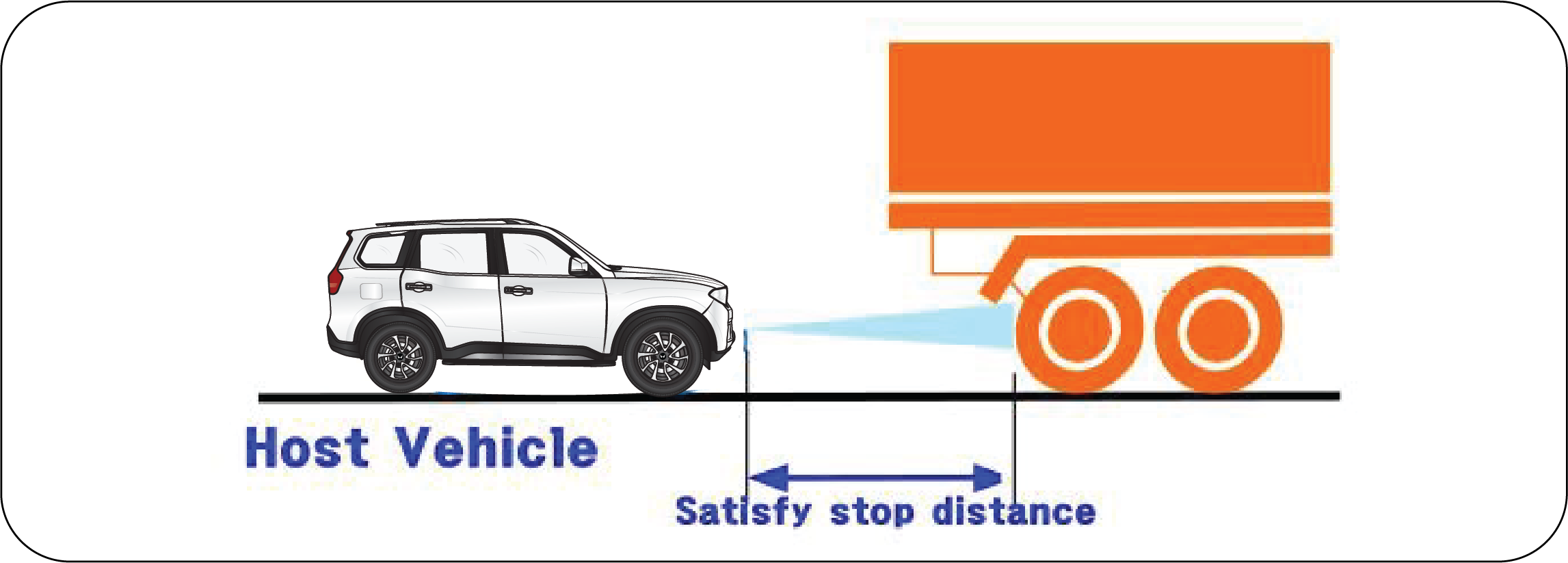

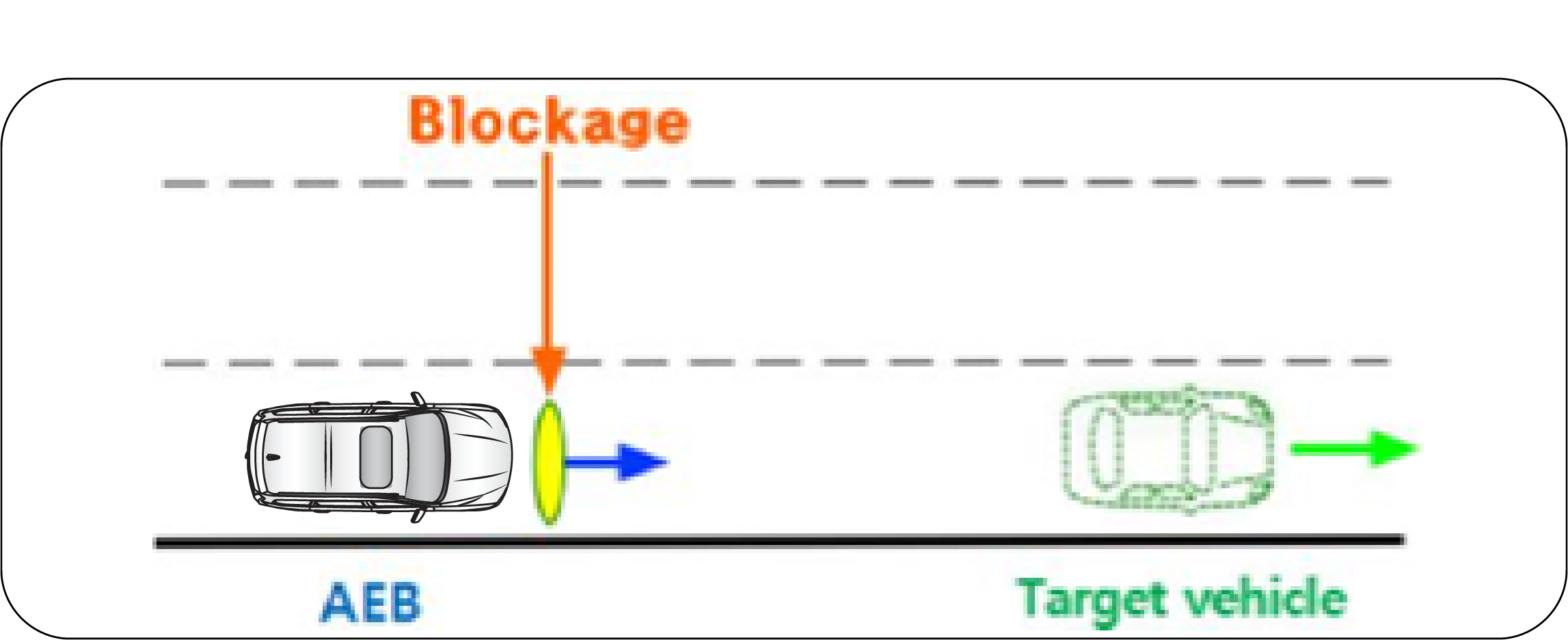

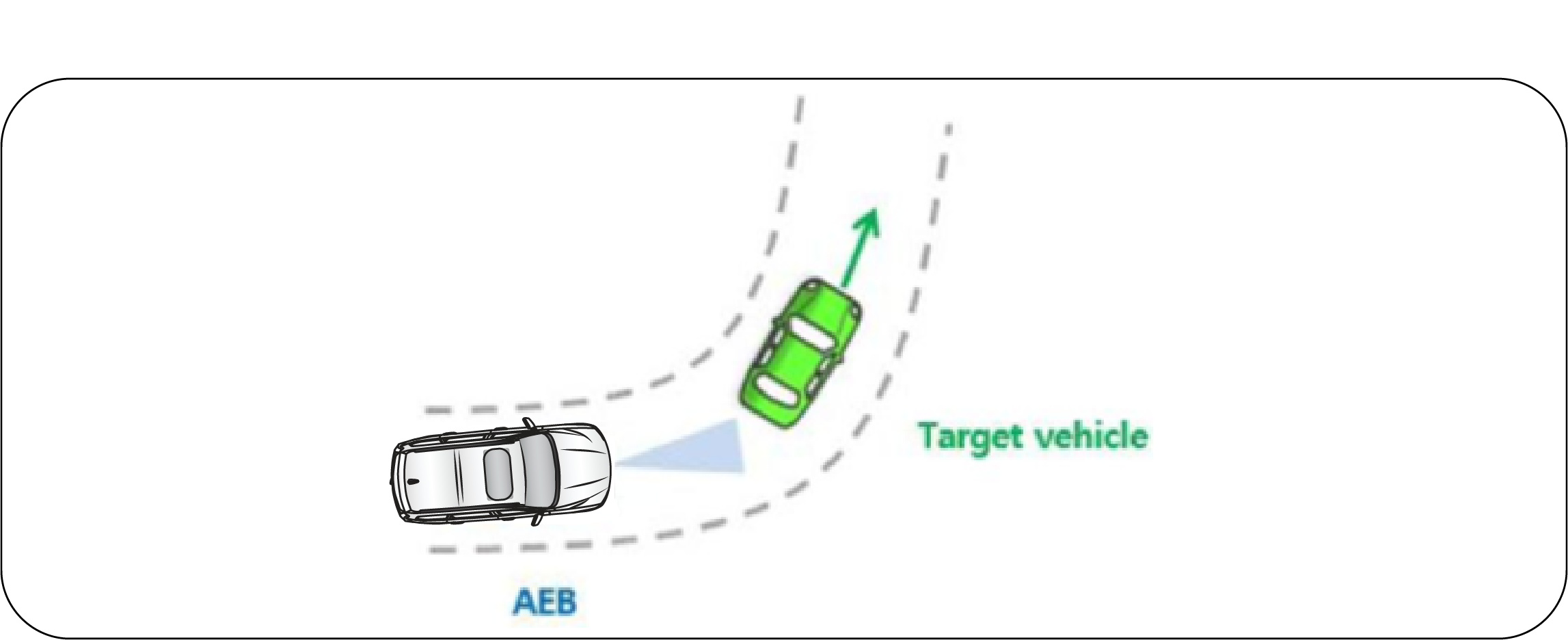

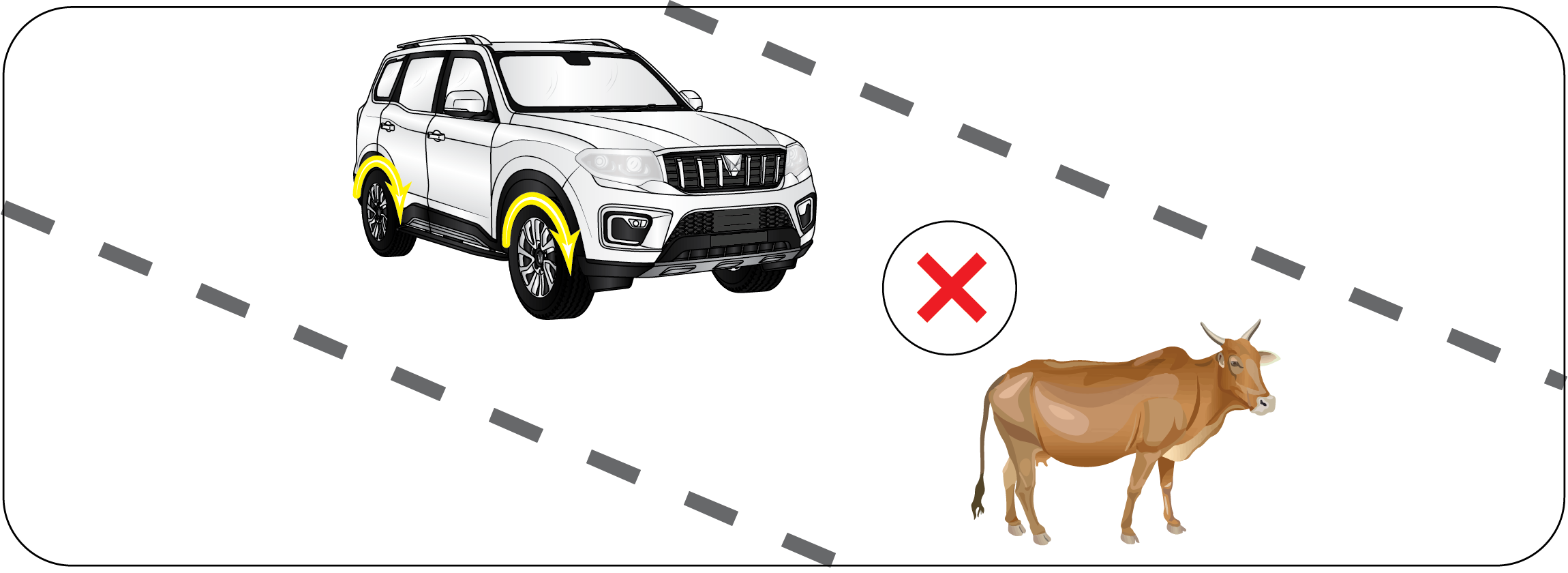

• | When any vehicle moves greater than +/- 20 deg. to host vehicle direction |
• | When it is difficult to obtain view by the camera |
• | When the tail light of the front preceding vehicle is asymmetrical at night |
• | Pedestrian suddenly jumping in to the host vehicle lane too closer to host vehicle |
• | If a part of the body of the pedestrian is a covered or standing pedestrian |
• | Difficult to distinguish pedestrians due to low illumination. |
• | Fast moving pedestrians |
• | Pedestrians with lower height |
• | Risk of collision in proximity cut-in |
• | Intersection situation |
• | When the road gradient changes |
• | The situation where the load is protruding from the rear of the vehicle |
• | When target can not be detected due to sensor contamination |
• | When driving on a large curve road |
• | When it is impossible to obtain the driver's field of vision |
• | Detection problems due to complicated structures around roads |
• | Collision Mitigation System does not react for potholes. |
• | Collision Mitigation System does not function for Speed Breakers. |
• | Collision Mitigation System does not function for barricades/cone/barrels. |
• | Collision Mitigation System does not function for oncoming vehicles. |
• | Collision Mitigation System does not function for animals. |
![]() |
![]() |
• | High beam Assist is selected through driver assistance menu. |
• | Auto light switch is turned ON in the Combination Switch. |
• | Night condition is detected and Low beam is already turned ON through the Light Sensor. |
• | High beam switch is turned ON. |
• | Vehicle speed is above 20 kmph. |
• | HBA function is activated as per above conditions. |
• | No light source is detected by the camera from Oncoming/Preceding vehicle or from other light sources (depends on intensity) for few seconds. |
• | When the light from the on-coming or front preceding vehicle is not detected because of lamp damage, hidden from sight, etc. |
• | When headlights or taillights are with non-standard color or Illuminance level or shape. |
• | When the lamp of the on-coming or front preceding vehicle is covered with dust, mud, snow or water. |
• | When visibility is poor due to fog, heavy rain or snow. |
• | When head lamp aiming is not properly adjusted. |
• | When driving on a narrow-curved road or rough road. |
• | When driving downhill or uphill. |
• | When vehicle is near bright street tower lamps, reflecting sign or mirror, flashing sign lamps. |
• | When the vehicle is tilted may be due to a flat tyre or being towed. |
• | When the light from bicycle is weak or located in long distance. |
• | When the light from oncoming or preceding vehicle is very small or weak or located in low or too high position. |
• | When windshield is dirty or if any object blocks the Camera sensor. |
• | When vehicle is in Construction area due to temporarily installed reflectors. |
• | When vehicle is near traffic lights, signboards of buildings, lightning rods of construction sections, center line separation rods (reflection type), traffic signs (including variable speed LEDs), vehicle lights reflected on building glass or road reflectors. |
![]() |
![]() |
![]() |
When the system recognizes a speed limit sign, it displays on Instrument Cluster.
|
![]() |
After a pre-defined time, road sign display is greyed out to indicate to driver that the sign is of past value.
|
![]() |

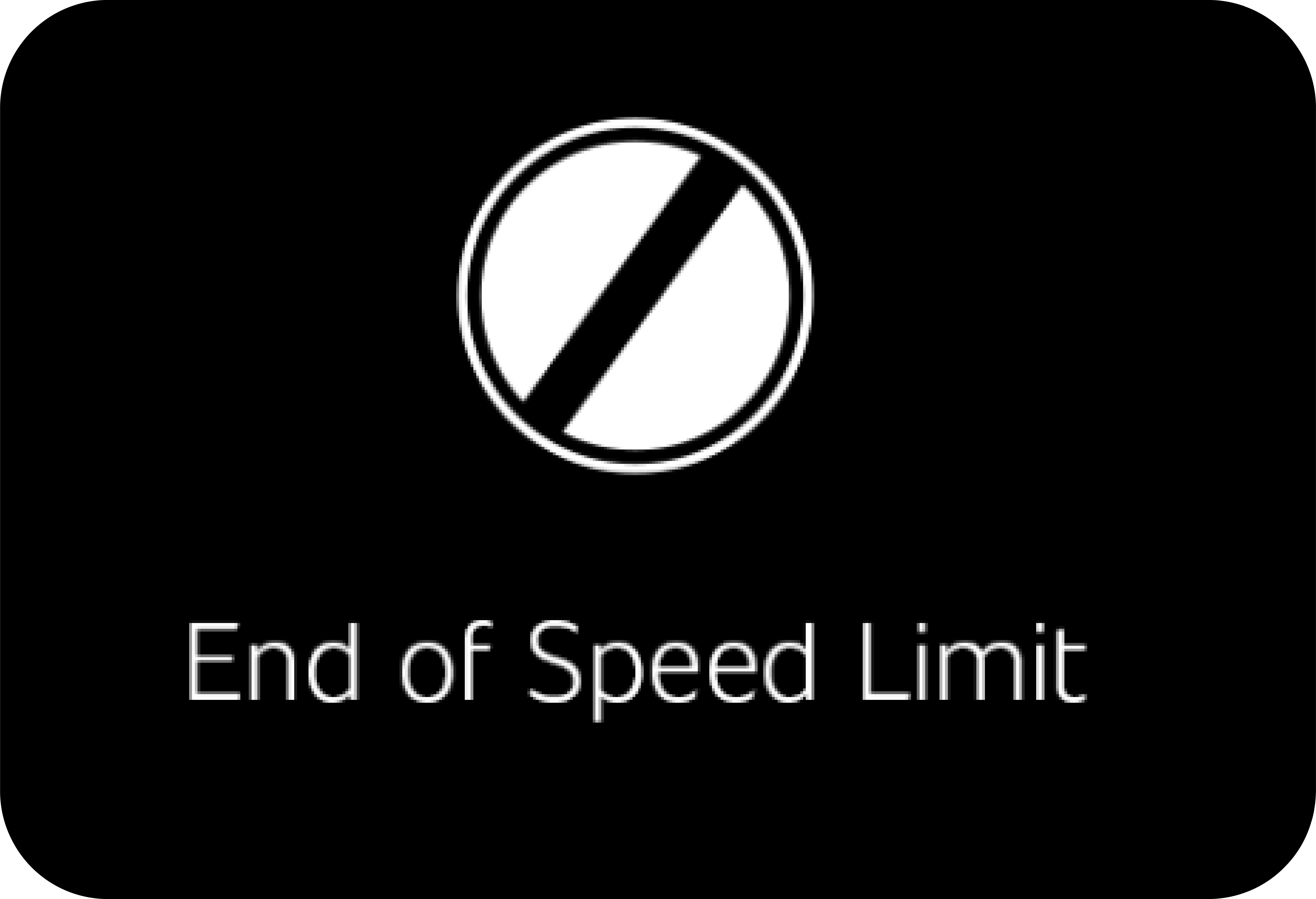

End of Speed Limit
If End of Speed Limit sign is detected, the icon in the cluster gets updated as shown in the image.
|
![]() |
When the system recognizes an overtaking not allowed sign, it is displayed on Instrument Cluster.
|
![]() |
![]() If the system malfunctions, a pop-up message will appear in the instrument cluster stating "Traffic Sign Recognition Unavailable". It is recommended to visit a Mahindra Authorized Dealer in this case.
|
• | The traffic sign is located on a sharp curve. |
• | The traffic sign is improperly positioned (i.e being turned over, blocked by an object, or damaged). |
• | Another vehicle blocks the traffic sign. |
• | The LED light of the traffic sign is broken. |
• | The visibility is poor due to heavy rain, snow, fog or poor light around the sign. |
• | The traffic sign do not conform to the standards. |
• | The traffic sign cannot be distinguished due to shadow caused by overpass or trees. |
• | There is bright light around the traffic sign. |
• | The vehicle speed is too low or too high. |
• | There is dirt, ice or frost on the front windshield, where the camera is installed. |
• | The camera lens is blocked by an object, such as sticker, paper, or fallen leaf. |
• | Host vehicle is too close to the preceding vehicle. |
• | The bus or truck, on which the speed sticker is attached, passes by your vehicle. |
• | TSR function may not detect electronic sign board. |
• | TSR function may not detect conditional sign board. |
• | TSR function may not detect rectangular sign boards. |
![]() |
![]() |
![]() |
When system cannot detect lanes or if system is unavailable due to speed being less than 60 kmph, the marker lines will be
grayed out.
|
![]() |
If the driver continues to hold the steering wheel lightly for a next intervention occurring within 3 minutes, then in addition
to the visual alert, audio alert will also be provided until the system makes sure that driver is in full control.
|

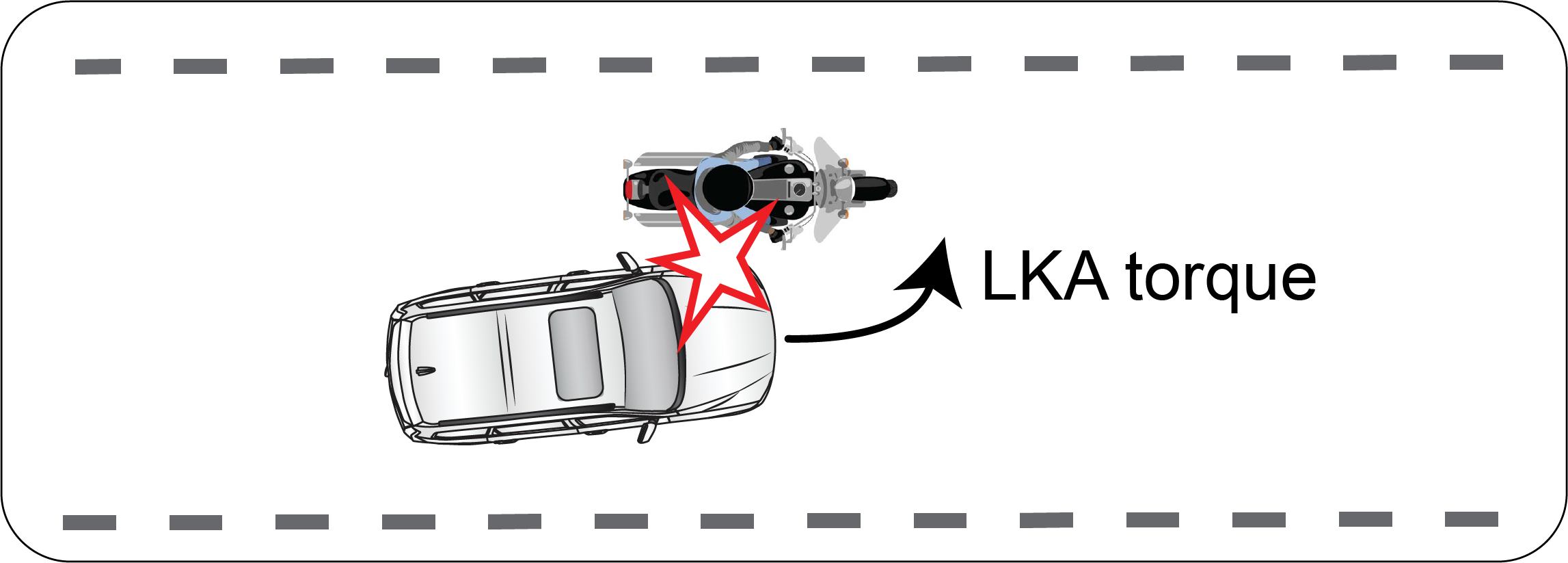

• | Do not wait for system to provide Visual /audio alerts to hold the steering wheel. Driver is always responsible to have control of the vehicle. |
• | In some rare situations when system is unable to do proper judgement, system may generate visual / audio alerts even when the driver holds the steering wheel as a precautionary measure. |
• | System will provide only a mild steering torque within the operating limits. This torque may not be sufficient during sharper curves. System may stop providing assist if it determines the torque provided is not sufficient to pull back to the lane. Driver is always responsible to steer the vehicle and bring vehicle back to lane. |
![]() |
![]() ![]() If system malfunctions in Warning Only mode, LDW indicator light will illuminate in Amber color and a pop up message will
appear in Instrument Cluster that "Lane Departure Warning Unavailable".
|
It is recommended to visit a Authorized Mahindra Dealer in this case.
|
![]() |
![]() ![]() If the system malfunctions in Warning + Assist mode, the LKA indicator light will illuminate in yellow, and a pop-up message
will appear in the instrument cluster stating "Lane Keep Assist Unavailable". It is recommended to visit a Mahindra Authorized Dealer in this case.
|
• | Road under construction. |
• | Reduced visibility due to bad weather on account of rain, fog, snow etc. |
• | Roads with indistinct/faded lane markings. |
• | Road sections with sharp curves. |
• | Narrow roads. |
• | High speed driving especially in sharp curves. |
• | Road sections where there are turn lanes or when the original lane merges or separates. |
• | Passing through tunnels when brightness changes suddenly. |
• | Horizontal or vertical slope. |
• | Preceding vehicle obstructing lane visibility. |
• | Improper headlight aiming/headlight covered with dirt. |
• | Any other environmental conditions affecting camera vision. |
• | Poor visibility due to sun glare or blockage in lens. |
• | Lane Keep assist function will be disabled when the trailer is attached. |
• | Lane Keep assist functions will not work properly when there is a heavy cross wind. |
• | Lane Keep assist function may not work when the lane marking color is other than white and yellow. |
• | Smart Pilot Assist System is not a self-driving system. Within the limits of its capabilities, as described in this manual, it helps the driver with certain driving activities. |
• | Smart Pilot Assist system is not a replacement for proper driving procedures and is not designed to correct careless, inattentive behavior of driver. |
• | Always observe posted speed limits and do not set the speed over them. |
• | Always keep your hands on the steering wheel so you can be ready to steer at any time. The driver is always responsible for staying in a lane and for assessing traffic situations. |
• | Smart Pilot Assist must only be used where there are clearly visible traffic lane markings on both sides of the current traffic lane. In other circumstances there is an increased risk of collision with surrounding obstacles that are not detected by the system. |
• | Lane centering was active before lane detection got dropped. |
• | Preceding vehicle speed is less than around 75 kmph. |
• | Preceding vehicle is close enough for system to follow. Smart Pilot Assist may stop to follow preceding vehicle if above conditions are not satisfied or if the preceding vehicle has changed the path. |
First stage warning will be provided immediately once hands off is detected.
|
![]() |
Second stage warning with audio alert will be provided if driver is not holding the steering wheel even after the first stage
warning.
|
![]() |
Third stage warning with audio alert will be provided when driver does not hold the steering wheel even after second stage
warning. Hereafter Smart Pilot Assist and ACC will go to Standby.
|
![]() |

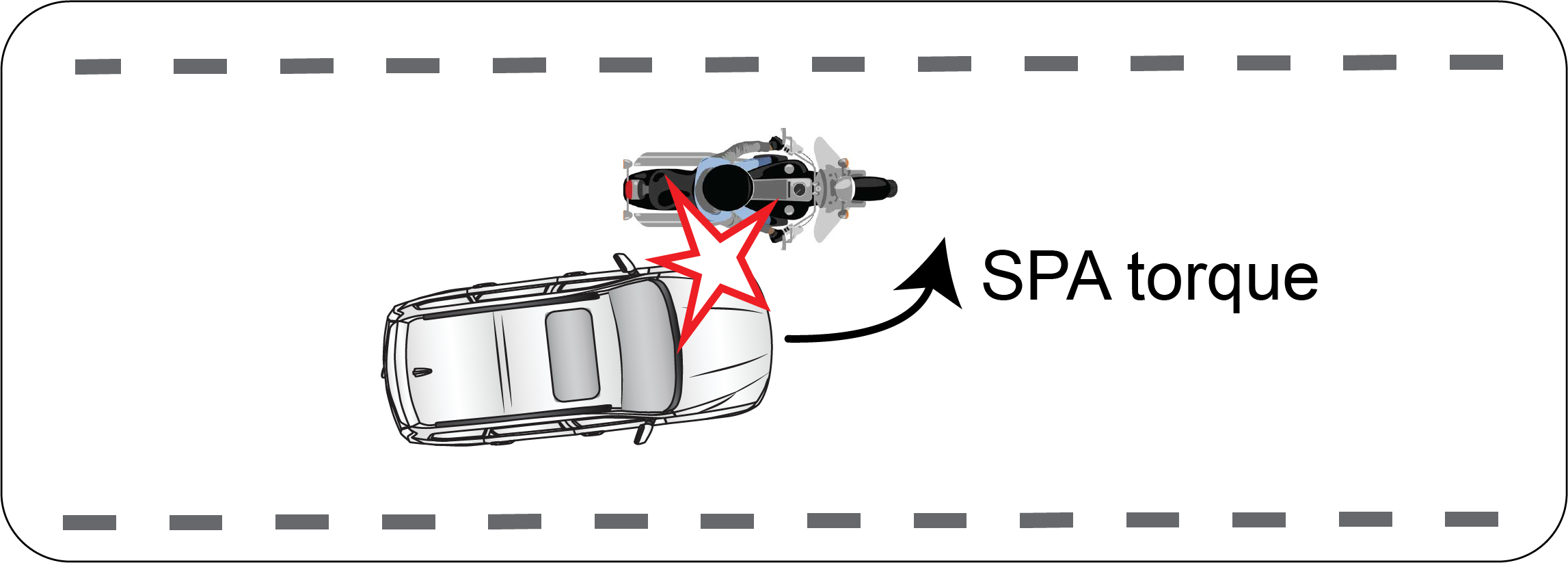

• | Do not wait for system to provide Visual /audio alerts to hold the steering wheel. Driver is always responsible to have control of the vehicle. |
• | In some rare situations when system is unable to do proper judgement, system may generate visual / audio alerts even when the driver holds the steering wheel as a precautionary measure. |
• | ACC system cancels. |
• | The maximum speed that Smart Pilot Assist supports is exceeded. |
• | When driver shifts out of Drive gear. |
• | An Automatic Emergency Braking event occurs. |
• | When turn indicator or hazard is activated. |
• | When interface systems are not available. |
• | When driver steers manually. |
• | When vehicle dynamics/road conditions are not suitable for Smart Pilot Assist Operation. |
![]() |
![]() ![]() When there is any failure in the system, below pop-up message appears on Instrument Cluster screen and Smart Pilot Assist
indicator illuminate in Amber color. Visit nearest Mahindra service center for assistance.
|

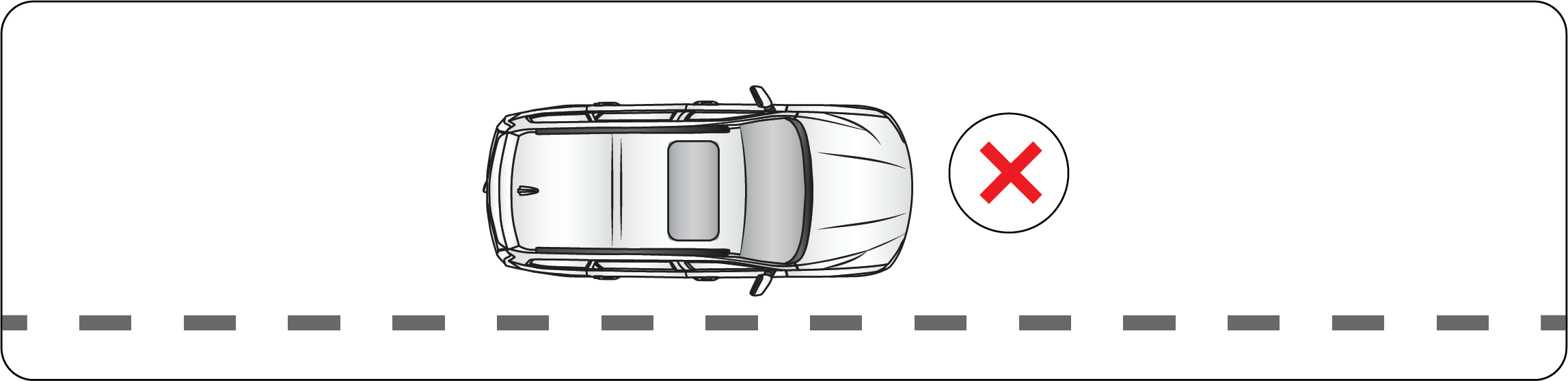

• | Smart Pilot Assist is unable to accurately determine lane markings due to poor visibility (heavy rain, snow, fog, etc.), or an obstructed, covered, or damaged camera or sensor. |
• | When driving on hills. |
• | The road has sharp curves or is excessively rough. |
• | Bright light (such as direct sunlight) is interfering with the camera's view. |
• | The sensors are affected by other electrical equipment or devices that generate ultrasonic waves. |
• | When driving on winding or uneven roads. |
• | When there is a lane closure due to road repairs. |
• | When driving in a makeshift or temporary lane. |
• | When driving on roads where the lane width is too narrow. |
• | On roads where there are multiple parallel lane markers; lane markers that are faded or not painted clearly; non-standard lane markers; or lane markers covered with water, dirt, snow, etc. |
• | On roads where the discontinued lane markers are still detectable. |
• | On roads where the traveling lane merges or separates. |
• | On bumpy roads and on roads with high camber. |
• | When the vehicle’s traveling direction does not align with the lane marker. |
• | When the headlights are not bright due to dirt on the lens or if the aiming is not adjusted properly. |
• | Smart Pilot Assist function will not work properly when there is a heavy cross wind. |
• | Smart Pilot Assist function may not work when the lane marking color is other than white or yellow on both the sides of the road. |
• | When the visibility of lane is blocked by a vehicle in front, Smart Pilot Assist cannot do lane centering |
|
![]() |
![]() |
• | Vehicle is stationary and should be in Drive mode. |
• | The speed of front preceding vehicle shall be above 2 kmph |
• | The distance between the vehicle and preceding vehicle shall be within 5 meters. |
• | System may not operate properly when there is inclement weather, such as snow and rain that could block the visibility of the front camera. |
|
![]() |
![]() |
![]() |

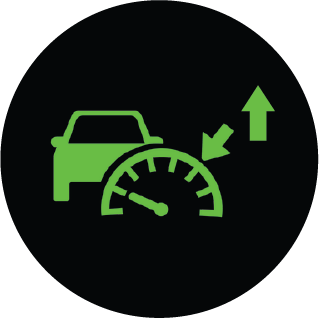

Speed Up
|
Speed Down
|
![]() |
![]() |
![]() |
To adjust the tolerance settings, Go to Settings >> Driver Assistance >> Speed Limit Assist >> Speed Limit Assist Offset.
|
![]() |

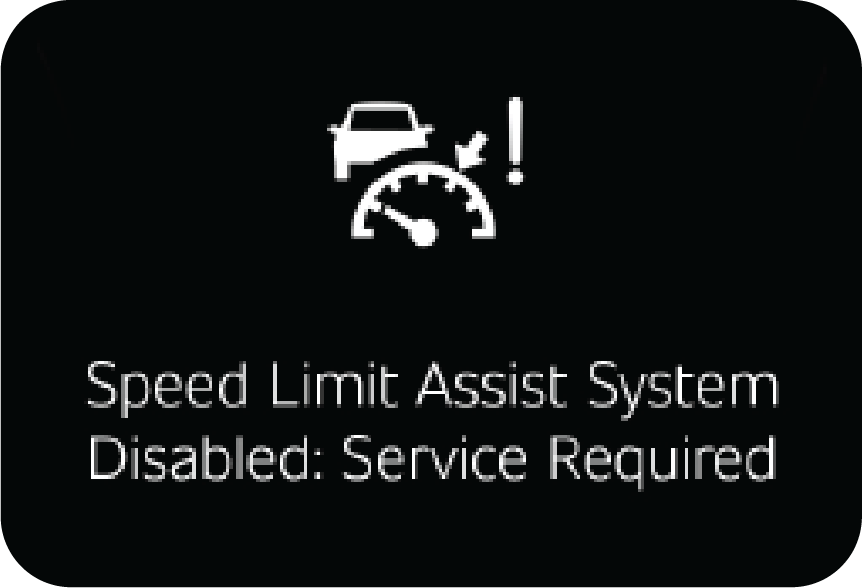

![]() If system malfunctions, a pop-up message will appear in Instrument Cluster that "Speed Limit Assist System Disabled: Service Required". It is recommended that you visit a Mahindra dealer in this case.
|
![]() |
![]() If system malfunctions, a pop-up message will appear in Instrument Cluster that "Speed Limit Assist System Not Available". It is recommended that you visit a Mahindra dealer in this case.
|
• | Make sure the gear shift lever is in Neutral/Park mode. |
• | Ensure that the parking brake is engaged. Turn the key to IGN position but do not turn the key to start. |
1. | Turn the ignition ON by pressing the start stop button or through ignition key. |
2. | Shift the gear shift lever to Park or Neutral position, if found in any other position. |
3. | Apply parking brake, if found not applied. |
4. | Do not press the accelerator. |
5. | Depress the brake pedal and press the start stop button or Turn the key momentarily to the START position to crank the engine. |
6. | Once the engine starts, release the Start Stop Button or key. |
1. | Turn the ignition ON by pressing the start stop button or through ignition key. |
2. | Shift the gear shift lever to neutral position. if found in any other position. |
3. | Apply parking brake, if found not applied. |
4. | Do not press the accelerator. |
5. | Depress the clutch pedal and press the start stop button or Turn the key momentarily to the START position to crank the engine. |
6. | Once the engine starts, release the Start Stop Button or key. |
• | All warning lamps are OFF |
• | Low oil pressure lamp is OFF |
1. | Release the parking brake. |
2. | Depress the clutch. |
3. | Shift the gear lever to 1st gear. |
4. | Release the brake pedal. |
5. | Drive by releasing the clutch and depressing the accelerator pedal simultaneously. |
1. | Release the parking brake. |
2. | Depress the Brake pedal. |
3. | Shift the gear lever to D or R or M. |
4. | Drive by releasing the brake pedal and depressing the accelerator pedal simultaneously. |
• | Keep your right foot on the brake pedal. |
• | Turn front wheels towards the road curb. |
• | Switch OFF the ignition, turn the key to the steering lock position and remove the key. |
• | Press the start stop button once to switch off the vehicle (for PKE only). |
• | Engage the parking brake. |
• | Move the gear shift lever to 1st gear position (reverse gear if parking on an incline). |
• | Slowly release the brake pedal. |
• | Lock your vehicle when leaving. |
• | Keep your right foot on the service brake pedal. |
• | Turn front wheels towards the road curb. |
• | Engage the parking brake. |
• | Shift the gear lever to Park “P” position |
• | Switch OFF the ignition, turn the key to the steering lock position and remove the key. |
• | Press the start stop button once to switch off the vehicle (for PKE only). |
• | Slowly release the brake pedal. |
• | Lock your vehicle when leaving. |
• | Vehicle exhaust contains Carbon Monoxide, Carbon Dioxide, Nitrogen Oxides, Hydrocarbons and Particulate Matter. These are potential environmental and health hazards. |
• | Avoid inhaling the exhaust gases. Carbon Monoxide is a colorless and odorless gas and can cause unconsciousness or even death. |
• | If the exhaust system is damaged for any reason or you notice a change in the exhaust noise, have the vehicle checked by an Mahindra Authorised Dealer immediately. |
• | Do not start the vehicle in a closed garage or in an enclosed area where ventilation is poor for the exhaust gases. |
• | Since the engine compartment and exhaust system components are hot and can ignite a fire, do not park or leave the vehicle with the engine idling over dry grass, leaves, paper, rags or any combustible material. |
MT |
AT |
|
|
A: Accelerator Pedal
|
B: Brake Pedal
|
C: Clutch Pedal
|
• | Before you drive your vehicle, please read this manual carefully. |
• | Before you start driving, check proper operation of the brakes and steering system. |
• | If, while driving, you hear any strange noise or feel unusual vibration, or if you have any concerns whatsoever, or if any warning lamps illuminate or buzzers sound, park/stop the vehicle in a safe location as soon as possible. Identify the cause and take any necessary remedial action. Contact your Mahindra Authorised Dealer if necessary. |
• | Never overload or improperly load your vehicle. |
• | Always be attentive while driving and follow safe driving practices. |
• | Always maintain the recommended inflation pressure in tyres. |
• | Always drive at a safe speed appropriate for given driving conditions. You must follow the speed limits. |
• | While backing up, keep a constant lookout for people, particularly children, or other obstructions or hazardous material that might be present behind the vehicle. |
• | Avoid loading any items on the roof that will raise the vehicles center of gravity and make your vehicle more unstable. |
• | Loaded vehicles, with a higher center of gravity, may handle differently than unloaded vehicles. Extra precautions, such as slower speeds and increased stopping distance, should be taken when driving a heavily loaded vehicle. |
• | Always slowdown in gusty crosswinds. Because of its profile and higher center of gravity, your vehicle is more sensitive to side winds than an ordinary passenger car. Slowing down will allow you to have much better control. |
• | When driving in off-road or on rugged terrain, do not drive at excessive speeds, jump, make sharp turns, strike objects, etc. This may cause loss of control or vehicle rollover causing serious injury. You are also risking expensive damage to your vehicle's suspension and chassis. |
• | Maintain steering wheel control at all times, especially on rough terrains. Sudden changes in terrain can result in abrupt steering wheel motion. Make sure you grip the steering wheel from the outside. Do not grip the spokes. |
• | If the vehicle goes from one type of surface to another (e.g. from concrete to gravel/sand/mud/snow) there will be a change in the way the vehicle responds, especially the way it responds to steering, braking and accelerating inputs. |
• | Be extremely careful when driving on pavements made slippery by loose sand, water, gravel, snow or ice. |
• | If your vehicle goes off the edge of the pavement, slow down, but avoid severe brake or steering application. Ease the vehicle back onto the pavement only after reducing your speed. Do not turn the steering wheel too sharply while returning to the road surface. |
• | It may be safer to stay on the apron or shoulder of the road and slow down gradually before returning to the pavement. You may lose control if you do not slow down or if you turn the steering wheel too sharply or abruptly. |
• | In an unavoidable emergency situation where a sudden sharp turn must be made, turn the steering wheel only as rapidly and as far as required to avoid the emergency. Excessive steering will result in less vehicle control. Additionally, smooth variations of the accelerator and/or brake pedal pressure should be utilized if changes in vehicle speed are called for. Avoid abrupt steering, acceleration or braking which could result in an increased risk of loss of vehicle control, vehicle rollover and/or personal injury. Use all available road surfaces to return the vehicle to a safe direction of travel. |
• | When driving in off-road or on rugged terrains, never over speed or make sharp turns. This may cause loss of control or vehicle rollover causing serious injury. |
• | Always maintain steering wheel control, Sudden changes in terrain can result in abrupt steering wheel motion. |
• | Drive cautiously to avoid vehicle damage from concealed objects such as rocks and stumps. You should either know the terrain or map-out your route before driving in the area. |
• | Always perform a maintenance inspection after each day of off-road driving that has taken you through rough terrain, sand, mud or water. |
![]() |
Contact your Mahindra Authorised Dealer immediately. Have the vehicle towed to nearest Mahindra Authorised Dealer to check
any entry of water into the engine.
|

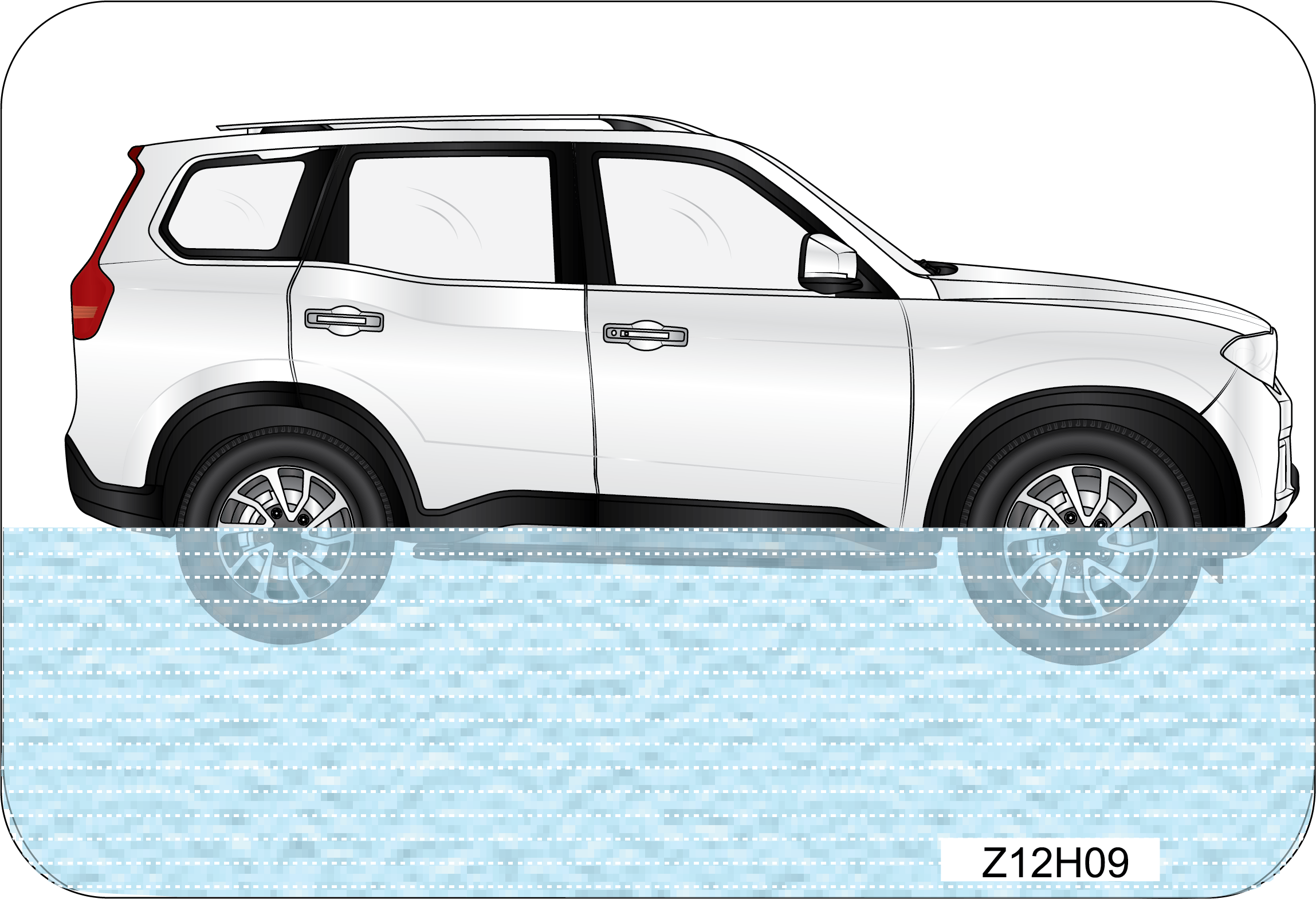

• | Never drive through water when it flows above the bottom portion of the bumper or above the tyre center line. |
• | The engine could get damaged internally if attempts are made to cross through deep water. |
• | Wet brake discs have a lower coefficient or friction resulting in reduced braking efficiency. Tab the brake pedal while driving to remove the film of water. |
• | The ground under the water might not be firm which could result the water being deeper than expected when driving the vehicle through it. |
• | Do not stop or shut OFF the engine while immersed in water. It helps in preventing water getting inside the exhaust pipes. |
• | When backing down a ramp, do not allow the exhaust tail pipe to immerse in water. |
• | Water can wash the grease from wheel bearings, causing rusting and premature failure. It may also enter the differentials, transmission, and transfer case, reducing the oil's lubricating qualities. If these are submerged in water, the lubricants should be replaced as required. |
• | Water entering the transmission will cause deterioration in shift quality, locking up of your transmission accompanied by vibration, and ultimately damaging the transmission. |
• | Sand, mud/sludge that has accumulated in around brake discs may affect braking efficiency. This may also damage brake system components. Wet brakes cannot stop the vehicle as effectively as dry brakes. Drying can be improved by driving the vehicle slowly while applying light pressure on the brake pedal. |
• | When driving through water, traction or brake capability may be limited. Always perform a maintenance inspection after each day of off-road driving that has taken you through water. |
• | After going off-road, it is always a good idea to check for damage. Completely inspect the underbody of the vehicle for any damages. |
• | Check for accumulations of plants or bushes. or polyethylene / plastic. These could be a fire hazard at high temperatures. |
• | Inspect all the tubes/hoses and check for any fluid leakages. |
• | Get heat exchangers (radiator and condenser) cleaned. |
• | We also recommend that the vehicle be checked at the Mahindra Authorised Dealer for any water entry into the transmission / axle or the engine. |
• | If any unusual vibration is experienced, check the wheels for impacted material. Impacted material can cause a wheel imbalance. Get it inspected/corrected as soon as possible. |
• | After driving through deep water, inspect your vehicle fluids and lubricants (engine oil, transmission/transfer case/axle oils) to ensure the fluids have not been contaminated. |
• | Ensure that your vehicle is maintained as per recommendation (Refer to Warranty and Service Information Guide). |
• | Ensure that the tyre pressures are as per recommendation (Ref to sticker on door pillar or Page 9-3 ) |
• | Ensure parking brakes are released fully. |
• | Use Engine Start-Stop feature to the maximum (Ref Page no 8-42), if applicable |
• | Drive with all the windows closed to reduce aerodynamic drag. |
• | Accelerate smoothly with a light foot on the accelerator. |
• | Anticipate stops and slow down in coasting mode before applying brake. |
• | In manual transmission, shift gears at the right speeds (Ref page 6-14 for gear shift indication prompts). |
• | Fitting roof carrier will increase drag and reduce fuel mileage. |
• | Driving at speeds above 80 Kms/hr reduces fuel mileage. |
• | Do not rest the left foot on the clutch pedal in manual transmission vehicles as it will reduce the fuel mileage as well as damage clutch/transmission components. |
• | Do not attempt to use brakes with the left foot in Automatic transmission vehicles. |
Managing the Air conditioner for optimum fuel efficiency
Recommended AC modes for obtaining optimum fuel efficiency.
|
|
|
|
• | The Fuel mileage value is displayed in the cluster as AFE (Average Fuel Economy) in Kms/lit. |
• | The AFE can be set to multiple modes. |
• | Refer to Page 3-15 for the procedure for resetting AFE modes. |
|
An illuminator ring is provided on the face of the ignition switch to help in locating the ignition switch at night. The ring
will illuminate the moment the driver door is opened and will remain glowing till the driver door is closed.
|
![]() |
Horn will get activated when horn switch/pad is pressed.
It will get deactivated when horn switch/pad is released or after 10 sec of continuously pressing.
|
|
Your vehicle is fitted with manual transmission having six forward and one reverse gear. This shift pattern is imprinted on
the gear lever knob.
|
Display |
|
---|---|
High |
Low |
|
|
Shift Range | Vehicle Road Speed (kmph) | Engine RPM Range |
---|---|---|
1–2 |
16 |
1600–2000 |
2–3 |
27 |
|
3–4 |
42 |
|
4–5 |
54 |
|
5–6 |
70 |
Shift Range | Vehicle Road Speed (kmph) | Engine RPM Range |
---|---|---|
2–1 |
14 |
1000–1200 |
3–2 |
25 |
|
4–3 |
40 |
|
5–4 |
52 |
|
6–5 |
61 |
Shift Range | Vehicle Road Speed (kmph) | Engine RPM Range |
---|---|---|
1–2 |
18 |
1600–2300 |
2–3 |
30 |
|
3–4 |
44 |
|
4–5 |
54 |
|
5–6 |
70 |
Shift Range | Vehicle Road Speed (kmph) | Engine RPM Range |
---|---|---|
2–1 |
14 |
1000–1200 |
3–2 |
25 |
|
4–3 |
40 |
|
5–4 |
52 |
|
6–5 |
61 |
|
This gear is to enable the vehicle to move in the reverse direction. Move the gear lever into this position only after the
vehicle has come to a complete stop and the gear lever is in neutral position.
|
|
Your vehicle is equipped with 6 Speed automatic transmission having Electric controls with an Adaptive Transmission Control
Strategy.
|
P : Park position |
M : Manual Shift |
R : Reverse position |
M+ : Manual up-shift |
N : Neutral position |
M- : Manual down shift |
D : Drive position |
Movement | Possibility |
P-R |
Yes-Brake pedal + knob button |
R-N |
No |
N-D |
No |
D-M |
No |
M-D |
No |
D-N |
No |
N-R |
Yes-Only knob button |
R-P |
Yes-Only knob button |
|
Use this position to park your vehicle, warm up the engine, or stay in a location for an extended length of time.
|
• | Stop the vehicle completely before shifting into “P”. |
• | Never shift to “P” when the vehicle is moving, To avoid damage to transmission. |
• | If the lever is shifted to P when the vehicle has not come to stop and in forward motion, then a ratchet noise will be heard. This is not abnormal. However we do not recommend moving to P till the vehicle has come to standstill . As repeated such instances can damage the internal parts. |
• | To shift from the “P” position to another position, the ignition switch must be turned to “ON” and the brake pedal should be depressed. Any forcible attempts to move the selector lever from “P” without the two procedures may damage the selector lever. |
|
Use this position to drive the vehicle in reverse.
To shift into “R” from “P” or “N” (with the knob button press), completely stop the vehicle and depress the brake pedal. When
the shift lever is in “R”, parking aid system will be automatically activated.
|
• | Never shift into “R” when the vehicle is moving. |
• | Please note that the vehicle may slowly move backward when the selector lever is at “R”. |
|
At this position, the engine does not transfer power to the wheels and the vehicle will not move on a flat road. However,
for safety, apply the brake when the gear is in this position.
|
• | Warm up the engine for approximately 3 minutes when the ambient temperature is below -15°C. Otherwise, shifting of gears in Forward or Reverse direction may not be smooth. |
• | If you have to stop on a hill and would like to use this neutral position, depress the brake pedal firmly. |
• | Never attempt to move the gear selector lever to “N” when the vehicle is in motion. |
|
Use this position for normal driving conditions. The transmission is automatically shifted from 1st gear up to 6th gear according
to the level of depression on the accelerator pedal.
|
• | Do not abruptly drive off or sharply accelerate the vehicle immediately after shifting into “D” or the transmission will be damaged. Wait for D symbol to come in the cluster before pressing the accelerator pedal. |
• | Even while the gear is in “D”, the vehicle can roll down an uphill according to the gradients, so you have to depress the brake. |
• | Please note that the vehicle may creep forward on level ground when the selector lever is in “D” even without pressing the accelerator pedal and this behavior is known as forward creep. |
|
To shift to manual mode move the lever in left side from “D” position. Driving gear can be adjusted by operating the shift
lever in front or back direction.
|
• | Before leaving the Driver’s seat always make sure that the shift lever is in the P (park) position. |
• | Shifting into P position while the vehicle is in motion will cause the drive wheels to lock which will cause you to lose control of the vehicle. |
• | Always fully depress the brake pedal before and while shifting out of the Drive (D) position into another position (other than M Mode) to avoid inadvertent motion of the vehicle. |
• | The shift from D to M (Manual Mode) and M to D can be performed while the vehicle is moving. |
• | Never press accelerator pedal when moving the gear shifter lever. |
• | To maintain the required levels of vehicle performance and safety, the system may not execute certain gearshifts when the shift lever/ tip switch is operated. |
• | Abruptly downshifting and using the engine brake may make the vehicle unstable, especially when driving on roads covered with snow or ice. |
|
|
• | Always start the engine while the selector lever is in “P”. For your safety, avoid starting the engine from “N” even though you can do so. |
• | Check whether or not the engine idling speed is normal. Keep the brake pedal depressed and shift into “D” or “R”. |
• | To move the vehicle, release the brake pedal and depress the accelerator pedal gradually. |
• | Do not abruptly drive off or sharply accelerate the engine after shifting into “D”. Otherwise the transmission will be damaged. Especially, when you start off after stopping, wait for a while until the “D” shift indicator comes on with the brake pedal depressed. |
• | When driving on a down hill, never shift the selector lever to “N” If you try to shift the lever to “D” from “N”, a sudden gear engagement can damage the drive train. |
• | HDC (Hill Descent Control) is designed for driving down a steep hill. When HDC is applied, do not shift to “N”. Otherwise, HDC will be deactivated. |
• | For your safety, always depress the brake pedal before moving the gear selector lever with the vehicle stopped. |
• | Never depress the accelerator pedal when moving the gear selector. |
• | If you have to stop on a hill, depress the brake pedal fully. |
• | To avoid any mechanical damages or accidents, never shift into “P” or “N” while the vehicle is in motion. |
• | A high engine speed can cause your vehicle to move abruptly from the parked position. To avoid this, wait until the engine rpm becomes stable. |
• | When you start off on a hill after stopping and parking the vehicle, wait for a while until the “D” shift indicator comes on, with the brake pedal depressed. |
• | Do not press the accelerator pedal and the brake pedal at the same time. |
• | We suggest that right leg only should be used for brake pedal operation. |
• | Do not use the kick-down function while driving on slippery or sharply curved roads. |
• | If you use the kick-down function too frequently, the fuel economy of the vehicle will get worse. |
• | Normal Mode – General everyday driving normal roads. |
• | Grass/Gravel/Snow Mode —Improved vehicle stability for low-traction conditions. |
• | Mud/Ruts Mode — Maximum torque availability at all four wheels. |
• | Sand Mode — Momentum of the vehicle is maintained to keep moving on soft ground. |
|
3. Once the ICC knob is rotated to desired drive mode, the LED on ICC switch corresponding to the mode selected will start
blinking and once the mode gets activated, the LED remains continuously ON.
|
• | If the vehicle is in 2WD and user had selected any drive mode other than normal, 4WH will get engaged automatically. |
• | 4WH warning lamp turns ON in cluster
|
• | Selected mode indication turns ON in cluster. |
• | Mode activation message displays in cluster. |
Mode |
Normal |
Grass/Gravel/Snow |
Mud/Rut |
Sand |
2H |
Yes |
No |
No |
No |
4H |
Yes |
Yes |
Yes |
Yes |
4L |
Yes |
Yes |
Yes |
Yes |
|
Normal mode LED in ICC glows which indicates vehicle is in normal mode.
|
|
Normal mode icon will be displayed in cluster.
Also “Normal Mode activated” alerts will be displayed in cluster and goes OFF.
|
|
||||||
or
|
||||||
|
||||||
or
|
||||||
or
|
|
Once this mode is selected 4WH will be automatically engaged (If not engaged previously). LED lamp on ICC corresponding to
this mode starts blinking and on activation of the mode, the LED remains ON continuously.
|
|
Grass/Gravel/Snow mode icon will be displayed in cluster.
Also “Grass/Gravel/Snow Mode activated” alerts will be displayed in cluster and goes OFF.
|
• | This mode improves overall traction of the vehicle. Use this mode to drive in surfaces covered with snow, ice, water, grass or gravel. |
• | MAX speed possible in 4WH is 120 kmph & 4WL is 60 kmph. |
|
|
• | Vehicle will be launched automatically in 2nd gear if TGS lever is in Auto mode. |
• | Driver can select 2nd gear to launch the vehicle manually using TGS lever in Manual mode. |
• | Gear early upshift & late downshift is normal in this mode. |
• | In snow conditions. Avoid giving strong inputs. Also avoid sharp braking. The ABS and ESC can help but they can not overcome the physical laws of friction. |
|
|||
or
|
|||
|
|||
or
|
|||
|
|||
|
Once this mode is selected 4WH will be automatically engaged (If not engaged previously). LED lamp on ICC corresponding to
this mode starts blinking and on activation of the mode, the LED remains ON continuously.
|
|
Mud/ Rut mode icon will be displayed in cluster.
Also “Mud/ Rut Mode activated” alerts will be displayed in cluster and goes OFF.
|
• | This mode provides best traction for slippery road conditions. Use this mode to drive in surfaces covered with mud or if vehicle is stuck in rut. |
• | 4WL also can be selected manually based on requirements. |
• | MAX speed possible in 4WH is 70 kmph & 4WL is 60 kmph. |
• | When vehicle goes beyond 70 kmph in 4WH, 4Xplor mode will change to Normal Mode. |
• | Once it goes out from mud & rut mode , User can manually reengage the mud mode once again in the same driving cycle - only after the vehicle speed comes below 60 Kmph. |
• |
|
• | Gear late upshift & early downshift is normal in this mode. |
|
|||
or
|
|||
|
|||
or
|
|||
|
|||
|
Once this mode is selected 4WH will be automatically engaged (If not engaged previously). LED lamp on ICC corresponding to
this mode starts blinking and on activation of the mode, the LED remains ON continuously.
|
|
Sand mode icon will be displayed in cluster.
Also “Sand Mode activated” alerts will be displayed in cluster and goes OFF.
|
• | This mode ensures maintains the momentum of the vehicle to keep the vehicle moving on soft ground. Use this mode to drive in surfaces covered with sand. |
• | 4WL also can be selected manually based on requirements. |
• | MAX speed possible in 4WH is 120kmph & 4WL is 60 kmph. |
• |
|
• | Gear late upshift & early downshift is normal in this mode. |
• | In sandy terrain, it is essential that the vehicle momentum is maintained ESC. going up the dune. At the same time do not give too sharp steering input, the wheel can dig into sand. |
High |
Low |
|
|
4WD Shifting Conditions |
|
Mode Shift |
Conditions |
Shifting in to 4H
|
Vehicle Speed < 80 kmph
|
Shifting out of 4H
|
No speed limit
|
Shifting to 4L
|
Vehicle speed< 0 kmph
|
P/N mode (for AT),
Clutch pressed/Gear in N (For MT) |
|
Shifting out of 4L
|
Vehicle speed<2 kmph
|
P/N mode (for AT),
Clutch pressed/Gear in N (For MT) |
High |
Low |
|
|
High |
Low |
|
|
1. | Bring the vehicle to a complete stop |
2. | Brake pedal depressed |
3. | Shift the gear lever into P/N mode (for AT) & Clutch pressed/Gear in N (For MT) |
4. | Press/Rotate the four wheel drive selector switch to the 4L position. The 4WD LOW lamp in the cluster should illuminate and the 4WD HIGH lamp goes OFF. If the 4WD LOW lamp does not illuminate within 10 sec repeat the above steps again. |
High |
Low |
|
|
1. | Bring the vehicle to a complete stop. |
2. | Brake pedal depressed. |
3. | Shift the gear lever into P/N mode (for AT) & Clutch pressed/Gear in N (For MT). |
4. | Press/Rotate the four wheel drive selector switch to the 4H position. The 4WD LOW lamp in the cluster goes OFF and the 4WD
HIGH lamp should illuminate. If the 4WD LOW lamp doesn't go out within 10 sec, drive forward or reverse for a short distance,
stop the vehicle completely, shift the gear lever into neutral and operate the selector switch again. If the problem persists contact an Authorized Mahindra Dealer as soon as possible. There may be a malfunction in the four wheel drive system. |
• | Do not believe than you can go faster than road conditions permit. |
• | Do not shift to a lower gear than necessary to maintain forward motion. |
• | Over-revving the engine can spin the wheels and traction will be lost. You will not be able to stop or control your vehicle. |
• | Braking performance is dramatically reduced in wet/icy/slippery conditions. Avoid abrupt downshifts on slippery roads, engine braking may cause skidding and loss of control resulting in an accident. |
• | Do not press the clutch while descending steep hills as you may lose control of the vehicle. Always descend in-gear. |
• | In heavy snow or when pulling a load, or for additional control at slower speeds, select a low gear and/or shift the transfer case to the 4L range. |
1. | Torque reversal/coasting. |
2. | Slight turning on the same side on which side the wheel was slipping. |
3. | Slight steering input. |
4. | Braking. |
5. | The system gets de-activated over a speed of 30 km/h. |
Display | Operating Conditions |
---|---|
|
The warning will be displayed if user request 4WH above 80 kmph vehicle speed. |
|
The warning will be displayed if user enter or exit 4WL mode during driving. (MT Variant). |
|
The warning will be displayed if user enter or exit 4WL mode during driving. (AT Variant). |
|
The warning will be displayed if user enter or exit 4WL/4WH mode during driving. |
Drive Mode |
Operation of Drive Mode |
Do’s |
Dont’s |
---|---|---|---|
2WD
|
Normal Operation of vehicle.
|
Normal operation of vehicle
|
|
Rear Wheels are powered only. The disconnect and the transfer case are disengaged.
|
|||
4WH
|
Front and rear wheels are powered. The disconnect is engaged and the transfer case is locked
The front axle will transfer power to the ground at all times.
To shift from 2WD to 4WH rotate the selector switch to the 4WH position or Press the 4WH selector switch. This can be done at vehicle speed < 80 kmph.
To shift from 4WH to 2WD rotate the selector switch to 2WD or Press the 4WH selector switch. This can be done at no speed limit.
|
Engage 4WH only when the vehicle has been traveling straight for greater than 15 seconds.
|
Do not operate the vehicle in 4WH mode on dry, hard-surfaced roads.
|
Do not shift into of 4WH while the rear wheels are slipping.
|
|||
It is not recommended to operate the vehicle in 4WH mode with a Temporary spare tyre. If 4WH drive operation is necessary,
do not operate at speeds above 16 kmph and/or for distance greater than 80 km. Extended operation in 4WH with Temporary spare
tyre may result in damage to drivetrain components.
|
|||
4WL
|
Front and rear wheels are powered.
The disconnect is engaged and the transfer case is locked in low gear.
The front axle will transfer power to the ground at all times.
To shift from 2WD or 4WH into 4WL. Stop the vehicle, depress the brake and place the automatic transmission in N (Neutral)
or depress the clutch on vehicles with a manual transmission. Rotate the selector switch to the 4WL position.
To shift from 4WL to 2WD or 4WH. Stop the vehicle, depress the brake and place the automatic transmission in N (Neutral) or
depress the clutch on vehicles with a manual transmission. Rotate the selector switch to 2WD/4WH or Press 4WH/4WL for 2WD.
|
Engage 4WL only when the vehicle's transmission is in neutral or the clutch is depressed and the vehicle is stopped.
|
Do not operate the vehicle in 4WL mode on dry, hard-surfaced roads.
|
Do not shift into or out of 4WL while vehicle is moving or the rear wheels are spinning.
|
|||
Do not be concern about some momentary clunks and ratcheting sounds when initially shifting into 4WL mode. The noise is caused
by the front drivetrain engagement
|
|||
It is not recommended to operate the vehicle in 4WL mode with a Temporary spare tyre. If 4WL drive operation is necessary,
do not operate at speeds above 16 kmph or for distance greater than 80 km. Extended operation in 4WL with temporary spare
tyre may result in damage to drivetrain components.
|
• | You can choose ZAP mode to experience a TRUE SUV drive, a drive that is true to the Mahindra SUV experience. This is the default mode. |
• | You can choose ZIP mode for a normal comfortable city drive. The Engine Power and shift points (in AT) will be suitable for traffic conditions. |
• | You can choose ZOOM Mode for the Adrenaline Rush. Engine Power, Gear shifts , Braking will all work together to give you an absolute THRILL to your driving experience. |
1. | Sensitivity of Accelerator pedal along with engine power delivery |
2. | Gear shift patterns |
3. | Steering effort |
4. | TCS Control |
![]() |
This alert is displayed when Zip drive mode is activated. |
![]() |
This alert is displayed when Zap drive mode is activated. |
![]() |
This alert is displayed when Zoom drive mode is activated. |
|
3. IN case of any faults at vehicle level , that doesn't allow the vehicle to be in the mode of choice Customer is alerted
by an alert message – “Drive Mode Not Possible” in cluster screen and the Mode choice in the Cluster would be Blank.
|
• | The vehicle has come to a halt at a traffic signal, is in the neutral gear and the clutch pedal is released. |
• | The Engine Stop/Start lamp in the cluster will blink indicating that the engine is going to stop shortly. The engine will shut down automatically after a specific time period. |
• | The Engine Stop/Start lamp will illuminate in the instrument cluster indicating the engine was stopped by the “Engine Stop/Start” System. |
• | Once the signal turns green, press the clutch pedal and the engine starts immediately. |
• | The indicator in the cluster goes OFF indicating that the engine has started again and you are ready to drive on. |
• | Engine Stop/Start system is in active condition by default and should not be turned off using the selection switch. |
• | Bonnet is fully closed. |
• | In the current ignition cycle, the vehicle has crossed 7 kmph at least once. |
• | Current status of the engine is idling. |
• | Vehicle speed is zero. |
• | Accelerator pedal and clutch pedal are fully released. |
• | Vehicle battery should be in healthy condition. |
• | Engine is warm (Engine coolant temperature is between 25 degree C and 100 degree C). This is an extra precaution to ensure safe working of the engine. |
• | Fuel temperature is less than 60 degree C. |
• | Gear in neutral. |
• | DPF REGEN should not be in active state. |
• | Vehicle should not have DEF error codes E14, E24 & E34. |
• | OBD and CHECK ENGINE telltale in OFF condition. |
• | Vehicle should have been stopped by the Engine Stop/Start System. |
• | Gear lever is in the neutral position, Clutch pedal is fully de-pressed. |
• | Vehicle speed is zero. |
• | Engine Stop/Start System is in active state. |
• | Bonnet should be closed. |
• | The vehicle has come to a halt at a traffic signal, is in the “D” Mode and the brake pedal is pressed. |
• | The Engine Stop/Start lamp in the cluster will blink indicating that the engine is going to stop shortly. The engine will shut down automatically after a specific time period. |
• | The Engine Stop/Start lamp will illuminate in the instrument cluster indicating the engine was stopped by the “Engine Stop/Start” System. |
• | Once the signal turns green, release the brake pedal and the engine starts immediately. |
• | The indicator in the cluster goes OFF indicating that the engine has started again and you are ready to drive on. |
• | Engine Stop/Start system is in active condition by default and should not be turned off using the selection switch. |
• | Bonnet is fully closed. |
• | In the current ignition cycle, the vehicle has crossed 7 kmph at least once. |
• | Current status of the engine is idling. |
• | Vehicle speed is zero. |
• | Brake pedal is fully pressed. |
• | Vehicle battery should be in healthy condition. |
• | Engine is warm (Engine coolant temperature is between 25 degree C and 100 degree C). This is an extra precaution to ensure safe working of the engine. |
• | Fuel temperature is less than 60 degree C. |
• | Gear shift Lever in ‘D’ mode. |
• | Vehicle should not be in slope. |
• | DPF REGEN should not be in active state. |
• | Vehicle should not have DEF error codes E14, E24 & E34l. |
• | AT Warning telltale in OFF condition. |
• | OBD and CHECK ENGINE telltale in OFF condition. |
• | Vehicle should have been stopped by the Engine Stop/Start System. |
• | Gear lever is in ‘D’ mode and brake pedal is fully released. |
• | Vehicle speed is zero. |
• | Engine Stop/Start System is in active state. |
• | Bonnet should be closed. |
1. | What is the advantage of the system? The Engine Stop/Start System aids in attaining better fuel efficiency on your vehicle and thus reducing your running costs.
However, the mileage improvement will depend upon various parameters such as prevailing traffic, driving patterns, etc.
|
2. | What are the other advantages of the system?
|
3. | Is it possible to start the engine through the clutch pedal for the first time? No, the engine can be cranked only with the ignition key for the first time. If the engine is stopped automatically by the
system, only then it is possible to start the engine through clutch pedal in MT.
|
4. | How to activate/deactivate the system? The system is activated by default during every ignition cycle. The LED indication on the Engine Stop/Start switch indicates
the status of the system. The system can be turned OFF or back ON using the Engine Stop/Start switch.
|
5. | Whether the system will get activated as soon as the engine is started the first time with the ignition key? No, the Engine Stop/Start system can be activated only by the Engine Stop/Start switch, provided all listed conditions (in
the previous section) are met. This is to ensure better performance of the engine in terms of fuel economy and durability.
|
6. | What is to be done, if I don’t want the system to stop my engine at traffic signals/jams? The system can be turned OFF by the Engine Stop/Start button in the central bezel switch bank.
|
7. | Whether the A/C will function, if the engine is switched off? No, the A/C will not work. However, the blower will be in operation when the ignition is ON.
|
8. | What will happen if I keep the clutch continuously pressed at traffic signals/jams? The system will not stop the engine if the clutch is continuously pressed since it indicates the driver’s intention of moving
the vehicle immediately.
|
9. | When the battery charge is low, whether the engine will be switched off? If the battery charge drops below a certain threshold level, the system will not stop the engine so as to preserve the battery
from further draining.
|
10. | Whether I will be able to operate the engine with the normal ignition key? Yes, normal operation with the ignition key is always possible.
|
11. | Whether the vehicle will start (or) stop in gear for MT? The vehicle will not start or stop automatically in gear to ensure safety. It will do so only in the neutral position of the
gear lever.
|
12. | Whether the system will stop my engine in moving traffic? No, the engine will be stopped only when the vehicle speed is zero.
|
13. | Whether the audio system will be switched OFF, when the engine shuts down? No, the audio system will not be switched OFF and you can continue to enjoy the music.
|
14. | Whether the engine will re-crank whenever the clutch pedal is pressed in MT? No, when the engine is running, the starter motor will not attempt to re-crank.
|
15. | If any component involved in the system fails, what will happen? The system has a built-in diagnostic module which understands the failure and immediately goes to bypass mode. In the bypass
mode, the engine can be turned ON and OFF by ignition key as usual.
|
![]() |
![]() |
|
When parking on an uphill, turn the front wheels away from the Kerb/Pavement.
|
|
When parking on a downhill, turn the front wheels towards the Kerb/Pavement.
|
|
To apply the parking brake, pull the park brake lever up as firmly as possible. When the parking brake is applied with the
ignition ON, the parking brake warning lamp in the instrument cluster illuminates.
|
• | Engaging the parking brake while the vehicle is in motion can cause the rear wheels to lock up. You could lose control of the vehicle and cause an accident. |
• | Always apply the parking brake when leaving the vehicle, and be certain to leave the transmission in gear. Failure to do so may allow the vehicle to roll and cause damage, hit a bystander resulting in personal injury. |
• | Leaving unattended children in a vehicle is dangerous for a number of reasons. Children should be warned not to touch the parking brake or the gear shift lever. Do not leave the key in the ignition. A child could move the vehicle leading to accidents. |
• | The parking brake should always be applied when the driver is not in the vehicle |
• | Ignition is ON. |
• | Vehicle speed is greater than 50 kmph. |
• | Panic/sudden brake is applied and high deceleration rate is sensed. |
• | Driving on rough, gravel or snow-covered roads |
• | Driving with tyre chains installed |
• | Driving over the steps such as the joints on the road |
• | Driving on roads where the road surface is potholes or large differences in surface height |
|
Over-steer - When the vehicle is turning more than appropriate for the steering wheel position.
Under-steer - When the vehicle is turning less than appropriate for the steering wheel position.
|
• | To start in deep snow or on a loose surface |
• | Driving in deep sand |
• | Driving through deep mud etc. |
• | The HBA system cannot prevent collisions, the capabilities of an HBA equipped vehicle must never be exploited in a reckless or dangerous manner that could risk the user’s safety. |
• | The Safety of the vehicles always lies in the hands of the driver, never rely on the HBA feature to prevent accidents. |
• | SET Speed — This is the driver desired speed at which vehicle should descent. This can be set using HDC switch or brake/accelerator pedals.(example: when the driver activates HDC at a speed of 30 kmph, then set speed will be 30 kmph). HDC will limit vehicle descent speed to set value). |
• | If driver presses the accelerator pedal and increases the speed from 30 kmph to 34 kmph and then releases the accelerator pedal. Now the new SET speed will be 34 kmph. |
• | Similarly, if the driver applies brake and reduces the speed from 30 kmph to 10 kmph and then releases the brake pedal, now the new SET speed will be 10 kmph. |
• | If the vehicle cruise speed is with in the HDC active region, similarly the set speed can be modified using cruise +/- buttons (by tapping the “SET —” or “SET +” buttons. Each press of the button will adjust the speed by approximately 0.5 kmph). |
1. | The Vehicle must be equipped with HHC |
2. | The vehicle must be on sufficient gradient |
3. | The Parking brake must not be applied |
4. | Engine must be running |
• | Vehicle Facing Uphill – Gear should be in Forward. |
• | Vehicle Facing Downhill – Gear should be in Reverse. |
• | In some situations, when the conditions are not met, the HHC may not get activated. In such cases slight rolling may occur. |
• | The Safety of the vehicles always lies in the hands of the driver, never rely on the HHC system to prevent rolling. |
• | Many factors, such as vehicle loading, road conditions and driving conditions, influence the chance that wheel lift or rollover may occur. |
• | The ROM system cannot prevent all roll overs; thus ROM equipped vehicle must never be exploited in a reckless or dangerous manner which could jeopardize the user's safety or the safety of others. |
1. | Vehicle speed above 70 kmph. |
2. | Accelerator Pedal must be pressed. |
3. | The Wipers must be in ON condition (Low/High Speed) |
• | The system will not be able to sense water splashed on disc from situations such as water wash or water puddles. |
• | It is suggested that the driver dry the brakes in the above said conditions by driving at very slow speed and applying the brakes lightly until the brake performance becomes normal. |
• | The vehicle is stopped and the ignition switched off. |
• | The vehicle is stopped, the seat belt removed, and the driver's door opened. |
• | The vehicle is stopped for more than 30 minutes. |
Pause Recommendation
|
|
|
This alert comes in the display of instrument cluster when the system detects the driver is quiet sleepy or very sleepy, along
with audible signal.
|
• | When the vehicle is driven continuously for more than 2 hours and if the system detects driver as “Quite Sleepy”, an alert message along with audio signal appears in the instrument cluster. Cluster will display the alert message till the user presses the “OK” button from steering wheel switch. |
• | After pressing the OK button, if break is not detected by the system for next 15 minutes, alert message will repeat again. If the drowsiness is continuously sensed and if the system detects driver as “Very Sleepy”, next level alert message & audio signal will be triggered along with steering wheel haptic feedback. |
Driver Attention Level |
Description |
---|---|
|
Very Awake
|
|
Quite Awake
|
|
Neither Awake nor Sleepy
|
|
Quite Sleepy
|
|
Very Sleepy
|
• | The driving ability is always the driver's responsibility. Never drive if you feel tired. |
• | The system may not detect all cases where a break is needed. |
• | Therefore, take regular, sufficient breaks during long trips. |
• | There will be no system warning during the so-called micro-sleep. |
• | In some situations, the system can evaluate the steering behavior incorrectly and therefore falsely display a break recommendation. |
• | The system is designed primarily for use on highways. |
|
Park the vehicle in a safe place and pull up the EPB switch.
![]() The parking brake warning lamp on the instrument cluster and the red Illumination on the EPB switch is turned on, indicating
that the parking brake is applied.
|
![]() |
Press down the EPB switch with the brake pedal depressed.
![]() The parking brake warning lamp on the instrument cluster and the red Illumination on the EPB switch is turned off, indicating
that the parking brake is released.
|
1. | Ignition is turned Off. |
2. | AT vehicle gear shifted to Park. |
3. | Auto Vehicle Hold (AVH) in Active state and Driver door open. |
4. | Auto Vehicle Hold (AVH) in Active state and Driver seat belt unbuckled. |
5. | Auto Vehicle Hold (AVH) in Active state and AVH switch pressed to release AVH Active state. |
6. | Auto Vehicle Hold (AVH) in active state continuously for more than 5 minutes. |
7. | Auto vehicle hold (AVH) active and engine turned OFF by engine start stop feature. |
1. | Stop the vehicle. |
2. | Push and hold EPB switch in release position. |
3. | Holding the EPB switch in released position, turn the ignition OFF. |
4. | This prevents EPB from automatically getting applied. |
• | Position TGS lever in neutral (N). |
• | Push and hold the EPB switch, simultaneously press and hold the start stop button (SSB) till ignition is turned OFF. |
• | This operation prevents EPB auto apply and EPB will be in disengaged state. |
1. | Close the driver door and fasten the driver seat belt. |
2. | Shift the gear selector lever to the D / M or R position. |
3. | Release the brake pedal and then depress the accelerator pedal slowly. |
4. | The EPB is released automatically, thus enabling forward or backward movement of the vehicle. |
5. | The red Illumination on the EPB switch and the brake tell-tale on cluster is turned off, indicating that the parking brake is released. |
1. | Close the driver door and fasten the driver seat belt. |
2. | Shift the gear to forward or reverse gear. |
3. | Then slowly release the clutch pedal and depress the Accelerator pedal to drive away. |
4. | The EPB is released automatically, thus enabling forward or backward movement of the vehicle. |
5. | The red Illumination on the EPB switch and the brake tell-tale on cluster is turned off, indicating that the parking brake is released. |
![]() |
This tell-tale is turned ON in the cluster when EPB is applied properly. |
![]() |
This tell-tale is turned ON in the cluster when there is a malfunction in the EPB system. |
• | For EPB Auto release and Drive Away always wear driver seat belt and ensure that the driver door is closed. |
• | In MT vehicles, drive away with clutch alone modulation not possible, thus always modulate the clutch pedal and accelerator pedal for effective drive away. |
• | If the EPB Malfunction lamp is ON and the brake is engaged. Do not drive. |
• | Avoid using EPB after doing water wading. Please get the vehicle checked in workshop. |
• | The EPB can also be used in cases of emergency braking. Release the accelerator and Pull and hold the EPB button until your vehicle comes to standstill and EPB gets applied. This should be done only in emergency condition and not as a regular action. |
• | The braking process is interrupted when the EPB button is released or the accelerator pedal is actuated in dynamic condition. |
• | The EPB AUTO release function will not be activated when the driver door or the seat belt is not fastened. |
• | Motor noise can be heard during the EPB operation, this is normal behavior. |
• | If the EPB warning lamp stays on, have the vehicle serviced at a Mahindra Dealer or Mahindra Authorised Service Centre. |
• | Do not let children or other people who are not familiar with the EPB system operate the EPB switch. There is a danger of accidents depending on the parking/stationary state of the vehicle. |
• | If you hear noises or smell a burnt odor from the related components after using the EPB emergency mode, have the vehicle checked and serviced. |
A
|
RADIAL TYRES OR BIAS-PLY TYRE
|
B
|
“TUBELESS” OR “TUBE TYPE”
|
C
|
TYRE SIZE
|
D
|
MAX. LOAD LIMIT
|
E
|
TREAD WEAR
|
• | 245/65 R17 107H |
• | 255/60 R18 108H |
SPEED SYMBOL | MAX. SPEED CAPABILITY |
---|---|
KM/HR | |
L
|
120
|
M
|
130
|
N
|
140
|
P
|
150
|
Q
|
160
|
R
|
170
|
S
|
180
|
T
|
190
|
U
|
200
|
H
|
210
|
V
|
240
|
W
|
270
|
Y
|
300
|
Z
|
240+
|
|
Tyre Label (Vehicle Placard) is located on the
driver
side inner B-pillar.
|
Regular Tyre | SpareTyre | |
Dynamic Rolling radius (mm)
|
364 +/- 7
|
• | Safety |
• | Economy |
• | Ride Comfort and Vehicle Stability |
4XPLOR
Mode
|
Traction
/Drive
|
Mode
|
Recommended tyre pressure
|
||
17
Tyre
|
18
Tyre
|
Caution
|
|||
NORMAL (Tarmac & Cement surface)
|
2WD
|
Normal
|
34 PSI
|
34 PSI
|
-
|
4WD
|
Normal- 4H
|
34 PSI
|
34 PSI
|
||
GRASS / SNOW
|
4WD
|
Snow- 4 H
|
34 PSI
|
34 PSI
|
Reduce
speed
to keep the vehicle under control and avoid giving aggressive steering
input.
If Manual
transmission try to start in 2nd
gear unless in steep gradient.
|
MUD & RUTS
|
4WD
|
Mud- 4H
|
34 PSI
|
34 PSI
|
Reduce
speed
to keep the vehicle under control and avoid giving aggressive steering
input.
|
SAND
|
4WD
|
Sand 4 H
|
Lower pressure as appropriate
|
Lower pressure as appropriate
|
Needs to
maintain the vehicle momentum on soft surfaces to move ahead & Engine
RPM
maintained to be higher
Avoid
braking and giving sharp steering input.
|
In the
snow
or mud or sand. The default 4H will be ON. However if the vehicle gets
badly
stuck and not able to come out then
4L can be used to come out of the tricky situation and shift to 4H as soon
as
possible.
Similarly
when the tyre pressure is reduced to drive in Sand. As soon as the sand is
over fill tyre pressure. If pump not
available , drive with reduced speeds to the nearest tyre shop/ fuel
bunk.
|
• | Over or under inflation may reduce the tyre life |
• | Do not correct the tyre pressure immediately after the vehicle is stopped after operation, server handling or long distance drive. Check the inflation pressure when the vehicle is idle for 3 hours or 10 minutes of driving after 3 hours in idle condition. |
• | Do not drive the vehicle with lower pressure than recommended, which may lead to over heating of sidewall resulting in tyre damage. |
• | Check the tyre pressures once in a month or before long distance travels. |
• | Check your tyres regularly for any damages or cut on the sidewall. Please replace the tyres immediately. |
New
Tread
(A)
|
Worn
Tread
(B)
|
|
|
Type 1 -
Applicable for RWD & 4WD Vehicles - 5 Steel Wheels
|
|
|
Tyres on the front and rear axles of vehicles
operate
at different loads and perform different steering, handling, and braking
functions. For these reasons, they wear at unequal rates and develop irregular wear
patterns.
|
|
Rotation will increase tread life, help to maintain
mud, snow, and wet traction levels, and contribute to a smooth, quiet
ride. Follow the recommended tyre rotation frequency for your type of driving.
|
|
The non - standard spare wheel provided on your
vehicle
is for temporary purpose only. Do not use the spare wheel for continuous
running.
|
• | Non - Standard Spare wheel provided specifically designed for your vehicle. Do not use your non standard spare tyre on another vehicle. |
• | Do not use more than one non-standard Spare Wheel simultaneously. |
• | Drive the shortest possible distance with Non-standard Spare Wheel. |
• | While using Non standard spare wheel reduce speed, Avoid sharp cornering, Avoid sudden acceleration, abrupt steering, sudden braking and shifting operations that cause sudden engine braking. |
• | The vehicle becomes lower when driving with the Non Standard Spare tyre compared to when driving with standard tyres. Be careful when driving over uneven road surfaces. |
• | Inflate the tyres as per manufacturers recommendation, refer Tyre pressure label on the door panel. |
• | TPMS is not provided in spare wheel. |
• | Do not fit tyre chains to the spare tyre. Tyre chains may damage the vehicle body and adversely affect driving performance. |
• | Tyre to be loaded within the max allowable load limit specified by the load rating index marked on the tyre. |
• | Tyre to be operated with in the speed limit specified by the speed rating index marked on the tyre. |
• | Do not use the tyre for longer distance than recommended. Repair & refit the regular tyre as soon as possible. |
• | Recommended to drive Max 50 km in a stretch or reach nearest Mahindra Authorised Dealer. |
• | Refer the Feature Matrix for the spare wheel size. |
• | Adequate braking |
• | Road grip |
• | Vehicle handling |
• | Vehicle maneuvering |
• | Reduced tyre wear and tear |
• | Reduced tyre strain and safety |
• | Good fuel efficiency |
![]() |
![]() |
|
First apply lubricant (paste) or soapy water to rim
hole or valve nozzle bar, as shown in the following figure (the diagram
is for reference only, and it is operated according to the degree of automation of
the
customer's production line).
|
|
|
1. | Line the sensor up with the rim hole and attach the TTV insertion tool to the end of the valve ready for pull in. |
2. | Ensure the TTV insertion tool is positioned to the correct notch and that the sensor is pulled through in a direction parallel to the valve whole axis and NOT at an angle to it. |
3. | The picture below shows a correctly fitted sensor. Note the rubber bulb of the valve resting against the rim and the front face of the enclosure is NOT touching the rim. Apply tyre soap solution to the rubber portion of the valve stem and the top of the enclosure. |
4. | Place the inner tyre bead over the rim. |
5. | Place the outer tyre bead over the rim. |
6. | Inflate all tyres to the prescribed pressure, check the valve area for leakage and re-balance the wheels prior to installing back on the vehicle. |
|
|
• | Remove the tread and ensure that the extractor
forceps is inserted into the tyre at the yellow position shown below and turn
the rim clockwise.
|
• | To remove the sensor, firstly remove the screw
using
a T6 TORX screwdriver.
|
|
|
• | Cut the rubber bulb and attach the TTV tool to the valve. Remove the valve from the rim by pulling through the rim, or simply pull through without cutting the bulb. |
• | Lift the outer tyre bead over the rim using a tyre tool. |
• | Lift the inner tyre bead over the rim using the tyre tool. |
• | Remove existing valve stem. |
• | Low Pressure Alert |
• | High Pressure Alert |
• | Pressure Leakage Alert |
• | Sensor Signal Missing (Communication error) |
• | Tiretronics Sensor Faulty |
• | Tyre Auto Learn |
• | Tyre Fill Assist (TFA) |
• | Tyre Pressure Imbalance |
![]() |
Low pressure monitoring is to indicate low tyre
pressure. Please note the following points.
|
• | Low pressure alert will be set only when the tyre pressure value goes below threshold. Low pressure will be set based on the temperature value. |
• | Low pressure alert in the main alert screen will pop up once for driver notification when the alert is set and the vehicle is in running condition. Otherwise the alert will remain in the information screen and alert register screen. |
• | If low pressure is observed, respective tyre should be rectified with cause of low pressure and then fill air. |
• | Once low pressure alert is set with tyre pressure below threshold the alert shall not be cleared until the pressure is filled to the placard value. |
![]() |
High pressure monitoring is to indicate high
pressure
alert. Please note the following points.
|
• | High pressure alert will be set only when the tyre pressure value goes above threshold. |
• | High pressure alert in the main alert screen will pop up once for driver notification when the alert is set and the vehicle is in running condition. Otherwise the alert will remain in the tiretronics screen. |
• | If high pressure value is observed, air has to be released from the respective tyre until the pressure reduces to the placard value. |
• | The vehicle should be driven above 40 kmph for the new pressure value to be updated and the alert to be cleared. |
• | Once the high pressure alert is triggered the alert shall not get cleared until the respective tyre pressure is reaches to the placard value. |
![]() |
Pressure leakage monitoring is to indicate pressure
leakage in any of the vehicle tyres. Please note the following points.
|
• | Pressure Leakage alert will be set only when the tyre pressure is leaking at a rate greater than defined threshold. |
• | In the pressure leakage condition if the tyre pressure goes too below threshold then the low pressure alert will also be set. |
• | The pressure leakage alert in the main alert screen will pop up once when the alert is set for driver notification and will be shown in tiretronics screen when the vehicle is in running /ignition ON condition. |
• | Once pressure leakage is observed the respective tyre should be observed for air leakages and the puncture condition has to be rectified. Proper placard value should be filled after puncture rectification. |
• | If the vehicle is running in an extremely rocky and acute bumpy condition then fluctuating pressure leakage alert may get set which will get rectified when the vehicle runs back on a normal road. This happens due to sudden change in pressure levels due to rocky conditions. |
![]() |
When the vehicle runs in speed above 40kmph,
Tiretronics system receives signal from all the Tiretronics sensor installed
in all running tyres.
|
• | On account of any issue in signal reception or Tiretronics sensor damage or tyres changed with out performing manual learning then the signal will not be received. |
• | If the Signals from the tiretronics sensor are not received atleast once, when the vehicle is driven at a speed greater than 40kmph for more than 10 minutes, "Signal Missing" alert will be set for the respective tyre and Tiretronics Telltale will be ON. |
• | When the Tiretronics signal missing is set then perform manual learning once. If manual learning is not done successfully then the corresponding position tyres sensor needs to be checked by carefully opening the tyre. |
• | If the sensor is found to be damaged then it should be replaced with a new one and manual/auto learning should be done. |
• | If the Tiretronics sensor low battery/faulty is set then the corresponding position tyres sensor needs to be removed by carefully opening the tyre and replacing it with a new sensor. |
• | Post replacing the new sensor, manual/auto learning should be done. |
Tyre Auto Learn
Process (If Enabled in cluster)
|
|
![]() |
![]() |
![]() |
During Air Filling in tyre, Hazard lamps shall blink
until placard value reaches.
During air filling If tyre Pressure has reached the
Placard Value, then Horn shall activate one time
|
![]() |

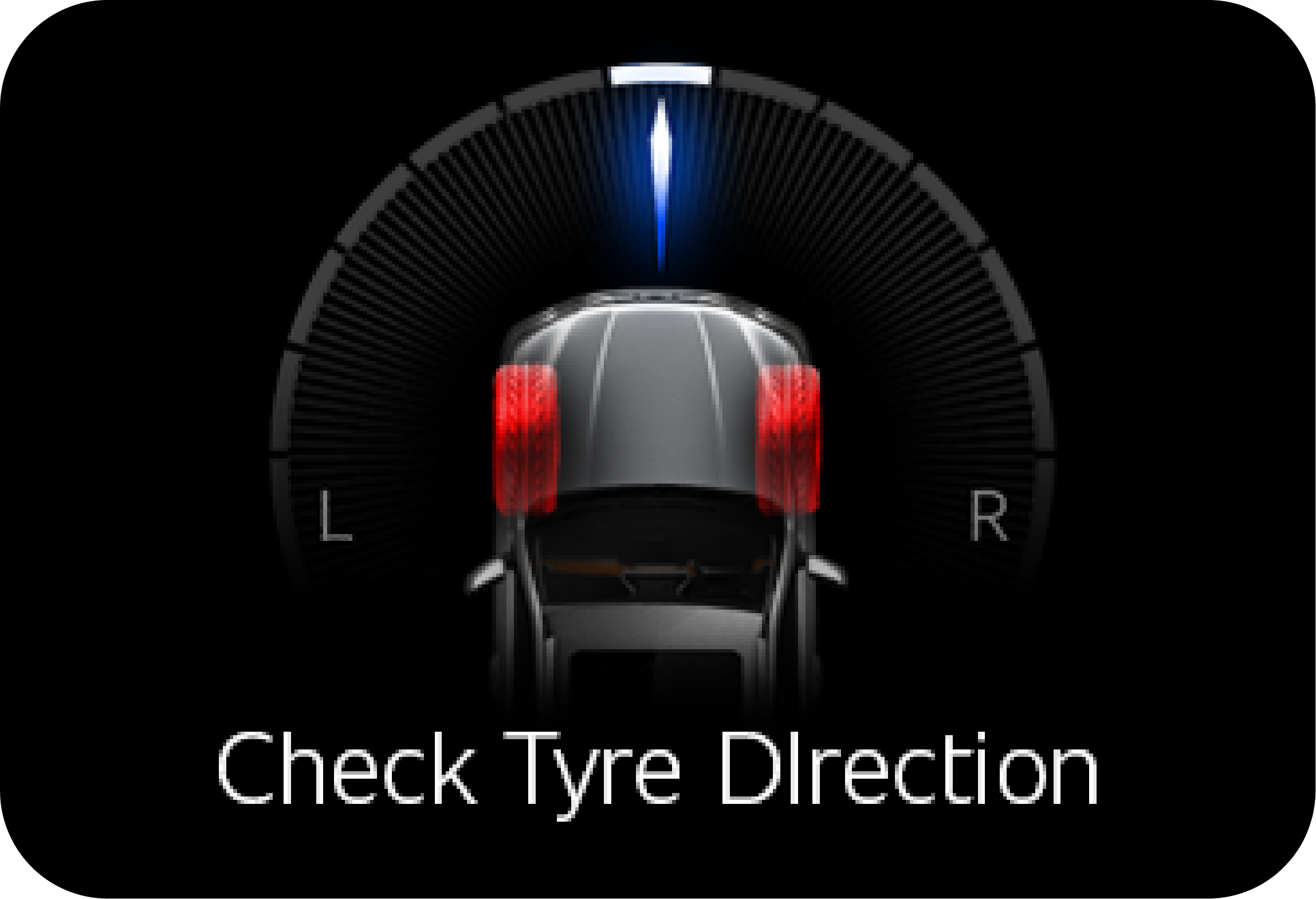

During driving if the system identifies tyre Pressure imbalance on front two tyres / Rear two tyres then Instrument Cluster shall give a popup ‘Tyre Pressure imbalance’ warning.
|
![]() |
![]() |
1. | Manual learning should be compulsorily performed
on
any of the following conditions or operations done:
|
2. | Once manual learning is initiated, the sensors inside the tyres need to be triggered by leaking the air from each tyre one at a time and should be completed within certain value post to each event for learning all 4 tyres. |
3. | Do not perform Manual learning process at the same time on two vehicles with in the radius of 20 meters. |
4. | It is mandatory that manual learning of tyres should follow the sequence of ‘front left tyre position, front right tyre, rear right tyre and rear left tyre. |
5. | It is required to ensure the tyres have pressure > 32 psi and < 36 psi before initiating the manual learning process. |
6. | Post manual learning, all tyres should be filled to the placard pressure value. |
|
1. Turn the ignition OFF. Press and hold the up button in steering wheel
2. Turn the ignition ON
|
• | Try initiating the manual learning once again. |
• | Check if the reverse gear is engaged, if it is engaged disengage it. |
• | Check if the Enter button is working fine. |
![]() |
Starting from
Front
Left Tyre: Start leaking the air from the front left for 30 to 40 sec and
stop for 5 sec. Repeat until the tyre gets learnt.
|
![]() |
Learning the
Front
Right Tyre: Start leaking the air from the front right for 30 to 40 seconds
and
stop for 5 seconds. Repeat until the tyre gets learnt.
|
![]() |
Learning the
Rear
Right Tyre: Start leaking the air from the rear right for 30 to 40 seconds and
stop for 5 seconds. Repeat until the tyre gets learnt.
|
![]() |
Completing the
Learning with Rear Left Tyre: Start leaking the air from the rear left
tyre
for 30 to 40 sec and stop for 5 sec. Repeat until the tyre gets learnt.
|
• | The Tiretronics monitors only tyre pressure and temperature. It does not monitor conditions such as tyre wear. |
• | The Tiretronics will not be able to detect an instant tyre burst and inform the driver in advance. |
• | There may be the possibility of getting all the tyre location indicators on the Tiretronics display blinking along with the Tiretronics telltale, on passing environment area prone to heavy power lines and RF signal. It will come back to normal condition when interference gets cleared. |
• | It is recommended to fill the pressure to 34 psi at a digital gauge station only |
• | Every 15 days, inflate all the tyres up to 34 psi and inflation should be done at cold condition/ambient temperature |
• | Pressure deviation between the Tiretronics display
and gauge will depend upon the following factors:
|
• | Tiretronics measures pressure of the tyre. |
• | Pressure deviation is defined for 0.5 psi (min) and 3 psi (max). |
• | If the vehicle battery/fuse is disconnected and reconnected, it will update the pressure after the vehicle is driven or sensor is activated. |
• | If the vehicle tyres are rotated or any of the tyres sensors are replaced, then tires have to be learned via either manual or auto learning. Refer Tyre Auto/Manual learn process in Tiretronics section for more details. |
• | If more than one tyre needs to be learned, learn all 4 tyres as per manual learning procedure. |
• | Tiretronics is only a warning or indicating device. Pressure and temperature values displayed by the system is for indication prior to alert purposes only. The Tiretronics system should not be used as a measuring device to correlate or calibrate against other systems. |
• | During winter or in cold conditions, there may be chances of getting a pressure alert with the corresponding tyre location indicator in the display, if the tyre pressure is near the thresholds level. i.e. between 28 psi to 24 psi. However, this alert will get cleared after driving a few kilometers depending upon the climatic condition. |
Ambient Temp. (Deg C)
|
Recommended Pressure Front & Rear (34
Psi
Placard)
|
<0
|
28
|
10
|
29
|
20
|
31
|
30
|
32
|
40
|
34
|
50
|
35
|
60
|
37
|
Front Sensor
Location
|
Rear Sensor
Location
|
|
|
• | PAS is an aiding system. Under no circumstances mahindra will accept any responsibility or can be held liable for any direct or indirect, incidental or consequential damage caused by this system. |
• | System will not sense pot holes, trenches or drainages which are below the ground level. |
• | Repainting of the sensor will affect the performance of the system. |
• | The Vehicle should be in IGN ON state to activate the Parking assistance system. |
• | RPAS will be activated automatically when reverse gear engaged. |
• | RPAS will get deactivated when reverse gear is disengaged. |
• | FPAS will be activated automatically in the below conditions. a. Vehicle is in between 1 to 8 kmph and Hand brake is disengaged or Clutch is pressed.
b. Vehicle is in standstill and Hand brake is disengaged or Reverse gear is engaged.
|
• | In case of AT variant FPAS will be activated automatically when the vehicle is in D gear and hand brake is disengaged. |
• | FPAS will get deactivated when vehicle speed is more than 8kmph or hand brake is engaged or reverse gear is disengaged. |
• | When the obstacles come in the sensing range, the system starts giving the indication based on the distance and direction of the obstacles as defined in the detecting zones. The closer the obstacles, more display bars illuminated & beeps alerts. |
![]() |
![]() |
1. | Start the vehicle (Ignition is turned ON). |
2. | Shift the gear to Reverse (engage reverse gear) and
Dis
engage Hand brake. RPAS & FPAS will be displayed as like below in
Instrument Cluster. The RPAS & FPAS both will be displayed as like below in the instrument cluster screen during obstacle detection ![]() |

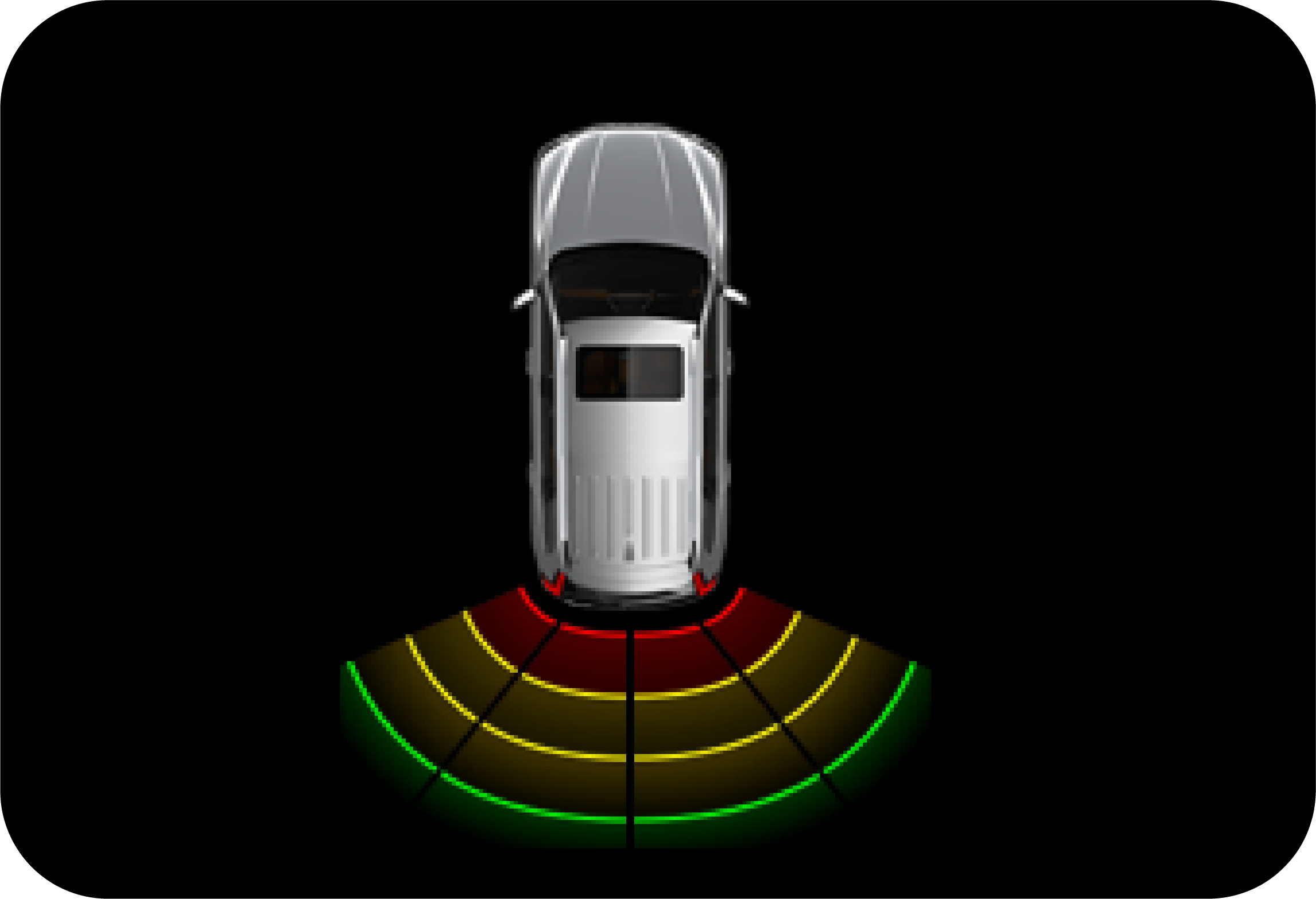

3. | For FPAS alone, disengage Hand brake and drive the
vehicle forward with speed limit within 1 to 8 kmph
|
4. | The Beep sound can be heard from the Cluster speaker.
Frequency of the beep will increase if obstacle detected by sensor is
closer (crossing each display bar) and the sound will be continuous if any of the
obstacle
is near the vehicle.
![]() |
5. | The RPAS distance displayed will be the minimum of
distances sensed by left and right sensors. And 120 cm is the maximum detection
range & The FPAS distance displayed will be the minimum of distances sensed by left
and right sensors 70cm is the maximum
detection range.
For Example: Assume 2 obstacles are placed as mentioned
below:
On engaging the gear in reverse, instrument cluster
will
display as below:
Since obstacle is at 70 cm in left - minimum distance
is
shown in the distance indicator.
|
6. | FPAS warning sound can be disabled using PAS Switch,
available on IP. PAS switch LED will not glow when FPAS sound is in active
state and will be in ON state when PAS sound deactivated.
|

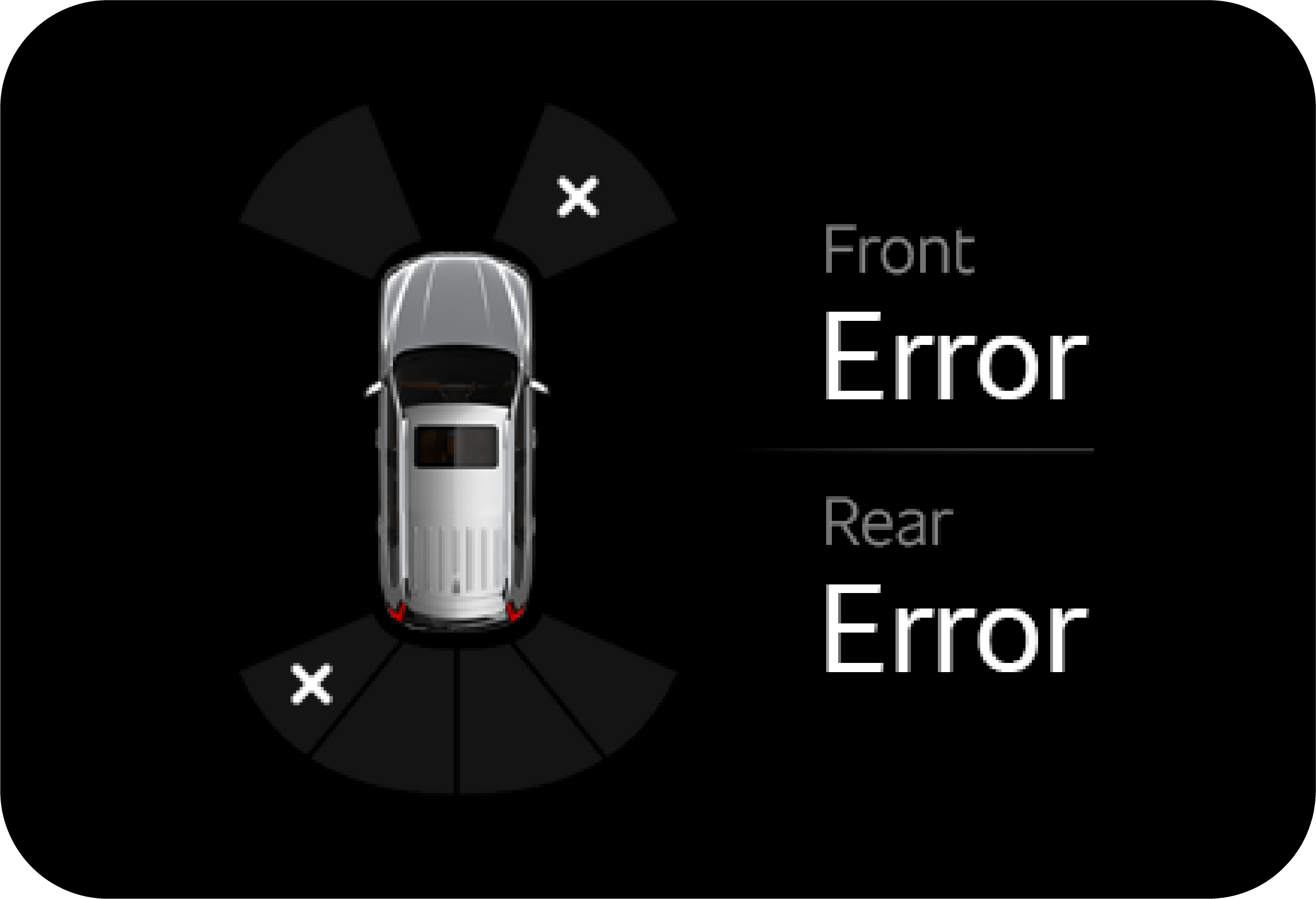

1. | If bars in any one of the sides are displayed with
‘X’
marks is displayed on instrumental cluster display, contact an Authorised
Mahindra Dealer.
|
2. | If all bars are displayed with ‘X’ marks on
instrumental
cluster display, contact an Authorised Mahindra Dealer.
|

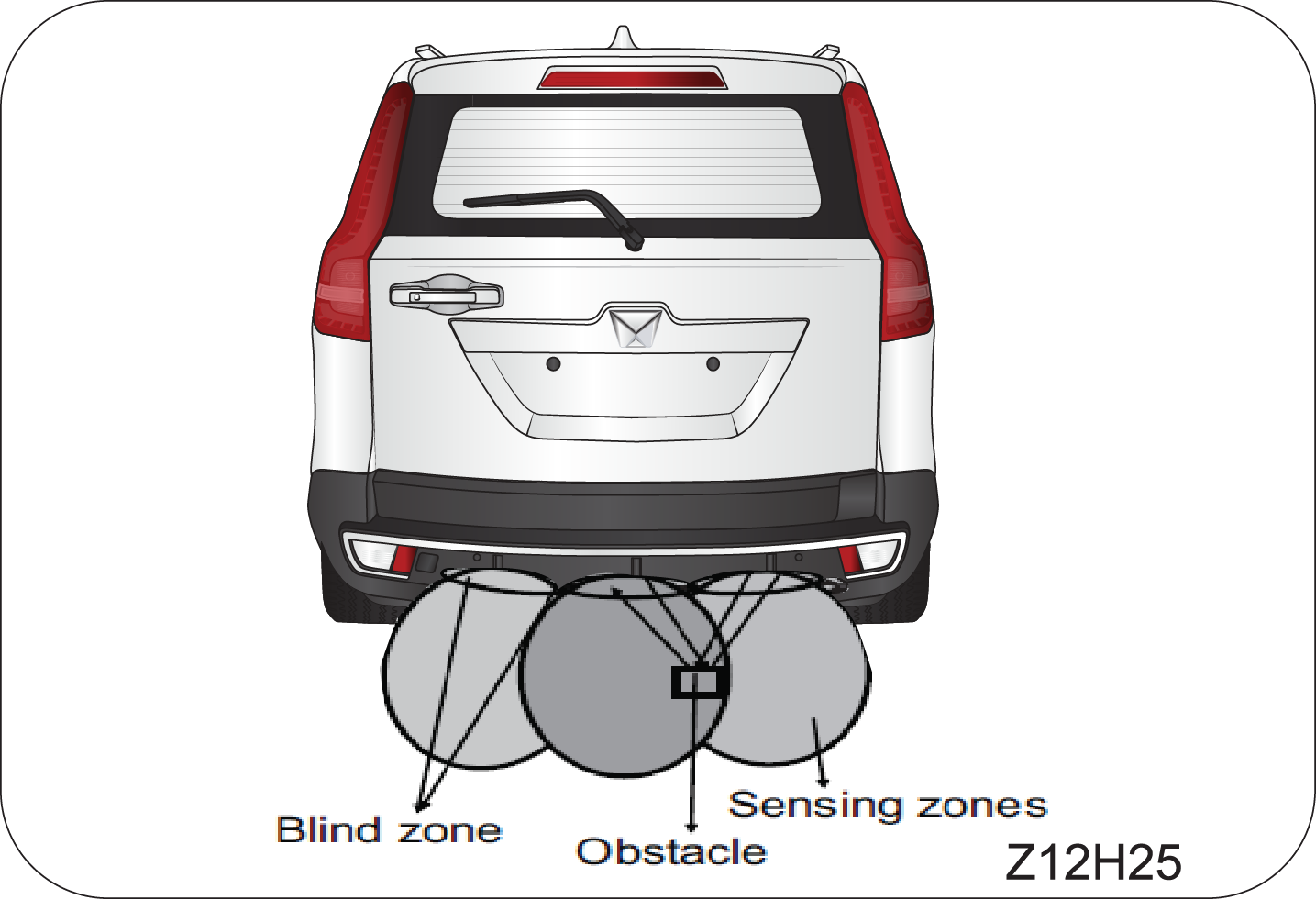

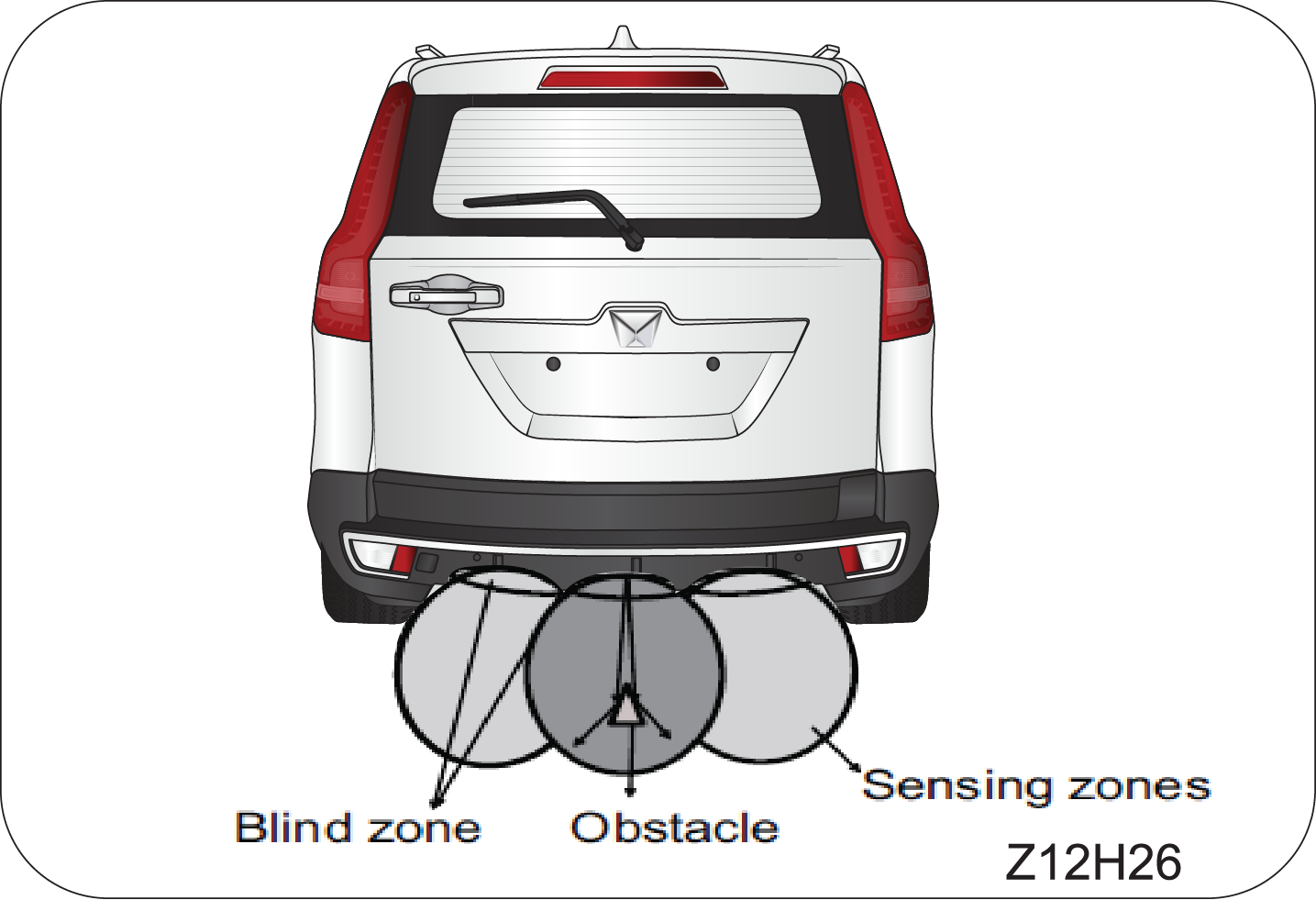

3. | Obstacle in the blind zone cannot be sensed by the
system. Applicable for all sensors.
|
4. | Please check the condition of the obstacle behind and
in
front of your vehicle before moving. In some cases, the display may
be not as same as reality due to the installed sensor level, obstacle shape and
reflection
condition.
|
5. | Point B will be detected sooner or later, but A may
not
be detected at all. Applicable for all sensors.
|
6. | Not all obstacles are detected from 120 cm. For
instance, a person is detected from 75 cm because of the weak reflection or
absorption of the waves of the clothes.
|
7. | The distance indication may move up and down due to
different sizes of the obstacle at different positions.
|
8. | Though the obstacle is in the sensing zone, obstacle
may
not be detected since the ultrasonic waves are not reflected back
to the sensor.
![]() |
9. | The obstacle of a conical shape may not be detected,
since the ultrasonic waves get reflected away.
![]() |
• | System may not sense obstacles like wire mesh, handrail, small objects which are below the bumper level. |
• | System may not sense obstacles with cotton or spongy surface, which will absorb ultrasonic waves emitted by PAS. |
• | System performance is dependent on the reflection angle of the obstacle. |
• | System may give false alert without obstacles while parking/reversing the vehicle on grasslands, gravels and bumpy roads considering it to be an obstacle. |
• | System may alert you by sensing the ground when the bumper is not fitted in its intended position or when the vehicle is overloaded. |
• | System may give false signal while the vehicle moves from plain ground to a slope terrain and vice versa. |
• | System may give false signal by sensing the ground when the bumper is tilted more from the normal position or when the vehicle is heavily overloaded. |
• | System may give false signal an alarm during heavy rain, snow and heavy wind conditions. |
• | The shape of the obstacle may prevent a sensor from
detecting it. Some obstacles for example as follows:
|
• | Depending upon the shape of the obstacle and other environmental factors, the detection distance may shorten or detection may be impossible. |
• | Obstacles may not be detected if they are too close to the sensor. |
• | Thin posts or objects lower than the sensor may not be detected when approached, even if they have been detected once. |
• | Because of other ultrasonic sources, sensor may give false alarm for e.g., sweeping machines, high pressure steam cleaners and neon lights. |
• | Due to vehicle horns, motorcycle engines, air brakes of large vehicles, or other loud noises producing ultrasonic waves, the vicinity of the vehicle is noisy. It may cause sensor to give false alarm. |
• | Front parking sensors coverage is limited to only corner area of front bumper. |
|
Rear View Camera is located under tail gate applique.
Rear View Camera assists the driver while reversing
&
manoeuvring the Car at lower speeds. It has the following features:
|
1. | Normal View |
2. | Zoom-in View |
3. | Full View |
4. | Merged Corner View |
5. | Left Corner View |
6. | Right Corner View |
7. | Static & Dynamic Guidelines |
8. | Parking assistance
|
![]() |
It overcomes limitation of IRVM, where ground is
visible only after longer distance from vehicle rear. Whereas with the RVC,
the ground will be visible closer to Vehicle’s Rear.
|
2. Zoom-In
View
![]() |
Press Zoom-In button to view objects closer and
press
Zoom-Out button to go back to the normal parking view.
|
3. Full
View/Wider
View
![]() |
By selecting Full View icon, Rear View camera
provides
about wide rear view of vehicle's rear surrounding on the Infotainment
screen.
|
4. Merged Corner
View
![]() |
By selecting Merged Corner Rear View camera provides
a
wide view focussed on the left and right corners to provide a better
visibility of crossing traffic for safe manoeuvre.
|
5. Left Corner
View
![]() |
If user wants to focus on the left side crossing
traffic, then "Left Corner View" icon can be pressed to select the view.
|
6. Right Corner
View
![]() |
If user wants to focus on the right side crossing
traffic, then "Right Corner View" icon can be pressed to select the view.
|
![]() |

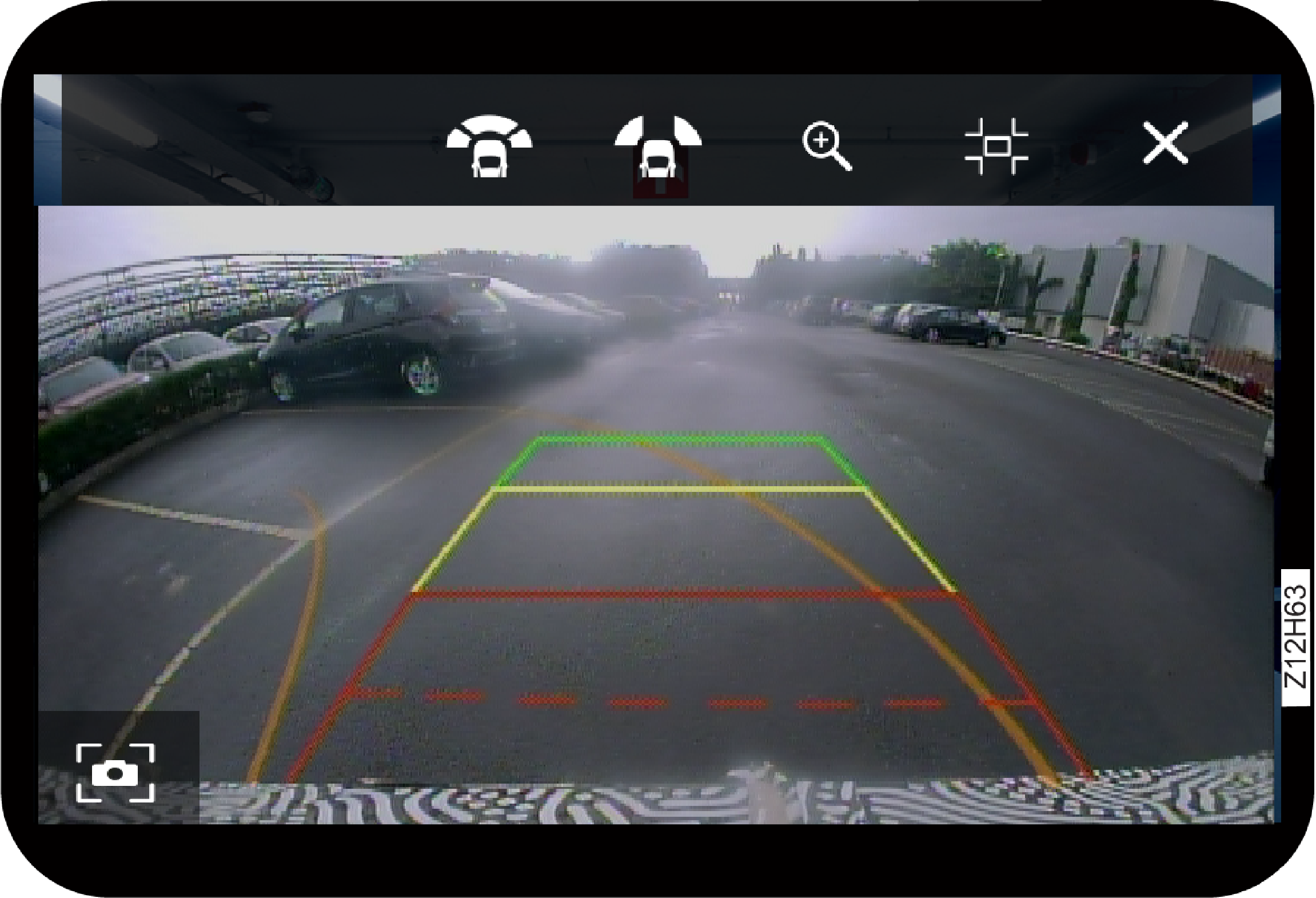

Dynamic
Guidelines (orange color in below image) indicate path, the vehicle will
traverse with current steering position. As per the steering
angle movement, dynamic guidelines move and show the vehicle predicted moving
direction
to help the driver.
|
A. Selecting
Parking Slot
![]() |
Drive ahead of the parking slot, until it is fully
visible. Now select “Parallel Parking”.
Icon from infotainment. After selection,
Infotainment
displays below screen image 1.
|
B. Setting the
steering angle:
|
Drive the vehicle Forward or Backward and ensure
the
greenish -blue rectangle [consider right rectangle if parking image
slot is on right side and consider left rectangle if parking slot is on left side],
is
placed in the parking slot. Make sure
obstacles are not present.
|
• | Now start turning the steering wheel towards the direction in which parking slot is present. A shorter rectangle box will appear which will change the color according to the steering position. |
|
When the box is green(image 2), stop turning the
steering wheel and hold the position.
|
C. Complete
Parking
|
With current steering position, start moving the
vehicle backward. An orange arc line will appear. When the orange arc (image
3)touches the parking slot end position, stop the vehicle.
|
• | Now rotate the steering wheel to maximum in the opposite direction. Arc is then replaced by dynamic and static parking line. Continue backing the vehicle with the help of dynamic guideline. |
|
|
Selecting
Parking
Slot
|
Drive ahead of the parking slot, until it is fully
visible. Now select “Vertical.
|
|
Turn steering wheel to the maximum position, towards
direction of the parking slot. Pink/ blue overlay disappears, and the
dynamic and static overlay appears on the screen as shows in the image.
|
![]() |
You can also view vehicle’s rear surrounding, by
selecting Rear View Camera option present on Infotainment Screen, irrespective
of the gear position.
|
• | If the driver is not in Parallel or Vertical Parking mode and Infotainment has entered ‘RVC Mode’ by reverse gear option, then RVC mode exits when reverse gear is disengaged. |
• | If the driver is not in Parallel or Vertical Parking mode and Infotainment has entered ‘RVC Mode’, due to “Rear View Camera” selection present on the Infotainment, then RVC mode can be exited, by selecting the Cancel button appearing on the screen. |
• | Irrespective of RVC entry conditions, when Parallel or Vertical Parking Mode is active, driver can exit the RVC Mode using Cancel button that appears, whenever vehicle is in forward gear. |
• | When ignition is off. |
• | If equipped with FVC and (if Reverse Gear engaged or RVC screen is in Parking Mode) and FVC piano switch is pressed then Infotainment exits RVC mode and enters FVC mode. |
• | In case of any RVC-related issues, the Infotainment displays ‘ Please Contact Service Centre’ and vehicle needs to be taken to the Service Centre. Avoid using the Rear-View Camera under these circumstances. |
• | If rear of your vehicle is damaged or if the Camera position is changed, please contact the nearest Mahindra Authorised Service Center immediately. |
• | Rear view camera may not operate normally, when you drive in the extremely high or low temperature area. (Operating temperature: -20°C ~ 65°C). |
• | Under certain circumstances given below, the rear view camera system will work with limitation or will not function fully: |
• | If the rear of your vehicle got damaged. And if the Camera position and the settings got changed. Please contact the nearest Mahindra Authorised Service Center. |
• | Camera image reproduced slightly delayed and not in real time due to processing. As the display is 2-dimensional, pointed and protruding obstacles are hard to depict and thus very difficult to recognise. Please avoid rear view camera in the above situation. It could you otherwise injure others or damage objects and your vehicle. |
• | The performance gets affected sometimes due to deposition of ice, dust, heavy rain, heavy wind, heavy exhaust on the camera. |
• | Images shown on the display is a mirror-inverted manner, as like the rearview mirror. Make sure that no persons or animals or any objects/materials are in the manoeuvring area. Pay attention and ensure safety before manoeuvring the car. Driver is legally responsible for their car. |
• | The rear view camera is only a supplementary function and may display obstacles from a distorted perspective & inaccurately. |
• | Avoid using of rear view camera, if you are having eye colour blindness or impaired colour vision. |
• | Objects above the ground or hanged may appear to be far away than they are. But in reality, objects shall be closer to your car. In such cases, avoid using guidelines to judge the distance. Since it leads to mis-adjustments and increase the risk of collision with your car. |
• | It is driver’s responsibility to identify the suitable parking area to park car safely. |
• | Rear view video is shown, whenever reverse gear is applied, but it cannot be used as a rear view monitoring system, which cannot replace the driver for looking into exterior and interior view mirrors. |
|
Front View Camera is located on front grill applique.
Front View Camera assists the driver while manoeuvring
the
Car at lower speeds. It has the following features:
|
1. | Normal View |
2. | Zoom-in View |
3. | Full View |
4. | Merged Corner View |
5. | Left Corner View |
6. | Right Corner View |
7. | Static & Dynamic Guidelines |
![]() |

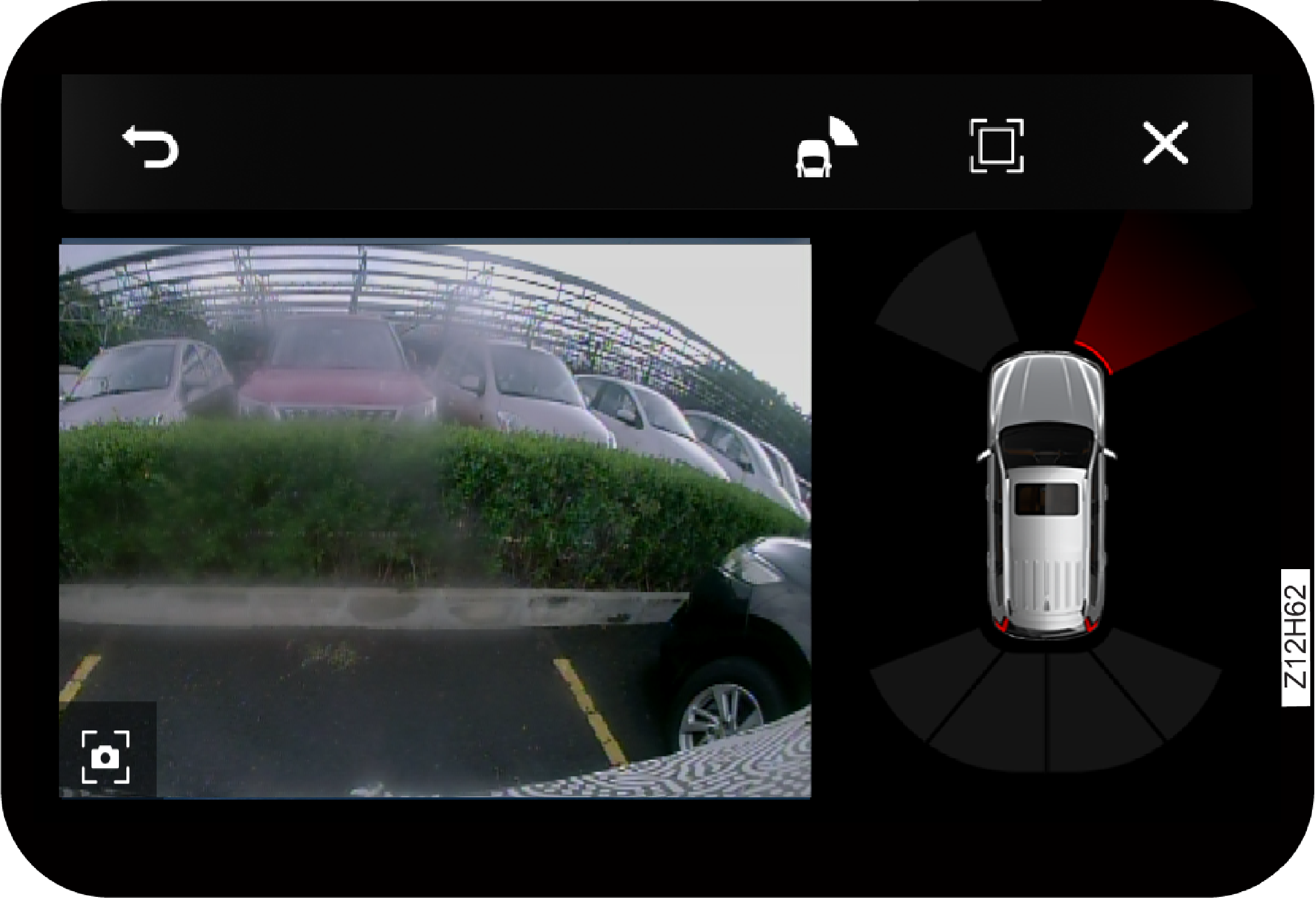

![]() By selecting Normal View Icon, Front View camera
provides view of vehicle's front surrounding on the Infotainment screen.
|

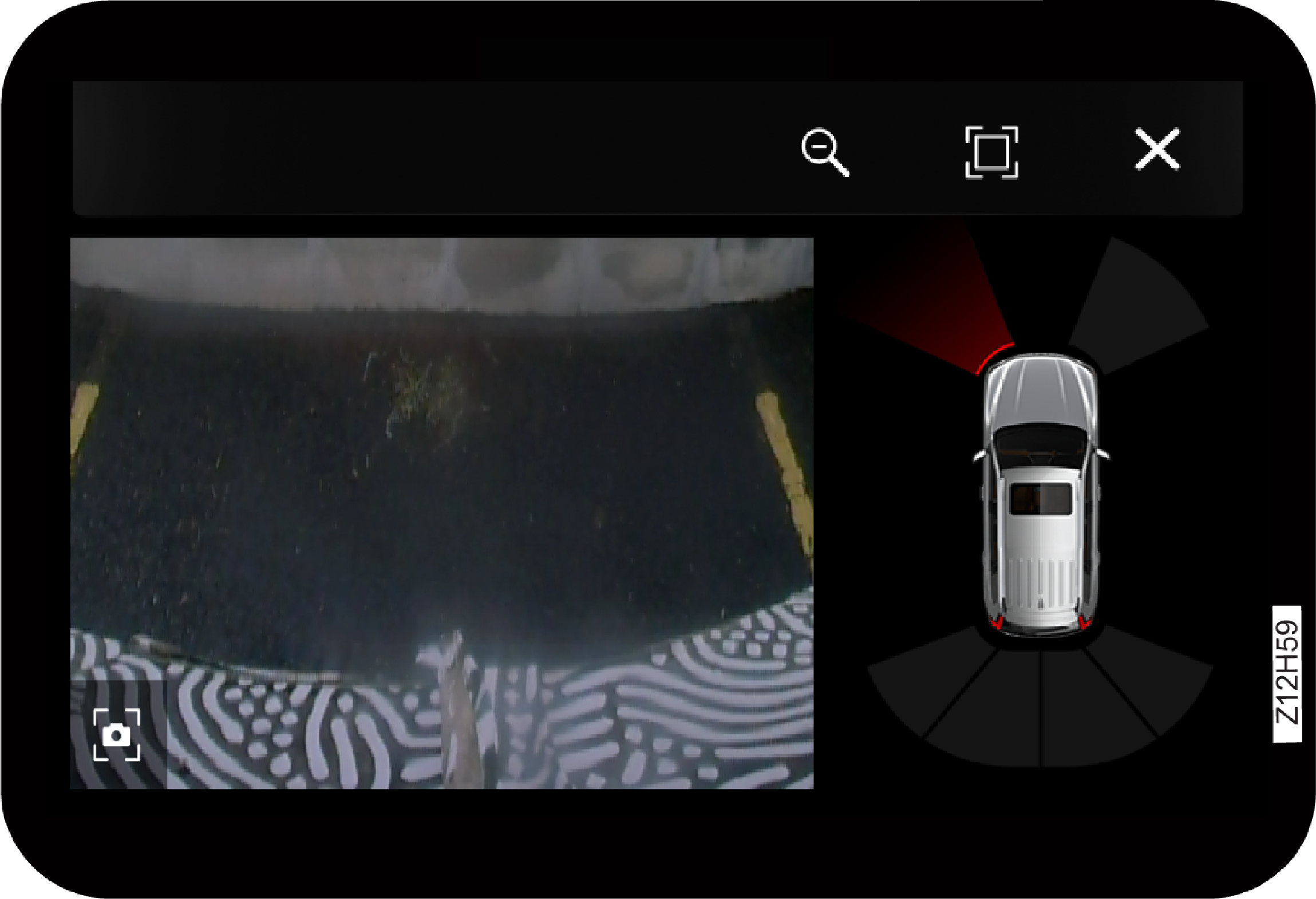

2. Zoom-In
View
![]() |
Press Zoom-In button to view objects closer and
press
Zoom-Out button to go back to the normal parking view.
|
3. Full
View/Wider
View
![]() |

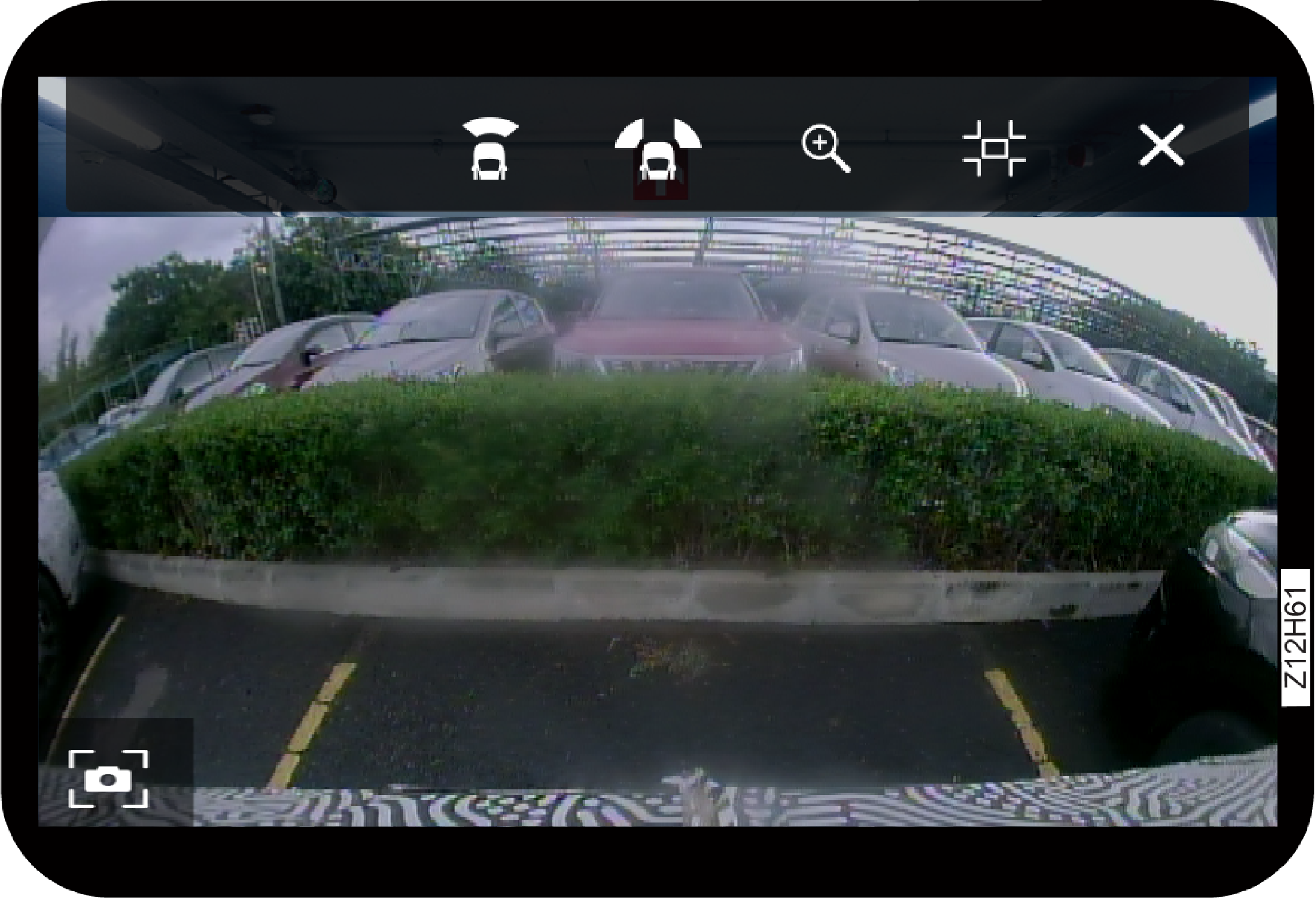

![]() By selecting Full View Icon, Front View camera
provides
wide front view of vehicle's front surrounding on the Infotainment
screen.
|

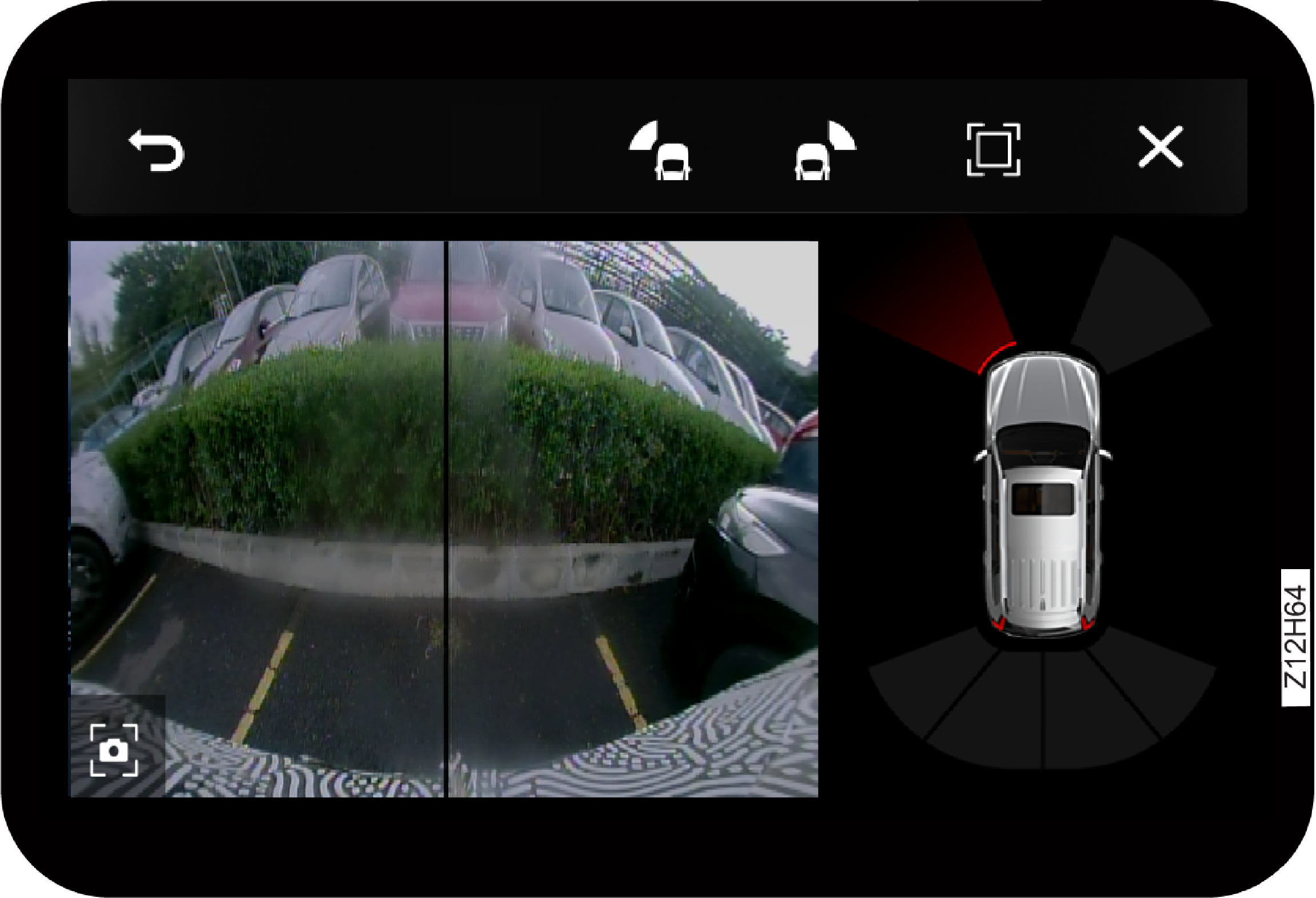

4. Merged Corner
View
![]() |
![]() By selecting Merged Corner front View camera
provides a
wide view focussed on the left and right corners to provide a better
visibility of crossing traffic for safe maneuverer.
|

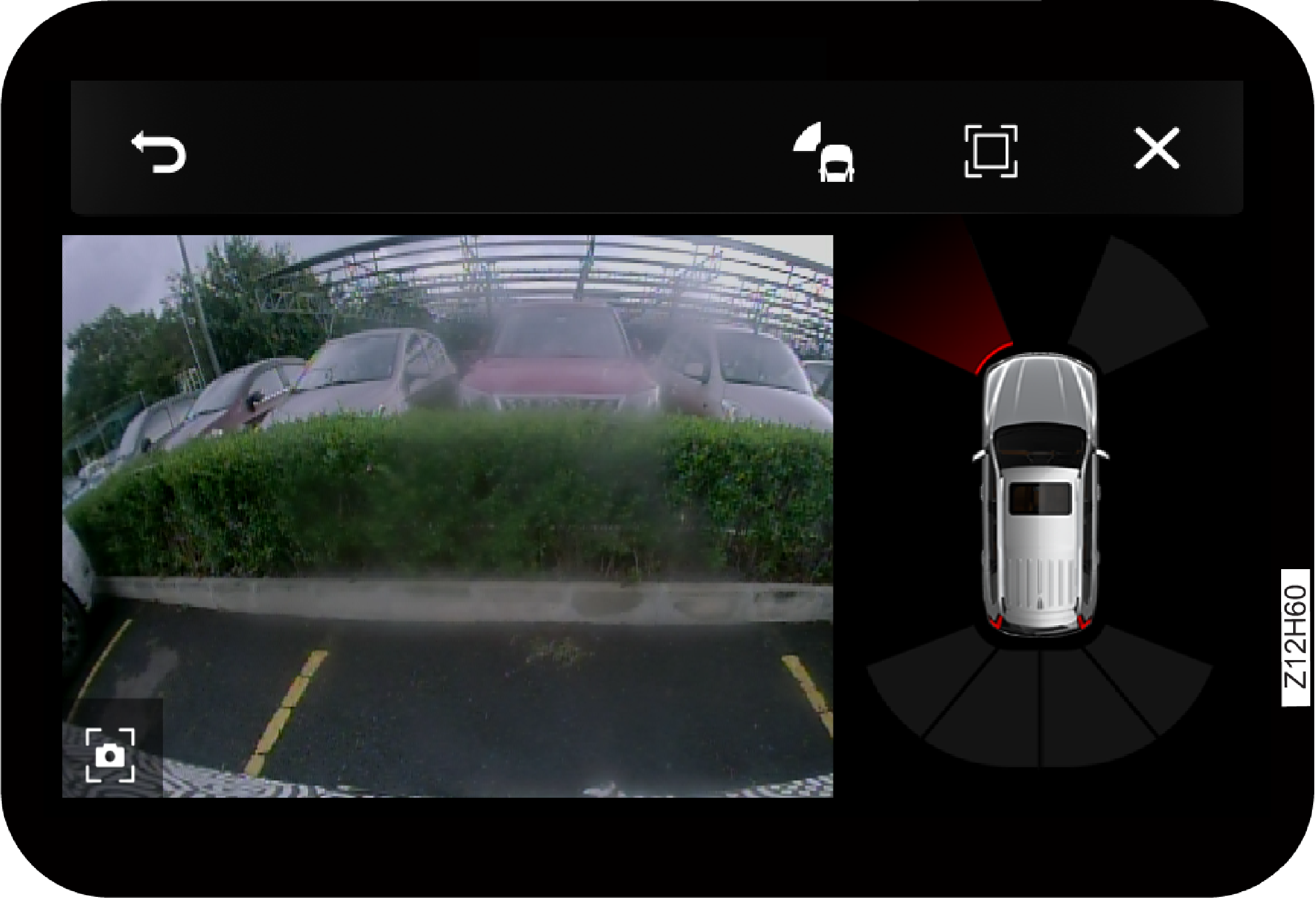

5. Left Corner
View
![]() |
![]() If user wants to focus on the left side crossing
traffic, then "Left Corner View" icon can be pressed to select the view.
|
Select “Back” Icon to switch to Merged Corner View.
|
6. Right Corner
View
![]() |
![]() If user wants to focus on the right side crossing
traffic, then "Right Corner View" icon can be pressed to select the view.
|
![]() |

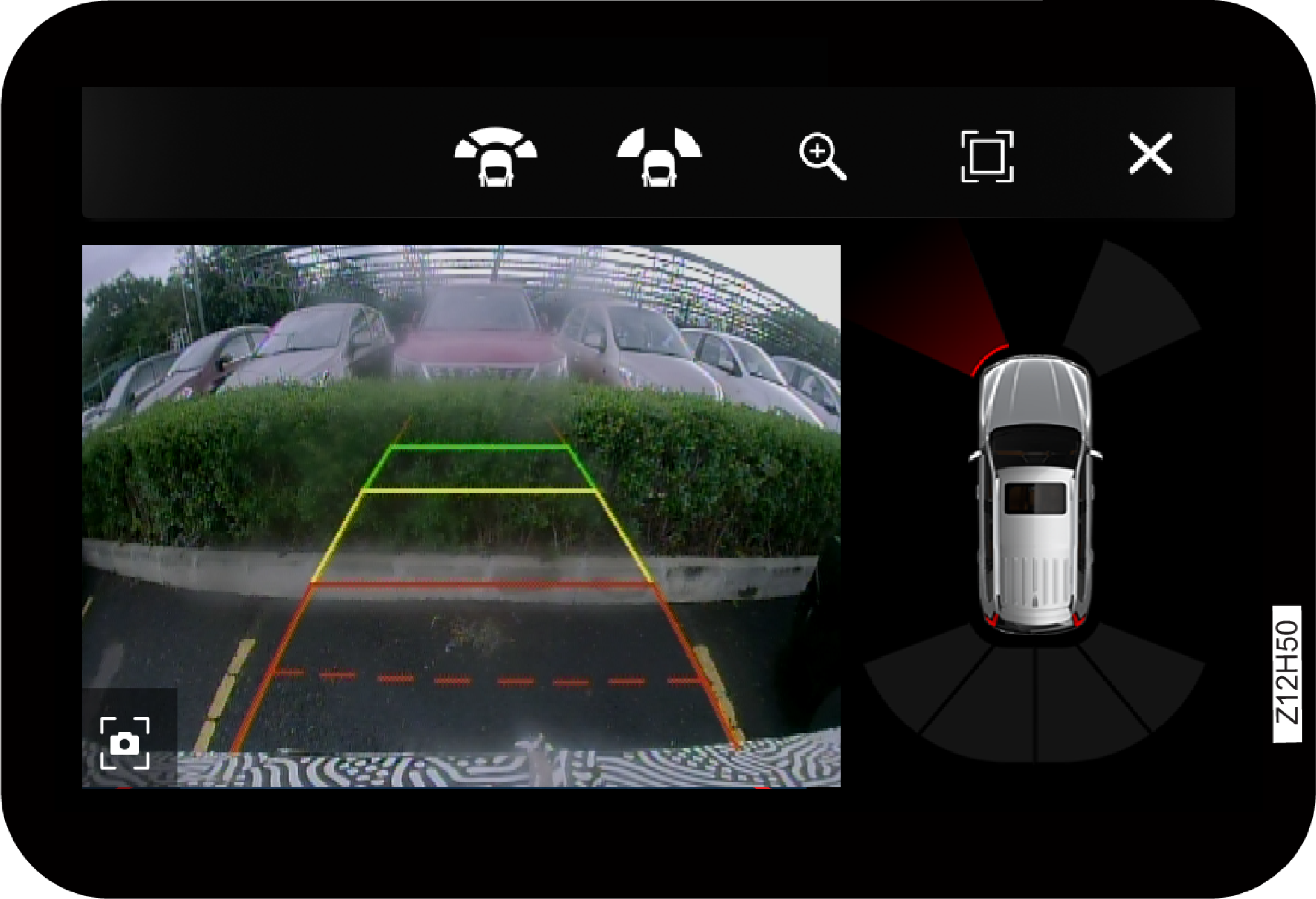

Dynamic
Guidelines (orange color in below image) indicate path, the vehicle will
traverse with current steering position. As per the steering
angle movement, dynamic guidelines move and show the vehicle predicted moving
direction
to help the driver.
|
![]() |
You can also view vehicle’s front surrounding, by
selecting front View Camera option present on Infotainment Screen.
|

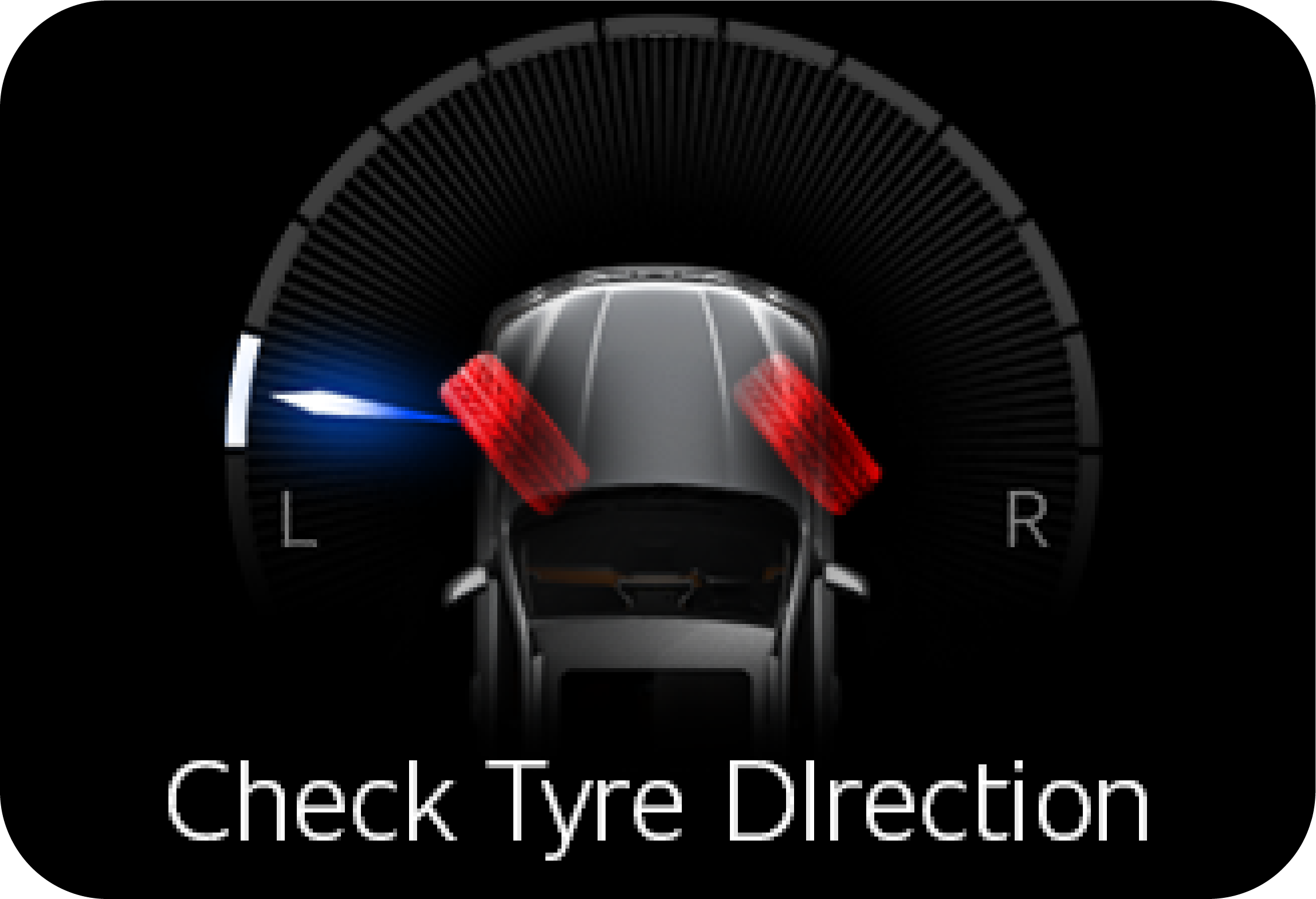

• | If the driver has selected entry to ‘FVC Mode’ by selecting Front View Camera option present on Infotainment Screen or the FVC piano switch option, then FVC mode exits when reverse gear is engaged. |
• | If the driver has selected entry to ‘FVC Mode’ by selecting Front View Camera option present on Infotainment Screen or the FVC piano switch option, then FVC mode exits by selecting the cancel button appearing on the screen. |
• | When ignition is off. |
• | In case of any FVC-related issues, the Infotainment displays ‘ Please Contact Service Centre’ and vehicle needs to be taken to the Service Centre. Avoid using the Front-View Camera under these circumstances. |
• | If front of your vehicle is damaged or if the Camera position is changed, please contact the nearest Mahindra Authorised Service Center immediately. |
• | Front view camera may not operate normally, when you drive in the extremely high or low temperature area. (Operating temperature: -20°C ~ 65°C). |
• | Under certain circumstances given below, the front view camera system will work with limitation or will not function fully: |
• | If the front of your vehicle got damaged. And if the Camera position and the settings got changed. Please contact the nearest Mahindra Authorised Service Center. |
• | Camera image reproduced slightly delayed and not in real time due to processing. As the display is 2-dimensional, pointed and protruding obstacles are hard to depict and thus very difficult to recognise. Please avoid front view camera in the above situation. It could you otherwise injure others or damage objects and your vehicle. |
• | The performance gets affected sometimes due to deposition of ice, dust, heavy rain, heavy wind, heavy exhaust on the camera. |
• | Images shown on the display is a mirror-inverted manner, Make sure that no persons or animals or any objects/materials are in the manoeuvring area. Pay attention and ensure safety before manoeuvring the car. Driver is legally responsible for their car. |
• | The front view camera is only a supplementary function and may display obstacles from a distorted perspective & inaccurately. |
• | Avoid using of front view camera, if you are having eye colour blindness or impaired colour vision. |
• | Objects above the ground or hanged may appear to be far away than they are. But in reality, objects shall be closer to your car. In such cases, avoid using guidelines to judge the distance. Since it leads to mis-adjustments and increase the risk of collision with your car. |
• | It is driver’s responsibility to identify the suitable parking area to park car safely. |
• | Under inflated tyre(s) on any wheel(s). |
• | Uneven vehicle loading. |
• | High crown in the centre of the road. |
• | High crosswinds. |
• | Wheels out of alignment. |
• | Wheels out of balance. |
• | Loose or worn suspension components. |
• | Never hold the steering wheel to the extreme right or the extreme left for more than a few seconds when the engine is running. |
• | Heavy or uneven steering efforts may be caused by low power steering pump fluid level. Check the low power steering pump fluid level before seeking service from an Authorized Mahindra Dealer. |
• | Do not fill the power steering pump reservoir above the MAX mark on the reservoir, this may result in leaks from the reservoir. |
![]() |

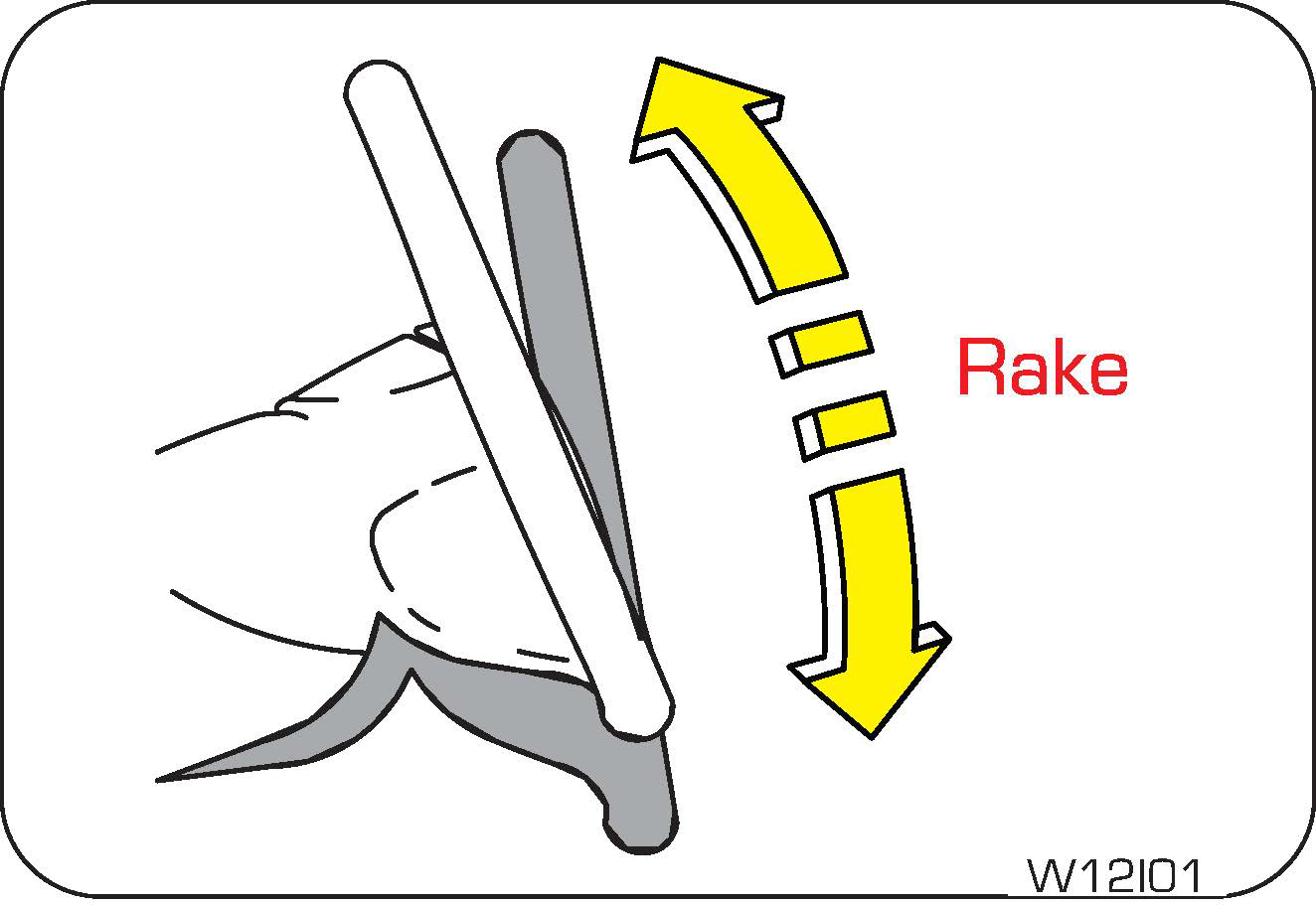

The steering wheel can be adjusted as required using
the lever in the steering shroud under the steering wheel.
|
|
1. Pull the tilt lever down to unlock.
2. Raise or lower the steering wheel to the desired
position.
|
A: Mute
|
E: Source
|
B: Volume +
|
F: SEEK UP
|
C: Volume -
|
G: SEEK DOWN
|
D: Call Connect
|
H: Voice / Call Disconnect
|
• | SOURCE - Press SOURCE button to toggle between TUNER, USB, BT AUDIO and MYDRIVE. |
• | VOLUME CONTROL - Press ‘+’ and ‘- button to increase or decrease the volume. |
• | MUTE - Press MUTE button to mute audio while in TUNER mode and pause the song while in USB mode. |
• | USB MODE - Press the seek button 'UP' / 'DOWN' moves to next / previous track of MP3 and video Playing. |
• | TUNER MODE - Press the seek 'UP' / 'DOWN' button briefly: Manual Search, moves to selected channel. Press and hold the seek button 'UP' / 'DOWN' for 2 seconds to AUTO Search. |
• | Call Connect - Press to accept incoming call to the paired BT phone. |
• | Call Dis Connect - Press to reject or end active call to the paired BT phone. |
• | Call Dis Connect - Press to activate Alexa or OK Google or Siri voice assistant. |
A
|
CRUISE ON/OFF
|
F
|
UP
|
B
|
SET +
|
G
|
ENTER
|
C
|
SET –
|
H
|
DOWN
|
D
|
CRUISE RESUME
|
I
|
FAVOURITE
|
E
|
CLUSTER MENU
|
• | The vehicle is cruising above 20kmph - MT / 35kmph - AT. |
• | Engine RPM above 1200 RPM. |
• | Vehicle is in any gear except 1st and reverse. |
• | Clutch pedal released. |
• | Brake pedal released. |
• | Cruise button has to be pressed to activate cruise control. |
• | Cruise is activated first time in an ignition cycle by SET + / SET - button. |
• | Subsequent cruise engagements can be done by RESUME SET+ /SET- buttons in the same ignition cycle. |
• | CRUISE OFF button is pressed. |
• | Brake or clutch pedal depressed. |
• | If the vehicle speed exceeds the cruise set speed by 30 kmph by accelerator pedal intervention. |
• | If vehicle speed is increased by 10 kmph for more than 30 seconds by pressing the accelerator pedal. |
• | When Set+/Set- switch is pressed for more than 12 seconds (In this case, vehicle will not go into cruise mode in that ignition cycle. In order to restore the cruise function, switch OFF the ignition, wait for 30 seconds and switch ON the ignition). |
• | If the vehicle is driven in cruise mode for more than one hour without any brake input in between, the engine check lamp will get ON and cruise mode will get deactivated. |
• | Cruise influencing error indicated by Check Engine Lamp, OBD lamp, etc. |
• | Press the CRUISE OFF button in the steering wheel. |
• | Press the brake pedal. |
• | Gear selector moved into neutral. |
• | HDC or ESC becomes active. |
1. | Assume, you have activated cruise mode and set the vehicle speed at 50 kmph. |
2. | Due to an obstacle or a sharp turn, you have deactivated the cruise mode either by pressing the brake pedal or by switching OFF the CRUISE control. |
3. | Vehicle comes out of the cruise mode. |
4. | When the road condition is suitable to switch over back to cruise control mode, press RESUME button once. The system activates the cruise control mode to the previous cruising speed of 50 kmph. |
5. | To resume the previous cruise set speed, the vehicle speed should be above 20 kmph. |
Front Tow
Hook
|
Rear Tow
Hook
|
|
|
Towing
Option
|
2WD
|
Towing
Condition
|
Wheels
OFF the Ground
|
4WD
Models
|
|
ü
|
On Trailer
|
ALL
|
ü
|
|
O
|
Flat Tow
|
NONE
|
O
|
|
O
|
Dolly Tow
|
Front
|
O
|
|
ü
|
REAR
|
O
|
|
e-Call# : In
an
unfortunate event of your car meeting with an accident, triggering the airbags, your
SCORPIO-N will initiate the following actions: |
|
1. A call will be triggered automatically from your
SCORPIO-N to 108* Ambulance Service for medical assistance
|
|
|
|
2. Mahindra With You Hamesha team will call you back
for
support and guidance
|
SOS button |
RSA call from vehicle ^ |
|
![]() |
For an SOS call, the driver can operate the switch located in the Center Fascia Switch panel.
|
By touching the RSA icon in infotainment, your Scorpio-N will connect you to Mahindra Roadside Assistance for support
|
1. | Explanation of features and functions. |
2. | Guidance or assistance for usage of in-car features. |
3. | Assisting customers by guiding them to the nearest workshop. |
1. | Check that the battery terminals are tight and clean. |
2. | If the battery terminals are firmly fastened, switch ON the interior lamps. |
3. | If the lamps do not illuminate, glow dim or go OFF when the starter is cranked, then it indicates a weak or discharged battery. Try jumpstarting. Follow ‘jump starting’ instructions given later in this chapter. |
4. | Check the fuses in the Engine Compartment Fuse Box and Instrument Panel Fuse Box. |
• | Reduce your speed gradually, keeping a straight line. Move cautiously off the road to a safe place. |
• | Turn ON your hazard warning flashers and check for any malfunction lamps in the instrument cluster. |
• | Turn the ignition OFF, wait for approximately 90 seconds and try starting the engine again. |
• | If the vehicle still does not start, contact an Mahindra Authorised Dealer. |
• | If the engine speed does not increase when the accelerator pedal is depressed, there may be a problem in the Engine Management System, electrical or electronic controls. |
• | In case of certain faults, the engine may go to limp home mode, which is indicated by the check engine lamp. |
• | Have your vehicle checked by an Mahindra Authorised Dealer as soon as possible. |
• | Progressively reduce the vehicle speed and bring the vehicle to a stop at the side of the road. |
• | Turn ON the hazard warning flashers. |
• | Keep the engine running at idle. |
• | Engage the parking brake. |
• | Switch off the air conditioner. |
• | Wait till the engine coolant temperature drops sufficiently such that the temperature gauge is around halfway between C and H. |
1. | Turn headlamp ON and check whether lights are dim |
2. | Try to start the vehicle and check whether engine cranks slowly or not crank at all. |
3. | Open the bonnet and locate the battery.
![]() It may be necessary to remove the disabled vehicle’s
battery cables from the battery terminals and clean both cables and terminals.
Use a stiff wire brush to remove all corrosion. Reconnect the cables to the battery
terminals before jump starting the vehicle.
|
4. | The positive terminal will be marked with a plus sign (+) and will usually have a RED cable attached on it. |
5. | The negative terminal will be marked with a minus sign (-) and will usually have a BLACK cable attached to it. |
6. | A standalone booster battery can be used to start the engine when the vehicle battery is low. |
7. | Take jumper cables and unwind the red and black cables. |
8. | Wear safety gear and connect one end of red clamp of the jumper cable to the positive (+) terminal of the discharged battery and other end to the positive (+) terminal of the booster battery. |
9. | Similarly, connect one end of black clamp of the jumper cable to the negative (-) terminal of the booster battery and other end to the negative (-) terminal of the discharged battery. |
10. | Once the jump starting assembly is done, crank the engine for starting. |
11. | Once the vehicle gets started, carefully remove the jumper cables in the reverse order of attachment. |
12. | Disconnect the black clamp of the jumper cable from the negative (-) terminal of the discharged battery and the other end of the black clamp from the negative (-) terminal of the booster battery. |
13. | Similarly, disconnect the red clamp of the jumper cable from the positive (+) terminal of the booster battery and the other end of the red clamp from the positive (+) terminal of the discharged battery. |
14. | Close the bonnet |
15. | Keep the vehicle's engine running and slightly accelerate the vehicle to charge the battery. |
|
|
• | Remove the jumper cables once the vehicle starts. Do this in the reverse of the order in which they were attached, and don't let any of the cables or clamps touch each other (or dangle into the engine compartment). |
• | Disconnect the black clamp of the jumper cable from the negative (-) terminal of the discharged battery. |
• | Disconnect the other end of the black clamp from the negative (-) terminal of the booster battery. |
• | Disconnect the red clamp of the jumper cable from the positive (+) terminal of the booster battery. |
• | Disconnect the other end of the red clamp from the positive (+) terminal of the discharged battery. |
• | Keep the vehicle's engine running. Run the vehicle above idle (slightly revved up with your foot on the accelerator). This should give the battery enough charge to start the vehicle again. If it does not start, either your battery might be dead or faulty alternator. |
![]() |
Switch the ignition and all electrical equipment OFF
before touching or attempting to change a fuse.
|
|
Fuse puller is available at the engine compartment fuse
box.
|
|
|
“EF”
Fuses (Mini Fuses)
|
||
---|---|---|
Fuse
No.
|
Circuit
|
Fuse
Rating (A)
|
F1*
|
EMS Batt 1
|
15 (Diesel)
|
30 (Petrol)
|
||
F2
|
EMS Batt 2 (Diesel)
|
10
|
VVTIN/EX, VOP, CANISTER (Petrol)
|
||
F3*
|
HFM/FMU/Fuel Pump Relay Coil
|
10 (Diesel)
|
Ignition Coil/Fuel Pump Relay
|
15 (Petrol)
|
|
F4*
|
BMS
|
5
|
F5
|
Spare
|
—
|
F6
|
EMS ECU Permanent Batt
|
5
|
F7
|
Spare
|
—
|
F8
|
Horn
|
20
|
F9*
|
DRL B+
|
10
|
F10
|
Spare
|
—
|
F11
|
Spare
|
—
|
F12
|
EMS Load - Relays (GP/SCR/AC)/EGR Bypass
|
15
|
Lamda Sensor/HFM/AC Relay Coil
|
||
* - If equipped
|
“EF”
Fuses (Mini Fuses)
|
||
---|---|---|
Fuse
No.
|
Circuit
|
Fuse
Rating (A)
|
F13
|
Brake Switch
|
10
|
F14
|
FR Blower
|
40
|
F15
|
Spare
|
—
|
F16
|
ABS Valve
|
25
|
F17
|
Spare
|
—
|
F18
|
ABS Motor
|
40
|
F19
|
Spare
|
—
|
F20
|
EMS Main Relay
|
40
|
F21 - F24
|
Spare
|
—
|
F25*
|
SCR Relay (Diesel)
|
10
|
Inter Cooler Fan (Petrol)
|
||
F26 - F29
|
Spare
|
—
|
F30
|
AC Compressor
|
10
|
F31
|
Fuel Pump
|
20
|
F32 - F36
|
Spare
|
—
|
F37
|
Starter
|
30
|
F38*
|
Glow Plug
|
50
|
* - If equipped
|
“EF”
Fuses (Mini Fuses)
|
||
---|---|---|
Fuse
No.
|
Circuit
|
Fuse
Rating (A)
|
F39
|
Main Batt+3
|
50
|
F40
|
Cooling Fan Low Speed
|
40
|
F41
|
Main Batt+2
|
60
|
F42
|
Main Batt+3
|
60
|
F43
|
Main Batt+1
|
40
|
F44
|
ABS Ignition
|
5
|
F45*
|
EPS Ignition
|
5
|
F46
|
EMS Ignition
|
5
|
F47
|
Water Pump (Diesel)
|
10
|
Turbo Rec Valve (Petrol)
|
||
F48
|
Nox/WIF (Diesel)
|
10
|
F49*
|
EPS
|
80
|
F50
|
Radiator Fan (High Speed)
|
50
|
F51
|
Alternator
|
150
|
* - If equipped
|
Relays
|
||
---|---|---|
Relay
No.
|
Relay
Type
|
Application Detail
|
R2
|
ISO Power Relay
|
Cooling Fan High Speed
|
R3*
|
ISO Power Relay
|
Glow Plug (Diesel Only)
|
R9
|
Ultra Micro Relay
|
Intercooler Fan (Petrol Only)
|
R11
|
Ultra Micro Relay
|
Fuel Pump
|
R13
|
Ultra Micro Relay
|
Horn
|
R14
|
Mini Relay
|
EMS Main
|
R15
|
Mini Relay
|
Cooling Fan Low Speed
|
R16
|
Mini Relay
|
Front Blower
|
R22
|
ISO Micro Relay
|
Starter
|
R23
|
Ultra Micro Relay
|
AC Compressor
|
R25*
|
Ultra Micro Relay
|
SCR (Diesel Only)
|
R1, R4, R5, R6, R7, R8, R10, R12, R17, R18,
R19, R20, R21, R24, R26 & R27
|
Spare
|
Fuses
|
||
---|---|---|
Fuse
No.
|
Circuit
|
Fuse
Rating
|
F1*
|
4WD B+
|
20A
|
F2*
|
ORVM SW
|
5A
|
F3
|
MBFM B+3
|
25A
|
F4
|
HVAC B+
|
10A
|
F5
|
MBFM B+2
|
25A
|
F6*
|
PKE BAT1
|
10A
|
F7
|
Wireless Charge/Diagnostic
|
5A
|
F8
|
MBFM B+1
|
25A
|
F9*
|
Crank
|
10A
|
F10*
|
ICC
|
10A
|
F11
|
PWR WIN RH
|
30A
|
F12
|
PWR WIN LH
|
30A
|
F13*
|
Sunroof
|
20A
|
F14
|
Spare
|
-
|
F15
|
Spare
|
-
|
F16
|
Roof/Sunvisor LP
|
10A
|
F17
|
Rear PWR WIN
|
30A
|
F18*
|
SC/NSC
|
20A/15A
|
F19*
|
RLS
|
5A
|
* - if equipped
|
Fuses
|
||
---|---|---|
Fuse
No.
|
Circuit
|
Fuse
Rating
|
F20*
|
Power Seat
|
20A
|
F21
|
ACC-PKE/MBFM
|
5A
|
F22*
|
Blower Coil/AMP ACC
|
10A
|
F23*
|
ACC-RR USB Charg/INFO NSC
|
10A
|
F24
|
PWR Outlet
|
15A
|
F25*
|
RPAS IGN
|
5A
|
F26*
|
IGN - INHIBI
|
10A
|
F27*
|
P/W Smart Close RH
|
30A
|
F28*
|
4WD Actuator
|
10A
|
F29
|
PAB/SAS/CFS IP SW Bank
|
10A
|
F30
|
EC IGN Loads
|
10A
|
F31
|
IGN-Gateway/MBFM/Cluster
|
10A
|
F32*
|
IGN-FVC/RVC
|
5A
|
F33
|
IGN-Airbag
|
5A
|
F34
|
IGN-Info NSC/HVAC/AMP
|
10A
|
F35
|
IGN-PKE/Immobi
|
5A
|
F36*
|
P/W Smart Close LH
|
30A
|
F37*
|
IGN-APA
|
5A
|
F38*
|
Reverse Lamp
|
10A
|
* - if equipped
|
Fuses
|
||
---|---|---|
Fuse
No.
|
Circuit
|
Fuse
Rating
|
F39*
|
W/L Charg
|
5A
|
F40*
|
IGN-AT/4WD
|
10A
|
F41*
|
AT B+
|
15A
|
F42
|
MBFM B+5
|
25A
|
F43*
|
Gateway Cont B+
|
5A
|
F44*
|
Cluster
|
5A
|
F45
|
MBFM B+4
|
25A
|
F46
|
PKE BAT2/Imobi
|
10A
|
F47*
|
ESCL Batt
|
10A
|
F48*
|
RR Blwr
|
10A
|
F49
|
Spare
|
10A
|
F50
|
Spare
|
15A
|
F51
|
Spare
|
5A
|
F52
|
Spare
|
20A
|
F53
|
Spare
|
25A
|
F54
|
Spare
|
30A
|
F55
|
-
|
-
|
F56*
|
FSS- Amplifier B+
|
30A
|
* - if equipped
|
Relays
|
||
---|---|---|
Relay
No.
|
Relay
Type
|
Relay
Rating
|
R1
|
-
|
-
|
R2
|
Power Window Ext Relay
|
70A
|
R3*
|
AT Solenoid Relay
|
20A
|
R4*
|
RR Blower Relay
|
20A
|
R5*
|
Accessory Start Relay
|
40A
|
R6*
|
Ignition Relay HC
|
35A
|
R7
|
-
|
-
|
|
|
• | Tumble the seat again and Open the velcro for taking the warning triangle out. |
|
|
|
|
1. Plug
|
5. Jack Operating extension Lever
|
2. Screwdriver
|
6. Tow Bar
|
3. Wheel Spanner
|
7. DEO Spanner 10mm x 12mm
|
4. Jack Operating Lever
|
|
Fold the 3rd row seat and pull out the trim cover
snaps
as shown in the image.
|
|
Loosen the jack sufficiently.
|
|
Slide the bottom of jack towards out of the trim and
take out.
|
|
|
|
|
• | Tilt and Remove the securing bracket out of the spare wheel hub. |
• | Remove/pull away the spare wheel. |
|
|
• | Spare Wheel provided is specifically designed for your vehicle. |
• | Do not use more than one Spare Wheel simultaneously. |
• | Drive the shortest possible distance with Spare Wheel. |
• | While using spare wheel reduce speed, Avoid sharp cornering, Avoid sudden acceleration, abrupt steering, sudden braking and shifting operations that cause sudden engine braking. |
• | Do not drive at speeds in excess of 80 km/h when a Temporary Spare Wheel is installed on the vehicle. |
|
Always loosen the wheel nuts before raising the
vehicle. Turn the wheel nuts anti-clockwise to loosen as per the sequence.
|
|
A: Flat
Tyre
B: Chocks
Blocks
|
A
|
Rear Jacking Points
|
B
|
Front Jacking Points
|
Front
|
Rear
|
|
|
• | Use the jack only for lifting your vehicle during wheel changing. |
• | Do not raise the jack with someone in the vehicle. |
• | When raising the vehicle, do not place any objects on top of or underneath the jack. |
• | Raise the vehicle only high enough to remove and change the wheel. |
• | Usable extended height of jack is up to the yellow line/mark. Do not raise the jack above the yellow line. |
• | Follow jacking instructions. |
• | Do not start or run the engine while your vehicle is supported by the jack. |
|
Reinstall the
wheel
nuts with the tapered end inward and tighten by hand. Press the wheel inward and
tighten the wheel nuts
further.
|
|
Tighten each nut
a
little at a time in the diagonally opposite order as shown. Repeat the process
until
all the nuts are tight.
|
|
|
Technical
Specifications
|
|||
---|---|---|---|
ENGINE
|
Diesel
(175
PS)
|
Diesel
(132
PS)
|
Petrol
(203
PS)
|
Displacement/Cubic Capacity
|
2183 cc
|
2183 cc
|
1997 cc
|
Type
|
D22 Engine with Intercooler Turbocharger
|
D22 Engine with Intercooler Turbocharger
|
G20 Engine with Turbocharger
|
Compression Ratio
|
16 : 1
|
16 : 1
|
9.5 : 1
|
Max. Engine Output
|
128.6kW @ 3500 +/- 50 rpm
|
97 kW @ 3750 +/- 50 rpm
|
149.14 kW @ 5000 +/- 50 rpm
|
Max. Torque
|
370 Nm @ 1500 to 3000 rpm (MT) /
400 Nm @ 1750 to 2750 rpm (AT) |
300 Nm @ 1500 to 3000 rpm
|
370 Nm (MT) / 380 Nm (AT) @ 1750 to 3000 rpm
|
TRANSMISSION
|
|||
Type
|
6 Speed Manual/Automatic
|
||
No. of Gears
|
6 Forward, 1 Reverse
|
||
STEERING
|
|||
Type/Description
|
Electric Power Steering - EPS
(With Rack mounted motor)
|
Hydraulic Power Steering - HPS
|
Electric Power Steering - EPS
(With Rack mounted motor)
|
SUSPENSION
|
|||
Type/Description
|
Front:
Double wishbone Suspension
Rear:
Multi Link Rear Suspension with Watt’s Linkage
|
||
BRAKES
|
|||
Service Brake
|
Hydraulic & Vacuum assisted Booster with
ABS
|
||
Front/Rear
|
Disc
|
||
Parking Brake
|
Mechanical Hand Operated (Conventional Type)
|
||
WHEELS
&
TYRES
|
|||
Rim
|
7J X 17” (Steel & Alloy), 7.5J X 18”
(Alloy)
& 7JX18” (Steel)
|
||
Tyres
|
P255/60 R18 (or)P245/65 R17
|
||
Type
|
Radial Tubeless
|
||
Laden Tyre Pressure (Psi)
|
Front /
Rear/Spare - 34
|
||
FUEL
|
|||
Fuel Tank Capacity
|
57 liters
|
||
DEF Tank Capacity
|
20 liters (only for Diesel)
|
||
ELECTRICAL
SYSTEM
|
|||
System Voltage
|
12V
|
||
Battery Rating
|
70 AH (DIN)
|
Lamp
Bulb
|
Wattage
|
Bulb
Type
|
No. of
Bulbs
per Vehicle
|
---|---|---|---|
Head Lamp - High Beam*
|
12V 55W
|
H7 55W/LED
|
2
|
Head Lamp - Low Beam*
|
12V 55W
|
H7 55W/LED
|
2
|
DRL / Front Position Lamp*
|
LED
|
—
|
|
Turn Indicator Lamp (Front/Rear)*
|
12V 21W
|
PY21W
|
2
|
Turn Indicator Lamp (Front/Rear)*
|
Sequential LED
|
2
|
|
Side Turn Indicator Lamp*
|
LEDs
|
2
|
|
Front Position Lamp*
|
12V 5W
|
W5W
|
2
|
Front Fog Lamp*
|
LEDs
|
2
|
|
Front Cornering Lamp*
|
LEDs
|
2
|
|
Rear Position Lamp
|
LEDs
|
||
Stop Lamp
|
12V 21W
|
W21 W
|
2
|
Reverse Lamp
|
12V 21W
|
PY21W
|
2
|
Registration Plate Lamp
|
LEDs
|
2
|
|
High Mounted Stop Lamp
|
LEDs
|
1
|
|
* - If equipped
|
• | Familiarize yourself with your vehicle by going through your Owner's Manual |
• | Take a few minutes to review this Maintenance Section |
• | Make it a habit to use this manual to record scheduled maintenance in the warranty and Service Information Guide |
• | Consult with your Mahindra Authorised Dealer for all your vehicle's needs |
• | Refer to relevant sections of the manual before starting |
• | Set the parking brake |
• | Block the wheels to prevent the vehicle from moving unexpectedly |
• | Turn OFF the engine and remove the key |
• | Stay clear of hot vehicle parts |
• | Avoid repeated contact with fluids |
• | Do not let fuel, coolant and other fluids spill over electrical and hot vehicle parts |
• | Keep all open flames and other burning material like cigarettes away from the battery and all fuel-related parts |
A
|
Degassing Tank
|
D
|
Engine
Oil filling Cap
|
G
|
Battery
|
B
|
Brake
Fluid Reservoir
|
E
|
Engine
Oil Dipstick
|
||
C
|
Windshield Washer Fluid
Reservoir
|
F
|
Engine
Compartment Fuse Box
|
A
|
Degassing Tank
|
D
|
Engine
Oil filling Cap
|
G
|
Battery
|
B
|
Brake
Fluid Reservoir
|
E
|
Engine
Oil Dipstick
|
||
C
|
Windshield Washer Fluid
Reservoir
|
F
|
Engine
Compartment Fuse Box
|
A
|
Degassing Tank
|
D
|
Engine
Oil filling Cap
|
G
|
Engine
Compartment Fuse Box
|
B
|
Brake
Fluid Reservoir
|
E
|
Hydraulic Steering
Fluid
|
H
|
Battery
|
C
|
Windshield Washer Fluid
Reservoir
|
F
|
Engine
Oil Dipstick
|
• | Front windshield washer fluid level |
• | Engine coolant level |
• | Battery condition |
• | Brake/Clutch fluid level |
• | Engine oil level |
• | Fluid leaks |
• | Hoses, joints and pipes for any abnormalities |
• | Lights |
• | Warning lamps |
• | Windshield wiper and wash |
• | Steering wheel |
• | Seats/Seat belts |
• | Accelerator pedal/Brake pedal |
• | Brakes |
• | Parking brake |
• | Gear lever shift mechanism |
• | Lamps |
• | Fluid leaks |
• | Doors and engine bonnet latches |
• | Tyre inflation pressure |
• | Tyre surface/thread and wheel nuts |
• | Oil is used to lubricate pistons, piston rings and cylinders. Thin films of oil, left over when pistons move in cylinders, are sucked into the combustion chamber due to high negative pressure generated when the vehicle is decelerating. This oil gets burnt in the combustion chamber |
• | Oil is also used to lubricate the stems of intake valves. Some of this oil is sucked into the combustion chamber together with the intake air and is burnt there |
• | Engine oil consumption depends upon the viscosity and quality of the oil, and upon the conditions in which the vehicle is driven. Oil consumption will be more due to high speed driving and frequent acceleration and deceleration. A new engine may consume more oil since its pistons, piston rings and cylinder walls are not conditioned |
• | Make sure the vehicle is on ground level |
• | Turn the engine OFF and wait a few minutes for the oil to settle down into the oil sump |
• | Apply the parking brake |
• | Open the bonnet, use stay rod to support the bonnet. Protect yourself from engine heat |
• | Locate and carefully remove the engine oil level dipstick |
• | Wipe the dipstick with a clean cloth. Insert the dipstick fully, then remove it again |
• | If the
oil
level is between “Min” and
“Max” marks, the oil level is
acceptable. DO NOT ADD
OIL
|
• | To access the engine oil filling remove the engine top cover. |
• | If the oil level is below or near the "Min" mark, add enough oil through the oil filler cap to raise the level within the “Min” and “Max” marks. Wait for few minutes after every top-up for the oil to settle down before checking the level |
|
|
• | Park the vehicle on flat-horizontal surface. Keep the parking brake fully engaged. Shut-off the engine |
• | Wait till the engine cools down and hence coolant temperature comes down to normal room temperature |
|
|
• | In case the coolant level is below the "MIN" marking, the coolant should be topped-up |
• | The coolant should be filled till the level rises above the 'MIN' but remain below the “MAX” marking on the degassing tank |
• | However, if the degassing tank is found to be near empty, it is recommended that the system be checked at Mahindra Authorised Dealer |
|
The brake fluid level will drop slowly as the brakes
wear and will rise when the brake components are replaced. Fluid levels
between the “MIN” and “MAX” lines are within the normal operating range; there is no
need to add fluid.
|
|
The windshield washer is located behind the RH Head
lamp in the engine bay.
|
|
The fuel filter needs to be drained when there is
water
entry in the fuel filter and respective tell tale ON in cluster.
|
1. | Park the vehicle on a ground level |
2. | Apply Parking brake and block the wheels. |
3. | Switch off the ignition |
4. | Turn the drain plug anti-clockwise 3–4 rounds, but DO NOT remove the plug |
5. | Wait till the water drains (few seconds) |
6. | Turn the drain plug clockwise to close and tighten the plug firmly |
• | Keep the battery securely mounted |
• | Keep the battery top clean and dry |
• | Keep the terminals and connections clean, tight, and coated with petroleum jelly or terminal grease |
• | Rinse any spilled electrolyte from the battery immediately with a solution of water and baking soda |
• | Remove the vent plugs |
• | Add distilled water to all the cells that require the fluid and secure the plugs properly |
1. | Lift the arm and position the wiper blade at
right
angles to the wiper arm.
|
2. | Press the lock and pull it off the wiper blade towards left side of the user, disengage the wiper blade from arm. |
3. | Carefully insert the wiper blade assembly in the reverse order of removal. |
• | Wash your vehicle regularly with cool or lukewarm water and a neutral pH soap |
• | Never use strong household detergents or soap, such as dish washing or laundry liquid. These products can discolor and spot painted surfaces |
• | Never wash a vehicle that is ‘hot to the touch’ or during exposure to strong, direct sunlight |
• | Always use a clean sponge or car wash mitt with plenty of water for best results |
• | Dry the vehicle with a chamois cloth or soft terry cloth towel in order to eliminate water spotting |
• | It is especially important to wash the vehicle regularly during the winter months, as dirt and road salt are difficult to remove and cause damage to the vehicle |
• | Immediately remove items such as gasoline, diesel fuel, bird droppings and insect deposits; they can cause damage to the vehicle's paint work and trim over time |
• | Wash the vehicle first, using cool or lukewarm water and a neutral pH shampoo |
• | Use the custom bright metal cleaners, available at your Mahindra Authorised Dealer. Apply the product as you would wax to clean chrome parts; allow the cleaner to dry for a few minutes, and then wipe off the haze with a clean, dry rag |
• | Never use abrasive materials such as steel wool or plastic pads as they can leave scratches on the chrome surface |
• | After polishing the chrome parts, you can also apply a coating of Premium Liquid Wax, available at your Mahindra Authorised Dealer, or an equivalent quality product to help protect from environmental effects |
• | Vehicle should be washed using a car shampoo that has a mild neutral (Zero) pH with a clean sponge or microfiber cloth to avoid scratching the vehicle’s surface. |
• | Do not use detergent or hard shampoos when washing the vehicle, as they can damage the paint or finish. Instead, only use a mild, neutral pH car shampoo. |
• | External contaminants such as bird droppings, adhesives, insects, and tree sap should be removed promptly and gently from the painted surface before pre-washing. Avoid applying excessive pressure to prevent damage to the paint. |
• | Dry dust should not be wiped off, it may lead to permanent scratch marks, which are especially noticeable on matte colours compared to glossy colours. If the vehicle is very dirty, pre-wash the vehicle with only water to remove excess dirt before proceeding with a full wash. |
• | Avoid using automatic car washers with high-pressure brushes, as they can damage the vehicle's surface. It's advisable to use automatic car washers without high-pressure brushes for a gentler cleaning process. |
• | Do not apply paint protectors such as wax polish, ceramic coating, or any other surface treatments on matte painted surfaces, as they can cause permanent damage to the paint film. |
• | Avoid using paper towels, dirty, or rough cloths to clean or wipe the car, as they can cause scratches. It’s recommended to use only microfiber cloths or sponges for a safe and effective clean. |
• | It's recommended not to apply anything to the painted surface, such as stickers, foils, magnetic labels, or masking tapes, as they can cause adhesive transfer, potentially leaving permanent stains. |
• | It is advisable to protect vehicle from Greasy, Oily products which may leave stains on paint film, difficult to remove. |
• | Recommended to visit an Authorized Mahindra workshops for any paint related repairs. |
• | Mahindra dealers have the exact touch-up paint to match your vehicle's color |
• | Take your vehicle to an Mahindra Authorised Dealer for paint touch-up or paint repairs |
• | Remove particles such as bird droppings, tree sap, insect deposits, tar spots, road salt and industrial fallout before repairing paint chips |
• | Always read the instructions before using the products |
• | Clean weekly with wheel and Tyre cleaner, which is available at your Mahindra Authorised Dealer. Heavy dirt and brake dust accumulation may require agitation with a sponge. Rinse thoroughly with a strong stream of water |
• | Never apply any cleaning chemicals to hot or warm wheel rims or covers |
• | Do not use hydrofluoric acid-based or high caustic-based wheel cleaners, steel wool, fuels or strong household detergents |
• | The windshield, rear windows and side windows may be cleaned with a non-abrasive cleaner such as Clear Spray Glass Cleaner, available at your Mahindra Authorised Dealer |
• | The wiper blades can be cleaned with alcohol or Premium Windshield Washer Concentrate, available at your Mahindra Authorised Dealer. This washer fluid contains a special solution in addition to alcohol which helps remove the hot wax deposited on the wiper blade and windshield. Be sure to replace wiper blades when they appear worn or do not function properly |
• | Do not use abrasives, as they may cause scratches |
• | Do not use fuel, kerosene, or paint thinner to clean any glass parts |
• | Remove dust and loose dirt with a vacuum cleaner |
• | Remove light stains and soil with carpet and upholstery cleaner |
• | If grease or tar is present on the material, spot-clean the area first with a stain remover |
• | Do not use household cleaning products or glass cleaners, which can stain and discolor the fabric and affect the flame- retardant abilities of the seat materials |
• | Do not use cleaning solvents, bleach or dye on the vehicle's safety belts, as these actions may weaken the belt webbing. |
• | It is recommended to use soft and micro-fiber lint free cloth to clean the display visible surface. |
• | Wipe gently. Do not rub, as the optical film is sensitive to scratch formation. |
• | Be careful for scratch by hard matter like finger nail or steel wool. |
• | Do not try to peel off the optical film or coating on the screen, since it is attached strongly. |
• | Do not add another commercial optical film on to the display visible area. |
• | Do not touch the screen with oily/dirty/wet moisturized fingers as the optical film is very sensitive to stains. Incase of such an event please clean with soft cloth immediately. |
• | The display visible surface must not come in contact with sharp objects or regular day to day ornaments like finger rings, watches, bracelets, bangles, car keys etc… |
• | When you find a scratch on the screen, do not wipe it strongly. Otherwise it will worsen. |
• | Display surface is not so strong for chemical agent. Glass cleaner including alkali or acid, sunscreen must not be used. Alcoholic thinner, petrol, abrading agent must not be used. This may cause discoloration or strain. |
• | Antiseptic solution must not be used for cleaning, since it is not pure alcohol. This may cause stains and/ or discoloration. |
• | Avoid cleaners or polishes that increase the gloss of the upper portion of the instrument panel. The dull finish in this area helps protect the driver from undesirable windshield reflection |
• | Do not use household or glass cleaners as these may damage the finish of the instrument pane and interior trim |
• | Wipe up spilled liquid using a clean white cotton cloth |
• | Apply vinyl cleaner to the wiped area and spread around evenly |
• | Apply cleaner to a clean white cotton cloth and press the cloth onto the soiled area and allow this to set in at room temperature for 30 minutes |
• | Remove the soaked cloth, and if it is not soiled badly, use this cloth to clean the area with a rubbing motion for 60 seconds |
• | Following this, wipe area dry with a clean white cotton cloth |
• | To clean, use a soft microfiber / cotton / sponge cloth with a leather and vinyl with approved cleaners. Dry the area with a soft cloth |
• | To help maintain its resiliency and color, use the leather care kit, available from an Mahindra Authorised Dealer |
• | Do not use household cleaning products, alcohol solutions, solvents or cleaners intended for rubber, vinyl and plastics, or oil/petroleum-based leather conditioners. These products may cause premature wearing of the clear, protective coating |
• | Run it in a well-ventilated area. Carbon monoxide can build up quickly |
• | Run for a minimum of 20 minutes to allow the engine to come up to the normal operating temperature. This will allow the oil to circulate and will also open up the thermostat so that your radiator anti-freeze circulates as well |
• | Start up the air conditioner and/or heater and run both for about 10 minute. Again, circulating fluids is essential for good life of the system |
• | Ensure ignition is switched OFF |
• | Remove rear dust cover from the head lamp |
• | Remove the bulb assembly with connector from the head lamp by unlocking the wire clamp |
• | Detach the bulb assembly from the wiring connector near to the head lamp |
• | Insert the connector into the new bulb (of the same wattage), and follow the reverse procedure to assemble the bulb assembly in the headlight assembly |
• | Clamp the bulb assembly by wire clamp properly |
1. | Navigate to alert history page by pressing the menu button in the steering wheel switch |
2. | Ensure service reminder alert is visible in the menu |
3. | Press and hold OK button. |
4. | Turn ignition OFF and turn ON. |
5. | Release OK button after 10 seconds. |
6. | Check and ensure service reminder alert is not visible in the menu |
• | To avoid short-circuits, never insert metallic objects (for instance: coins or metallic tools) into the unit. |
• | If you notice that the unit is releasing smoke or strange smell, promptly disconnect the supply and consult the nearest or Mahindra service Center. |
• | Pay attention not to let the unit fall down, and neither beat the device strongly. Internal glass components of the unit may be damaged, making it non-operative. |
• | This system has a Capacitive type touch panel. Select the desired option in the screen using his / her finger. Do not use any sharp objects on the touch screen. On selection the selected item is highlighted as an acknowledgement. |
A: Volume Knob
|
F: Back Button
|
B: Mute/Power Button
|
G: Setting Button
|
C: Media Button
|
H: Favourite Screen Button
|
D: Phone Button
|
I: Tuner/Scroll Knob
|
E: Home Button
|
J: Select Button
|
A: Mute
|
E: Source
|
B: Volume +
|
F: SEEK UP
|
C: Volume -
|
G: SEEK DOWN
|
D: Call Connect
|
H: Voice / Call Disconnect
|
1. | Mute switch is for muting the audio playing in Infotainment |
2. | Volume control can be done with the help of this switch to increase the volume, move the switch upwards and to decrease it move the switch downwards. |
3. | Call connect is used to accept the incoming call & also it enable the driver to open the contacts list in Infotainment & make the call. |
4. | Source switch is used change the source of audio playing in the Infotainment whether USB or FM. |
5. | Toggle up/down switch can be used for toggling up/down the menu list of Infotainment. |
6. | Call Disconnect switch is used when the call is over, and the user wants to cut it then switch can be pressed. |
1. | How to connect phone via Bluetooth in Infotainment? User can connect Bluetooth using any of the below methods, in Bluetooth settings.
Add device: Kindly ensure, Mobile device should be in bluetooth settings screen to accept the connection
Bluetooth discoverability: Kindly ensure, Mobile device start scan after discoverability is turned On
|
2. | My contacts are taking time to load in IVI? Based on the Mobile device and number of contacts, loading time may vary from few seconds to few minutes
|
3. | Bluetooth Music is not playing in Infotainment? After connecting mobile device to bluetooth, user need to select his device for media in device list and then select bluetooth
music source in Infotainment to Play music.
|
4. | Few Phone Contacts are not visible in Infotainment Screen? Ensure that your phone book contacts do not have special characters before their name. If there are such contacts, please
rename them.
|
5. | I can’t Accept or decline Whatsapp call from IVI? IVI will support bluetooth phone voice call and supportability of Whatsapp, MS Team call depends on the controls provided
by Mobile device/app to Infotainment
|
6. | Next /Previous, fast forward/rewind etc. controls not working for Bluetooth music? The availability of the features/control is dependent on the Bluetooth version of phone device and music application used
in phone.
|

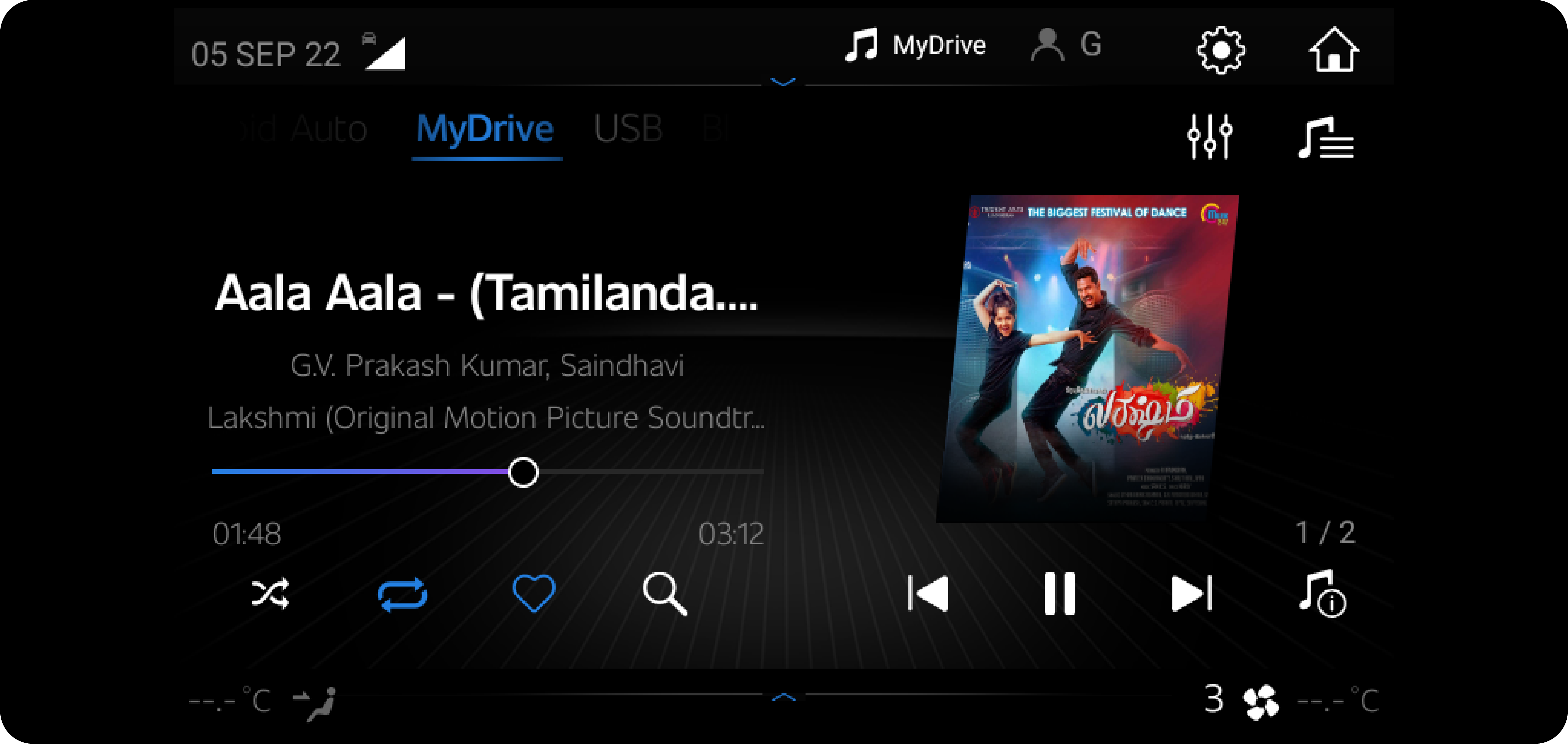

7. | While playing USB song album art not displaying? Album art will display in the screen, only if the song has album art information
|
8. | While playing songs from USB, few files are getting skipped? If the Infotainment system comes across a corrupt music track in media source, the system might skip to next music track in
the media source.
|
9. | Sources are disabled in Media menu screen? Source will be active only when device is connected e.g., for USB, Pendrive should be connected.
|
• | To avoid short-circuits, never insert metallic objects (for instance: coins or metallic tools) into the unit. |
• | If you notice that the unit is releasing smoke or strange smell, promptly disconnect the supply and consult the nearest or Mahindra service Center. |
• | Pay attention not to let the unit fall down, and neither beat the device strongly. Internal glass components of the unit may be damaged, making it non-operative. |
• | This system has a Capacitive type touch panel. Select the desired option in the screen using his / her finger. Do not use any sharp objects on the touch screen. On selection the selected item is highlighted as an acknowledgement. |
A: Volume Knob
|
F: Back Button
|
B: Mute/Power Button
|
G: Setting Button
|
C: Media Button
|
H: Favourite Screen Button
|
D: Phone Button
|
I: Tuner/Scroll Knob
|
E: Home Button
|
J: Select Button
|
A: Mute
|
E: Source
|
B: Volume +
|
F: SEEK UP
|
C: Volume -
|
G: SEEK DOWN
|
D: Call Connect
|
H: Voice / Call Disconnect
|
1. | Mute switch is for muting the audio playing in Infotainment |
2. | Volume control can be done with the help of this switch to increase the volume, move the switch upwards and to decrease it move the switch downwards. |
3. | Call connect is used to accept the incoming call & also it enable the driver to open the contacts list in Infotainment & make the call. |
4. | Source switch is used change the source of audio playing in the Infotainment whether USB or FM. |
5. | Toggle up/down switch can be used for toggling up/down the menu list of Infotainment. |
6. | Call Disconnect switch is used when the call is over, and the user wants to cut it then switch can be pressed. |
1. | How to connect phone via Bluetooth in Infotainment? User can connect Bluetooth using any of the below methods, in Bluetooth settings.
Add device: Kindly ensure, Mobile device should be in Bluetooth settings screen to accept the connection Bluetooth discoverability: Kindly ensure, Mobile device start scan after discoverability is turned On |
2. | My contacts are taking time to load in IVI? Based on the Mobile device and number of contacts, loading time may vary from few seconds to few minutes
|
3. | Bluetooth Music is not playing in Infotainment? After connecting mobile device to Bluetooth, user need to select his device for media in device list and then select Bluetooth
music source in Infotainment to Play music
|
4. | Few Phone Contacts are not visible in Infotainment Screen? Ensure that your phone book contacts do not have special characters before their name. If there are such contacts, please
rename them.
|
5. | I can’t Accept or decline WhatsApp call from IVI? IVI will support Bluetooth phone voice call and supportability of WhatsApp, MS Team call depends on the controls provided
by Mobile device/app to Infotainment
|
6. | During active call, I’m getting Navigation Prompts? During call, Navigation prompts will still come so user don’t miss any direction. User can adjust the volume of navigation
prompts as required
|
7. | Next /Previous, fast forward/rewind etc. controls not working for Bluetooth music? The availability of the features/control is dependent on the Bluetooth version of phone device and music application used
in phone
|
8. | While playing USB song album art not displaying? Album art will display in the screen, only if the song has album art information
|
9. | While playing songs from USB, few files are getting skipped? If the Infotainment system comes across a corrupt music track in media source, the system might skip to next music track in
the media source
|
10. | Date & Time in my Infotainment is Incorrect? User can Sync to GPS or manually set Date & time in settings. After selecting Sync to GPS, need to drive vehicle few Kms in
open sky to ensure proper date and time based on the time zone selected.
|
11. | Sources are disabled in QAD? Source will be active only when device is connected e. g., for USB, Pen drive should be connected.
|
12. | Can I reduce the Navigation Volume? Yes, user can adjust Navigation or other source volume, in Audio Settings
|
13. | Alexa not responding to my query? Few of the Alexa In car control commands might not work based on the vehicle variant (AC, Window, Sunroof & etc.,).
Also, Alexa might not hear your query, in case background music or noise is High.
|
14. | How to connect Alexa? Step 1: Click on the settings button in Infotainment Home Screen
Step 2: Click and open Alexa icon
Step 3:Click on the “Get started” button to get the code
Step 4:Provide sometime to system to fetch code from internet.
Step 5: Infotainment will display code to activate.
Step 6 & 7: Open mobile browser and Go to url : www.amazon.com/code and login to your amazon account(If new user please create amazon
account). Enter the code seen in the screen in the box provided and click on continue button.
Step 8:Once login is successfully user will see screen with “Done” button. Press “Done” to complete.
|
15. | What all vehicle related commands I can use for Alexa? Following are vehicle specific commands that user can use based on the vehicle variant
In car controls (Works only inside the car with or without internet connection)
|
16. | What are all different Online commands categories Alexa Support? Following are the Online command categories for Alexa (Works only with internet connection inside the car)
|
17. | How to use Mahindra Alexa custom skills for Scorpio-N? Prerequisite –
Step 1:
Step 2:
Click on ‘In-Home Alexa’ under the Settings menu
Step 3:
Step 4:
![]() Step 5:
![]() Step 6:
![]() Step 7:
![]()
Step 8:
![]() Step 9:
![]() Step 10:
Click on ‘Manage account permissions’
![]() Step 11:
![]() Step 12:
Once permissions are granted the following screen will be displayed.
![]() Step 13:
Once this is done, user can experience or use the Remote Commands through Alexa enabled devices
|
